ISO 21308-7:2018

Road vehicles - Product data exchange between chassis and body work manufacturers (BEP) - Part 7: Coding of skip loader bodywork

This document series describes a generic system for the exchange of data between truck chassis manufacturers and bodywork manufacturers. It applies to commercial vehicles as defined in ISO 3833, having a maximum gross vehicle mass above 3 500 kg. The process of exchanging the above information can involve: - chassis manufacturer; - chassis importer; - chassis dealer; - one or more bodywork manufacturers; and - bodywork component suppliers, e.g. manufacturers of demountable bodies, cranes and loading equipment, tipping equipment. This document specifically deals with the coding of dimensions and other characteristics of skip loaders, to ensure an efficient and unambiguous communication of installation data between the parties involved.

Véhicules routiers — Échange de données de produit entre les fabricants de châssis et de carrosseries (BEP) — Partie 7: Codage des multibennes

General Information

• Status: Published
• Publication Date: 03-Oct-2018
• ICS: 43.080.01 - Commercial vehicles in general
• Technical Committee: ISO/TC 22/SC 40 - Specific aspects for light and heavy commercial vehicles, busses and trailers
• Drafting Committee: ISO/TC 22/SC 40/WG 2 - Bodywork Exchange Parameters for commercial vehicles (BEP)
• Current Stage: 9060 - Close of review
• Completion Date: 04-Jun-2029

Overview

ISO 21308-7:2018 - "Road vehicles - Product data exchange between chassis and body work manufacturers (BEP) - Part 7: Coding of skip loader bodywork" defines a standardized coding system for the exchange of installation and dimensional data for skip loaders. Part of the ISO 21308 BEP (Bodywork Exchange Parameters) series, this standard targets commercial vehicles (per ISO 3833) with a maximum gross vehicle mass over 3 500 kg and enables unambiguous product data exchange between truck chassis manufacturers, bodywork makers, importers, dealers and component suppliers.

Key topics and technical requirements

• BEP coding principles: Uses structured BEP codes (example format: BEP-ppMccc.n.p.q.s.t) to identify each characteristic of the skip loader and its interfaces to the vehicle.
• Units and data types: Preferred units are specified (millimetres for dimensions, kilograms for mass, Newtons for force, degrees for angles) to ensure consistent data reporting.
• Coordinate systems: Defines both the global vehicle coordinate system (ISO 4130) and a local skip loader coordinate origin (x,y,z) tied to main arm pivot and mounting plane for precise positioning.
• Geometrical data & space requirements: Codes for installation points, distances from axles, transport/tipping/loading positions and container handling clearances.
• Container and mass coding: Parameters for container dimensions, masses and mass points in transport and working positions.
• Interfaces: Coding for mechanical, hydraulic, electrical and electronic interfaces between skip loader, chassis and container.
• XML implementation guidance: Annex A gives instructions for mapping BEP codes to XML for electronic interchange in compliance with ISO 21308-1.

Practical applications and typical users

• Skip loader manufacturers use ISO 21308-7 to encode product dimensions and interface points for accurate vehicle mounting.
• Truck chassis manufacturers, importers and dealers rely on the standard to verify fitment and to supply consistent interface specifications.
• Bodywork integrators and upfitters use BEP-coded data for CAD/CAM modeling, installation planning and to avoid fitment errors.
• Component suppliers (cranes, loading equipment, demountables) use the coding to ensure compatibility.
• Fleet engineers and systems integrators benefit from improved interoperability, reduced engineering change orders, and streamlined data exchange via BEP XML.

Related standards

• ISO 21308-1 - General principles for product data exchange (BEP)
• ISO 21308-2 - Dimensional bodywork exchange parameters
• ISO 21308-3 - General, mass and administrative exchange parameters
• ISO 4130 - Vehicle coordinate system references
• ISO 3833 - Definition of commercial vehicles

Using ISO 21308-7:2018 improves clarity and reduces installation risk by standardizing skip loader dimension and interface data for digital exchange between chassis and bodywork manufacturers.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 21308-7
First edition
2018-10
Road vehicles — Product data
exchange between chassis and body
work manufacturers (BEP) —
Part 7:
Coding of skip loader bodywork
Véhicules routiers — Échange de données de produit entre les
fabricants de châssis et de carrosseries (BEP) —
Partie 7: Codage des multibennes
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Coding principles . 4
4.1 BEP codes of bodywork for hook loaders . 4
4.2 Units of BEP code values . 4
4.3 References for measurements . 5
4.3.1 Global coordinate system (X, Y, Z) . 5
4.3.2 Skip loader coordinate system . 5
4.4 Related XML coding . 7
5 Coding of geometrical data and space requirements . 8
5.1 Installation of skip loader on vehicle . 8
5.2 Main dimensions skip loaders . 9
5.2.1 Transport position . . 9
5.2.2 Tipping position .17
5.2.3 Loading/unloading position .18
6 Coding of container dimensions and features necessary for the handling .21
7 Coding of masses .24
7.1 Mass point in transport position .24
7.2 Mass point in working position .25
7.3 Mass point for container .25
8 Coding of general skip loader data .26
8.1 General skip loader data .26
8.2 Mechanical interfaces to truck .26
8.3 Mechanical interfaces to container .26
8.4 Hydraulics equipment and interfaces .27
8.5 Electrical/electronic equipment and interfaces .27
Annex A (normative) XML coding related to this document .28
Annex B (informative) Overview of container dimension standards and specifications .30
Bibliography .31

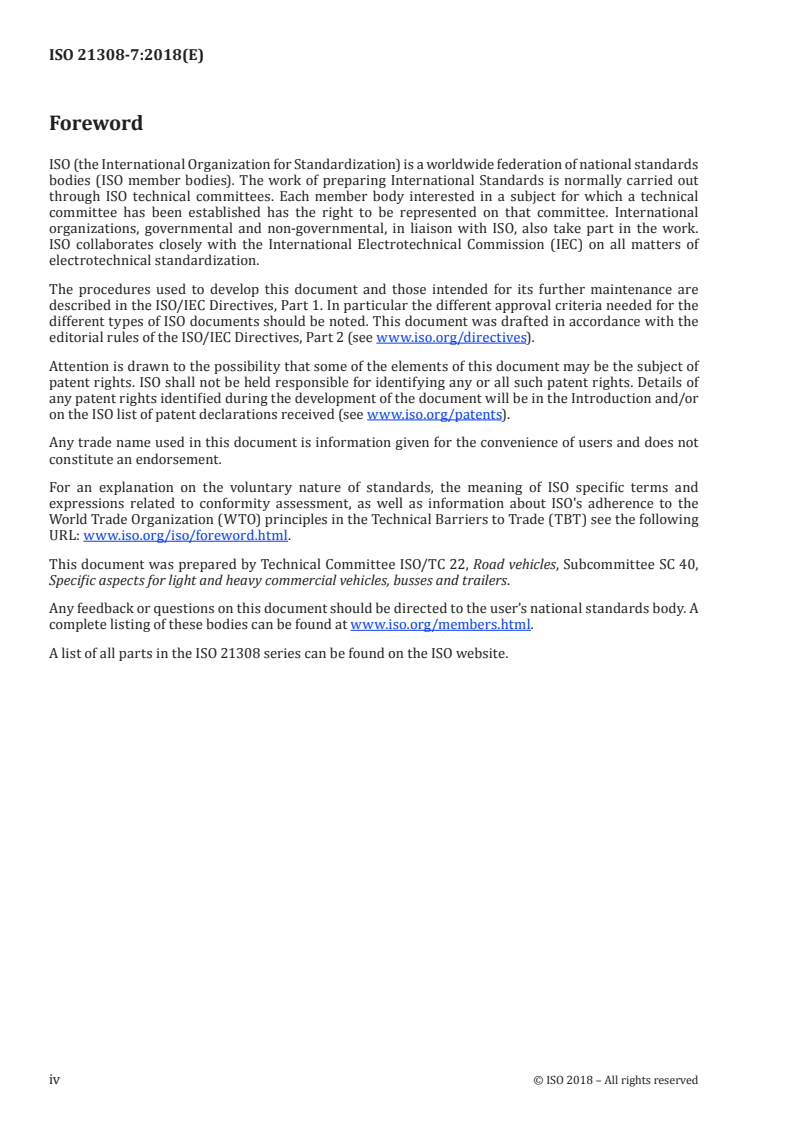

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 40,
Specific aspects for light and heavy commercial vehicles, busses and trailers.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
A list of all parts in the ISO 21308 series can be found on the ISO website.
iv © ISO 2018 – All rights reserved

Introduction
Based on the ISO BEP (bodywork exchange parameters) system, this document specifically deals with
the coding of dimensions and other characteristics of skip loaders. The aim is to ensure an efficient and
unambiguous communication of dimensional installation data between the parties involved.
The document also covers coding of characteristics of hydraulic, electrical and electronic interfaces to
the vehicle.
The document is useful for all parties involved in the installation of skip loaders to vehicles, e.g. skip
loader manufacturers, truck chassis manufacturers, and bodywork manufacturers.
INTERNATIONAL STANDARD ISO 21308-7:2018(E)
Road vehicles — Product data exchange between chassis
and body work manufacturers (BEP) —
Part 7:
Coding of skip loader bodywork
1 Scope
This document series describes a generic system for the exchange of data between truck chassis
manufacturers and bodywork manufacturers. It applies to commercial vehicles as defined in ISO 3833,
having a maximum gross vehicle mass above 3 500 kg.
The process of exchanging the above information can involve:
— chassis manufacturer;
— chassis importer;
— chassis dealer;
— one or more bodywork manufacturers; and
— bodywork component suppliers, e.g. manufacturers of demountable bodies, cranes and loading
equipment, tipping equipment.
This document specifically deals with the coding of dimensions and other characteristics of skip
loaders, to ensure an efficient and unambiguous communication of installation data between the
parties involved.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 21308-1, Road vehicles — Product data exchange between chassis and bodywork manufacturers
(BEP) — Part 1: General principles
ISO 21308-2, Road vehicles — Product data exchange between chassis and bodywork manufacturers
(BEP) — Part 2: Dimensional bodywork exchange parameters
ISO 21308-3, Road vehicles — Product data exchange between chassis and bodywork manufacturers
(BEP) — Part 3: General, mass and administrative exchange parameters
3 Terms and definitions
For the purposes of this document the terms and definitions given in ISO 21308-2 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
3.1
skip loader
vehicle mounted powered equipment comprising of two arms moving around a pivoting axis, using
chains or similar for loading, unloading and tipping containers and other demountables
Note 1 to entry: Arms are usually moving in parallel. They may be fixed, extendable or articulated.
Note 2 to entry: Figure 1 shows the main parts of a skip loader referred to in this document.
2 © ISO 2018 – All rights reserved

a)   Skip loader with extension arm
b)   Skip loader with articulation arm and extended load bed
Key
1 main arm 8 articulation arm
2 subframe 9 articulation arm pivot point
3 stabilizer leg(s) 10 load bed (hidden)
4 main arm pivot point 11 extended load bed
5 tipping hook 12 lifting chain
6 main arm cylinder 13 cabin protection guard
7 extension arm 14 lifting connector
Figure 1 — Main parts of skip loader
4 Coding principles
4.1 BEP codes of bodywork for hook loaders
Each characteristic, related to the hook loader and its interfaces to truck chassis, is assigned a code
composed of the items given below. A prefix “BEP”, followed by a dash (-), shall be used to avoid
confusion with other coding systems.
BEP codes are formatted according to the principles in Table 1.
Table 1 — BEP coding principles
BEP-ppMccc.n.p.q.s.t
Item Assignment Description
pp Bodywork category pp = None or 00 for codes related to vehicle chassis (ISO 21308-2 and
ISO 21308-3)
pp = 01 for codes related to loader cranes (ISO 21308-5)
pp = 02 for codes related to hook loaders (ISO 21308-6)
pp = 03 for codes related to skip loaders (ISO 21308-7)
Future parts of the ISO 21308 series may introduce new pp numbers.
M Measure type A capital letter, which denotes the type of code:
H = Z direction, coordinate system in accordance with ISO 4130
L = X direction, coordinate system in accordance with ISO 4130
W = Y direction, coordinate system in accordance with ISO 4130
C = Coordinate (x,y) or (x,y,z) in the Cartesian coordinate system
R = Radius
V = Angle
M = Mass (m), or mass point (m,x,y,z)
F = Force (static or dynamic)
T = Moment (static or dynamic)
G = General
A = Administrative
ccc BEP code number Code number given by the standard
.n Index number .n is used to designate object number n
.p Entity number .p is used to designate a certain set of object characteristics or entities (e.g.
dimensions, coordinates, address information)
Where both .n and .p are specified, they are given in the .n .p order.
.q Corner number .q is used to designate contour corner index number
.s Side designator L or R
.t Type designator .t is used to designate a certain type (e.g. "Rigid" or "Flexible")
NOTE Dimensions, except for radius, can be positive or negative.
4.2 Units of BEP code values
The following units are preferred when reporting values related to BEP codes (see also ISO 21308-1):
— dimensions (L, W, H, R) and coordinates (x, y, z) in millimetres (mm);
— masses in kilograms (kg);
4 © ISO 2018 – All rights reserved

— forces in Newtons (N), or kN;
— moments in Newtonmetres (Nm), or kNm; and
— angles in degrees (°).
NOTE Guidance on units is shown in the unit column for each BEP code.
4.3 References for measurements
4.3.1 Global coordinate system (X, Y, Z)
A vehicle coordinate system according to ISO 4130 is applied, see Figure 2. Global coordinates for the
vehicle are denominated X, Y and Z (uppercase letters).
Figure 2 — Vehicle coordinate system according to ISO 4130
4.3.2 Skip loader coordinate system
For a default mounting position, the principle should be that the skip loader coordinate directions
should coincide with those of the vehicle. Local bodywork coordinates are denominated x, y and z
(lowercase letters), see Figure 3.
Figure 3 — Local coordinate system for skip loader
The origin of the coordinate system for a skip loader (referred to as zero reference point in this
document) is defined by:
— Local x = 0 for the plane through the centre of the main arm pivot point;
— Local y = 0 for the longitudinal plane through the centreline of the skip loader;
6 © ISO 2018 – All rights reserved

— Local z = 0 at the lower mounting plane of the skip loader subframe.
4.4 Related XML coding
Any XML implementation for the communication of BEP codes shall follow the requirements given in
ISO 21308-1. The XML coding related to this document shall be written according to the indications in
Annex A.
5 Coding of geometrical data and space requirements
5.1 Installation of skip loader on vehicle
BEP-code Assignment Description Unit Presented in
BEP-03L001 Front axle to Distance from the centre of the first front axle to mm 2D, 3D, TD
zero point of skip the zero reference point of the skip loader.
loader
BEP-03L002.p.s.t Distance between Fixed distance, or minimum distance, from the mm 2D, 3D, TD
zero reference zero reference point to the centre of interface of
point and instal- the installation interface p of the skip loader.
lation interface
NOTE 1  If the installation interfaces are not sym-
bracket, minimum
metrical, different values for right and left hand
side apply, marked with .R or .L.
NOTE 2  The method of installation is defined in dif-
ferent types (t), specified e.g. "Rigid" or "Flexible".
NOTE 3  If L003 exists, L002 is the minimum dis-
tance, otherwise it is the fixed distance.
EXAMPLE  BEP-03L002.3.L.Rigid.
BEP-03L003.p.s Maximum dis- Maximum distance from the zero reference point mm 2D, 3D, TD
tance between to the centre of interface of the installation inter-
zero reference face p of the skip loader.
point and instal-
NOTE 1  If the installation interfaces are not sym-
lation interface
metrical, different values for right and left hand
bracket
side apply, marked with .R or .L.
NOTE 2  If L002 is a fixed distance, L003 is omitted.
BEP-03L004.p.s Distance between Distance from the zero reference point to the first mm 2D, 3D, TD
zero reference (index) hole of the installation interface p of the
point and installa- skip loader.
tion interface hole
8 © ISO 2018 – All rights reserved

5.2 Main dimensions skip loaders
5.2.1 Transport position
BEP-code Assignment Description Unit Presented in
BEP-03L020 Distance Horizontal distance between zero reference mm 2D, 3D, TD
between zero point and rear end of skip loader platform,
reference excluding support legs.
point and rear-
most point,
excluding sup-
port legs
BEP-03L021 Distance Horizontal distance between zero reference mm 2D, 3D, TD
between zero point and rear end of skip loader, including sup-
reference point port legs.
and rearmost
point, including
support legs
BEP-03L022 Distance to Distance between zero reference point and mm 2D, 3D, TD
frontmost frontmost part of the skip loader platform.
platform part
BEP-03L023 Cabin protec- Distance between frontmost part of the skip mm 2D, 3D, TD
tion guard loader platform and the frontmost part of the
cabin protection guard.
BEP-03L024 Distance to Distance between zero reference point and mm 2D, 3D, TD
skip loader frontmost part of the skip loader flange.
flange
BEP-code Assignment Description Unit Presented in
BEP-03L025 Distance to Distance from rear end of skip loader to maxi- mm 2D, 3D, TD
extended load mum extended load bed position.
bed position
NOTE  For use with extendable load beds.
10 © ISO 2018 – All rights reserved

BEP-code Assignment Description Unit Presented in
BEP-03H020 Distance to Vertical distance between mounting plane and mm 2D, 3D, TD
main arm the centre of the main arm pivot point.
pivot point
BEP-03H021 Overall height Vertical distance between mounting plane and mm 2D, 3D, TD
in transport the highest point of the skip loader in nominal
position transport po
...
