ISO/TS 16943:2019

Thermoplastic pipes for the conveyance of fluids - Inspection of polyethylene electrofusion socket joints using phased array ultrasonic testing

This document describes the phased array ultrasonic testing (PAUT) of polyethylene electrofusion (EF) socket joints used for the conveyance of fluids. This document provides a test whereby the presence of imperfections such as voids, wire dislocation, misalignment, pipe under-penetration, particulate contamination, cold fusion and lack of fusion in electrofusion socket joints can be detected. The technique is only applicable to polyethylene electrofusion socket fittings without a barrier to ultrasonic waves. This document also provides requirements for procedure qualification and guidance for personnel qualifications, which are essential for the application of this test method NOTE 1 At the time of publication, experience only exists on the use of PAUT for polyethylene (PE80 and PE100) electrofusion socket joint sizes between 90 mm and 710 mm (SDR 11 and 17)[7][8][9][10][11][12][13]. NOTE 2 Round robin testing has shown that PAUT is a viable method for enhancing the integrity assessment of electrofusion joints[16]. NOTE 3 This document does not apply to the detection of unscraped pipe. Such detection can be achieved by a simple visual inspection, provided mechanical scraping tools are employed.

Tubes en matières thermoplastiques pour le transport des fluides — Contrôle des assemblages par emboîtures électrosoudables en polyéthylène au moyen de la technique par ultrasons multi-éléments

General Information

• Status: Withdrawn
• Publication Date: 03-Dec-2019
• ICS: 23.040.20 - Plastics pipes
• Technical Committee: ISO/TC 138/SC 5 - General properties of pipes, fittings and valves of plastic materials and their accessories -- Test methods and basic specifications
• Drafting Committee: ISO/TC 138/SC 5/WG 17 - Alternative test methods
• Current Stage: 9599 - Withdrawal of International Standard
• Start Date: 09-Nov-2023
• Completion Date: 13-Dec-2025

Relations

• Revised: ISO/TS 16943:2023 - Thermoplastic pipes for the conveyance of fluids - Inspection of polyethylene electrofusion socket joints using phased array ultrasonic testing
• Effective Date: 06-Jun-2022

Standards Content (Sample)

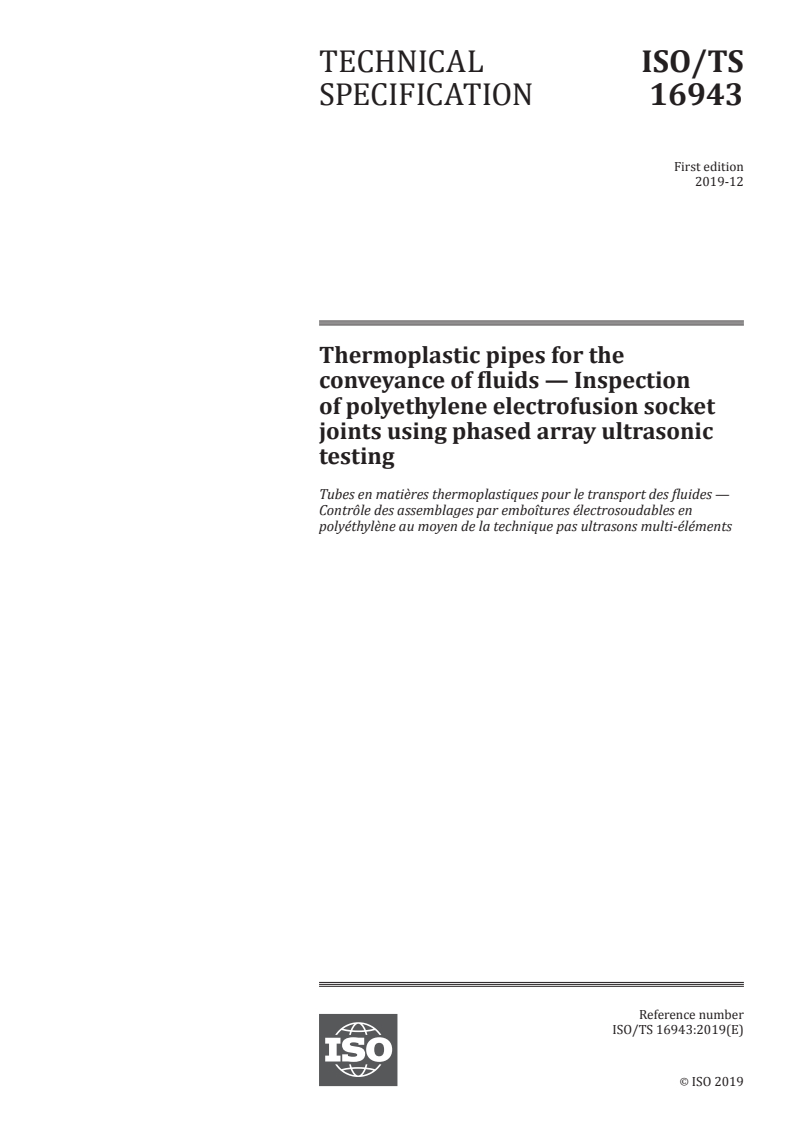

TECHNICAL ISO/TS
SPECIFICATION 16943
First edition
2019-12
Thermoplastic pipes for the
conveyance of fluids — Inspection
of polyethylene electrofusion socket
joints using phased array ultrasonic
testing
Tubes en matières thermoplastiques pour le transport des fluides —
Contrôle des assemblages par emboîtures électrosoudables en
polyéthylène au moyen de la technique pas ultrasons multi-éléments
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

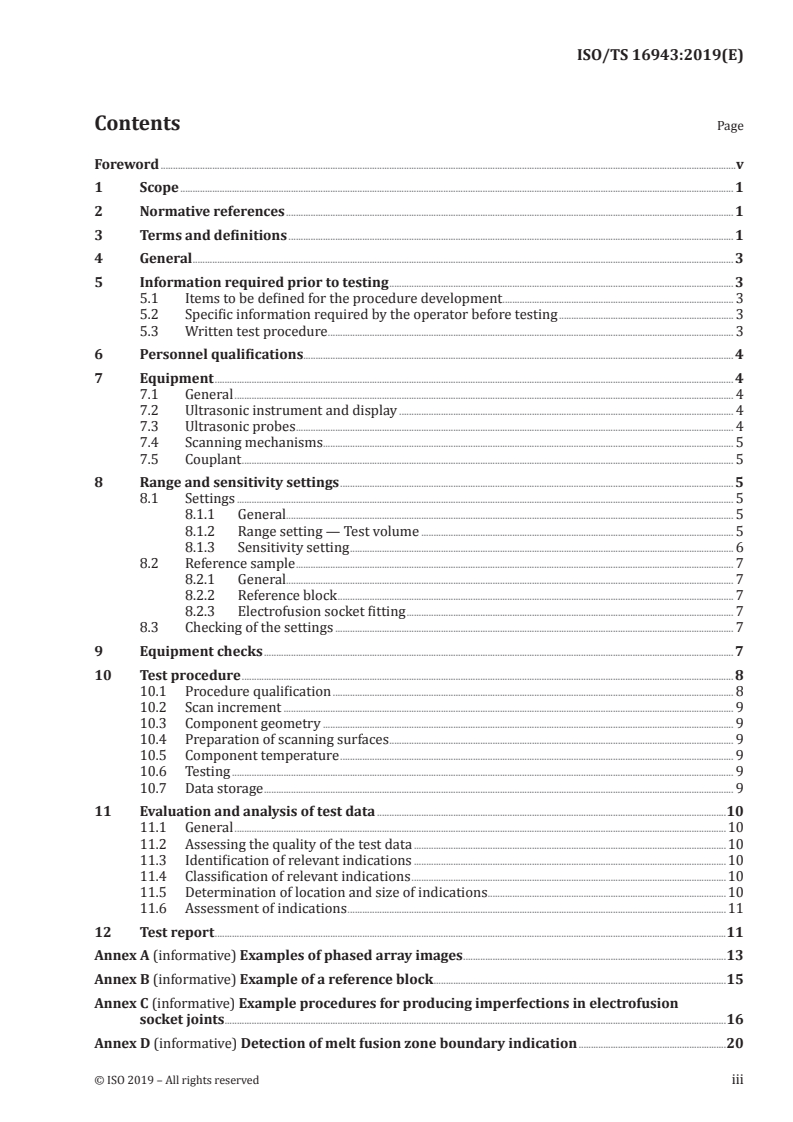

Contents Page
Foreword .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General . 3
5 Information required prior to testing . 3
5.1 Items to be defined for the procedure development . 3
5.2 Specific information required by the operator before testing . 3
5.3 Written test procedure . 3
6 Personnel qualifications. 4
7 Equipment . 4
7.1 General . 4
7.2 Ultrasonic instrument and display . 4
7.3 Ultrasonic probes . 4
7.4 Scanning mechanisms. 5
7.5 Couplant . 5
8 Range and sensitivity settings . 5
8.1 Settings . 5
8.1.1 General. 5
8.1.2 Range setting — Test volume . 5
8.1.3 Sensitivity setting . 6
8.2 Reference sample . 7
8.2.1 General. 7
8.2.2 Reference block . 7
8.2.3 Electrofusion socket fitting . 7
8.3 Checking of the settings . 7
9 Equipment checks . 7
10 Test procedure . 8
10.1 Procedure qualification . 8
10.2 Scan increment . 9
10.3 Component geometry . 9
10.4 Preparation of scanning surfaces . 9
10.5 Component temperature . 9
10.6 Testing . 9
10.7 Data storage . 9
11 Evaluation and analysis of test data .10
11.1 General .10
11.2 Assessing the quality of the test data .10
11.3 Identification of relevant indications .10
11.4 Classification of relevant indications .10
11.5 Determination of location and size of indications .10
11.6 Assessment of indications .11
12 Test report .11
Annex A (informative) Examples of phased array images .13
Annex B (informative) Example of a reference block .15
Annex C (informative) Example procedures for producing imperfections in electrofusion
socket joints.16
Annex D (informative) Detection of melt fusion zone boundary indication .20

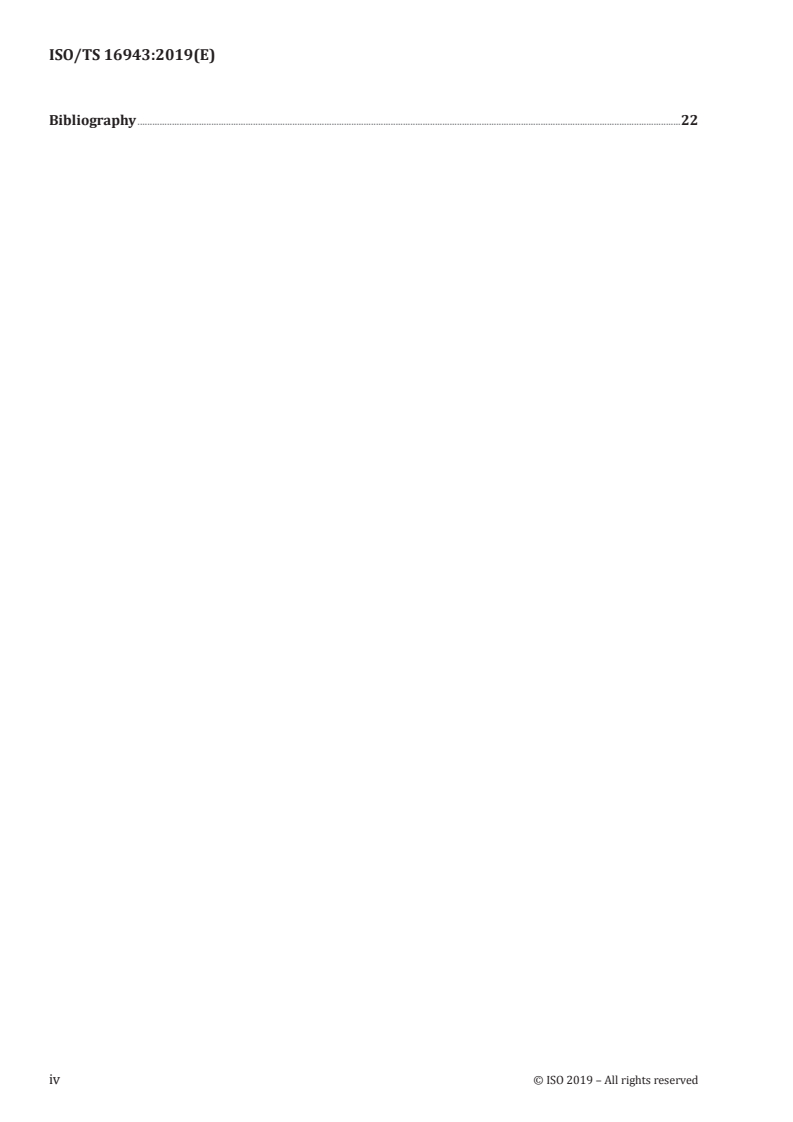

Bibliography .22
iv © ISO 2019 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 138, Plastics pipes, fittings and valves
for the transport of fluids, Subcommittee SC 5, General properties of pipes, fittings and valves of plastic
materials and their accessories — Test methods and basic specifications.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
TECHNICAL SPECIFICATION ISO/TS 16943:2019(E)
Thermoplastic pipes for the conveyance of fluids —
Inspection of polyethylene electrofusion socket joints
using phased array ultrasonic testing
1 Scope
This document describes the phased array ultrasonic testing (PAUT) of polyethylene electrofusion (EF)
socket joints used for the conveyance of fluids. This document provides a test whereby the presence
of imperfections such as voids, wire dislocation, misalignment, pipe under-penetration, particulate
contamination, cold fusion and lack of fusion in electrofusion socket joints can be detected. The
technique is only applicable to polyethylene electrofusion socket fittings without a barrier to ultrasonic
waves. This document also provides requirements for procedure qualification and guidance for
personnel qualifications, which are essential for the application of this test method
NOTE 1 At the time of publication, experience only exists on the use of PAUT for polyethylene (PE80 and
[7][8][9][10][11][12][13]
PE100) electrofusion socket joint sizes between 90 mm and 710 mm (SDR 11 and 17) .
NOTE 2 Round robin testing has shown that PAUT is a viable method for enhancing the integrity assessment
[16]
of electrofusion joints .
NOTE 3 This document does not apply to the detection of unscraped pipe. Such detection can be achieved by a
simple visual inspection, provided mechanical scraping tools are employed.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 5577, Non-destructive testing — Ultrasonic testing — Vocabulary
ISO 13954, Plastics pipes and fittings — Peel decohesion test for polyethylene (PE) electrofusion assemblies
of nominal outside diameter greater than or equal to 90 mm
ISO 13955, Plastics pipes and fittings — Crushing decohesion test for polyethylene (PE) electrofusion
assemblies
ISO 23243, Non-destructive testing — Terminology — Terms used in ultrasonic testing with phased arrays
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 5577, ISO 23243 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
cold fusion
insufficient joint integrity caused by the incomplete intermolecular diffusion of polymer chains for
proper molecular entanglement at the joint interface due to reasons other than contamination, which
does not create any non-destructive testing indication(s) at the joint interface
3.2
lack of fusion
absence of intermolecular diffusion of polymer chains for molecular entanglement at the interface,
resulting in a non-destructive testing indication at the joint interface
3.3
pipe under-penetration
incomplete penetration of the pipe into the electrofusion socket
3.4
melt fusion zone
MFZ
zone containing the fusion interface and having boundaries either side of the interface which reflect the
limits of crystalline melting during the electrofusion socket jointing process
Note 1 to entry: The melt fusion zone is shown in Figure 1.
3.5
misalignment
angular offset between the axis of the electrofusion socket fitting and the axis of the pipe
3.6
particulate contamination
fine particles (e.g. airborne dust) or coarse particles (e.g. sand and grit) that are present at the fusion
interface
3.7
void
empty space (or air pocket) in an electrofusion socket joint
3.8
wire dislocation
displacement of heating wires from their original position in the fitting
3.9
phased array image
one-, two-, or three-dimensional display, constructed from the phased array data
3.10
phased array set-up
probe arrangement defined by probe characteristics (e.g. frequency, probe element size, beam angle,
wave mode), probe position and the number of probes
3.11
probe position
axial and radial position of the probe with respect to the heating wire coil in the electrofusion socket joint
3.12
scan increment
distance between successive data collection points in the direction of scanning
3.13
false call
reporting an imperfection when none exists
3.14
electrofusion socket fitting
part containing one or more integral heating elements that are capable of converting electrical energy
to heat to make a joint between pipes
2 © ISO 2019 – All rights reserved

3.15
electrofusion socket joint
fused combination of one or more pipe components using an electrofusion socket fitting
3.16
fusion zone
one side of an electrofusion socket joint
Note 1 to entry: There are two fusion zones in a straight joint.
4 General
This document covers the equipment, the preparation and performance of the test and the reporting
for polyethylene electrofusion socket joints. The assessment of ultrasonic indications and acceptance
criteria are not covered in this document.
This document can be used to draft a detailed procedure for phased array ultrasonic testing of
polyethylene electrofusion socket joints.
5 Information required prior to testing
5.1 Items to be defined for the procedure development
Information on the following items is required:
a) purpose and extent of testing;
b) reference sample;
c) requirements for getting access to the electrofusion socket joints, the surface condition of the pipe
and the temperature range;
d) personnel qualifications;
e) reporting requirements;
f) manufacturing or operation stage of electrofusion socket joints at which the testing is to be
carried out.
5.2 Specific information required by the operator before testing
Before any testing of an electrofusion socket joint begins, the operator shall have access to all the
information as specified in 5.1 together with the following additional information:
a) written test procedure;
b) all relevant pipe and fitting dimensions.
5.3 Written test procedure
For all testing a written test procedure is required. This test procedure shall include at least the
following information:
a) purpose and extent of testing;
b) reference sample;
c) requirements for access to the electrofusion socket joints, surface conditions and temperature;
d) personnel qualifications;
e) reporting requirements;
f) equipment requirements and settings (including but not limited to frequency, sampling rate, pitch
between elements and elements size);
g) evaluation of indications;
h) environmental and safety issues;
i) documented testing strategy or scan plan.
NOTE The testing strategy gives information on the probe placement, movement and component coverage
that provides a standardized and repeatable methodology for fusion joint testing. The scan plan gives information
on the volume tested for each electrofusion socket joint.
6 Personnel qualifications
Personnel performing testing in accordance with this document shall be qualified to an appropriate
level in accordance with ISO 9712 or an equivalent standard in the relevant industrial sector.
In addition to a general knowledge of ultrasonic testing, the operators shall be familiar with and have
practical experience in the use of phased array systems. Specific theoretical and practical training
and examination of personnel shall be performed on representative polyethylene electrofusion socket
joints containing natural or artificial reflectors similar to those expected in the field. These training
and examination results shall be documented.
7 Equipment
7.1 General
In selecting the system components (hardware and software), ISO 13588 and ISO/TS 16829 provide
useful information.
Ultrasonic equipment used for phased array testing should comply with the requirements of
ISO 18563-1, ISO 18563-2 and ISO 18563-3 when applicable.
The complete equipment (i.e. ultrasonic instrument, probe, cables and display monitor) shall be capable
of the repetition of test results.
7.2 Ultrasonic instrument and display
The instrument shall be capable of selecting an appropriate portion of the time base within which
A-scans are digitized. It is recommended that the sampling rate of the A-scan should be at least six
times the nominal probe frequency. The instrument and display shall achieve a resolution capable of
identifying each heating wire individually.
7.3 Ultrasonic probes
Only longitudinal wave modes are feasible for polyethylene.
Any type of phased array probe can be used if it satisfies the requirements of Clause 8 with the phased
array equipment.
The most suitable ultrasonic probe frequency should be selected in accordance with the thickness of
the electrofusion socket fitting. Table 1 shows recommended frequencies for each thickness range of
the electrofusion socket fitting. However, the optimal frequency can be shifted up or down depending
on the attenuation and thickness of the sample to be tested.
4 © ISO 2019 – All rights reserved

Table 1 — Selection of probe frequency
Recommended frequency Fitting wall thickness
MHz mm
3,5 30 - 50
5,0 10 - 50
7,5 10 – 30
NOTE In general, higher frequencies provide better resolution and lower frequencies provide better
penetration.
7.4 Scanning mechanisms
To achieve consistency of the images (collected data), guiding mechanisms and scan encoder(s) shall
be used.
NOTE Space and accessibility conditions can require specialty encoded scanners to facilitate the inspection.
7.5 Couplant
In order to generate proper images, a couplant should be used which provides a constant transmission
of ultrasound between the probe and the material. The same couplant used for calibration shall be used
for the testing.
NOTE Any couplant used needs to be cleaned off after testing.
8 Range and sensitivity settings
8.1 Settings
8.1.1 General
Setting of range and sensitivity shall be carried out prior to each testing period in accordance with this
document. Any change of the phased array set-up (e.g. probe position and steering parameters) will
require a new setting. The set-up should be optimized on the reference reflectors to give a minimum
signal-to-noise ratio minimum of 6 dB.
8.1.2 Range setting — Test volume
The range in the depth direction shall cover at least the melt fusion zone above the plane of the heating
wires and the same distance below. If the position of the melt fusion zone is unknown, at least half of
the thickness of the electrofusion socket fitting above and below the plane of the heating wires shall
be used (See Figure 2). When feasible, the range monitored may be extended from the probe-fitting
interface and include the inside surface of the pipe.
The range in the axial direction shall cover the nominal length of the fusion zone, which is the expected
fusion length indicated by the aligned heating wires.
The range in the circumferential direction shall include the full circumference. Areas not tested due to
obstacles (e.g. fusion indicators and connectors) shall be reported.
Key
1 electrofusion socket fitting
2 MFZ boundary
3 heating wire
4 pipe
NOTE Image source: Reference [14].
Figure 1 — Photograph of MFZ
Key
1 electrofusion socket fitting
2 MFZ boundary
3 heating wire
4 test area
5 pipe
Figure 2 — Test area with known MFZ (top) and unknown MFZ (bottom)
8.1.3 Sensitivity setting
After selection of the scanning technique, the following steps shall be taken using the same focusing,
coupling and wedge or delay-line conditions for calibrating reference sensitivity as used for
electrofusion socket joint testing.
a) Equalize the response for each delay law on a side-drilled hole (SDH) at the depth of interest.
Ensure that the difference between each delay la
...
