Overview

ISO 25902-1:2009 defines an eddy‑current non‑destructive testing (NDT) method for detecting flaws in titanium seamless and welded tubes (including titanium alloys). It targets quality assurance for titanium tubes used in critical heat‑exchange applications - the standard text specifically cites use in steam surface condensers for steam‑power plants, “anatomic‑power plants” (as printed in the document) and desalination plants. The standard sets requirements for equipment, reference pieces, test procedures, acceptance criteria and reporting.

Key topics and requirements

• Applicable dimensions: tubes with outside diameter 10–150 mm and wall thickness 0.3–10 mm are covered; the standard highlights that detection sensitivity varies with outside diameter and uses a 38.1 mm division when specifying reference standards.
• Test method: encircling (concentric) test coil of self‑comparison type; eddy‑current frequencies from 1 kHz to 512 kHz - select a frequency that detects the chosen reference standard.
• Reference standards: two classes - rectangular groove (N) and drilled hole (D). Materials and surface condition of the reference piece must match the tubes under test. Dimensions and tolerances for grooves/holes are specified and used for instrument sensitivity setting.
• Apparatus & verification: eddy‑current instrument (oscillator, signal processor, display/recorder), tube feed device, automatic alarm/recorder. Performance verification and periodic checks are required (see ISO 15548‑1 for instrument verification).
• Sensitivity & adjustment: instrument sensitivity adjusted so the reference standard gives about 50% of the recorder scale; sensitivity confirmation at least every 4 hours, after interruptions or at end of operations.
• Acceptance criteria: tube is accepted if no signals equal to or greater than the reference‑standard signal are detected, except for benign signals from straightening marks, ring marks, rough surface, dents, or similar harmless features.
• Reporting: date, inspector, tube grade, dimensions, equipment, reference standards used, test coil and frequency, detection conditions (feed speed, sensitivity, phase) and results.

Applications and users

Who uses ISO 25902-1:2009:

• NDT technicians and inspection engineers in tube manufacturing
• Quality managers and purchasers specifying acceptance for titanium heat‑exchanger tubing
• Third‑party inspection bodies and plant operators (power plants, desalination plants)
• Designers and maintenance teams responsible for condenser and piping integrity

Related standards

• ISO 25902‑2 - Titanium pipes and tubes, Part 2: Ultrasonic examination (complements eddy‑current testing for longitudinal flaw detection)
• ISO 15548‑1 - Equipment verification for eddy‑current instruments (normative reference)

Keywords: ISO 25902-1:2009, eddy-current examination, titanium pipes and tubes, non-destructive testing, titanium tube inspection, reference standards, NDT, condenser tubing.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 25902-1
First edition
2009-02-01
Titanium pipes and tubes —
Non-destructive testing —
Part 1:
Eddy-current examination
Canalisations et tubes en titane — Essai non destructif —
Partie 1: Contrôle par courants de Foucault

Reference number
©
ISO 2009
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved

Contents Page
Foreword .iv
1 Scope.1
2 Normative reference.1
3 Terms and definitions .1
4 General .2
4.1 Applicable dimension range.2
4.2 Summary of examination method.2
4.3 Personnel .2
5 Apparatus.2
6 Reference piece .3
6.1 Purpose .3
6.2 Materials .3
6.3 Reference standards .3
6.4 Fabrication of reference standards .5
6.5 Number and interval of reference standards.5
7 Test method .5
7.1 Test frequency .5
7.2 Test coil .5
7.3 Settings.5
7.4 Confirmation of sensitivity of eddy-current test instrument .7
8 Acceptance criteria .7
9 Test report.8

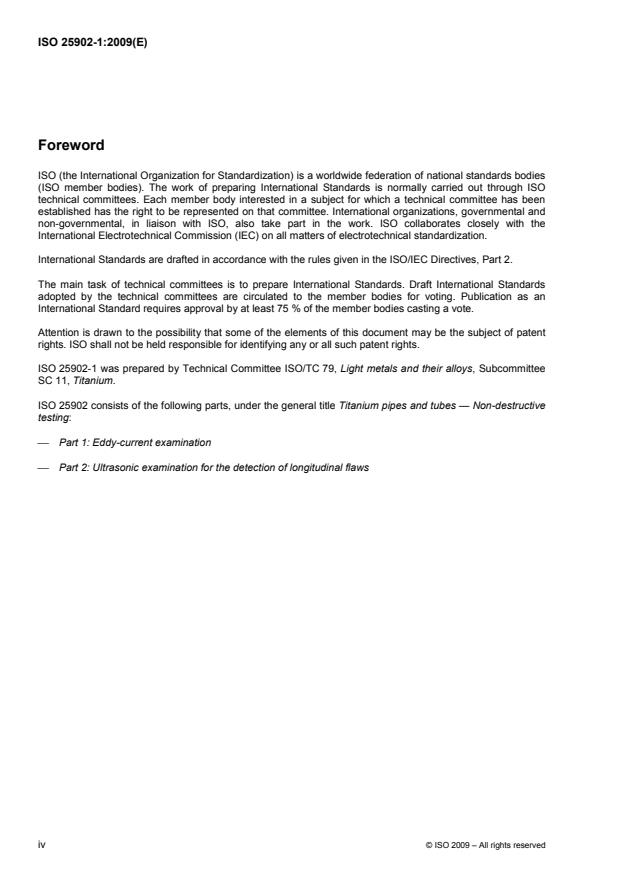

Foreword
