ISO/TR 25295:2025

Footwear — Global last measurement systems

This document contains the sizing of last systems for daily wear footwear including casual footwear, sports footwear and rain footwear.

Chaussures — Systèmes de mesurage de la forme à l'échelle mondiale

General Information

• Status: Published
• Publication Date: 07-Jul-2025
• ICS: 61.060 - Footwear
• Technical Committee: ISO/TC 137 - Footwear sizing designations and marking systems
• Drafting Committee: ISO/TC 137 - Footwear sizing designations and marking systems
• Current Stage: 6060 - International Standard published
• Start Date: 08-Jul-2025
• Completion Date: 08-Jul-2025

Standards Content (Sample)

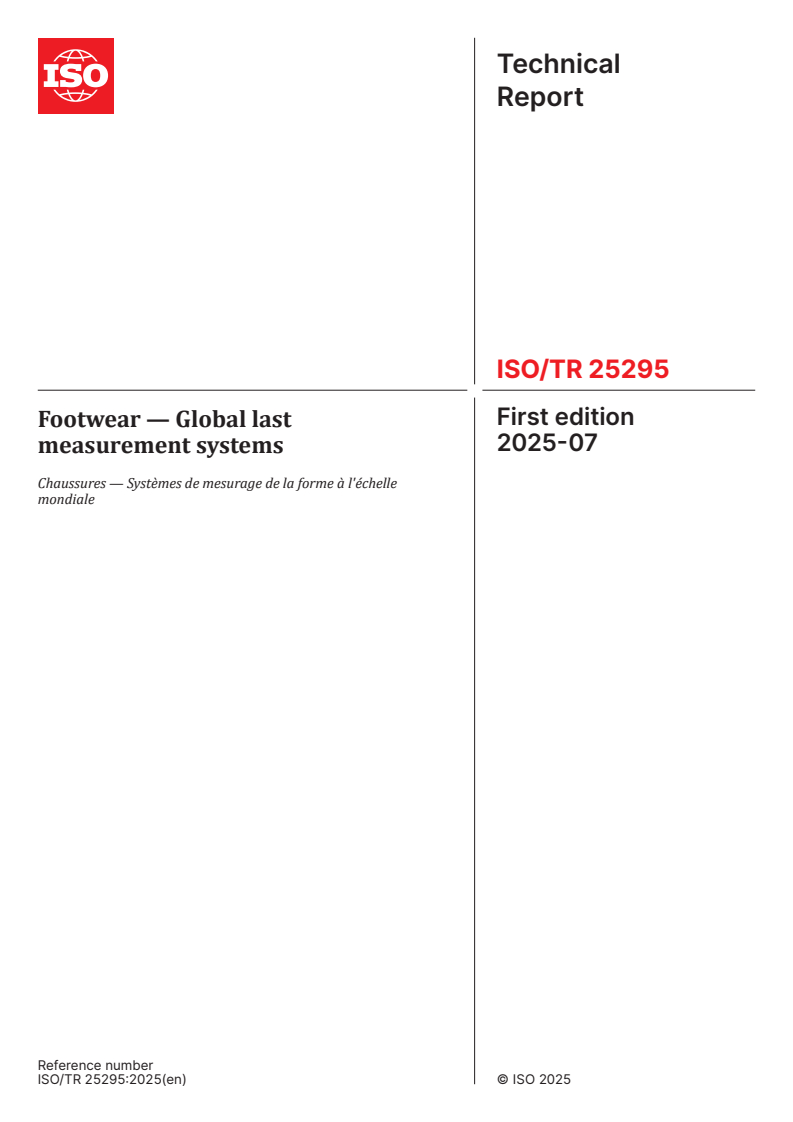

Technical
Report
ISO/TR 25295
First edition
Footwear — Global last
2025-07
measurement systems
Chaussures — Systèmes de mesurage de la forme à l'échelle
mondiale
Reference number
© ISO 2025
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Classification . 1
5 Last dimensions . 2
5.1 Last dimensions measurement .2
5.2 Interval of last dimensions .2
5.2.1 Length grading interval .2
5.2.2 Ball girth grading interval .2
5.2.3 Width grading interval .2
5.2.4 Heel height grading interval .2
5.3 Regular and variable reference dimensions .2
5.4 Back of last .3
5.5 Design allowance .3
6 Last systems . 3
6.1 General .3
6.2 Last system for men footwear .3
6.3 Last system for women footwear .8
6.4 Last system for children’s footwear . 15
6.5 Last system for professional sport footwear . 20
6.6 Last system for rain footwear. 25
6.7 Last system for safety footwear . 28
Bibliography .31

iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO’s adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 137, Footwear sizing designations and marking
systems.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
Lasts are the base for footwear production. Standardization related to lasts can guide and regulate the
design and production of lasts, thereby improving the fitting and comfort of footwear products.
This document includes partial information obtained from a survey carried out based on the Chinese
population in relation to GB/T 3293, the Chinese standard on lasts, which has undergone two revisions and
has been implemented for over 40 years.
This technical report not only allows footwear traders, manufacturers, and other stakeholders from various
countries to understand the last system, but also strengthens communication and cooperation in the design
and standardization of lasts.
v
Technical Report ISO/TR 25295:2025(en)
Footwear — Global last measurement systems
1 Scope
This document contains the sizing of last systems for daily wear footwear including casual footwear, sports
footwear and rain footwear.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 19408, Footwear — Sizing — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 19408 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
reference last
last with dimensions as reference size
3.2
last system
complete sizing system of lasts that is set by increasing or reducing with the specified interval based on the
dimension of reference last (3.1)
3.3
regular reference dimensions
sizes that cannot be changed, such as the key points on the last bottom and ball girth
3.4
variable reference dimensions
dimensions other than the regular reference dimensions (3.3)
4 Classification
Footwear size can be classified according to Table 1. For each classification, reference sizes are given.

Table 1 — Footwear size with heel height classification
Dimensions in millimetres
Footwear size
Classification Common size Heel height of last
Special size
Size range Reference size
Infants 90 to 125 110 − −
Toddlers 130 to 170 150 − −
Children’s footwear
Young children 175 to 205 190 − −
Older children 210 to 250 225 Over 250 −
Flat ≤ 25
Women 215 to 250 235 Over 250 Middle 30 to 50
High 55 to 80
Adults’ footwear
Flat ≤ 20
Men 235 to 275 255 Over 275 Middle 25 to 35
High 40 to 50
5 Last dimensions
5.1 Last dimensions measurement
Measurement of last dimensions can be carried out according to ISO 19409.
5.2 Interval of last dimensions
5.2.1 Length grading interval
In practice, 10 mm intervals are commonly referred to as whole sizes, and 5 mm intervals as half sizes.
5.2.2 Ball girth grading interval
In practice, 7 mm intervals are commonly referred to as whole sizes, and 3,5 mm intervals as half sizes.
5.2.3 Width grading interval
In practice, 7 mm intervals are commonly referred to as whole sizes, and 3,5 mm intervals as half sizes.
5.2.4 Heel height grading interval
In practice, 5 mm intervals are commonly referred to as height grading, starting at 20 mm for men last and
at 25 mm for women last.
5.3 Regular and variable reference dimensions
5.3.1 The lengths of key points on the last bottom and ball girth are regular reference dimensions.
5.3.2 The widths of key points on the last bottom (including inner width of big toe, outer width of little
toe, inner width of first metatarsal, outer width of fifth metatarsal, tread width of heel, etc.) are regular
reference dimensions, but half size up or down is allowed based on the width reference dimensions, that is,
the width of each part on the last bottom can be set at any value within the range of plus or minus half size.
5.3.3 The other dimensions of the last are variable.

5.4 Back of last
Regardless of style of toe design, the dimension of back of last behind the ball girth can remain unchanged
for a last with the same type and same heel height.
5.5 Design allowance
5.5.1 Based on regular reference dimensions of the various length, girth and width on a last with the same
footwear size and type, the design allowance can be added to the toe allowance.
5.5.2 The design can be based on regular and variable reference dimensions and other dimensions to
achieve comfort and aesthetics of the footwear.
5.5.3 Design allowance can be variable as long as it does not affect wearing, but this does not apply to
safety footwear and children’s footwear.
6 Last systems
6.1 General
This clause contains the last systems for men, women and children footwear, and for different footwear types.
6.2 Last system for men footwear
The dimensions of reference last for men footwear are given in Table 2 and Table 3.

Table 2 — Reference last dimensions of men footwear (lace-up footwear, tongue-type footwear and high-cut footwear)
Dimensions in millimetres
Reference last dimensions
Lace-up footwear Tongue-type footwear High-cut footwear
Last dimensions
255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5) 255 (2,5)
Size Interval Size Interval Size Interval Size Interval Size Interval Size Interval
Last bottom length 270,0 ±5,0 270,0 ±5,0 270,0 ±5,0 270,0 ±5,0 270,0 ±0,5 270,0 ±0,5
Toe allowance 20,4 ±0,4 20,4 ±0,4 20,4 ±0,4 20,4 ±0,4 20,4
...

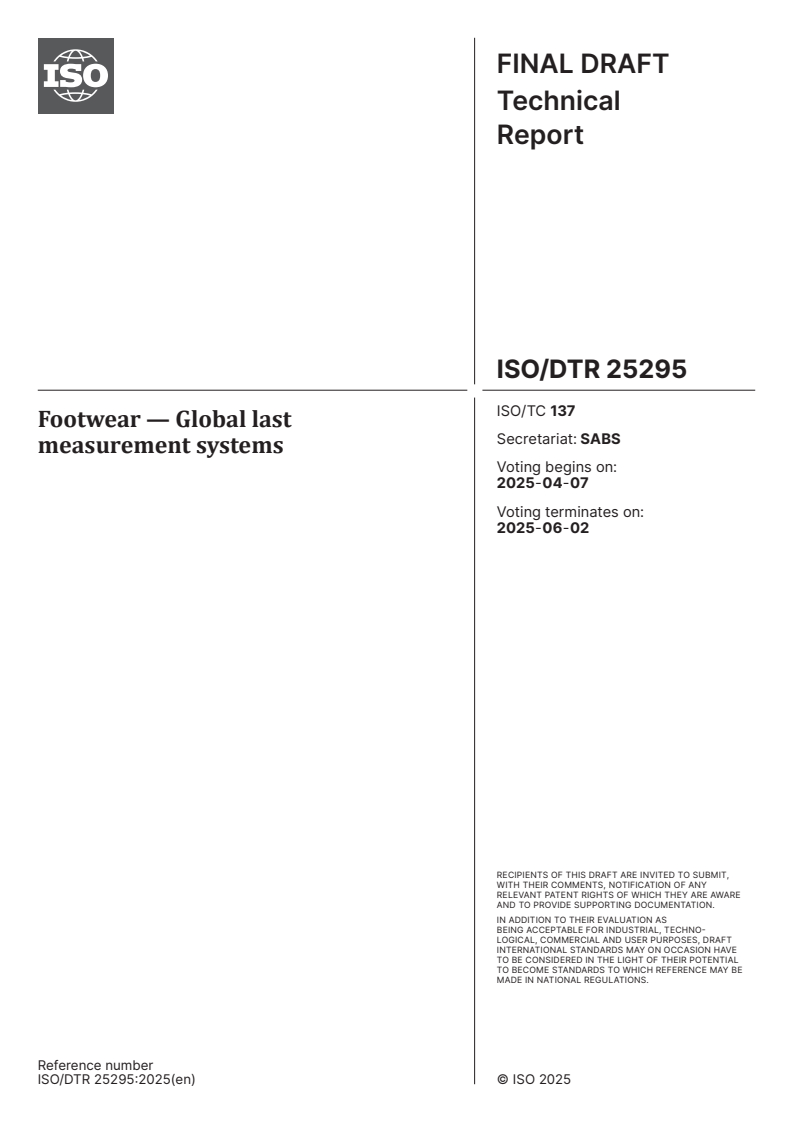

FINAL DRAFT
Technical
Report
ISO/DTR 25295
ISO/TC 137
Footwear — Global last
Secretariat: SABS
measurement systems
Voting begins on:
2025-04-07
Voting terminates on:
2025-06-02
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/DTR 25295:2025(en) © ISO 2025

FINAL DRAFT
ISO/DTR 25295:2025(en)
Technical
Report
ISO/DTR 25295
ISO/TC 137
Footwear — Global last
Secretariat: SABS
measurement systems
Voting begins on:
Voting terminates on:
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO 2025
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland Reference number
ISO/DTR 25295:2025(en) © ISO 2025

ii
ISO/DTR 25295:2025(en)

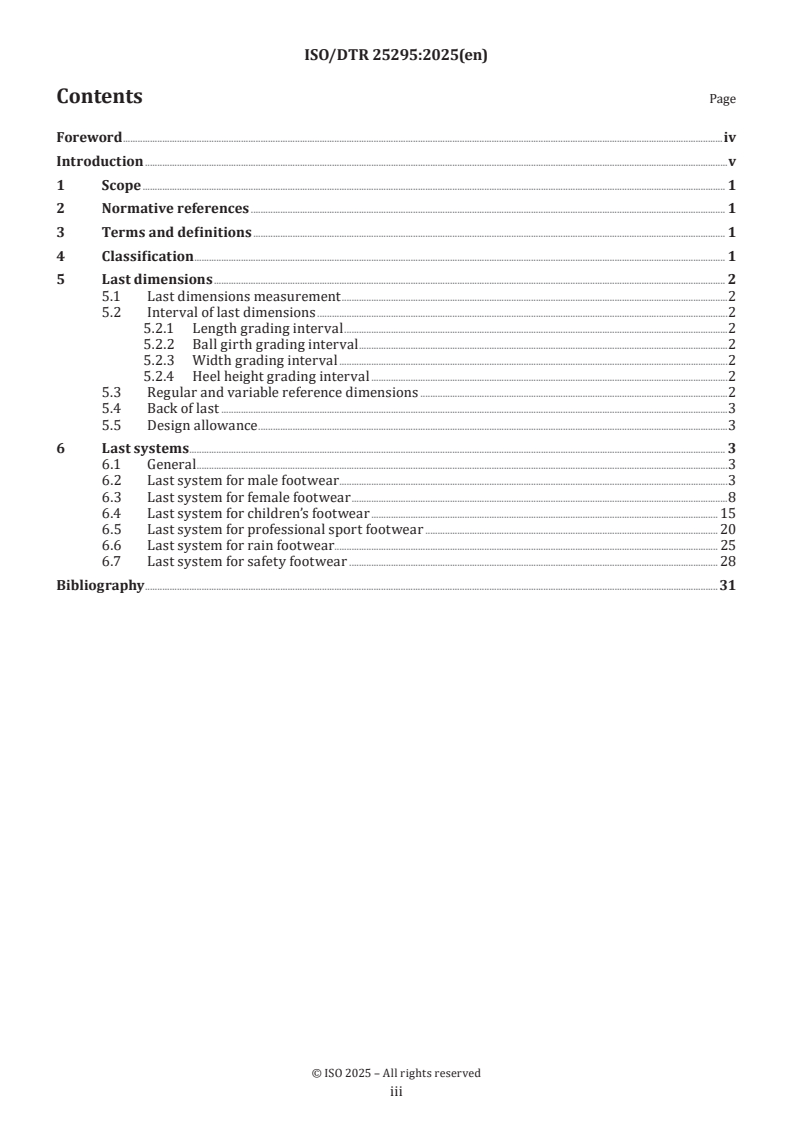

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Classification . 1
5 Last dimensions . 2
5.1 Last dimensions measurement .2
5.2 Interval of last dimensions .2
5.2.1 Length grading interval .2
5.2.2 Ball girth grading interval .2
5.2.3 Width grading interval .2
5.2.4 Heel height grading interval .2
5.3 Regular and variable reference dimensions .2
5.4 Back of last .3
5.5 Design allowance .3
6 Last systems . 3
6.1 General .3
6.2 Last system for male footwear . .3
6.3 Last system for female footwear .8
6.4 Last system for children’s footwear . 15
6.5 Last system for professional sport footwear . 20
6.6 Last system for rain footwear. 25
6.7 Last system for safety footwear . 28
Bibliography .31

iii
ISO/DTR 25295:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO’s adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 137, Footwear sizing designations and marking
systems.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
ISO/DTR 25295:2025(en)
Introduction
Lasts are the base for footwear production. Standardization related to lasts can guide and regulate the
design and production of lasts, thereby improving the fitting and comfort of footwear products.
This document includes partial information obtained from a survey carried out based on the Chinese
population in relation to GB/T 3293, the Chinese standard on lasts, which has undergone two revisions and
has been implemented for over 40 years.
This technical report not only allows footwear traders, manufacturers, and other stakeholders from various
countries to understand the last system, but also strengthens communication and cooperation in the design
and standardization of lasts.
v
FINAL DRAFT Technical Report ISO/DTR 25295:2025(en)
Footwear — Global last measurement systems
1 Scope
This document contains the sizing of last systems for daily wear footwear including casual footwear, sports
footwear and rain footwear.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 19408, Footwear — Sizing — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 19408 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
reference last
last with dimensions as reference size
3.2
last system
complete sizing system of lasts that is set by increasing or reducing with the specified interval based on the
dimension of reference last (3.1)
3.3
regular reference dimensions
sizes that cannot be changed, such as the key points on the last bottom and ball girth
3.4
variable reference dimensions
dimensions other than the regular reference dimensions (3.3)
4 Classification
Footwear size can be classified according to Table 1. For each classification, reference sizes are given.

ISO/DTR 25295:2025(en)
Table 1 — Footwear size with heel height classification
Dimensions in millimetres
Footwear size
Classification Common size Heel height of last
Special size
Size range Reference size
Infants 90 to 125 110 − −
Toddlers 130 to 170 150 − −
Children’s footwear
Young children 175 to 205 190 − −
Older children 210 to 250 225 Over 250 −
Flat ≤ 25
Female 215 to 250 235 Over 250 Middle 30 to 50
High 55 to 80
Adults’ footwear
Flat ≤ 20
Male 235 to 275 255 Over 275 Middle 25 to 35
High 40 to 50
5 Last dimensions
5.1 Last dimensions measurement
Measurement of last dimensions can be carried out according to ISO 19409.
5.2 Interval of last dimensions
5.2.1 Length grading interval
In practice, 10 mm intervals are commonly referred to as whole sizes, and 5 mm intervals as half sizes.
5.2.2 Ball girth grading interval
In practice, 7 mm intervals are commonly referred to as whole sizes, and 3,5 mm intervals as half sizes.
5.2.3 Width grading interval
In practice, 7 mm intervals are commonly referred to as whole sizes, and 3,5 mm intervals as half sizes.
5.2.4 Heel height grading interval
In practice, 5 mm intervals are commonly referred to as height grading, starting at 20 mm for male last and
at 25 mm for female last.
5.3 Regular and variable reference dimensions
5.3.1 The lengths of key points on the last bottom and ball girth are regular reference dimensions.
5.3.2 The widths of key points on the last bottom (including inner width of big toe, outer width of little
toe, inner width of first metatarsal, outer width of fifth metatarsal, tread width of heel, etc.) are regular
reference dimensions, but half size up or down is allowed based on the width reference dimensions, that is,
the width of each part on the last bottom can be set at any value within the range of plus or minus half size.
5.3.3 The other dimensions of the last are variable.

ISO/DTR 25295:2025(en)
5.4 Back of last
Regardless of style of toe design, the dimension of back of last behind the ball girth can remain unchanged
for a last with the same type and same heel height.
5.5 Design allowance
5.5.1 Based on regular reference dimensions of the various length, girth and width on a last with the same
footwear size and type, the design allowance can be added to the toe allowance.
5.5.2 The des
...

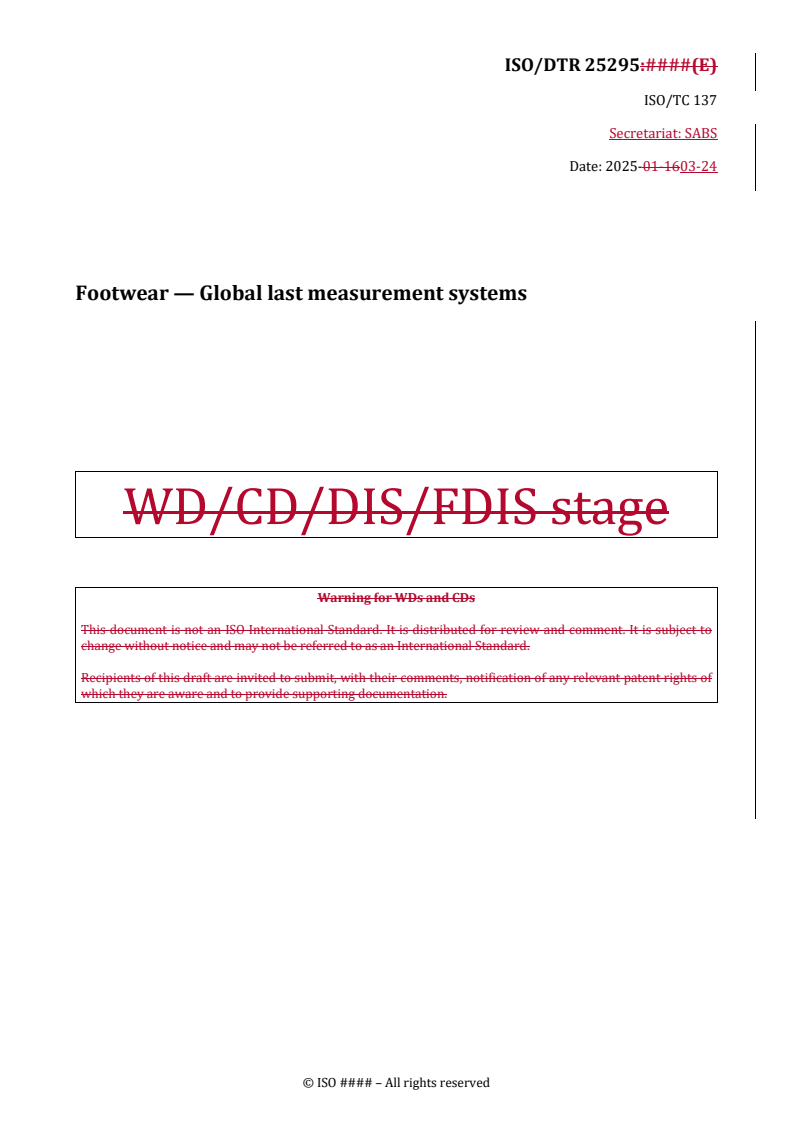

ISO/DTR 25295:####(E)
ISO/TC 137
Secretariat: SABS
Date: 2025-01-1603-24
Footwear — Global last measurement systems

WD/CD/DIS/FDIS stage
Warning for WDs and CDs
This document is not an ISO International Standard. It is distributed for review and comment. It is subject to
change without notice and may not be referred to as an International Standard.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.

© ISO #### – All rights reserved

ISO #####-#:####(X)
2 © ISO #### – All rights reserved

ISO/DTR 25295:####(E:(en)

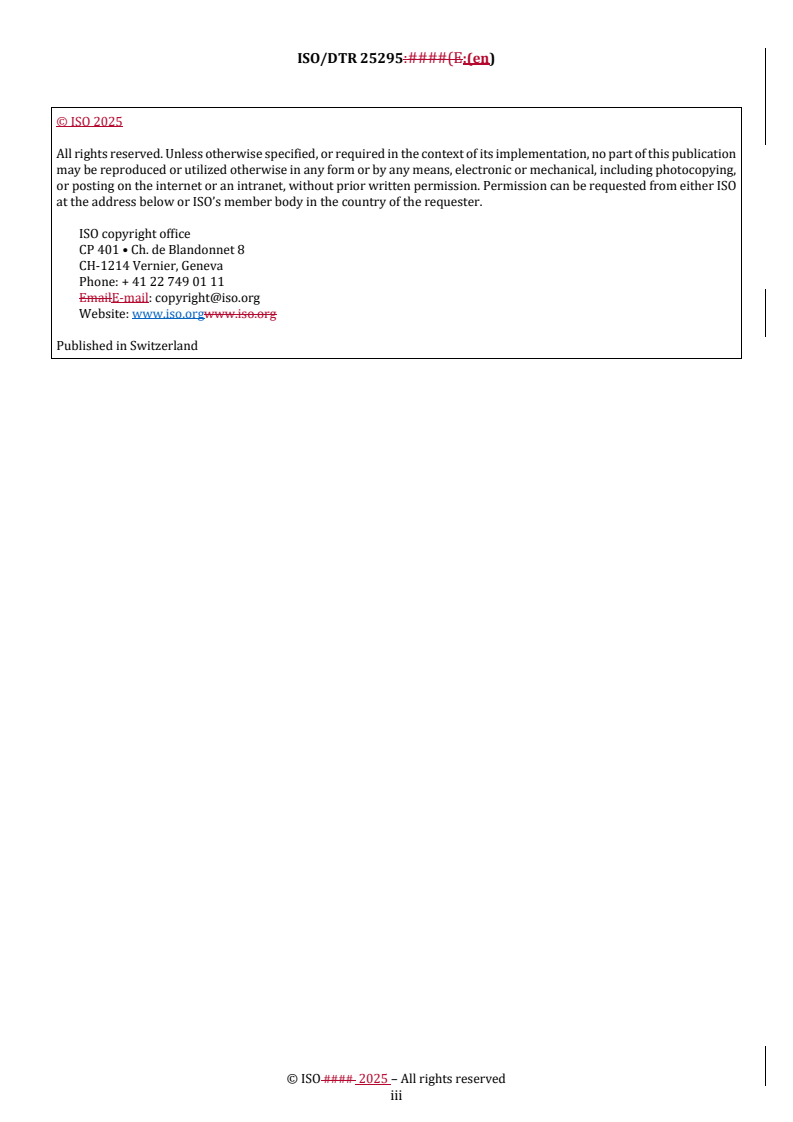

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
EmailE-mail: [e-mail]
Website: www.iso.orgwww.iso.org
Published in Switzerland
© ISO #### 2025 – All rights reserved
iii
ISO #####-#:####(X/DTR 25295:(en)
Contents
Foreword . v
Introduction . vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Classification. 1
5 Last dimensions . 2
5.1 Last dimensions measurement . 2
5.2 Interval of last dimensions . 2
5.3 Regular and variable reference dimensions . 2
5.4 Back of last . 3
5.5 Design allowance . 3
6 Last systems . 3
6.1 General . 3
6.2 Last system for male footwear . 3
6.3 Last system for female footwear . 8
6.4 Last system for children’s footwear . 18
6.5 Last system for professional sport footwear . 25
6.6 Last system for rain footwear . 35
6.7 Last system for safety footwear . 39
Bibliography . 43

© ISO #### 2025 – All rights reserved
iv
ISO/DTR 25295:####(E:(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO [had/had not] received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that this
may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO'sISO’s adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 137, Footwear sizing designations and marking
systems.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
© ISO #### 2025 – All rights reserved
v
ISO #####-#:####(X/DTR 25295:(en)
Introduction
Lasts are the base for footwear production. Standardization related to lasts can guide and regulate the design
and production of lasts, thereby improving the fitting and comfort of footwear products.
This document includedincludes partial information obtained from a survey carried out based on the Chinese
population in relation to standards of ChinaGB/T 3293, the Chinese standard on lasts, which has undergone
two revisions and has been implemented for over 40 years.
This technical report not only allows footwear traders, manufacturers, and other stakeholders from various
countries to understand the last system, but also strengthens communication and cooperation in the design
and standardization of lasts.
© ISO #### 2025 – All rights reserved
vi
ISO/DTR 25295:(en)
Footwear — Global last measurement systems
1 Scope
This document specifiescontains the sizing of last systems for daily wear footwear including casual footwear,
sports footwear and rain footwear.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 19408, Footwear — Sizing — Vocabulary
ISO 19409, Footwear — Sizing — Measurement of last dimensions
43 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 19408 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
4.13.1 3.1
reference last
last with dimensions as reference size
Note 1 to entry: Table 1 gives reference size of each classification.
4.33.2 3.2
last system
complete sizing system of lasts that is set by increasing or reducing with the specified interval based on the
dimension of reference last (3.1)
Note 1 to entry: The last systems for different population and footwear types are given in Clause 6.
4.53.3 3.3
regular reference dimensions
sizes that cannot be changed, such as the key points on the last bottom and ball girth
4.63.4 3.4
variable reference dimensions
dimensions other than the regular reference dimensions (3.3listed in this document)
54 Classification
Footwear size can be classified according to Table 1Table 1. For each classification, reference sizes are given.
ISO/DTR 25295:(en)
Table 1 — Footwear size with heel height classificaitonclassification
Dimensions in millimetres
Footwear size (mm)
Heel height of last
Classification Common size
(mm)
Special size
Size range Reference size
Infants 90 ~to 125 110 ―− ―−
Toddlers 130 ~to 170 150 ―− ―−
Children’s footwear
Young children 175 ~to 205 190 ―− ―−
Older children 210 ~to 250 225 Over 250 ―−
Flat ≤ 25
Female 215 ~to 250 235 Over 250 Middle 30 ~to 50
High 55 ~to 80
Adults’ footwear
Flat ≤ 20
Male 235 ~to 275 255 Over 275 Middle 25 ~to 35
High 40 ~to 50
65 Last dimensions
6.15.1 Last dimensions measurement
Measurement of last dimensions can be carried out in according withto ISO 19409.
6.25.2 Interval of last dimensions
6.2.15.2.1 Length grading interval
In practice, 10 mm intervals are commonly referred to as whole sizes, and 5 mm intervals as half sizes.
6.2.25.2.2 Ball girth grading interval
In practice, 7 mm intervals are commonly referred to as whole sizes, and 3,5 mm intervals as half sizes.
6.2.35.2.3 Width grading interval
In practice, 7 mm intervals are commonly referred to as whole sizes, and 3,5 mm intervals as half sizes.
6.2.45.2.4 Heel height grading interval
In practice, 5 mm intervals are commonly referred to as height grading, starting at 20 mm for male last and at
25 mm for female last.
6.35.3 Regular and variable reference dimensions
6.3.15.3.1 5.3.1  The lengths of key points on the last bottom and ball girth are regular reference
dimensions.
6.3.25.3.2 5.3.2  The widths of key points on the last bottom (including inner width of big toe, outer
width of little toe, inner width of first metatarsal, outer width of fifth metatarsal, tread width of heel, etc.) are
regular reference dimensions, but half size up or down is allowed based on the width reference dimensions,
ISO/DTR 25295:(en)
that is, the width of each part on the last bottom can be set at any value within the range of plus or minus half
size.
6.3.35.3.3 5.3.3  The other dimensions of the last are variable.
6.45.4 Back of last
Regardless of style of toe design, the dimension of back of last behind the ball girth can remain unchanged for
thea last with the same type and same heel height.
6.55.5 Design allowance
6.5.15.5.1 5.5.1  Based on regular reference dimensions of the various length, girth and width on thea
last with the same footwear size and type, the design allowance can be added to the toe allowance.
6.5.25.5.2 5.5.2  The design can be based on regular and variable reference dimensions and other
dimensions to achieve comfort and aesthetics of the footwear.
6.5.35.5.3 5.5.3  Design allowance can be variable as long as it does not affect wearing, but this does not
apply to safety footwear and children'schildren’s footwear.
76 Last systems
6.1 General
This clause contains the last systems for male, female and children footwear, and for different footwear types.
7.16.2 Last system for male footwear
The dimensions of reference last for male footwear are given in Table 2Table 2-1 and Table 3Table 2-.

ISO/DTR 25295:(en)
Table 2 .
© ISO #### – All rights reserved
ISO/DTR 25295:(en)
Table 2-1 — Reference last dimensions of male footwear (lace-up footwear, tongue-type footwear and high-cut footwear)
Dimensions in millimetres
Reference last dimensions (mm)
Lace-up footwear Tongue-type footwear High-cut footwear
Last dimensions
255 (2.,5) 255 (2.,5) 255 (2.,5) 255 (2.,5) 255 (2.,5) 255 (2.,5)
Size Interval Size Interval Size Interval Size Interval Size Interval Size Interval
Last bottom length 270,0 ±5,0 270,0 ±5,0 270,0 ±5,0 270,0 ±5,0 270,0 ±0,5 270,0 ±0,5
Toe allowance 20,4 ±0,4 20,4 ±0,4 20,4 ±0,4 20,4 ±0,4 20,4 ±0,4 20,4 ±0,4
Toe tip 249,9 ±4,6 249,9 ±4,6 249,6 ±4,6 249,6 ±4,6 249,6 ±4,6 249,6 ±4,6
Swell point of big toe 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2 224,2 ±4,2
Swell point of little toe 193,6 ±3,6 193,6 ±3,6 193,6 ±3,6 193,6 ±3,6 193,6 ±3,6 193,6 ±3,6
st
Position of 1 metatarsal 179,6 ±3,0 179,6 ±3,0 179,6 ±3,3 179,6 ±3,3 179,6 ±3,3 179,6 ±3,3
Length
Landing point of forefoot 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2 170,5 ±3,2
th
Position of 5 metatarsal 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9 156,7 ±2,9
Landing point of total toe
...
