Intelligent transport systems -- Framework for cooperative telematics applications for regulated commercial freight vehicles (TARV)

This document addresses the provision of ?weigh-in-motion monitoring' and specifies the form and content of the transmission of such data required to support such systems, and access methods to that data. This document provides specifications for both on-board weighing (WIM-O) systems and in-road "weigh-in-motion" (WIM-R) systems, and provides a profile where the vehicle weight measured is recorded on-board using equipment already installed for "Remote Tachograph Monitoring". This document provides specifications for common communications and data exchange aspects of the application service weigh-in-motion monitoring (WIM-O and WIM-R) that a jurisdiction regulator can elect to require or support as an option, including: a) High level definition of the service that a service provider has to provide (the service definition describes common service elements, but does not define the detail of how such an application service is instantiated, nor the acceptable value ranges of the data concepts defined); b) Means to realize the service; c) Application data naming, content and quality that an IVS has to deliver, including a number of profiles for data (noting that requirements and constraints of what can/cannot be transmitted over the air can vary between jurisdictions); d) Support for a number of defined communication profiles to enable remote inspection. The present version of this document provides specifications for the following application profiles: — Application Profile A1: Vehicle weight measurement from "On-Board Weighing" systems (WIM-O); — Application Profile A2: Vehicle weight measurement from in-road ?weigh-in-motion' systems where data is transferred to the IVS (WIM-R). NOTE 1 Vehicle weight measurement from in-road ?weigh-in-motion' systems where data is linked to a specific vehicle by ANPR or other techniques and sent via landline or cellular communications to a processing centre is also a viable and alternate option, but as it does not include carrying data on-board the vehicle is not a TARV use case. The present version of this document provides specifications for the following communication profiles: — Communication Profile 1: Roadside inspection using a short range wireless communication interrogator instigating a physical roadside inspection (master-:-slave): — Profile C1a: via a hand aimed or temporary roadside mounted and aimed interrogator; — Profile C1b: via a vehicle mounted and directed interrogator; — Profile C1c: via a permanent or semi-permanent roadside or overhead gantry. — Communication Profile 2: Roadside inspection using a short range wireless communication interrogator instigating a download of data to an application service provider via an ITS-station communication (master-:-slave + peer-:-peer): — Profile C2a: via a hand aimed or temporary roadside mounted and aimed interrogator; — Profile C2b: via a vehicle mounted and directed interrogator; — Profile C2c: via a permanent or semi-permanent roadside or overhead gantry. — Communication Profile 3: Remote inspection addressed via an ITS-station instigating a download of data to an application service provider via a wireless communications interface (as defined in ISO 15638-2). Subsequent versions of this document can support additional communication profiles. NOTE 2 The ISO 15638 series of standards has been developed for use in the context of regulated commercial freight vehicles (hereinafter referred to as ?regulated vehicles'). There is nothing, however, to prevent a jurisdiction from extending or adapting the scope to include other types of regulated vehicles, as it deems appropriate.

Systèmes intelligents de transport -- Cadre pour applications télématiques collaboratives pour véhicules de fret commercial réglementé (TARV)

General Information

Status
Published
Publication Date
02-Jul-2020
Current Stage
5060 - Close of voting Proof returned by Secretariat
Start Date
10-Jun-2020
Completion Date
10-Jun-2020
Ref Project

Buy Standard

Standard
ISO 15638-20:2020 - Intelligent transport systems -- Framework for cooperative telematics applications for regulated commercial freight vehicles (TARV)
English language
106 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/PRF 15638-20 - Intelligent transport systems -- Framework for cooperative telematics applications for regulated commercial freight vehicles (TARV)
English language
106 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

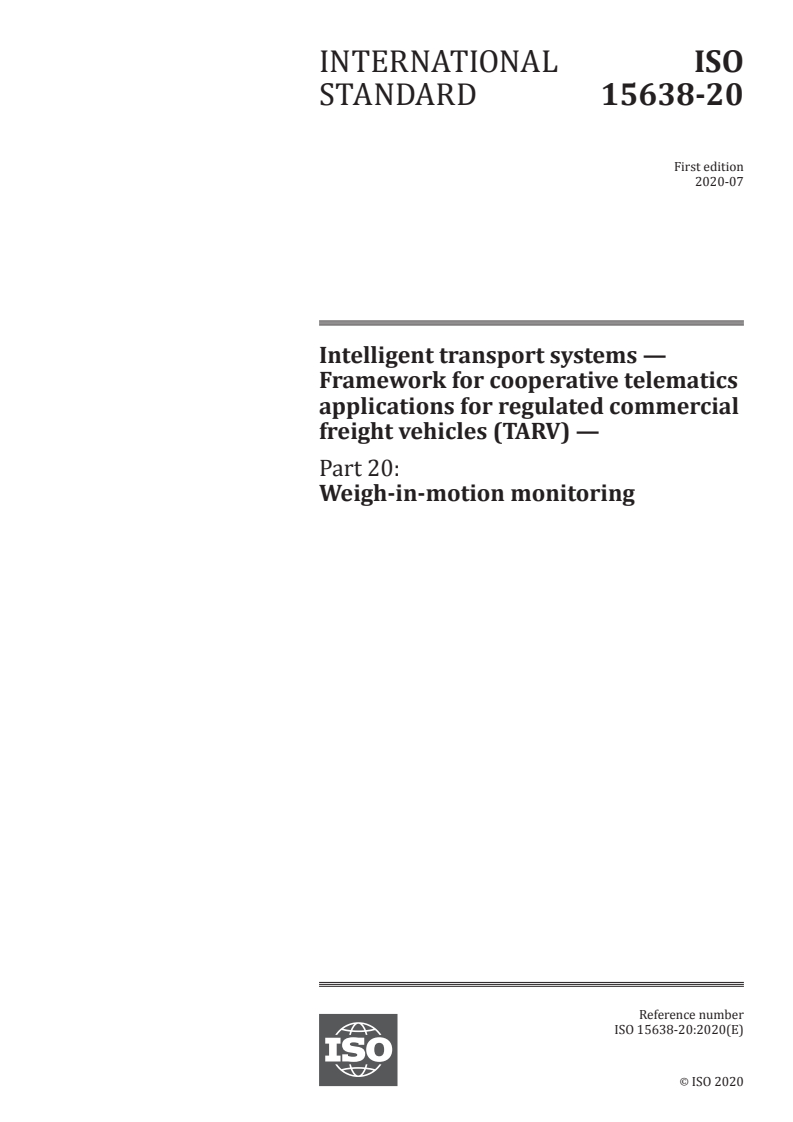

INTERNATIONAL ISO
STANDARD 15638-20
First edition
2020-07
Intelligent transport systems —
Framework for cooperative telematics
applications for regulated commercial
freight vehicles (TARV) —
Part 20:
Weigh-in-motion monitoring
Reference number
ISO 15638-20:2020(E)
ISO 2020
---------------------- Page: 1 ----------------------
ISO 15638-20:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------

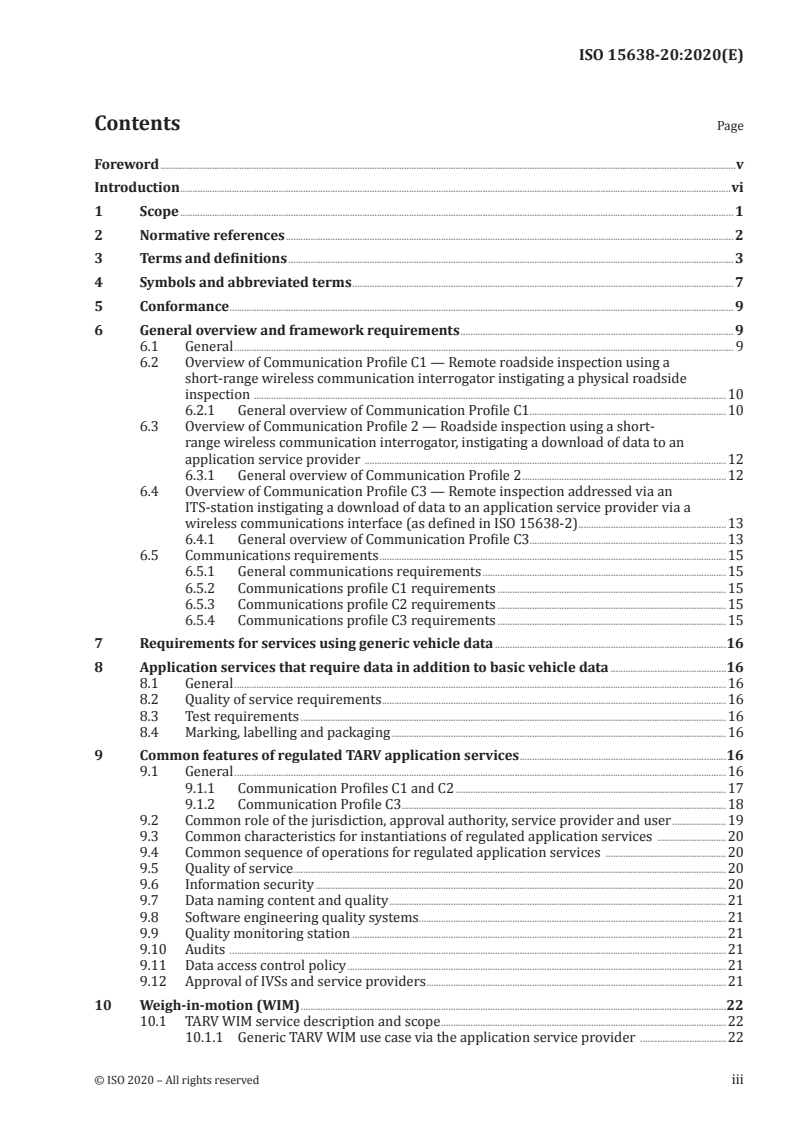

ISO 15638-20:2020(E)
Contents Page

Foreword ..........................................................................................................................................................................................................................................v

Introduction ................................................................................................................................................................................................................................vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 2

3 Terms and definitions ..................................................................................................................................................................................... 3

4 Symbols and abbreviated terms ........................................................................................................................................................... 7

5 Conformance ............................................................................................................................................................................................................. 9

6 General overview and framework requirements ............................................................................................................... 9

6.1 General ........................................................................................................................................................................................................... 9

6.2 Overview of Communication Profile C1 — Remote roadside inspection using a
short-range wireless communication interrogator instigating a physical roadside

inspection ................................................................................................................................................................................................10

6.2.1 General overview of Communication Profile C1................................................................................10

6.3 Overview of Communication Profile 2 — Roadside inspection using a short-
range wireless communication interrogator, instigating a download of data to an

application service provider ...................................................................................................................................................12

6.3.1 General overview of Communication Profile 2 ...................................................................................12

6.4 Overview of Communication Profile C3 — Remote inspection addressed via an

ITS-station instigating a download of data to an application service provider via a

wireless communications interface (as defined in ISO 15638-2) ............................................................13

6.4.1 General overview of Communication Profile C3................................................................................13

6.5 Communications requirements .............................................................................................................................................15

6.5.1 General communications requirements ...................................................................................................15

6.5.2 Communications profile C1 requirements .............................................................................................15

6.5.3 Communications profile C2 requirements .............................................................................................15

6.5.4 Communications profile C3 requirements .............................................................................................15

7 Requirements for services using generic vehicle data ..............................................................................................16

8 Application services that require data in addition to basic vehicle data ...............................................16

8.1 General ........................................................................................................................................................................................................16

8.2 Quality of service requirements ............................................................................................................................................16

8.3 Test requirements .............................................................................................................................................................................16

8.4 Marking, labelling and packaging ........................................................................................................................................16

9 Common features of regulated TARV application services ....................................................................................16

9.1 General ........................................................................................................................................................................................................16

9.1.1 Communication Profiles C1 and C2 ..............................................................................................................17

9.1.2 Communication Profile C3 ....................................................................................................................................18

9.2 Common role of the jurisdiction, approval authority, service provider and user ......................19

9.3 Common characteristics for instantiations of regulated application services ............................20

9.4 Common sequence of operations for regulated application services .................................................20

9.5 Quality of service ................................................................................................................................................................................20

9.6 Information security .......................................................................................................................................................................20

9.7 Data naming content and quality .........................................................................................................................................21

9.8 Software engineering quality systems .............................................................................................................................21

9.9 Quality monitoring station ........................................................................................................................................................21

9.10 Audits ..........................................................................................................................................................................................................21

9.11 Data access control policy ..........................................................................................................................................................21

9.12 Approval of IVSs and service providers ..........................................................................................................................21

10 Weigh-in-motion (WIM) .............................................................................................................................................................................22

10.1 TARV WIM service description and scope ....................................................................................................................22

10.1.1 Generic TARV WIM use case via the application service provider ...................................22

© ISO 2020 – All rights reserved iii
---------------------- Page: 3 ----------------------

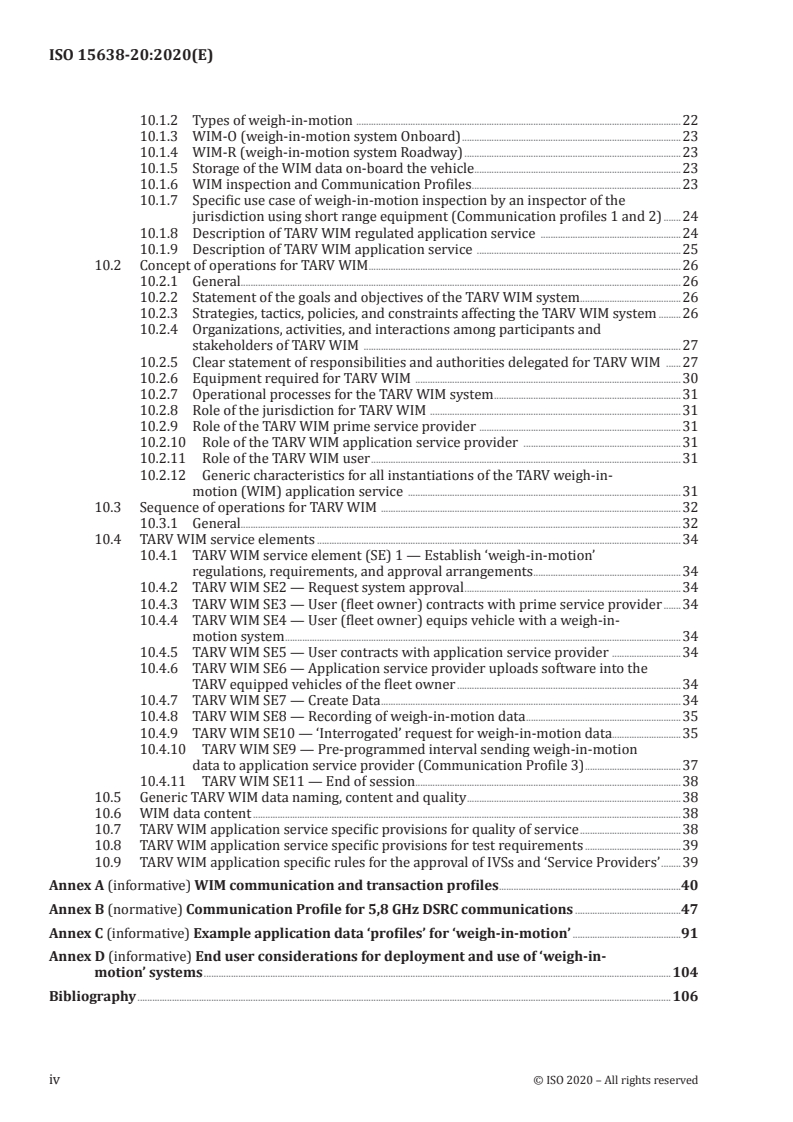

ISO 15638-20:2020(E)

10.1.2 Types of weigh-in-motion ....................................................................................................................................22

10.1.3 WIM-O (weigh-in-motion system Onboard) .........................................................................................23

10.1.4 WIM-R (weigh-in-motion system Roadway) ........................................................................................23

10.1.5 Storage of the WIM data on-board the vehicle ....................................................................................23

10.1.6 WIM inspection and Communication Profiles .....................................................................................23

10.1.7 Specific use case of weigh-in-motion inspection by an inspector of the

jurisdiction using short range equipment (Communication profiles 1 and 2) .......24

10.1.8 Description of TARV WIM regulated application service .........................................................24

10.1.9 Description of TARV WIM application service ...................................................................................25

10.2 Concept of operations for TARV WIM ...............................................................................................................................26

10.2.1 General...................................................................................................................................................................................26

10.2.2 Statement of the goals and objectives of the TARV WIM system .........................................26

10.2.3 Strategies, tactics, policies, and constraints affecting the TARV WIM system .........26

10.2.4 Organizations, activities, and interactions among participants and

stakeholders of TARV WIM .................................................................................................................................27

10.2.5 Clear statement of responsibilities and authorities delegated for TARV WIM ......27

10.2.6 Equipment required for TARV WIM ............................................................................................................30

10.2.7 Operational processes for the TARV WIM system ............................................................................31

10.2.8 Role of the jurisdiction for TARV WIM ......................................................................................................31

10.2.9 Role of the TARV WIM prime service provider ..................................................................................31

10.2.10 Role of the TARV WIM application service provider ................................................................31

10.2.11 Role of the TARV WIM user ..............................................................................................................................31

10.2.12 Generic characteristics for all instantiations of the TARV weigh-in-

motion (WIM) application service ...............................................................................................................31

10.3 Sequence of operations for TARV WIM ..........................................................................................................................32

10.3.1 General...................................................................................................................................................................................32

10.4 TARV WIM service elements ....................................................................................................................................................34

10.4.1 TARV WIM service element (SE) 1 — Establish ‘weigh-in-motion’

regulations, requirements, and approval arrangements ............................................................34

10.4.2 TARV WIM SE2 — Request system approval ........................................................................................34

10.4.3 TARV WIM SE3 — User (fleet owner) contracts with prime service provider .......34

10.4.4 TARV WIM SE4 — User (fleet owner) equips vehicle with a weigh-in-

motion system .................................................................................................................................................................34

10.4.5 TARV WIM SE5 — User contracts with application service provider ............................34

10.4.6 TARV WIM SE6 — Application service provider uploads software into the

TARV equipped vehicles of the fleet owner ...........................................................................................34

10.4.7 TARV WIM SE7 — Create Data ..........................................................................................................................34

10.4.8 TARV WIM SE8 — Recording of weigh-in-motion data ...............................................................35

10.4.9 TARV WIM SE10 — ‘Interrogated’ request for weigh-in-motion data............................35

10.4.10 TARV WIM SE9 — Pre-programmed interval sending weigh-in-motion

data to application service provider (Communication Profile 3) .......................................37

10.4.11 TARV WIM SE11 — End of session .................. ..........................................................................................38

10.5 Generic TARV WIM data naming, content and quality .......................................................................................38

10.6 WIM data content ..............................................................................................................................................................................38

10.7 TARV WIM application service specific provisions for quality of service .........................................38

10.8 TARV WIM application service specific provisions for test requirements .......................................39

10.9 TARV WIM application specific rules for the approval of IVSs and ‘Service Providers’ ........39

Annex A (informative) WIM communication and transaction profiles ..........................................................................40

Annex B (normative) Communication Profile for 5,8 GHz DSRC communications ...........................................47

Annex C (informative) Example application data ‘profiles’ for ‘weigh-in-motion’ ............................................91

Annex D (informative) End user considerations for deployment and use of ‘weigh-in-

motion’ systems ..............................................................................................................................................................................................104

Bibliography .........................................................................................................................................................................................................................106

iv © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 15638-20:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

is o/ f or ewor d . ht m l .

This document was prepared by Technical Committee ISO/TC 204, Intelligent transport systems.

A list of all parts in the ISO 15638 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2020 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO 15638-20:2020(E)
Introduction

Many ITS technologies have been embraced by commercial transport operators and freight owners, in

the areas of fleet management, safety and security. On-board applications have also been developed

for governmental use. Such regulatory services in use or being considered vary from jurisdiction to

jurisdiction, but include electronic on-board recorders, digital tachograph, on-board mass monitoring,

‘mass’ data for regulatory control and management weigh-in-motion, vehicle access methods, hazardous

goods tracking and eCall. Additional applications with a regulatory impact being developed include fatigue

management, speed monitoring and vehicle penalties imposed based on location, distance and time.

The ISO 15638 series of standards defines and addresses the framework for a range of cooperative

telematics applications for regulated vehicles (e.g. access methods, driver fatigue management, speed

monitoring, on-board mass monitoring, Remote Tachograph Monitoring, ADR management). The

overall scope includes the concept of operation, legal and regulatory issues, and the generic cooperative

provision of services to regulated vehicles, using an on-board ITS platform. The framework is based

on a (multiple) service provider-oriented approach with provisions for the approval and auditing of

service providers.

The ISO 15638 series of standards provides both the means to achieve current requirements for

telematics applications for regulated vehicles and the basis for future development of cooperative

telematics applications for regulated vehicles.

The ISO 15638 series of standards is timely as many governments (Europe, North America, Asia and

Australia/New Zealand) are considering the use of telematics for a range of regulatory purposes.

This document provides specifications for weigh-in-motion and on-board weighing monitoring and

supports several defined communication profiles in which this function may be performed.

Consistent with other parts of the ISO 15638 series of standards, this document does not prescribe

nor proscribe particular modes of operation. Rather, it provides a number of defined communication

and data profiles within which jurisdictions may achieve their objectives for remote weigh-in-motion

monitoring within the objectives and constraints of their regulations. This document recognizes that

those requirements and constraints will differ between jurisdictions.
vi © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 15638-20:2020(E)
Intelligent transport systems — Framework for
cooperative telematics applications for regulated
commercial freight vehicles (TARV) —
Part 20:
Weigh-in-motion monitoring
1 Scope

This document addresses the provision of ‘weigh-in-motion monitoring’ and specifies the form and

content of the transmission of such data required to support such systems, and access methods to

that data.

This document provides specifications for both on-board weighing (WIM-O) systems and in-road

“weigh-in-motion” (WIM-R) systems, and provides a profile where the vehicle weight measured is

recorded on-board using equipment already installed for “Remote Tachograph Monitoring”.

This document provides specifications for common communications and data exchange aspects of the

application service weigh-in-motion monitoring (WIM-O and WIM-R) that a jurisdiction regulator can

elect to require or support as an option, including:

a) High level definition of the service that a service provider has to provide (the service definition

describes common service elements, but does not define the detail of how such an application

service is instantiated, nor the acceptable value ranges of the data concepts defined);

b) Means to realize the service;

c) Application data naming, content and quality that an IVS has to deliver, including a number of

profiles for data (noting that requirements and constraints of what can/cannot be transmitted over

the air can vary between jurisdictions);

d) Support for a number of defined communication profiles to enable remote inspection.

The present version of this document provides specifications for the following application profiles:

— Application Profile A1: Vehicle weight measurement from “On-Board Weighing” systems

(WIM-O);

— Application Profile A2: Vehicle weight measurement from in-road ‘weigh-in-motion’ systems

where data is transferred to the IVS (WIM-R).

NOTE 1 Vehicle weight measurement from in-road ‘weigh-in-motion’ systems where data is linked to a specific

vehicle by ANPR or other techniques and sent via landline or cellular communications to a processing centre is also

a viable and alternate option, but as it does not include carrying data on-board the vehicle is not a TARV use case.

The present version of this document provides specifications for the following communication profiles:

— Communication Profile 1: Roadside inspection using a short range wireless communication

interrogator instigating a physical roadside inspection (master-:-slave):

— Profile C1a: via a hand aimed or temporary roadside mounted and aimed interrogator;

— Profile C1b: via a vehicle mounted and directed interrogator;
© ISO 2020 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO 15638-20:2020(E)
— Profile C1c: via a permanent or semi-permanent roadside or overhead gantry.

— Communication Profile 2: Roadside inspection using a short range wireless communication

interrogator instigating a download of data to an application service provider via an ITS-

station communication (master-:-slave + peer-:-peer):

— Profile C2a: via a hand aimed or temporary roadside mounted and aimed interrogator;

— Profile C2b: via a vehicle mounted and directed interrogator;
— Profile C2c: via a permanent or semi-permanent roadside or overhead gantry.

— Communication Profile 3: Remote inspection addressed via an ITS-station instigating a

download of data to an application service provider via a wireless communications interface

(as defined in ISO 15638-2).

Subsequent versions of this document can support additional communication profiles.

NOTE 2 The ISO 15638 series of standards has been developed for use in the context of regulated commercial

freight vehicles (hereinafter referred to as ‘regulated vehicles’). There is nothing, however, to prevent a

jurisdiction from extending or adapting the scope to include other types of regulated vehicles, as it deems

appropriate.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 11898-1, Road vehicles — Controller area network (CAN) — Part 1: Data link layer and physical

signalling

ISO 15638-1, Intelligent transport systems — Framework for cooperative telematics applications for

regulated vehicles (TARV) — Part 1: Framework and architecture

ISO 15638-2, Intelligent transport systems — Framework for cooperative telematics applications for

regulated vehicles (TARV) — Part 2: Common platform parameters using CALM

ISO 15638-3, Intelligent transport systems — Framework for collaborative Telematics Applications for

Regulated commercial freight Vehicles (TARV) — Part 3: Operating requirements, 'Approval Authority'

procedures, and enforcement provisions for the providers of regulated services

ISO/TS 15638-4, Intelligent transport systems — Framework for cooperative telematics applications for

regulated commercial freight vehicles (TARV) — Part 4: System security requirements

ISO 15638-5:2013, Intelligent transport systems — Framework for collaborative Telematics Applications

for Regulated commercial freight Vehicles (TARV) — Part 5: Generic vehicle information

ISO 15638-6:2014, Intelligent transport systems — Framework for collaborative Telematics Applications

for Regulated commercial freight Vehicles (TARV) — Part 6: Regulated applications

ISO 15638-9, Intelligent transport systems — Framework for cooperative telematics applications for

regulated commercial freight vehicles (TARV) — Part 9: Remote digital tachograph monitoring

EN ETSI 300 674-1, ETSI EN 300 674-1 V1.2.1 (2004-08) Electromagnetic compatibility and Radio spectrum

Matters (ERM); Road Transport and Traffic Telematics (RTTT); Dedicated Short Range Communication

(DSRC) transmission equipment (500 kbit/s / 250 kbit/s) operating in the 5,8 GHz Industrial, Scientific and

Medical (ISM) band; Part 1: General characteristics and test methods for Road Side Units (Interrogator)

and On-Board Units (OBU)
ARIB STD-T75, Dedicated Short-Range Communication (Japan)
2 © ISO 2020 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 15638-20:2020(E)

TTAS KO-06.0025, Standard of DSRC Radio Communication between Road-side Equipment and On-

board Equipment in 5.8 GHz band (Korea)

EN 12253, Road transport and traffic telematics — Dedicated short-range communication — Physical

layer using microwave at 5.8 GHz

EN 12795, Road transport and traffic telematics — Dedicated Short Range Communication (DSRC) —

DSRC data link layer: medium access and logical link control

EN 12834:2003, Road transport and traffic telematics — Dedicated Short Range Communication (DSRC) —

DSRC application layer

EN 13372:2012, Road transport and traffic telematics — Dedicated Short Range Communication (DSRC) —

Profiles for RTTT applications
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 15638-1 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
app

small (usually) Java™ (3.23) applets, organized as software bundles, that support application services

(3.3) by keeping the data pantry (3.16) provisioned with up to date data
3.2
application profile

characteristics and specification of the information and transaction detail required to meet a set of

user (3.49) needs which within the common high-level framework (3.19) of this document, allows

different jurisdictions (3.24) to receive different detail of transaction or to specify a particular

communications means
3.3
application service

service provided by a service provider (3.44) enabled by accessing data from the IVS (3.19) of a regulated

vehicle (3.43) via a wireless communications network
3.4
application service provider
ASP
party that provides an application service (3.3)
3.5
app library

separately secure area of memory in IVS (3.19) where apps are stored [with different access controls to

data pantry (3.16)]
3.6
approval

formal affirmation that an applicant has satisfied all of the requirements for appointment as an

application service provider (3.4) or that an application service (3.3) delivers the required service levels

© ISO
...

INTERNATIONAL ISO
STANDARD 15638-20
First edition
Intelligent transport systems —
Framework for cooperative telematics
applications for regulated commercial
freight vehicles (TARV) —
Part 20:
Weigh-in-motion monitoring
PROOF/ÉPREUVE
Reference number
ISO 15638-20:2020(E)
ISO 2020
---------------------- Page: 1 ----------------------
ISO 15638-20:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 15638-20:2020(E)
Contents Page

Foreword ..........................................................................................................................................................................................................................................v

Introduction ................................................................................................................................................................................................................................vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 2

3 Terms and definitions ..................................................................................................................................................................................... 3

4 Symbols and abbreviated terms ........................................................................................................................................................... 7

5 Conformance ............................................................................................................................................................................................................. 9

6 General overview and framework requirements ............................................................................................................... 9

6.1 General ........................................................................................................................................................................................................... 9

6.2 Overview of Communication Profile C1 — Remote roadside inspection using a
short-range wireless communication interrogator instigating a physical roadside

inspection ................................................................................................................................................................................................10

6.2.1 General overview of Communication Profile C1................................................................................10

6.3 Overview of Communication Profile 2 — Roadside inspection using a short-
range wireless communication interrogator, instigating a download of data to an

application service provider ...................................................................................................................................................12

6.3.1 General overview of Communication Profile 2 ...................................................................................12

6.4 Overview of Communication Profile C3 — Remote inspection addressed via an

ITS-station instigating a download of data to an application service provider via a

wireless communications interface (as defined in ISO 15638-2) ............................................................13

6.4.1 General overview of Communication Profile C3................................................................................13

6.5 Communications requirements .............................................................................................................................................15

6.5.1 General communications requirements ...................................................................................................15

6.5.2 Communications profile C1 requirements .............................................................................................15

6.5.3 Communications profile C2 requirements .............................................................................................15

6.5.4 Communications profile C3 requirements .............................................................................................15

7 Requirements for services using generic vehicle data ..............................................................................................16

8 Application services that require data in addition to basic vehicle data ...............................................16

8.1 General ........................................................................................................................................................................................................16

8.2 Quality of service requirements ............................................................................................................................................16

8.3 Test requirements .............................................................................................................................................................................16

8.4 Marking, labelling and packaging ........................................................................................................................................16

9 Common features of regulated TARV application services ....................................................................................16

9.1 General ........................................................................................................................................................................................................16

9.1.1 Communication Profiles C1 and C2 ..............................................................................................................17

9.1.2 Communication Profile C3 ....................................................................................................................................18

9.2 Common role of the jurisdiction, approval authority, service provider and user ......................19

9.3 Common characteristics for instantiations of regulated application services ............................20

9.4 Common sequence of operations for regulated application services .................................................20

9.5 Quality of service ................................................................................................................................................................................20

9.6 Information security .......................................................................................................................................................................20

9.7 Data naming content and quality .........................................................................................................................................21

9.8 Software engineering quality systems .............................................................................................................................21

9.9 Quality monitoring station ........................................................................................................................................................21

9.10 Audits ..........................................................................................................................................................................................................21

9.11 Data access control policy ..........................................................................................................................................................21

9.12 Approval of IVSs and service providers ..........................................................................................................................21

10 Weigh-in-motion (WIM) .............................................................................................................................................................................22

10.1 TARV WIM service description and scope ....................................................................................................................22

10.1.1 Generic TARV WIM use case via the application service provider ...................................22

© ISO 2020 – All rights reserved PROOF/ÉPREUVE iii
---------------------- Page: 3 ----------------------
ISO 15638-20:2020(E)

10.1.2 Types of weigh-in-motion ....................................................................................................................................22

10.1.3 WIM-O (weigh-in-motion system Onboard) .........................................................................................23

10.1.4 WIM-R (weigh-in-motion system Roadway) ........................................................................................23

10.1.5 Storage of the WIM data on-board the vehicle ....................................................................................23

10.1.6 WIM inspection and Communication Profiles .....................................................................................23

10.1.7 Specific use case of weigh-in-motion inspection by an inspector of the

jurisdiction using short range equipment (Communication profiles 1 and 2) .......24

10.1.8 Description of TARV WIM regulated application service .........................................................24

10.1.9 Description of TARV WIM application service ...................................................................................25

10.2 Concept of operations for TARV WIM ...............................................................................................................................26

10.2.1 General...................................................................................................................................................................................26

10.2.2 Statement of the goals and objectives of the TARV WIM system .........................................26

10.2.3 Strategies, tactics, policies, and constraints affecting the TARV WIM system .........26

10.2.4 Organizations, activities, and interactions among participants and

stakeholders of TARV WIM .................................................................................................................................27

10.2.5 Clear statement of responsibilities and authorities delegated for TARV WIM ......27

10.2.6 Equipment required for TARV WIM ............................................................................................................30

10.2.7 Operational processes for the TARV WIM system ............................................................................31

10.2.8 Role of the jurisdiction for TARV WIM ......................................................................................................31

10.2.9 Role of the TARV WIM prime service provider ..................................................................................31

10.2.10 Role of the TARV WIM application service provider ................................................................31

10.2.11 Role of the TARV WIM user ..............................................................................................................................31

10.2.12 Generic characteristics for all instantiations of the TARV weigh-in-

motion (WIM) application service ...............................................................................................................31

10.3 Sequence of operations for TARV WIM ..........................................................................................................................32

10.3.1 General...................................................................................................................................................................................32

10.4 TARV WIM service elements ....................................................................................................................................................34

10.4.1 TARV WIM service element (SE) 1 — Establish ‘weigh-in-motion’

regulations, requirements, and approval arrangements ............................................................34

10.4.2 TARV WIM SE2 — Request system approval ........................................................................................34

10.4.3 TARV WIM SE3 — User (fleet owner) contracts with prime service provider .......34

10.4.4 TARV WIM SE4 — User (fleet owner) equips vehicle with a weigh-in-

motion system .................................................................................................................................................................34

10.4.5 TARV WIM SE5 — User contracts with application service provider ............................34

10.4.6 TARV WIM SE6 — Application service provider uploads software into the

TARV equipped vehicles of the fleet owner ...........................................................................................34

10.4.7 TARV WIM SE7 — Create Data ..........................................................................................................................34

10.4.8 TARV WIM SE8 — Recording of weigh-in-motion data ...............................................................35

10.4.9 TARV WIM SE10 — ‘Interrogated’ request for weigh-in-motion data............................35

10.4.10 TARV WIM SE9 — Pre-programmed interval sending weigh-in-motion

data to application service provider (Communication Profile 3) .......................................37

10.4.11 TARV WIM SE11 — End of session .................. ..........................................................................................38

10.5 Generic TARV WIM data naming, content and quality .......................................................................................38

10.6 WIM data content ..............................................................................................................................................................................38

10.7 TARV WIM application service specific provisions for quality of service .........................................38

10.8 TARV WIM application service specific provisions for test requirements .......................................39

10.9 TARV WIM application specific rules for the approval of IVSs and ‘Service Providers’ ........39

Annex A (informative) WIM communication and transaction profiles ..........................................................................40

Annex B (normative) Communication Profile for 5,8 GHz DSRC communications ...........................................47

Annex C (informative) Example application data ‘profiles’ for ‘weigh-in-motion’ ............................................91

Annex D (informative) End user considerations for deployment and use of ‘weigh-in-

motion’ systems ..............................................................................................................................................................................................104

Bibliography .........................................................................................................................................................................................................................106

iv PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 15638-20:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

is o/ f or ewor d . ht m l .

This document was prepared by Technical Committee ISO/TC 204, Intelligent transport systems.

A list of all parts in the ISO 15638 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2020 – All rights reserved PROOF/ÉPREUVE v
---------------------- Page: 5 ----------------------
ISO 15638-20:2020(E)
Introduction

Many ITS technologies have been embraced by commercial transport operators and freight owners, in

the areas of fleet management, safety and security. On-board applications have also been developed

for governmental use. Such regulatory services in use or being considered vary from jurisdiction to

jurisdiction, but include electronic on-board recorders, digital tachograph, on-board mass monitoring,

‘mass’ data for regulatory control and management weigh-in-motion, vehicle access methods, hazardous

goods tracking and eCall. Additional applications with a regulatory impact being developed include fatigue

management, speed monitoring and vehicle penalties imposed based on location, distance and time.

The ISO 15638 TARV series of standards defines and addresses the framework for a range of cooperative

telematics applications for regulated vehicles (e.g. access methods, driver fatigue management, speed

monitoring, on-board mass monitoring, Remote Tachograph Monitoring, ADR management). The

overall scope includes the concept of operation, legal and regulatory issues, and the generic cooperative

provision of services to regulated vehicles, using an on-board ITS platform. The framework is based

on a (multiple) service provider-oriented approach with provisions for the approval and auditing of

service providers.

The ISO 15638 series of standards provides both the means to achieve current requirements for

telematics applications for regulated vehicles and the basis for future development of cooperative

telematics applications for regulated vehicles.

The ISO 15638 series of standards is timely as many governments (Europe, North America, Asia and

Australia/New Zealand) are considering the use of telematics for a range of regulatory purposes.

This document provides specifications for weigh-in-motion and on-board weighing monitoring and

supports several defined communication profiles in which this function may be performed.

Consistent with other parts of the ISO 15638 series of standards, this document does not prescribe

nor proscribe particular modes of operation, rather it provides a number of defined communication

and data profiles within which jurisdictions may achieve their objectives for remote weigh-in-motion

monitoring within the objectives and constraints of their regulations. This document recognizes that

those requirements and constraints will differ between jurisdictions.
vi PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 15638-20:2020(E)
Intelligent transport systems — Framework for
cooperative telematics applications for regulated
commercial freight vehicles (TARV) —
Part 20:
Weigh-in-motion monitoring
1 Scope

This document addresses the provision of ‘weigh-in-motion monitoring’ and specifies the form and

content of the transmission of such data required to support such systems, and access methods to

that data.

This document provides specifications for both on-board weighing (WIM-O) systems and in-road

“weigh-in-motion” (WIM-R) systems, and provides a profile where the vehicle weight measured is

recorded on-board using equipment already installed for “Remote Tachograph Monitoring”.

This document provides specifications for common communications and data exchange aspects of the

application service weigh-in-motion monitoring (WIM-O and WIM-R) that a jurisdiction regulator can

elect to require or support as an option, including:

a) High level definition of the service that a service provider has to provide (the service definition

describes common service elements, but does not define the detail of how such an application

service is instantiated, nor the acceptable value ranges of the data concepts defined);

b) Means to realize the service;

c) Application data naming, content and quality that an IVS has to deliver, including a number of

profiles for data (noting that requirements and constraints of what can/cannot be transmitted over

the air may vary between jurisdictions);

d) Support for a number of defined communication profiles to enable remote inspection.

The present version of this document provides specifications for the following application profiles:

— Application Profile A1: Vehicle weight measurement from “On-Board Weighing” systems

(WIM-O);

— Application Profile A2: Vehicle weight measurement from in-road ‘weigh-in-motion’ systems

where data is transferred to the IVS (WIM-R).

NOTE 1 Vehicle weight measurement from in-road ‘weigh-in-motion’ systems where data is linked to a specific

vehicle by ANPR or other techniques and sent via landline or cellular communications to a processing centre is also

a viable and alternate option, but as it does not include carrying data on-board the vehicle is not a TARV use case.

The present version of this document provides specifications for the following communication profiles:

— Communication Profile 1: Roadside inspection using a short range wireless communication

interrogator instigating a physical roadside inspection (master-:-slave):

— Profile C1a: via a hand aimed or temporary roadside mounted and aimed interrogator;

— Profile C1b: via a vehicle mounted and directed interrogator;
© ISO 2020 – All rights reserved PROOF/ÉPREUVE 1
---------------------- Page: 7 ----------------------
ISO 15638-20:2020(E)
— Profile C1c: via a permanent or semi-permanent roadside or overhead gantry.

— Communication Profile 2: Roadside inspection using a short range wireless communication

interrogator instigating a download of data to an application service provider via an ITS-

station communication (master-:-slave + peer-:-peer):

— Profile C2a: via a hand aimed or temporary roadside mounted and aimed interrogator;

— Profile C2b: via a vehicle mounted and directed interrogator;
— Profile C2c: via a permanent or semi-permanent roadside or overhead gantry.

— Communication Profile 3: Remote inspection addressed via an ITS-station instigating a

download of data to an application service provider via a wireless communications interface

(as defined in ISO 15638-2).

Subsequent versions of this document may support additional communication profiles.

NOTE 2 The ISO 15638 series of standards has been developed for use in the context of regulated commercial

freight vehicles (hereinafter referred to as ‘regulated vehicles’). There is nothing, however, to prevent a

jurisdiction from extending or adapting the scope to include other types of regulated vehicles, as it deems

appropriate.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 11898-1, Road vehicles — Controller area network (CAN) — Part 1: Data link layer and physical

signalling

ISO 15638-1, Intelligent transport systems — Framework for cooperative telematics applications for

regulated vehicles (TARV) — Part 1: Framework and architecture

ISO 15638-2, Intelligent transport systems — Framework for cooperative telematics applications for

regulated vehicles (TARV) — Part 2: Common platform parameters using CALM

ISO 15638-3, Intelligent transport systems — Framework for collaborative Telematics Applications for

Regulated commercial freight Vehicles (TARV) — Part 3: Operating requirements, 'Approval Authority'

procedures, and enforcement provisions for the providers of regulated services

ISO/TS 15638-4, Intelligent transport systems — Framework for cooperative telematics applications for

regulated commercial freight vehicles (TARV) — Part 4: System security requirements

ISO 15638-5:2013, Intelligent transport systems — Framework for collaborative Telematics Applications

for Regulated commercial freight Vehicles (TARV) — Part 5: Generic vehicle information

ISO 15638-6:2014, Intelligent transport systems — Framework for collaborative Telematics Applications

for Regulated commercial freight Vehicles (TARV) — Part 6: Regulated applications

ISO 15638-9:— , Intelligent transport systems — Framework for cooperative telematics applications for

regulated commercial freight vehicles (TARV) — Part 9: Remote digital tachograph monitoring

EN ETSI 300 674-1, ETSI EN 300 674-1 V1.2.1 (2004-08) Electromagnetic compatibility and Radio spectrum

Matters (ERM); Road Transport and Traffic Telematics (RTTT); Dedicated Short Range Communication

(DSRC) transmission equipment (500 kbit/s / 250 kbit/s) operating in the 5,8 GHz Industrial, Scientific and

Medical (ISM) band; Part 1: General characteristics and test methods for Road Side Units (Interrogator)

and On-Board Units (OBU)
1) Under preparation. Stage at the time of publication : ISO/FDIS 15638-9:2020.
2 PROOF/ÉPREUVE © ISO 2020 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 15638-20:2020(E)
ARIB STD-T75, Dedicated Short-Range Communication (Japan)

TTAS KO-06.0025, Standard of DSRC Radio Communication between Road-side Equipment and On-

board Equipment in 5.8 GHz band (Korea)

EN 12253, Road transport and traffic telematics — Dedicated short-range communication — Physical

layer using microwave at 5.8 GHz

EN 12795, Road transport and traffic telematics — Dedicated Short Range Communication (DSRC) —

DSRC data link layer: medium access and logical link control

EN 12834:2003, Road transport and traffic telematics — Dedicated Short Range Communication (DSRC) —

DSRC application layer

EN 13372:2012, Road transport and traffic telematics — Dedicated Short Range Communication (DSRC) —

Profiles for RTTT applications
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 15638-1 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
app

small (usually) Java™ (3.23) applets, organized as software bundles, that support application services

(3.3) by keeping the data pantry (3.16) provisioned with up to date data
3.2
application profile

characteristics and specification of the information and transaction detail required to meet a set of

user (3.49) needs which within the common high-level framework (3.19) of this document, allows

different jurisdictions (3.24) to receive different detail of transaction or to specify a particular

communications means
3.3
application service

service provided by a service provider (3.44) enabled by accessing data from the IVS (3.19) of a regulated

vehicle (3.43) via a wireless communications network
3.4
application service provider
ASP
party that provides an application service (3.3)
3.5
app library

separately secure area of memory in IVS (3.19) where apps are stored [with different access controls to

data pantry (3.16)]
3.6
approval
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
