ISO/TR 16822:2016

Building environment design — List of test procedures for heating, ventilating, air-conditioning and domestic hot water equipment related to energy efficiency

ISO/TR 16822:2016 lists testing and rating procedures for determining energy efficiency of heating, ventilating, and air conditioning equipment. It is applicable to space conditioning and water heating equipment. Testing and rating procedures are listed in two ways.

Conception de l'environnement des bâtiments - Liste des procédures d'essai liés à l'efficacité thermique pour les installations de chauffage, ventilation, air conditionné et eau chaude à usage domestique — Équipement de chauffage, de ventilation et de refroidissement — Exigences relatives au rendement d'énergie

General Information

• Status: Published
• Publication Date: 11-Jul-2016
• ICS: 91.040.01 - Buildings in general
• Technical Committee: ISO/TC 205 - Building environment design
• Drafting Committee: ISO/TC 205/WG 2 - Design of energy-efficient buildings
• Current Stage: 6060 - International Standard published
• Due Date: 14-Jan-2016
• Completion Date: 12-Jul-2016

Standards Content (Sample)

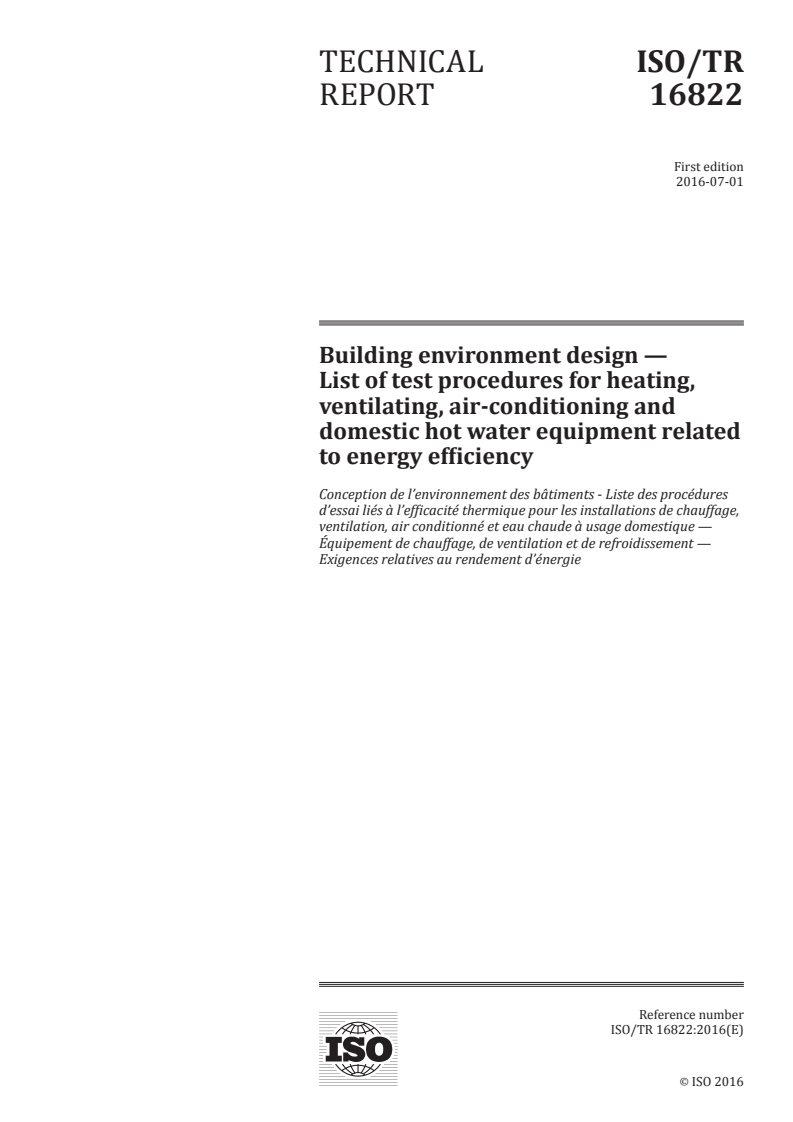

TECHNICAL ISO/TR
REPORT 16822
First edition
2016-07-01
Building environment design —
List of test procedures for heating,
ventilating, air-conditioning and
domestic hot water equipment related
to energy efficiency
Conception de l’environnement des bâtiments - Liste des procédures
d’essai liés à l’efficacité thermique pour les installations de chauffage,
ventilation, air conditionné et eau chaude à usage domestique —
Équipement de chauffage, de ventilation et de refroidissement —
Exigences relatives au rendement d’énergie
Reference number
ISO/TR 16822:2016(E)
©
ISO 2016

---------------------- Page: 1 ----------------------
ISO/TR 16822:2016(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2016 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TR 16822:2016(E)

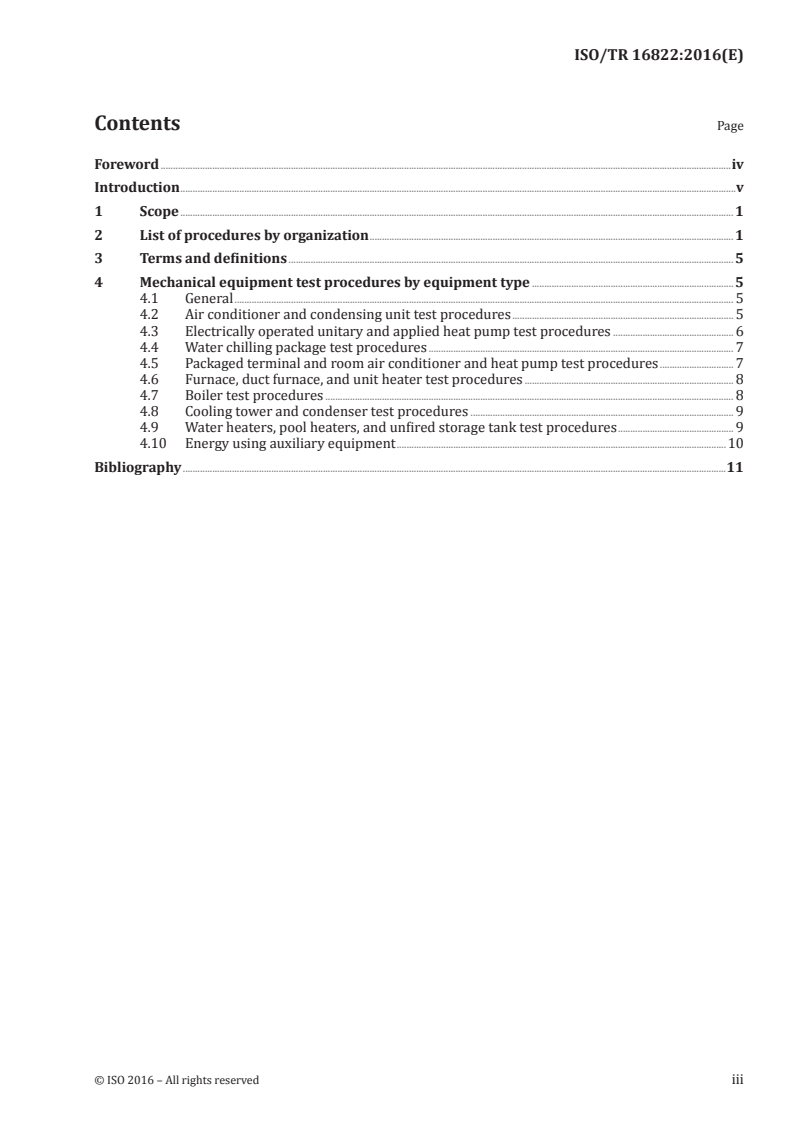

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 List of procedures by organization . 1
3 Terms and definitions . 5
4 Mechanical equipment test procedures by equipment type . 5
4.1 General . 5
4.2 Air conditioner and condensing unit test procedures . 5
4.3 Electrically operated unitary and applied heat pump test procedures . 6
4.4 Water chilling package test procedures . 7
4.5 Packaged terminal and room air conditioner and heat pump test procedures . 7
4.6 Furnace, duct furnace, and unit heater test procedures . 8
4.7 Boiler test procedures . 8
4.8 Cooling tower and condenser test procedures . 9
4.9 Water heaters, pool heaters, and unfired storage tank test procedures . 9
4.10 Energy using auxiliary equipment .10
Bibliography .11
© ISO 2016 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TR 16822:2016(E)

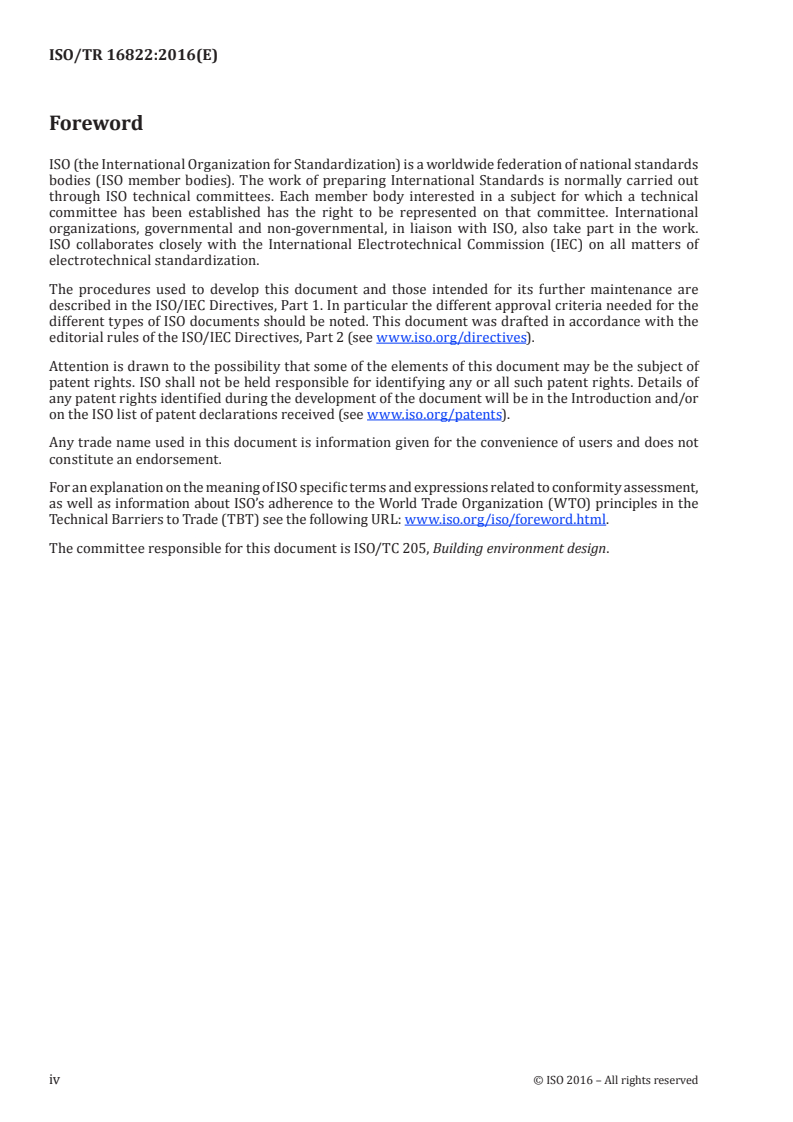

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 205, Building environment design.
iv © ISO 2016 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 16822:2016(E)

Introduction
The world’s energy resources are being consumed at a significant rate that will result in the depletion
of known fossil fuel resources within the next century. Combustion of fossil fuels has contributed to the
build-up of greenhouse gases in the atmosphere resulting in discernible climate change. The ill effects
of climate change have been documented. It is imperative that energy be conserved. The building
industry, through its use of energy, accounts for 30 % to 35 % of all fossil fuel usage. Conservation of
energy in buildings can result in a slowing down of fossil fuel usage and consequently the build-up of
greenhouse gases.
The energy efficiencies of components in HVAC systems are critical factors when determining building
overall energy performance. Therefore, it is necessary to define common test methods that are to be
used to determine efficiency for space heating, space cooling, and water heating equipment, in order to
improve energy conservation. Space heating, space cooling, and water heating equipment are typically
regulated by specifying both a measure of efficiency that the equipment must meet and a test method
that must be used to determine that measure of efficiency. A technical report containing test procedures
and globally relevant standards for the energy-efficiency of products is needed for the proper assessment
of building energy performance. This Technical Report will be a useful reference for standards developed
by ISO/TC 205 and ISO/TC 163-ISO/TC 205. The ultimate goal of this effort is to develop a set of globally
adopted HVAC equipment testing and rating standards under the auspices of ISO.
This Technical Report lists existing HVAC equipment testing and rating procedures from around
the world. Standards are listed in two ways, by the standards writing organization and by the type
of equipment addressed in the standard. In Clause 2, procedures are listed by the organization that
developed the procedure. In Clause 4, procedures are listed by the types of equipment that are covered
by the procedure. Procedures are listed to aid in the development of new ISO procedures that may be
globally adopted.
© ISO 2016 – All rights reserved v

---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 16822:2016(E)
Building environment design — List of test procedures for
heating, ventilating, air-conditioning and domestic hot
water equipment related to energy efficiency
1 Scope
This Technical Report lists testing and rating procedures for determining energy efficiency of heating,
ventilating, and air conditioning equipment. This Technical Report is applicable to space conditioning
and water heating equipment. Testing and rating procedures are listed in two ways.
2 List of procedures by organization
The following documents contain provisions which, through reference in this text, constitute
provisions of this Technical Report. For dated references, subsequent amendments to, or revisions of,
any of these publications do not apply. However, parties to agreements based on this Technical Report
are encouraged to investigate the possibility of applying the most recent editions of the documents
indicated below. For undated references, the latest edition of the document referred to and any updates
applies. Members of ISO and IEC maintain registers of currently valid International Standards.
AHRI
AHRI 400 with Addendum 2 Liquid-to-Liquid Heat Exchangers
AHRI 1230, Performance Rating of Variable Refrigerant Flow (VRF) Multi-split Air-Conditioning and Heat
Pump Equipment
AHRI 1160, Performance Rating of Heat Pump Pool Heaters
AMCA
AMCA 500-D-07, Laboratory Methods of Testing Dampers for Rating
ANSI
ANSI Z21.47, Gas-Fired Central Furnaces
ANSI Z83.8, Gas Unit Heaters and Duct Furnaces
AHAM
ANSI AHAM RAC-1, Room Air-Conditioners
ASHRAE
ANSI ASHRAE 118.1, Method of Testing Commercial Gas, Electric and Oil Water Heaters
ANSI ASHRAE 118.2, Method of Testing Residential Gas, Electric, and Oil Water Heaters
ANSI ASHRAE 146, Method of Testing for Rating Pool Heaters
ASHRAE Standard 103, Method of Testing for Annual Fuel Utilization Efficiency of Residential Central
Furnaces and Boilers
AHRI
AHRI 210/240, Unitary Air-conditioning and Air Source Heat Pump Equipment
© ISO 2016 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/TR 16822:2016(E)

AHRI 310/380, Packaged Terminal Air-conditioners and Heat Pumps
AHRI 340/360, Commercial and Industrial Unitary Air-conditioning and Heat Pump Equipment
AHRI 365, Commercial and Industrial Unitary Air-conditioning Condensing Equipment
AHRI 390, Performance Rating of Single Packaged Vertical Air Conditioners and Heat Pumps
AHRI 460, Remote Mechanical-Draft Air-Cooled Refrigerant Condensers
AHRI 550/590 with Addenda through July 2002, Water Chilling Packages Using the Vapor Compression Cycle
AHRI 560, Absorption Water Chilling and Water Heating Packages
CTI
CTI ATC-105, Acceptance Test Code for Water Cooling Towers
CTI STD-201, Standard for Certification of Water Cooling Tower Thermal Performance
DOE
DOE 10 CFR Part 430, Appendix N, Uniform Test Method for Measuring the Energy Consumption of
Furnaces
EN
EN 297, Atmospheric gas boiler without fan, < 70 kW
EN 303-1, Boilers with forced draught burners — General requirements
EN 303-2, Boilers with forced draught burners — Atomizing oil burners
EN 303-3, Gas boilers with forced draught burners — Assemblies
EN 303-4, Boilers with forced draught burners — Oil burners < 70 kW
EN 303-6, Boilers with forced draught burners — Oil fired combi-boilers
EN 416, Single-burner gas-fired overhead radiant tube heaters for non-domestic use — Part 2: Rational use
of energy
EN 419, Non-domestic gas-fired overhead luminous radiant heaters — Part 2: Rational use of energy
EN 625, Gas-fired combi-boilers
EN 15035, Room-sealed (type C) oil-fired boilers
EN 15456, Electrical power consumption for heat generators
EN 267, Forced draught oil burners — Definitions, requirements, testing, marking
EN 304, Atomizing oil burners — Test code
EN 303-7, Boilers with forced draught burners — Gas fired boilers < 1000 kW
EN 656, Gas boilers, type B, 70 - 300 kW
EN 13836, Gas boilers, type B, 300 - 1000 kW
EN 483, Gas boilers, type C < 70 kW
EN 677, Gas condensing boilers < 70 kW
EN 15034, Condensing oil boilers < 1000 kW
2 © ISO 2016 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/TR 16822:2016(E)

EN 13203-1, Gas-fired water heaters, performance assessment
EN 13203-2, Gas fired water heaters, energy use assessment
EN 12897, Water supply — Specification for indirectly heated unvented (closed) storage water heaters
EN 15332, Heating boilers — Energetic assessment of hot water storage tanks
EN 89, Gas-fired storage water heaters for the production of domestic hot water
EN 26, Gas-fired instantaneous water heaters for sanitary uses production, fitted with atmospheric burners
EN 12976-1, Thermal solar systems and components — Factory made systems — Part 1: General
requirements
EN 12976-2, Thermal solar systems and components — Factory made systems — Part 2: test methods
EN 14511-1:2011, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling — Part 1: Terms and definitions
EN 14511-2:2011, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling — Part 2: Test conditions
EN 14511-3:2011, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling — Part 3: Test methods
EN 14511-4:2011, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling — Part 4: Requirements
EN 12102:2008, Air conditioners, liquid chilling packages, heat pumps and dehumidifiers with electrically
driven compressors for space heating and cooling — Measurement of airborne noise — Determination of
the sound power level
EN 15218:2006, Air conditioners and liquid chilling packages with evaporatively cooled condenser and
with electrically driven compressors for space cooling — Terms, definitions, test con
...

TECHNICAL ISO/TR
REPORT 16822
First edition
Building environment design —
List of test procedures for heating,
ventilating, air-conditioning and
domestic hot water equipment related
to energy efficiency
Conception de l’environnement des bâtiments - Liste des procédures
d’essai liés à l’efficacité thermique pour les installations de chauffage,
ventilation, air conditionné et eau chaude à usage domestique —
Équipement de chauffage, de ventilation et de refroidissement —
Exigences relatives au rendement d’énergie
PROOF/ÉPREUVE
Reference number
ISO/TR 16822:2016(E)
©
ISO 2016

---------------------- Page: 1 ----------------------
ISO/TR 16822:2016(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2016 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TR 16822:2016(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 List of procedures by organization . 1
3 Terms and definitions . 5
4 Mechanical equipment test procedures by equipment type . 5
4.1 General . 5
4.2 Air conditioner and condensing unit test procedures . 5
4.3 Electrically operated unitary and applied heat pump test procedures . 6
4.4 Water chilling package test procedures . 7
4.5 Packaged terminal and room air conditioner and heat pump test procedures . 7
4.6 Furnace, duct furnace, and unit heater test procedures . 8
4.7 Boiler test procedures . 8
4.8 Cooling tower and condenser test procedures . 9
4.9 Water heaters, pool heaters, and unfired storage tank test procedures . 9
4.10 Energy using auxiliary equipment .10
Bibliography .11
© ISO 2016 – All rights reserved PROOF/ÉPREUVE iii

---------------------- Page: 3 ----------------------
ISO/TR 16822:2016(E)

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 205, Building environment design.
iv PROOF/ÉPREUVE © ISO 2016 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 16822:2016(E)

Introduction
The world’s energy resources are being consumed at a significant rate that will result in the depletion
of known fossil fuel resources within the next century. Combustion of fossil fuels has contributed to the
build-up of greenhouse gases in the atmosphere resulting in discernible climate change. The ill effects
of climate change have been documented. It is imperative that energy be conserved. The building
industry, through its use of energy, accounts for 30 % to 35 % of all fossil fuel usage. Conservation of
energy in buildings can result in a slowing down of fossil fuel usage and consequently the build-up of
greenhouse gases.
The energy efficiencies of components in HVAC systems are critical factors when determining building
overall energy performance. Therefore, it is necessary to define common test methods that are to be
used to determine efficiency for space heating, space cooling, and water heating equipment, in order to
improve energy conservation. Space heating, space cooling, and water heating equipment are typically
regulated by specifying both a measure of efficiency that the equipment must meet and a test method
that must be used to determine that measure of efficiency. A technical report containing test procedures
and globally relevant standards for the energy-efficiency of products is needed for the proper assessment
of building energy performance. This Technical Report will be a useful reference for standards developed
by ISO/TC 205 and ISO/TC 163-ISO/TC 205. The ultimate goal of this effort is to develop a set of globally
adopted HVAC equipment testing and rating standards under the auspices of ISO.
This Technical Report lists existing HVAC equipment testing and rating procedures from around
the world. Standards are listed in two ways, by the standards writing organization and by the type
of equipment addressed in the standard. In Clause 2, procedures are listed by the organization that
developed the procedure. In Clause 4, procedures are listed by the types of equipment that are covered
by the procedure. Procedures are listed to aid in the development of new ISO procedures that may be
globally adopted.
© ISO 2016 – All rights reserved PROOF/ÉPREUVE v

---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 16822:2016(E)
Building environment design — List of test procedures for
heating, ventilating, air-conditioning and domestic hot
water equipment related to energy efficiency
1 Scope
This Technical Report lists testing and rating procedures for determining energy efficiency of heating,
ventilating, and air conditioning equipment. This Technical Report is applicable to space conditioning
and water heating equipment. Testing and rating procedures are listed in two ways.
2 List of procedures by organization
The following documents contain provisions which, through reference in this text, constitute
provisions of this Technical Report. For dated references, subsequent amendments to, or revisions of,
any of these publications do not apply. However, parties to agreements based on this Technical Report
are encouraged to investigate the possibility of applying the most recent editions of the documents
indicated below. For undated references, the latest edition of the document referred to and any updates
applies. Members of ISO and IEC maintain registers of currently valid International Standards.
AHRI
AHRI 400 with Addendum 2 Liquid-to-Liquid Heat Exchangers
AHRI 1230, Performance Rating of Variable Refrigerant Flow (VRF) Multi-split Air-Conditioning and Heat
Pump Equipment
AHRI 1160, Performance Rating of Heat Pump Pool Heaters
AMCA
AMCA 500-D-07, Laboratory Methods of Testing Dampers for Rating
ANSI
ANSI Z21.47, Gas-Fired Central Furnaces
ANSI Z83.8, Gas Unit Heaters and Duct Furnaces
AHAM
ANSI AHAM RAC-1, Room Air-Conditioners
ASHRAE
ANSI ASHRAE 118.1, Method of Testing Commercial Gas, Electric and Oil Water Heaters
ANSI ASHRAE 118.2, Method of Testing Residential Gas, Electric, and Oil Water Heaters
ANSI ASHRAE 146, Method of Testing for Rating Pool Heaters
ASHRAE Standard 103, Method of Testing for Annual Fuel Utilization Efficiency of Residential Central
Furnaces and Boilers
AHRI
AHRI 210/240, Unitary Air-conditioning and Air Source Heat Pump Equipment
© ISO 2016 – All rights reserved PROOF/ÉPREUVE 1

---------------------- Page: 6 ----------------------
ISO/TR 16822:2016(E)

AHRI 310/380, Packaged Terminal Air-conditioners and Heat Pumps
AHRI 340/360, Commercial and Industrial Unitary Air-conditioning and Heat Pump Equipment
AHRI 365, Commercial and Industrial Unitary Air-conditioning Condensing Equipment
AHRI 390, Performance Rating of Single Packaged Vertical Air Conditioners and Heat Pumps
AHRI 460, Remote Mechanical-Draft Air-Cooled Refrigerant Condensers
AHRI 550/590 with Addenda through July 2002, Water Chilling Packages Using the Vapor Compression Cycle
AHRI 560, Absorption Water Chilling and Water Heating Packages
CTI
CTI ATC-105, Acceptance Test Code for Water Cooling Towers
CTI STD-201, Standard for Certification of Water Cooling Tower Thermal Performance
DOE
DOE 10 CFR Part 430, Appendix N, Uniform Test Method for Measuring the Energy Consumption of
Furnaces
EN
EN 297, Atmospheric gas boiler without fan, < 70 kW
EN 303-1, Boilers with forced draught burners — General requirements
EN 303-2, Boilers with forced draught burners — Atomizing oil burners
EN 303-3, Gas boilers with forced draught burners — Assemblies
EN 303-4, Boilers with forced draught burners — Oil burners < 70 kW
EN 303-6, Boilers with forced draught burners — Oil fired combi-boilers
EN 416, Single-burner gas-fired overhead radiant tube heaters for non-domestic use — Part 2: Rational use
of energy
EN 419, Non-domestic gas-fired overhead luminous radiant heaters — Part 2: Rational use of energy
EN 625, Gas-fired combi-boilers
EN 15035, Room-sealed (type C) oil-fired boilers
EN 15456, Electrical power consumption for heat generators
EN 267, Forced draught oil burners — Definitions, requirements, testing, marking
EN 304, Atomizing oil burners — Test code
EN 303-7, Boilers with forced draught burners — Gas fired boilers < 1000 kW
EN 656, Gas boilers, type B, 70 - 300 kW
EN 13836, Gas boilers, type B, 300 - 1000 kW
EN 483, Gas boilers, type C < 70 kW
EN 677, Gas condensing boilers < 70 kW
EN 15034, Condensing oil boilers < 1000 kW
2 PROOF/ÉPREUVE © ISO 2016 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/TR 16822:2016(E)

EN 13203-1, Gas-fired water heaters, performance assessment
EN 13203-2, Gas fired water heaters, energy use assessment
EN 12897, Water supply — Specification for indirectly heated unvented (closed) storage water heaters
EN 15332, Heating boilers — Energetic assessment of hot water storage tanks
EN 89, Gas-fired storage water heaters for the production of domestic hot water
EN 26, Gas-fired instantaneous water heaters for sanitary uses production, fitted with atmospheric burners
EN 12976-1, Thermal solar systems and components — Factory made systems — Part 1: General
requirements
EN 12976-2, Thermal solar systems and components — Factory made systems — Part 2: test methods
EN 14511-1:2011, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling — Part 1: Terms and definitions
EN 14511-2:2011, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling — Part 2: Test conditions
EN 14511-3:2011, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling — Part 3: Test methods
EN 14511-4:2011, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling — Part 4: Requirements
EN 12102:2008, Air conditioners, liquid chilling packages, heat pumps and dehumidifiers with electrically
driven compressors for space heating and cooling — Measurement of airborne noise — Determination of
the sound power level
EN 15218:2006, Air conditioners and liquid chilling packages with evaporatively cooled condenser and
with electrically driven compressors for space cooling — Terms, definitions, test conditions, test methods
and requi
...
