ISO 18582-2:2018

Fluid power — Specification of reference dictionary — Part 2: Definitions of classes and properties of pneumatics

This document specifies a reference dictionary of standardized product properties for the area of pneumatic fluid power on the basis of ISO 18582-1. The properties are determined on the basis of standardized attributes.

Transmissions hydrauliques et pneumatiques — Spécification d'un dictionnaire de référence — Partie 2: Définitions des classes et propriétés relatives aux transmissions pneumatiques

General Information

• Status: Published
• Publication Date: 12-Nov-2018
• ICS: 23.100.01 - Fluid power systems in general
• Technical Committee: ISO/TC 131/SC 1 - Symbols, terminology and classifications
• Drafting Committee: ISO/TC 131/SC 1/WG 4 - Product properties and classification
• Current Stage: 9093 - International Standard confirmed
• Start Date: 04-Mar-2024
• Completion Date: 13-Dec-2025

Relations

• Consolidated By: ISO 23940:2021 - Dentistry — Excavators
• Effective Date: 06-Jun-2022

Standards Content (Sample)

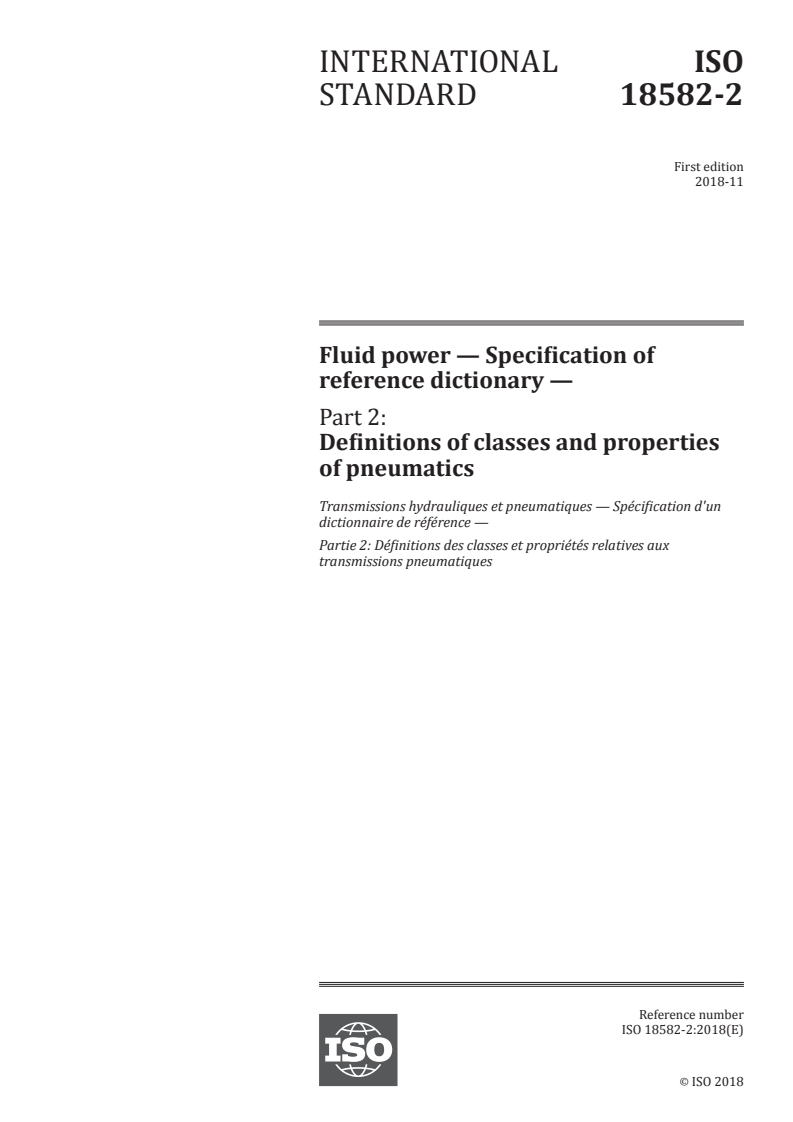

INTERNATIONAL ISO
STANDARD 18582-2
First edition
2018-11
Fluid power — Specification of
reference dictionary —
Part 2:
Definitions of classes and properties
of pneumatics
Transmissions hydrauliques et pneumatiques — Spécification d'un
dictionnaire de référence —
Partie 2: Définitions des classes et propriétés relatives aux
transmissions pneumatiques
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

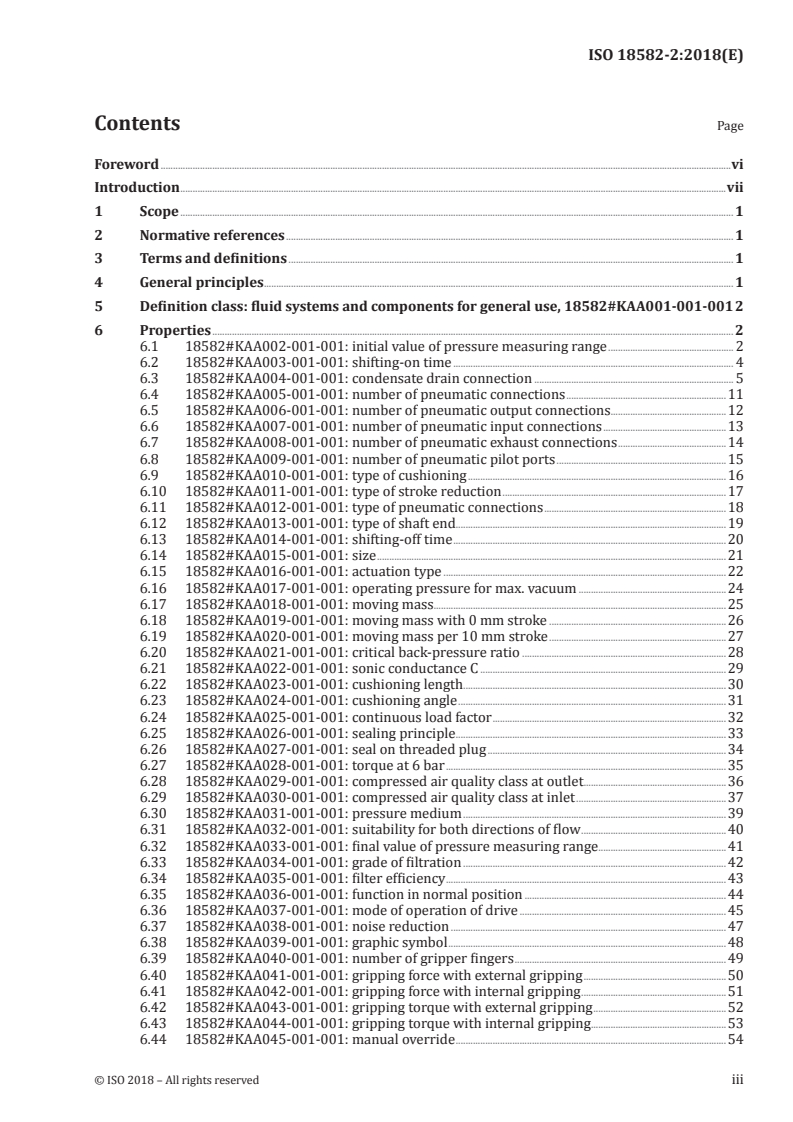

Contents Page
Foreword .vi
Introduction .vii
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General principles . 1
5 Definition class: fluid systems and components for general use, 18582#KAA001-001-001 2
6 Properties . 2
6.1 18582#KAA002-001-001: initial value of pressure measuring range . 2
6.2 18582#KAA003-001-001: shifting-on time . 4
6.3 18582#KAA004-001-001: condensate drain connection . 5
6.4 18582#KAA005-001-001: number of pneumatic connections .11
6.5 18582#KAA006-001-001: number of pneumatic output connections . .12
6.6 18582#KAA007-001-001: number of pneumatic input connections .13
6.7 18582#KAA008-001-001: number of pneumatic exhaust connections .14
6.8 18582#KAA009-001-001: number of pneumatic pilot ports .15
6.9 18582#KAA010-001-001: type of cushioning .16
6.10 18582#KAA011-001-001: type of stroke reduction .17
6.11 18582#KAA012-001-001: type of pneumatic connections .18
6.12 18582#KAA013-001-001: type of shaft end.19
6.13 18582#KAA014-001-001: shifting-off time .20
6.14 18582#KAA015-001-001: size .21
6.15 18582#KAA016-001-001: actuation type .22
6.16 18582#KAA017-001-001: operating pressure for max. vacuum .24
6.17 18582#KAA018-001-001: moving mass.25
6.18 18582#KAA019-001-001: moving mass with 0 mm stroke .26
6.19 18582#KAA020-001-001: moving mass per 10 mm stroke .27
6.20 18582#KAA021-001-001: critical back-pressure ratio .28
6.21 18582#KAA022-001-001: sonic conductance C .29
6.22 18582#KAA023-001-001: cushioning length.30
6.23 18582#KAA024-001-001: cushioning angle .31
6.24 18582#KAA025-001-001: continuous load factor .32
6.25 18582#KAA026-001-001: sealing principle .33
6.26 18582#KAA027-001-001: seal on threaded plug .34
6.27 18582#KAA028-001-001: torque at 6 bar .35
6.28 18582#KAA029-001-001: compressed air quality class at outlet.36
6.29 18582#KAA030-001-001: compressed air quality class at inlet .37
6.30 18582#KAA031-001-001: pressure medium .39
6.31 18582#KAA032-001-001: suitability for both directions of flow .40
6.32 18582#KAA033-001-001: final value of pressure measuring range .41
6.33 18582#KAA034-001-001: grade of filtration .42
6.34 18582#KAA035-001-001: filter efficiency .43
6.35 18582#KAA036-001-001: function in normal position .44
6.36 18582#KAA037-001-001: mode of operation of drive .45
6.37 18582#KAA038-001-001: noise reduction .47
6.38 18582#KAA039-001-001: graphic symbol .48
6.39 18582#KAA040-001-001: number of gripper fingers .49
6.40 18582#KAA041-001-001: gripping force with external gripping .50
6.41 18582#KAA042-001-001: gripping force with internal gripping .51
6.42 18582#KAA043-001-001: gripping torque with external gripping .52
6.43 18582#KAA044-001-001: gripping torque with internal gripping .53
6.44 18582#KAA045-001-001: manual override .54
6.45 18582#KAA046-001-001: stroke .55
6.46 18582#KAA047-001-001: stroke per gripper jaw .56
6.47 18582#KAA048-001-001: piston diameter .57
6.48 18582#KAA049-001-001: type of piston rod .58
6.49 18582#KAA050-001-001: type of piston rod end .59
6.50 18582#KAA051-001-001: piston rod thread.61
6.51 18582#KAA052-001-001: condensate drain .64
6.52 18582#KAA053-001-001: logic valve function .65
6.53 18582#KAA054-001-001: maximum impact energy.66
6.54 18582#KAA055-001-001: maximum stroke reduction per side .67
6.55 18582#KAA056-001-001: maximum piston speed .68
6.56 18582#KAA057-001-001: maximum condensate volume .69
6.57 18582#KAA058-001-001: maximum swivel angle extension per side .70
6.58 18582#KAA059-001-001: maximum swivel angle reduction per side .71
6.59 18582#KAA060-001-001: maximum temperature of pressure medium .73
6.60 18582#KAA061-001-001: maximum ambient temperature .74
6.61 18582#KAA062-001-001: maximum output pressure .75
6.62 18582#KAA063-001-001: maximum operating pressure .76
6.63 18582#KAA064-001-001: maximum pilot pressure .77
6.64 18582#KAA065-001-001: maximum X-stroke .78
6.65 18582#KAA066-001-001: maximum Y-stroke .79
6.66 18582#KAA067-001-001: maximum torque in direction of X-axis . .80
6.67 18582#KAA068-001-001: maximum torque in direction of Y-axis .81
6.68 18582#KAA069-001-001: maximum torque in direction of Z-axis .82
6.69 18582#KAA070-001-001: maximum vacuum .83
6.70 18582#KAA071-001-001: minimum temperature of pressure medium .84
6.71 18582#KAA072-001-001: minimum ambient temperature .85
6.72 18582#KAA073-001-001: minimum output pressure .86
6.73 18582#KAA074-001-001: minimum operating pressure .87
6.74 18582#KAA075-001-001: minimum pilot pressure .88
6.75 18582#KAA076-001-001: driver coupling .89
6.76 18582#KAA077-001-001: nominal size of pressure gauge.90
6.77 18582#KAA078-001-001: nominal size .91
6.78 18582#KAA079-001-001: nominal size of laval nozzle.92
6.79 18582#KAA080-001-001: pneumatic port.93
6.80 18582#KAA081-001-001: pneumatic output port .101
6.81 18582#KAA082-001-001: pneumatic input port .109
6.82 18582#KAA083-001-001: pneumatic exhaust port .116
6.83 18582#KAA084-001-001: pneumatic clamping port .123
6.84 18582#KAA085-001-001: pneumatic pilot port .130
6.85 18582#KAA086-001-001: position sensing .137
6.86 18582#KAA087-001-001: principle of filter contamination indicator .138
6.87 18582#KAA088-001-001: shear force.140
6.88 18582#KAA089-001-001: grid dimension .141
6.89 18582#KAA090-001-001: controller function .142
6.90 18582#KAA091-001-001: RoHS conformity . .143
6.91 18582#KAA092-001-001: IP protection class with connector .144
6.92 18582#KAA093-001-001: IP protection class without connector .147
6.93 18582#KAA094-001-001: swivel direction .149
6.94 18582#KAA095-001-001: swivel angle .150
6.95 18582#KAA096-001-001: clamping area .151
6.96 18582#KAA097-001-001: shut-off valve function .152
6.97 18582#KAA098-001-001: control characteristics .153
6.98 18582#KAA099-001-001: type of control .155
6.99 18582#KAA100-001-001: flow control valve function .156
6.100 18582#KAA101-001-001: theoretical cylinder force, advancing .157
6.101 18582#KAA102-001-001: theoretical cylinder force, retracting .158
6.102 18582#KAA103-001-001: shifting time .159
iv © ISO 2018 – All rights reserved

6.103 18582#KAA104-001-001: shifting-on time of dominant side .160
6.104 18582#KAA105-001-001: valve return .161
6.105 18582#KAA106-001-001: torsional tolerance .162
6.106 18582#KAA107-001-001: volumetric flow rate due to secondary venting .163
6.107 18582#KAA108-001-001: volumetric flow rate through vacuum filter .164
6.108 18582#KAA109-001-001: volumetric flow rate with respect to atmosphere .165
6.109 18582#KAA110-001-001: directional control valve function .166
6.110 18582#KAA111-001-001: active direction of gripping force backup .168
6.111 18582#KAA112-001-001: effective torque .169
6.112 18582#KAA113-001-001: limit of the axial force .170
6.113 18582#KAA114-001-001: permissible lateral force .171
6.114 18582#KAA115-001-001: certification .172
6.115 18582#KAA116-001-001: ISO standard conformity of cylinder .173
6.116 18582#KAA117-001-001: accessory type .174
7 Application classes .175
7.1 18582#KAA801-001-001: pneumatics .175
7.2 18582#KAA802-001-001: actuators .176
7.3 18582#KAA803-001-001: valves and valve manifolds .178
7.4 18582#KAA804-001-001: compressed air .179
7.5 18582#KAA805-001-001: vacuum technology.181
Annex A (informative) Hierarchical structure of the application classes .183
Bibliography .184
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 131, Fluid power systems, Subcommittee
SC 1, Symbols, terminology and classifications.
A list of all parts in the ISO 18582 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
vi © ISO 2018 – All rights reserved

Introduction
This document provides sufficient detail of information required for an unambiguous electronic data
exchange for the business area of pneumatic fluid power systems. ISO 5598 provides only terms and
definitions for fluid power in general which is not sufficient for electronic data exchange.
INTERNATIONAL STANDARD ISO 18582-2:2018(E)
Fluid power — Specification of reference dictionary —
Part 2:
Definitions of classes and properties of pneumatics
1 Scope
This document specifies a reference dictionary of standardized product properties for the area of
pneumatic fluid power on the basis of ISO 18582-1.
The properties are determined on the basis of standardized attributes.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC Guide 77-2, Guide for specification of product properties and classes — Part 2: Technical principles
and guidance
ISO 13584-42, Industrial automation systems and integration — Parts library — Part 42: Description
methodology: Methodology for structuring parts families
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 13584-42 and ISO/IEC Guide
77-2 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
4 General principles
Each property shall be defined in a particular definition class, which defines the domain of all properties
specified therein. Once defined (in their definition class) the properties can be referenced, i.e. used, in
other classes, e.g. in (standardized) application classes or immediately in a user's system. The entirety
of definition classes makes up the ISO/TC 131 reference hierarchy.
The definition class ICS 23, fluid systems and components for general use, form part of the reference
dictionary for fluid power systems.
The attribute information for the definition class is given in Clause 5. The attribute information for
their associated properties is specified in Clause 6. The application classes are given in Clause 7 (see
also Annex A).
NOTE There are additional attributes to those of the ones of ISO 18582-1 in the tables in Clauses 5, 6 and 7,
e.g. ICS.
5 Definition class: fluid systems and components for general use,
18582#KAA001-001-001
Hierarchy Definition class
Identifier 18582#KAA001-001-001
[Information supplier-Code-Ver-
sion-Revision]
Preferred name 23 fluid systems and components for general use

Short name fluid systems
Synonymous name
Definition ICS class of fluid systems and components for general use

Source document of definition
Note
Remark The class and its definition are based on the classification of ICS.

Applicable properties
Figure
Classification to ICS 23.000
Its superclass
Preferred name of superclass
Keyword
Applicable types
Subclass selectors
Class selector values
Status 60.60
Date of original Definition 2018
Date of current version 2018
Date of current Revision
6 Properties
6.1 18582#KAA002-001-001: initial value of pressure measuring range
Hierarchy Properties
Identifier
18582#KAA002-001-001
[Information supplier-Code-Ver-
sion-Revision]
Preferred name initial value of pressure measuring range

2 © ISO 2018 – All rights reserved

Hierarchy Properties
Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition lower limit of the range of values for a measured variable for which the
measurement deviations of a measuring device must remain within de-
fined limits
Source document of definition
Note NOTE 1  The measuring range is specified by the initial value and the
final value. The difference between the final and initial values is called the
measuring span.
NOTE 2  The output range is the range of all those values that can be
provided by the measuring device as its output. The indicating range is
the output range on measuring devices with displays. The term nominal
range for the output range should be avoided. (This term is not uniformly
used and can also mean "measuring range" or "range of nominal values".)
According to DIN 1319-1.
Remark UN ECE code for unit: BAR
IEC classification: K15
Formula
Unit of measure bar
Alternative unit
Type of property
D = dependent; N = non-de-
N
pendent;
C = condition
Depends on
Domain
Property type classification Real
Value specification
List of values
List of value names
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition 23 fluid systems and components for general use
class
Status 60.60 - International Standard published
Date of original Definition
Date of current version
Date of current Revision
6.2 18582#KAA003-001-001: shifting-on time
Hierarchy Properties
Identifier
18582#KAA003-001-001
[Information supplier-Code-Version-
Revision]
Preferred name shifting on-time

Short name
Synonymous name switch on-time
Preferred symbol
Synonymous symbol
Definition length of time that elapses between the control signal (electric or pneu-
matic) being applied and the pressure increasing at the respective valve
output until 10 % of the defined operating pressure is reached
Source document of definition Based on ISO 12238:2001
Note NOTE  Only a pressure sensor is connected to the valve output.
Remark UN ECE code for unit: C26
IEC classification: T07
Formula
Unit of measure ms
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification Real
Value specification
List of values
List of value names
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
Date of original Definition
Date of current version
Date of current Revision
4 © ISO 2018 – All rights reserved

6.3 18582#KAA004-001-001: condensate drain connection
Hierarchy Properties
Identifier
18582#KAA004-001-001
[Information supplier-Code-Version-Revision]
Preferred name condensate drain connection

Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition type of connection for draining condensate
Source document of definition
Note
Remark IEC classification: A56
Formula
Unit of measure
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification String
Value specification EXPLICIT
List of values 1
Hierarchy Properties
6 © ISO 2018 – All rights reserved

Hierarchy Properties
Hierarchy Properties
List of value names G1
G1 1/2
G1 1/4
G1/2
G1/4
G1/8
G2
G3/4
G3/8
M10
M10x1
M10x1,25
M10x1,5
M12
M12x1
M12x1,25
M14
M14x1
M16
M16x1
M16x1,5
M18x1,5
M2
M20
M20x1
M20x1,5
M20x2
M22
M22x1
M22x1,5
M24
M24x2
M24x3
M26x1,5
M27x1,5
M27x2
M3
8 © ISO 2018 – All rights reserved

Hierarchy Properties
M30x1,5
M32x2
M36x2
M3x0,5
M4
M42x2
M45x1,5
M48x2
M4x0,7
M5
M5x0,8
M6
M6x0,75
M6x1
M7
M8
M8x0,75
M8x1
M9
NPT1 1/2-11 1/2
NPT1-11 1/2
NPT1/16-27
NPT1/2-14
NPT1/4-18
NPT1/8-27
NPT2-11 1/2
NPT3/4-14
NPT3/8-18
PT1/4
PT1/8
R1
R1 1/2
R1/2
R1/4
R1/8
R2
R3/4
R3/8
Hierarchy Properties
Rp1
Rp1 1/2
Rp1 1/4
Rp1/2
Rp1/4
Rp2
Rp2 1/2
Rp3
Rp3/4
Rp3/8
Rp4
UNC10-24
UNC4-40
UNF10-32
for hose outer-Ø 1/2"
for hose outer-Ø 1/4"
for hose outer-Ø 1/8"
for hose outer-Ø 10 mm
for hose outer-Ø 12 mm
for hose outer-Ø 15 mm
for hose outer-Ø 16 mm
for hose outer-Ø 18 mm
for hose outer-Ø 22 mm
for hose outer-Ø 28 mm
for hose outer-Ø 3/16"
for hose outer-Ø 3/8"
for hose outer-Ø 3 mm
for hose outer-Ø 4 mm
for hose outer-Ø 5/16"
for hose outer-Ø 5/32"
for hose outer-Ø 5/8"
for hose outer-Ø 6 mm
for hose outer-Ø 8 mm
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
10 © ISO 2018 – All rights reserved

Hierarchy Properties
Date of original Definition
Date of current version
Date of current Revision
6.4 18582#KAA005-001-001: number of pneumatic connections
Hierarchy Properties
Identifier
18582#KAA005-001-001
[Information supplier-Code-Version-
Revision]
Preferred name number of pneumatic connections

Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition quantitative specification of the pressure media connections on a pneu-
matic component
Source document of definition
Note
Remark IEC classification: A56
Formula
Unit of measure
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification Integer
Value specification
List of values
List of value names
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
Hierarchy Properties
Date of original Definition
Date of current version
Date of current Revision
6.5 18582#KAA006-001-001: number of pneumatic output connections
Hierarchy Properties
Identifier
18582#KAA006-001-001
[Information supplier-Code-Version-
Revision]
Preferred name number of pneumatic output connections

Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition quantitative specification of the pressure media connections on the outlet
side of a pneumatic component
Source document of definition
Note
Remark IEC classification: Q56
Formula
Unit of measure
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification Integer
Value specification
List of values
List of value names
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
12 © ISO 2018 – All rights reserved

Hierarchy Properties
Date of original Definition
Date of current version
Date of current Revision
6.6 18582#KAA007-001-001: number of pneumatic input connections
Hierarchy Properties
Identifier
18582#KAA007-001-001
[Information supplier-Code-Version-
Revision]
Preferred name number of pneumatic input connections

Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition quantitative specification of the pressure media connections on the input
side of a pneumatic component
Source document of definition
Note
Remark IEC classification: Q56
Formula
Unit of measure
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification Integer
Value specification
List of values
List of value names
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
Hierarchy Properties
Date of original Definition
Date of current version
Date of current Revision
6.7 18582#KAA008-001-001: number of pneumatic exhaust connections
Hierarchy Properties
Identifier
18582#KAA008-001-001
[Information supplier-Code-Version-
Revision]
Preferred name number of pneumatic exhaust connections

Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition quantitative specification of the pressure media connections for exhaust-
ing a pneumatic component
Source document of definition
Note
Remark IEC classification: Q56
Formula
Unit of measure
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification Integer
Value specification
List of values
List of value names
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
14 © ISO 2018 – All rights reserved

Hierarchy Properties
Date of original Definition
Date of current version
Date of current Revision
6.8 18582#KAA009-001-001: number of pneumatic pilot ports
Hierarchy Properties
Identifier
18582#KAA009-001-001
[Information supplier-Code-Version-
Revision]
Preferred name number of pneumatic pilot ports

Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition quantitative specification of the pressure media pilot ports on a pneumatic
component
Source document of definition
Note
Remark IEC classification: Q56
Formula
Unit of measure
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification Integer
Value specification
List of values
List of value names
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
Hierarchy Properties
Date of original Definition
Date of current version
Date of current Revision
6.9 18582#KAA010-001-001: type of cushioning
Hierarchy Properties
Identifier
18582#KAA010-001-001
[Information supplier-Code-Version-
Revision]
Preferred name type of cushioning

Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition type of the device for absorbing kinetic energy when approaching the end
positions of a fluidic drive
Source document of definition
Note
Remark IEC classification: A58
Formula
Unit of measure
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification String
Value specification EXPLICIT
List of values 1
List of value names Elastic
Pneumatically adjustable
Hydraulically adjustable
Permanent pneumatic setting
Permanent hydraulic setting
Value format
16 © ISO 2018 – All rights reserved

Hierarchy Properties
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
Date of original Definition
Date of current version
Date of current Revision
6.10 18582#KAA011-001-001: type of stroke reduction
Hierarchy Properties
Identifier
18582#KAA011-001-001
[Information supplier-Code-Version-
Revision]
Preferred name type of stroke reduction

Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition position and arrangement of the adjustment options for stroke reduction
Source document of definition
Note
Remark IEC classification: A58
Formula
Unit of measure
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification String
Value specification EXPLICIT
List of values 1
Hierarchy Properties
List of value names unilateral
at both ends
unilaterally extending
unilaterally retracting
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
Date of original Definition
Date of current version
Date of current Revision
6.11 18582#KAA012-001-001: type of pneumatic connections
Hierarchy Properties
Identifier
18582#KAA012-001-001
[Information supplier-Code-Version-
Revision]
Preferred name type of pneumatic connections

Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition geometric requirements for the standardised pneumatic connections
Source document of definition
Note
Remark IEC classification: A56
Formula
Unit of measure
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification String
Value specification EXPLICIT
18 © ISO 2018 – All rights reserved

Hierarchy Properties
List of values 1
List of value names to ISO 16030
to ISO 5599
to ISO 15407
to ISO 14743
to ISO 16030 and ISO 14743
not to ISO
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
Date of original Definition
Date of current version
Date of current Revision
6.12 18582#KAA013-001-001: type of shaft end
Hierarchy Properties
Identifier
18582#KAA013-001-001
[Information supplier-Code-Version-
Revision]
Preferred name type of shaft end

Short name
Synonymous name
Preferred symbol
Synonymous symbol
Definition design at the shaft end
Source document of definition
Note
Remark IEC classification: A58
Formula
Unit of measure
Alternative unit
Hierarchy Properties
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification String
Value specification EXPLICIT
List of values 1
List of value names through
with flat chamfer at both ends
through, hollow
with flange
with feather key
toothed
additional
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 23 fluid systems and components for general use

Status 60.60 - International Standard published
Date of original Definition
Date of current version
Date of current Revision
6.13 18582#KAA014-001-001: shifting-off time
Hierarchy Properties
Identifier
18582#KAA014-001-001
[Information supplier-Code-Version-
Revision]
Preferred name shifting off -time

20 © ISO 2018 – All rights reserved

Hierarchy Properties
Short name
Synonymous name switch off-time
Preferred symbol
Synonymous symbol
Definition length of time that elapses between the control signal (electric or pneu-
matic) being withdrawn and the pressure decreasing at the respective
valve output until 90 % of the defined operating pressure is reached
Source document of definition Based on ISO 12238:2001
Note NOTE  Only one pressure sensor is attached to the valve output.
Remark UN ECE code for unit: C26
IEC classification: T07
Formula
Unit of measure ms
Alternative unit
Type of property
D = dependent; N = non-dependent; N
C = condition
Depends on
Domain
Property type classification Real
Value specification
List of values
List of value names
Value format
Figure
Classification to ICS 23.000
Definition class 18582#KAA001-001-001
Preferred name of definition class 2
...
