ISO 1004:1995

Information processing - Magnetic ink character recognition - Print specifications

Cancels and replaces the second edition (1977). Specifies the shapes, dimensions and tolerances for the ten digits and four special symbols to be printed in magnetic ink and used für the purposes of character recognition. Describes the various types of printing defects and other printing considerations, together with the tolerances permitted, and also contains specifications for signal level measurement and references to Optical Character Recognition (OCR), a technology now often used in conjunction with E 13 B MICR reading.

Traitement de l'information — Reconnaissance des caractères à encre magnétique (MICR) — Spécifications d'impression

General Information

• Status: Withdrawn
• Publication Date: 14-Jun-1995
• Withdrawal Date: 14-Jun-1995
• ICS: 35.240.40 - IT applications in banking
• Technical Committee: ISO/TC 68 - Financial services
• Drafting Committee: ISO/TC 68 - Financial services
• Current Stage: 9599 - Withdrawal of International Standard
• Start Date: 27-May-2013
• Completion Date: 13-Dec-2025

Relations

• Revised: ISO 1004-1:2013 - Information processing - Magnetic ink character recognition - Part 1: Print specifications for E13B
• Effective Date: 16-Jan-2010

Standards Content (Sample)

INTERNATIONAL Is0
STANDARD 1004
Third edition
1995-06-I 5
Information processing - Magnetic ink
character recognition - Print
specifications
- Reconnaissance des caractkres P encre
Traitemen t de I’in forma tion
- Spkcifica tions d ‘impression
magnktique (M/CR)
Reference number
IS0 1004:1995(E)
IS0 1004:1995(E)
Page

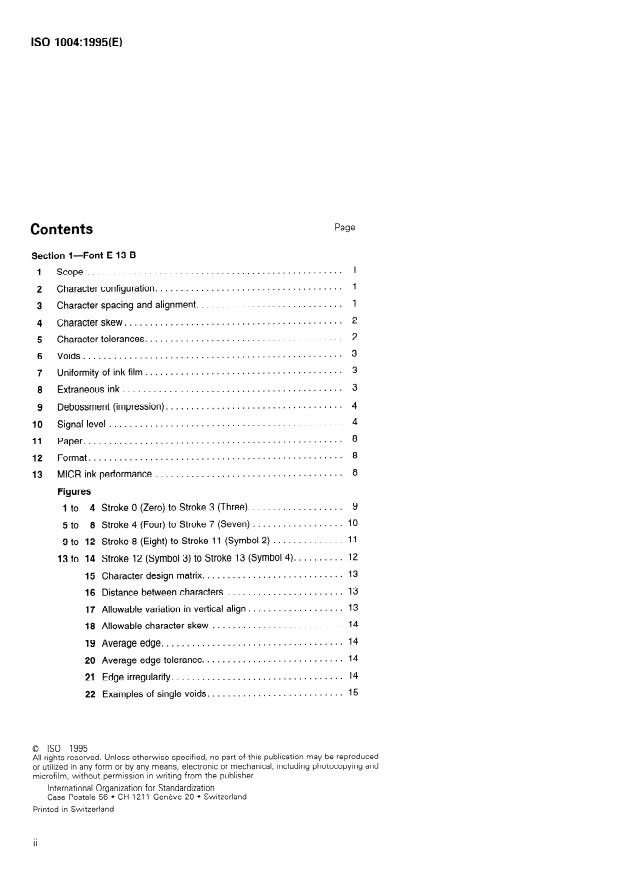

Contents
Section I-Font E 13 B
..................................................
1 Scope
.................................... 1
2 Character configuration.
............................ 1
Character spacing and alignment.
..........................................
4 Character skew.
...................................... 2
5 Character tolerances.
Voids .
...................................... 3
7 Uniformity of ink film.
8 Extraneousink .
.................................. 4
9 Debossment (impression).
10 Signallevel .
11 Paper .
12 Format .
...................................
13 MICR ink performance.
Figures
.................. 9
Stroke 0 (Zero) to Stroke 3 (Three).
1to 4
.................. IO
5to 8 Stroke 4 (Four) to Stroke 7 (Seven)
.............. 11
9to 12 Stroke 8 (Eight) to Stroke 11 (Symbol 2)
......... 12
13 to 14 Stroke 12 (Symbol 3) to Stroke 13 (Symbol 4).
........................... 13
15 Character design matrix.
....................... 13
16 Distance between characters
...................
17 Allowable variation in vertical align
.......................... 14
Allowable character skew
....................................
19 Average edge
........................... 14
20 Average edge tolerance.
................................. 14
21 Edge irregularity.
..........................
22 Examples of single voids.
0 IS0 1995
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronic or mechanical, tncluding photocopying and
microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case Postale 56 l CH-1211 Geneve 20 l Switzerland
Printed in Switzerland
ii
0 IS0 1995(E)
23 Examples of rows and columns . . . . .
..... 15
24 Restriction Areas for Extraneous Ink. .
....... 17
25 Waveform as it appears on face of oscilloscope:.
26 Signal peaks for calibrating all characters .
27 Ideal waveform peaks .
28 Secondary signal level document. .
29 Conductor arrangement for the wire card
calibration method. .
30 Test device suitable for generating magnetic flux
for the wire card calibration method. .
31 Distance of the right hand character from the right
hand reference edge .
Annexes
............................ 22
A Debossment and Linear amplifier.
B Equivalent metric-inch dimensions used in font E 13 B .
Figure
..................... 22
A.1 Circuit diagram of a typical linear amplifier.
Section 2 - Font CMC 7
Scope.2 4
15 Character configuration .
16 Means of automatic sensing. .
Reference edges of documents .
PrintLocation.2 5
Clearband.2 5
Character spacing and alignment. . 25
........................... 25
21 Character definition and tolerances
Extraneous ink (spots). .
Voids .
..2 6
Segment end zones .
Uniformity of ink. . 27
Debossment.2 7
Signal Level.2 7
Paper .
MICR inkpermanence.2 8
................................. 29
Symbols and abbreviations.
Figures
............................. 30
32 Format of documents.
................. 31
33 Magnified view of part of a character
Introduction to the drawings of the printed characters of
fontCMC7.3 2
Figures
Digits: Font height 3,20 mm (Hrl) .
Symbols: Font height 3,20 mm (I-frl) . 34
............. 35
36 Letters A to H: Font height 3,20 mm (Hn).
. . .
III
IS0 1004:1995(E) 0 IS0

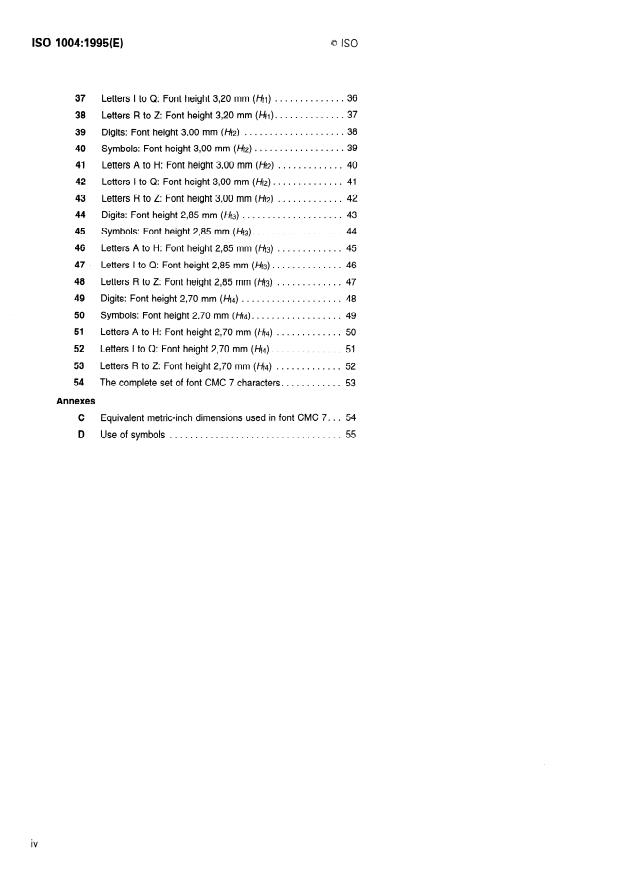

37 Letters I to Q: Font height 3,20 mm (&) . 36
