ISO 7240-11:2011

Fire detection and alarm systems - Part 11: Manual call points

ISO 7240-11:2011 specifies the requirements, test methods and performance criteria for manual call points in fire detection and alarm systems in and around buildings (see ISO 7240‑1). It takes into account indoor and outdoor conditions, the appearance and operation of the manual call points for type A "direct operation" and type B "indirect operation", and covers those which are simple mechanical switches, those which are fitted with simple electronic components (e.g. resistors, diodes) and those which contain active electronic components and which work with the control and indicating equipment for signalling and identifying, for example, an address or location. ISO 7240-11:2011 does not cover manual call points for special applications, for example manual call points that are intrinsically safe or for use in hazardous conditions, if such applications require additional or other requirements or tests than those given in ISO 7240-11:2011.

Systèmes de détection et d'alarme d'incendie — Partie 11: Déclencheurs manuels d'alarme

General Information

• Status: Published
• Publication Date: 07-Jun-2011
• ICS: 13.220.20 - Fire protection
• Technical Committee: ISO/TC 21/SC 3 - Fire detection and alarm systems
• Drafting Committee: ISO/TC 21/SC 3 - Fire detection and alarm systems
• Current Stage: 9093 - International Standard confirmed
• Start Date: 15-Sep-2025
• Completion Date: 13-Dec-2025

Relations

• Revises: ISO 7240-11:2005/Amd 1:2009 - Fire detection and alarm systems - Part 11: Manual call points - Amendment 1
• Effective Date: 03-Oct-2009
• Revises: ISO 7240-11:2005 - Fire detection and alarm systems - Part 11: Manual call points
• Effective Date: 03-Oct-2009

Overview

ISO 7240-11:2011 - "Fire detection and alarm systems - Part 11: Manual call points" defines the requirements, test methods and performance criteria for manual call points used in fire detection and alarm systems in and around buildings. It covers both simple mechanical devices and manual call points with electronic components (including addressable units that report location). The standard addresses indoor and outdoor conditions, user ergonomics (recognition and simple operation), and the essential safety feature of a frangible element. It does not cover special-purpose call points (for example intrinsically safe devices for hazardous atmospheres) that require additional testing.

Key topics and technical requirements

• Scope and device types
  • Type A: direct operation - alarm condition is triggered automatically when the frangible element is broken or displaced.
  • Type B: indirect operation - requires an additional manual action after the frangible element is broken.
• Frangible element definitions and options: resettable vs non‑resettable; intended to deter misuse and provide visible confirmation of activation.
• Marking and data: permanent identification requirements (including reference to ISO 7240-11:2011, manufacturer, model, environment category).
• Construction, indicators and reset/test facilities: visibility of alarm indication, reset/test provisions, design ergonomics and protection against unintended operation.
• Software-controlled devices: special requirements for manual call points that include embedded software or active electronics (see Clause 4.8).
• Testing and performance criteria (Clause 5): operational performance, function tests, endurance/reliability, variation of supply parameters, environmental testing (dry heat, cold, damp heat cyclic and steady, SO2 corrosion), shock, impact, vibration, EMC, enclosure protection, solar radiation exposure.
• Normative references: ISO 7240-1 (general definitions), relevant IEC 60068 environmental tests series, EN 50130-4 (EMC immunity) among others.

Practical applications and who uses this standard

• Manufacturers: to design and validate manual call points that meet international requirements for safety, durability and interoperability with fire alarm control equipment.
• Test laboratories and certification bodies: to perform the specified performance and environmental tests and produce compliance reports.
• System designers, specifiers and procurement teams: to reference ISO 7240-11:2011 in product specifications and tenders for fire detection and alarm systems.
• Installers and facility managers: to ensure correct selection (indoor/outdoor rating), installation, marking, accessibility and maintenance consistent with the standard.
• Regulators and code authors: to harmonize local fire safety regulations with international best practice.

Related standards

• ISO 7240 series (Part 1 - General and definitions; Part 2 - Control and indicating equipment; etc.)
• IEC 60068 series (environmental testing)
• EN 50130-4 (EMC immunity for alarm system components)

Keywords: ISO 7240-11:2011, manual call points, fire detection and alarm systems, frangible element, type A direct operation, type B indirect operation, environmental tests, EMC, performance criteria.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 7240-11
Second edition
2011-06-15
Fire detection and alarm systems —
Part 11:
Manual call points
Systèmes de détection et d'alarme d'incendie —
Partie 11: Déclencheurs manuels d'alarme

Reference number
©
ISO 2011
©  ISO 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2011 – All rights reserved

Contents Page
Foreword .iv
Introduction.vi
1 Scope.1
2 Normative references.1
3 Terms and definitions .2
4 Requirements.3
4.1 Compliance .3
4.2 Marking and data .3
4.3 Frangible element.4
4.4 Indicators for alarm condition.5
4.5 Reset facility .5
4.6 Test facility.5
4.7 Construction and design .5
4.8 Requirements for software controlled manual call points.10
5 Tests .12
5.1 General .12
5.2 Operational performance.14
5.3 Function test .16
5.4 Test facility test (operational) .16
5.5 Reliability (endurance).17
5.6 Variation of supply parameters.17
5.7 Dry heat (operational) .18
5.8 Dry heat (endurance).19
5.9 Cold (operational).20
5.10 Damp heat, cyclic (operational) .21
5.11 Damp heat, cyclic (endurance) .22
5.12 Damp heat, steady state (endurance).22
5.13 SO corrosion (endurance) .23
5.14 Shock (operational) .24
5.15 Impact (operational) .25
5.16 Vibration, sinusoidal (operational) .26
5.17 Vibration, sinusoidal (endurance) .27
5.18 Electromagnetic compatibility (EMC) (operational).28
5.19 Enclosure protection.29
5.20 Exposure to simulated solar radiation (endurance) .30
6 Test report.31
Annex A (normative) Test apparatus for test of operation.32
Annex B (informative) Test apparatus for test for non-operation.34
Annex C (informative) Apparatus for impact test .35
Bibliography.39

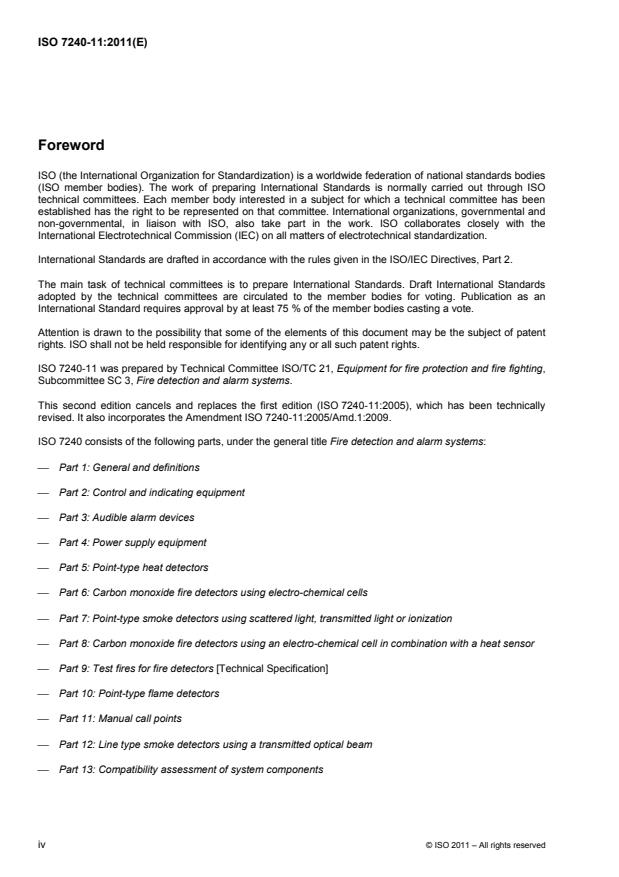

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 7240-11 was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire fighting,
Subcommittee SC 3, Fire detection and alarm systems.
This second edition cancels and replaces the first edition (ISO 7240-11:2005), which has been technically
revised. It also incorporates the Amendment ISO 7240-11:2005/Amd.1:2009.
ISO 7240 consists of the following parts, under the general title Fire detection and alarm systems:
⎯ Part 1: General and definitions
⎯ Part 2: Control and indicating equipment
⎯ Part 3: Audible alarm devices
⎯ Part 4: Power supply equipment
⎯ Part 5: Point-type heat detectors
⎯ Part 6: Carbon monoxide fire detectors using electro-chemical cells
⎯ Part 7: Point-type smoke detectors using scattered light, transmitted light or ionization
⎯ Part 8: Carbon monoxide fire detectors using an electro-chemical cell in combination with a heat sensor
⎯ Part 9: Test fires for fire detectors [Technical Specification]
⎯ Part 10: Point-type flame detectors
⎯ Part 11: Manual call points
⎯ Part 12: Line type smoke detectors using a transmitted optical beam
⎯ Part 13: Compatibility assessment of system components
iv © ISO 2011 – All rights reserved

⎯ Part 14: Guidelines for drafting codes of practice for design, installation and use of fire detection and fire
alarm systems in and around buildings [Technical Report]
⎯ Part 15: Point type fire detectors using scattered light, transmitted light or ionization sensors in
combination with a heat sensor
⎯ Part 16: Sound system control and indicating equipment
⎯ Part 17: Short-circuit isolators
⎯ Part 18: Input/output devices
⎯ Part 19: Design, installation, commissioning and service of sound systems for emergency purposes
⎯ Part 20: Aspirating smoke detectors
⎯ Part 21: Routing equipment
⎯ Part 22: Smoke-detection equipment for ducts
⎯ Part 24: Sound-system loudspeakers
⎯ Part 25: Components using radio transmission paths
⎯ Part 27: Point-type fire detectors using a scattered-light, transmitted-light or ionization smoke sensor, an
electrochemical-cell carbon-monoxide sensor and a heat sensor
⎯ Part 28: Fire protection control equipment
A part 23 dealing with visual alarm devices and a part 29 dealing with video fire detectors are under
development.
Introduction
This part of ISO 7240 has been prepared by ISO/TC 21/SC 3, the secretariat of which is held by SA and is
based on ISO 7240-11:2005.
This part of ISO 7240 has been drafted on the basis of appearance and functions that should be provided on
all manual call points for use in fire detection and fire alarm systems. The colours, dimensions, shapes and
methods of operation are based on recognized operating principles that give confidence and recognition to the
user when operating in genuine fire alarm situations.
The purpose of a manual call point is to enable a person discovering a fire to initiate the operation of a fire
alarm system so that appropriate measures can be taken.
It is important for manual call points to be recognizable and simple to use, without the requirement to read
elaborate instructions so that anyone discovering a fire is able to use the manual call point without previous
familiarity with it.
The intention of this part of ISO 7240 is to specify requirements for operation and reliability. The methods of
operation of the manual call points covered are as follows:
⎯ type A: direct operation (single action);
⎯ type B: indirect operation (double action).
Both types require the breaking or the visible displacement by change of the position of a frangible element
forming part of the front face, which is considered as the most suitable method for general application and
which acts as a deterrent to the misuse of the device.
Importance has been placed on identifying the manual call point, the method by which it is activated and an
indication to the user that the initiation of an alarm has been given.
The resulting part of ISO 7340 takes into account national variances in custom and practice and language in
bringing together common elements that contribute towards a standard device for use throughout the world.
The performance of manual call points is assessed from results obtained in specific tests. This part of
ISO 7240 is not intended to place any other restrictions on the design and construction of such manual call
points.
vi © ISO 2011 – All rights reserved

INTERNATIONAL STANDARD ISO 7240-11:2011(E)

Fire detection and alarm systems —
Part 11:
Manual call points
1 Scope
This part of ISO 7240 specifies the requirements, test methods and performance criteria for manual call points
in fire detection and alarm systems in and around buildings (see ISO 7240-1). It takes into account indoor and
outdoor conditions, the appearance and operation of the manual call points for type A “direct operation” and
type B “indirect operation”, and covers those which are simple mechanical switches, those which are fitted
with simple electronic components (e.g. resistors, diodes) and those which contain active electronic
components and which work with the control and indicating equipment for signalling and identifying, for
example, an address or location.
This part of ISO 7240 does not cover manual call points for special applications, for example manual call
points that are intrinsically safe or for use in hazardous conditions, if such applications require additional or
other requirements or tests than those given in this part of ISO 7240.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 209, Aluminium and aluminium alloys — Chemical composition
ISO 3098-0:1997, Technical product documentation — Lettering — Part 0: General requirements
ISO 3864-1, Graphical symbols — Safety colours and safety signs — Part 1: Design principles for safety signs
and safety markings
ISO 7240-1, Fire detection and alarm systems — Part 1: General and definition
ISO 7240-2, Fire detection and alarm systems — Part 2: Control and indicating equipment
IEC 60068-1, Environmental testing — Part 1: General and guidance
IEC 60068-2-1, Environmental testing — Part 2-1: Tests — Test A: Cold
IEC 60068-2-2, Environmental testing — Part 2-2: Tests — Test B: Dry heat
IEC 60068-2-5, Environmental testing — Part 2-5: Tests — Test Sa: Simulated solar radiation at ground level
and guidance for solar radiation testing
IEC 60068-2-6, Environmental testing — Part 2-6: Tests — Test Fc: Vibration (sinusoidal)
IEC 60068-2-18, Environmental testing — Part 2-18: Tests — Test R and guidance: Water
IEC 60068-2-27, Environmental testing — Part 2-27: Tests — Test Ea and guidance: Shock
IEC 60068-2-30, Environmental testing — Part 2-30: Tests — Test Db: Damp heat, cyclic (12 h + 12 h cycle)
IEC 60068-2-42, Environmental testing — Part 2-42: Tests — Test Kc: Sulphur dioxide test for contacts and
connections
IEC 60068-2-78, Environmental testing — Part 2-78: Tests — Test Cab: Damp heat, steady state
EN 894-3, Safety of machinery — Ergonomics requirements for the design of displays and control
actuators — Part 3: Control actuators
EN 50130-4:1995, Alarm systems — Part 4: Electromagnetic compatibility — Product family standard:
Immunity requirements for components of fire, intruder and social alarm systems
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 7240-1 and the following apply.
3.1
alarm condition
condition of the manual call point after the operating element has been activated
3.2
frangible element
component, composed of glass or having the appearance of glass and which after receiving a blow or
pressure as instructed, is physically broken or is visibly displaced by change of position and remains in that
condition until replaced or reset
NOTE The frangible element is intended to give protection against unintentional operation and to be a deterrent
against misuse. The visible displacement of the frangible element is accepted as apparent breaking.
3.3
non-resettable frangible element
frangible element that it is necessary to replace after the activation of the manual call point, in order for the
manual call point to be able to return to the normal condition
3.4
resettable frangible element
frangible element that can be returned to its original position without replacement, in order for the manual call
point to be able to return to the normal condition
3.5
front face
area within the outline of the front view of the manual call point excluding the area of the operating face
NOTE See Figure 1.
3.6
manual call point
component of a fire detection and fire alarm system that is used for the manual initiation of an alarm
[ISO 7240-1]
NOTE Manual call points are divided into two types depending on the method of operation.
2 © ISO 2011 – All rights reserved

3.7
type A
direct operation manual call point in which the change to the alarm condition is automatic (i.e. without the
requirement for further manual action) when the frangible element is broken or displaced
3.8
type B
indirect operation manual call point in which the change to the alarm condition requires a separate manual
operation of the operating element by the user after the frangible element is broken or displaced
3.9
normal condition
condition in which the frangible element is undamaged or not displaced and the manual call point is operating
without giving an alarm or fault signal
3.10
operating element
mechanical and electrical switching element, part of the manual call point that initiates the alarm signal when
operated
3.11
operating face
area of the manual call point that can be the visible part of the frangible element or the visible area behind it
NOTE See Figure 1.
3.12
special tool
device not normally carried by the public (e.g. a key), normally provided by the manufacturer and which is
used for replacing or resetting the frangible element
NOTE It is intended to deter unauthorized access to the manual call point, while being available on site either at a
defined location or from a “responsible person” familiar with and having knowledge of the system.
4 Requirements
4.1 Compliance
In order to comply with this part of ISO 7240, the manual call point shall meet the requirements of this clause,
which shall be verified by visual inspection or engineering assessment, shall be tested as described in
Clause 5 and shall meet the requirements of the tests.
4.2 Marking and data
4.2.1 Marking
4.2.1.1 Each manual call point shall be permanently marked with the following information:
a) reference to this part of ISO 7240 (i.e. ISO 7240-11:2011);
b) name or trademark of the manufacturer or supplier;
c) model designation;
d) environment category (indoor/outdoor, special environmental conditions);
e) wiring terminal designations;
f) some mark(s) or code(s) (e.g. serial number or batch code), by which the manufacturer can identify, at
least, the date or batch and place of manufacture, and the version number(s) of any software, contained
within the manual call point.
4.2.1.2 Where any marking on the manual call point uses symbols or abbreviations not in common use,
these shall be explained in the data supplied with the device.
4.2.1.3 The marking shall be visible during installation of the manual call point and shall be accessible
during maintenance.
4.2.1.4 The markings shall not be placed on screws or other easily removable parts.
4.2.2 Data
4.2.2.1 Either the manual call points shall be supplied with sufficient technical, installation and
maintenance data to enable their correct installation and operation or, if all of these data are not supplied with
each manual call point, reference to the appropriate data sheet shall be given on, or with, each manual call
point.
4.2.2.2 To enable correct operation of the manual call points, these data shall describe the requirements
for the correct processing of the signals from the manual call point. This may be in the form of a full technical
specification of these signals, a reference to the appropriate signalling protocol or a reference to suitable types
of control and indicating equipment, etc.
4.2.2.3 Additional information can be required by organizations certifying that manual call points
produced by a manufacturer conform to the requirements of this part of ISO 7240.
4.3 Frangible element
4.3.1 Normal condition
The normal condition shall be easily recognizable by the appearance of the operating face as detailed in 4.7.
The frangible element shall be flat and shall not be broken, deformed or displaced.
4.3.2 Alarm condition
4.3.2.1 Transfer from the normal condition to the alarm condition shall be achieved by the following and
shall be easily recognizable by the change in the appearance of the operating face:
a) for type A manual call points:
1) breaking the frangible element, or
2) displacing the frangible element as a result of the breaking, or
3) displacing the frangible element without breaking together with changing the appearance of the front
face;
b) for type B manual call points:
1) breaking and/or displacement of the frangible element as described in 4.3.2.1 a), to give access to
the operating element, or
2) manual activation of the operating element.
4 © ISO 2011 – All rights reserved

4.3.2.2 In addition, for type B manual call points, it shall be possible to see that the operating element is
in the activated position and it shall not be possible to activate the operating element without breaking or
displacing the frangible element [see 4.3.2.1 b)] or without the use of a special tool (see 4.6)
4.4 Indicators for alarm condition
4.4.1 The alarm condition shall be indicated by,
a) for type A, the condition of the frangible element as specified in 4.3,
b) for type B, the frangible element as described in 4.3 together with an identifiable activated position of the
operating element.
4.4.2 The alarm condition may be additionally indicated visually by other means, for example lamps or
light-emitting diodes (LEDs).
4.4.3 If an additional visual indicator is provided, it shall be positioned within the operating face or within the
front face of the manual call point. The visual indicator shall be red, shall identify the manual call point that
released an alarm until the alarm condition is reset, and shall be visible from a distance of 2 m at up to 45°
from the axis of the manual call point in any direction in an ambient light intensity up to 500 lx. Where other
conditions of the manual call point are visually indicated, they shall be clearly distinguishable from the alarm
indication, except when the manual call point is switched into a service mode.
4.5 Reset facility
4.5.1 It shall be possible to reset the manual call point after operation only by means of a special tool or
special procedure as follows:
a) for non-resettable frangible elements, by inserting a new element;
b) for resettable frangible elements, by resetting the frangible element.
4.5.2 In addition, for type B manual call points, it shall be possible to return the operating element to its
normal condition only by means of a special tool.
4.6 Test facility
4.6.1 The manual call point shall be equipped with a facility to carry out routine testing when installed. The
operation of this test facility shall
a) simulate the alarm condition by activating the operating element without breaking the frangible element,
b) allow the manual call point to be reset without breaking the frangible element.
4.6.2 The operation of the test facility shall be possible only using a special tool or special procedure.
4.7 Construction and design
4.7.1 Safety
4.7.1.1 When operating the frangible element, injury to the operator shall not occur.
4.7.1.2 For type B manual call points, the actuation force of the operating element shall meet the
requirements of EN 894-3.
4.7.1.3 Corners and edges of the manual call points shall be rounded to reduce the possibility of injury.
4.7.2 Shape, dimensions and colours
4.7.2.1 Shape
4.7.2.1.1 The front face shall be symmetrical about the horizontal axis and symmetrical about the vertical
axis (see Figure 1).
4.7.2.1.2 The operating face
⎯ shall be approximately symmetrical about the horizontal axis and symmetrical about the vertical axis (see
Figure 1),
⎯ shall be level with or recessed into the front face and shall not project beyond the front face,
⎯ may have a vertical offset about the horizontal centre line of the front face.
4.7.2.2 Dimensions
4.7.2.2.1 The front face dimension, a, shall be not less than 85 mm and not greater than 150 mm (see
Figure 1).
4.7.2.2.2 The operating face dimensions, b or b and b , shall be not less than 34 mm and not greater than
1 2
0,8a (see Figure 1).
NOTE A subscript is used only if the two dimensions b and b are different.
1 2
4.7.2.2.3 The operating face horizontal centreline vertical offset, c, shall be not greater than 0,16a (see
Figure 1).
4.7.2.2.4 The manual call point shall be designed so that it is capable of being mounted, in accordance with
the manufacturer's instructions, with the front face at least 15 mm proud of the surrounding surface.
4.7.2.3 Colours
4.7.2.3.1 The colour of the visible surface area of the manual call point when mounted in accordance with
5.1.3 shall be red, except for
a) the operating face,
b) the symbols and lettering on the front face specified in 4.7.3.2,
c) the special tool access, cable entry holes and screws.
4.7.2.3.2 The colour of the operating face other than symbols and lettering specified in 4.7.3.3 shall be
white.
4.7.2.3.3 The colour of the visible part of the operating element (type B manual call point) shall be black.
NOTE Suitable red, white and black colours are specified in ISO 3864-1.
6 © ISO 2011 – All rights reserved

a) Example of a square operating face b) Example of rectangular operating face

c) Example of round operating face
Key
1 front face
2 operating face
a front face dimension
b, b , b operating face dimension
1 2
c operating face horizontal centreline vertical offset
Figure 1 — Manual call point examples
4.7.3 Symbols and lettering
4.7.3.1 General
The manual call point shall be marked, with the appropriate symbols shown in Figure 2, as specified in 4.7.3.2
and 4.7.3.3. Examples of the arrangement of symbols on type A and type B manual call points are given in
Figures 3 and 4, respectively.
4.7.3.2 Symbols and lettering on the front face
4.7.3.2.1 On the front face above the operating face and central to the vertical centre line shall be the
symbol in accordance with Figure 2 a). This symbol may be supplemented with the word “FIRE”, or equivalent
words in the national language. This combination shall be on the front face and above the operating face and
central to the vertical centre line. The height of the symbol shall be at least 0,15a and the height of the
lettering shall not exceed the height of the symbol. The lettering shall be in accordance with ISO 3098-0:1997,
“lettering type B, vertical (V)”. Symbols and lettering shall be white in accordance with ISO 3864-1.
4.7.3.2.2 Markings other than specified in 4.7.3.2.1 (such as company logo or contact address) shall be
restricted to the area of the front face below the horizontal centre line of the operating face. The total area for
this marking other than red shall not be greater than 5 % of the area of the front face.
4.7.3.3 Symbols and lettering on the operating face
4.7.3.3.1 The operating face of type A manual call points shall be marked with the symbol in accordance
with Figure 2 c). The operating face of type B manual call points shall be marked with the symbols in
accordance with Figures 2 b) and 2 c). The symbol in accordance with Figure 2 b) shall point to the operating
element and shall remain clearly visible when the frangible element is broken or displaced. These symbols
may be supplemented by appropriate words for instruction. Where supplementary wording is used, this shall
indicate position and/or operating action (e.g. “PRESS HERE”), in the appropriate language.
These symbols and lettering for any supplementary instructions shall be black, with the black area not
exceeding 10 % of the area of the operating face.
NOTE A suitable black colour is specified in ISO 3864-1.
4.7.3.3.2 Markings other than those specified in 4.7.3.3.1 (such as company logo or contact address) shall
be restricted to the upper and/or the lower 25 % of the area of the operating face and shall not interfere with
the symbols. The total area for this marking other than white shall not be greater than 5 % of the area of the
operating face.
8 © ISO 2011 – All rights reserved

b) Symbol on the operating face for activating the
a) Symbol on the front face
operating element for type B manual call point
(ISO 7000, symbol 2685)
(ISO 7000, symbol 2684)
c) Symbol on the operating face (ISO 7000:2004, symbol 1701)
NOTE The dimensions and spacing of the symbols shall be in proportion to the height shown.
Key
a height of the front face; see Figure 1
Figure 2 — Symbols used for manual call points

Figure 3 — Example for the front and operating face symbol positions for type A manual call point
Figure 4 — Example for the front and operating face symbol positions for type B manual call point
4.7.4 Protection against accidental operation
4.7.4.1 In addition to the use of the frangible element, other means of protection may be used, e.g. a
transparent flap.
4.7.4.2 Where used, the protection shall be easily and immediately removable and shall have clear
instructions for its removal in order to operate the manual call point.
4.7.4.3 With the protection in place, the appearance of the manual call point, the instructions for its
operation and the state of the manual call point in the normal and alarm condition shall be clearly visible.
4.7.5 Environment category
4.7.5.1 The environment category (i.e. indoor or outdoor use, special environmental conditions) of the
manual call point shall be specified by the manufacturer.
4.7.5.2 The manual call point shall be tested in accordance with the specified environmental category as
given in the test schedule in Table 1.
4.8 Requirements for software controlled manual call points
4.8.1 General
For manual call points that rely on software control, the requirements of 4.8.2, 4.8.3 and 4.8.4 shall be met in
order to fulfil the requirements of this part of ISO 7240.
4.8.2 Software documentation
4.8.2.1 The manufacturer shall submit documentation that gives an overview of the software design. This
documentation shall be in sufficient detail that the design can be inspected for compliance with this part of
ISO 7240 and shall include at least the following:
a) functional description of the main program flow (e.g. as a flow diagram or schema), including
1) a brief description of the modules and the functions that they perform,
2) the way in which the modules interact,
10 © ISO 2011 – All rights reserved

3) the overall hierarchy of the program,
4) the way in which the software interacts with the hardware of the manual call point,
5) the way in which the modules are called, including any interrupt processing;
b) description of which areas of memory are used for the various purposes (e.g. the program, site-specific
data and running data);
c) designation by which the software and its version can be uniquely identified.
4.8.2.2 The manufacturer shall prepare and maintain detailed design documentation. This shall be
available for inspection in a manner that respects the manufacturers' rights for confidentiality. It shall be
comprised of at least the following:
a) overview of the whole system configuration, including all software and hardware components;
b) description of each module of the program, containing at least
1) the name of the module,
2) a description of the tasks performed,
3) a description of the interfaces, including the type of data transfer, the valid data range and the
checking for valid data;
c) full source code listings, as hard copy or in machine-readable form (e.g. ASCII-code), including all global
and local variables, constants and labels used, and sufficient comment to recognize the program flow;
d) details of any software tools used in the design and implementation phase (e.g. CASE-tools, compilers).
NOTE This detailed design documentation can be reviewed at the manufacturer's premises.
4.8.3 Software design
In order to ensure the reliability of the manual call point, the following requirements for software design shall
apply.
a) The software shall have a modular structure.
b) The design of the interfaces for manually and automatically generated data shall not permit invalid data to
cause error in the program operation.
c) The software shall be designed to avoid the occurrence of deadlock of the program flow.
4.8.4 The storage of programs and data
4.8.4.1 The program necessary to comply with this part of ISO 7240 and any preset data, such as
manufacturer's settings, shall be held in non-volatile memory. Writing to areas of memory containing this
program and these data shall be possible only by the use of some special tool or code and shall not be
possible during normal operation of the manual call point.
4.8.4.2 Site-specific data shall be held in memory that retains data for at least two weeks without external
power to the manual call point, unless provision is made for the automatic renewal of such data, following loss
of power, within 1 h of power being restored.
5 Tests
5.1 General
5.1.1 Atmospheric conditions for tests
5.1.1.1 Unless otherwise stated in a test procedure, the testing shall be carried out after the test
specimen has been allowed to stabilize in the standard atmospheric conditions for testing in accordance with
IEC 60068-1 as follows:
⎯ temperature: (15 to 35) °C;
⎯ relative humidity: (25 to 75) %;
⎯ air pressure: (86 to 106) kPa.
5.1.1.2 If variations in these parameters have a significant effect on a measurement, then such variations
should be kept to a minimum during a series of measurements carried out as part of one test on one
specimen.
5.1.2 Operating conditions for tests
5.1.2.1 If a test method requires that a specimen be operational, then connect the specimen to suitable
supply and monitoring equipment with characteristics as required by the manufacturer's data. Unless
otherwise specified in the test method, set the supply parameters applied to the specimen within the
manufacturer's specified range(s), which shall remain substantially constant throughout the tests. The value
chosen for each parameter shall normally be the nominal value, or the mean of the specified range. If a test
procedure requires monitoring a specimen to detect any alarm or fault signals, then make connections to any
necessary ancillary devices (e.g. through wiring to an end-of-line device for conventional manual call points) to
allow the recognition of a fault signal.
5.1.2.2 The details of the supply and monitoring equipment and the alarm criteria used shall be given in
the test report (see Clause 6).
5.1.3 Mounting arrangements
Mount the specimen by its normal means of attachment in accordance with the manufacturer's instructions. If
these instructions describe more than one method of mounting then the method considered to be the least
favourable shall be chosen for each test.
5.1.4 Tolerances
5.1.4.1 Unless otherwise stated, the tolerances for the environmental test parameters shall be as given in
the basic reference standards for the test (e.g. the relevant part of IEC 60068).
5.1.4.2 If a specific tolerance or deviation limit is not specified in a requirement or test procedure, then a
deviation limit of ± 5 % shall be applied.
5.1.5 Measurement of response time
5.1.5.1 Where the release of an alarm signal in the following tests is required, the alarm signal shall be
indicated at the supply and monitoring equipment (see 5.1.2) within a response time of 10 s after the operating
element has been activated.
5.1.5.2 Measure and report the response time.
12 © ISO 2011 – All rights reserved

5.1.6 Provisions for tests
5.1.6.1 The following shall be provided for testing compliance with this part of ISO 7240:
a) for manual call points that are simple switches or contain simple electronic components:
⎯ 8 specimens for indoor use, or
⎯ 10 specimens for outdoor use;
b) for manual call points with active electronic components:
⎯ 13 specimens for indoor use, or
⎯ 15 specimens for outdoor use;
c) 30 additional frangible elements if replacement of the element to reset the manual call point is necessary;
d) technical data sheets or specifications in accordance with 4.2.2;
e) additional technical information, if required, e.g. diagrams, design drawings with dimensions, parts lists
and material data.
5.1.6.2 The specimens submitted shall be representative of the manufacturer's normal production with
regard to their construction and settings.
5.1.7 Test schedule
5.1.7.1 Number the specimens randomly with the following specifications:
a) 1 to 8, if they are for indoor use and are simple switches or contain simple electronic components;
b) 1 to 13, if they are for indoor use and contain active electronic components;
c) 1 to 8, 14 and 15 if they are for outdoor use and are simple switches or contain simple electronic
components;
d) 1 to 15, if they are for outdoor use and contain active electronic components.
5.1.7.2 Record any change in the number and numbering of specimens, e.g. in line with in Table 1, in the
test report accordingly.
5.1.7.3 All specimens shall be initially tested in accordance with the test facility test of 5.4 and then be
tested in accordance with Table 1.
Table 1 — Test schedule
Test Number of Subclause Indoor Outdoor
specimen number use use
Variation of supply parameters 2 5.6 x x
Dry heat (operational) 1 5.7 x x
Dry heat (endurance) 1 5.8 — x
Cold (operational) 2 5.9 x x
Damp heat, cyclic (operational) 3 5.10 x x
Damp heat, cyclic (endurance) 3 5.11 — x
Damp heat, steady state (endurance) 4 5.12 x x
SO corrosion (endurance) 5 5.13 x x
Shock (operational) 6 5.14 x x
Impact (operational) 7 5.15 x x
Vibration (operational) 8 5.16 x x
Vibration (endurance) 8 5.17 x x
a
Electromagnetic compatibility (operational) , i.e.
b
a) electrostatic discharge 9
b
b) radiated electromagnetic fields 10
5.18 x x
b
c) conducted disturbances induced by electromagnetic fields 11
b
d) voltage transient, fast transient bursts 12
b
e) voltage transient, slow high-energy voltage surge 13
Enclosure protection 14 5.19 — x
Exposure to simulated solar radiation (endurance) 15 5.20 — x
a
Test only for manual call points with active electronic components.
b
In the interests of test economy, it is permitted to use the same specimen for more than one EMC test. In that case, intermediate
functional test(s) on the specimen(s) used for more than one test may be deleted, and the full functional test conducted at the end of the
sequence of tests. However it should be noted that in the event of a failure, it might not be possible to identify which test exposure

caused the failure (see EN 50130-4:1995, Clause 4).
5.2 Operational performance
5.2.1 Object of test
The object of the test is to demonstrate that the device is able to withstand small forces to the frangible
element without operation, is able to operate when an appropriate force is applied to the frangible element by
the user and that its reset and test facilities are not impaired.
5.2.2 Test procedure
5.2.2.1 Test for non-operation
5.2.2.1.1 State of the specimen during test
Mount the specimen in accordance with 5.1.3 and connected it to suitable supply and monitoring equipment
as described in 5.1.2.
14 © ISO 2011 – All rights reserved

5.2.2.1.2 Initial state
At the start of the test, the specimen shall be in its normal condition.
5.2.2.1.3 Conditioning
5.2.2.1.3.1 Subject the frangible element to a horizontal force increasing at a rate not exceeding 5 N/s
until it reaches (22,5 ± 2,5) N.
5.2.2.1.3.2 Maintain this force for 5 s then release the force at a rate not exceeding 5 N/s.
5.2.2.1.3.3 The position where this force shall be exerted is the centre point between the arrows; see
Figure 2 c). An example of a suitable test apparatus is shown in Annex B.
5.2.2.1.4 Measurements during testing
Monitor the specimen during the test period to detect any alarm or fault signals.
5.2.2.1.5 Final measurements
After the force has been released, examine the frangible element.
Test the specimen as described in the test facility test of 5.4.
5.2.2.2 Test for operation
5.2.2.2.1 Conditioning
5.2.2.2.1.1 Subject the frangible element to a horizontal impact within 5 mm of the centre point between
the arrows; see Figure 2. Produce the impact by using the test apparatus in accordance with Annex A. Allow
the ball to strike the specimen once only.
5.2.2.2.1.2 For type B manual call points, manually operate the operating element.
5.2.2.2.2 State of the specimen during test
Mount the specimen on the test apparatus (see Annex A) in its normal operating position in accordance with
5.1.3 and connect it to suitable supply and monitoring equipment as described in 5.1.2.
5.2.2.2.3 Initial state
At the start of the test, the specimen shall be in its normal condition.
5.2.2.2.4 Resetting
After operation, reset the specimen to its normal condition by using the reset facility of 4.5.
5.2.2.2.5 Measurements during testing
Monitor the specimen during the test and resetting period to detect any alarm or fault signals.
5.2.3 Requirements
5.2.3.1 In the test of 5.2.2.1, the frangible element shall not transfer into the alarm condition and no alarm
or fault signal shall be given, except as required in the test of 5.2.2.1.5. In the test of 5.2.2.1.5, the specimen
shall comply with the requirements of 5.4.3.
5.2.3.2 For type A, in the test of 5.2.2.2, the frangible element shall transfer into the alarm condition and
an alarm signal shall be given in accordance with 5.1.5. After the specimen has been reset by use of the reset
facility of 4.5, there shall be no alarm or fault signal.
5.2.3.3 For type B, in the test of 5.2.2.2, the frangible element shall transfer into the alarm condition and
an alarm signal shall be given in accordance with 5.1.5 after activation of t
...
