Information technology -- 8 mm wide magnetic tape cartridge for information interchange -- Helical scan recording -- VXA-1 format

This International Standard specifies the physical and magnetic characteristics of an 8 mm wide magnetic tape cartridge to enable physical interchange of such cartridges between drives. It also specifies the quality of the recorded signals, the recording method and the recorded format called VXA-1, and thereby allowing data interchange between drives by means of such magnetic tape cartridges. This International Standard specifies three types depending on the length of magnetic tape contained in the case, referred to as Type A, Type B and Type C. Information interchange between systems also requires, at a minimum, agreement between the interchange parties upon the interchange code(s) and the specifications of the structure and labelling of the information on the interchanged cartridge. If compression is used with this format, it shall be according to International Standard ISO/IEC 15200.

Technologies de l'information -- Cartouche de bande magnétique de 8 mm de large pour échange d'informations -- Enregistrement par balayage en spirale -- Format VXA-1

General Information

Status
Published
Publication Date
19-Dec-2001
Current Stage
9093 - International Standard confirmed
Start Date
21-Aug-2020
Ref Project

Buy Standard

Standard
ISO/IEC 20062:2001 - Information technology -- 8 mm wide magnetic tape cartridge for information interchange -- Helical scan recording -- VXA-1 format
English language
78 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO/IEC
STANDARD 20062
First edition
2001-12-15
Information technology — 8 mm wide
magnetic tape cartridge for information
interchange — Helical scan recording —
VXA-1 format
Technologies de l'information — Cartouche de bande magnétique de 8 mm
de large pour échange d'informations — Enregistrement par balayage en
spirale — Format VXA-1
Reference number
ISO/IEC 20062:2001(E)
ISO/IEC 2001
---------------------- Page: 1 ----------------------
ISO/IEC 20062:2001(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not

be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading

this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in

this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the

unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO/IEC 2001

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic

or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body

in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO/IEC 2001 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 20062:2001(E)
Contents
Section 1 - General 1
1 Scope 1
2 Conformance 1
2.1 Magnetic tape cartridges 1
2.2 Generating drive 1
2.3 Receiving drive 1
3 Normative references 1
4 Terms and definitions 2
4.1 ac erase 2
4.2 algorithm 2
4.3 Average Signal Amplitude 2
4.4 azimuth 2
4.5 back surface 2
4.6 Beginning of Data (BOD) 2
4.7 Beginning of Tape (BOT) 2
4.8 bit cell 2
4.9 byte 2
4.10 cartridge 2
4.11 Channel bit 2
4.12 Cyclic Redundancy Check (CRC) character 2
4.13 End of Data (EOD) 2
4.14 End of Partition (EOP) 2
4.15 End of Tape (EOT) 2
4.16 Error Correcting Code (ECC) 2
4.17 File Mark 2
4.18 Logical Block 2
4.19 magnetic tape 2
4.20 Master Standard Reference Tape 2
4.21 Partition 2
4.22 physical recording density 2
4.23 Reference Field 2
4.24 Secondary Standard Reference Tape (SSRT) 2
4.25 Set Mark 2
4.26 Standard Reference Amplitude (SRA) 3
4.27 Standard Reference Current (Ir) 3
4.28 Tape Reference Edge 3
4.29 Test Recording Current (TRC) 3
4.30 Track 3
4.31 Typical Field 3
5 Conventions and Notations 3
5.1 Representation of numbers 3
5.2 Names 3
6 Acronyms 3
© ISO/IEC 2001 – All rights reserved
iii
---------------------- Page: 3 ----------------------

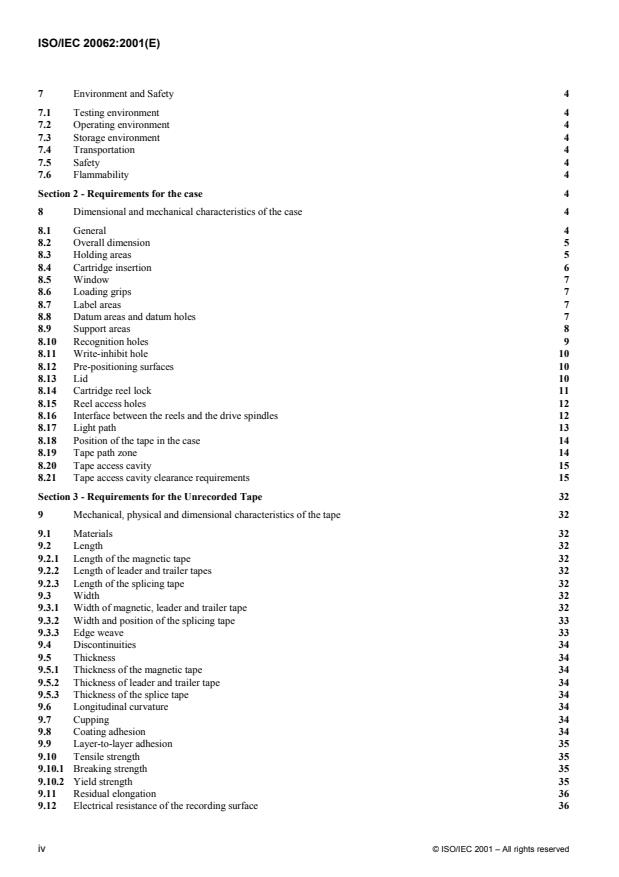

ISO/IEC 20062:2001(E)
7 Environment and Safety 4
7.1 Testing environment 4
7.2 Operating environment 4
7.3 Storage environment 4
7.4 Transportation 4
7.5 Safety 4
7.6 Flammability 4
Section 2 - Requirements for the case 4
8 Dimensional and mechanical characteristics of the case 4
8.1 General 4
8.2 Overall dimension 5
8.3 Holding areas 5
8.4 Cartridge insertion 6
8.5 Window 7
8.6 Loading grips 7
8.7 Label areas 7
8.8 Datum areas and datum holes 7
8.9 Support areas 8
8.10 Recognition holes 9
8.11 Write-inhibit hole 10
8.12 Pre-positioning surfaces 10
8.13 Lid 10
8.14 Cartridge reel lock 11
8.15 Reel access holes 12
8.16 Interface between the reels and the drive spindles 12
8.17 Light path 13
8.18 Position of the tape in the case 14
8.19 Tape path zone 14
8.20 Tape access cavity 15
8.21 Tape access cavity clearance requirements 15
Section 3 - Requirements for the Unrecorded Tape 32
9 Mechanical, physical and dimensional characteristics of the tape 32
9.1 Materials 32
9.2 Length 32
9.2.1 Length of the magnetic tape 32
9.2.2 Length of leader and trailer tapes 32
9.2.3 Length of the splicing tape 32
9.3 Width 32
9.3.1 Width of magnetic, leader and trailer tape 32
9.3.2 Width and position of the splicing tape 33
9.3.3 Edge weave 33
9.4 Discontinuities 34
9.5 Thickness 34
9.5.1 Thickness of the magnetic tape 34
9.5.2 Thickness of leader and trailer tape 34
9.5.3 Thickness of the splice tape 34
9.6 Longitudinal curvature 34
9.7 Cupping 34
9.8 Coating adhesion 34
9.9 Layer-to-layer adhesion 35
9.10 Tensile strength 35
9.10.1 Breaking strength 35
9.10.2 Yield strength 35
9.11 Residual elongation 36
9.12 Electrical resistance of the recording surface 36
iv © ISO/IEC 2001 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 20062:2001(E)
9.13 Tape winding 36
9.14 Light transmittance of tape 36
10 Magnetic recording characteristics 36
10.1 Test conditions 37
10.2 Typical Recording Current 37
10.3 Signal Amplitude 37
10.4 Resolution 37
10.5 Signal-to-Noise Ratio 37
10.6 Ease of erasure 38
10.7 Tape quality 38
10.7.1 Missing pulses 38
10.7.2 Missing pulse zone 38
10.7.3 Overwrite 38
Section 4 - Requirements for an Interchanged Tape 38
11 Track Format 38
11.1 General 38
11.2 Physical Logical Block Format 39
11.2.1 Logical Block Set (LBS) 39
11.2.2 Logical Blocks 40
11.2.3 Segment Packets 40
11.2.4 Segment Overhead Packets 40
11.2.5 Skipped Segment Packets 44
11.2.6 Segment ECC packets 44
11.2.7 Segment flush 45
11.3 Track Packet format 45
11.3.1 Virtual Packet Address 45
11.3.2 Local Packet Address 45
11.3.3 Packet data 47
11.3.4 Packet CRC 48
11.3.5 Packet Reed-Solomon ECC 48
11.4 Control packet format 48
11.5 Packet framing sync 51
12 Tape Format 51
12.1 Track elements 52
12.2 Data track format 52
12.2.1 Order of packets in a data track 52
12.2.2 Rewrite 52
12.3 Gap tracks 53
13 Method of recording 54
13.1 Physical recording density 54
13.1.1 Long-term average bit cell length 54
13.1.2 Short-term average bit cell length 54
13.1.3 Rate of change 54
13.2 Bit shift 54
13.3 Amplitude of Data Signals 54
14 Track geometry 54
14.1 General 54
14.2 Track pitch 55
14.3 Average track pitch 55
14.4 Track width 55
14.5 Track angle 55
14.6 Track length 55
14.7 Guard band 55
© ISO/IEC 2001 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/IEC 20062:2001(E)
14.8 Azimuth angles 56
14.9 Track linearity 56
15 Layout of a tape 56
15.1 General 56
15.2 Beginning of Partition 56
15.3 Tape Header Record (THR) 56
15.4 Data area 57
15.5 Tape Directory Record 57
15.6 End of Data 58
15.7 End of Partition (EOP) 58
Annexes
A - Measurement of Light Transmittance of Tape and Leaders 59
B - The Packet ECC 62
C - The Segment ECC 63
D - Generation of the Segment Overhead CRCs 64
E - Generation of the Segment Data CRC 65
F - Generation of the Packet CRC 66
G - Representation of 8-bit bytes by 14-bit patterns 67
H - Measurement of bit shift 75
J - Tape Count 77
K - Recommendations for transportation 78
vi © ISO/IEC 2001 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/IEC 20062:2001(E)
Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical Commission) form the

specialized system for worldwide standardization. National bodies that are members of ISO or IEC participate in the

development of International Standards through technical committees established by the respective organization to deal with

particular fields of technical activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other

international organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the work. In the

field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.

The main task of the joint technical committee is to prepare International Standards. Draft International Standards adopted by

the joint technical committee are circulated to national bodies for voting. Publication as an International Standard requires

approval by at least 75 % of the national bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of patent rights.

ISO and IEC shall not be held responsible for identifying any or all such patent rights.

ISO/IEC 20062 was prepared by ECMA (as Standard ECMA-316) and was adopted, under a special “fast-track procedure”, by

Joint Technical Committee ISO/IEC JTC 1, Information technology, in parallel with its approval of national bodies of ISO and

IEC.

Annexes A to J form a normative part of this International Standard. Annex K is for information only.

© ISO/IEC 2001 – All rights reserved vii
---------------------- Page: 7 ----------------------
INTERNATIONAL STANDARD ISO/IEC 20062:2001(E)
Information technology - 8 mm wide magnetic tape cartridge for information
interchange - Helical scan recording - VXA-1 format
Section 1 - General
1 Scope

This International Standard specifies the physical and magnetic characteristics of an 8 mm wide magnetic tape cartridge to

enable physical interchange of such cartridges between drives. It also specifies the quality of the recorded signals, the recording

method and the recorded format called VXA-1, and thereby allowing data interchange between drives by means of such

magnetic tape cartridges.

This International Standard specifies three types depending on the length of magnetic tape contained in the case, referred to as

Type A, Type B and Type C.

Information interchange between systems also requires, at a minimum, agreement between the interchange parties upon the

interchange code(s) and the specifications of the structure and labelling of the information on the interchanged cartridge.

If compression is used with this format, it shall be according to International Standard ISO/IEC 15200.

2 Conformance
2.1 Magnetic tape cartridges

A magnetic tape cartridge shall be in conformance with this International Standard if it satisfies all mandatory requirements of

this International Standard throughout the extent of the tape.
2.2 Generating drive

A drive generating a magnetic tape cartridge for interchange shall be entitled to claim conformance with this International

Standard if all the recordings that it makes on a tape meet the mandatory requirements of this International Standard. A claim of

conformance shall state whether or not the registered compression algorithm specified in ISO/IEC 15200 is implemented within

the system to process data from the host prior to allocating data to segment data packets.

2.3 Receiving drive

A system receiving a magnetic tape cartridge for interchange shall be entitled to claim conformance with this International

Standard if it is able to handle any recording on this tape according to this International Standard. A receiving drive shall be

able to recognise the use of the data compression algorithm specified in ISO/IEC 15200.

3 Normative references

The following normative documents contain provisions which, through reference in this text, constitute provisions of this

International Standard. For dated references, subsequent amendments to, or revisions of, any of these publications do not apply.

However, parties to agreements based on this International Standard are encouraged to investigate the possibility of applying

the most recent editions of the normative documents indicated below. For undated references, the latest edition of the normative

document referred to applies. Members of ISO and IEC maintain registers of currently valid International Standards.

ISO/IEC 15200:1996 Information technology - Adaptive Lossless Data Compression algorithm (ALDC)

ISO 527-3:1995 Plastics - Determination of tensile properties - Part 3: Test conditions for films and sheets

ISO 1302:— Geometrical Product Specifications (GPS) - Indication of surface texture in technical product

documentation

ISO/IEC 11576:1994 Information technology - Procedure for the registration of algorithms for the lossless compression

of data

IEC 60950-1:2001 Information technology equipment - Safety - Part 1: General requirements

1) To be published. (Revision of ISO 1302:1992)
© ISO/IEC 2001 – All rights reserved 1
---------------------- Page: 8 ----------------------
ISO/IEC 20062:2001(E)
4 Terms and definitions

For the purposes of this International Standard, the following terms and definitions apply.

4.1 ac erase: A process of erasure utilising alternating magnetic fields of decaying intensity.

4.2 algorithm: A set of rules for transforming the logical representation of data.

4.3 Average Signal Amplitude: The average peak-to-peak value of the output signal from the read head at a density of

2 740 ftpmm measured over a minimum distance of 100 mm, exclusive of missing pulses.

4.4 azimuth: The angular deviation, in degrees of arc, of the recorded flux transitions on a track from a line normal to the

track centreline.

4.5 back surface: The surface of the tape opposite to the magnetic coating used to record data.

4.6 Beginning of Data (BOD): The point in a partition after which a recording of data for interchange commences.

4.7 Beginning of Tape (BOT): The transition from the tape leader to an opaque area of the splice by which a

translucent leader tape is joined to the magnetic tape.

4.8 bit cell: A distance along the track allocated for the recording of a Channel bit.

4.9 byte: An ordered set of bits acted upon as a unit.
4.10 cartridge: A case containing magnetic tape stored on twin reels.
4.11 Channel bit: A bit after 8-14 transformation.

4.12 Cyclic Redundancy Check (CRC) character: A character derived from information contained in data bytes that

is used for error detection.

4.13 End of Data (EOD): The point in a partition before which a recording of data for interchange ends.

4.14 End of Partition (EOP): The virtual point along the length of tape at which a partition ends.

4.15 End of Tape (EOT): The transition from an opaque area of the splice to a translucent trailer tape.

4.16 Error Correcting Code (ECC): A mathematical procedure yielding bytes used for the detection and correction of

errors.

4.17 File Mark: A mark recorded on the tape at the request of the host system to separate files or to provide an append

point. This format provides for Long and Short File Marks.
4.18 Logical Block: Information (data) sent to the tape drive to be recorded.

4.19 magnetic tape: A tape that accepts and retains magnetic signals intended for input, output, and storage of data for

information processing.

4.20 Master Standard Reference Tape: A tape selected as the standard for Signal Amplitude, Typical Recording

Current, Overwrite and Resolution.

Note - The Master Standard Reference Tape has been established by Ecrix Corporation.

4.21 Partition: A formatted length of tape used to record data.

4.22 physical recording density: The number of recorded flux transitions per unit length of track, expressed in flux

transitions per millimetre (ftpmm).
4.23 Reference Field: The Typical Field of the Master Standard Reference Tape.

4.24 Secondary Standard Reference Tape (SSRT): A tape the performance of which is known and stated in relation

to that of the Master Standard Reference Tape.

Note - Secondary Standard Reference Tapes can be ordered under the Part Number 111.00124 from Ecrix Corporation, 5525 Central

Avenue, Boulder, Co. 80301, USA.

In principle, such tapes will be available for a period of 10 years from the publication of the first edition of this International Standard.

However, by agreement between ECMA and Ecrix Corporation, this period may be shortened or extended to take account of demand for

such tapes.

It is intended that these be used for calibrating Tertiary Reference Tapes for use in routine calibration.

4.25 Set Mark: A mark recorded on the tape at the request of the host system to separate a set of data or to provide an

append point.
2 © ISO/IEC 2001 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 20062:2001(E)

4.26 Standard Reference Amplitude (SRA): The Average Signal Amplitude derived from the Master Standard

Reference Tape, using the Test Recording Current at 2 740 ftpmm.

4.27 Standard Reference Current (Ir): The current that produces the Reference Field.

4.28 Tape Reference Edge: The lower edge of tape as seen when viewing the recording surface of the tape with the

supply reel to the observer’s right.

4.29 Test Recording Current (TRC): The current used to record the SRA. The TRC is 1,4 times the Standard

Reference Current.

4.30 Track: A diagonally positioned area on the tape along which a series of magnetic transitions may be recorded.

4.31 Typical Field: In the plot of the Average Signal Amplitude against the recording field at the physical recording

density of 2 740 ftpmm, the minimum field that causes an Average Signal Amplitude equal to 90 % of the maximum

Average Signal Amplitude.
5 Conventions and Notations
5.1 Representation of numbers

A measured value is rounded off to the least significant digit of the corresponding specified value. It implies that a specific

value of 1,26 with a positive tolerance of +0,01, and a negative tolerance of -0,02 allows a range of measured values from

1,235 to 1,275.
• Letters and digits in parentheses represent numbers in hexadecimal notation.
• The setting of a bit is denoted by ZERO or ONE.

• Numbers in binary notation and bit combinations are represented by strings of digits 0 and 1.

• Numbers in binary notation and bit combinations are shown with the most significant byte to the left, and with the most

significant bit in each byte to the left.
• Negative values of numbers in binary notation are given in Two’s complement.

• In each field the data is processed so that the most significant byte (byte 0) is processed first. Within each byte the most

significant bit (numbered 7 in an 8-bit byte) is processed first, least significant bit is numbered 0 and is processed last. This

order of processing applies also to the data input to the Error Detection and Correction circuits and to their output, unless

otherwise stated.
5.2 Names

The names of entities, e.g. specific tracks, fields, etc., are given with a capital initial letter.

6 Acronyms
CRC Cyclic Redundancy Check
BOD Beginning of Data
BOT Beginning of Tape
ECC Error Correction Code
EOD End of Data
EOT End of Tape
LB Logical Block
LBA Logical Block Address
LBS Logical Block Set
lsb Least Significant Bit
LSB Least Significant Byte
msb Most Significant Bit
MSB Most significant Byte
OWG Overwritable Gap
SPM Splice Position Marker
SRA Standard Reference Amplitude
SSRT Secondary Standard Reference Tape
TDR Tape Directory Record
THR Tape header Record
VPA Virtual Packet Address
© ISO/IEC 2001 – All rights reserved 3
---------------------- Page: 10 ----------------------
ISO/IEC 20062:2001(E)
7 Environment and Safety

The conditions specified below refer to the ambient conditions immediately surrounding the cartridge.

Cartridges exposed to environments outside these limits may still be able to function usefully; however, such exposure may

cause permanent damage.
7.1 Testing environment

Unless otherwise specified, tests and measurements made on the cartridge to check the requirements of this International

Standard shall be carried out under the following conditions
temperature: 23 °C ± 2 °C
relative humidity: 40 % to 60 %
conditioning period before testing: 24 h min.
7.2 Operating environment

Cartridges used for data interchange shall be capable of operating under the following conditions

temperature: 5 °C to 45 °C
relative humidity: 20 % to 80 %
wet bulb temperature: 26 °C max.

The average temperature of the air immediately surrounding the tape shall not exceed 45°C.

If a cartridge has been exposed during storage and/or transportation to conditions outside the above values, before use the

cartridge shall be conditioned in the operating environment for a time at least equal to the period during which it has been out

of the operating environment, up to a maximum of 24 h.
7.3 Storage environment
The following conditions shall be observed during storage
temperature: 5 °C to 32 °C
relative humidity: 20 % to 60 %
stray magnetic field: shall not exceed 4 000 A/m at any point on the tape.
There shall be no deposit of moisture on or in the cartridge.
7.4 Transportation

Recommended limits for the environments, to which a cartridge may be subjected during transportation, and the precautions to

be taken to minimise the possibility of damage, are provided in annex K.
7.5 Safety

The cartridge shall satisfy the safety requirements of IEC 60950-1 when used in the intended manner or in any foreseeable use

in an information processing system.
7.6 Flammability

The cartridge shall be made from materials that comply with the flammability class for HB materials, or better, as specified in

IEC 60950-1.
Section 2 - Requirements for the case
8 Dimensional and mechanical characteristics of the case
8.1 General
The cartridge shall consist of the following elements:
− a case
− recognition holes
− a write inhibit mechanism
− twin reels containing magnetic tape
− a locking mechanism for the reels
4 © ISO/IEC 2001 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 20062:2001(E)

Dimensional characteristics are specified for those parameters deemed to be mandatory for interchange and compatible use of

the cartridge. Where there is freedom of design, only the functional characteristics of the elements described are indicated. In

the figures a typical implementation is represented in third angle projections.
Figure 1 shows a perspective view of the cartridge seen from the top.
Figure 2 shows a perspective view of the cartridge seen from the bottom.
Figure 3 shows a perspective view of Reference Planes X, Y and Z.
Figure 4 shows the front side with the lid closed.
Figure 5 shows the left side with the lid closed.
Figure 6 shows the top side with the lid closed.
Figure 7 shows the right side with the lid closed.
Figure 8 shows the rear side with the lid closed.
Figure 9 shows the bottom side, datum and support areas.
Figure 10 shows the bottom side with the lid removed.
Figure 11 shows the enlarged view of the datum and recognition holes.

Figure 12 shows cross-sections through the light path holes, the recognition holes and the write-inhibit hole.

Figure 13 shows details of the lid when closed, rotating and open.
Figure 14 shows details of the lid release insertion channel.
Figure 15 shows the lid lock release requirements.
Figure 16 shows the reel lock release requirements.
Figure 17 shows the reel unlock force direction.
Figure 18 shows the lid release force direction.
Figure 19 shows the lid opening force direction.
Figure 20 shows the light path and light window.
Figure 21 shows the internal tape path and light path.

Figure 22 shows the cartridge reel and a cross-section view of the cartridge reel.

Figure 23 shows a cross-section view of the cartridge reel interface with the drive spindle.

Figure 24 shows the tape access cavity clearance requirements.

The dimensions are referred to three orthogonal Reference Planes X, Y and Z (see figure 3).

Plane X is perpendicular to Plane Z and passes through the centres of the Datum Holes A and B.

Plane Y is perpendicular to Plane X and Plane Z and passes through the centre of Datum Hole A.

Datum area A, B and C shall lie in Plane Z.
8.2 Overall dimension (figures 5 and 6)
The length of the case shall be
l = 62,5 mm ± 0,3 mm
The width of the case shall be
l = 95,0 mm ± 0,2 mm
The distance from the top of the case to Plane Z shall be
l = 15,0 mm ± 0,2 mm
The distance from the rear side to Plane X shall be
l = 47,35 mm ± 0,15 mm
The distance from the right side to Plane Y shall be
l = 13,0 mm ± 0,1 mm
8.3 Holding areas (figure 6)

The holding areas shown hatched in figure 6 shall be the areas along which the cartridge shall be held down when inserted into

the drive. The distance of the holding areas from Plane X shall be
l = 12,0 mm max.
The width when measured from the edge of the case shall be
l = 3,0 mm min.
© ISO/IEC 2001 – All rights reserved 5
---------------------- Page: 12 ----------------------
ISO/IEC 20062:2001(E)
8.4 Cartridge insertion (figures 4, 7, 10, 13 and 14)

The cartridge shall have asymmetrical features to prevent insertion into the drive in other than the correct orientation. These

consist of an insertion channel, a recess and an incline.

The insertion channel (figures 4 and 14) shall provide for an unobstructed path, when the lid is closed and locked, to unlock the

lid. The distance of the insertion channel from Plane Y shall be
l = 79,7 mm ± 0,2 mm
There shall be a chamfer at the beginning of the insertion channel defined by
l = 1,0 mm ± 0,1 mm
l = 1,5 mm ± 0,1 mm
An additional chamfer further into the insertion channel shall be defined by
l = 0,7 mm ± 0,1 mm
l = 1,0 mm ± 0,1 mm
l = 3,8 mm ± 0,1 mm
The innermost width of the insertion channel shall be
l = 1,0 mm min.
The thickness of the lid shall be
l = 1,2 mm ± 0,1 mm
There shall be a chamfer on the lid defined by
l = 0,8 mm ± 0,1 mm
l = 1,2 mm ± 0,1 mm
The lid shall extend from the case a distance of
l = 0,5 mm ± 0,1 mm
The distance from the left side of the case to the lid lock shall be
l = 0,2 mm ± 0,2 mm
The height of the insertion area shall be
l = 2,3 mm min.
+ 0,2 mm
l = 2,5 mm
- 0,0 mm

The recess is located on the right side of the cartridge. The position and dimensions (figures 7 and 10) shall be defined by

l = 7,5 mm max.
l = 11,0 mm ± 0,2 mm
l = 1,5 mm ± 0,1 mm
The depth of the recess shall be
l = 1,5 mm ± 0,1 mm

The incline (figure 13) is part of the lid structure. The distance of the incline from Plane X shall be defined by

+ 0,0 mm
l = 7,7 mm
- 2,5 mm
The angle of the incline shall be
o o
a = 20 ± 1
6 © ISO/IEC 2001 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/IEC 20062:2001(E)
The incline shall end at its intersection with radius r (see 8.13).
8.5 Window (figure 1)

A window may be provided on the top side so that parts of the reels are visible. The window, if provided, shall not extend

beyond the height of the cartridge.
8.6 Loading grips (figures 5 and 7)

The cartridge shall have a recessed loading grip on the right side and on the left side to allow handling by an automatic loading

mechanism.
The distance from Plane X to the centreline of the loading grip shall be
l = 39,35 mm ± 0,20 mm;
The distance from Plane Z on the bottom side and from the top side shall be
l = 1,5 mm ± 0,1 mm;
The width of the indent shall be
l = 5,0 mm ± 0,3 mm;
The depth of the indent shall be
l = 2,0 mm ± 0,2 mm;
and the angle of the indent
o o
a = 90 ± 5 .
8.7 Label areas (figures 6 and 8)

A portion of the rear side of the cartridge and a portion of the top side of the cartridge may be used for labels. The position and

the size of the labels shall not interfere with the operation or clearance requirements of the cartridge component parts.

The area used for labels on the top side shall not extend beyond the inner edge of the holding areas defined by l and l .

6 7

The position and dimensions of the label area on the rear side shall be defined by

l = 0,5 mm min.
l = 1,5 mm min.
l = 80,0 mm max.
The label areas shall not be recessed by more than 0,3 mm.
8.8 Datum areas and datum holes (figures 9, 10 and 11)

The annular datum areas A, B and C shall lie in Plane Z. They determine the vertical position of the cartridge in the drive. Each

shall have a diameter d equal to 6,0 mm ± 0,1 mm and be concentric with the respective datum hole.

The centres of datum holes A and B lie in Plane X.

The centre of the circular datum hole A shall be at the intersection of planes X and Y (see figure 9).

The distance from the centre of datum hole B to Plane Y (see figure 9) shall be
l = 68,0 mm ± 0,1 mm

The distance from the centre of the circular datum hole C to Plane Y (see figure 11) shall be

l = 10,20 mm ± 0,05 mm
The distance from the centre of datum hole D to Plane Y (see figure 11) shall be
l = 79,2 mm ± 0,1 mm

The distance from the centres of datum holes C and D to Plane X (see figure 10) shall be

l = 36,35 mm ± 0,08 mm
© ISO/IEC 2001 – All rights reserved 7
---------------------- Page: 14 ----------------------
ISO/IEC 20062:2001(E)
The thickness of the case in the datum areas shall be
l = 1,2 mm ± 0,1 mm
The diameter at the bottom of datum hole A and datum hole C shall be
l = 2,6 mm min.
The depth of the holes shall be
l = 4,0 mm min.
The upper diameter of datum holes A and C shall be
+ 0,05 mm
l = 3,00 mm
- 0,00 mm
This diameter shall be to a depth of
l = 1,5 mm min.

There shall be a chamfer around the outside of datum hole A and datum hole C defined by

l = 0,3 mm max.
o o
a = 45 ± 1
The width at the bottom of datum holes B and D shal
...
