ISO 2064:1996, titled Metallic and other inorganic coatings - Definitions and conventions concerning the measurement of thickness, is an internationally recognized standard published by the International Organization for Standardization (ISO). This standard provides clear definitions and general rules regarding the measurement of the thickness of metallic and other inorganic coatings applied to various substrates. It aims to ensure consistent and comparable results when assessing coating thickness using different measurement methods.

Understanding coating thickness is critical because many coating specifications require the coating to meet or exceed a specified minimum thickness to ensure durability, corrosion resistance, and appearance. ISO 2064:1996 establishes conventions and terminology for measuring this thickness practically and uniformly.

Key Topics

• Minimum Thickness Definition
  The standard defines "minimum thickness" as the lowest local thickness over a small, defined reference area on the coated surface. This value is crucial for quality control to confirm that coatings meet specification requirements.

• Reference Area
  A key concept in the standard is the "reference area," which is the specified area where thickness measurements are taken and averaged to determine local thickness. The reference area is sized to be large enough to accommodate multiple measurements and vary depending on the measurement method.

• Local vs. Average Thickness

  • Local thickness refers to the average thickness measured within a single reference area.
  • Average thickness is the mean thickness obtained from several local thickness measurements distributed over the significant surface area of the article.

• Measurement Methods Covered
  The standard supports various measurement techniques, including:

  • Microscopical method (ISO 1463)
  • Coulometric method (ISO 2177)
  • Non-destructive methods with probe areas influencing readings
  • Analytical mass-loss methods

• Significant Surface Area
  The section of the article covered by the coating and essential for functional or aesthetic purposes, where thickness measurements must be made.

• Measurement Procedures
  Guidelines are provided for determining thickness on articles with different surface areas, including sampling numbers and measurement distribution to ensure representation and accuracy.

Applications

ISO 2064:1996 is essential for industries involved in metal finishing, corrosion protection, and appearance coatings where controlled coating thickness is critical. Practical applications include:

• Quality Assurance in Coating Processes
  Ensures that coatings meet specified minimum thickness values to maintain protective or decorative functions.

• Inspection and Testing
  Facilitates standardized inspection procedures in manufacturing plants, helping inspectors select appropriate areas and quantities for measurement.

• Compliance Verification
  Supports manufacturers and customers in verifying compliance with coating specifications in contracts and certifications.

• Research and Development
  Provides a basis for consistency in thickness evaluation during material testing or development of new coating technologies.

Related Standards

ISO 2064:1996 references several important standards relevant to coating thickness measurements to maintain harmonization across methods:

• ISO 1463:1982 – Metallic and oxide coatings: Microscopical method for coating thickness measurement.
• ISO 2177:1985 – Metallic coatings: Coulometric method by anodic dissolution for coating thickness measurement.

These related ISO documents define specific measurement methods that complement the conventions and definitions detailed in ISO 2064.

---

Keywords: ISO 2064, coating thickness measurement, metallic coatings, inorganic coatings, minimum thickness, reference area, local thickness, average thickness, microscopical method, coulometric method, non-destructive coating measurement, industrial standards, ISO coating standards, quality assurance in coatings.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-1999
Kovinske in druge anorganske prevleke – Definicije in pravila v zvezi z meritvami
debelin
Metallic and other inorganic coatings -- Definitions and conventions concerning the
measurement of thickness
Revêtements métalliques et autres revêtements inorganiques -- Définitions et principes
concernant le mesurage de l'épaisseur
Ta slovenski standard je istoveten z: ISO 2064:1996
ICS:
25.220.20 Površinska obdelava Surface treatment
25.220.40 Kovinske prevleke Metallic coatings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

IS0 2064: 1996(E)
Foreword
IS0 (the International Organization for Standardization) is a worldwide
federation of national standards bodies (IS0 member bodies). The work of
preparing International Standards is normally carried out through IS0
technical committees. Each member body interested in a subject for which
a technical committee has been established has the right to be represented
on that committee. International organizations, governmental and non-
governmental, in liaison with ISO, also take part in the work. IS0 collab-
orates closely with the International Electrotechnical Commission (IEC) on
all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard IS0 2064 was prepared by Technical Committee
ISOnC 107, Metallic and other inorganic coatings, Subcommittee SC 2,
Methods of inspection and coordination of test methods.
This third edition cancels and replaces the second edition (IS0 2064:1980),
of which it constitutes a technical revision.
0 IS0 1996
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 l CH-1211 Geneve 20 l Switzerland
Printed in Switzerland
ii
0 IS0 IS0 2064: 1996(E)

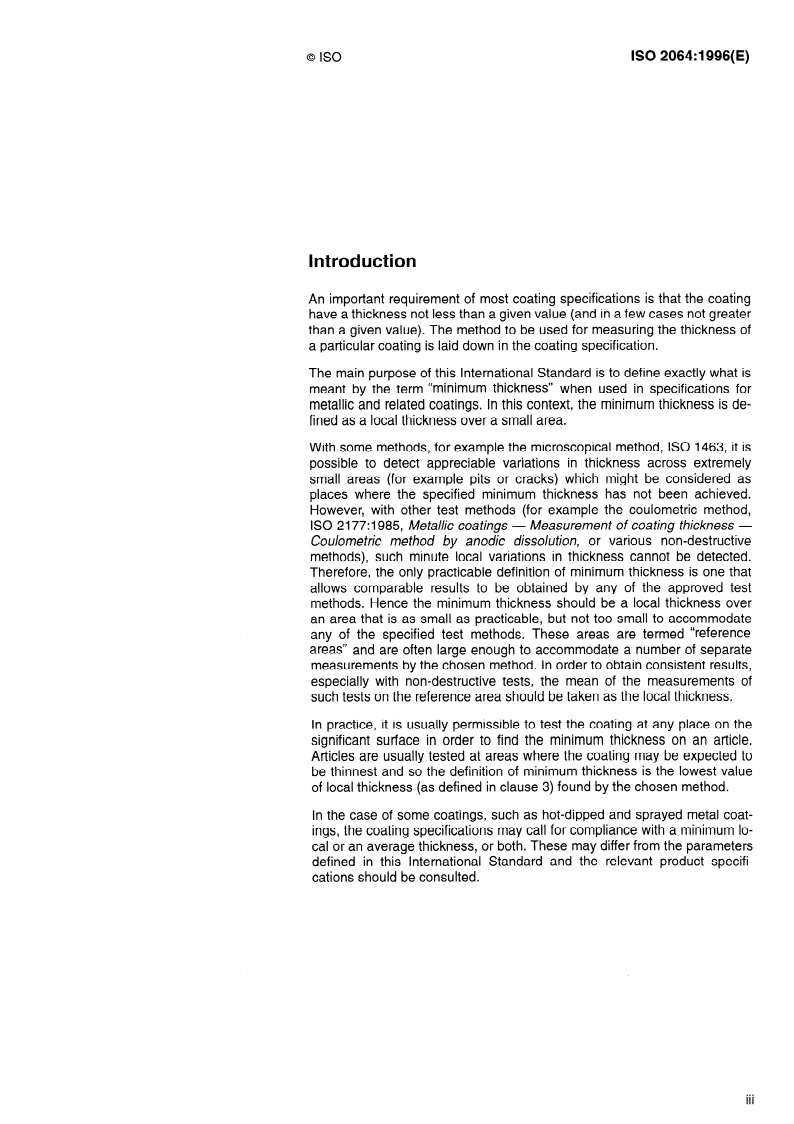

Introduction
An important requirement of most coating specifications is that the coating
have a thickness not less than a given value (and in a few cases not greater
than a given value). The method to be used for measuring the thickness of
a particular coating is laid down in the coating specification.
The main purpose of this International Standard is to define exactly what is
meant by the term “minimum thickness” when used in specifications for
metallic and related coatings. In this context, the minimum thickness is de-
fined as a local thickness over a small area.
With some methods, for example the microscopical method, IS0 1463, it is
possible to detect appreciable variations in thickness across extremely
small areas (for example pits or cracks) which might be considered as
places where the specified minimum thickness has not been achieved.
However, with other test methods (for example the coulometric method,
IS0 2177:1985, Metallic coatings - Measurement of coating thickness -
Coulometric method by anodic dissolution, or various non-destructive
methods), such minute local variations in thickness cannot be detected.
Therefore, the only practicable definition of minimum thickness is one that
allows comparable results to be obtained by any of the approved test
methods. Hence the minimum thickness should be a local thickness over
but not too small to accommodate
an area that is as small as practicable,
any of the specified test methods. These areas are termed “reference
areas” and are often large enough to accommodate a number of separate
measurements by the chosen method. In order to obtain consistent results,
especially with non-destructive tests, the mean of the measurements of
such tests on the reference area should be taken as the local thickness.
In practice, it is usually permissible to test the coating at any place on the
significant surface in order to find the minimum thickness on an article.
Articles are usually tested at areas where the coating may be expected to
be thinnest and so the definition of minimum thickness is the lowest value
of local thickness (as defined in clause 3) found by the chosen method.
In the case of some coatings, such as hot-dipped and sprayed metal coat-
ings, the coating specifications may call for compliance with a minimum lo-
cal or an average thickness, or both. These may differ from the parameters
defined in this International Standard and the relevant product specifi-
cations should be consulted.
This page intentionally left blank

INTERNATIONAL STANDARD o IS0 IS0 2064: 1996(E)
Metallic and other inorganic coatings - Definitions and
conventions concerning the measurement of thickness
for analytical methods, the area over which the
1 Scope a)
coating is removed;
This International Standard defines terms concerning
the measurement of the thickness of metallic and other
for the anodic dissolution method, the area en-
b)
inorganic coatings on any substrate. In addition, it
closed by the sealing ring of the c
...

IS0 2064: 1996(E)
Foreword
IS0 (the International Organization for Standardization) is a worldwide
federation of national standards bodies (IS0 member bodies). The work of
preparing International Standards is normally carried out through IS0
technical committees. Each member body interested in a subject for which
a technical committee has been established has the right to be represented
on that committee. International organizations, governmental and non-
governmental, in liaison with ISO, also take part in the work. IS0 collab-
orates closely with the International Electrotechnical Commission (IEC) on
all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard IS0 2064 was prepared by Technical Committee
ISOnC 107, Metallic and other inorganic coatings, Subcommittee SC 2,
Methods of inspection and coordination of test methods.
This third edition cancels and replaces the second edition (IS0 2064:1980),
of which it constitutes a technical revision.
0 IS0 1996
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 l CH-1211 Geneve 20 l Switzerland
Printed in Switzerland
ii
0 IS0 IS0 2064: 1996(E)
Introduction
An important requirement of most coating specifications is that the coating
have a thickness not less than a given value (and in a few cases not greater
than a given value). The method to be used for measuring the thickness of
a particular coating is laid down in the coating specification.
The main purpose of this International Standard is to define exactly what is
meant by the term “minimum thickness” when used in specifications for
metallic and related coatings. In this context, the minimum thickness is de-
fined as a local thickness over a small area.
With some methods, for example the microscopical method, IS0 1463, it is
possible to detect appreciable variations in thickness across extremely
small areas (for example pits or cracks) which might be considered as
places where the specified minimum thickness has not been achieved.
However, with other test methods (for example the coulometric method,
IS0 2177:1985, Metallic coatings - Measurement of coating thickness -
Coulometric method by anodic dissolution, or various non-destructive
methods), such minute local variations in thickness cannot be detected.
Therefore, the only practicable definition of minimum thickness is one that
allows comparable results to be obtained by any of the approved test
methods. Hence the minimum thickness should be a local thickness over
but not too small to accommodate
an area that is as small as practicable,
any of the specified test methods. These areas are termed “reference
areas” and are often large enough to accommodate a number of separate
measurements by the chosen method. In order to obtain consistent results,
especially with non-destructive tests, the mean of the measurements of
such tests on the reference area should be taken as the local thickness.
In practice, it is usually permissible to test the coating at any place on the
significant surface in order to find the minimum thickness on an article.
Articles are usually tested at areas where the coating may be expected to
be thinnest and so the definition of minimum thickness is the lowest value
of local thickness (as defined in clause 3) found by the chosen method.
In the case of some coatings, such as hot-dipped and sprayed metal coat-
ings, the coating specifications may call for compliance with a minimum lo-
cal or an average thickness, or both. These may differ from the parameters
defined in this International Standard and the relevant product specifi-
cations should be consulted.
This page intentionally left blank

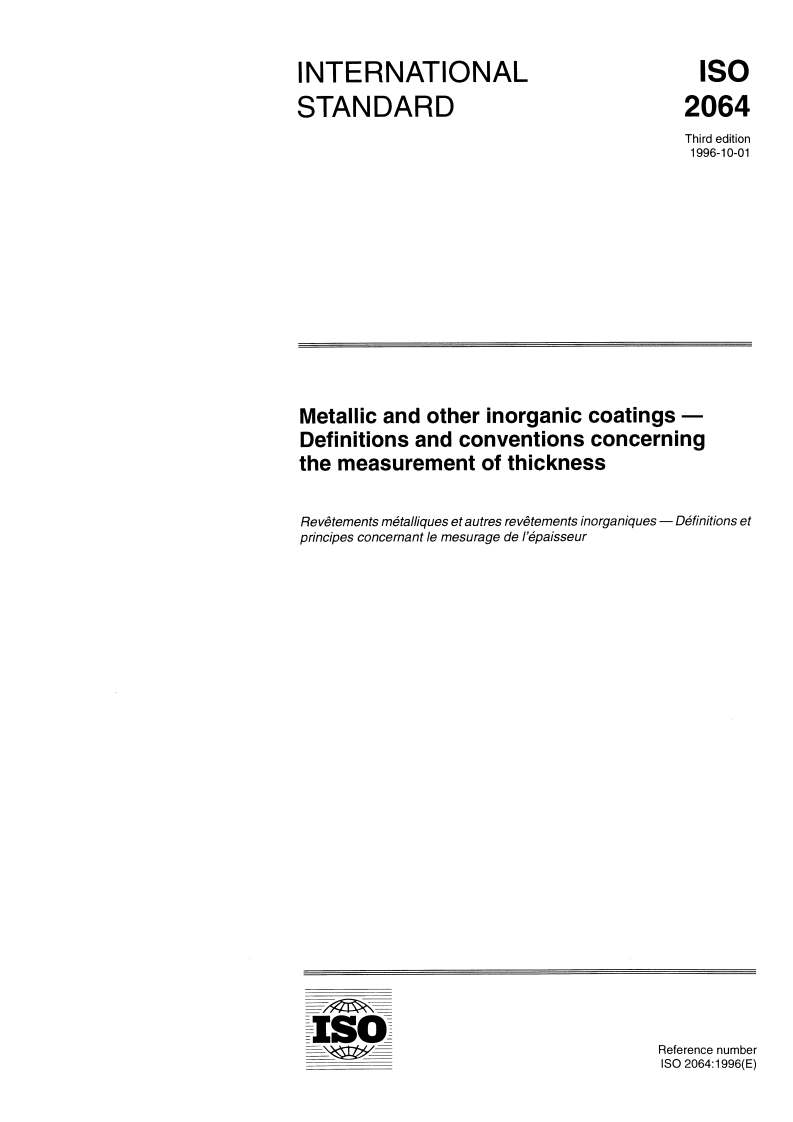

INTERNATIONAL STANDARD o IS0 IS0 2064: 1996(E)
Metallic and other inorganic coatings - Definitions and
conventions concerning the measurement of thickness
for analytical methods, the area over which the
1 Scope a)
coating is removed;
This International Standard defines terms concerning
the measurement of the thickness of metallic and other
for the anodic dissolution method, the area en-
b)
inorganic coatings on any substrate. In addition, it
closed by the sealing ring of the cell;
specifies some general rules to be followed in the
measurement of minimum thicknesses of coatings.
for the microscopical method, the field of view at a
C)
specified magnification (see IS0 1463);
2 Normative references
for non-destructive methods, the probe area or the
d)
area influencing the reading (see also the Introduc-
The following standard contains provisions which,
tion).
through reference in this text, constitute provisions of
this International Standard. At the time of publication,
3.3 reference area: The area within which a speci-
the editions indicated were valid. All standards are
fied number of single measurements
...

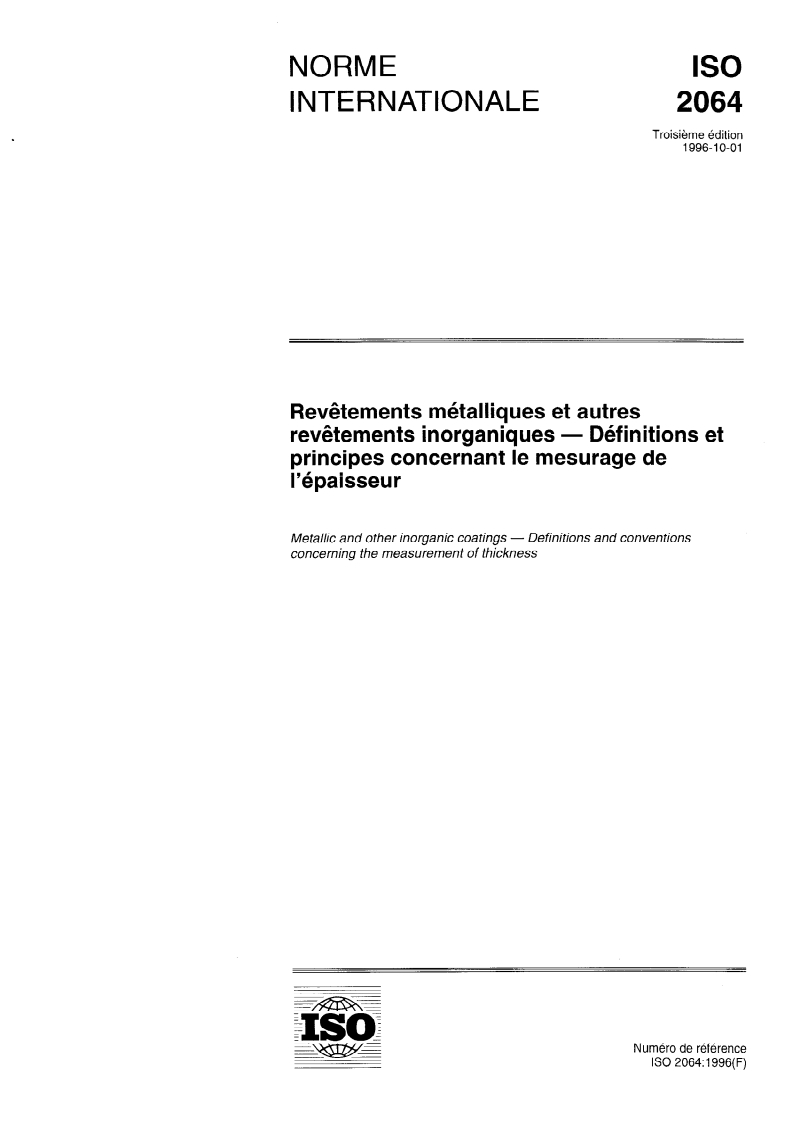

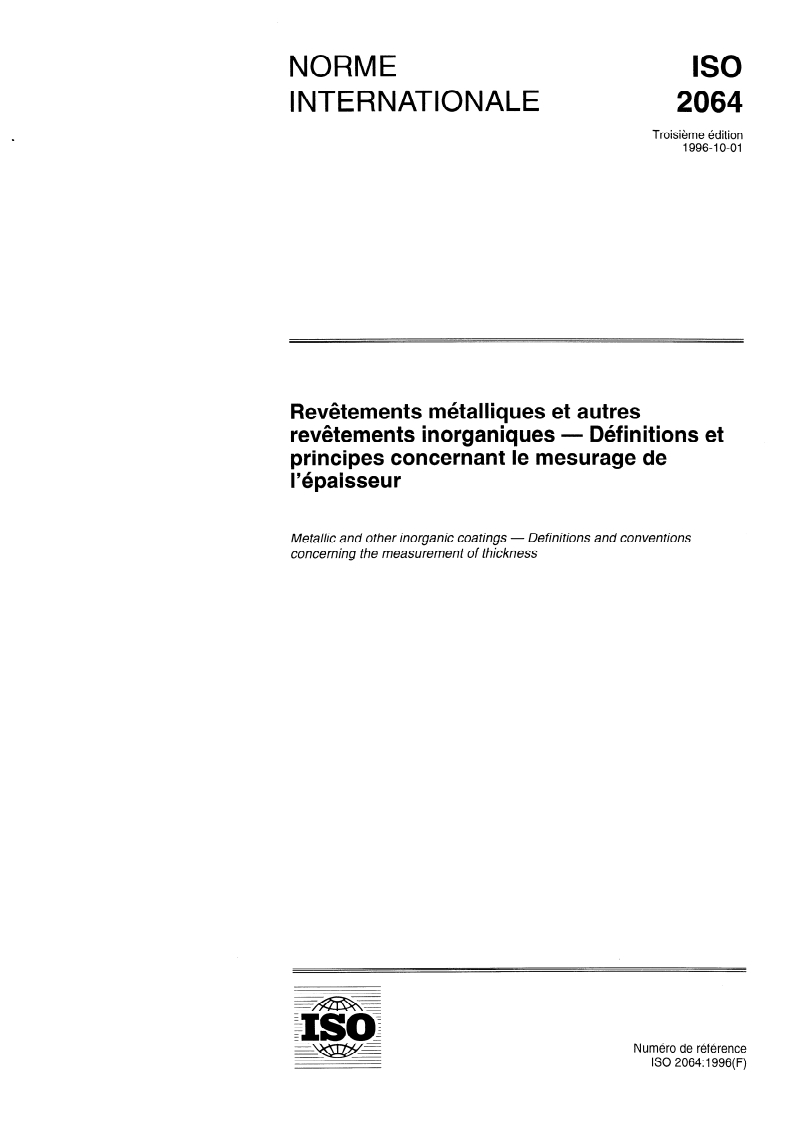

NORME
ISO
INTERNATIONALE
Troisième édition
1996-l O-OI
Revêtements métalliques et autres
revêtements inorganiques - Définitions et
principes concernant le mesurage de
l’épaisseur
Metallic and other inorganic coatings - Definitions and conventions
concerning the measurement of thickness
Numéro de référence
ISO 2064: 1996(F)
ISO 2064: 1996(F)

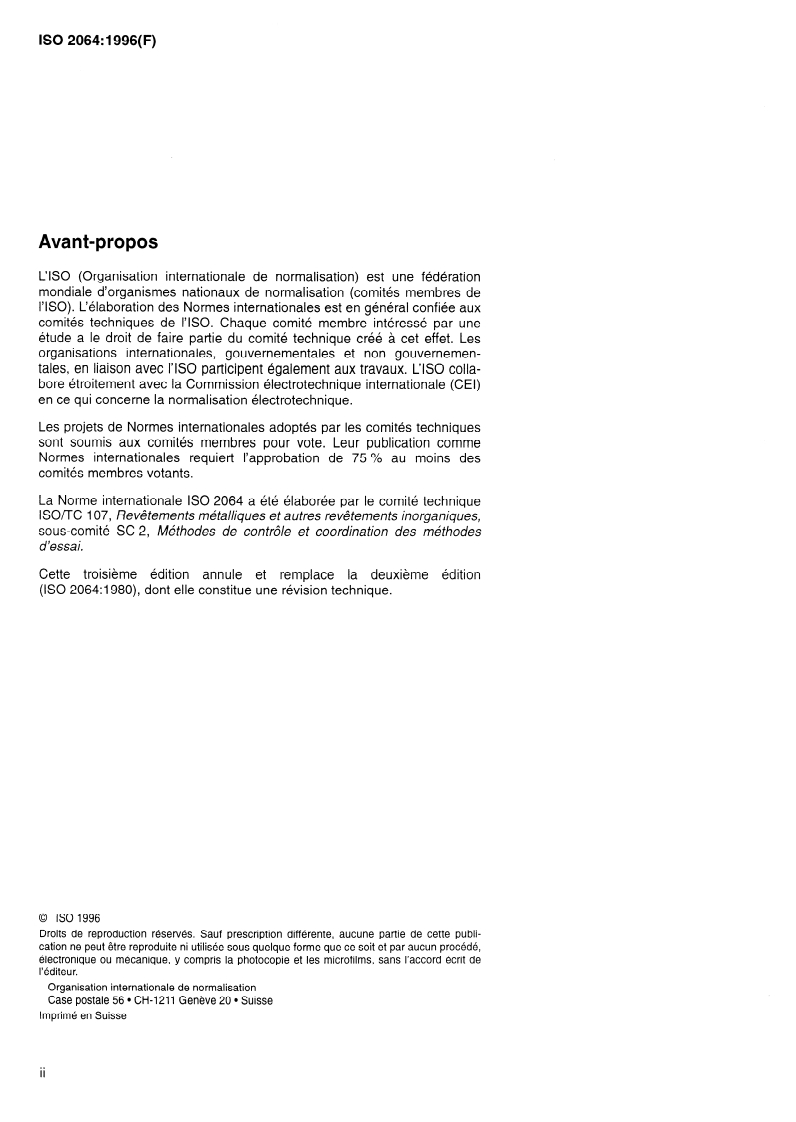

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération
mondiale d’organismes nationaux de normalisation (comités membres de
I’ISO). L’élaboration des Normes internationales est en général confiée aux
comités techniques de I’ISO. Chaque comité membre intéressé par une
étude a le droit de faire partie du comité technique créé à cet effet. Les
organisations internationales, gouvernementales et non gouvernemen-
tales, en liaison avec I’ISO participent également aux travaux. LIS0 colla-
bore étroitement avec la Commission électrotechnique internationale (CEI)
en ce qui concerne la normalisation électrotechnique.
Les projets de Normes internationales adoptés par les comités techniques
sont soumis aux comités membres pour vote. Leur publication comme
Normes internationales requiert l’approbation de 75 % au moins des
comités membres votants.
La Norme internationale ISO 2064 a été élaborée par le comité technique
ISO/TC 107, Revêtements métalliques et autres revêtements inorganiques,
sous-comité SC 2, Méthodes de contrôle et coordination des méthodes
d’essai.
Cette troisième édition annule et remplace la deuxième édition
(ISO 2064:1980), dont elle constitue une révision technique.
0 ISO 1996
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publi-
cation ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé,
électronique ou mécanique, y compris la photocopie et les microfilms, sans l’accord écrit de
l’éditeur.
Organisation internationale de normalisation
Case postale 56 l CH-1211 Genève 20 l Suisse
Imprimé en Suisse
0 ISO

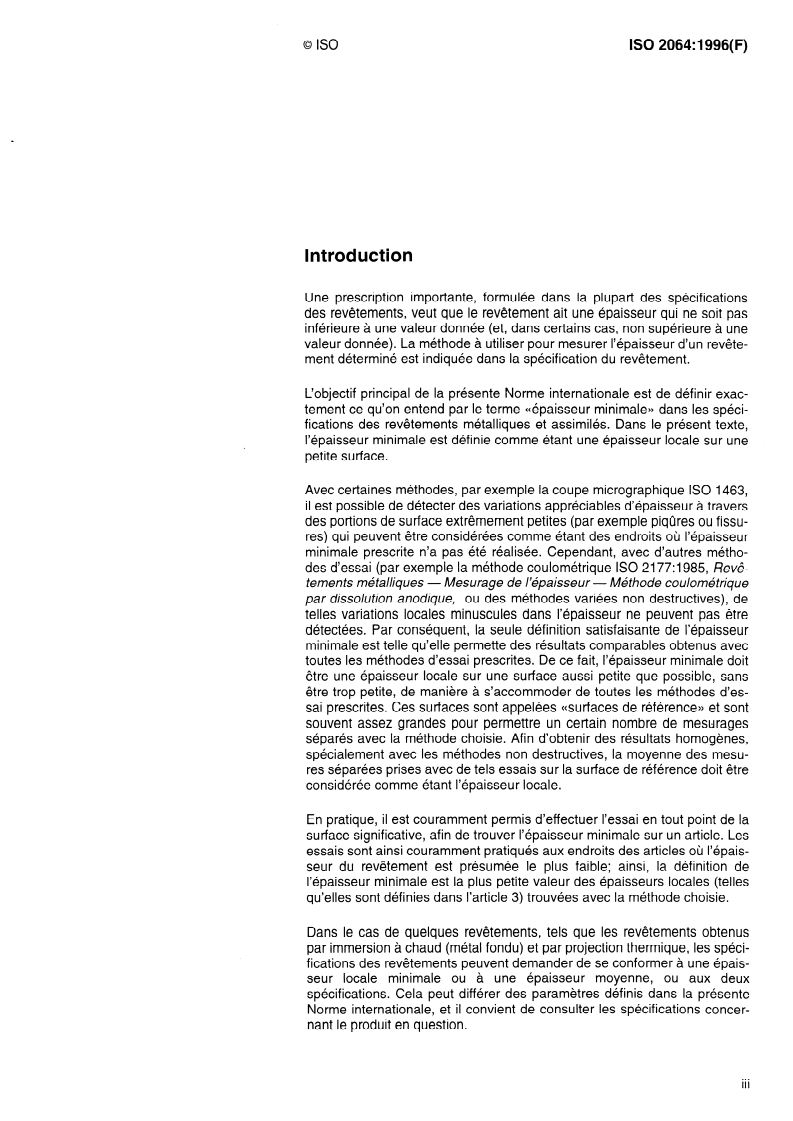

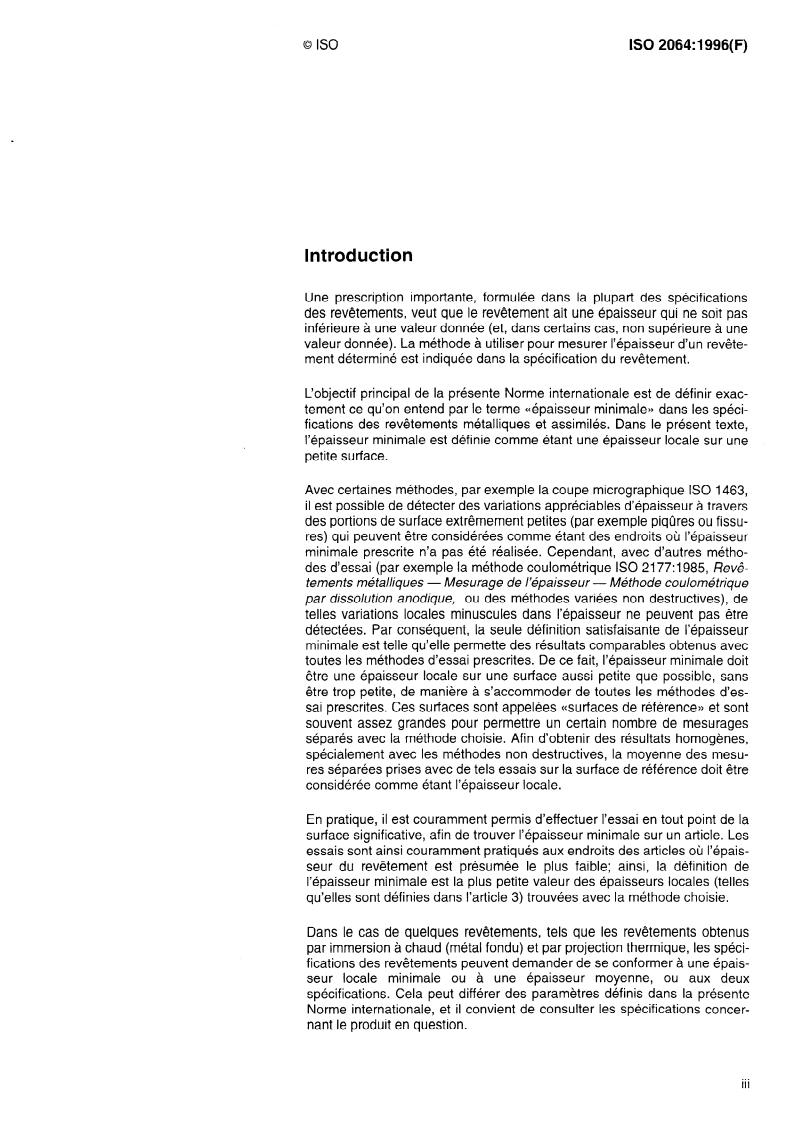

Introduction
Une prescription importante, formulée dans la plupart des spécifications
des revêtements, veut que le revêtement ait une épaisseur qui ne soit pas
inférieure à une valeur donnée (et, dans certains cas, non supérieure à une
valeur donnée). La méthode à utiliser pour mesurer l’épaisseur d’un revête-
ment déterminé est indiquée dans la spécification du revêtement.
L’objectif principal de la présente Norme internationale est de définir exac-
tement ce qu’on entend par le terme <(épaisseur minimale>> dans les spéci-
fications des revêtements métalliques et assimilés. Dans le présent texte,
l’épaisseur minimale est définie comme étant une épaisseur locale sur une
petite surface.
Avec certaines méthodes, par exemple la coupe micrographique ISO 1463,
il est possible de détecter des variations appréciables d’épaisseur à travers
des portions de surface extrêmement petites (par exemple piqûres ou fissu-
res) qui peuvent être considérées comme étant des endroits où l’épaisseur
minimale prescrite n’a pas été réalisée. Cependant, avec d’autres métho-
des d’essai (par exemple la méthode coulométrique ISO 2177:1985, Revê-
temen ts métalliques - Mesurage de l’épaisseur - Méthode coulométrique
par dissolution anodique, ou des méthodes variées non destructives), de
telles variations locales minuscules dans l’épaisseur ne peuvent pas être
détectées. Par conséquent, la seule définition satisfaisante de l’épaisseur
minimale est telle qu’elle permette des résultats comparables obtenus avec
toutes les méthodes d’essai prescrites. De ce fait, l’épaisseur minimale doit
être une épaisseur locale sur une surface aussi petite que possible, sans
être trop petite, de manière à s’accommoder de toutes les méthodes d’es-
sai prescrites. Ces surfaces sont appelées wMaces de référence>> et sont
souvent assez grandes pour permettre un certain nombre de mesurages
séparés avec la méthode choisie. Afin d’obtenir des résultats homogènes,
spécialement avec les méthodes non destructives, la moyenne des mesu-
res séparées prises avec de tels essais sur la surface de référence doit être
considérée comme étant l’épaisseur locale.
En pratique, il est couramment permis d’effectuer l’essai en tout point de la
surface significative, afin de trouver l’épaisseur minimale sur un article. Les
essais sont ainsi couramment pratiqués aux endroits des articles où I’épais-
seur du revêtement est présumée le plus faible; ainsi, la définition de
l’épaisseur minimale est la plus petite valeur des épaisseurs locales (telles
qu’elles sont définies dans l’article 3) trouvées avec la méthode choisie.
Dans le cas de quelques revêtements, tels que les revêtements obtenus
par immersion à chaud (métal fondu) et par projection thermique, les spéci-
fications des revêtements peuvent demander de se conformer à une épais-
seur locale minimale ou à une épaisseur moyenne, ou aux deux
spécifications. Cela peut différer des paramètres définis dans la présente
Norme internationale, et il convient de consulter les spécifications concer-
nant le produit en question.
. . .
III
Page blanche
NORME INTERNATIONALE o ISO
ISO 2064: 1996(F)
Revêtements métalliques et autres revêtements
inorganiques - Définitions et principes concernant le
mesurage de l’épaisseur
Pour les méthodes suivantes, I’> est
1 Domaine d’application
définie comme étant
La présente Norme internationale définit les termes
pour les méthodes analytiques, l’aire sur laquelle
a)
concernant le mesurage de l’épaisseur des revête-
le revêtement est dissous;
ments métalliques et autres revêtements inorganiques
sur tout substrat. En outre, elle prescrit quelques rè-
pour la méthode par dissolution anodique, l’aire à
W
gles générales à suivre pour le mesurage de I’épais-
l’intérieur de l’anneau d’étanchéité de la cellule;
seur minimale des revêtements.
pour la méthode par coupe micrographique, le
C)
champ visuel à un grossissement spécifié (voir
2 Référence normative
ISO 1463);
La norme suivante contient des dispositions qui, par
pour les méthodes non destructives, l’aire de con-
dl
suite de la référence qui en est faite, constituent des
tac
...
