ISO 21485:2013
(Main)Textile machinery — Draw frame for cotton spinning — Vocabulary and principles of construction
Textile machinery — Draw frame for cotton spinning — Vocabulary and principles of construction
ISO 21485:2013 establishes a vocabulary of terms related to, and the principles of construction of, draw frames and their components, used for cotton spinning in the textile industry.
Matériel pour l'industrie textile — Cadre pour la filature du coton — Vocabulaire et principes de construction
General Information
Relations
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 21485
Second edition
2013-10-01
Textile machinery — Draw frame for
cotton spinning — Vocabulary and
principles of construction
Matériel pour l’industrie textile — Cadre pour la filature du coton —
Vocabulaire et principes de construction
Reference number
©
ISO 2013
© ISO 2013
The reproduction of the terms and definitions contained in this International Standard is permitted in teaching manuals, in-
struction booklets, technical publications and journals for strictly educational or implementation purposes. The conditions for
such reproduction are: that no modifications are made to the terms and definitions; that such reproduction is not permitted for
dictionaries or similar publications offered for sale; and that this International Standard is referenced as the source document.
With the sole exceptions noted above, no other part of this publication may be reproduced or utilized otherwise in any form or
by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior writ-
ten permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of the
requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

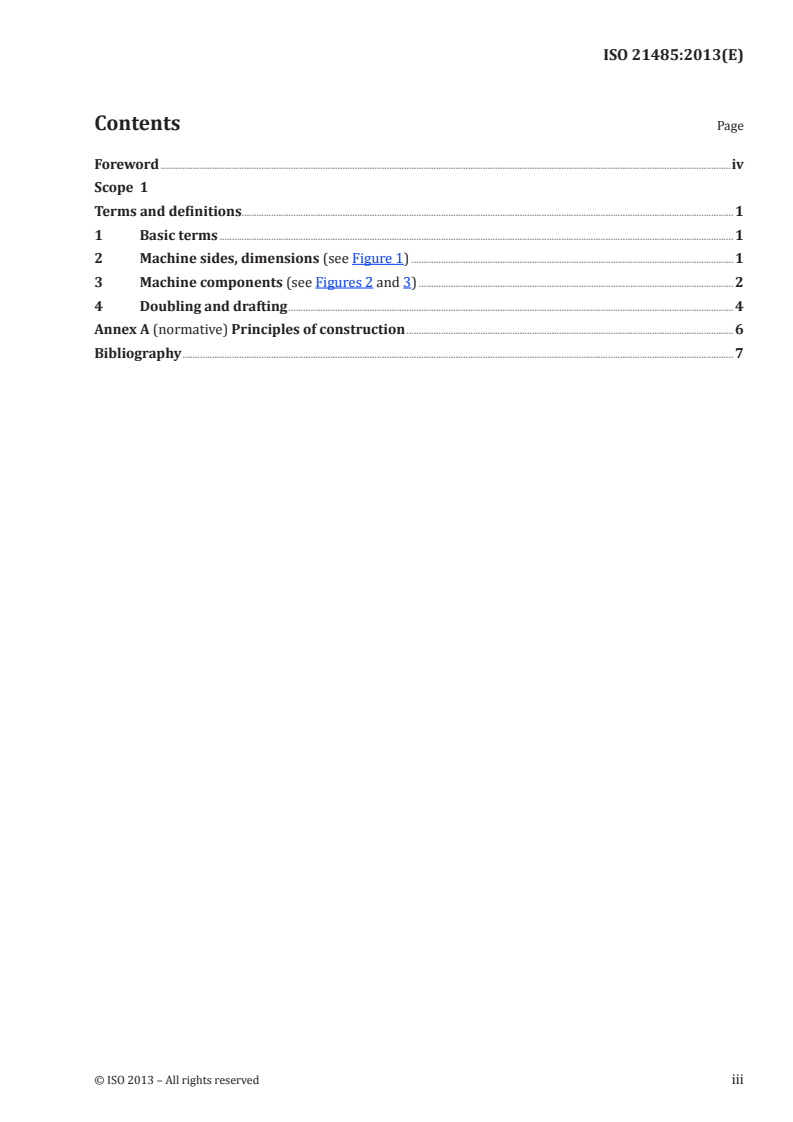

Contents Page
Foreword .iv
Scope 1
Terms and definitions . 1
1 Basic terms . 1
2 Machine sides, dimensions (see Figure 1) . 1
3 Machine components (see Figures 2 and 3) . 2
4 Doubling and drafting . 4
Annex A (normative) Principles of construction . 6
Bibliography . 7
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2. www.iso.org/directives
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received. www.iso.org/patents
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 72, Textile machinery and machinery and accessories,
Subcommittee SC 1, Spinning preparatory, spinning, twisting and winding machinery and accessories.
This second edition cancels and replaces the first edition (ISO 21485:2006), which has been
technically revised.
iv © ISO 2013 – All rights reserved
INTERNATIONAL STANDARD ISO 21485:2013(E)
Textile machinery — Draw frame for cotton spinning —
Vocabulary and principles of construction
Scope
This International Standard establishes a vocabulary of terms related to, and the principles of
construction of, draw frames and their components, used for cotton spinning in the textile industry.
NOTE 1 The draw frame design is not required to conform with the figures shown in this International
Standard, which are given only as examples of the different types.
NOTE 2 In addition to terms used in English, one of the three official ISO languages, this International Standard
gives the equivalent terms in German; these are published under the responsibility of the member body for
Germany (DIN). However, only the terms and definitions given in the official language can be considered as ISO
terms and definitions.
Terms and definitions
1 Basic terms
1.1
draw frame
textile machinery consisting of a delivery unit (1.3) employed to straighten and parallelize the fibres by
drafting, to homogenize the sliver by means of doubling (4.1) and to blend and de-dust the fibres
1.2
autoleveller draw frame
textile machinery consisting of a delivery unit (1.3) employed to straighten and parallelize the fibres by
drafting, to homogenize the sliver by doubling (4.1), to blend and de-dust, if applicable, the fibres and to
compensate any measured deviation of the fibre mass by means of a variable draft superimposed on the
nominal draft (4.2)
1.3
delivery unit
working point for filling a sliver can (3.1)
2 Machine sides, dimensions (see Figure 1)
2.1
right side
R
textile machine side located to the right as seen facing toward the direction of fibre flow
Note 1 to entry: See ISO 92.
2.2
left side
L
textile machine side located to the left as seen facing toward the direction of fibre flow
Note 1 to entry: See ISO 92.
Key
a machine depth (without space requirement for deposited sliver cans)
a overall machine depth (including space requirement for deposited sliver cans)
b machine width (without space requirement for deposited sliver cans)
b overall width (including space requirement for deposited sliver cans)
R right side
L left side
1 feed
2 delivery
Space requirement: a × b for b ≤ b
2 1 2 1
a × b for b > b
2 2 2 1
Figure 1 — Machine sides, dimensions
3 Machine components (see Figures 2 and 3)
Figure 2 — Machine components (I)
2 © ISO 2013 – All rights reserved
Figure 3 — Machine components (II)
3.1
sliver can
round or rectangular container for the deposit of card, comber or draw frame sliver
Note 1 to entry: Round sliver cans are defined in ISO 93-1 and ISO 93-2, rectangular cans in ISO 16853.
3.2
creel [feed]
positively driven rollers for pulling feed sliver from the sliver can (3.1) or [and] static sliver guides
3.3
sliver guide
device for guiding slivers at the entry to the drafting system (3.4)
3.4
drafting system
device with several consecutive roller pairs running at increasing speeds and a pressure bar (3.4.1) to
draft the infed sliver
3.4.1
pressure bar
static sliver guide component installed in the main drafting zone to guide floating fibres
3.4.2
roll bearing
bearing for the bottom rollers (3.4.4) in the drafting system (3.4)
3.4.3
top rollers
friction-driven or positively driven rollers, self-weighted or with additional load, resting on the bottom
roller and gripping and carrying the sliver
[SOURCE: ISO 2205:1975]
3.4.4
botto
...
