ISO 10880:2017

Non-destructive testing - Infrared thermographic testing - General principles

ISO 10880:2017 provides general principles for infrared thermographic testing in the field of industrial non-destructive testing (NDT).

Essais non destructifs — Essais thermographiques infrarouge — Principes généraux

General Information

• Status: Published
• Publication Date: 09-Jan-2017
• ICS: 19.100 - Non-destructive testing
• Technical Committee: ISO/TC 135/SC 8 - Thermographic testing
• Drafting Committee: ISO/TC 135/SC 8/WG 2 - NDT-IRT-General principles
• Current Stage: 9060 - Close of review
• Completion Date: 02-Sep-2027

Relations

• Consolidated By: ISO 17677-1:2019 - Resistance welding - Vocabulary - Part 1: Spot, projection and seam welding
• Effective Date: 06-Jun-2022

Overview

ISO 10880:2017 - Non-destructive testing - Infrared thermographic testing - General principles - defines general principles for using infrared thermographic testing in industrial non‑destructive testing (NDT). The standard provides guidance on personnel qualifications, equipment selection and setup, test environment control, measurement fundamentals (including emissivity), imaging methods, signal/image correction, and documentation/reporting to ensure consistent, reliable thermal imaging inspections.

Key topics and technical requirements

• Personnel: TT (thermographic testing) personnel must have knowledge of infrared measurement and heat‑transfer basics and meet visual acuity and colour‑vision requirements referenced to ISO 9712.
• Equipment: Select an appropriate infrared camera with suitable detector type, spatial resolution (instantaneous field of view), temperature range, temperature resolution/accuracy, frame/exposure time, and wavelength sensitivity. Accessories (lenses, filters, mirrors, software) must be accounted for in calibration and corrections.
• Active vs Passive Thermography:
  • Passive thermography inspects emitted thermal radiation without external stimulation (e.g., operating electrical equipment, solar loading).
  • Active thermography requires controlled thermal stimulation (optical, sonic, inductive, microwave, etc.); heating/cooling intensity must match camera performance and material thermal properties without damaging the test object.
• Measurement fundamentals: Correct for emissivity, reflected ambient temperature, and any transmission/absorption by intervening media (water vapour, CO2, window materials). If surface emissivity is low or non‑uniform, apply matte coatings or attach high‑emissivity membranes; surface roughening or oxidation are alternatives.
• Imaging practice: Use non‑uniformity correction, verify field of view and spatial resolution (distance/lens), maintain an observation angle ≤45° (≤60° acceptable), set optimal temperature range and display span, and choose frame/exposure times suited to defect detection. Infrared‑reflecting mirrors may be used for hard‑to‑access views.
• Reporting: Document test procedures, equipment settings, environmental conditions, image processing steps, and produce a formal test report as part of NDT procedure/instructions.

Applications and who uses the standard

ISO 10880:2017 is applicable to industrial NDT across sectors such as:

• Power plants and electrical distribution (hot‑spot detection)
• Building and structural inspections (insulation defects, moisture)
• Electronic components and assemblies (thermal anomalies)
• Industrial materials and manufacturing quality control

Typical users: NDT technicians and engineers, maintenance inspectors, condition‑monitoring specialists, third‑party inspection bodies, and organizations implementing thermal imaging programs.

Related standards

• ISO 9712 - Non‑destructive testing - Qualification and certification of NDT personnel
• ISO 10878 - Non‑destructive testing - Infrared thermography - Vocabulary

Keywords: ISO 10880, infrared thermographic testing, NDT, thermal imaging, infrared camera, emissivity, active thermography, passive thermography.

Standards Content (Sample)

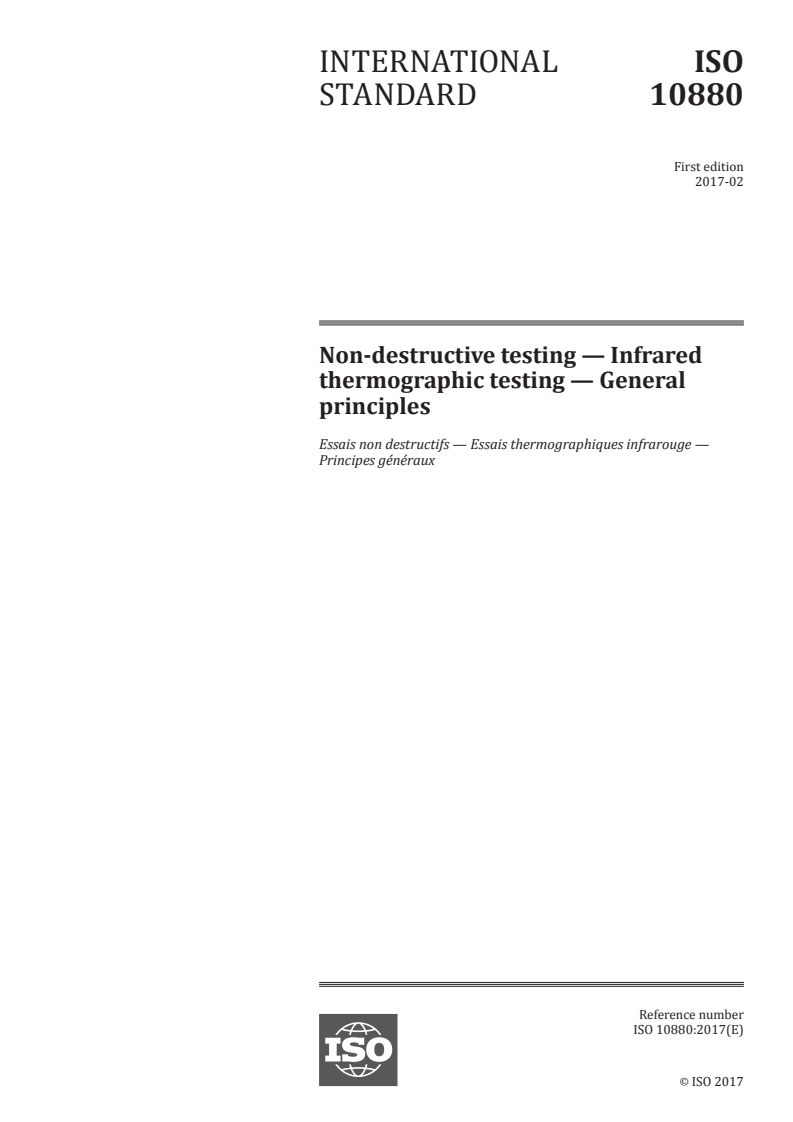

INTERNATIONAL ISO
STANDARD 10880
First edition
2017-02
Non-destructive testing — Infrared
thermographic testing — General
principles
Essais non destructifs — Essais thermographiques infrarouge —
Principes généraux
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2017 – All rights reserved

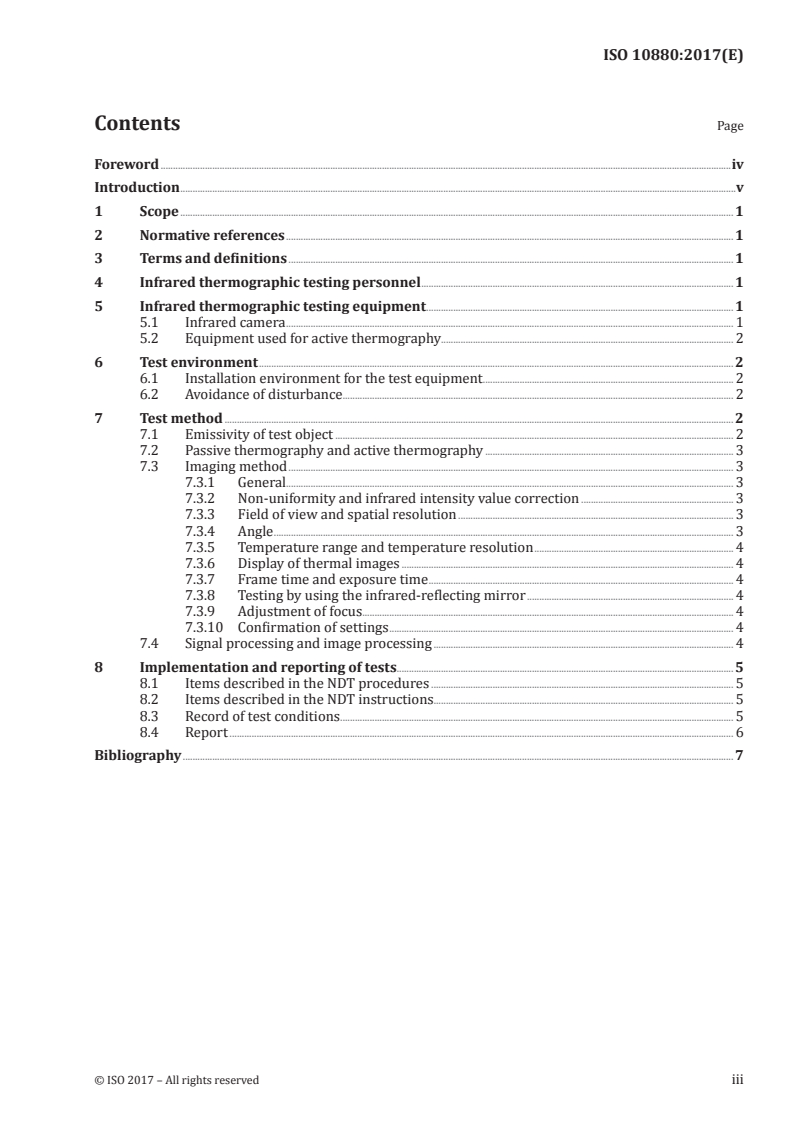

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Infrared thermographic testing personnel . 1
5 Infrared thermographic testing equipment . 1
5.1 Infrared camera . 1
5.2 Equipment used for active thermography. 2
6 Test environment . 2
6.1 Installation environment for the test equipment . 2
6.2 Avoidance of disturbance. 2
7 Test method . 2
7.1 Emissivity of test object . 2
7.2 Passive thermography and active thermography . 3
7.3 Imaging method . 3
7.3.1 General. 3
7.3.2 Non-uniformity and infrared intensity value correction . 3
7.3.3 Field of view and spatial resolution . 3
7.3.4 Angle . 3
7.3.5 Temperature range and temperature resolution . 4
7.3.6 Display of thermal images . 4
7.3.7 Frame time and exposure time . 4
7.3.8 Testing by using the infrared-reflecting mirror . 4
7.3.9 Adjustment of focus . . 4
7.3.10 Confirmation of settings . 4
7.4 Signal processing and image processing . 4
8 Implementation and reporting of tests . 5
8.1 Items described in the NDT procedures . 5
8.2 Items described in the NDT instructions. 5
8.3 Record of test conditions . 5
8.4 Report . 6
Bibliography . 7

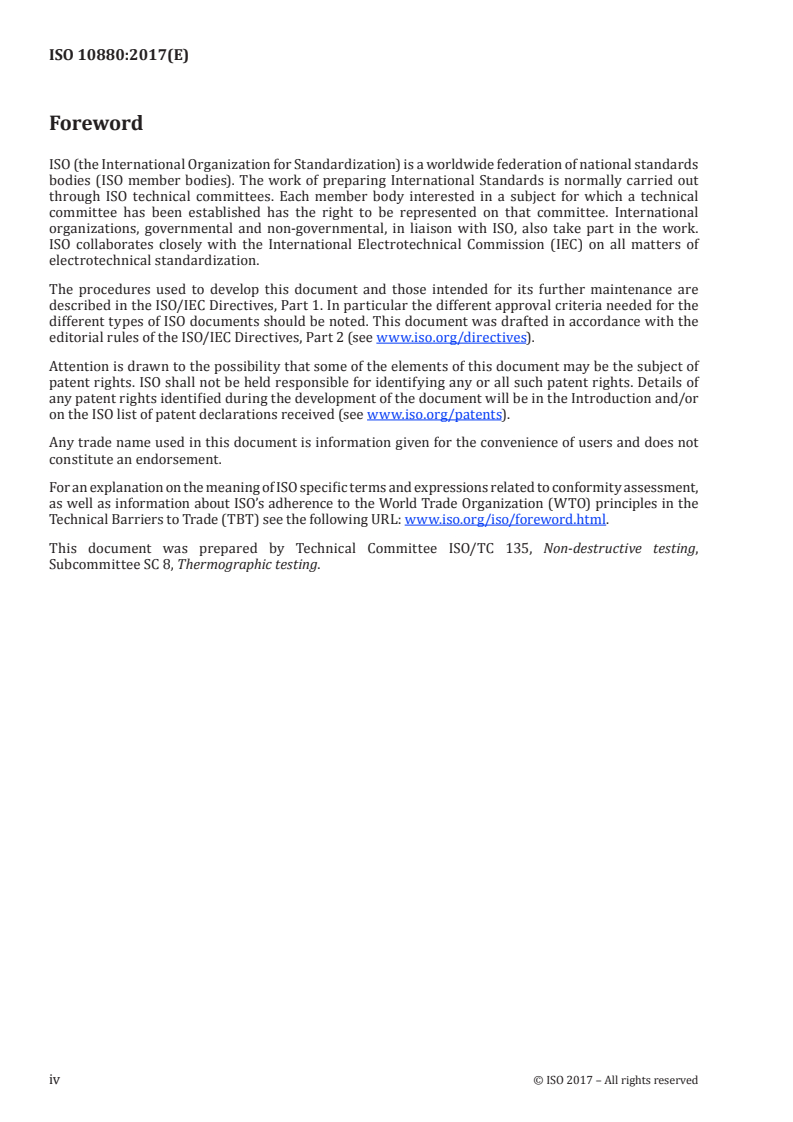

Foreword
