Standards Content (sample)

INTERNATIONAL ISO
STANDARD 19720-1
First edition
2017-06
Building construction machinery
and equipment — Plants for the
preparation of concrete and mortar —
Part 1:
Terminology and commercial
specifications
Machines et matériels pour la construction des bâtiments — Usines de
préparation du béton et du mortier —
Partie 1: Terminologie et spécifications commerciales
Reference number
ISO 19720-1:2017(E)
ISO 2017
---------------------- Page: 1 ----------------------
ISO 19720-1:2017(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 19720-1:2017(E)

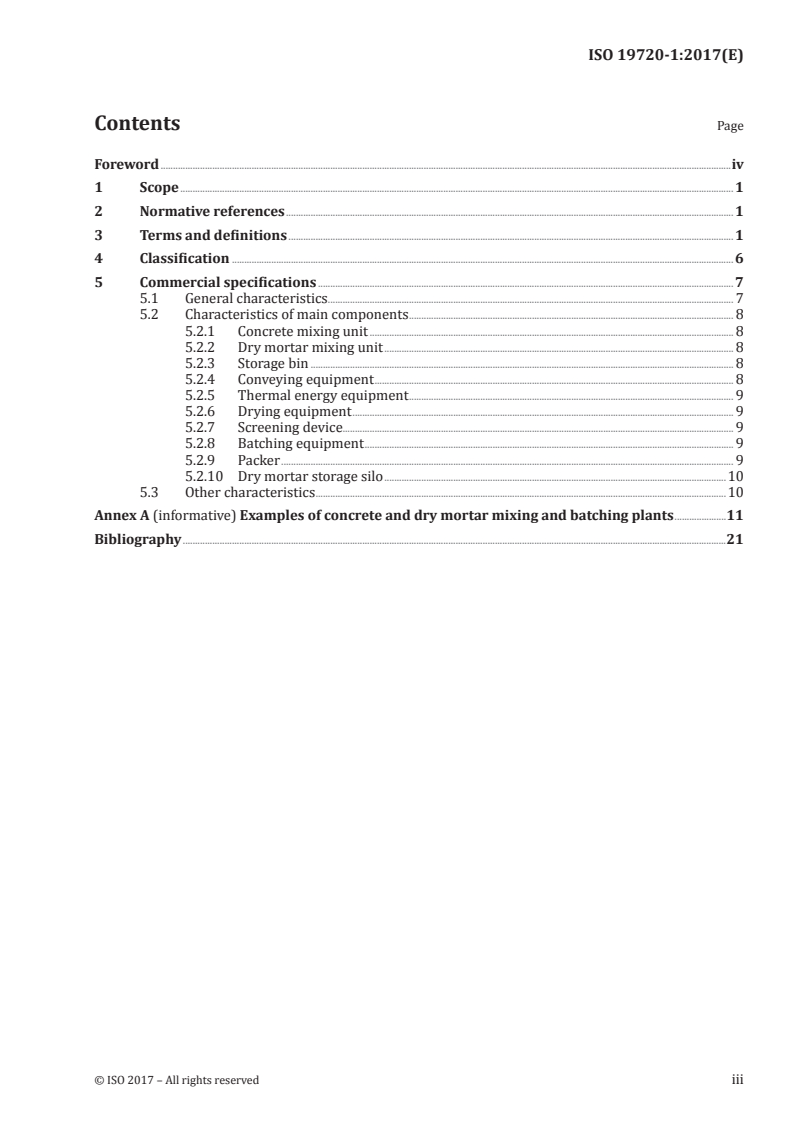

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Classification ............................................................................................................................................................................................................ 6

5 Commercial specifications ......................................................................................................................................................................... 7

5.1 General characteristics ..................................................................................................................................................................... 7

5.2 Characteristics of main components .................................................................................................................................... 8

5.2.1 Concrete mixing unit .................................................................................................................................................... 8

5.2.2 Dry mortar mixing unit .............................................................................................................................................. 8

5.2.3 Storage bin ............................................................................................................................................................................ 8

5.2.4 Conveying equipment .................................................................................................................................................. 8

5.2.5 Thermal energy equipment .................................................................................................................................... 9

5.2.6 Drying equipment ........................................................................................................................................................... 9

5.2.7 Screening device............................................................................................................................................................... 9

5.2.8 Batching equipment ...................................................................................................................................................... 9

5.2.9 Packer ........................................................................................................................................................................................ 9

5.2.10 Dry mortar storage silo ...........................................................................................................................................10

5.3 Other characteristics .......................................................................................................................................................................10

Annex A (informative) Examples of concrete and dry mortar mixing and batching plants .....................11

Bibliography .............................................................................................................................................................................................................................21

© ISO 2017 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 19720-1:2017(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO’s adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following

URL: w w w . i s o .org/ iso/ foreword .html

This document was prepared by Technical Committee ISO/TC 195, Building construction machinery and

equipment, Subcommittee SC 1, Machinery and equipment for concrete work.
A list of all parts in the ISO 19720 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 19720-1:2017(E)
Building construction machinery and equipment — Plants
for the preparation of concrete and mortar —
Part 1:
Terminology and commercial specifications
1 Scope

This document specifies terms and definitions and commercial specifications for concrete mixing plants,

concrete batching plants and dry mortar mixing plants used in the preparation of concrete and mortar.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 11375, Building construction machinery and equipment — Terms and definitions
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 11375 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at http:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
concrete

material formed by mixing cement, coarse and fine aggregates, and water, with or without the

incorporation of admixtures, additives or fibres, which develops its properties by hydration

3.2
mortar

mixture of binder (cement, etc.), fine aggregates, water and optional additives, which hardens and

which is normally used as a jointing material
3.3
dry mortar

mixture of binder (cement, plaster, etc.), fine aggregates and optional additives and when mixed with

water, hardens
3.4
concrete mixing plant

combination of structures and devices used for proportioning aggregates, cement, water and possible

additives, admixtures, and mixing them by means of the concrete mixing unit (3.7) to generate

concrete (3.1)
© ISO 2017 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 19720-1:2017(E)
3.4.1
batch-type concrete mixing plant

concrete mixing plant (3.4) which runs periodically following defined processes including materials

supply, proportion, charging, mixing and discharging
3.4.2
continuous concrete mixing plant

concrete mixing plant (3.4) in which all the processes including materials-supply, proportion, charging,

mixing, discharging are operated continuously
3.4.3
vertical concrete mixing plant
tower concrete mixing plant

configuration of concrete mixing plant (3.4) where the aggregate storage bins (3.9) are located above the

concrete mixing unit (3.7)
Note 1 to entry: See Figure A.1.
3.4.4
horizontal concrete mixing plant

configuration of concrete mixing plant (3.4) where the aggregate storage bins (3.9) or an active storage

are located to the side of the concrete mixing unit (3.7)

Note 1 to entry: An example of a horizontal concrete mixing plant where aggregates are loaded into bins with a

wheel loader is shown in Figure A.2.

Note 2 to entry: An example of a horizontal concrete mixing plant where aggregates are loaded into bins with a

drag-line is shown in Figure A.3.
3.4.5
stationary concrete mixing plant

concrete mixing plant (3.4) which remains fixed in place during operation and designed to stay

permanently in its position (e.g. installed on permanent foundations) until its dismantling

3.4.6
transferable concrete mixing plant

concrete mixing plant (3.4) which remains fixed in place during operation and where components can

be quickly assembled and disassembled for transport from one place to another
Note 1 to entry: See Figure A.4.
3.4.7
mobile concrete mixing plant

concrete mixing plant (3.4) which remains fixed in place during operation and which is self-propelled or

trailed to move from one place to another
Note 1 to entry: See Figure A.5.
3.5
concrete batching plant

combination of structures and devices used for proportioning aggregates, cement, and/or water,

admixtures so that they can be ready for transport
3.5.1
vertical concrete batching plant

configuration of concrete batching plant (3.5) where the aggregate storage bins (3.9) are located above

the batcher and the vehicle being loaded
Note 1 to entry: See Figure A.6.
2 © ISO 2017 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 19720-1:2017(E)
3.5.2
horizontal concrete batching plant

configuration of concrete batching plant (3.5) where the aggregate storage bins (3.9) are arranged at the

side of the charging (feeding) hopper
Note 1 to entry: See Figure A.7.
3.5.3
stationary concrete batching plant

concrete batching plant (3.5) which remains fixed in place during operation and is designed to stay

permanently in its position (e.g. installed on permanent foundations) until its dismantling

Note 1 to entry: See Figure A.6.
3.5.4
transferable concrete batching plant

concrete batching plant (3.5) which remains fixed in place during operation and where components can

be quickly assembled and disassembled for transport from one place to another
Note 1 to entry: See Figure A.7.
3.6
dry mortar mixing plant

combination of structures and devices used for proportioning binder (cement, plaster, etc.), fine

aggregates and possible additives, and mixing them by means of the dry mortar mixing unit (3.8) to

generate dry mortar (3.3)
3.6.1
compact dry mortar mixing plant

configuration of dry mortar mixing plant (3.6) where the aggregate storage bins (3.9) are arranged

below the dry mortar mixing unit (3.8) and all the aggregates are lifted up beyond the mixing unit and

then mass-dosed
Note 1 to entry: See Figure A.8.
3.6.2
serial dry mortar mixing plant

configuration of dry mortar mixing plant (3.6) where the aggregate storage bins (3.9) are arranged below

the dry mortar mixing unit (3.8) and all the mass-dosed aggregates are lifted up beyond the mixing unit

Note 1 to entry: See Figure A.9.
3.6.3
tower dry mortar mixing plant

configuration of dry mortar mixing plant (3.6) where the aggregate storage bins (3.9) and batcher (3.15)

are located above the dry mortar mixing unit (3.8)
Note 1 to entry: See Figure A.10.
3.7
concrete mixing unit

component of a concrete mixing plant (3.4) where measured (by mass or volume) proportions of water,

cement, aggregate and possible additives, admixtures are mixed for a specified amount of time

3.8
dry mortar mixing unit

component of a dry mortar mixing plant (3.6) where mass-measured proportions of binder (cement,

plaster, etc.), fine aggregates and possible additives are mixed for a specified amount of time

© ISO 2017 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO 19720-1:2017(E)
3.9
storage bin

container on mixing and batching plants used for storing raw materials (e.g. aggregates, cement)

Note 1 to entry: See Figure A.1.
3.10
conveying equipment

equipment used to transport materials from the storage area to the batching and/or mixing equipment

EXAMPLE Bucket elevator, belt conveyor.
Note 1 to entry: See Figure A.1, key number 1.
3.11
thermal energy equipment

equipment used for the generation, conversion of thermal energy for the drying of wet sand

EXAMPLE Fluidized bed furnace and burner.
3.12
drying equipment
equipment used to achieve heat exchange for the drying of wet sand
3.13
screening device

equipment used to classify and separate material particles by sizes passing through the grate openings

3.14
batching equipment

equipment used to prepare material or mixed material according to the proportion of concrete (3.1),

mortar (3.2) and dry mortar (3.3) mixture
3.15
batcher

device consisting of the scales and necessary mechanism for its operation including cement batcher,

aggregate batcher, additive batcher and water batcher, etc.
3.16
discharge device

mechanism that moves the mixed concrete (3.1) or dry mortar (3.3) to transport vehicle

Note 1 to entry: Discharge device of concrete mixing plant and batching plant is a fixed

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
