ISO 8179-1:2017 specifies an external zinc‑based protective coating system factory‑applied to ductile iron pipeline components (pipes, fittings and accessories) covered by ISO 2531, ISO 7186 and ISO 16631. The standard requires a metallic zinc‑based layer - either pure metallic zinc (99.99% purity), zinc‑aluminium alloys or other zinc alloys - followed by a finishing layer (bituminous paint or compatible synthetic resin). It sets performance, inspection and test requirements to ensure consistent corrosion protection of ductile iron pipeline components.

Key topics and technical requirements

• Coating materials: Pure metallic zinc (99.99 %), zinc‑aluminium or other zinc alloys, plus a compatible finishing layer (bituminous or synthetic resin).
• Surface condition: Substrate must be dry and free of rust, oil, grease and loose particles before coating.
• Method of application: Metallic zinc or zinc alloy is applied by thermal spray (molten metal projected as droplets). Manufacturer defines acceptable surface appearance and minor irregularities.
• Zinc‑based coating mass:
  • Typical requirement: ≥ 200 g/m2 mean, local minimum 180 g/m2.
  • Low‑corrosivity agreement: 130 g/m2 mean, local minimum 110 g/m2.
  • Higher masses may be agreed for very corrosive soils.
• Finishing layer thickness: Mean dry film thickness ≥ 70 µm, local minimum 50 µm; upper limit ≤ 250 µm to avoid blistering.
• Damage limits and repairs:
  • Minor handling damage acceptable if < 5 cm2 per m2 and max 5 mm in minor dimension.
  • Repairs by metallic zinc spray or zinc‑rich paint (>85% zinc in dry film); paint repair mass must be at least 20% above nominal metallic coating mass.
• Test and inspection methods:
  • Factory quality control using coated tokens (250×100 mm or 500×50 mm) to measure zinc mass by mass difference with a correction factor.
  • Dry film thickness measured by micrometer, weighing method or suitable gauges (magnetic, wet‑film correlation) per ISO 2808.
  • Annex A describes field verification techniques (e.g., gas evolution method) and precautions for finished products.
• Soil corrosivity guidance: Annex B provides field‑of‑use considerations for selection of coating mass vs. soil characteristics.

Applications and users

ISO 8179-1:2017 is used by:

• Manufacturers of ductile iron pipes, fittings and accessories for factory coating specification and quality control
• Pipeline design engineers and specifiers who set corrosion‑protection requirements
• Procurement teams and asset owners (water, wastewater, buried pipelines) selecting coated ductile iron components
• Inspectors and testing laboratories performing acceptance checks and field verification

Related standards

• ISO 8179-2 (zinc‑rich paint coatings)
• ISO 2531, ISO 7186, ISO 16631 (ductile iron pipeline components)
• ISO 2808 (paint film thickness test methods)

Keywords: ISO 8179-1:2017, ductile iron pipes, zinc-based coating, metallic zinc, finishing layer, coating mass, dry film thickness, thermal spray, zinc-rich paint, corrosion protection.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 8179-1
Third edition
2017-07
Ductile iron pipes, fittings, accessories
and their joints — External zinc-based
coating —
Part 1:
Metallic zinc with finishing layer
Tuyaux, raccords et accessoires en fonte ductile et leurs
assemblages — Revêtement extérieur à base de zinc —
Partie 1: Zinc métallique avec couche de finition
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2017 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Materials . 1
5 Zinc-based coating . 2
5.1 Pipeline component surface condition . 2
5.2 Method of application . 2
5.3 Coating characteristics . 2
5.4 Zinc-based coating mass . 2
5.5 Repairs to the zinc-based coating . 3
6 Finishing layer . 3
7 Test methods . 3
7.1 Determination of zinc-based coating mass . 3
7.2 Determination of the dry film thickness of the finishing layer . . 4
Annex A (informative) Field verification of the metallic zinc-based coating mass on a
finished product . 5
Annex B (informative) Field of use in relation to the characteristics of soils .8
Bibliography .10

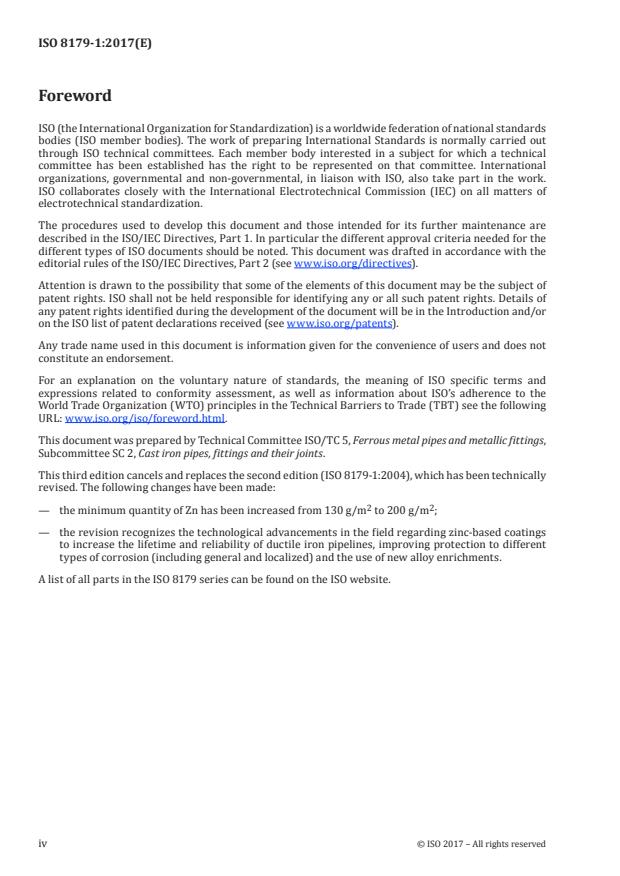

Foreword
