ISO/IEC TR 29108:2013

Information technology — Terminology for intelligent homes

ISO/IEC/TR 29108:2013(E) specifies the terminology recommended for future use in International Standards and other specifications for intelligent homes. In addition, it provides a collection of terms and definitions as already used and defined in relevant International Standards, Technical Specifications, Technical Reports and Recommendations developed by ISO, IEC, and ITU-T.

Technologies de l'informations — Terminologie des maisons intelligentes

General Information

• Status: Published
• Publication Date: 21-Mar-2013
• ICS: 01.040.35 - Information technology (Vocabularies)
• ICS: 35.200 - Interface and interconnection equipment
• ICS: 35.240.99 - IT applications in other fields
• Technical Committee: ISO/IEC JTC 1/SC 25 - Interconnection of information technology equipment
• Drafting Committee: ISO/IEC JTC 1/SC 25 - Interconnection of information technology equipment
• Current Stage: 6060 - International Standard published
• Start Date: 22-Mar-2013
• Due Date: 13-May-2013
• Completion Date: 13-May-2013

Overview

ISO/IEC TR 29108:2013 - Information technology - Terminology for intelligent homes is a technical report that standardizes vocabulary used in smart home and home automation domains. It specifies the recommended terminology for future International Standards and collects existing terms and definitions from relevant ISO, IEC and ITU‑T publications. The document is a reference for consistent language in smart home standards, specifications, and technical documentation.

Key topics and structure

• Scope and purpose: Defines recommended terms for intelligent homes (smart homes, home electronic systems - HES) and aggregates existing definitions from ISO/IEC/ITU‑T sources.
• Organizational approach:
  • Clause structure includes Scope, Structure, Terms/Definitions (Clause 3), Abbreviations and Bibliography.
  • For each term the first entry (3.1.n.1) is the recommended definition; additional definitions are listed hierarchically by preference.
  • Sources (e.g., ISO/IEC 29341, 14543, 18012‑2, 11801, 7498‑1) are cited for traceability; editorial notes and bracketed clarifications are included where needed.
• Representative terms covered: action, action primitive, application, application data (ADATA), application programming interface (API), application object (AOJ), application protocol, architecture, authentication, authorization, area/individual/group addresses, and many HES‑specific elements (APC, APD, ASC, ADC).
• Illustrations and bibliography: The report includes figures (e.g., individual and group address diagrams) and a bibliography of source standards.

Practical applications and users

ISO/IEC TR 29108 is useful for:

• Standards developers and committees who need a harmonized glossary for new smart‑home standards.
• Product designers and system architects implementing home automation platforms to ensure consistent terminology across specifications and documentation.
• Software developers and integrators working on APIs, application protocols, device models (AOJ), and middleware in IoT/smart‑home ecosystems.
• Test labs, procurement teams and regulators that require clear, unambiguous definitions for conformance, interoperability testing and procurement specifications.
• Technical writers and documentation teams producing manuals, white papers and user guides for intelligent home products.

Related standards (examples cited in TR 29108)

• ISO/IEC 29341 (UPnP device architecture)
• ISO/IEC 14543 series (HES communication)
• ISO/IEC 18012‑2 (application interoperability model)
• ISO/IEC 11801 (network cabling applications)
• ISO/IEC 7498‑1 (OSI basic reference model)

By adopting the terminology in ISO/IEC TR 29108, organizations improve clarity, interoperability and consistency across smart home standards, documentation and implementations. Keywords: ISO/IEC TR 29108, terminology for intelligent homes, smart home standards, home automation terminology, HES, API, application protocol, AOJ, interoperability.

Standards Content (Sample)

ISO/IEC/TR 29108
Edition 1.0 2013-03
TECHNICAL
REPORT
Information technology – Terminology for intelligent homes

ISO/IEC/TR 29108:2013(E)

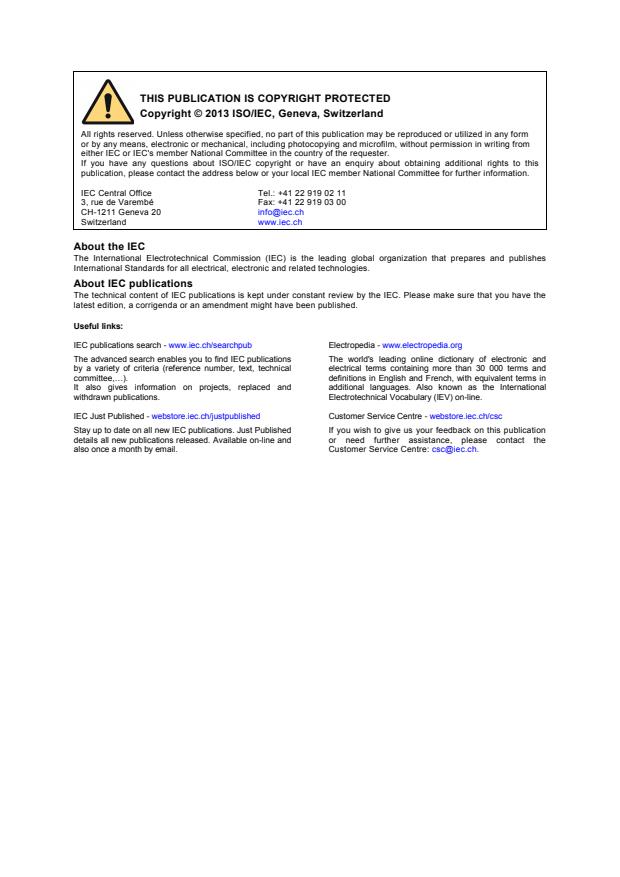

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about ISO/IEC copyright or have an enquiry about obtaining additional rights to this
publication, please contact the address below or your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

ISO/IEC/TR 29108
Edition 1.0 2013-03
TECHNICAL
REPORT
Information technology – Terminology for intelligent homes

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
W
ICS 35.200 ISBN 978-2-83220-691-1

– 2 – TR 29108 © ISO/IEC:2013(E)

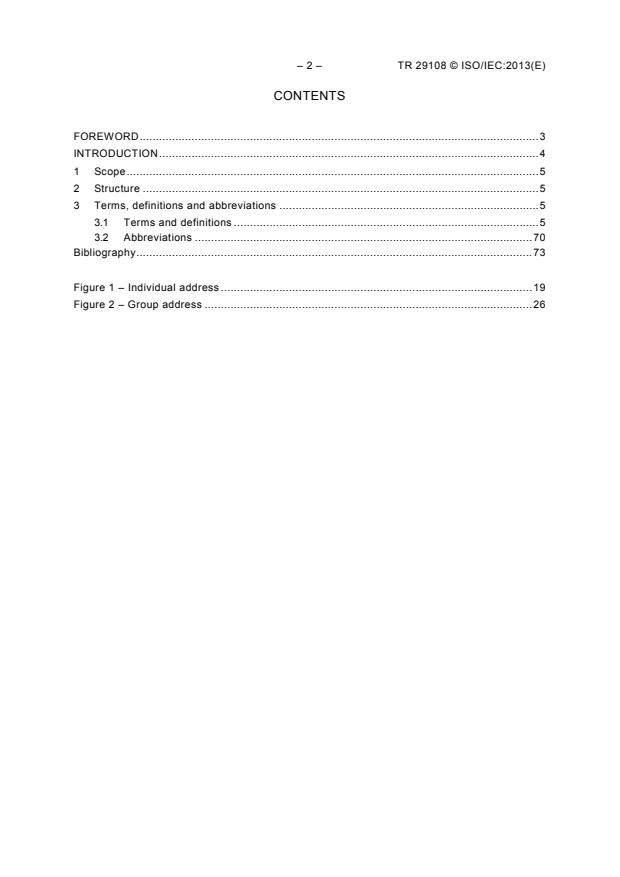

CONTENTS
FOREWORD . 3
INTRODUCTION . 4
1 Scope . 5
2 Structure . 5
3 Terms, definitions and abbreviations . 5
3.1 Terms and definitions . 5
3.2 Abbreviations . 70
Bibliography . 73

Figure 1 – Individual address . 19
Figure 2 – Group address . 26

TR 29108 © ISO/IEC:2013(E) – 3 –
INFORMATION TECHNOLOGY –
TERMINOLOGY FOR INTELLIGENT HOMES

FOREWORD
1) ISO (International Organization for Standardization) and IEC (International Electrotechnical Commission) form the
specialized system for worldwide standardization. National bodies that are members of ISO or IEC participate in
the development of International Standards. Their preparation is entrusted to technical committees; any ISO and
IEC member body interested in the subject dealt with may participate in this preparatory work. International
governmental and non-governmental organizations liaising with ISO and IEC also participate in this preparation.
2) In the field of information technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
Draft International Standards adopted by the joint technical committee are circulated to national bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the national bodies casting a vote.
3) The formal decisions or agreements of IEC and ISO on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested IEC and ISO member bodies.
4) IEC, ISO and ISO/IEC publications have the form of recommendations for international use and are accepted
by IEC and ISO member bodies in that sense. While all reasonable efforts are made to ensure that the
technical content of IEC, ISO and ISO/IEC publications is accurate, IEC or ISO cannot be held responsible for
the way in which they are used or for any misinterpretation by any end user.
5) In order to promote international uniformity, IEC and ISO member bodies undertake to apply IEC, ISO and
ISO/IEC publications transparently to the maximum extent possible in their national and regional publications.
Any divergence between any ISO/IEC publication and the corresponding national or regional publication
should be clearly indicated in the latter.
6) ISO and IEC provide no marking procedure to indicate their approval and cannot be rendered responsible for
any equipment declared to be in conformity with an ISO/IEC publication.
7) All users should ensure that they have the latest edition of this publication.
8) No liability shall attach to IEC or ISO or its directors, employees, servants or agents including individual experts
and members of their technical committees and IEC or ISO member bodies for any personal injury, property
damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees)
and expenses arising out of the publication of, use of, or reliance upon, this ISO/IEC publication or any other IEC,
ISO or ISO/IEC publications.
9) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
10) Attention is drawn to the possibility that some of the elements of this Technical Report, may be the subject of
patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
The main task of ISO/IEC technical committees is to prepare International Standards.
However, a technical committee may propose the publication of a technical report when it has
collected data of a different kind from that which is normally published as an International
Standard, for example "state of the art".
ISO/IEC TR 29108, which is a technical report, has been prepared by subcommittee 25:
Interconnection of information technology equipment, of ISO/IEC joint technical committee 1:
Information technology. It is intended that future versions of this technical report will be
developed in collaboration with ITU-T.
This Technical Report has been approved by vote of the member bodies, and the voting
results may be obtained from the address given on the second title page.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – TR 29108 © ISO/IEC:2013(E)
INTRODUCTION
ISO/IEC TR 29108 contains the recommended as well as other existing definitions of terms
used in standards and technical reports relevant to intelligent homes. Existing definitions use
the exact wording of the source and may thus be both formally incorrect as well as contain
spelling mistakes.
In addition, necessary information that is not in the SOURCE has been added in brackets.
Also Notes # to entry below the [SOURCE reference] are additions of this Technical Report.

TR 29108 © ISO/IEC:2013(E) – 5 –
INFORMATION TECHNOLOGY –
TERMINOLOGY FOR INTELLIGENT HOMES

1 Scope
ISO/IEC TR 29108 specifies the terminology recommended for future use in International
Standards and other specifications for intelligent homes. In addition, it provides a collection of
terms and definitions as already used and defined in relevant International Standards,
Technical Specifications, Technical Reports and Recommendations developed by ISO, IEC,
and ITU-T.
2 Structure
The first definition of each term, i.e. the one with the number 3.1.n.1 is the definition
recommended by this Technical Report. This can either be one from an International Standard
or other specification, or one defined by this Technical Report. If more than one definition for
a term exists, they are ordered hierarchically, in decreasing order of preference. Note that a
definition may apply to a very specific environment, but not be preferred, since it is not
generic.
The source of the definition is indicated at the bottom of each entry, if applicable. If no source
is provided the term and definition is being defined by this Technical Report. Cited definitions
use the same wording as the source, so they may contain both formal and spelling errors. A
source given at the last, but one line of the definition is part of the citation.
The Bibliography at the end of the document consists of two parts. The first part lists
International Standards from which terms and definitions are cited in Clause 3 below. The
second part contains related International Standards and other specifications.
3 Terms, definitions and abbreviations
3.1 Terms and definitions
The following terms and definitions have been compiled in the field of intelligent homes for the
convenience of standards' writers and users.
3.1.1 Action
3.1.1.1
action
Command exposed by a service. Takes one or more input or output arguments. May have a
return value. For more information, see clauses on description and control (in
ISO/IEC 29341-1).
[SOURCE: ISO/IEC 29341-1:2011, definition in Clause 6]
3.1.2 Action primitive
3.1.2.1
action primitive
fundamental unit of software invocation that results in a single defined and observable state
change of the object on which it is invoked
[SOURCE: ISO/IEC 18012-2:2012, definition 3.1.1]

– 6 – TR 29108 © ISO/IEC:2013(E)
3.1.3 Application
3.1.3.1
application
field of use of an HES
Note 1 to entry: An HES may support more than one application.
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.1]
3.1.3.2
application
field of use of an HES. An HES may support more than one application
[SOURCE: ISO/IEC TR 15044:2000, definition 2.1]
3.1.3.3
application (in the sense of network application)
system, including its associated transmission method, which is supported by
telecommunications cabling
[SOURCE: ISO/IEC 11801:2002, definition 3.1.2]
[SOURCE: ISO/IEC 14543-3-1:2006, definition 3.1.1]
3.1.4 Application Data (ADATA)
3.1.4.1
application data
ADATA
data region for messages exchanged by communication middleware
Note 1 to entry: Maximum size is 256 bytes.
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.1; ISO/IEC 14543-4-2:2008, definition
3.1.1]
3.1.5 Application Data Counter (ADC)
3.1.5.1
application data counter
ADC
indicates the size of the ADATA region
Note 1 to entry: The size is variable in 1-byte increments.
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.2; ISO/IEC 14543-4-2:2008, definition
3.1.2]
3.1.6 Application entity
3.1.6.1
application entity
active element, within the application process, ambodying a set of capabilities which is
pertinent to OSI and which is defined for the application layer, that corresponds to a specific
application-entity type (without any extra capabilities being used)
[SOURCE: ISO/IEC 7498-1, 7.1.1.1]
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.1.1]

TR 29108 © ISO/IEC:2013(E) – 7 –
3.1.7 Application interoperability model
3.1.7.1
application interoperability model
AIM
application model specified this standard (in ISO/IEC 18012-2)
[SOURCE: ISO/IEC 18012-2:2012, definition 3.1.3]
3.1.8 Application model
3.1.8.1
application model
representation of the components, structure and interactions of a system focused on a
particular domain of use
[SOURCE: ISO/IEC 18012-2:2012, definition 3.1.2]
3.1.9 Application object
3.1.9.1
application object
HES object located within the HES device application process
3.1.9.2
application object
an HES object located within the HES device application process
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.2; ISO/IEC TR 15044:2000, definition 2.2]
3.1.9.3
application object
AOJ
model of information to be disclosed to the network from information owned by the
communications processing block, or an access procedure model
Note 1 to entry: The information or control target owned by each device is specified as a property and the
operating method (setting, browsing) for this is specified as a service.
Note 2 to entry: AOJs are used when class or instance is not considered.
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.3]
3.1.9.4
application object
AOJ
model of information to be disclosed to the network from information owned by the
communications processing block, or an access procedure model
Note 1 to entry: The information or control target owned by each device is specified as a property and the
operating method (setting, browsing) for this is specified as a service. AOJs are used when class or instance is not
considered.
[SOURCE: ISO/IEC 14543-4-2:2008, definition 3.1.3]
3.1.10 Application process
3.1.10.1
application process
element within an HES which performs the information processing for a particular application

– 8 – TR 29108 © ISO/IEC:2013(E)
3.1.10.2
application process
element within an HES which performs the information processing for a particular application
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.3; ISO/IEC TR 15044:2000, definition 2.3]
3.1.10.3
application process
element within a real open system which performs the information processing for a particular
application
[SOURCE: ISO/IEC 7498-1, 4.1.4]
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.1.2]
3.1.11 Application program
3.1.11.1
application program
element within an installed system (i.e. in a device) which performs information processing for
a particular application and ensures the operations needed to execute the application
[SOURCE: ISO/IEC 14543-3-4:2007, definition 3.1.12]
3.1.12 Application Programming Interface (API)
3.1.12.1
application programming interface
API
boundary across which application software uses facilites of programming languages to
invoke services
Note 1 to entry: See ISO/IEC JTC 1 Standing Document "Guidelines for API Standardization" for a complete
discussion of application programming interfaces.
[SOURCE: ISO/IEC 18012-2:2012, definition 3.1.4]
3.1.12.2
API
application programming interface
collection of invocation methods and associated parameters used by one piece of software to
request actions from another piece of software
[SOURCE: ISO/IEC 18012-1:2004, definition 3.1.1]
3.1.12.3
application programming interface
API
assembly of interface functions for middleware
Note 1 to entry: API makes it easy to operate middleware for designers.
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.4; ISO/IEC 14543-4-2:2008, definition
3.1.4]
TR 29108 © ISO/IEC:2013(E) – 9 –
3.1.13 Application Property Code (APC)
3.1.13.1
application property code
APC
code value related to application property
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.5]
3.1.14 Application Property value Data (APD)
3.1.14.1
application property value data
APD
data value related to application property code (APC), such as status notification or specific
setting and control by an application service code (ASC)
Note 1 to entry: Detailed specifications are provided for the size, code value, etc. of the APD for each APC.
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.6]
3.1.14.2
application property value data
APD
is a data value related to application property code (APC), such as a status notification or
specific setting and control by an application service code (ASC)
Note 1 to entry: Detailed specifications are provided for the size, code value, etc. of the APD for each APC.
[SOURCE: ISO/IEC 14543-4-2:2008, definition 3.1.5]
3.1.15 Application protocol
3.1.15.1
application protocol
standardized protocol for the exchange of information between application processes in an
HES; it is transported without interpretation by the home network resources
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.4; ISO/IEC TR 15044:2000, definition 2.4]
3.1.16 Application Service Code (ASC)
3.1.16.1
application service code
ASC
code value related to application service
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.7]
3.1.17 Architecture
3.1.17.1
architecture
conceptual structure of a system
Note 1 to entry: A system may consist of several interacting subsystems, each with its own architecture.
3.1.17.2
architecture
conceptual structure of systems that are to communicate with each another
[SOURCE: ISO/IEC TR 15044:2000, definition 2.5]

– 10 – TR 29108 © ISO/IEC:2013(E)
3.1.17.3
architecture
specific configuration of hardware and software elements in a system
[SOURCE: IEC 61508-4:2010, definition 3.3.4]
[SOURCE: ISO/IEC 14762:2009, definition 3.1.1]
3.1.18 Area address
3.1.18.1
area address
part of the individual address that specifies the area in which the device is mounted
[SOURCE: ISO/IEC 14543-3-2:2006, definition 3.1.3]
3.1.19 Argument
3.1.19.1
argument
Parameter for action exposed by a service. May be in xor out. For more information, see
clauses on Description and Control (in ISO/IEC 29341-1).
[SOURCE: ISO/IEC 29341-1:2011, definition in Clause 6]
3.1.20 Authentication
3.1.20.1
authentication
means for certifying that the entity sending a message is what or who it purports to be and
confirmation that the message is identical to that which was sent
[SOURCE: ISO/IEC 14762:2009, definition 3.1.2]
3.1.21 Authorization
3.1.21.1
authorization
mechanism to ensure that the entity or person accessing information, functions or services
has the authority to do so
[SOURCE: ISO/IEC 14762:2009, definition 3.1.3]
3.1.22 Bridge
3.1.22.1
bridge
interface between dissimilar lower layer networks
Note 1 to entry: A bridge may provide services at layer 1 (physical layer) or layer 2 (data link layer).
[SOURCE: ISO/IEC 15045-2:2012, definition 3.1.2]
3.1.22.2
bridge
functional unit interconnecting two home network systems that use the same network layer
protocol but where there may be some differences in the link layer protocol
[SOURCE: ISO/IEC TR 15044:2000, definition 2.6]

TR 29108 © ISO/IEC:2013(E) – 11 –
3.1.23 Brown goods
3.1.23.1
brown goods
A/V devices that are mainly used for entertainment, for example, television or DVD recorder
[SOURCE: ISO/IEC 24767-1:2008, definition 2.1.1]
3.1.24 Bus
3.1.24.1
bus
common or shared communication path or highway
Note 1 to entry: A means of interconnecting devices under a single administration, such as a LAN comprising
devices sharing a common set of pathways
Note 2 to entry: A distinction may be drawn between “logical” and “physical” buses when bus topologies are
considered.
[SOURCE: ISO/IEC 15045-2:2012, definition 3.1.3]
3.1.25 Bus access unit (BAU)
3.1.25.1
bus access unit
BAU
contains all protocol layers plus the optional internal user application
[SOURCE: ISO/IEC 14543-3-4:2007, definition 3.1.2]
3.1.26 Centralised device group
3.1.26.1
centralised device group
set of IGRS Devices with one IGRS device acting as the master
Note 1 to entry: The master is responsible for managing the setup, for dismissing a device group, and for
processing a join request from other devices.
Note 2 to entry: The master device and other IGRS devices in such a device group form a centralised or master-
slave relationship.
[SOURCE: ISO/IEC 14543-5-1:2010, definition 3.1.1; ISO/IEC 14543-5-4:2010, definition 3.2]
3.1.27 Classes of home control systems
3.1.27.1
classes of home control systems
characterization of home control systems based on their transport capabilities
[SOURCE: ISO/IEC TR 15044:2000, definition 2.7]
3.1.28 Client identifier
3.1.28.1
client identifier
unique identifier associated with a Client on an IGRS device to which that Client belongs
[SOURCE: ISO/IEC 14543-5-1:2010, definition 3.1.2; ISO/IEC 14543-5-4:2010, definition 3.3]

– 12 – TR 29108 © ISO/IEC:2013(E)
3.1.29 Co-existence
3.1.29.1
co-existence
two or more home networking systems co-exist when they can be used and operate without
interfering with one-another
[SOURCE: ISO/IEC 18012-2:2012, definition 3.1.7]
3.1.29.2
co-existence
two or more networks within premises that do not interfere with one another
[SOURCE: ISO/IEC 18012-1:2004, definition 3.1.2]
3.1.29.3
co-existence
no interference between different pieces of equipment on the premises
Specifically, the operation of one RG does not interfere with the operation of another RG
[SOURCE: ISO/IEC 15045-1:2004, definition 3.1.1]
3.1.30 Common Interoperability Framework (CIF)
3.1.30.1
common interoperability framework
CIF
abstract intermediate language expressions for tranlating HAN or WAN-specifid messages
Note 1 to entry: A common interoperability framework includes
a) an HES-AIL (Abstract Intermediate Language), and
b) a set of network-specific Generic Interworking Function (GIWF) processes to express (i.e., translate) any
message to or from any specific HAN or WAN message.
[SOURCE: ISO/IEC 15045-2:2012, definition 3.1.4]
3.1.31 Communication middleware block
3.1.31.1
communication middleware block
this middleware is arranged from data link layer to application layer and performs
communications processing according to the protocol specified in ISO/IEC 14543-4-1 and
ISO/IEC 14543-4-2
Note 1 to entry: The major features of ISO/IEC 14543-4 are implemented by communications middleware.
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.8]
3.1.32 Communication mode
3.1.32.1
communication mode
mode describing the relationship between communication points upon which the
communication relies: one-to-many connectionless (multicast), one-to-all connectionless
(broadcast), one-to-one connectionless, one-to-one connection-oriented
[SOURCE: ISO/IEC 14543-3-4:2007, definition 3.1.9]

TR 29108 © ISO/IEC:2013(E) – 13 –
3.1.33 Communication processing block
3.1.33.1
communication processing block
one processing block for the communications middleware; this block performs communication
protocol processing to facilitate remote device control/monitoring processing for application
software, stores information for the above and controls various information on the self-device
as well as other device statuses
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.9]
3.1.34 Communications middleware block
3.1.34.1
communications middleware block
this middleware is arranged from data link layer to application layer and performs
communications processing according to ISO/IEC 14543-4
Note 1 to entry: The major features of ISO/IEC 14543-4 are implemented by communications middleware.
[SOURCE: ISO/IEC 14543-4-2:2008, definition 3.1.6]
3.1.35 Communications processing block
3.1.35.1
communications processing block
one processing block for the communications middleware; this block performs communication
protocol processing to facilitate remote device control/monitoring processing for application
software, stores information for the above and controls various information on the self-device
as well as other device statuses
[SOURCE: ISO/IEC 14543-4-2:2008, definition 3.1.7]
3.1.36 Compatibility
3.1.36.1
compatibility
ability of two or more networks within premises to be mutually tolerant and not interfere with
one another
Note 1 to entry: The networks as co-existent, but they not necessarily interoperable.
[SOURCE: ISO/IEC 15045-2:2012, definition 3.1.5]
3.1.37 Component
3.1.37.1
component
logical subunit of a larger, encompassing concept
[SOURCE: ISO/IEC 18012-2:2012, definition 3.1.8]
3.1.37.2
component
logical subunit of a larger, encompassing concept
Note 1 to entry: For example, the concept of Interoperability is subdivided into constituent components such as
safety, management, and operation. These constituent components are further subdivided within their respective
sections. In the context of the HES-gateway, the term component is also used to refer to logical subunits of system
architecture concepts, such as the components of a networking implementation (e.g., addressing)
[SOURCE: ISO/IEC 15045-2:2012, definition 3.1.6]

– 14 – TR 29108 © ISO/IEC:2013(E)
3.1.37.3
component
logical subunit of a larger, encompassing concept
Note 1 to entry: The concept of interoperability is broken down into constituent components such as safety,
management and operation. These constituent components are further broken down within their respective
sections. The term component is also used to refer to logical subunits of system architecture concepts, such as the
components of a networking implementation (for example, addressing).
[SOURCE: ISO/IEC 18012-1:2004, definition 3.1.3]
3.1.38 Concurrent events
3.1.38.1
concurrent events
two or more events queued for processing in the interval between any two scheduled input
processing or output processing operations of an application object
[SOURCE: ISO/IEC 18012-2:2012, definition 3.1.9]
3.1.39 Confidentiality
3.1.39.1
confidentiality
property that information is not made available or disclosed to unauthorized individuals,
entities or processes
[SOURCE: ISO/IEC 24767-1:2008, definition 2.1.2; ISO/IEC 24767-2:2009, definition 3.1.1]
3.1.40 Connection
3.1.40.1
connection
association established between functional units for data transmission across a network (or
part of a network) for the purpose of communication between the units; the association is
explicitly established at some point in time and exists until explicitly ended
Note 1 to entry: Data transmission includes, in this context, audio, video and other information in either analogue
or digital form.
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.5]
3.1.40.2
connection
association established between two peer entities across a network (or part of a network) for
the purpose of communication between the entities. The association is explicitly established
at some point in time, and exists until explicitly ended
[SOURCE: ISO/IEC TR 15044:2000, definition 2.8]
3.1.41 Connection-mode service
3.1.41.1
connection-mode service
service providing communication between two entities within the context of a connection
established between the entities
[SOURCE: ISO/IEC TR 15044:2000, definition 2.9]

TR 29108 © ISO/IEC:2013(E) – 15 –
3.1.42 Connection-mode transmission
3.1.42.1
connection-mode transmission
(N)-data-transmission in the context of an (N)-connection
[SOURCE: ISO/IEC 7498-1, 5.3.1.17]
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.1.3]
3.1.43 Connectionless-mode service
3.1.43.1
connectionless-mode service
service providing communication between two entities not within the context of a connection
established between the entities
[SOURCE: ISO/IEC TR 15044:2000, definition 2.10]
3.1.44 Connectionless-mode transmission
3.1.44.1
connectionless-mode transmission
(N)-data-transmission not in the context of an (N)-connection and not required to maintain any
logical relationship between (N)-service-data-units
[SOURCE: ISO/IEC 7498-1, 5.3.1.18]
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.1.4]
3.1.45 Control channel
3.1.45.1
control channel
communication channel that is established between two or more entities for the primary
purpose of exchange of HES control and monitoring messages
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.6]
3.1.45.2
control channel
communication channel that is established between two or more entities for the primary
purpose of exchange of HES control and monitoring messages
[SOURCE: ISO/IEC TR 15044:2000, definition 2.11]
3.1.46 Controller
3.1.46.1
controller
device with the capability of controlling and possibly monitoring other devices
3.1.46.2
controller
any device with the capability of controlling and possibly monitoring other devices
[SOURCE: ISO/IEC TR 15044:2000, definition 2.12]

– 16 – TR 29108 © ISO/IEC:2013(E)
3.1.47 Control point
3.1.47.1
control point
Retrieves device and service descriptions, sends actions to services, polls for service state
variables, and receives events from services.
[SOURCE: ISO/IEC 29341-1:2011, definition in Clause 6]
3.1.48 DA data
3.1.48.1
DA data
node address of the destination of messages between lower-layer communications software
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.10; ISO/IEC 14543-4-2:2008, definition
3.1.8]
3.1.49 Data authentication
3.1.49.1
data authentication
service used to ensure that the source of the data claimed by a party to a communication is
correctly verified
[SOURCE: ISO/IEC 24767-1:2008, definition 2.1.3; ISO/IEC 24767-2:2009, definition 3.1.2],
3.1.50 Datagram
3.1.50.1
datagram
full sequence of elements (physical symbols) transporting a frame on the physical medium
[SOURCE: ISO/IEC 14543-3-2:2006, definition 3.1.7]
3.1.51 Data integrity
3.1.51.1
data integrity
property that data has not been altered or destroyed in an unauthorized manner
[SOURCE: ISO/IEC 24767-1:2008, definition 2.1.4; ISO/IEC 24767-2:2009, definition 3.1.3]
3.1.52 Data Link Address (DLA)
3.1.52.1
data link address
DLA
address permitting unique identification of a node in a home network
Note 1 to entry: This is a logical address that is defined separately from the node address native to lower-layer
communications software; it consists of a NetID and NodeID.
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.11; ISO/IEC 14543-4-2:2008, definition
3.1.9]
TR 29108 © ISO/IEC:2013(E) – 17 –
3.1.53 Data link data
3.1.53.1
data link data
data that is composed of DHD, SDLA, DDLA, ADC and ADATA
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.12; ISO/IEC 14543-4-2:2008, definition
3.1.10]
3.1.54 Data link Data Counter (DDC)
3.1.54.1
data link data counter
DDC
specifies the order of split messages, indicates end split of message and stipulates split-
transmission message identifiers
[SOURCE: ISO/IEC 14543-4-2:2008, definition 3.1.12]
3.1.54.2
data link data counter
DDC
specifies order of split message, indicates end split of message and stipulates split-
transmission message identifier
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.14]
3.1.55 Data link frame
3.1.55.1
data link frame
frame that is composed of DDC, DHD, SDLA, DDLA, ADC and ADATA
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.13; ISO/IEC 14543-4-2:2008, definition
3.1.11]
3.1.56 Data link Header (DHD)
3.1.56.1
data link header
DHD
four kinds of data are included:
– the first data is the message format for the ADATA/PADATA section;
– the second specifies secure message or plain message;
– the third specifies whether DDLA is a broadcast address or an individual address;
– and the fourth constitutes a routing hop counter
[SOURCE: ISO/IEC 14543-4-2:2008, definition 3.1.13]

– 18 – TR 29108 © ISO/IEC:2013(E)
3.1.56.2
data link header
DHD
four kinds of data are included:
– first data is the message format for the ADATA/PADATA section;
– second data specifies secure message or plain message;
– third data specifies DDLA is a broadcast address or an individual address;
– fourth data constitutes a routing hop counter
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.15]
3.1.57 Data link router
3.1.57.1
data link router
node used to connect subnets
Note 1 to entry: It connects the subnets of different lower-layer communications protocols (for different protocols,
regardless of transmission media type) or divides the same protocol into subnets. The lower-layer communications
protocol is connected seamlessly on the system using routing processing based on data link addresses as a
function.
[SOURCE: ISO/IEC 14543-4-2:2008, definition 3.1.14]
3.1.58 Data link split frame
3.1.58.1
data link split frame
messages that are exchanged between protocol difference absorption processing blocks
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.16]
3.1.58.2
data link split frame
messages that are exchanged between protocol difference absorption processing blocks are
called data link split frames
[SOURCE: ISO/IEC 14543-4-2:2008, definition 3.1.15]
3.1.59 Device
3.1.59.1
device
distinct physical unit on a network
Note 1 to entry: A device can either be an end node on the network, or an intermediate node (as in the case of a
gateway, router, or bridge device connecting two distinct physical networks).
[SOURCE: ISO/IEC 15045-2:2012, definition 3.1.7]
3.1.59.2
device
distinct physical unit on a network
Note 1 to entry: It can either be an end node on the network, or an intermediate node (as in the case of a network
gateway device connecting two distinct physical networks).
[SOURCE: ISO/IEC 18012-1:2004, definition 3.1.4; ISO/IEC 18012-2:2012, definition 3.1.10]

TR 29108 © ISO/IEC:2013(E) – 19 –
3.1.59.3
device
physical implementation of functions belonging to one or more functional groupings providing
a service directly for an end-user
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.7; ISO/IEC TR 15044:2000, definition 2.13]
3.1.59.4
device
Logical device. A container. May embed other logical devices. Embeds one or more services.
For more information, see clause on Description (in ISO/IEC 29341-1).
[SOURCE: ISO/IEC 29341-1:2011, definition in Clause 6]
3.1.60 Device address
3.1.60.1
device address
unique identifier for every device in a subnetwork; the device address is an 8-bit value
Note 1 to entry: Figure 1 shows the relationship between individual address, subnetwork address, area address,
line address and device address
Individual address
Octet 0 Octet 1
7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0
Area Line
address address
Device address
Subnetwork address
Figure 1 – Individual address
[SOURCE: ISO/IEC 14543-3-2:2006, definition 3.1.5]
3.1.61 Device application process
3.1.61.1
device application process
element within a device that performs information processing for a particular application;
device application processes can represent manual, automated, computerised or physical
processes
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.8; ISO/IEC TR 15044:2000, definition 2.14]
3.1.61.2
device application process
an element within a device which performs information processing for a particular application;
it can represent a manual, automated, computerised or physical process
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.13]

– 20 – TR 29108 © ISO/IEC:2013(E)
3.1.62 Device description
3.1.62.1
device description
TM
Formal definition of a logical device, expressed in the UPnP Template Language. Written in
XML syntax. Specified by a UPnP vendor by filling in the placeholders in a UPnP Device
Template, including, e.g., manufacturer name, model name, model number, serial number,
and URLs for control, eventing, and presentation. For more information, see clause on
Description (in ISO/IEC 29341-1).
[SOURCE: ISO/IEC 29341-1:2011, definition in Clause 6]
3.1.63 Device group
3.1.63.1
device group
multiple IGRS devices that are organised into a logical group through the device group
management mechanism specified in ISO/IEC 14543-5-1
Note 1 to entry: Each IGRS device in a device group follows common interaction rules. Two types of device
groups are defined: peer-to-peer device group and centralised (master-slave) device group.
[SOURCE: ISO/IEC 14543-5-4:2010, definition 3.4]
3.1.63.2
device group
multiple IGRS Devices that are organised into a logical group through the device group
management mechanism in the IGRS specification
Note 1 to entry: Each IGRS Device in a Device Group follows common interaction rules. Two types of Device
Groups are defined: peer-to-peer Device Group and centralised (master-slave) Device Group.
[SOURCE: ISO/IEC 14543-5-1:2010, definition 3.1.3]
3.1.64 Device ID
3.1.64.1
device ID
unique number assigned to each node
Note 1 to entry: The device ID is retained and managed by the communications middleware block and normally
assigned by application software.
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.17]
3.1.65 Device identifier
3.1.65.1
device identifier
globally unique device identifier associated with one IGRS device
[SOURCE: ISO/IEC 14543-5-1:2010, definition 3.1.4; ISO/IEC 14543-5-4:2010, definition 3.5]
3.1.66 Device management
3.1.66.1
device management
procedures to access one specific device. These procedures describe for example the load
procedures or reading the state. A detailed knowledge of the device is required for these
procedures
[SOURCE: ISO/IEC 14543-3-4:2007, definition 3.1.8]

TR 29108 © ISO/IEC:2013(E) – 21 –
3.1.67 Device modularity
3.1.67.1
device modularity
property of devices that specifies the extent to which they have been composed out of
separate parts called modules
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.9]
3.1.68 Device pipe
3.1.68.1
device pipe
channel used to transfer device interaction messages
Note 1 to entry: This channel is set up through the pipe setup mechanism specified (in ISO/IEC 14543-5-1).
[SOURCE: ISO/IEC 14543-5-1:2010, definition 3.1.5; ISO/IEC 14543-5-4:2010, definition 3.6]
3.1.69 Device type
3.1.69.1
device type
Standard device types are denoted by urn:schemas-upnp-org:device: followed by a unique
name assigned by a UPnP Forum working committee. One-to-one relationship with UPnP
Device Templates. UPnP vendors may specify additional device types; these are denoted by
urn:domain-name:device: followed by a unique name assigned by the vendor, where domain-
name is a domain name registered to the vendor. For more information, see clause on
Description (in ISO/IEC 29341-1).
[SOURCE: ISO/IEC 29341-1:2011, definition in Clause 6]
3.1.70 Differential mode
3.1.70.1
differential mode
PL signals are injected between phase and neutral
[SOURCE: ISO/IEC 14543-3-5:2007, definition 3.1.1]
3.1.71 Distributed power supply
3.1.71.1
distributed power supply
bus is powered in a distributed way by a number of the devices connected to the line
(compared to a centralised power supply)
3.1.71.2
distributed power supply
the bus is powered in a distributed way by a number of the devices connected to the line
(compared to a centralised power supply)
[SOURCE: ISO/IEC 14543-3-6:2007, definition 3.1.3]
3.1.72 Distributed gateway
3.1.72.1
distributed gateway
HES-gateway implemented as separate but interconnected modular elements
[SOURCE: ISO/IEC 15045-2:2012, definition 3.1.8]

– 22 – TR 29108 © ISO/IEC:2013(E)
3.1.73 Disturbed communication
3.1.73.1
disturbed communication
where for any reason a message being communicated is incomplete, truncated, contains
errors or has the correct format but delivers information which is outside the range of
expected parameters for such a message
[SOURCE: ISO/IEC 14762:2009, definition 3.1.4]
3.1.74 Documentation
3.1.74.1
documentation
all instances of product literature, brochures, data sheets, manuals and catalogues in which
the product is described, defined, detailed or pictured that may be produced in paper or any
electronic format
Note 1 to entry: In this definition, “product” refers to a product, a system, a network or a residential gateway.
[SOURCE: ISO/IEC 15045-1:2004, definition 3.1.2]
3.1.75 Domain
3.1.75.1
domain
range of validity
Note 1 to entry: When the term is used for a more specific concept, it should be qualified. Two examples are the
application domain (the range including OSI layer seven and above) and the user domain (the range above OSI
layer seven).
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.2.10]
3.1.75.2
domain
range of validity
Note 1 to entry: When used for a specific concept, the exact domain should be stated, for example application
domain, user domain.
[SOURCE: ISO/IEC TR 15044:2000, definition 2.15]
3.1.75.3
domain
range on the network within which information transmission is logically guaranteed
Note 1 to entry: Generally, it is thought that property and security control, including homes and stores, use the
same range as a domain, but the domain can be defined by system.
[SOURCE: ISO/IEC 14543-4-1:2008, definition 3.1.18]
3.1.76 End user
3.1.76.1
end user
entity outside the home control system domain that uses the services and functions of the
home control system
[SOURCE: ISO/IEC TR 15044:2000, definition 2.16]

TR 29108 © ISO/IEC:2013(E) – 23 –
3.1.77 Event
3.1.77.1
event
individual output of an application object, typically corresponding to a simple or complex state
variable used in the application object
Note 1 to entry: See 6.4 (in ISO/IEC 18012-2:2012).
[SOURCE: ISO/IEC 18012-2:2012, definition 3.1.11]
3.1.77.2
event
Notification of one or more changes in state variables exposed by a service. For more
information, see clause on Eventing (in ISO/IEC 29341-1)
[SOURCE: ISO/IEC 29341-1:2011, definition in Clause 6]
3.1.78 Event bus
3.1.78.1
event bus
message path within the interoperability domain for transferring events between source and
destination interoperable application objects
[SOURCE: ISO/IEC 18012-2:2012, definition 3.1.12]
3.1.79 External message interface (EMI)
3.1.79.1
external message interface
EMI
collection of messages that together build a generic message interface to each protocol layer
of a BAU and any application function
[SOURCE: ISO/IEC 14543-3-4:2007, definition 3.1.15]
3.1.80 File transfer protocol (FTP)
3.1.80.1
file transfer protocol
FTP
IP based protocol (see IETF – Internet Engineering Task Force)
[SOURCE: ISO/IEC 15045-1:2004, definition 3.1.3]
3.1.81 Flow control
3.1.81.1
flow control
function which controls the flow of data within a layer or between adjacent layers
[SOURCE: ISO/IEC 7498-1, 5.8.1.8]
[SOURCE: ISO/IEC 14543-2-1:2006, definition 3.1.6]

– 24 – TR 29108 © ISO/IEC:2013(E)
3.1.81.2
flow control
function that controls the flow of data within a layer. It regulates the rate at which information
is exchanged between peer entities
[SOURCE: ISO/IEC TR 15044:2000, def
...
