ISO 5832-14:2019

Implants for surgery - Metallic materials - Part 14: Wrought titanium 15-molybdenum 5-zirconium 3-aluminium alloy

This document specifies the characteristics of, and corresponding test methods for, the wrought titanium 15-molybdenum 5-zirconium 3-aluminium alloy for use in the manufacture of surgical implants. This document applies to materials in bar form up to a maximum diameter of 100 mm. NOTE The mechanical properties of a sample obtained from a finished product made of this alloy can differ from those specified in this document.

Implants chirurgicaux — Matériaux métalliques — Partie 14: Alliage corroyé à base de titane, de molybdène-15, de zirconium-5 et d'aluminium-3

General Information

• Status: Published
• Publication Date: 05-Feb-2019
• ICS: 11.040.40 - Implants for surgery, prosthetics and orthotics
• Technical Committee: ISO/TC 150/SC 1 - Materials
• Drafting Committee: ISO/TC 150/SC 1/WG 4 - Metals
• Current Stage: 9092 - International Standard to be revised
• Start Date: 17-Sep-2024
• Completion Date: 13-Dec-2025

Relations

• Consolidated By: ISO/TS 17573-3:2021 - Electronic fee collection - System architecture for vehicle-related tolling - Part 3: Data dictionary
• Effective Date: 06-Jun-2022
• Revises: ISO 5832-14:2007 - Implants for surgery - Metallic materials - Part 14: Wrought titanium 15-molybdenum 5-zirconium 3-aluminium alloy
• Effective Date: 10-Dec-2016

Overview

ISO 5832-14:2019 is an international standard specifying the requirements for a wrought titanium 15-molybdenum 5-zirconium 3-aluminium alloy, used predominantly in the manufacture of surgical implants. This standard defines the chemical composition, microstructure, mechanical properties, and test methods for this specialized metallic material, ensuring safety, reliability, and performance in surgical applications. Applicable to materials in bar form with a maximum diameter of 100 mm, ISO 5832-14:2019 ensures consistency and quality for implant manufacturers.

Key Topics

• Chemical Composition: The standard outlines precise compositional limits including:

  • Molybdenum: 14.0% - 16.0%
  • Zirconium: 4.5% - 5.5%
  • Aluminium: 2.5% - 3.5%
  • Titanium: Balance
  • Maximum content limits for iron, oxygen, carbon, nitrogen, and hydrogen to ensure biocompatibility and mechanical integrity.

• Microstructure: Requires a uniform, fully recrystallized single-phase beta microstructure after solution annealing. The grain size must be no coarser than grade 4 at 100× magnification, without presence of alpha case or foreign phases.

• Mechanical Properties: Defined tensile strength, yield strength, and elongation parameters to guarantee durability and flexibility for surgical implant use:

  • Tensile strength: minimum 900 MPa
  • Yield strength: minimum 800 MPa
  • Elongation after fracture: minimum 12%

• Test Methods: Specifies the standardized procedures for verifying chemical composition (recognized analytical techniques), grain size (ISO 643), and mechanical properties (ISO 6892-1 tensile testing at room temperature). Mechanical testing applies to representative samples prepared according to ISO 6892-1 ensuring standardized evaluation.

Applications

ISO 5832-14:2019 alloy serves critical roles in the biomedical implant industry, particularly for:

• Orthopedic implants such as bone plates, screws, and joint replacements, where strength, corrosion resistance, and biocompatibility are essential.
• Surgical components requiring materials with superior mechanical properties and long-term biological acceptance.
• Manufacturing of implantable devices in bar form that demand precision engineering and consistent material characteristics.

The alloy’s rigorous compositional and microstructural standards ensure it can withstand bodily environments without adverse reactions, supporting reliable clinical outcomes.

Related Standards

• ISO 5832 Series: A comprehensive set of standards covering various metallic materials for surgical implants, including stainless steels and cobalt-chromium alloys. ISO 5832-14 is part 14 of this series, focusing specifically on this titanium-based alloy.
• ISO 6892-1: Specifies the method of tensile testing for metallic materials at room temperature, referenced within ISO 5832-14 for mechanical property verification.
• ISO 643: Addresses the methodology for micrographic determination of grain size in metallic materials, ensuring microstructural quality.
• ISO/TC 150: The technical committee responsible for developing standards related to surgical implants and materials, ensuring up-to-date consensus and international harmonization.

---

Keywords: ISO 5832-14:2019, titanium alloy for surgical implants, wrought titanium alloy, surgical implant materials, titanium 15-molybdenum alloy, implant bar material, metallic biomaterials standard, mechanical properties titanium alloy, implant microstructure standards, ISO surgical implant materials.

Standards Content (Sample)

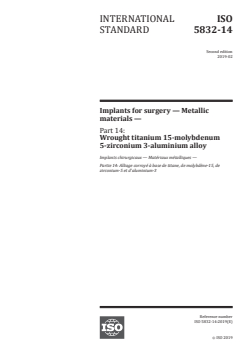

INTERNATIONAL ISO
STANDARD 5832-14
Second edition
2019-02
Implants for surgery — Metallic
materials —
Part 14:
Wrought titanium 15-molybdenum
5-zirconium 3-aluminium alloy
Implants chirurgicaux — Matériaux métalliques —
Partie 14: Alliage corroyé à base de titane, de molybdène-15, de
zirconium-5 et d'aluminium-3
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

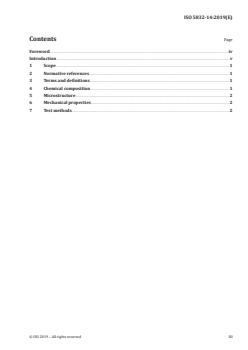

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Chemical composition . 1
5 Microstructure . 2
6 Mechanical properties . 2
7 Test methods . 2

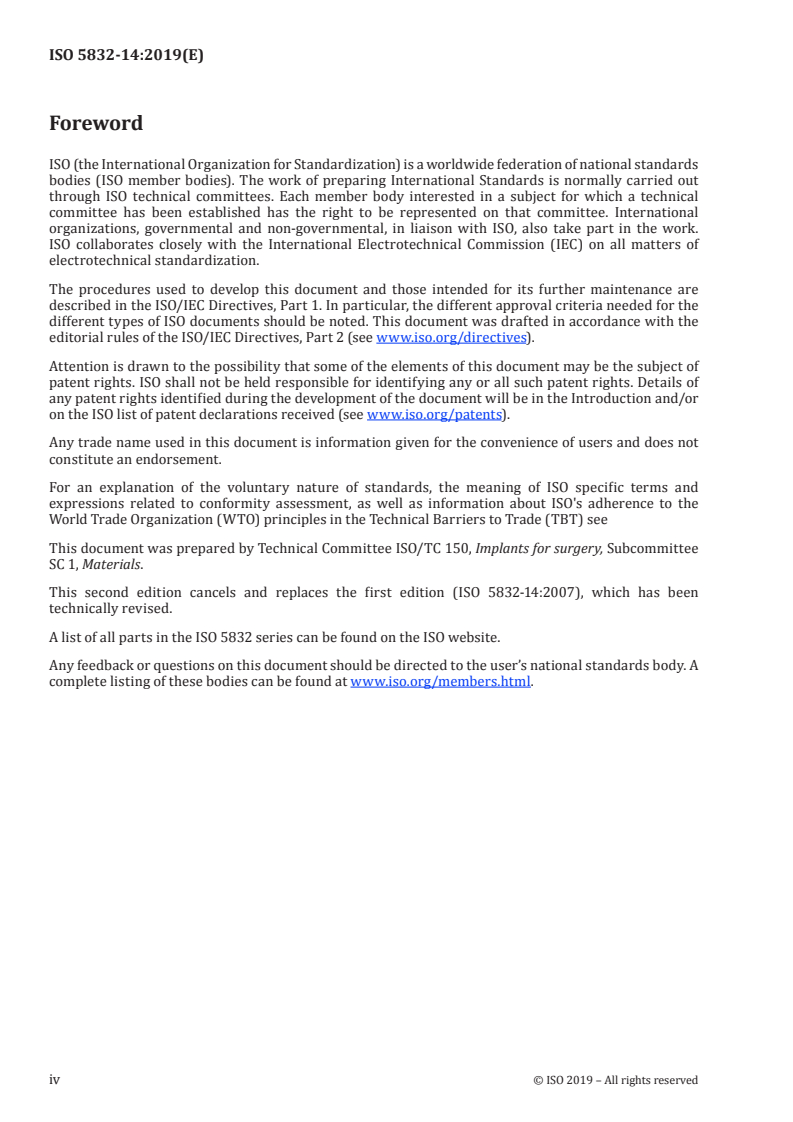

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see
This document was prepared by Technical Committee ISO/TC 150, Implants for surgery, Subcommittee
SC 1, Materials.
This second edition cancels and replaces the first edition
...
