INTERNATIONAL STANDARD ISO 16904:2016(E)
Petroleum and natural gas industries — Design and
testing of LNG marine transfer arms for conventional
onshore terminals
1 Scope
This International Standard specifies the design, minimum safety requirements and inspection
and testing procedures for liquefied natural gas (LNG) marine transfer arms intended for use on
conventional onshore LNG terminals, handling LNG carriers engaged in international trade. It can
provide guidance for offshore and coastal operations. It also covers the minimum requirements for safe
LNG transfer between ship and shore.
Although the requirements for power/control systems are covered, this International Standard does
not include all the details for the design and fabrication of standard parts and fittings associated with
transfer arms.
This International Standard is supplementary to local or national standards and regulations and is
additional to the requirements of ISO 28460.
This International Standard needs not be applied to existing facilities.
2 Normative references
The following referenced documents, in whole or in part, are normatively referenced in this document
and are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3452-1, Non-destructive testing — Penetrant testing — Part 1: General principles
ISO 4406, Hydraulic fluid power — Fluids — Method for coding the level of contamination by solid particles
ISO 9934-1, Non-destructive testing — Magnetic particle testing — Part1: General principles
ISO 10474:2013, Steel and steel products — Inspection documents
ISO 10497, Testing of valves — Fire type-testing requirements
ISO 17636-1, Non-destructive testing of welds — Radiographic testing — Part 1: X- and gamma-ray
techniques with film
ISO 17636-2, Non-destructive testing of welds — Radiographic testing — Part 2: X- and gamma-ray
techniques with digital detectors
ISO 28460:2010, Petroleum and natural gas industries — Installation and equipment for liquefied natural
gas — Ship-to-shore interface and port operations
IEC 60034-5, Rotating electrical machines — Part 5: Degrees of protection provided by the integral design
of rotating electrical machines (IP code) — Classification
IEC 60079-0, Explosive atmospheres — Part 0: Equipment — General requirements
IEC 60079-1, Explosive atmospheres — Part 1: Equipment protection by flameproof enclosures “d”
IEC 60079-2, Explosive atmospheres — Part 2: Equipment protection by pressurized enclosures “p”
IEC 60079-5, Explosive atmospheres — Part 5: Equipment protection by powder filling “q”
© ISO 2016 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO 16904:2016(E)
IEC 60079-6, Explosive atmospheres — Part 6: Equipment protection by oil immersion “o”
IEC 60079-7, Explosive atmospheres — Part 7: Equipment protection by increased safety “e”
IEC 60079-10-1, Explosive atmospheres — Part 10-1: Classification of areas — Explosive gas atmospheres
IEC 60079-11, Explosive atmospheres — Part 11: Equipment protection by intrinsic safety “i”
IEC 60079-14, Explosive atmospheres — Part 14: Electrical installations design, selection and erection
IEC 60079-18, Explosive atmospheres — Part 18: Equipment protection by encapsulation “m”
IEC 60079-25, Explosive atmospheres — Part 25: Intrinsically safe electrical systems
IEC 60529, Degrees of protection provided by enclosures (IP Code) and IEC 60529/A1&A2, Amendment 1&2
IEC 61508 (all parts), Functional safety of electrical/electronic/programmable electronic safety-
related systems
IEC 62305-3, Protection against lightning — Part 3: Physical damage to structures and life hazard
ASME B16.5, Pipe Flanges and Flanged Fittings
ASMEBoiler and Pressure Vessel Code Section IX: Welding and Brazing Qualifications
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
apex swivel
articulated, fluid-carrying joint located between the inboard arm (3.20) and outboard arm (3.32)
Note 1 to entry: See Figure B.2.
Note 2 to entry: It provides luffing (3.26) of the outboard arm relative to the inboard arm.
3.2
attitude
various modes of use and/or location of the transfer arm (3.59) (i.e. manoeuvring, stowed, connected,
hydrostatic test, and maintenance)
Note 1 to entry: The transfer arm can take several positions for each attitude.
3.3
base riser
riser
vertical assembly which bolts to the loading platform and supports the articulated assembly of the
transfer arm (3.59)
Note 1 to entry: See Figure B.2.
Note 2 to entry: Sometimes referred to as “standpost”.
3.4
bottom swivel
accommodates pitching (3.35) motion of LNG carrier (3.25) and is located adjacent to presentation flange
(3.37) in horizontal part of TSA (3.60)
Note 1 to entry: See Figure B.2.
2 © ISO 2016 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 16904:2016(E)
3.5
brinelling
any permanent indentation in swivel (3.55) or structural bearing (3.50) raceways caused by excessive
loading of balls or rollers
3.6
cargo manifold
pipe assembly mounted onboard LNG carrier (3.25) to which the presentation flange (3.37) or QCDC
(3.39) of the transfer arm (3.59) is connected
Note 1 to entry: See Figure B.2.
3.7
cavitation
formation and collapse of bubbles in a liquid when the pressure falls to or below the liquid vapour
pressure; the collapse releases energy, sometimes with an audible sound and vibration
Note 1 to entry: Such low pressures occur in high velocity zones such as the inner radius of elbows, or at places
with variations of diameters.
3.8
clash
any contact during design operational conditions, or as a result of an emergency separation, between
any part of a transfer arm (3.59) and:
— adjacent transfer arm while both arms are
...
DRAFT INTERNATIONAL STANDARD ISO/DIS 16904
ISO/TC 67 Secretariat: NEN
Voting begins on Voting terminates on
2013-03-14 2013-08-14
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION • МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ • ORGANISATION INTERNATIONALE DE NORMALISATION
Petroleum and natural gas industries — Design and testing of
LNG marine transfer arms for conventional onshore terminals
Industries du pétrole et du gaz naturel — Conception et essai de bras de transfert de gaz naturel liquéfié sur des
terminaux terrestres conventionnels
ICS 75.180.01
ISO/CEN PARALLEL PROCESSING
This draft has been developed within the International Organization for Standardization (ISO), and
processed under the ISO-lead mode of collaboration as defined in the Vienna Agreement.
This draft is hereby submitted to the ISO member bodies and to the CEN member bodies for a parallel
five-month enquiry.
Should this draft be accepted, a final draft, established on the basis of comments received, will be
submitted to a parallel two-month approval vote in ISO and formal vote in CEN.
To expedite distribution, this document is circulated as r eceived from the committee
secretariat. ISO Central Secretariat work of editing and text composition will be undertaken at
publication stage.
Pour accélérer la distribution, le présent document est distribué tel qu'il est parvenu du
secrétariat du comité. Le travail de rédaction et de composition de texte sera effectué au
Secrétariat central de l'ISO au stade de publication.
THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE
REFERRED TO AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
© International Organization for Standardization, 2013
---------------------- Page: 1 ----------------------
ISO/DIS 16904

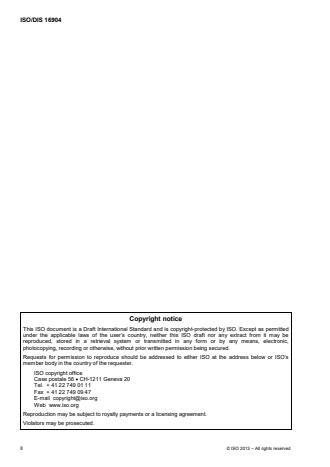

Copyright notice
This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as permitted
under the applicable laws of the user’s country, neither this ISO draft nor any extract from it may be
reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic,
photocopying, recording or otherwise, without prior written permission being secured.
Requests for permission to reproduce should be addressed to either ISO at the address below or ISO’s
member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
ii © ISO 2013 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/DIS 16904
Contents Page
Foreword . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions and abbreviations . 2
3.1 Terms and definitions . 2
3.2 Abbreviations . 9
4 Design of the arms . 10
4.1 Definition of the length and the configuration of the arms, arms description . 10
4.2 Design basis . 11
4.3 Swivel joints . 16
4.4 Structural bearings . 17
4.5 Accessories . 19
4.6 Pipework and fitting . 20
4.7 Welding . 20
4.8 Corrosion protection and embrittlement protection . 21
4.9 Maintenance . 21
5 Safety systems . 21
5.1 General . 21
5.2 Two stage alarm and shut down system . 22
5.3 Monitoring and alarm systems . 22
5.4 ERS . 23
5.5 Safety devices . 25
6 Connection with the ship . 26
6.1 General . 26
6.2 Design of QCDC . 27
6.3 QCDC system . 27
6.4 Flange cover . 28
7 Hydraulic and electric control systems . 28
7.1 General . 28
7.2 Arms operations . 28
7.3 Hydraulic components . 29
7.4 Electric components . 30
7.5 Testing of control systems . 31
7.6 Remote control . 31
7.7 Transfer arms jetty control console . 31
8 Inspection and tests . 31
8.1 General . 31
8.2 Prototype test . 31
8.3 Manufacturing inspection and tests . 38
8.4 Factory acceptance tests. 40
8.5 Site acceptance tests . 42
9 Quality assurance and control . 44
9.1 Quality system . 44
9.2 Quality plan . 44
Annex A (informative) Design data sheets . 45
Annex B (informative) Reference figures . 60
© ISO 2012 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/DIS 16904

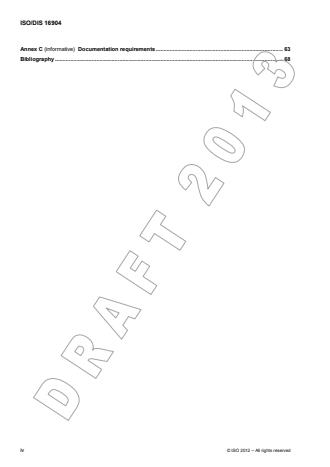

Annex C (informative) Documentation requirements . 63
Bibliography . 68
iv © ISO 2012 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/DIS 16904
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 16904 was prepared by Technical Committee ISO/TC 67, Materials, equipment and offshore structures
for petroleum, petrochemical and natural gas industries.
© ISO 2012 – All rights reserved v
---------------------- Page: 5 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 16904
Petroleum and natural gas industries — Design and testing of
LNG marine transfer arms for conventional onshore terminals
1 Scope
This International Standard specifies the design, minimum safety requirements and inspection and testing
procedures for liquefied natural gas (LNG) marine transfer arms intended for use on conventional onshore
LNG terminals, handling LNG carriers engaged in international trade. It can provide guidance for offshore and
coastal operations. It also covers the minimum requirements for safe LNG transfer between ship and shore.
Although the requirements for power/control systems are covered, this International Standard does not include
all the details for the design and fabrication of standard parts and fittings associated with transfer arms.
This International Standard is supplementary to local or national standards and regulations and is additional to
the requirements of ISO 28460.
This International Standard needs not be applied to existing facilities.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
IEC 60034-5, Rotating electrical machines Part 5: Degrees of protection provided by the integral design of
rotating electrical machines (IP code) Classification
IEC 60079-0, Explosive atmospheres Part 0: General requirements
IEC 60079-1, Explosive atmospheres Part 1: Equipment protection by flameproof enclosures ―d‖
IEC 60079-2, Explosive atmospheres Part 2: Equipment protection by pressurized enclosures ―p‖
IEC 60079-5, Explosive atmospheres Part 5: Equipment protection by powder filling ―q‖
IEC 60079-6, Explosive atmospheres Part 6: Equipment protection by oil immersion ―o‖
IEC 60079-7, Explosive atmospheres Part 7: Equipment protection by increased safety ―e‖
IEC 60079-10-1, Explosive atmospheres Part 10-1: Classification of areas – Explosive gas atmospheres
IEC 60079-11, Explosive atmospheres Part 11: Equipment protection by intrinsically safety ―i‖
IEC 60079-18, Electrical atmospheres Part 18: Equipment protection by encapsulation ―m‖
IEC 60079-25, Electrical atmospheres Part 25: Intrinsically safe electrical systems
IEC 60529, Degrees of protection provided by enclosures (IP Code) and IEC 60529/A1, Amendment 1
© ISO 2012 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/DIS 16904
IEC 61508 (all parts), Functional safety of electrical/electronic/programmable electronic safety-related systems
IEC 62305-3, Protection against lightning Part 3: Physical damage to structures and life hazard
ISO 3452-1, Non-destructive testing Penetrant testing Part1: General principles
ISO 4406, Hydraulic fluid power – Fluids Method for coding the level of contamination by solid particles
ISO 9000, Quality management systems Fundamentals and vocabulary
ISO 9001, Quality management systems Requirements
ISO 9934-1, Non-destructive testing Magnetic particle testing – Part1: General principles
ISO 10474, Steel and steel products Inspection documents
ISO 10497, Testing of valves Fire type-testing requirements
ISO 17636, Non-destructive testing of welds Radiographic testing of fusion-welded joints
ISO 28460, Installation and equipment for liquefied natural gas - Ship to shore interface and port operations
ASME B16.5, Pipe Flanges and Flanged Fittings
ASME Boiler and Pressure Vessel Code IX: Welding and Brazing Qualifications
3 Terms and definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
apex swivel
articulated, fluid-carrying joint located between the and
Note 1 to entry: See Figure B.2.
Note 2 to entry: It provides of the relative to the .
3.2
attitude
various modes of use and/or location of the (i.e. manoeuvring, stowed, connected, hydrostatic
test, and maintenance)
Note 1 to entry: The can take several positions for each .
3.3
base riser
riser
vertical assembly which bolts to the loading platform and supports the articulated assembly of the
arm>
Note 1 to entry: See Figure B.2.
Note 2 to entry: Sometimes referred to as ‗standpost‘.
2 © ISO 2012 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/DIS 16904
3.4
bottom swivel
accommodates pitching motion of and is located adjacent to in horizontal
part of
Note 1 to entry: See Figure B.2.
3.5
brinelling
any permanent indentation in or raceways caused by excessive loading of balls
or rollers
3.6
cargo manifold
pipe assembly mounted onboard to which the or of the
is connected
Note 1 to entry: See Figure B.2.
3.7
cavitation
formation and collapse of bubbles in a liquid when the pressure falls to or below the liquid vapour pressure;
the collapse releases energy, sometimes with an audible sound and vibration
Note 1 to entry: Such low pressures occur in high velocity zones such as the inner radius of elbows, or at places with
variations of diameters.
3.8
clash
any contact during design operational conditions, or as a result of an emergency separation, between any part
of a and:
adjacent while both s are operating or one is operating and the other
is stowed (e.g. the counterweights);
adjacent section of the same (e.g. and );
loading platform equipment (e.g. and piping or valves)
3.9
contact angle α
angle between the plane of the or balls or rollers and the centre of contact
at the ball or roller raceway interface
3.10
conventional onshore LNG terminal
LNG exporting or receiving terminal that is located on-shore and that has a marine transfer arms for the
loading or unloading of LNG carriers in a harbour or other sheltered coastal location
3.11
counterweight
system of weights used to balance the and assemblies
Note 1 to entry: Some s have a single for this function and others have multiple
s.
3.12
design pressure
pressure for which the is designed
© ISO 2012 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/DIS 16904
Note 1 to entry: See Table A.1.
3.13
design temperature
range of temperatures for which the is designed
Note 1 to entry: See Table A.1.
3.14
drift
longitudinal and/or lateral displacement of the under the influence of environmental forces
Note 1 to entry: See also ―surge fore or aft‖ in 3.51 and ―sway‖ in 3.53.
3.15
emergency release system
ERS
system that provides a positive means of quick release of s and safe isolation of
and shore
Note 1 to entry: See Figure B.2.
3.16
emergency shut down
ESD
method that safely and effectively stops the transfer of and vapour between the and
shore
3.17
freeboard
vertical distance between the ship's deck and the water level at the manifold location
Note 1 to entry: See Table A.3 and Figure A.1.
3.18
freewheel
ability of a hydraulically operated when connected to a to follow freely without
hydraulic restraint the vertical and horizontal motions of the ‘s manifold (draft changes and
and motions)
3.19
heave
vertical motion of the due to wave action
Note 1 to entry: See Table A.4 and Figure A.2.
3.20
inboard arm
product-carrying pipe and any structural members contained between the and the
swivel>
Note 1 to entry: See Figure B.2.
3.21
included angle
angle formed between and
Note 1 to entry: See Figure B.2.
Note 2 to entry: The maximum and minimum s are left to the transfer arm manufacturer.
4 © ISO 2012 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/DIS 16904
Note 3 to entry: The in the stowed position of the s is such, that the s are
parked with the behind the berthing line.
3.22
insulating flange
electrical insulating system, usually dedicated, which is installed in the lower end of the
Note 1 to entry: Its purpose is to prevent stray currents from causing an arc at the ‘s flange as the
is connected or disconnected.
3.23
jack
permanent, adjustable load-carrying mechanism potentially installed in the to transfer
a portion of the fluid weight to the deck instead of the manifold
Note 1 to entry: See Figure B.2.
3.24
jetty control centre
control centre situated on or adjacent to the jetty primarily to control and/or monitor the s
Note 1 to entry: Sometimes referred to as ‗jetty control room‘ or ‗local control room‘.
3.25
LNG carrier
LNGC
tank ship designed for the carriage of
3.26
luffing
rotary motions of the and in the vertical plane
Note 1 to entry: See Figure B.2.
3.27
main hydraulic unit
MHU
hydraulic unit that generates hydraulic power to ensure the normal operation and emergency release
sequence of the arms
3.28
manifold setback
horizontal distance between the board side of and the face of
Note 1 to entry: See Table A.3 and Figure A.1.
3.29
manifold spacing
horizontal distance between the centerlines of the pipe assembly of the
Note 1 to entry: See Table A.3 and Figure A.1.
3.30
middle swivel
accommodates yawing and surge of and is located between and
in vertical part of
Note 1 to entry: See Figure B.2.
© ISO 2012 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/DIS 16904
3.31
operating envelope
volume in which (s) of a (group of) (s) is (are) required to operate
3.32
outboard arm
product-carrying pipe and any structural members contained between the and the
assembly>
Note 1 to entry: See Figure B.2.
3.33
owner (or designated agent)
company or group of companies for whose use the s are installed, responsible for the safe
design and construction of the installation
3.34
pantograph system
system for transmitting balancing loads from the to the (s)
Note 1 to entry: The system comprises an assembly of linkages and pinned connections, or a cable and sheaves
system (respectively ―rigid link pantograph‖ and ―cables and sheaves pantograph‖).
3.35
pitch(ing)
rotation of the around transversal horizontal axis
Note 1 to entry: See Table A.4 and Figure A.2.
3.36
powered emergency release coupling
PERC
powered device to provide a means of quick release of the when such action is required only
as an emergency measure
3.37
presentation flange
flange for connection to either the or
Note 1 to entry: See Figure B.2.
3.38
product
fluid transferred using s
Note 1 to entry: Fluids are , or .
2
3.39
quick connect disconnect coupler
QCDC
coupler
manual or hydraulic mechanical device used to connect the to the without
employing bolts
Note 1 to entry: See Figure B.2.
6 © ISO 2012 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/DIS 16904
3.40
remote pendant control
remote control
device to facilitate the fine manoeuvring operation of the s from a remote location (e.g.
carrier>‘s area)
Note 1 to entry: The system can use a trailling wire or radio-controlled system.
3.41
riser and trunnion swivel assembly
fluid carrying system consists of , and elbows and mounted on top of the
Note 1 to entry: See Figure B.2.
3.42
riser flange
flange for connection to LNG piping
Note 1 to entry: See Figure B.2.
3.43
riser swivel
swing joint in the which permits of the
Note 1 to entry: See Figure B.2.
3.44
roll(ing)
rotation of around longitudinal horizontal axis
Note 1 to entry: See Table A.4 and Figure A.2.
3.45
safety integrity level
SIL
statistical representations of the integrity of the safety instrumented system when a process demand occurs
Note 1 to entry: See Clause 5.
3.46
slew(ing)
horizontal, rotary motion of the around the
Note 1 to entry: See Figure B.2.
3.47
spool (piece)
short length of pipe for the purpose of matching the to the or
Note 1 to entry: Sometimes referred to as ―adaptor‖ or ―short distance piece‖.
3.48
spotting line
line used by the when berthing to align the centrelines of the and
manifold>
Note 1 to entry: See Figure A.4.
© ISO 2012 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO/DIS 16904
3.49
stress analysis
detailed calculation of the structural loading in the and for various positions
and attitudes to check the integrity of the for the service intended
3.50
structural bearing
bearing in the load carrying components supporting the product line that, in combination, allow the
arm> to follow freely the motion of the
3.51
surge fore or aft
longitudinal motion
Note 1 to entry: See Table A.4 and Figure A.2.
3.52
surge pressure
rapid change in pressure as a consequence of a change in flow rate in a pipeline and/or piping systems
(including s)
3.53
sway
transverse
Note 1 to entry: See Table A.4 and Figure A.2.
3.54
swivel joint (or swivel)
swing joint contained in the to permit the arm to freely follow the motion of the
3.55
terminal
LNG producing/receiving plant with loading/unloading facilities
3.56
top swivel
accommodates rolling, heave and sway motion of and is located between and
in horizontal part of
Note 1 to entry: See Figure B.2.
3.57
transfer
loading or unloading operation
3.58
transfer arm
arm
articulated metal transfer system used for transferring product to or from with the capability of
accommodating differences in tides, and ‘s motions
Note 1 to entry: See Figure B.2.
Note 2 to entry: Can be referred to as a ―loading arm‖ or ―unloading arm‖.
3.59
triple swivel assembly
TSA
group of three s and elbows located at the end of the
8 © ISO 2012 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/DIS 16904
Note 1 to entry: See Figure B.2.
3.60
trunnion swivel
swing joint in the which permits the to rotate around the
horizontal axis
Note 1 to entry: See Figure B.2.
3.61
uninterrupted power supply
UPS
back-up of the electrical supply system providing power to critical control and safety systems so that the plant
can be kept in safe conditions
3.62
yaw(ing)
rotation of the around vertical axis
Note 1 to entry: See Table A.4 and Figure A.2.
3.2 Abbreviations
For the purposes of this document, the following abbreviations apply:
CPMS: constant position monitoring system;
ERS: emergency release system;
ESD: emergency shut down;
FL: fluid load;
LNG: liquefied natural gas;
LNGC: liquefied natural gas carrier;
LN : liquefied nitrogen gas;
2
MHU: main hydraulic unit;
NG: natural gas;
N : nitrogen gas;
2
OBE: operating basis earthquake;
PERC: powered emergency release coupling;
PL: pressure load;
PQR: performance quality records;
QCDC: quick connect disconnect coupler
SIL: safety integrity level;
SSE: safe shutdown earthquake;
© ISO 2012 – All rights reserved 9
---------------------- Page: 14 ----------------------
ISO/DIS 16904
TL: thermal load;
TSA: triple swivel assembly;
UPS: uninterrupted power supply;
WL: wind load;
WPS: welding procedure specifications.
4 Design of the arms
4.1 Definition of the length and the configuration of the arms, arms description
4.1.1 General
The transfer arm general arrangement is given in Figure B.2.
The length and the configuration of the transfer arms shall allow for the connection of the on-shore piping to
the ship‘s cargo manifold. The connection shall allow for free movement within the operating envelope.
The transfer arms are normally composed of (see definitions in Clause 3):
triple swivel assembly (TSA) i
...
NORME ISO
INTERNATIONALE 16904
Première édition
2016-02-15
Industries du pétrole et du gaz
naturel — Conception et essais des
bras de transfert de GNL sur des
terminaux terrestres conventionnels
Petroleum and natural gas industries — Design and testing of LNG
marine transfer arms for conventional onshore terminals
Numéro de référence
ISO 16904:2016(F)
©
ISO 2016
---------------------- Page: 1 ----------------------
ISO 16904:2016(F)
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2016, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – Tous droits réservés
---------------------- Page: 2 ----------------------
ISO 16904:2016(F)
Sommaire Page
Avant-propos .vi
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 2
4 Abréviations . 9
5 Conception des bras .10
5.1 Définition de la longueur et de la configuration des bras, description des bras .10
5.1.1 Généralités .10
5.1.2 Équilibrage .11
5.1.3 Dimensions et dégagements des bras .11
5.2 Principes de conception .12
5.2.1 Diamètre de la tuyauterie produit et caractéristiques du produit .12
5.2.2 Matériaux et nuances .12
5.2.3 Analyse des contraintes .12
5.3 Joints articulés .16
5.3.1 Généralités .16
5.3.2 Dispositif d’étanchéité du produit .16
5.3.3 Système de roulement .17
5.3.4 Dispositif d’étanchéité externe .17
5.3.5 Conception .17
5.4 Articulations de structure .18
5.4.1 Conception .18
5.4.2 Protection des articulations de structure .19
5.4.3 Prise d’échantillons de graisse.19
5.5 Accessoires .19
5.5.1 Support ajustable (vérin) .19
5.5.2 Tuyauterie d’injection d’azote .20
5.5.3 Dispositif de verrouillage en position de stockage .20
5.5.4 Échelles et plates-formes .20
5.5.5 Tuyauteries de récupération de vapeur .20
5.5.6 Tuyauterie d’azote liquide .20
5.5.7 Isolation thermique .21
5.5.8 Protection contre les chutes de glace .21
5.6 Canalisations et robinetterie .21
5.6.1 Raccordements .21
5.6.2 Raccord de vidange . .21
5.6.3 Prise de connexion .21
5.6.4 Vanne .21
5.6.5 Bride de connexion .21
5.6.6 Joint d’étanchéité .21
5.7 Soudage .21
5.8 Protection contre la corrosion et contre la fragilisation .22
5.8.1 Protection contre la corrosion .22
5.8.2 Protection contre la fragilisation .22
5.9 Maintenance .22
6 Systèmes de sécurité .23
6.1 Généralités .23
6.2 Système d’arrêt et d’alarme à deux niveaux .23
6.2.1 Premier niveau .23
6.2.2 Second niveau .24
6.3 Systèmes de contrôle et d’alarme .24
6.3.1 Enveloppes des alarmes .24
© ISO 2016 – Tous droits réservés iii
---------------------- Page: 3 ----------------------
ISO 16904:2016(F)
6.3.2 Système de contrôle de position des bras .24
6.3.3 Système de contrôle permanent de position des bras (CPMS) .24
6.3.4 Alarme de pression et niveau hydraulique.24
6.4 ERS .25
6.4.1 Généralités .25
6.4.2 Conception de l’ERS . .25
6.4.3 Dispositifs de sécurité sur l’ERS .26
6.5 Dispositifs de sécurité .26
6.5.1 Exigences de sécurité au feu .26
6.5.2 Exigences de sécurité électrique .27
6.5.3 Défaillance de l’alimentation électrique .27
6.5.4 Protection contre les courants vagabonds .28
6.5.5 Continuité électrique . . .28
7 Connexion au navire .28
7.1 Généralités .28
7.2 Conception du QCDC .28
7.3 Système QCDC .29
7.4 Couvercle de bride .29
8 Systèmes de commande hydraulique et électrique .30
8.1 Généralités .30
8.2 Fonctionnement des bras.30
8.3 Composants hydrauliques .31
8.4 Composants électriques .32
8.5 Essais du système de commande .33
8.6 Commande à distance .33
8.7 Console de contrôle des bras de transfert sur la jetée .33
9 Contrôle et essais .33
9.1 Généralités .33
9.2 Essais de prototype .33
9.2.1 Généralités .33
9.2.2 Joint articulé .34
9.2.3 ERS .37
9.2.4 QCDC .38
9.3 Contrôle de la fabrication et essais .40
9.3.1 Généralités .40
9.3.2 Matériaux .40
9.3.3 Soudage .40
9.3.4 Essai non destructif .40
9.3.5 Contrôle dimensionnel .41
9.3.6 Essai de pression .41
9.3.7 ERS .41
9.3.8 QCDC .42
9.3.9 Bride d’isolation (protection contre les courants vagabonds) .42
9.3.10 Essai du circuit hydraulique .42
9.4 Essais d’acceptation en usine .42
9.5 Essais d’acceptation sur site .44
9.5.1 Généralités .44
9.5.2 Ensemble bras de transfert .44
9.5.3 Circuit hydraulique .45
10 Contrôle et assurance de la qualité .46
10.1 Système qualité .46
10.2 Plan qualité.46
11 Documentation requise .47
Annexe A (informative) Fiches de données conceptuelles .48
Annexe B (informative) Figures de référence .61
iv © ISO 2016 – Tous droits réservés
---------------------- Page: 4 ----------------------
ISO 16904:2016(F)
Annexe C (informative) Exigences en matière de documentation .66
Bibliographie .71
© ISO 2016 – Tous droits réservés v
---------------------- Page: 5 ----------------------
ISO 16904:2016(F)
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1 Il convient, en particulier, de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www.
iso.org/directives).
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www.iso.org/brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la signification des termes et expressions spécifiques de l’ISO liés à l’évaluation
de la conformité, ou pour toute information au sujet de l’adhésion de l’ISO aux principes de l’Organisation
mondiale du commerce (OMC) concernant les obstacles techniques au commerce (OTC), voir le lien
suivant: www.iso.org/iso/fr/avant-propos.html.
Le comité chargé de l’élaboration du présent document est l’ISO/TC 67, Matériel, équipement et structures
en mer pour les industries pétrolière, pétrochimique et du gaz naturel.
vi © ISO 2016 – Tous droits réservés
---------------------- Page: 6 ----------------------
NORME INTERNATIONALE ISO 16904:2016(F)
Industries du pétrole et du gaz naturel — Conception et
essais des bras de transfert de GNL sur des terminaux
terrestres conventionnels
1 Domaine d’application
La présente Norme internationale spécifie les règles de conception, les spécifications minimales de
sécurité ainsi que les procédures de contrôle et d’essais relatifs aux bras de transfert de gaz naturel
liquéfié (GNL) marins destinés à être utilisés sur des terminaux terrestres conventionnels, recevant des
méthaniers engagés dans le commerce international. Elle peut fournir des lignes directrices pour des
opérations côtières et au large. Elle fixe également les spécifications minimales permettant de garantir
que le transfert de GNL entre le navire et le terminal s’effectue en toute sécurité.
Bien que les spécifications relatives aux systèmes d’alimentation/télécommande soient couvertes, la
présente Norme internationale ne fixe pas tous les détails relatifs à la conception et à la fabrication des
pièces normalisées et des raccords des bras de transfert.
La présente Norme internationale vient compléter les normes et règlements locaux ou nationaux, et
s’ajoute aux spécifications de l’ISO 28460.
Il n’est pas nécessaire d’appliquer la présente Norme internationale aux installations existantes.
2 Références normatives
Les documents ci-après, dans leur intégralité ou non, sont des références normatives indispensables à
l’application du présent document. Pour les références datées, seule l’édition citée s’applique. Pour les
références non datées, la dernière édition du document de référence s’applique (y compris les éventuels
amendements).
ISO 3452-1, Essais non destructifs — Examen par ressuage — Partie 1: Principes généraux
ISO 4406, Transmissions hydrauliques — Fluides — Méthode de codification du niveau de pollution
particulaire solide
ISO 9934-1, Essais non destructifs — Magnétoscopie — Partie 1: principes généraux du contrôle
ISO 10474:2013, Aciers et produits sidérurgiques — Documents de contrôle
ISO 10497, Essais des appareils de robinetterie — Exigences de l’essai au feu
ISO 17636-1, Contrôle non destructif des assemblages soudés — Contrôle par radiographie — Partie 1:
Techniques par rayons X ou gamma à l’aide de film
ISO 17636-2, Contrôle non destructif des assemblages soudés — Contrôle par radiographie — Partie 2:
Techniques par rayons X ou gamma à l’aide de détecteurs numériques
ISO 28460:2010, Industries du pétrole et du gaz naturel — Installations et équipements relatifs au gaz
naturel liquéfié — Interface terre-navire et opérations portuaires
IEC 60034-5, Machines électriques tournantes — Partie 5: Degrés de protection procurés par la conception
intégrale des machines électriques tournantes (code IP) — Classification
IEC 60079-0, Atmosphères explosives — Partie 0: Exigences générales
IEC 60079-1, Atmosphères explosives — Partie 1: Protection du matériel par enveloppes antidéflagrantes «d»
© ISO 2016 – Tous droits réservés 1
---------------------- Page: 7 ----------------------
ISO 16904:2016(F)
IEC 60079-2, Atmosphères explosives — Partie 2: Protection du matériel par enveloppe à surpression
interne «p»
IEC 60079-5, Atmosphères explosives — Partie 5: Protection du matériel par remplissage pulvérulent «q»
IEC 60079-6, Atmosphères explosives — Partie 6: Protection du matériel par immersion dans l’huile «o»
IEC 60079-7, Atmosphères explosives — Partie 7: Protection du matériel par sécurité augmentée «e»
IEC 60079-10-1, Atmosphères explosives — Partie 10-1: classement des emplacements — Atmosphères
explosives gazeuses
IEC 60079-11, Atmosphères explosives — Partie 11: Protection de l’équipement par sécurité intrinsèque «i»
IEC 60079-18, Atmosphères explosives — Partie 18: Protection du matériel par encapsulage «m»
IEC 60079-14, Atmosphères explosives — Partie 18: conception, sélection et construction des installations
électriques
IEC 60079-25, Atmosphères explosives — Partie 25: Systèmes de sécurité intrinsèque
IEC 60529, Degrés de protection procurés par les enveloppes (code IP) et IEC 60529/A1, Amendement 1
IEC 61508 (toutes les parties), Sécurité fonctionnelle des systèmes électriques/électroniques/ électroniques
programmables relatifs à la sécurité
IEC 62305-3, Protection contre la foudre — Partie 3: Dommages physiques sur les structures et risques
humains
ASME B16.5, Pipe Flanges and Flanged Fittings
ASMEBoiler and Pressure Vessel Code IX: Welding and Brazing Qualifications
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions suivants s’appliquent.
3.1
rotation d’ouverture du compas (rotation médiane)
raccord articulé, conçu pour le transfert des liquides et situé entre le bras interne (3.20) et le bras
externe (3.32)
Note 1 à l’article: Voir la Figure B.2.
Note 2 à l’article: Il permet le relevage (3.26) du bras externe par rapport au bras interne.
3.2
position de travail
divers modes d’utilisation et/ou de positionnement du bras de transfert (3.59) (manœuvre, stockage,
connexion, essai hydrostatique et maintenance)
Note 1 à l’article: Le bras de transfert peut avoir différentes positions pour chaque position de travail.
3.3
embase
fût du bras qui est assemblé à la plate-forme de chargement et qui supporte l’ensemble articulé du bras
de transfert (3.59)
Note 1 à l’article: Voir la Figure B.2.
Note 2 à l’article: Cet ensemble est parfois désigné par le terme ‘colonne support’.
2 © ISO 2016 – Tous droits réservés
---------------------- Page: 8 ----------------------
ISO 16904:2016(F)
3.4
rotation inférieure
supporte le mouvement de tangage (3.35) du méthanier (3.25) et est située de façon contiguë à la bride
de présentation (3.37) dans la partie horizontale du TSA (3.60)
Note 1 à l’article: Voir la Figure B.2.
3.5
marquage (des chemins de roulement)
toute empreinte permanente située sur les chemins de roulement (3.55) ou les articulations de structure
(3.50) provoquée par le chargement excessif des billes ou des galets
3.6
traverse du navire
ensemble de tuyauteries à brides à bord du méthanier (3.25) sur lesquelles sont connectées la bride de
présentation (3.37) ou le QCDC (3.39) du bras de transfert (3.59)
Note 1
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
