SLOVENSKI STANDARD
01-december-2003
6LVWHPLRVHEQHJDNOLFD36¤±(YURSVNLVLVWHP]DUDGLMVNRVSRURþDQMH(50(6±
GHO6SHFLILNDFLMDVNODGQRVWL]DVSUHMHPQLN
Paging Systems (PS); Enhanced Radio MEssage System (ERMES); Part 5: Receiver
conformance specification
Ta slovenski standard je istoveten z: ETS 300 133-5 Edition 1
ICS:
33.070.20 Sistem za osebni klic Paging systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 133-5
TELECOMMUNICATION July 1992
STANDARD
Source: ETSI TC-PS Reference: DE/PS-2001-5
ICS: 33.080
ERMES, conformance
Key words:
Paging systems (PS);
European Radio Message System (ERMES);
Part 5 : Receiver conformance specification
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - [e-mail]
X.400: Internet:
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1992. All rights reserved.
New presentation - see History box

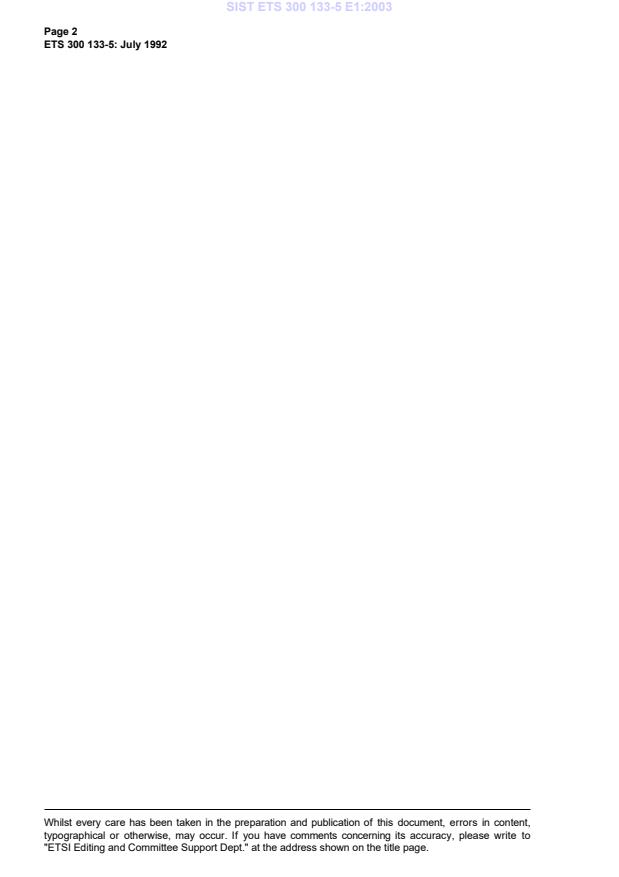

Page 2
ETS 300 133-5: July 1992
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 133-5: July 1992
Contents
Foreword.7
1 Scope .9
2 Normative references .9
3 Definitions. 9
4 Abbreviations. 10
5 General test requirements. 11
5.1 Number of receivers to be submitted for conformance testing. 11
5.2 Normal test conditions . 11
5.3 Extreme test conditions . 11
5.4 Test fixture . 11
5.5 Test paging signal . 11
6 RF characteristics . 11
6.1 Performance requirements. 11
6.2 Method of measurement. 12
7 User functions . 13
7.1 General. 13
7.2 Radio Identity Code. 13
7.3 Receiver paging categories. 14
7.3.1 Tone only. 14
7.3.2 Numeric. 14
7.3.3 Alphanumeric . 14
7.3.4 Transparent data. 14
7.4 Mandatory functions . 14
7.4.1 Alert functions . 14
7.4.2 Silent mode. 14
7.4.3 Battery low indication. 14
7.5 Optional functions. 14
7.5.1 Long message . 14
7.5.2 Indication of lost message. 14
7.5.3 Urgent message indicator . 14
7.5.4 Message storage and retrieval . 15
7.5.5 Memory full. 15
7.5.6 Repeated call indication. 15
8 Tests for essential features. 15
8.1 Message reception in home network. 15
8.1.1 First message in batch. 16
8.1.2 Last message in batch. 16
8.1.3 Message continued in next batch . 16
8.1.4 Message in last available batch . 16
8.1.5 Tenure of message . 17
8.1.6 Two messages in same batch. 17
8.1.7 Message continued in the next subsequence . 17
8.2 Message reception in non-home networks. 17
8.2.1 Message reception on all ERMES channels. 18
8.2.2 Recognition of zone code. 18
8.2.3 Two messages in the same batch. 18

Page 4
ETS 300 133-5: July 1992
8.2.4 Message reception in overlap regions (BAI=1).18
8.2.5 Message reception in overlap regions (BAI=0).18
8.3 Maximum length message.19
8.4 Alert function.19
8.4.1 Normal operation.19
8.4.2 Silent mode operation .19
8.5 Termination of numeric messages.19
8.6 Termination of alphanumeric messages.20
8.7 Repeated call indication.20
8.8 Group call.20
8.9 Tenure of group message .20
8.10 Low battery indication.21
8.11 Battery life.21
8.11.1 No signals on any channel .21
8.11.2 Unloaded system. 21
8.11.3 Fully loaded system.21
8.12 Network acquisition time .22
8.12.1 Time from receiver switch on. 22
8.12.2 Time from loss of signal . 22
8.13 RSVD Bits . 22
9 Tests for optional features .22
9.1 Operation of long message option .22
9.2 Indication of lost message.22
9.3 Urgent message indicator .22
9.4 Message storage.22
9.5 Memory full.23
Annex A (normative): Measurement procedures . 24
A.1 Average measured usable sensitivity expressed as field strength .24
A.1.1 Definition .24
A.1.2 Method of measurement .24
A.2 Radiated spurious components. 25
A.2.1 Definition .25
A.2.2 Method of measurement .26
A.3 Co-channel rejection .27
A.3.1 Definition .27
A.3.2 Method of measurement .28
A.4 Adjacent channel .28
A.4.1 Definition .28
A.4.2 Method of measurement .29
A.5 Spurious response immunity .29
A.5.1 Definition .29
A.5.2 Method of measurement .30
A.6 Intermodulation immunity.31
A.6.1 Definition .31
A.6.2 Method of measurement .31
A.7 Blocking immunity.32
A.7.1 Definition .32
A.7.2 Method of measurement .32
A.8 Combined multipath and quasi synchronous transmissions .33
A.8.1 Definition.33

Page 5
ETS 300 133-5: July 1992
A.8.2 Method of measurement. 33
Annex B (normative): Ancillary test data . 34
B.1 Simulated man . 34
B.2 Definition of unwanted test signal. 34
Annex C (normative): Character sets in the ERMES system. 35
C.1 Characters for numeric paging. 35
C.2 Characters for alphanumeric paging. 36
History. 37

Page 6
ETS 300 133-5: July 1992
Blank page
Page 7
ETS 300 133-5: July 1992
Foreword
This European Telecommunication Standard (ETS) has been produced by the Paging Systems (PS)
Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS comprises seven parts with the generic title "Paging systems; European Radio Message System
(ERMES)". The title of each part is listed below:
- ETS 300 133-1: "Part 1 - General aspects"
- ETS 300 133-2: "Part 2 - Service aspects"
- ETS 300 133-3: "Part 3 - Network aspects"
- ETS 300 133-4: "Part 4 - Air interface specification"
- ETS 300 133-5: "Part 5 - Receiver conformance specification"
- ETS 300 133-6: "Part 6 - Base station specification"
- ETS 300 133-7: "Part 7 - Operation and maintenance aspects"
This part, ETS 300 133-5, specifies the receiver performance requirements and the conformance test and
measurement methods.
Page 8
ETS 300 133-5: July 1992
Blank page
Page 9
ETS 300 133-5: July 1992
1 Scope
This part of the seven part European Telecommunication Standard (ETS) 300 133 defines the receiver
conformance specification which the different categories of paging receiver must comply with before they
can be operated on the European Radio Message System (ERMES). Essential features are covered which
make up the basic version receiver of each paging receiver category and also the optional receiver
features which, if implemented, must conform to this specification.
2 Normative references
This ETS incorporates by dated or undated reference, provisions from other publications. These normative
references are cited at the appropriate places in the text and the publications are listed hereafter. For
dated references subsequent amendments to, or revisions of any of these publications apply to this ETS
only when incorporated in it by amendment or revision. For undated references the latest edition of the
publication referred to applies.
[1] ETS 300 133-4: (1992) "Paging Systems (PS); European Radio Message
System (ERMES) Part 4: Air interface specification".
[2] ISO Standard 1073 parts 1 & 2: "Alphanumeric character sets for optical
recognition".
3 Definitions
For the purposes of this part of ETS 300 133 the following definitions shall apply.
Basic RIC: the prime identity of a paging receiver allocated by the network operator when service is
initiated. It shall not be changed without safeguards against unauthorised changes.
Batch number: the 4 bit number corresponding to a particular batch type. Batch type A shall correspond
to batch number 0000. Batch type P shall correspond to batch number 1111.
Codeword: the standard information unit of 30 bits length.
Codeblock: the unit of nine codewords used in the message partition.
Country code: binary representation of the country number defined in ETS 300 133-4 [1], Annex A. The
country code consists of 7 bits.
External Message: a paging message sent to a receiver which is not in its home network.
External Receiver: a receiver operating in a network which is not its home network.
Home Network: the operator network with which a mobile subscriber has signed a subscription.
Home Operator: the network operator to which a specific user has subscribed.
Initial Address: the 18 most significant bits of the local address.
Local Address: the number used by a network to identify the receivers subscribed to it. It consists of 22
bits. The four least significant bits of the local address denote the batch number of the receiver.
Operator code: the number used by the system on the radio path to identify an operator within a country.
It consists of 3 bits.
Operator Identity: the number used by the system on the radio path to identify the home operator of a
receiver. It has a total length of 13 bits and consists of three parts, the zone code the country code and
the operator code.
Page 10
ETS 300 133-5: July 1992
Paging Area: the area controlled by a paging area controller. It is the minimum area to which a mobile
subscriber is permitted to subscribe in order to receive his paging messages.
Paging Message: the tone-only, numeric, alphanumeric or transparent data information sent to a paging
receiver.
Paging Signal: the signal sent on the radio path to a paging receiver.
Radio Identity Code (RIC): the number used by the system on the radio path to identify the receiver(s) for
which the paging message is intended. The RIC has a total length of 35 bits and consists of five parts: the
zone code (3 bits), the country code (7 bits), the operator code (3 bits), the initial address (18 bits) and
the batch number (4 bits).
�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜¿
‡   Operator Identity     ‡  Local Address  ‡
ˆ˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜˜¯˜˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜·
‡  Zone  ‡ Country ‡ Operator ‡ Initial ‡ Batch ‡
‡  code  ‡  code  ‡  Code  ‡ address ‡ number ‡
�˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜�
No. of bits  3     7     3      18    4
Reserved for future definition: the bits indicated are not specified in this edition of the standard but may
be in future editions. The bits should be set to a default value and not used to convey information. The
function of any equipment shall be independent of these bits. No fixed pattern of reserved bits should be
assumed and no combination of reserved bits shall cause equipment to malfunction.
Zone code: binary representation of the zone number defined in ETS 300 133-4 [1], Annex A. The zone
code consists of 3 bits.
4 Abbreviations
AII Additional Information Indicator
AIF Additional Information Field
AIT Additional Information Type
AIN Additional Information Number
APT Address Partition Terminator
BAI Border Area Indicator
CTA Common Temporary Address
CTAP Common Temporary Address Pointer
EB External Bit
EOM End of Message
ETI External Traffic Indicator
FSI Frequency Subset Indicator
IA Initial Address
MD Message Delimiter
PA Paging Area
PR Preamble
RF Radio Frequency
RIC Radio Identity Code
RSVD Reserved
SI System Information
SSI Supplementary System Information
SSN Subsequence Number
SYN synchronisation
TEM Transverse Electro Magnetic
UMI Urgent Message Indicator
Page 11
ETS 300 133-5: July 1992
5 General test requirements
5.1 Number of receivers to be submitted for conformance testing
Six samples of receivers shall be provided for testing.
These receivers shall be programmed with RIC numbers:
010 0000001 010 1100011000111001 00 0000
010 0000001 010 1100011000111001 01 0011
010 0000001 010 1100011000111001 10 0110
010 0000001 010 1100011000111001 11 1001
010 0000001 010 1100011000111001 00 1100
010 0000001 010 1100011000111001 01 1111
The frequency subset number of these receivers shall be set to 01000.
5.2 Normal test conditions
The normal test conditions shall be temperature + 15 °C to + 35 °C and relative humidity from 20 % to 75
%, non condensing.
The normal test voltage shall be that declared by the manufacturer.
5.3 Extreme test conditions
The temperature range shall be - 10 °C to + 55 °C and relative humidity from 20 % to 75 %, non
condensing.
The extreme test voltages shall be declared by the manufacturer.
5.4 Test fixture
A TEM cell shall be used for all tests unless otherwise stated. Test fixtures to enable tests under extreme
voltage conditions shall be provided by the manufacturer if required by the approved testing laboratory.
5.5 Test paging signal
The transmissions shall be in accordance with ETS 300 133-4 [1].
The batch structure used during testing shall contain one address in the address partition followed by one
message in the message partition as shown in subclause 8.1.1 unless otherwise specified.
The test paging message to the receiver under test may be tone only, 10 numeric characters or 55 alpha-
numeric characters according to the feature under test.
For successful calls the receiver shall respond to the transmitted test paging message correctly without
error except as allowed in the average usable sensitivity test defined in Annex A, Clause A.1.
6 RF characteristics
6.1 Performance requirements
The following receiver parameters shall be measured and the specified performance achieved:
i) average usable sensitivity under normal conditions : 25 dBμV/m
This value of 25 dBμV/m shall be referred to as the reference figure;
ii) average usable sensitivity under normal conditions but with a transmitter frequency
offset of ± 200 Hz shall be the same as the reference figure;

Page 12
ETS 300 133-5: July 1992
iii) average usable sensitivity under switching conditions shall be the same as the reference
figure;
iv) average usable sensitivity under extreme temperature and voltage conditions : + 6 dB
on the reference figure;
v) average usable sensitivity under extreme temperature and voltage conditions with a
transmitter frequency offset of ± 200 Hz shall be + 6 dB on the reference figure;
vi) co-channel rejection : 10 dB;
vii) adjacent channel selectivity under normal conditions : 60 dB;
viii) adjacent channel selectivity under extreme conditions : 50 dB;
ix) spurious response immunity : 76 dBμV/m;
x) intermodulation immunity : 70 dBμV/m;
xi) blocking immunity or desensitisation : 84 dBμV/m;
xii) usable input level range : The receiver shall operate on channel at a field strength of 3 V/m;
xiii) sensitivity for combined multipath and quasi synchronous transmissions : 15 dB above
the reference figure;
xiv) spurious emissions:
100 kHz - 1 GHz : 2 nW
1 GHz - 4 GHz : 20 nW
ERMES channels : 2 pW;
xv) channel switching : Receiver is receiving system information on one channel and does
not find its initial address in the address partition. It then switches channels and
prepares to receive signals in its batch on that channel. The receiver shall suffer no
degradation in sensitivity.
6.2 Method of measurement
Measurements shall be conducted on ERMES frequency number 8 (see ETS 300 133-4 [1], subclause
9.2) unless otherwise stated. The measurements shall be conducted according to the following steps:
a) the average usable sensitivity expressed as the field strength shall be measured as described in
Annex A, Clause A.1. The test site shall be complemented with a "simulated man" (see Annex B,
Clause B.1). Any ERMES frequency may be used. All six receivers shall be measured;
b) the measurement procedure for spurious radiations shall be carried out as described in Annex A,
Clause A.2. All six receivers shall be measured;
c) the measurement of the average usable sensitivity shall be repeated for all six receivers under
normal and extreme conditions in the test fixture according to Annex A, Clause A.1;
d) the average usable sensitivity on the lowest and highest ERMES frequencies shall be measured for
all six receivers;
e) measurement of usable input level range: All receivers shall correctly receive four messages out of
four.
All the following measurements shall be carried out on the best and the worst receivers of the six supplied
with respect to sensitivity measured under normal conditions in the test fixture:

Page 13
ETS 300 133-5: July 1992
f) measurement of the co-channel rejection shall be carried out as described in Annex A, Clause A.3;
g) the measurement of the adjacent channel selectivity under normal and extreme conditions shall be
carried out as described in Annex A, Clause A.4;
h) the measurement of the spurious response immunity shall be carried out as described in Annex A,
Clause A.5;
i) the measurement of intermodulation immunity shall be carried out as described in Annex A, Clause
A.6;
j) the measurement of the blocking immunity or desensitisation shall be carried out as described in
Annex A, Clause A.7;
k) the measurements of quasi synchronous sensitivity combined with multipath shall be made at a
simulated speed of 3 km/h. A second signal with the same data content but delayed 50 μs, 1 dB
weaker and 30 Hz RF frequency offset shall be added. The reference test procedure is given in
Annex A, Clause A.8;
l) channel switching: The average usable sensitivity shall be measured with the following test signal: A
batch shall be transmitted consisting of 139 initial addresses numerically higher than the initial
address of the receiver under test. This shall be immediately followed by the test message shown in
subclause 8.1.1 transmitted on the appropriate channel (see ETS 300 133-4 [1], figure 2). Both shall
be of the same batch type (i.e. same batch number), within the same subsequence and neither shall
contain the home operator identity.
7 User functions
7.1 General
Receiver functions are qualified as essential or optional.
Essential functions shall be implemented in so far as they are relevant to the particular receiver paging
category and shall be subject to type approval. Implementation of optional functions shall be left to the
manufacturers' discretion.
The basic version receiver within each receiver paging category is the receiver offering only the essential
functions.
Additional functions not mentioned in this standard are permitted provided that they do not conflict with the
radio interface and do not adversely affect the functions listed in this standard.
Any additional functions incorporated into the receiver shall be declared by the manufacturer.
Each receiver shall be individually identifiable.
7.2 Radio Identity Code
Each receiver shall have one basic Radio Identity Code (RIC).
Further additional RICs may be incorporated so long as the full receiver specification is satisfied for each
RIC.
Discrimination between calls on different RICs shall be offered.

Page 14
ETS 300 133-5: July 1992
7.3 Receiver paging categories
7.3.1 Tone only
A receiver providing this function shall respond to at least one combination of the alert signal indicator bits.
Responses to the remaining seven alert indicator bits shall (if implemented) be clearly distinguishable.
7.3.2 Numeric
A receiver including this function shall provide for the reception of a 20 digit numeric message. The numeric
character set is included in Annex C. Receivers having this function shall also have the tone-only function.
7.3.3 Alphanumeric
A receiver including this function shall provide for the reception of a 400 character text message. The
alphanumeric character set is included in Annex C. Receivers having this function shall also have the
numeric and the tone only functions.
7.3.4 Transparent data
A receiver including this function shall provide for the reception of an arbitrary data message.
7.4 Mandatory functions
7.4.1 Alert functions
Receivers shall respond to at least the type zero alert signal indicator (see ETS 300 133-4 [1], subclause
6.5.1.1) for each RIC.
Provision shall be made for manual termination of an alert signal.
7.4.2 Silent mode
It shall be possible for the user to inhibit the sounding of an audible alert. The receiver shall still receive and
store paging calls even when the alert tone is set to silent mode.
7.4.3 Battery low indication
An indication shall be given of battery exhaustion.
7.5 Optional functions
Optional features, if implemented, shall conform with the relevant part of ETS 300 133-4 [1]. When not
defined in this part of the ETS, manufacturers shall supply test methods and results demonstrating
conformance.
7.5.1 Long message
All receiver categories (other than tone-only) may be capable of handling long messages.
7.5.2 Indication of lost message
All receiver categories, except tone-only, shall have the capability to detect message numbers (see ETS
300 133-4 [1], subclause 6.5.1) and compare the last received number with the number previously
received. If there are one or more numbers missing an indication shall be given.
7.5.3 Urgent message indicator
Receivers shall indicate reception of an urgent message.

Page 15
ETS 300 133-5: July 1992
7.5.4 Message storage and retrieval
Receivers may have memory to store the information received. All receivers having this function shall be
able to use the storage capacity for storing messages of varying length. It shall be possible for the stored
messages to be retrieved.
7.5.5 Memory full
If the receiver memory is full the oldest message not protected against deletion should be erased. The
memory management may be performed differently for the different RICs.
7.5.6 Repeated call indication
In the case where a receiver receives more than one transmission of a message an indication shall be
given accordingly.
8 Tests for essential features
This section defines tests covering the essential requirements of ERMES receivers. All tests shall be
performed with a signal level + 30 dB relative to the average usable sensitivity. Unless otherwise stated,
the tests should be carried out after the receiver has reached steady state conditions. The best and worst
(total of two) receivers of the six supplied shall be used for these tests.
The test protocol used in this Clause complies with ETS 300 133-4 [1]. Part of subclause 5.4 of that
document is reproduced here to identify the test parameters.
�˜˜˜´˜˜˜�˜˜˜´˜˜˜´˜˜˜�˜˜˜˜˜˜˜˜˜´˜˜˜˜˜˜˜˜˜�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜•
” PR‡SYN”SI ‡SI ‡SSI” I IA  ‡ J APT ”  K CODEBLOCKS   ”
* * *
�˜˜˜`˜˜˜—˜˜˜`˜˜˜`˜˜˜—˜˜˜˜˜˜˜˜˜`˜˜˜˜˜˜˜˜˜—˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜‰
‡ SYNCH ‡ SYSTEM INF‡   ADDRESS   ‡    MESSAGE    ‡
‡ PART ‡ PARTITION ‡   PARTITION   ‡   PARTITION   ‡
PR - preamble word
SYN - synchronisation word
SI - system information word
SSI - supplementary system information word
IA - initial address
APT - address partition terminator
CODEBLOCK - interleaved message codeword
I - number of initial addresses
J - number of address partition terminators
K - number of codeblocks in the message partition
Codeword composition of a batch satisfies the following relationships:
0 ≤ I ≤ 139
J = 9 - MOD{(4+I),9)} where MOD {M,N} = M - N*INT(M/N)
and INT returns the integer part of a number.
K ≤ (149 - I - J)/9 first 15 batches of a subsequence.
K ≤ (185 - I - J)/9 last batch of a subsequence.
8.1 Message reception in home network
The purpose of this section is to ensure that the receiver can receive a message in all legitimate locations
within a transmission. The zone and operator details contained within the system information partition shall
indicate home network transmissions to the receiver. The border area indicator shall be set to zero.

Page 16
ETS 300 133-5: July 1992
8.1.1 First message in batch
The receiver shall successfully receive a message which is located in the first possible position in the
message partition. The test transmission shall be constructed as follows:
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜´˜˜˜˜˜�˜˜´˜˜˜˜˜˜˜´˜˜¿
”PR‡SYN”SI‡SI‡SSI”IA‡4*APT”MD‡Message‡MD‡
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜`˜˜˜˜˜—˜˜`˜˜˜˜˜˜˜`˜˜�
Message - a message appropriate to receiver under test.
MD - message delimiter.
"”" - limits of partition.
8.1.2 Last message in batch
The receiver shall successfully receive a message which is located in the last possible position in the same
batch. The test transmission shall be as follows:
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜´˜˜´˜˜˜�˜˜˜˜˜˜˜˜˜˜´˜˜´˜˜˜˜˜˜˜´˜˜˜•
”PR‡SYN”SI‡SI‡SSI”3*PAD‡IA‡APT”  FILL  ‡MD‡Message‡ MD”
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜`˜˜`˜˜˜—˜˜˜˜˜˜˜˜˜˜`˜˜`˜˜˜˜˜˜˜`˜˜˜‰
PAD - an Initial Address, higher than the receiver under test, used to occupy start of address partition.
FILL - codewords other than MD and having no EOM characters used to occupy inactive parts of the
message partition.
8.1.3 Message continued in next batch
The receiver shall successfully receive a message which commences in one batch and finishes in the next.
The sequence shown below has the message delimiter MD, which prefaces the message, as the last
codeword in the first batch. The message is completed in the following batch:
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜´˜˜´˜˜˜�˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜˜�˜˜
”PR‡SYN”SI‡SI‡SSI”3*PAD‡IA‡APT”  FILL  ‡ MD ”
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜`˜˜`˜˜˜—˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜˜—˜˜
˜�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜´˜˜˜˜˜�˜˜˜˜˜˜˜˜˜˜˜´˜˜¿
”PR‡SYN”SI‡SI‡SSI”PAD ‡4*APT” Message  ‡MD‡
˜—˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜`˜˜˜˜˜—˜˜˜˜˜˜˜˜˜˜˜`˜˜�
8.1.4 Message in last available batch
The receiver shall be capable of receiving a message which appears in any batch before the next
addressing opportunity on that channel. The following test transmission illustrates the last possible position
for a message.
NOTE: This may require transmissions on channels other than number 9.
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜´˜˜´˜˜˜�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜�˜
”PR‡SYN”SI‡SI‡SSI”3*PAD‡IA‡APT”    FILL    ”
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜`˜˜`˜˜˜—˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜—˜
followed by 14 batches constructed as:
˜˜�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜�˜˜
”PR‡SYN”SI‡SI‡SSI”5*APT”    FILL   ”
˜˜—˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜—˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜—˜˜

Page 17
ETS 300 133-5: July 1992
and a final batch of:
˜˜�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜´˜˜˜�˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜´˜˜˜˜˜˜˜´˜˜•
”PR‡SYN”SI‡SI‡SSI”4*PAD‡APT”   FILL   ‡MD‡Message‡MD”
˜˜—˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜`˜˜˜—˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜`˜˜˜˜˜˜˜`˜˜‰
The batch containing the message should be in the subsequence following the subsequence containing the
initial address.
8.1.5 Tenure of message
The receiver shall be sent an .i.Initial Address; (IA) with the associated message delayed by 16 batches.
The receiver shall not receive the message.
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜´˜˜´˜˜˜�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜�˜
”PR‡SYN”SI‡SI‡SSI”3*PAD‡IA‡APT”    FILL    ”
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜`˜˜`˜˜˜—˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜—˜
followed by 15 batches constructed as:
˜˜�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜�˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜�˜˜
”PR‡SYN”SI‡SI‡SSI”5*APT”    FILL   ”
˜˜—˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜—˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜˜—˜˜
and a final batch of:
˜˜�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜´˜˜˜�˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜´˜˜˜˜˜˜˜´˜˜•
”PR‡SYN”SI‡SI‡SSI”4*PAD‡APT”   FILL  ‡MD‡Message‡MD”
˜˜—˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜`˜˜˜—˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜`˜˜˜˜˜˜˜`˜˜‰
8.1.6 Two messages in same batch
The receiver shall be capable of receiving two messages in the same transmission. The following test
transmission illustrates a batch containing two messages for the same IA.
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜´˜˜´˜˜´˜˜˜�˜˜´˜˜˜˜˜˜˜˜´˜˜´˜˜˜˜˜˜˜˜´˜˜•
”PR‡SYN”SI‡SI‡SSI”2*PAD‡IA‡IA‡APT”MD‡Message1‡MD‡Message2‡MD”
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜`˜˜`˜˜`˜˜˜—˜˜`˜˜˜˜˜˜˜˜`˜˜`˜˜˜˜˜˜˜˜`˜˜‰
8.1.7 Message continued in the next subsequence
Receiver shall successfully receive a message which commences in one subsequence and finishes in the
next. The test transmission has the MD, which prefaces the message, as the last codeword in the last
batch of the subsequence. The message shall be completed in the first batch of the next subsequence.
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜´˜˜´˜˜˜�˜˜˜˜˜˜˜˜˜˜´˜˜˜�˜˜˜
”PR‡SYN”SI‡SI‡SSI”3*PAD‡IA‡APT”  FILL  ‡ MD”
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜`˜˜`˜˜˜—˜˜˜˜˜˜˜˜˜˜`˜˜˜—˜˜˜
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜´˜˜˜˜˜�˜˜˜˜˜˜˜´˜˜¿
”PR‡SYN”SI‡SI‡SSI”PAD‡4*APT”Message‡MD‡
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜`˜˜˜˜˜—˜˜˜˜˜˜˜`˜˜�
8.2 Message reception in non-home networks
The purpose of this section is to ensure that the receiver can receive messages in areas away from the
home network.
Page 18
ETS 300 133-5: July 1992
8.2.1 Message reception on all ERMES channels
An external message, constructed as follows shall be successfully received by the receiver on each
ERMES channel. The operator code shall not be recognisable to the receiver.
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜´˜˜˜˜˜�˜˜´˜˜˜˜˜˜˜´˜˜¿
”PR‡SYN”SI‡SI‡SSI”IA‡4*APT”MD‡Message‡MD‡
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜`˜˜˜˜˜—˜˜`˜˜˜˜˜˜˜`˜˜�
Bit and word synchronisation shall not be maintained between channels and at least two transmissions
shall be at the extreme of allowable network co-ordination (see ETS 300 133-4 [1], subclause 13.4).
8.2.2 Recognition of zone code
A transmission shall be constructed which contains a message to a home receiver with the same local
address as the receiver under test. The zone code in the SSI word shall be different from the home zone
of the receiver. The receiver shall not receive the message.
8.2.3 Two messages in the same batch
The receiver shall successfully receive a message when the batch also contains a message to a home
receiver with the same local address. A transmission shall be constructed as below. Message 1 is for the
home receiver, message 2 is for the external receiver under test.
NOTE: The PAD in this case will be an initial address lower than that of the receiver under test.
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜´˜˜´˜˜˜˜˜´˜˜˜�˜˜´˜˜˜˜˜˜˜˜´˜˜´˜˜˜˜˜˜˜˜´˜˜•
”PR‡SYN”SI‡SI‡SSI”IA‡IA‡2*PAD‡APT”MD‡Message1‡MD‡Message2‡MD”
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜`˜˜`˜˜˜˜˜`˜˜˜—˜˜`˜˜˜˜˜˜˜˜`˜˜`˜˜˜˜˜˜˜˜`˜˜‰
8.2.4 Message reception in overlap regions (BAI=1)
A continuous transmission indicating the home network shall be sent to the receiver. The BAI shall be set
to one. The receiver shall then successfully receive an external message on another channel as illustrated
below.
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜•
”PR‡SYN”SI‡SI‡SSI”5*APT”
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜‰
˜˜�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜´˜˜˜˜˜�˜˜´˜˜˜˜˜˜˜´˜˜¿
”PR‡SYN”SI‡SI‡SSI”IA‡4*APT”MD‡message‡MD‡
˜˜—˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜`˜˜˜˜˜—˜˜`˜˜˜˜˜˜˜`˜˜�
8.2.5 Message reception in overlap regions (BAI=0)
A continuous transmission indicating the home network shall be sent to the receiver. The BAI shall be set
to zero. The reception quality on the channel shall then be reduced to a level corresponding to a call
success rate not less than 60 %. The receiver shall then successfully receive an external message on
another channel as illustrated below.

Page 19
ETS 300 133-5: July 1992
The method to simulate insufficient quality of reception (BER, codeword error rate, erroneous system
information) and the time constraints shall be stated by the receiver manufacturer.
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜•
”PR‡SYN”SI‡SI‡SSI”5*APT”
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜‰
˜˜�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜´˜˜˜˜˜�˜˜´˜˜˜˜˜˜˜´˜˜¿
”PR‡SYN”SI‡SI‡SSI”IA‡4*APT”MD‡message‡MD‡
˜˜—˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜`˜˜˜˜˜—˜˜`˜˜˜˜˜˜˜`˜˜�
8.3 Maximum length message
A receiver offering the numeric feature shall be capable of receiving a 20 character numeric message. 400
character messages must be received by receivers offering the alphanumeric feature. The message shall
be sent as shown below:
�˜˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜˜˜´˜˜´˜˜˜�˜˜˜˜˜˜˜˜˜´˜˜´˜˜˜˜˜˜˜˜˜˜˜˜˜˜�˜˜˜
”PR‡SYN”SI‡SI‡SSI”3*PAD‡IA‡APT”  FILL ‡MD‡Message part 1”
�˜˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜˜˜`˜˜`˜˜˜—˜˜˜˜˜˜˜˜˜`˜˜`˜˜˜˜˜˜˜˜˜˜˜˜˜˜—˜˜˜
˜´˜˜˜�˜˜´˜˜´˜˜˜�˜˜˜´˜˜˜˜˜�˜˜˜˜˜˜˜˜˜˜˜˜˜˜´˜˜˜¿
PR‡SYN”SI‡SI‡SSI”PAD‡4*APT”Message part 2‡ MD‡
˜`˜˜˜—˜˜`˜˜`˜˜˜—˜˜˜`˜˜˜˜˜—˜˜˜˜˜˜˜˜˜˜˜˜˜˜`˜˜˜�
The message shall be split equally between the end of the first batch and the start of the next batch.
The message shall consist of every character specified in Annex C except DC1, repeated as necessary to
form a 400 character message. The receiver shall be examined to ensure the characters have been
presented correctly. The control characters ESC, LF, and CR shall not cause any character to be
displayed. If the control characters are used in conjunction with any other characters specified by the
manufacturer, these combinations shall not be sent for this test.
8.4 Alert function
A message as defined in subclause 8.1.1 shall be sent to the receiver. The receiver shall successfully
receive the message.
8.4.1 Normal operation
The receiver shall give an alert when the alert signal indicator bits in the message header are set to 000.
The other alert bit combinations shall also be tested. If the receiver gives an alert to one or more of them,
the alerts shall be clearly distinguishable.
8.4.2 Silent mode operation
The receiver shall have a switch by which it can be set to silent mode i.e. no audible alert given.
The silent mode shall not affect the receiver's other operations. The effect of all alert bit combinations in
the silent mode shall be tested and compared to normal operation as defined in subclause 8.4.1.
8.5 Termination of numeric messages
A receiver offering a numeric feature shall not present any character of the numeric message after having
received a codeword in error.
A message as defined in subclause 8.1.1 shall be sent to the receiver. The receiver shall successfully
receive the message.
In the message part after the message header, 18 numeric characters shall be transmitted namely
123456789012345678. The second codeword shall contain three bits in error. The receiver shall present
characters 1234. In the message header the external bit and All shall both be set to zero.

Page 20
ETS 300 133-5: July 1992
8.6 Termination of alphanumeric messages
A receiver offering an alphanumeric feature shall not present any subsequent character after having
received in error:
- the EOM character; or
- the Message Delimiter; or
- two consecutive codewords.
NOTE: A codeword in err
...
