SIST EN 2591-325:2004

Aerospace series - Elements of electrical and optical connection - Test methods - Part 325: Ice resistance

This standard specifies two methods for measuring the ability for a connector to resist ice.
It shall be used together with EN 2591-100.

Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 325: Beständigkeit gegen Eis

Diese Norm legt zwei Verfahren zur Bestimmung der Widerstandsfähigkeit von Steckverbindern gegenüber Eis fest.
Sie ist in Verbindung mit EN 2591-100 anzuwenden.

Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 325: Résistance a la glace

Aerospace series - Elements of electrical and optical connection - Test methods - Part 325: Ice resistance

General Information

• Status: Published
• Publication Date: 30-Apr-2004
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: I08 - Imaginarni 08
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-May-2004
• Due Date: 01-May-2004
• Completion Date: 01-May-2004
• Ref Project: EN 2591-325:2002 - Aerospace series - Elements of electrical and optical connection - Test methods - Part 325: Ice resistance

Overview

EN 2591-325:2002 - "Aerospace series - Elements of electrical and optical connection - Test methods - Part 325: Ice resistance" is a CEN/AECMA European standard that defines test methods to measure a connector’s ability to resist ice. It is intended for electrical and optical connectors used in aerospace equipment and is to be used together with EN 2591-100 (general test method requirements). Keywords: EN 2591-325:2002, ice resistance, aerospace connectors, connector test methods.

Key topics and requirements

• Scope: Specifies two distinct ice-resistance test methods for connectors; applies to elements of electrical and optical connection in aerospace systems.
• Reference: Must be used in conjunction with EN 2591-100 for general test preparation and procedures.
• Specimen preparation: Connectors are fitted with normal accessories and wired per the technical specification. Coupling and uncoupling torque limits must be defined in the technical specification.
• Method A - Water immersion test:
  • Specimens fully immersed in water for 1 minute, then shaken to remove excess water.
  • Placed in a low-temperature chamber at the temperature printed in the standard (shown in the document extract as "( - 6505-) °C") for 1 hour.
  • Procedure repeated three times.
  • After the third immersion specimens are unmated and mated twice; coupling/uncoupling torque measured during the second operation.
• Method B - Water spraying test:
  • Specimens placed in a low-temperature chamber at the temperature printed in the standard (shown as "( - 1805-) °C") for 1 hour.
  • Immediately sprayed with water at the temperature printed in the standard ("(250+) °C") over their entire surface for 5 minutes; spray nozzle placed at a maximum distance of 305 mm.
  • Specimens returned to the chamber at "( - 1805-) °C" for 30 minutes.
  • Coupling and uncoupling torque measurements performed immediately after removal.
• Acceptance: Torque measurements after tests must be within limits specified in the applicable technical specification.

Practical applications

• Ensures ice resistance of aerospace electrical and optical connectors used on airframes, nacelles, sensors and external avionics.
• Used by:
  • Connector and cable harness manufacturers for product qualification.
  • Test laboratories performing environmental certification.
  • Design and reliability engineers assessing connector robustness in cold/icing environments.
  • Procurement and quality teams requiring conformity with aerospace connector test methods.
• Helps reduce in-service failures caused by icing, ensuring reliable mating/unmating and electrical/optical continuity after exposure.

Related standards

• EN 2591-100 - General test methods for aerospace electrical and optical connection elements (mandatory companion standard).
• Other EN 2591 parts cover additional environmental and mechanical test methods for connectors.

This standard is essential for aerospace professionals who specify, design, test or approve connectors where ice formation and cold exposure are operational concerns.

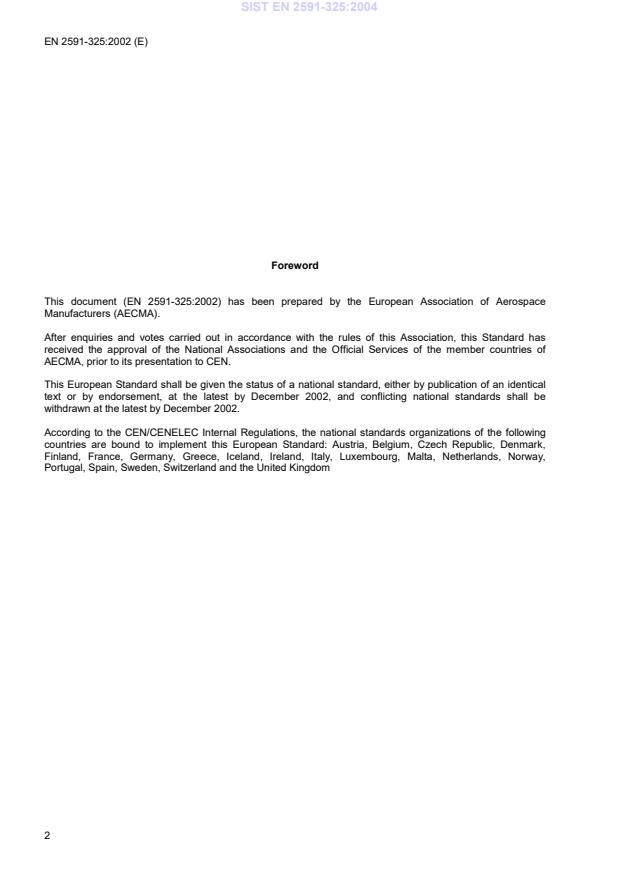

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Elements of electrical and optical connection - Test methods - Part 325: Ice resistanceLuft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 325: Beständigkeit gegen EisSérie aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 325: Résistance a la glaceAerospace series - Elements of electrical and optical connection - Test methods - Part 325: Ice resistance49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2591-325:2002SIST EN 2591-325:2004en01-maj-2004SIST EN 2591-325:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 2591-325June 2002ICS 49.060English versionAerospace series - Elements of electrical and optical connection- Test methods - Part 325: Ice resistanceSérie aérospatiale - Organes de connexion électrique etoptique - Méthodes d'essais - Partie 325: Résistance à laglaceLuft- und Raumfahrt - Elektrische und optischeVerbindungselemente - Prüfverfahren - Teil 325:Beständigkeit gegen EisThis European Standard was approved by CEN on 8 February 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 2591-325:2002 ESIST EN 2591-325:2004
...
