Aluminium and aluminium alloys - Tread plate - Specifications

This document specifies the technical conditions of inspection and delivery, the mechanical properties, the tolerances on dimensions and form of rolled semi-finished aluminium alloy products intended for floor plating, e.g. in vehicle construction, shipbuilding and metallic structures with a raised pattern on one side and a smooth surface on the other side.
It applies to sheets, strips and plates from 1,2 mm up to 20 mm in thickness and up to and including 2 500 mm in width, and to sheets and plates up to 14 000 mm in length.

Aluminium und Aluminiumlegierungen - Bleche mit eingewalzten Mustern - Spezifikationen

Dieses Dokument legt die technischen Lieferbedingungen, mechanischen Eigenschaften, Grenzabmaße und Formtoleranzen von Walzhalbzeug aus Aluminiumlegierungen mit einem eingewalzten, erhabenen Muster auf der einen Seite und einer glatten Fläche auf der anderen Seite fest, das für Bodenbleche vorgesehen ist, z. B. im Fahrzeug-, Schiffs- und Metallbau.
Es gilt für Bleche, Bänder und Platten mit einer Dicke von 1,2 mm bis 20 mm und einer Breite bis 2 500 mm, sowie für Bleche und Platten mit einer Länge bis 14 000 mm.

Aluminium et alliages d'aluminium - Tôles relief - Spécifications

Le présent document spécifie les conditions techniques de contrôle et de livraison, propriétés mécaniques, tolérances dimensionnelles et autres prescriptions relatives aux tôles, bandes et tôles épaisses en aluminium et alliages d'aluminium corroyés, laminées a plat avec un motif en relief sur un côté et une surface lisse sur l'autre côté.
Elle s'applique aux tôles, bandes et tôles épaisses de 1,2 mm a 20 mm d'épaisseur et jusqu'a 2 500 mm de largeur, et aux tôles et tôles épaisses jusqu'a 14 000 mm de longueur.

Aluminij in aluminijeve zlitine - Pločevina z reliefnimi vzorci - Specifikacije

General Information

Status
Published
Publication Date
23-Oct-2007
Withdrawal Date
05-Apr-2007
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
04-Oct-2007
Due Date
09-Dec-2007
Completion Date
24-Oct-2007

RELATIONS

Buy Standard

Standard
SIST EN 1386:2007
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aluminium and aluminium alloys - Tread plate - SpecificationsAluminium et alliages d'aluminium - Tôles relief - SpécificationsAluminium und Aluminiumlegierungen - Bleche mit eingewalzten Mustern - SpezifikationenTa slovenski standard je istoveten z:EN 1386:2007SIST EN 1386:2007en77.150.10Aluminijski izdelkiAluminium productsICS:SIST EN 1386:19981DGRPHãþDSLOVENSKI

STANDARDSIST EN 1386:200701-december-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1386July 2007ICS 77.150.10Supersedes EN 1386:1996

English VersionAluminium and aluminium alloys - Tread plate - SpecificationsAluminium et alliages d'aluminium - Tôles relief -SpécificationsAluminium und Aluminiumlegierungen - Bleche miteingewalzten Mustern - SpezifikationenThis European Standard was approved by CEN on 23 May 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36

B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1386:2007: E

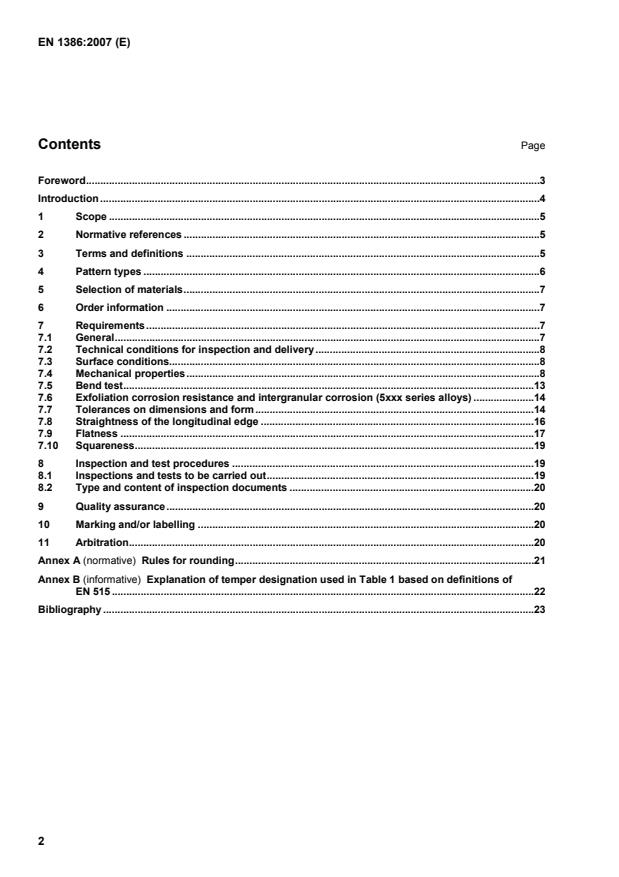

EN 1386:2007 (E) 2 Contents Page Foreword..............................................................................................................................................................3 Introduction.........................................................................................................................................................4 1 Scope......................................................................................................................................................5 2 Normative references............................................................................................................................5 3 Terms and definitions...........................................................................................................................5 4 Pattern types..........................................................................................................................................6 5 Selection of materials............................................................................................................................7 6 Order information..................................................................................................................................7 7 Requirements.........................................................................................................................................7 7.1 General....................................................................................................................................................7 7.2 Technical conditions for inspection and delivery..............................................................................8 7.3 Surface conditions.................................................................................................................................8 7.4 Mechanical properties...........................................................................................................................8 7.5 Bend test...............................................................................................................................................13 7.6 Exfoliation corrosion resistance and intergranular corrosion (5xxx series alloys).....................14 7.7 Tolerances on dimensions and form.................................................................................................14 7.8 Straightness of the longitudinal edge...............................................................................................16 7.9 Flatness................................................................................................................................................17 7.10 Squareness...........................................................................................................................................19 8 Inspection and test procedures.........................................................................................................19 8.1 Inspections and tests to be carried out.............................................................................................19 8.2 Type and content of inspection documents.....................................................................................20 9 Quality assurance................................................................................................................................20 10 Marking and/or labelling.....................................................................................................................20 11 Arbitration.............................................................................................................................................20 Annex A (normative)

Rules for rounding........................................................................................................21 Annex B (informative)

Explanation of temper designation used in Table 1 based on definitions of EN 515...................................................................................................................................................22 Bibliography......................................................................................................................................................23

EN 1386:2007 (E) 3 Foreword This document (EN 1386:2007) has been prepared by Technical Committee CEN/TC 132 “Aluminium and aluminium alloys”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2008, and conflicting national standards shall be withdrawn at the latest by January 2008. This document supersedes EN 1386:1996. Within its programme of work, Technical Committee CEN/TC 132 entrusted CEN/TC 132/WG 7 "Sheets, strips and plates" to revise EN 1386:1996. The following changes have been made: Introduction : added Clause 1: References to EN 485-1 and EN 573-3 have been deleted Clause 2 – Normative references: Updated Clause 4 – Pattern types: "Barley seed" deleted and replaced by "Rice grain" (Figure 4) Clause 5 – Selection of materials: Added Clause 6: Modified Clause 7: Modified and in Table 1, alloy EN AW-5026 and footnote for EN AW-7072 added Clause 8: Added Clause 9: Added Clause 10: Added Annex B (informative): Added Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. CEN/TC 132 affirms it is its policy that in the case when a patentee refuses to grant licenses on standardised standard products under reasonable and not discriminatory conditions, then this product shall be removed from the corresponding document. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EN 1386:2007 (E) 4

Introduction It is essential that aluminium alloy semi-finished rolled products intended for use floor plating, e.g. in vehicle construction, shipbuilding and metallic structures satisfy a certain number of specific technical conditions for inspection and delivery as well as specific mechanical and other properties which distinguish them from similar semi-finished products for general applications.

EN 1386:2007 (E) 5 1 Scope This document specifies the technical conditions of inspection and delivery, the mechanical properties, the tolerances on dimensions and form of rolled semi-finished aluminium alloy products intended for floor plating, e.g. in vehicle construction, shipbuilding and metallic structures with a raised pattern on one side and a smooth surface on the other side. It applies to sheets, strips and plates from 1,2 mm up to 20 mm in thickness and up to and including 2 500 mm in width, and to sheets and plates up to 14 000 mm in length. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 485-1, Aluminium and aluminium alloys — Sheet, strip and plate — Part 1: Technical conditions for inspection and delivery EN 573-3, Aluminium and aluminium alloys — Chemical composition and form of wrought products — Part 3: Chemical composition EN 10002-1, Metallic materials — Tensile testing — Part 1: Method of test at ambient temperature EN 10204, Metallic products — Types of inspection documents EN 12258-1:1998, Aluminium and aluminium alloys — Terms and definitions — Part 1: General terms EN ISO 7438, Metallic materials — Bend test (ISO 7438:2005) ASTM G66, Standard Test Method for Visual Assessment of Exfoliation Corrosion Susceptibility of 5XXX Series Aluminium Alloys (ASSET Test) ASTM G67, Standard Test Method for Determining the Susceptibility to Intergranular Corrosion of 5XXX Series Aluminium Alloys by Mass Loss After Exposure to Nitric Acid (NAMLT Test) ASTM B928, Standard Specification for High Magnesium Aluminium Alloy Sheet and Plate for Marine Service 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 12258-1:1998 and the following apply. 3.1 raised pattern geometrical modification of one side of the surface of a flat rolled product obtained by submitting such product to a final rolling operation using a specially prepared roll engraved with an appropriate pattern NOTE The raised pattern can be obtained either by cold-rolling or hot-rolling. 3.2 nominal thickness thickness of the product outside the raised areas NOTE It does not include the height of the raised pattern.

EN 1386:2007 (E) 6 3.3 order document document or set of order documents agreed between supplier and purchaser at the time of order NOTE An order document can be an order of the purchaser confirmed by the supplier or a quotation of the supplier confirmed by the purchaser. 4 Pattern types The most common patterns and their standard designations are shown in Figures 1 to 5 (pattern illustrations are about half actual size).

Figure 1 — Two bar
Figure 2 — Five bar
Figure 3 — Diamond
EN 1386:2007 (E) 7

Figure 4 — Rice grain Figure 5 —Almond 5 Selection of materials Appropriate material of the series 1000 (with a minimum aluminium content of 99,5 %), 3000, 5000, 6000 and 7000 can be used. Their chemical composition shall conform to EN 573-3. The following alloys are recommended for use as floor plating, e.g. in a vehicle construction, shipbuilding and metallic structures: EN AW-1050A, EN AW-3003, EN AW-3103, EN AW-5026, AW-5052, EN AW-5083, EN AW-5086, EN AW-5754, EN AW-6061, EN AW-6082 and EN AW-7020. NOTE For marine application with EN AW-5083 and EN AW-5086 in the H116 temper, 7.6 applies. 6 Order information The relevant requirements of EN 485-1 shall apply, with the following additional provisions: a) the order document shall refer to the present document; b) the order document should specify the type of the inspection document according to EN 10204 (see 8.2); c) the order document shall specify mechanical and other relevant properties, if they differ from those specified in the present standard or if materials other than those recommended in the present document are used; d) the order document should specify the height of the raised pattern (see 7.7.1) and the tolerances on thickness applicable (see 7.7.2). 7 Requirements 7.1 General With special regard to the final use, the supplier and the purchaser shall take into account additional legal regulation and standards and the suitability of the material chosen.

EN 1386:2007 (E) 8 7.2 Technical conditions for inspection and delivery Unless otherwise specified in the present document or in the order document, the relevant requirements of EN 485-1 shall apply. 7.3 Surface conditions The product shall be free from defects prejudicial to its suitable and proper use. Whilst an operation designed to mask a fault is not permitted, the elimination of a superficial fault is permissible, provided that the dimensional tolerances and material properties continue to meet the specifications. NOTE Reverse side can show ripples, due to partial penetration of pattern during levelling. 7.4 Mechanical properties For alloys given in Clause 5, the mechanical properties at ambient temperature shall conform to Table 1. Higher mechanical properties can be agreed upon between supplier and purchaser. The mechanical properties at ambient temperature shall be measured according to EN 10002-1.

EN 1386:2007 (E) 9 Table 1 — Mechanical properties Specified thickness t mm Rm MPa Rp0,2 MPa Elongation, min % Alloy Temperover up to min. max. min. max. A50mm A Recommended min. bend radius at 90° F ≥ 1,2 20,0 - - - - - - - ≥ 1,2 1,5 105 145 75 - 2 - 1 t 1,5 3,0 105 145 75 - 3 - 1,5 t 3,0 6,0 105 145 75 - 4 - 2 t EN AW-1050A

[Al 99,5] H244 6,0 20,0 105 145 75 - 5 8 - F ≥ 1,2 20,0 - - - - - - - ≥ 1,2 1,5 120 180 80 - 3 - 1 t 1,5 3,0 120 180 80 - 4 - 1,25 t 3,0 6,0 120 180 80 - 5 - 2 t H224 6,0 20,0 120 180 80 - 6 10 - ≥ 1,2 1,5 140 200 115 - 2 - 1 t 1,5 3,0 140 200 115 - 3 - 1,25 t 3,0 6,0 140 200 115 - 4 - 2 t EN AW-3003

[Al Mn1Cu] H244 6,0 20,0 140 200 110 - 5 7 - F ≥ 1,2 20,0 - - - - - - - ≥ 1,2 1,5 115 175 75 - 3 - 1,25 t 1,5 3,0 115 175 75 - 4 - 1,5 t 3,0 6,0 115 175 75 - 5 - 2,5 t H224 6,0 20,0 115 175 75 - 6 10 - ≥ 1,2 1,5 140 195 110 - 2 - 1,25 t 1,5 3,0 140 195 110 - 3 - 1,5 t 3,0 6,0 140 195 110 - 4 - 2,5 t EN AW-3103 [Al Mn1] H244 6,0 20,0 140 195 110 - 5 7 - O/H111≥ 3 6 200 - 120 - 5 - - EN AW-5026 [AI Mg4,5 Mn SiFe] a

6 20 200 - 120 - - 6 -

EN 1386:2007 (E) 10 Table 1 (continued) Specified thickness t mm Rm MPa Rp0,2 MPa Elongation, min % Alloy Temper over up to min. max. min. max. A50mm A Recommended min. bend radius at 90° F ≥ 1,2 20,0 - - - - - - - ≥ 1,2 1,5 170 240 65 - 8 - 1 t 1,5 3,0 170 240 65 - 10 - 1 t 3,0 6,0 170 240 65 - 12 - 1,75 t H114 6,0 20,0 165 240 65 - 14 15 - ≥ 1,2 1,5 210 270 130 - 4 - 1,5 t 1,5 3,0 210 270 130 - 6 -

...
