SIST EN 12200-1:2016
(Main)Plastics rainwater piping systems for above ground external use - Unplasticized poly(vinyl chloride) (PVC-U) - Part 1: Specifications for pipes, fittings and the system
Plastics rainwater piping systems for above ground external use - Unplasticized poly(vinyl chloride) (PVC-U) - Part 1: Specifications for pipes, fittings and the system
This standard specifies the requirements for pipes, fittings, brackets and the system of unplasticized poly(vinyl chloride) (PVC-U) intended for use as above-ground external rainwater downpipes.
It also specifies the requirements for metallic brackets.
It specifies both solid wall pipes and fittings, (i.e. product manufactured from a single layer), as well as solid wall multi-layer pipes.
Pipes can be used in conjunction with fittings and brackets of acrylic materials provided these polymers meet the performance requirements of this standard.
It also specifies the test parameters for the test methods referred to in this standard.
These products are usually used in conjunction with gutters conforming to EN 607[1]. They are not intended for use with products conforming to EN 612[2].
It is applicable to PVC-U rainwater systems of circular, square, rectangular or any other shape with sealed (rubber ring or solvent cement) or unsealed joints.
This standard covers a range of pipes and fittings sizes.
NOTE 1 It is the responsibility of the purchaser or specifier to make the appropriate selections from the size range to take into account their particular requirements and any relevant national regulations and installation practices or codes.
NOTE 2 The term "rainwater" in this standard is used also to encompass "surface water" run-off from buildings.
Kunststoff-Rohrleitungssysteme für außenliegende Regenfallleitungen - Weichmacherfreies Polyvinylchlorid (PVC-U) - Teil 1: Anforderungen an Rohre, Formstücke und das Rohrleitungssystem
Diese Europäische Norm legt Anforderungen an Rohre, Formstücke, Rohrschellen und das Rohrleitungssystem aus weichmacherfreiem Polyvinylchlorid (PVC-U) für die Anwendung in außenliegenden Regenwasser-Rohrleitungssystemen fest.
Sie legt zudem fest:
1) die Anforderungen an Rohrschellen aus Metall;
2) die Anforderungen sowohl für Vollwandrohre und formstücke (d. h. aus einer einzelnen Schicht hergestellte Erzeugnisse) als auch für Mehrschicht-Vollwandrohre;
3) die Prüfparameter für die Prüfverfahren, auf die in dieser Norm verwiesen wird.
Rohre können in Verbindung mit Formstücken und Rohrschellen aus Acryl-Werkstoffen verwendet werden, sofern diese Polymere den Anforderungen an die Gebrauchstauglichkeit nach dieser Norm entsprechen.
Die Produkte werden üblicherweise mit Dachrinnen nach EN 607 [1] verwendet. Sie sind nicht für die Anwendung mit Produkten nach EN 612 [2] vorgesehen.
Diese Norm gilt für Regenwasser-Rohrleitungssysteme aus PVC U mit Dichtring- oder Klebverbindung (gedichtetes System) oder mit Steckverbindung ohne Dichtmittel (nicht gedichtetes System) mit kreisförmigem, quadratischem, recht¬eckigem oder einem beliebigen anderen Querschnitt.
Diese Norm enthält Festlegungen für Rohrreihen für Rohre und Formstücke.
ANMERKUNG 1 Der Anwender bzw. Auftraggeber ist unter Berücksichtigung der eigenen Anforderungen sowie der geltenden nationalen Festlegungen und Verlegepraktiken oder vorschriften für die entsprechende Auswahl dieser Kriterien verantwortlich.
ANMERKUNG 2 In dieser Norm wird der Begriff "Regenwasser" so verwendet, dass er auch von Gebäuden ablaufendes "Oberflächenwasser" (wie in EN 752 [6] festgelegt) einschließt.
Systèmes de canalisations de descentes d'eaux pluviales en plastique à usage externe en aérien - Poly(chlorure de vinyle) non plastifié (PVC-U) - Partie 1: Spécifications pour tubes, raccords et le système
La présente Norme européenne spécifie les exigences pour les tubes, les raccords, les colliers et le système fabriqués à partir de poly(chlorure de vinyle) (PVC U) non plastifié destinés à être utilisés pour les systèmes de canalisations de descentes d'eaux pluviales aériennes à l'extérieur des bâtiments.
Elle spécifie également :
a) les exigences pour les colliers métalliques;
b) à la fois les tubes et raccords à paroi compacte (c.-à-d., produit fabriqué à partir d’un simple couche), et les tubes multicouches à parois compactes;
c) les paramètres d'essais pour les méthodes d'essais référencées dans la présente norme.
Les tubes peuvent être utilisés conjointement avec des raccords et colliers à base de matériaux acryliques sous réserve que ces polymères satisfassent aux exigences de performance de la présente norme.
Ces produits sont habituellement utilisés conjointement avec les gouttières conformes à l’ EN 607 [1]. Ils ne sont pas destinés à être utilisés conjointement avec des produits conformes à l' EN 612 [2].
La présente norme s'applique aux descentes d'eaux pluviales en PVC-U, circulaires, carrées, rectangulaires ou avec d'autres formes, étanches (avec bagues d'étanchéité ou à coller) ou non étanches.
La présente norme couvre une gamme de dimensions de tubes et de raccords.
NOTE 1 Il est de la responsabilité de l'acheteur ou du prescripteur de faire les sélections appropriées à partir de gammes de dimensions en tenant compte de leurs exigences particulières et de tout règlement national approprié et des pratiques ou codes de pose.
NOTE 2 Le terme « eaux pluviales » utilisé dans la présente norme inclut les « eaux de surface » (tel que défini dans l' EN 752 [6]) du ruissellement des bâtiments.
Cevni sistemi iz polimernih materialov za odvod padavinskih voda za zunanjo uporabo - Nemehčan polivinilklorid (PVC-U) - 1. del: Specifikacije za cevi, fitinge in sistem
Ta standard določa zahteve za cevi, fitinge, nosilce in sistem iz nemehčanega polivinilklorida (PVC-U), ki so namenjeni za uporabo kot nadzemni zunanji odtočni žlebovi za deževnico.
Določa tudi zahteve za kovinske nosilce.
Določa tako trdne stenske cevi in fitinge (tj. izdelek, izdelan iz ene same plasti) kot tudi trdne stenske večplastne cevi.
Cevi se lahko uporabljajo skupaj s fitingi in nosilci iz akrilnih materialov pod pogojem, da ti polimeri izpolnjujejo zahteve glede učinkovitosti iz tega standarda.
Določa tudi preskusne parametre za preskusne metode iz tega standarda.
Ti izdelki se običajno uporabljajo skupaj z žlebovi, ki izpolnjujejo zahteve standarda EN 607[1]. Niso namenjeni za uporabo z izdelki, ki izpolnjujejo zahteve standarda EN 612[2].
Uporablja se za sisteme za deževnico iz nemehčanega polivinilklorida krožne, kvadratne ali kakršne koli druge oblike z zatesnjenimi (gumijasti obroč ali topilen cement) ali nezatesnjenimi spoji.
Ta standard zajema širok razpon velikosti cevi in fitingov.
OPOMBA 1: Za ustrezno izbiro iz razpona velikosti je odgovoren kupec ali projektant, pri čemer mora upoštevati posebne zahteve ter vse veljavne nacionalne predpise in prakse ali kodekse vgradnje.
OPOMBA 2: Izraz »deževnica« v tem standardu zaobjema »površinske vode«, ki se stekajo s stavb.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VLVWHPKunststoff-Rohrleitungssysteme für außenliegende Regenfallleitungen - Weichmacherfreies Polyvinylchlorid (PVC-U) - Teil 1: Anforderungen an Rohre, Formstücke und das RohrleitungssystemSystèmes de canalisations de descentes d'eaux pluviales en plastique à usage externe en aérien - Poly(chlorure de vinyle) non plastifié (PVC-U) - Partie 1: Spécifications pour tubes, raccords et le systèmePlastics rainwater piping systems for above ground external use - Unplasticized poly(vinyl chloride) (PVC-U) - Part 1: Specifications for pipes, fittings and the system93.025Zunanji sistemi za prevajanje vodeExternal water conveyance systems23.040.03Cevovodi za zunanje sisteme transporta vode in njihovi deliPipeline and its parts for external water conveyance systemsICS:Ta slovenski standard je istoveten z:EN 12200-1:2016SIST EN 12200-1:2016en,fr,de01-junij-2016SIST EN 12200-1:2016SLOVENSKI
STANDARDSIST EN 12200-1:20011DGRPHãþD
SIST EN 12200-1:2016
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12200-1
April
t r s x ICS
t uä r v rä t r Supersedes EN
s t t r ræ sã t r r rEnglish Version
Plastics rainwater piping systems for above ground Part
sã Specifications for pipesá fittings and the system Systèmes de canalisations de descentes d 5eaux pluviales en plastique à usage externe en aérien æ
sã Spécifications pour tubesá raccords et le système
KunststoffæRohrleitungssysteme für außenliegende Regenfallleitungen æ Weichmacherfreies Rohreá Formstücke und das Rohrleitungssystem This European Standard was approved by CEN on
{ January
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s t t r ræ sã t r s x ESIST EN 12200-1:2016
EN 12200-1:2016 (E) 2

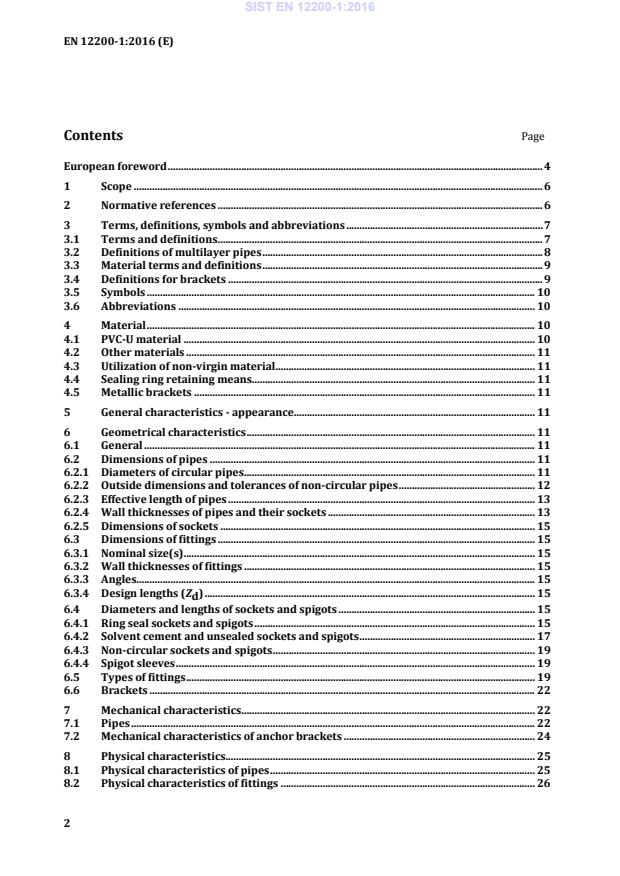

Contents
Page European foreword . 4 1 Scope . 6 2 Normative references . 6 3 Terms, definitions, symbols and abbreviations . 7 3.1 Terms and definitions . 7 3.2 Definitions of multilayer pipes . 8 3.3 Material terms and definitions . 9 3.4 Definitions for brackets . 9 3.5 Symbols . 10 3.6 Abbreviations . 10 4 Material . 10 4.1 PVC-U material . 10 4.2 Other materials . 11 4.3 Utilization of non-virgin material . 11 4.4 Sealing ring retaining means. 11 4.5 Metallic brackets . 11 5 General characteristics - appearance. 11 6 Geometrical characteristics . 11 6.1 General . 11 6.2 Dimensions of pipes . 11 6.2.1 Diameters of circular pipes . 11 6.2.2 Outside dimensions and tolerances of non-circular pipes . 12 6.2.3 Effective length of pipes . 13 6.2.4 Wall thicknesses of pipes and their sockets . 13 6.2.5 Dimensions of sockets . 15 6.3 Dimensions of fittings . 15 6.3.1 Nominal size(s) . 15 6.3.2 Wall thicknesses of fittings . 15 6.3.3 Angles. 15 6.3.4 Design lengths (Zd) . 15 6.4 Diameters and lengths of sockets and spigots . 15 6.4.1 Ring seal sockets and spigots . 15 6.4.2 Solvent cement and unsealed sockets and spigots . 17 6.4.3 Non-circular sockets and spigots . 19 6.4.4 Spigot sleeves . 19 6.5 Types of fittings . 19 6.6 Brackets . 22 7 Mechanical characteristics . 22 7.1 Pipes . 22 7.2 Mechanical characteristics of anchor brackets . 24 8 Physical characteristics . 25 8.1 Physical characteristics of pipes . 25 8.2 Physical characteristics of fittings . 26 SIST EN 12200-1:2016
EN 12200-1:2016 (E) 3
9 Fitness for purpose of joint and system . 26 10 Sealing rings . 27 11 Adhesives . 27 12 Marking . 27 12.1 General . 27 12.2 Minimum required marking of pipes . 28 12.3 Minimum required marking of fittings . 28 12.4 Minimum required marking of brackets . 29 Annex A (informative)
Utilization of non-virgin material . 30 A.1 Own reprocessed material . 30 A.2 External reprocessed and recycled material with agreed specification . 30 A.3 External reprocessed and recycled material not covered by an agreed specification 31 Annex B (informative)
Survey of possible use of reprocessed and recycled material . 33 Bibliography . 34
SIST EN 12200-1:2016
EN 12200-1:2016 (E) 4
European foreword This document (EN 12200-1:2016) has been prepared by Technical Committee CEN/TC 155 “Plastics piping systems and ducting systems”, the secretariat of which is held by NEN. This document supersedes EN 12200-1:2000. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by October 2016, and conflicting national standards shall be withdrawn at the latest by October 2016. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This European Standard has been prepared in liaison with CEN/TC 128 “Roof covering products for discontinuous laying and products for wall cladding” taking into account EN 607 [1] and EN 1462 and CEN/TC 165 “Waste water engineering” taking into account the design guidance in EN 12056-3 [4]. This standard is a Part of a System Standard for plastics piping systems of a particular material for a specified application. There are a number of such System Standards. System Standards are based on the results of the work undertaken in ISO/TC 138 “Plastics pipes, fittings and valves for the transport of fluids”, which is a Technical Committee of the International Organization for Standardization (ISO). They are supported by separate standards on test methods to which references are made throughout the System Standard. The System Standards are consistent with general standards on functional requirements and on recommended practice for installation. EN 12200 consists of the following Parts, under the general title “Plastics rainwater piping systems for above ground external use — Unplasticized poly(vinyl chloride) (PVC-U)”: — Part 1: Requirements for pipes fittings and the system (the present standard); — Part 2: Guide for the assessment of conformity [3]. For Rainwater discharge systems used internally within buildings the following standards apply: EN 1329, Plastics piping systems for soil and waste discharge (low and high temperature) within the building structure — Unplasticized poly(vinyl chloride) (PVC-U) EN 1451, Plastics piping systems for soil and waste discharge (low and high temperature) within the building structure — Polypropylene (PP) EN 1453, Plastics piping systems with structured-wall pipes for soil and waste discharge (low and high temperature) inside buildings – Unplasticized poly(vinyl chloride) (PVC-U) SIST EN 12200-1:2016
EN 12200-1:2016 (E) 5
EN 1455, Plastics piping systems for soil and waste discharge (low and high temperature) within the building structure — Acrylonitrile-butadiene-styrene (ABS) EN 1519, Plastics piping systems for soil and waste discharge (low and high temperature) within the building structure — Polyethylene (PE) EN 1565, Plastics piping systems for soil and waste discharge (low and high temperature) within the building structure — Styrene copolymer blends (SAN+PVC) EN 1566, Plastics piping systems for soil and waste discharge (low and high temperature) within the building structure — Chlorinated poly(vinyl chloride) (PVC-C) According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 12200-1:2016
EN 12200-1:2016 (E) 6
1 Scope This European Standard specifies the requirements for pipes, fittings, brackets and the system of unplasticized poly(vinyl chloride) (PVC-U) intended for use as above-ground external rainwater piping systems. It also specifies: a) The requirements for metallic brackets. b) Both solid wall pipes and fittings, (i.e. product manufactured from a single layer), as well as solid wall multi-layer pipes. c) The test parameters for the test methods referred to in this standard. Pipes can be used in conjunction with fittings and brackets of acrylic materials provided these polymers meet the performance requirements of this standard. The products are usually used in conjunction with gutters conforming to EN 607 [1]. They are not intended for use with products conforming to EN 612 [2]. This standard is applicable to PVC-U rainwater systems of circular, square, rectangular or any other shape with sealed (rubber ring or solvent cement) or unsealed joints. This standard covers a range of pipes and fittings sizes. NOTE 1
It is the responsibility of the purchaser or specifier to make the appropriate selections from the size range to take into account their particular requirements and any relevant national regulations and installation practices or codes. NOTE 2 The term “rainwater” in this standard is used also to encompass “surface water” (as defined in EN 752 [6]) run-off from buildings. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 513:1999, Unplasticized polyvinylchloride (PVC-U) profiles for the fabrication of windows and doors - Determination of the resistance to artificial weathering EN 681-1, Elastomeric seals - Materials requirements for pipe joint seals used in water and drainage applications - Part 1: Vulcanized rubber EN 681-2, Elastomeric Seals - Materials requirements for pipe joint seals used in water and drainage applications - Part 2: Thermoplastic elastomers EN 1462, Brackets for eaves gutters - Requirements and testing EN 12095, Plastics piping systems - Brackets for rainwater piping systems - Test method for bracket strength CEN/TS 14541:2013, Plastics pipes and fittings - Characteristics for utilisation of non-virgin PVC-U, PP and PE materials EN 14680, Adhesives for non-pressure thermoplastics piping systems - Specifications SIST EN 12200-1:2016
EN 12200-1:2016 (E) 7
EN 14814, Adhesives for thermoplastic piping systems for fluids under pressure - Specifications EN 20105-AO2, Textiles — Tests for colour fastness — Part A02: Grey scale for assessing change in colour (ISO 105-A02) EN ISO 306, Plastics - Thermoplastic materials - Determination of Vicat softening temperature (VST) (ISO 306) EN ISO 472, Plastics - Vocabulary (ISO 472) EN ISO 580, Plastics piping and ducting systems - Injection-moulded thermoplastics fittings - Methods for visually assessing the effects of heating (ISO 580) EN ISO 1043-1, Plastics - Symbols and abbreviated terms - Part 1: Basic polymers and their special characteristics (ISO 1043-1) EN ISO 2505, Thermoplastics pipes - Longitudinal reversion - Test method and parameters (ISO 2505) EN ISO 3126, Plastics piping systems - Plastics components - Determination of dimensions (ISO 3126) EN ISO 4892-2, Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps (ISO 4892-2) EN ISO 4892-3, Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps (ISO 4892-3) EN ISO 8256, Plastics - Determination of tensile-impact strength (ISO 8256) ISO 3127, Thermoplastics pipes — Determination of resistance to external blows — Round-the-clock method ISO 6259-2, Thermoplastics pipes — Determination of tensile properties — Part 2: Pipes made of unplasticized poly(vinyl chloride) (PVC-U), chlorinated poly (vinyl chloride) (PVC-C) and high-impact poly (vinyl chloride) (PVC-HI) ISO 13254, Thermoplastics piping systems for non-pressure applications — Test method for water tightness 3 Terms, definitions, symbols and abbreviations For the purposes of this document, the following terms, definitions, symbols and abbreviations apply. 3.1 Terms and definitions In addition to the terms and definitions given below, the terms and definitions given in EN ISO 472 and EN ISO 1043-1 apply. 3.1.1 nominal size DN numerical designation of the size of a component, other than a component designated by thread size, which is approximately equal to the manufacturing dimension, in millimetres (mm) SIST EN 12200-1:2016
EN 12200-1:2016 (E) 8
3.1.2 nominal size DN/OD nominal size, related to the outside diameter 3.1.3 nominal outside diameter (dn) specified outside diameter, in millimetres, assigned to a nominal size DN/OD 3.1.4 outside diameter (de) value of the measurement of the outside diameter through its cross-section at any point of a pipe or spigot of a fitting, rounded to the next greater 0,1 mm 3.1.5 mean outside diameter (dem) value of the measurement of the outer circumference of a pipe or spigot of a fitting in any cross-section, divided by
mm 3.1.6 mean inside diameter of a pipe (dim) arithmetical mean of a number of measurements of the inside diameter of a pipe in the same cross-section 3.1.7 mean inside diameter of a socket (dsm) arithmetical mean of a number of measurements of the inside diameter of a socket in the same cross-section 3.1.8 wall thickness (e) value of the measurement of the wall thickness at any point around the circumference of a component rounded to the next greater 0,1 mm 3.1.9 mean wall thickness (em) arithmetical mean of a number of measurements of the wall thickness, regularly spaced around the circumference and in the same cross-section of a component, including the measured minimum and the measured maximum values of the wall thickness in that cross-section 3.2 Definitions of multilayer pipes NOTE: These definitions were taken from CEN ISO/TR 27165 [5]. 3.2.1 solid wall multilayer pipe pipe with smooth internal and external surface, having co-extruded layers on either or both the outside and/or inside of the pipe 3.2.2 external layer of multilayer pipe layer subject to direct UV exposure SIST EN 12200-1:2016
EN 12200-1:2016 (E) 9
3.2.3 internal layer of multilayer pipe layer not subject to direct UV exposure 3.3 Material terms and definitions 3.3.1 virgin material material in a form such as granules or powder that has not been subjected to use or processing other than that required for its manufacture and to which no reprocessed or recycled material has been added 3.3.2 own reprocessed material material prepared from rejected unused pipes, gutters or fittings, including trimmings from the production of pipes, gutters or fittings, that will be reprocessed in a manufacturer's plant after having been previously processed by the same manufacturer by a process such as moulding or extrusion, and for which the complete formulation is known 3.3.3 external reprocessed material material comprising either one of the following forms: a) material from rejected unused pipes, gutters or fittings or trimmings there from, that will be reprocessed and that were originally processed by another manufacturer; b) material from the production of unused PVC-U products other than pipes and fittings, regardless of where they are manufactured 3.3.4 recycled material material comprising either of the following forms: a) material from used pipes or fittings which have been cleaned and crushed or ground; b) material from used PVC-U products other than pipes or fittings which have been cleaned and crushed or ground 3.4 Definitions for brackets 3.4.1 anchor bracket bracket designed to be fixed to a wall or other support and attached to a socket of a pipe or fitting to prevent the socket from moving under the effect of thermal expansion Note 1 to entry: Some anchor brackets can be adapted to act as a guide bracket (see 3.4.2). 3.4.2 guide bracket bracket designed to be fixed to a wall or other support and to fit a pipe sufficiently loosely to allow longitudinal thermal movement whilst preventing the pipe from bowing between anchor brackets Note 1 to entry:
By fixing a guide bracket tightly below a fitting on vertical pipework, it can be made to act as an anchor bracket (see 3.4.1). SIST EN 12200-1:2016
EN 12200-1:2016 (E) 10
3.5 Symbols For the purposes of this document, the following symbols apply. A length of engagement C depth of sealing zone de outside diameter dem mean outside diameter dim mean inside diameter of pipe or spigot dn nominal outside diameter ds inside diameter of a socket dsm mean inside diameter of a socket e wall thickness (at any point) em mean wall thickness e2 wall thickness of a socket e3 wall thickness at the groove L1 length of spigot L2 length of socket l effective length of a pipe Zd design length (Zd length) of a fitting
nominal angle of a fitting 3.6 Abbreviations For the purposes of this document, the following abbreviations apply. DN nominal size DN/OD nominal size, outside diameter related PVC-U unplasticized poly(vinyl chloride) TIR true impact rate 4 Material 4.1 PVC-U material The compound/ formulation shall be PVC to which are added those additives that are needed to facilitate the manufacture of components conforming to the requirements of this standard. The PVC content shall be at least 80 % by mass for pipes and 85 % by mass for injection-moulded fittings and brackets and shall be determined by calculation. In case of dispute, the PVC content can also be determined in accordance with EN 1905. SIST EN 12200-1:2016
EN 12200-1:2016 (E) 11
4.2 Other materials Fittings, brackets and the external layer of the pipe may be made from acrylic polymers provided they meet the requirements in Table 12. 4.3 Utilization of non-virgin material Utilization of non-virgin material shall conform to Annex A (normative). 4.4 Sealing ring retaining means Sealing rings may be retained using means made from polymers other than PVC-U, provided the joints conform to the requirements given in Table 12. 4.5 Metallic brackets All such components shall fulfil the material and corrosion resistance requirements of EN 1462. 5 General characteristics - appearance When viewed without magnification, the internal and external surfaces of pipes and fittings shall be smooth, clean and free from grooving, blistering, impurities, pores or other surface irregularity likely to prevent conformity of pipes and fittings to this standard. Each end of a pipe or a fitting shall be cleanly cut, if applicable, and shall be square to its axis. 6 Geometrical characteristics 6.1 General Dimensions shall be measured in accordance with EN ISO 3126. In case of dispute the reference temperature is (23 ± 2) °C. NOTE Figures 1 to 12 are schematic sketches only, to indicate the relevant dimensions. They do not necessarily represent manufactured components. 6.2 Dimensions of pipes 6.2.1 Diameters of circular pipes The mean diameters of circular pipes shall conform to Table 1. SIST EN 12200-1:2016
EN 12200-1:2016 (E) 12
Table 1 — Pipe diameters Dimensions in millimetres Nominal size DN/OD Nominal outside diameter Mean outside diameter Mean inside diameter Internal cross-sectional area a (mm2)
dn dem,min dem,max dim,min
50 53 b 60 63 68 b 70 75 80 82 90 100 105 b 110 125 140 160 50 53 60 63 68 70 75 80 82 90 100 105 110 125 140 160 50,0 53,0 60,0 63,0 68,3 70,0 75,0 80,0 82,0 90,0 100,0 105,5 110,0 125,0 140,0 160,0 50,3 53,3 60,3 63,3 68,7 70,4 75,4 80,4 82,4 90,4 100,4 105,9 110,4 125,4 140,5 160,5 46,3 49,3 56,3 59,3 64,6 66,3 71,3 76,0 78,0 85,6 95,4 100,7 104,7 119,1 133,6 152,5 1684 1909 2490 2762 3278 3452 3993 4536 4788 5755 7148 7964 8610 11141 14019 18265 a For the determination of the wall thickness of non-circular pipes and their sockets, see 6.2.4.2. b These sizes are based on the inside diameter series in EN 476 and are not interchangeable with other pipes conforming to the standards listed in the foreword. 6.2.2 Outside dimensions and tolerances of non-circular pipes The pipe cross-section may be square, rectangular or any other shape. The external sizes shall be given by the manufacturer. The tolerances on the external sizes shall conform to Table 1 using the largest dimension as the nominal size and rounding down to the nearest outside diameter as given in the table. See Figure 1. EXAMPLE For a rectangular pipe of 80 × 65 the applicable tolerances would be as DN 80.
Figure 1 — Dimensions of non-circular pipes SIST EN 12200-1:2016
EN 12200-1:2016 (E) 13
6.2.3 Effective length of pipes The effective length (useful length) of a pipe, l, shall be not less than that specified by the manufacturer when measured as shown in Figure 2.
Figure 2 — Effective length of pipe 6.2.4 Wall thicknesses of pipes and their sockets 6.2.4.1 Wall thicknesses of pipes and their sockets - circular The wall thickness of circular pipes and their sockets, including any layers, shall conform to Table 2 when measured at the location points as shown in Figure 3. SIST EN 12200-1:2016
EN 12200-1:2016 (E) 14
Table 2 — Wall thicknesses of pipes, sockets and spigots Dimensions in millimetres Nominal size Nominal outside Wall thickness of pipes and fittings DN/OD diameter sealed system unsealed system
dn emin e2,min e3,min a emin e2,min 50 53 b 60 63 68 b 70 75 80 82 90 100 105 b 110 125 140 160 50 53 60 63 68 70 75 80 82 90 100 105 110 125 140 160 1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,6 1,6 1,8 1,9 2,0 2,2 2,5 2,7 3,2 1,4 1,4 1,4 1,4 1,4 1,4 1,4 1,4 1,4 1,6 1,7 1,7 2,0 2,2 2,4 2,9 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,0 1,1 1,2 1,4 1,5 1,8 1,2 1,3 1,3 1,3 1,5 1,5 1,5 1,5 1,5 1,8 1,8 1,8 2,0 - - - 1,0 1,2 1,2 1,2 1,4 1,4 1,4 1,4 1,4 1,6 1,7 1,7 1,8 - - - a Only applicable to ring seal systems see Figure 3. b These sizes are based on the inside diameter series in EN 476 and are not interchangeable with other pipes conforming to the standards listed in the foreword.
Figure 3 — Wall thickness location points SIST EN 12200-1:2016
EN 12200-1:2016 (E) 15
6.2.4.2 Wall thicknesses of pipes and sockets - non-circular The wall thickness of non-circular pipes and their sockets, including any outer layer, when measured at the location points as shown in Figure 3 shall be determined as follows: a) determine the internal cross-sectional area; b) round down to the next lower value in Table 1 and identify the corresponding circular nominal size; c) use the wall thickness values for pipes and sockets as defined in Table 2 for that nominal size, which apply only to the middle of the faces of the non-circular pipe and socket (see Figure 1). 6.2.5 Dimensions of sockets The dimensions of pipe sockets (see Figures 4
...
