SIST EN IEC 62386-202:2023

Digital addressable lighting interface - Part 202: Particular requirements for control gear - Self-contained emergency lighting (device type 1) (IEC 62386-202:2022)

This part of IEC 62386 is applicable to control gear for control by digital signals of electronic
lighting equipment which is associated with self-contained emergency lighting as described in
IEC 61347-2-7 with additional control interface for configuring emergency operation.
This document is only applicable to control gear complying with IEC 62386-102.
This document does not apply to centrally supplied emergency lighting control gear, which is
specified in IEC 62386-220.

Digital adressierbare Schnittstelle für die Beleuchtung - Teil 202: Besondere Anforderungen an Betriebsgeräte - Notbeleuchtung mit Einzelbatterie (Gerätetyp 1) (IEC 62386-202:2022)

Interface d'éclairage adressable numérique - Partie 202: Exigences particulières pour les appareillages de commande - Blocs autonomes d'éclairage de secours (dispositifs de type 1) (IEC 62386-202:2022)

L'IEC 62386-202:2022 s'applique aux appareillages de commande pour la commande par des signaux numériques des appareils d'éclairage électronique associés aux blocs autonomes d'éclairage de secours décrits dans l'IEC 61347-2-7 équipés d'une interface de commande supplémentaire pour la configuration du fonctionnement de secours.
Cette deuxième édition annule et remplace la première édition parue en 2009. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:


1. mise à jour du domaine d'application;


2. le fonctionnement du commutateur mécanique peut être désactivé;


3. ajout de la fonction de neutralisation de l'installation;


4. ajout du bloc de mémoire;


5. clarification des états de fonctionnement par des modifications et des ajouts;


6. ajout d'une commande pour passer à l'état de fonctionnement de secours prolongé;


7. ajout d'une commande pour prolonger la durée de l'état "Essai d'autonomie".

Digitalni naslovljivi vmesnik za razsvetljavo - 202. del: Posebne zahteve za krmilja - Avtonomna zasilna razsvetljava (naprava tipa 1) (IEC 62386-202:2022)

Ta del standarda IEC 62386 se uporablja za krmilno opremo za krmiljenje elektronske opreme za razsvetljavo z digitalnimi signali, ki je povezana samostojno svetilko za zasilno razsvetljavo, opisano v IEC 61347-2-7, z dodatnim krmilnim vmesnikom naprave za konfiguracijo zasilnega delovanja.
Ta dokument se uporablja samo za krmilno opremo, ki je skladna z IEC 62386-102. Ta dokument se ne uporablja za centralno napajano krmilno opremo za zasilno razsvetljavo, ki je opredeljena v IEC 62386-220.

General Information

• Status: Published
• Public Enquiry End Date: 31-Jan-2022
• Publication Date: 28-Feb-2023
• ICS: 29.140.50 - Lighting installation systems
• ICS: 29.140.99 - Other standards related to lamps
• ICS: 35.200 - Interface and interconnection equipment
• Technical Committee: IESV - Lamps and related equipment
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 13-Feb-2023
• Due Date: 20-Apr-2023
• Completion Date: 01-Mar-2023
• Ref Project: EN IEC 62386-202:2023 - Digital addressable lighting interface - Part 202: Particular requirements for control gear - Self-contained emergency lighting (device type 1)

Relations

• Revised: SIST EN 62386-202:2009 - Digital addressable lighting interface - Part 202: Particular requirements for control gears; self-contained emergency lighting (device type 1) (IEC 62386-202:2009)
• Effective Date: 05-Jun-2018

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN IEC 62386-202:2023
01-april-2023
Digitalni naslovljivi vmesnik za razsvetljavo - 202. del: Posebne zahteve za krmilja
- Avtonomna zasilna razsvetljava (naprava tipa 1) (IEC 62386-202:2022)
Digital addressable lighting interface - Part 202: Particular requirements for control gear -
Self-contained emergency lighting (device type 1) (IEC 62386-202:2022)
Digital adressierbare Schnittstelle für die Beleuchtung - Teil 202: Besondere
Anforderungen an Betriebsgeräte - Notbeleuchtung mit Einzelbatterie (Gerätetyp 1) (IEC
62386-202:2022)
Interface d'éclairage adressable numérique - Partie 202: Exigences particulières pour les
appareillages de commande - Blocs autonomes d'éclairage de secours (dispositifs de
type 1) (IEC 62386-202:2022)
Ta slovenski standard je istoveten z: EN IEC 62386-202:2023
ICS:
29.140.50 Instalacijski sistemi za Lighting installation systems
razsvetljavo
35.200 Vmesniška in povezovalna Interface and interconnection
oprema equipment
SIST EN IEC 62386-202:2023 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 62386-202:2023

---------------------- Page: 2 ----------------------
SIST EN IEC 62386-202:2023


EUROPEAN STANDARD EN IEC 62386-202

NORME EUROPÉENNE

EUROPÄISCHE NORM February 2023
ICS 29.140.50; 29.140.99 Supersedes EN 62386-202:2009
English Version
Digital addressable lighting interface - Part 202: Particular
requirements for control gear - Self-contained emergency
lighting (device type 1)
(IEC 62386-202:2022)
Interface d'éclairage adressable numérique - Partie 202: Digital adressierbare Schnittstelle für die Beleuchtung - Teil
Exigences particulières pour les appareillages de 202: Besondere Anforderungen an Betriebsgeräte -
commande - Blocs autonomes d'éclairage de secours Notbeleuchtung mit Einzelbatterie (Gerätetyp 1)
(dispositifs de type 1) (IEC 62386-202:2022)
(IEC 62386-202:2022)
This European Standard was approved by CENELEC on 2023-01-19. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 62386-202:2023 E

---------------------- Page: 3 ----------------------
SIST EN IEC 62386-202:2023
EN IEC 62386-202:2023 (E)

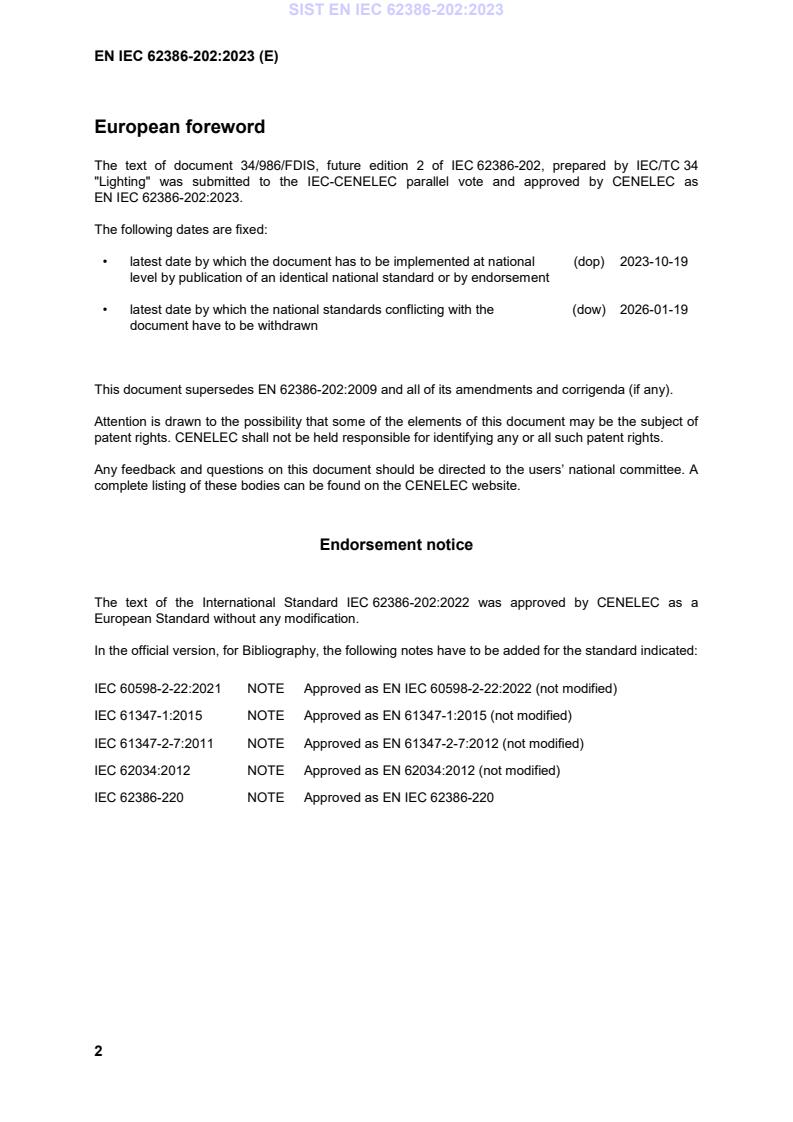

European foreword
The text of document 34/986/FDIS, future edition 2 of IEC 62386-202, prepared by IEC/TC 34
"Lighting" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
EN IEC 62386-202:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-10-19
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-01-19
document have to be withdrawn

This document supersedes EN 62386-202:2009 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62386-202:2022 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60598-2-22:2021 NOTE Approved as EN IEC 60598-2-22:2022 (not modified)
IEC 61347-1:2015 NOTE Approved as EN 61347-1:2015 (not modified)
IEC 61347-2-7:2011 NOTE Approved as EN 61347-2-7:2012 (not modified)
IEC 62034:2012 NOTE Approved as EN 62034:2012 (not modified)
IEC 62386-220 NOTE Approved as EN IEC 62386-220
2

---------------------- Page: 4 ----------------------
SIST EN IEC 62386-202:2023
EN IEC 62386-202:2023 (E)
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 62386-101 2022 Digital addressable lighting interface - EN IEC 62386-101 2022
Part 101: General requirements - System
components
IEC 62386-102 2022 Digital addressable lighting interface - EN IEC 62386-102 2022
Part 102: General requirements - Control
gear

3

---------------------- Page: 5 ----------------------
SIST EN IEC 62386-202:2023

---------------------- Page: 6 ----------------------
SIST EN IEC 62386-202:2023




IEC 62386-202

®


Edition 2.0 2022-12




INTERNATIONAL



STANDARD




NORME


INTERNATIONALE
colour

inside










Digital addressable lighting interface –

Part 202: Particular requirements for control gear – Self-contained emergency

lighting (device type 1)



Interface d'éclairage adressable numérique –

Partie 202: Exigences particulières pour les appareillages de commande –


Blocs autonomes d'éclairage de secours (dispositifs de type 1)













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 29.140.50; 29.140.99 ISBN 978-2-8322-6212-2




Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------
SIST EN IEC 62386-202:2023
– 2 – IEC 62386-202:2022 © IEC 2022
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 9
4 General . 12
4.1 General . 12
4.2 Version number . 12
4.3 Power supply of bus units . 12
4.4 Power interruption at bus units . 13
4.4.1 General . 13
4.4.2 Power interruptions of external power supply . 13
4.4.3 Communication requirements in rest mode and emergency mode . 13
4.4.4 Endurance of REST MODE . 13
5 Electrical specification . 13
6 Interface power supply . 13
7 Transmission protocol structure . 13
8 Timing . 14
9 Method of operation . 14
9.1 General . 14
9.2 Command execution . 14
9.3 Non-controllable control gear . 14
9.3.1 General . 14
9.3.2 Command execution of non-controllable control gear . 14
9.3.3 Status bits of non-controllable control gear . 15
9.4 Emergency level . 15
9.4.1 General . 15
9.4.2 Emergency operation light output and emergency level . 15
9.4.3 Emergency physical maximum and minimum level . 15
9.4.4 Configuring emergency level . 16
9.4.5 Testing of emergency level . 16
9.5 Mode transition timing and behaviour . 16
9.6 System failure . 18
9.7 Modes of operation . 18
9.7.1 General . 18
9.7.2 Normal mode . 19
9.7.3 Inhibit mode . 20
9.7.4 Emergency mode . 21
9.7.5 Extended emergency mode. 22
9.7.6 Rest mode . 23
9.7.7 Mode 'Function test in progress' . 24
9.7.8 Mode 'Duration test in progress' . 25
9.7.9 Mode 'Battery cut-off' . 27
9.8 Emergency test functions and configuration . 27
9.8.1 General . 27
9.8.2 Automatic testing . 27

---------------------- Page: 8 ----------------------
SIST EN IEC 62386-202:2023
IEC 62386-202:2022 © IEC 2022 – 3 –
9.8.3 Automatic test execution status . 30
9.8.4 Querying test results . 31
9.8.5 Extended test duration . 31
9.8.6 Timing definitions . 32
9.9 Protection functionalities in emergency mode . 33
9.10 Emergency mode and operating modes . 33
9.11 Hardwired emergency inputs . 33
9.11.1 General . 33
9.11.2 Hardwired inhibit input . 33
9.11.3 Hardwired switch . 33
9.12 Control gear status and capabilities . 34
9.12.1 General . 34
9.12.2 Modification to "lampOn" . 34
9.12.3 Rated duration and battery charge . 34
9.12.4 Emergency status . 34
9.12.5 Emergency mode . 35
9.12.6 Emergency features . 36
9.12.7 Emergency failure status . 37
9.12.8 Hardwired switch status . 38
9.12.9 Emergency lamp operation time . 38
9.13 Restricting device type support . 39
9.14 Installation inhibit . 39
9.15 Memory banks . 39
9.15.1 General . 39
9.15.2 Accuracy of measurements . 39
9.15.3 Rounding of measurement values . 39
9.15.4 Refresh rate of memory bank values . 40
9.15.5 No overflow of counters . 40
9.15.6 Memory bank 208: Emergency control gear information . 40
10 Declaration of variables . 45
10.1 General . 45
10.2 Impact on control gear variables depending on control gear type . 45
10.3 Control gear variables for all self-contained control gear . 46
11 Definition of commands . 47
11.1 General . 47
11.2 Overview sheets . 47
11.3 Level instructions . 50
11.4 Configuration instructions . 50
11.4.1 General . 50
11.4.2 IDENTIFY DEVICE . 50
11.5 Queries . 50
11.5.1 General . 50
11.5.2 QUERY ACTUAL LEVEL. 50
11.6 Application extended commands . 50
11.6.1 General . 50
11.6.2 Configuration instructions . 51
11.6.3 Queries. 55
11.7 Special commands . 58
11.7.1 General . 58

---------------------- Page: 9 ----------------------
SIST EN IEC 62386-202:2023
– 4 – IEC 62386-202:2022 © IEC 2022
11.7.2 ENABLE DEVICE TYPE (data) . 58
Annex A (informative) Enabling or re-enabling installation inhibit . 59
A.1 General . 59
A.2 Re-enabling installation inhibit . 59
A.3 Modifying or cancelling installation inhibit operation . 59
Bibliography . 60

Figure 1 – IEC 62386 graphical overview . 7
Figure 2 – Modes and transitions . 19
Figure 3 – Timing diagram for function and duration tests . 28
Figure 4 – Duration test execution time out example . 31

Table 1 – Mode transition behaviour . 17
Table 2 – Bus power interruption behaviour . 18
Table 3 – Normal mode . 20
Table 4 – Inhibit mode . 21
Table 5 – Emergency mode . 22
Table 6 – Extended emergency mode . 23
Table 7 – Rest mode . 24
Table 8 – Mode 'Function test in progress' . 25
Table 9 – Mode 'Duration test in progress' . 26
Table 10 – Mode 'Battery cut-off' . 27
Table 11 – "extendedDuration" . 32
Table 12 – Timing definitions . 32
Table 13 – "emergencyStatus" . 35
Table 14 – "emergencyMode" . 36
Table 15 – "emergencyFeatures" . 36
Table 16 – "emergencyFailureStatus" . 37
Table 17 – "hardwiredSwitchStatus" . 38
Table 18 – Memory bank 208: Self-contained emergency control gear information . 40
Table 19 – Modifications of control gear variables . 45
Table 20 – Declaration of additional variables . 46
Table 21 – Application extended commands . 48
Table 22 – Perform DTR selected function . 55
Table 23 – Query selected variable . 56

---------------------- Page: 10 ----------------------
SIST EN IEC 62386-202:2023
IEC 62386-202:2022 © IEC 2022 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

DIGITAL ADDRESSABLE LIGHTING INTERFACE –

Part 202: Particular requirements for control gear –
Self-contained emergency lighting (device type 1)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62386-202 has been prepared by IEC technical committee 34: Lighting. It is an International
Standard.
This second edition cancels and replaces the first edition published in 2009. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) scope updated,
b) hardwired switch operation can be disabled,
c) installation inhibit feature added,
d) memory bank added,
e) modes of operation clarified, with some changes and additions,
f) command added to enter extended emergency mode,

---------------------- Page: 11 ----------------------
SIST EN IEC 62386-202:2023
– 6 – IEC 62386-202:2022 © IEC 2022
g) command added to extend time in duration test mode.
The text of this International Standard is based on the following documents:
Draft Report on voting
34/986/FDIS 34/1000/RVD

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
This Part 202 of IEC 62386 is intended to be used in conjunction with:
• Part 101, which contains general requirements for system components;
• Part 102, which contains general requirements for control gear.
A list of all parts in the IEC 62386 series, published under the general title Digital addressable
lighting interface, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

---------------------- Page: 12 ----------------------
SIST EN IEC 62386-202:2023
IEC 62386-202:2022 © IEC 2022 – 7 –
INTRODUCTION
IEC 62386 contains several parts, referred to as series. The IEC 62386 series specifies a bus
system for control by digital signals of electronic lighting equipment. The IEC 62386-1xx series
includes the basic specifications. Part 101 contains general requirements for system
components, Part 102 extends this information with general requirements for control gear and
Part 103 extends it further with general requirements for control devices. Part 104 and Part 105
can
...

SLOVENSKI STANDARD
oSIST prEN IEC 62386-202:2022
01-januar-2022
Digitalni naslovljivi vmesnik za razsvetljavo - 202. del: Posebne zahteve za krmilja
- Avtonomna zasilna razsvetljava (naprava tipa 1)
Digital addressable lighting interface - Part 202: Particular requirements for control gear -
Self-contained emergency lighting (device type 1)
Digital adressierbare Schnittstelle für die Beleuchtung - Teil 202: Besondere
Anforderungen an Betriebsgeräte - Notbeleuchtung mit Einzelbatterie (Gerätetyp 1)
Interface d'éclairage adressable numérique - Partie 202: Exigences particulières pour les
appareillages de commande - Blocs autonomes d'éclairage de secours (dispositifs de
type 1)
Ta slovenski standard je istoveten z: prEN IEC 62386-202:2021
ICS:
29.140.50 Instalacijski sistemi za Lighting installation systems
razsvetljavo
35.200 Vmesniška in povezovalna Interface and interconnection
oprema equipment
oSIST prEN IEC 62386-202:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN IEC 62386-202:2022

---------------------- Page: 2 ----------------------
oSIST prEN IEC 62386-202:2022
34/879/CDV

COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 62386-202 ED2
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2021-11-19 2022-02-11
SUPERSEDES DOCUMENTS:
34/718/CD, 34/785A/CC

IEC TC 34 : LIGHTING
SECRETARIAT: SECRETARY:
United Kingdom Mr Petar Luzajic
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:


Other TC/SCs are requested to indicate their interest, if
any, in this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.

This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.

TITLE:
Digital addressable lighting interface - Part 202: Particular requirements for control gear - Self-
contained emergency lighting (device type 1)

PROPOSED STABILITY DATE: 2024

NOTE FROM TC/SC OFFICERS:


Copyright © 2021 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to
download this electronic file, to make a copy and to print out the content for the sole purpose of preparing National
Committee positions. You may not copy or "mirror" the file or printed version of the document, or any part of it, for
any other purpose without permission in writing from IEC.

---------------------- Page: 3 ----------------------
oSIST prEN IEC 62386-202:2022
IEC CDV 62386-202 © IEC 2021 2 34/879/CDV

1 CONTENTS
2 CONTENTS . 1
3 FOREWORD. 6
4 INTRODUCTION . 8
5 1 Scope . 9
6 2 Normative references . 9
7 3 Terms and definitions . 9
8 4 General . 12
9 4.1 General . 12
10 4.2 Version number . 12
11 4.3 External power supply of bus units . 12
12 4.4 Power interruption at bus units . 12
13 4.4.1 General . 12
14 4.4.2 Power interruptions of external power supply . 12
15 4.4.3 Communication requirements in rest mode and emergency mode . 12
16 4.4.4 Endurance of REST MODE . 13
17 5 Electrical specification . 13
18 5.1 General . 13
19 6 Interface power supply . 13
20 7 Transmission Protocol Structure . 13
21 8 Timing . 13
22 9 Method of operation . 13
23 9.1 General . 13
24 9.2 Command execution . 13
25 9.3 Non controllable control gear . 14
26 9.3.1 General . 14
27 9.3.2 Command execution of non-controllable control gear . 14
28 9.3.3 Status bits of non-controllable control gear . 14
29 9.4 Emergency Level . 14
30 9.4.1 General . 14
31 9.4.2 Emergency operation light output and emergency level . 14
32 9.4.3 Emergency physical maximum and minimum level . 14
33 9.4.4 Configuring Emergency Level . 15
34 9.4.5 Testing of Emergency level . 15
35 9.5 Mode Transition timing and behaviour . 15
36 9.6 System failure . 16
37 9.7 Modes of operation . 17
38 9.7.1 General . 17
39 9.7.2 Normal mode . 18
40 9.7.3 Inhibit mode . 18
41 9.7.4 Emergency mode . 19
42 9.7.5 Extended emergency mode . 20
43 9.7.6 Rest mode . 21
44 9.7.7 Mode ‘Function test in progress’ . 21
45 9.7.8 Mode ‘Duration test in progress’ . 22
46 9.7.9 Mode ‘Battery cut-off’ . 23
47 9.8 Emergency test functions and configuration. . 24

---------------------- Page: 4 ----------------------
oSIST prEN IEC 62386-202:2022
IEC CDV 62386-202 © IEC 2021 3 34/879/CDV

48 9.8.1 General . 24
49 9.8.2 Automatic testing . 24
50 9.8.2.1 General . 24
51 9.8.2.2 Automatic test schedule. . 24
52 9.8.2.3 Automatic test delay . 25
53 9.8.2.4 Automatic test interval . 26
54 9.8.2.5 Test Repeat behaviour. . 26
55 9.8.2.6 Test timings after battery cut-off . 27
56 9.8.3 Automatic test execution status . 27
57 9.8.4 Querying test results. . 27
58 9.8.5 Extended test Duration . 28
59 9.8.6 Timing definitions . 28
60 9.9 Protection functionalities in emergency mode. 28
61 9.10 Emergency mode and Operating Modes . 29
62 9.11 Hardwired emergency inputs . 29
63 9.11.1 General . 29
64 9.11.2 Hardwired inhibit input . 29
65 9.11.3 Hardwired switch . 29
66 9.11.3.1 General . 29
67 9.11.3.2 Enabling and disabling operation of the hardwired switch. 29
68 9.11.3.3 Modification to standard behaviour . 29
69 9.12 Control gear status and capabilities . 30
70 9.12.1 General . 30
71 9.12.2 Modification to “lampOn” . 30
72 9.12.3 Rated duration and battery charge . 30
73 9.12.4 Emergency Status . 30
74 9.12.5 Emergency Mode . 31
75 9.12.6 Emergency Features . 32
76 9.12.7 Emergency Failure Status . 32
77 9.12.8 Hardwired switch status . 34
78 9.12.9 Emergency Lamp Operation Time . 34
79 9.13 Restricting device type support . 34
80 9.14 Installation inhibit . 34
81 9.15 Memory banks . 35
82 9.15.1 General . 35
83 9.15.2 Accuracy of measurements . 35
84 9.15.3 Rounding of measurement values . 35
85 9.15.4 Refresh rate of memory bank values. 35
86 9.15.5 No overflow of counters . 35
87 9.15.6 Memory bank 208: Emergency control gear information . 35
88 10 Declaration of variables . 40
89 10.1 General . 40
90 10.2 Impact on control gear variables depending on control gear type . 40
91 10.3 Control gear variables for all self-contained control gear. . 40
92 11 Definition of commands . 42
93 11.1 General . 42
94 11.2 Overview sheets . 42
95 11.3 Level Instructions . 45
96 11.4 Configuration Instructions . 45

---------------------- Page: 5 ----------------------
oSIST prEN IEC 62386-202:2022
IEC CDV 62386-202 © IEC 2021 4 34/879/CDV

97 11.4.1 IDENTIFY DEVICE . 45
98 11.5 Queries . 45
99 11.5.1 QUERY ACTUAL LEVEL . 45
100 11.6 Application extended commands. 45
101 11.6.1 General . 45
102 11.6.2 Configuration instructions . 45
103 11.6.2.1 General . 45
104 11.6.2.2 REST . 46
105 11.6.2.3 INHIBIT . 46
106 11.6.2.4 RE-LIGHT/ RESET INHIBIT . 46
107 11.6.2.5 REQUEST FUNCTION TEST . 46
108 11.6.2.6 REQUEST DURATION TEST . 46
109 11.6.2.7 STOP TEST . 46
110 11.6.2.8 RESET FUNCTION TEST DONE FLAG . 47
111 11.6.2.9 RESET DURATION TEST DONE FLAG . 47
112 11.6.2.10 RESET LAMP TIME . 47
113 11.6.2.11 STORE EMERGENCY LEVEL (DTR0) . 47
114 11.6.2.12 STORE TEST DELAY TIME HIGH BYTE (DTR0) . 47
115 11.6.2.13 STORE TEST DELAY TIME LOW BYTE (DTR0) . 47
116 11.6.2.14 STORE FUNCTION TEST INTERVAL (DTR0) . 47
117 11.6.2.15 STORE DURATION TEST INTERVAL (DTR0) . 48
118 11.6.2.16 STORE TEST EXECUTION TIMEOUT (DTR0) . 48
119 11.6.2.17 STORE PROLONG TIME (DTR0) . 48
120 11.6.2.18 START IDENTIFICATION . 48
121 11.6.2.19 PERFORM SELECTED FUNCTION (DTR0) . 49
122 11.6.3 Queries . 49
123 11.6.3.1 QUERY BATTERY CHARGE . 49
124 11.6.3.2 QUERY SELECTED VARIABLE (DTR0) . 49
125 11.6.3.3 QUERY DURATION TEST RESULT . 50
126 11.6.3.4 QUERY LAMP EMERGENCY TIME . 50
127 11.6.3.5 QUERY LAMP TOTAL OPERATION TIME . 50
128 11.6.3.6 QUERY EMERGENCY LEVEL . 51
129 11.6.3.7 QUERY EMERGENCY PHYSICAL MIN LEVEL . 51
130 11.6.3.8 QUERY EMERGENCY PHYSICAL MAX LEVEL . 51
131 11.6.3.9 QUERY RATED DURATION . 51
132 11.6.3.10 QUERY EMERGENCY MODE . 51
133 11.6.3.11 QUERY FEATURES . 51
134 11.6.3.12 QUERY FAILURE STATUS . 51
135 11.6.3.13 QUERY EMERGENCY STATUS . 51
136 11.7 Special commands . 51
137 11.7.1 ENABLE DEVICE TYPE (data) . 51
138 Annex A (informative) Enabling or re-enabling installation inhibit . 53
139 A.1 General . 53
140 A.2 Re-enabling installation inhibit . 53
141 A.3 Modifying or cancelling installation inhibit operation . 53
142
143 Table 1 – Mode Transition behaviour . 16
144 Table 2 – bus power interruption behaviour . 17

---------------------- Page: 6 ----------------------
oSIST prEN IEC 62386-202:2022
IEC CDV 62386-202 © IEC 2021 5 34/879/CDV

145 Table 3 - Normal mode . 18
146 Table 4 – Inhibit mode . 19
147 Table 5 - Emergency mode . 20
148 Table 6 – Extended emergency mode . 20
149 Table 7 - Rest mode . 21
150 Table 8 – Mode ‘Function test in progress’ . 22
151 Table 9 – Mode ‘Duration test in progress’ . 23
152 Table 10 – Mode ‘Battery cut-off’ . 24
153 Table 11 – “extendedDuration” . 28
154 Table 12 – Timing definitions . 28
155 Table 13 – “emergencyStatus” . 31
156 Table 14 – “emergencyMode” . 31
157 Table 15 – “emergencyFeatures” . 32
158 Table 16 – “emergencyFailureStatus” . 33
159 Table 17 – “hardwiredSwitchStatus” . 34
160 Table 18 – Memory bank 208: Self-contained emergency control gear information . 35
161 Table 19 – modifications of control gear variables . 40
162 Table 20 – Declaration of additional variables. 41
163 Table 21 – Application extended commands for this device type . 42
164 Table 22 – Perform DTR selected function . 49
165 Table 23 – Query selected variable . 50
166
167 Figure 1 - IEC 62386 graphical overview . 8
168 Figure 2 – Modes and transitions . 17
169 Figure 3 - Timing diagram for function and duration tests . 25
170 Figure 4 – Duration test execution time out example . 27
171
172

---------------------- Page: 7 ----------------------
oSIST prEN IEC 62386-202:2022
IEC CDV 62386-202 © IEC 2021 6 34/879/CDV

173 INTERNATIONAL ELECTROTECHNICAL COMMISSION
174 ____________
175
176 DIGITAL ADDRESSABLE LIGHTING INTERFACE –
177
178 Part 202: Particular requirements for control gear –
179 Self-contained emergency lighting (device type 1)
180
181
182 FOREWORD
183 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
184 all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
185 international co-operation on all questions concerning standardization in the electrical and electronic fields. To
186 this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
187 Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC
188 Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested
189 in the subject dealt with may participate in this preparatory work. International, governmental and non-
190 governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
191 with the International Organization for Standardization (ISO) in accordance with conditions determined by
192 agreement between the two organizations.
193 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
194 consensus of opinion on the relevant subjects since each technical committee has representation from all
195 interested IEC National Committees.
196 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
197 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
198 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
199 misinterpretation by any end user.
200 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
201 transparently to the maximum extent possible in their national and regional publications. Any divergence
202 between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
203 the latter.
204 5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment
205 declared to be in conformity with an IEC Publication.
206 6) All users should ensure that they have the latest edition of this publication.
207 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
208 members of its technical committees and IEC National Committees for any personal injury, property damage or
209 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
210 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
211 Publications.
212 8) Attention is drawn to the normative references cited in this publication. Use of the referenced publications is
213 indispensable for the correct application of this publication.
214 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
215 rights. IEC shall not be held responsible for identifying any or all such patent rights.
216 International Standard IEC 62386-202 has been prepared by subcommittee 34C: Auxiliaries for
217 lamps, of IEC technical committee 34: Lamps and related equipment.
218 The text of this standard is based on the following documents:
NP Report on voting
34C/XX/NP 34C/XX/RVD
219
220 Full information on the voting for the approval of this standard can be found in the report on
221 voting indicated in the above table.
222 This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
223 A list of all parts of the IEC 62386 series, under the general title: DIGITAL ADDRESSABLE
224 LIGHTING INTERFACE, can be found on the IEC website.

---------------------- Page: 8 ----------------------
oSIST prEN IEC 62386-202:2022
IEC CDV 62386-202 © IEC 2021 7 34/879/CDV

225 The committee has decided that the contents of this publication will remain unchanged until the
226 stability date indicated on the IEC website under http://webstore.iec.ch in the data related to
227 the specific publication. At this date, the publication will be
228 • reconfirmed;
229 • withdrawn;
230 • replaced by a revised edition, or
231 • amended.
232 A bilingual version of this publication may be issued at a later date.
233
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.
234
235

---------------------- Page: 9 ----------------------
oSIST prEN IEC 62386-202:2022
IEC CDV 62386-202 © IEC 2021 8 34/879/CDV

236 INTRODUCTION
237
238 IEC 62386 contains several parts, referred to as a series. The 1xx series includes the basic
239 specifications. Part 101 contains general requirements for system components, Part 102
240 extends this information with general requirements for control gear and Part 103 extends it
241 further with general requirements for control devices.
242 The 2xx parts extend the general requirements for control gear with lamp specific extensions
243 (mainly for backward compatibility with Edition 1 of IEC 62386) and with control gear specific
244 features.
245 The 3xx parts extend the general requirements for control devices with input device specific
246 extensions describing the instance types as well as some common features that can be
247 combined with multiple instance types.
248 This second edition of IEC 62386-202 is published in conjunction with IEC 62386-101:– and
249 IEC 62386-102:– and with the various parts that make up the IEC 62386-2xx series for control
250 gear, together with IEC 62386-103:– and the various parts that make up the IEC 62386-3xx
251 series of particular requirements for control devices. The division into separately published
252 parts provides for ease of future amendments and revisions. Additional requirements will be
253 added as and when a need for them is recognised.
254 The setup of the standard is graphically represented in Figure 1 below.
255
256 Figure 1 - IEC 62386 graphical overview
257 When this part of IEC 62386 refers to any of the clauses of the IEC 62386-1xx series, the extent
258 to which such a clause is applicable is specified. The other parts also include additional
259 requirements, as necessary.
260 All numbers used in this International Standard are decimal numbers unless otherwise noted.
261 Hexadecimal numbers are given in the format 0xVV, where VV is the value. Binary number
...
