Industrial process measurement, control and automation - Digital nameplate (IEC 63365:2022)

IEC 63365:2022 applies to products used in the process measurement, control and automation industry. It establishes a concept and requirements for the digital nameplate and provides alternative electronically readable solutions (e.g. 2D codes, RFID or firmware) to current conventional plain text marking on the nameplate or packaging of products.
The digital nameplate information is contained in the electronically readable medium affixed to the product, the packaging or accompanying documents. The digital nameplate information is available offline without Internet connection. After electronic reading, all digital nameplate information is displayed in a human readable text format. The digital nameplate also includes the Identification Link String according to IEC 61406-1 which provides additional online information for the product.
This document does not specify the contents of the conventional nameplate, which are subject to regional or national regulations and standards.

Industrielle Automatisierungs- und Leittechnik - Digitales Typenschild (IEC 63365:2022)

Mesurage, commande et automatisation dans les processus industriels - Plaque signalétique numérique (IEC 63365:2022)

L'IEC 63365:2022 s'applique aux produits utilisés pour le mesurage, la commande et l'automatisation des processus industriels. Elle établit un concept ainsi que les exigences pour la plaque signalétique numérique, et fournit des solutions (codes 2D, RIFD ou micrologiciel, par exemple) lisibles électroniquement en alternative aux actuels marquages conventionnels en texte simple inscrits sur la plaque signalétique ou sur l'emballage des produits.
Les informations relatives à la plaque signalétique numérique sont contenues dans le support lisible électroniquement apposé sur le produit, sur l'emballage ou sur les documents d'accompagnement. Les informations relatives à la plaque signalétique numérique sont disponibles hors ligne, sans connexion à Internet. Après lecture électronique, toutes les informations relatives à la plaque signalétique numérique sont affichées dans un format texte lisible par l'homme. La plaque signalétique numérique contient également la chaîne de lien d'identification conformément à l'IEC 61406-1, qui fournit des informations en ligne supplémentaires sur le produit.
Le présent document ne spécifie pas le contenu de la plaque signalétique conventionnelle, qui est soumis à des réglementations et des normes régionales ou nationales.

Merjenje, krmiljenje in avtomatizacija industrijskih procesov - Digitalna napisna ploščica (IEC 63365:2022)

General Information

Status
Published
Public Enquiry End Date
19-Jun-2022
Publication Date
10-Jan-2023
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
29-Nov-2022
Due Date
03-Feb-2023
Completion Date
11-Jan-2023

Buy Standard

Standard
SIST EN IEC 63365:2023 - BARVE
English language
25 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
oSIST prEN IEC 63365:2022 - BARVE
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN IEC 63365:2023
01-februar-2023

Merjenje, krmiljenje in avtomatizacija industrijskih procesov - Digitalna napisna

ploščica (IEC 63365:2022)
Industrial process measurement, control and automation - Digital nameplate (IEC
63365:2022)

Industrielle Automatisierungs- und Leittechnik - Digitales Typenschild (IEC 63365:2022)

Mesurage, commande et automatisation dans les processus industriels - Plaque
signalétique numérique (IEC 63365:2022)
Ta slovenski standard je istoveten z: EN IEC 63365:2022
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.240.15 Identifikacijske kartice. Čipne Identification cards. Chip
kartice. Biometrija cards. Biometrics
SIST EN IEC 63365:2023 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 63365:2023
---------------------- Page: 2 ----------------------
SIST EN IEC 63365:2023
EUROPEAN STANDARD EN IEC 63365
NORME EUROPÉENNE
EUROPÄISCHE NORM November 2022
ICS 33.080
English Version
Industrial process measurement, control and automation - Digital
nameplate
(IEC 63365:2022)

Mesurage, commande et automatisation dans les Industrielle Automatisierungs- und Leittechnik - Digitales

processus industriels - Plaque signalétique numérique Typenschild
(IEC 63365:2022) (IEC 63365:2022)

This European Standard was approved by CENELEC on 2022-11-22. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 63365:2022 E
---------------------- Page: 3 ----------------------
SIST EN IEC 63365:2023
EN IEC 63365:2022 (E)

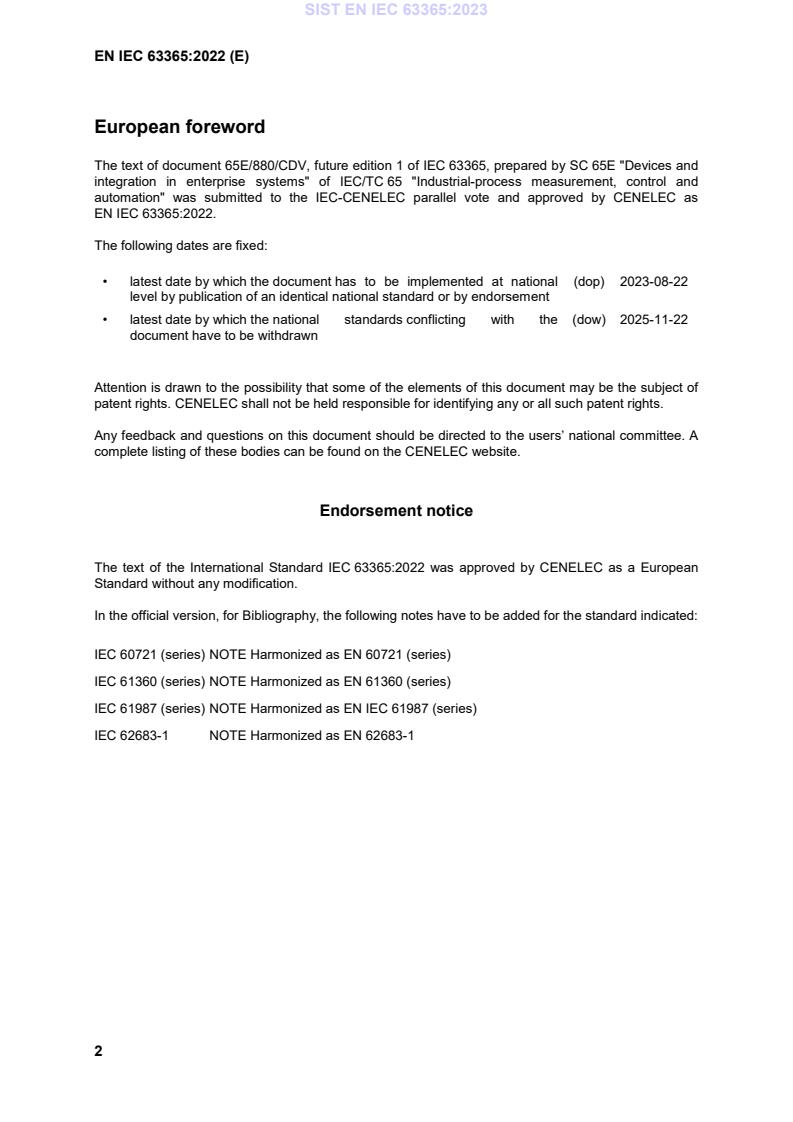

European foreword

The text of document 65E/880/CDV, future edition 1 of IEC 63365, prepared by SC 65E "Devices and

integration in enterprise systems" of IEC/TC 65 "Industrial-process measurement, control and

automation" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as

EN IEC 63365:2022.
The following dates are fixed:

• latest date by which the document has to be implemented at national (dop) 2023-08-22

level by publication of an identical national standard or by endorsement

• latest date by which the national standards conflicting with the (dow) 2025-11-22

document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Any feedback and questions on this document should be directed to the users’ national committee. A

complete listing of these bodies can be found on the CENELEC website.
Endorsement notice

The text of the International Standard IEC 63365:2022 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standard indicated:

IEC 60721 (series) NOTE Harmonized as EN 60721 (series)
IEC 61360 (series) NOTE Harmonized as EN 61360 (series)
IEC 61987 (series) NOTE Harmonized as EN IEC 61987 (series)
IEC 62683-1 NOTE Harmonized as EN 62683-1
---------------------- Page: 4 ----------------------
SIST EN IEC 63365:2023
EN IEC 63365:2022 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments)

applies.

NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the

relevant EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available

here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60079-14 - Explosive atmospheres - Part 14: Electrical EN 60079-14 -
installations design, selection and erection
IEC 61406-1 - Identification Link - -
ISO/IEC 15415 2011 Information technology - Automatic - -
identification and data capture techniques -
Bar code symbol print quality test
specification - Two-dimensional symbols
ISO/IEC 16022 - Information technology - Automatic - -
identification and data capture techniques -
Data Matrix bar code symbology
specification
ISO/IEC 18004 - Information technology - Automatic - -
identification and data capture techniques -
QR Code bar code symbology specification
ISO/IEC 18092 - Information technology - - -
Telecommunications and information
exchange between systems - Near Field
Communication - Interface and Protocol
(NFCIP-1)
ISO/IEC 21471 - Information technology - Automatic - -
identification and data capture techniques -
Extended rectangular data matrix (DMRE)
bar code symbology specification
ISO/IEC 21481 - Information technology - - -
Telecommunications and information
exchange between systems - Near field
communication interface and protocol 2
(NFCIP-2)
ISO/IEC 29158 - Information technology - Automatic - -
identification and data capture techniques -
Direct Part Mark (DPM) Quality Guideline
---------------------- Page: 5 ----------------------
SIST EN IEC 63365:2023
EN IEC 63365:2022 (E)
ISO/IEC 29160 - Information technology - Radio frequency EN 16656 -
identification for item management - RFID
Emblem
ISO 13849-1 - Safety of machinery - Safety-related parts EN ISO 13849-1 -
of control systems - Part 1: General
principles for design
ISO/IEC 14443-1 - Cards and security devices for personal
identification - Contactless proximity
objects - Part 1: Physical characteristics
ISO/IEC 14443-2 - Cards and security devices for personal - -
identification - Contactless proximity
objects - Part 2: Radio frequency power
and signal interface
ISO/IEC 14443-3 - Cards and security devices for personal - -
identification - Contactless proximity
objects - Part 3: Initialization and
anticollision
ISO/IEC 14443-4 - Cards and security devices for personal - -
identification - Contactless proximity
objects – Part 4: Transmission protocol
ISO/IEC 15693-1 - Cards and security devices for personal - -
identification - Contactless vicinity objects -
Part 1: Physical characteristics
ISO/IEC 15693-2 - Cards and security devices for personal - -
identification - Contactless vicinity objects -
Part 2: Air interface and initialization
ISO/IEC 15693-3 - Cards and security devices for personal - -
identification - Contactless vicinity objects -
Part 3: Anticollision and transmission
protocol
---------------------- Page: 6 ----------------------
SIST EN IEC 63365:2023
IEC 63365
Edition 1.0 2022-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Industrial process measurement, control and automation – Digital nameplate
Mesurage, commande et automatisation dans les processus industriels –
Plaque signalétique numérique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.080 ISBN 978-2-8322-5894-1

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN IEC 63365:2023
– 2 – IEC 63365:2022 © IEC 2022
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms and definitions ...................................................................................................... 9

4 Contents of the digital code ........................................................................................... 10

4.1 General ................................................................................................................. 10

4.2 Data structure of the digital code .......................................................................... 10

4.3 Data description with characteristic names ........................................................... 12

5 Digital storage technologies ........................................................................................... 13

5.1 Two-dimensional barcodes (QR Code, Data Matrix) .............................................. 13

5.1.1 General ......................................................................................................... 13

5.1.2 Symbol design ............................................................................................... 14

5.1.3 Data volume and module size ........................................................................ 14

5.1.4 Error correction ............................................................................................. 15

5.1.5 Print quality ................................................................................................... 15

5.1.6 Durability ....................................................................................................... 15

5.2 Transponders (RFID/NFC) .................................................................................... 15

5.2.1 Technical ....................................................................................................... 15

5.2.2 Symbol design ............................................................................................... 16

5.2.3 Data format ................................................................................................... 16

5.2.4 Write protection ............................................................................................. 16

5.2.5 Durability ....................................................................................................... 16

5.2.6 Use in potentially explosive atmospheres ...................................................... 16

5.2.7 Use in modular products ................................................................................ 17

5.3 Firmware............................................................................................................... 17

5.3.1 General ......................................................................................................... 17

5.3.2 Use in modular products ................................................................................ 17

Annex A (informative) Information on the nameplate required by regulations and

standards .............................................................................................................................. 18

A.1 General ................................................................................................................. 18

A.2 Basic information in plain text ............................................................................... 18

A.3 Conformity marks and symbols ............................................................................. 18

A.4 Information for electrical equipment ...................................................................... 18

A.5 Information for explosion-protected equipment ...................................................... 19

A.6 Information for pressure equipment ....................................................................... 19

A.7 Further information ............................................................................................... 19

Annex B (informative) Semantic data description with standardized data dictionaries ......... 20

B.1 International data dictionaries ............................................................................... 20

B.2 The digital nameplate as a subelement of the digital twin ...................................... 20

Bibliography .......................................................................................................................... 21

Figure 1 – Example of a conventional nameplate converted into a digital nameplate

with QR code ........................................................................................................................ 11

Figure 2 – Example of a digital nameplate with a general data description ............................ 13

Figure 3 – Example of a separate label with the digital code ................................................. 14

---------------------- Page: 8 ----------------------
SIST EN IEC 63365:2023
IEC 63365:2022 © IEC 2022 – 3 –

Figure 4 – Symbol design of the QR code of the digital nameplate ........................................ 14

Figure 5 – Marking of a RFID transponder as a digital nameplate ......................................... 16

Table 1 – Example of a nameplate with a general data description ....................................... 12

---------------------- Page: 9 ----------------------
SIST EN IEC 63365:2023
– 4 – IEC 63365:2022 © IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL PROCESS MEASUREMENT, CONTROL AND AUTOMATION –
DIGITAL NAMEPLATE
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 63365 has been prepared by subcommittee 65E: Devices and integration in enterprise

systems, of IEC technical committee 65: Industrial Process Measurement, control and

automation. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
65E/880/CDV 65E/931/RVC

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/publications.
---------------------- Page: 10 ----------------------
SIST EN IEC 63365:2023
IEC 63365:2022 © IEC 2022 – 5 –

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it

contains colours which are considered to be useful for the correct understanding of its

contents. Users should therefore print this document using a colour printer.
---------------------- Page: 11 ----------------------
SIST EN IEC 63365:2023
– 6 – IEC 63365:2022 © IEC 2022
INTRODUCTION

The primary purpose of a nameplate is to clearly identify the device and its manufacturer. Legal

marks or approval symbols indicate conformity with the regulations for placing the device on

the market and for safe use.

The project "Digital Nameplate" was started in response to the needs of manufacturers of

explosion-protected equipment and operators of electrical plants in explosion hazardous areas.

One objective is to ensure that all of the necessary information can be marked on the

equipment, particularly considering the extent of the information required in the field of

explosion protection. The requirements for marking products for the global markets have

become as extensive that it is often no longer possible to include all of the necessary

information on the nameplate, especially of smaller products (e.g. sensors). As an example, in

Europe, different EU Directives and harmonized standards can apply to the same product, e.g.

for electric safety, explosion safety, safety of machinery, pressure safety or food safety. If the

product is to be sold worldwide, additional markings and approval symbols are required, e.g.

IEC Ex marking, Ex marking for the North American market, UK CA marking for UK, EAC for

the Eurasian Economic Area, RCM for Australia or CCC for China.

Within the context of smart manufacturing, it is also anticipated that products will have to be

electronically identifiable in future. Equipment manufacturers can use machine-readable

marking in the production process to automatically control the material flow by using a barcode.

Operators can easily identify the product at the incoming inspection.Service engineers or the

responsible authorities can electronically check all the required data and information for the

application and safe use. The data from the machine-readable nameplate can be transmitted

directly to an ERP system (Enterprise Resource Planning system) for error-free stocktaking.

Operators and users have access to the device data in digital format.

One intention of the (offline) digital nameplate is to reduce the required space of the

conventional nameplate. In the long term it is expected that the digital nameplate can replace

the conventional text on the nameplate saving a lot of space, especially on small products.

This document describes alternative electronically-readable solutions to the current,

conventional, plain text marking on the nameplate or packaging. It describes marking

technologies that use 2D codes, transponders or the firmware of the products. In the case of a

2D code or transponder, the stored data can be read by commonly available scanning devices,

e.g. smartphones. If the marking is stored in the firmware of the product, the nameplate can be

shown, for example, on the product display or the data can be read via an electronic interface

remotely.

Furthermore, the IEC 61406-1 is in development for a unique product identification via an

Identification Link. That standard enables manufacturers to provide all product related data and

documents via an Internet address in an electronic format. Product documentation such as

technical information, operating instructions and product certificates can be downloaded. That

standard defines a specific 2D or RFID code, which contains only the Identification Link string

with limited characters. In IEC 63365, the Identification Link string is included as the first

property in the digital nameplate, followed by the detailed marking properties. If an Internet

connection to the manufacturer's website is available, additional product data (digital twin) and

documentation can be accessed.
---------------------- Page: 12 ----------------------
SIST EN IEC 63365:2023
IEC 63365:2022 © IEC 2022 – 7 –

This document is also intended to increase acceptance of digital nameplates among legislative

bodies. A long-term goal is to replace the conventional nameplate with an electronically

readable nameplate as far as possible. Regulators require marking to be applied to devices

permanently, clearly and legibly. This requirement could be met with digital marking as well.

Digital nameplates that are permanently affixed to the product and provide the necessary data

without the need for an Internet connection come very close to plain text marking. To ensure

greater acceptance, the nameplate shows a minimum amount of marking in plain text. During a

transition period, both, the plain text and the digital marking can be applied simultaneously at

the product. Today electronic marking is being increasingly implemented and accepted on the

international markets.

ISO/IEC 22603-1 was recently published and specifies a digital label representating the product

marking. But that standard provides the product marking via a link to a Webserver which

contains the relevant information and does not contain the marking directly in the digital code.

---------------------- Page: 13 ----------------------
SIST EN IEC 63365:2023
– 8 – IEC 63365:2022 © IEC 2022
INDUSTRIAL PROCESS MEASUREMENT, CONTROL AND AUTOMATION –
DIGITAL NAMEPLATE
1 Scope

This International standard applies to products used in the process measurement, control and

automation industry. It establishes a concept and requirements for the digital nameplate and

provides alternative electronically readable solutions (e.g. 2D codes, RFID or firmware) to

current conventional plain text marking on the nameplate or packaging of products.

The digital nameplate information is contained in the electronically readable medium affixed to

the product, the packaging or accompanying documents. The digital nameplate information is

available offline without Internet connection. After electronic reading, all digital nameplate

information is displayed in a human readable text format. The digital nameplate also includes

the Identification Link String according to IEC 61406-1 which provides additional online

information for the product.

This document does not specify the contents of the conventional nameplate, which are subject

to regional or national regulations and standards.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 60079-14, Explosive atmospheres – Part 14: Electrical installations design, selection and

erection
IEC 61406-1, Identification link

ISO/IEC 15415:2011, Information technology – Automatic identification and data capture

techniques – Bar code symbol print quality test specification – Two-dimensional symbols

ISO/IEC 16022, Information technology – Automatic identification and data capture techniques

– Data Matrix bar code symbology specification

ISO/IEC 18004, Information technology – Automatic identification and data capture techniques

– QR Code bar code symbology specification

ISO/IEC 18092, Information technology – Telecommunications and information exchange

between systems – Near Field Communication – Interface and Protocol (NFCIP-1)

ISO/IEC 21471, Information technology – Automatic identification and data capture techniques

– Extended rectangular data matrix (DMRE) bar code symbology specification

ISO/IEC 21481, Information technology – Telecommunications and information exchange

between systems – Near field communication interface and protocol 2 (NFCIP-2)

ISO/IEC 29158, Information technology – Automatic identification and data capture techniques

– Direct Part Mark (DPM) Quality Guideline
---------------------- Page: 14 ----------------------
SIST EN IEC 63365:2023
IEC 63365:2022 © IEC 2022 – 9 –

ISO/IEC 29160, Information technology – Radio frequency identification for item management

– RFID Emblem

ISO 13849-1, Safety of machinery – Safety-related parts of control systems – Part 1: General

principles for design

ISO/IEC 14443-1, Cards and security devices for personal identification – Contactless proximity

objects – Part 1: Physical characteristics

ISO/IEC 14443-2, Cards and security devices for personal identification – Contactless proximity

objects – Part 2: Radio frequency power and signal interface

ISO/IEC 14443-3, Cards and security devices for personal identification – Contactless proximity

objects – Part 3: Initialization and anticollision

ISO/IEC 14443-4, Cards and security devices for personal identification – Contactless proximity

objects – Part 4: Transmission protocol

ISO/IEC 15693-1, Cards and security devices for personal identification – Contactless vicinity

objects – Part 1: Physical characteristics

ISO/IEC 15693-2, Cards and security devices for personal identification – Contactless vicinity

objects – Part 2: Air interface and initialization

ISO/IEC 15693-3, Cards and security devices for personal identification – Contactless vicinity

objects – Part 3: Anticollision and transmission protocol
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 60050-351 (IEV) and

the following apply.

ISO and IEC maintain terminology databases for use in standardization at the following

addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
conventional nameplate

nameplate containing all necessary product marking strings in plain text, which is human

readable

Note 1 to entry: A conventional nameplate string is composed of text and symbols.

3.2
digital nameplate
electronically readable
...

SLOVENSKI STANDARD
oSIST prEN IEC 63365:2022
01-junij-2022
Digitalna imenska tablica - Digitalna oznaka izdelka
Digital Nameplate - Digital Product Marking
Plaque signalétique numérique – Marquage numérique des produits
Ta slovenski standard je istoveten z: prEN IEC 63365:2022
ICS:
35.240.15 Identifikacijske kartice. Čipne Identification cards. Chip
kartice. Biometrija cards. Biometrics
oSIST prEN IEC 63365:2022 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN IEC 63365:2022
---------------------- Page: 2 ----------------------
oSIST prEN IEC 63365:2022
65E/880/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 63365 ED1
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2022-04-01 2022-06-24
SUPERSEDES DOCUMENTS:
65E/795/CD, 65E/835/CC
IEC SC 65E : DEVICES AND INTEGRATION IN ENTERPRISE SYSTEMS
SECRETARIAT: SECRETARY:
United States of America Mr Donald (Bob) Lattimer
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:
Other TC/SCs are requested to indicate their interest, if
any, in this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY

SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING

Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.

This document is still under study and subject to change. It should not be used for reference purposes.

Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of

which they are aware and to provide supporting documentation.
TITLE:
Digital Nameplate – Digital Product Marking
PROPOSED STABILITY DATE: 2025
NOTE FROM TC/SC OFFICERS:

Copyright © 2022 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to download this

electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.

You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without

permission in writing from IEC.
---------------------- Page: 3 ----------------------
oSIST prEN IEC 63365:2022
– 2 – IEC 63365:2021 CDV © IEC 2021
1 CONTENTS
2 FOREWORD ………………………………………………………………………………………………..3
3 INTRODUCTION …..……………………………………………………………………………………….5

4 1 Scope ............................................................................................................................... 8

5 2 Normative references ....................................................................................................... 8

6 3 Terms and definitions ....................................................................................................... 9

7 4 Contents of the digital code ............................................................................................ 10

8 General ................................................................................................................. 10

9 Data structure of the digital code ........................................................................... 10

10 Data description with characteristic names ............................................................ 12

11 5 Digital storage technologies ........................................................................................... 14

12 Two-dimensional barcodes (QR Code, Data Matrix) .............................................. 14

13 General ..................................................................................................... 14

14 Symbol design ........................................................................................... 14

15 Data volume and module size .................................................................... 15

16 Error correction ......................................................................................... 15

17 Print quality ............................................................................................... 15

18 Durability ................................................................................................... 15

19 Transponders (RFID/NFC) ..................................................................................... 15

20 Technical ................................................................................................... 15

21 Symbol design ........................................................................................... 16

22 Data format ............................................................................................... 16

23 Write protection ......................................................................................... 16

24 Durability ................................................................................................... 16

25 Use in potentially explosive atmospheres .................................................. 16

26 Use in modular products ............................................................................ 17

27 Firmware ............................................................................................................... 17

28 General ..................................................................................................... 17

29 Use in modular products ............................................................................ 17

30 Annex A (informative) Information on the nameplate required by regulations and

31 standards ....................................................................................................................... 18

32 A.1 General ................................................................................................................. 18

33 A.2 Basic information in plain text ................................................................................ 18

34 A.3 Conformity marks and symbols .............................................................................. 18

35 A.4 Information for electrical equipment ....................................................................... 18

36 A.5 Information for explosion-protected equipment ...................................................... 18

37 A.6 Information for pressure equipment ....................................................................... 19

38 A.7 Further information ................................................................................................ 19

39 Annex B (informative) Semantic data description with standardized data dictionaries ......... 20

40 B.1 International data dictionaries ............................................................................... 20

41 B.2 The digital nameplate as a subelement of the digital twin ...................................... 20

42 Bibliography .......................................................................................................................... 23

---------------------- Page: 4 ----------------------
oSIST prEN IEC 63365:2022
– 3 – IEC 63365:2021 CDV © IEC 2021

44 Figure 1 : Example of a conventional nameplate converted into a digital nameplate with

45 QR code ............................................................................................................................... 11

46 Figure 2 – Example of a digital nameplate with a general data description ............................ 13

47 Figure 3 – Example of a separate label with the digital code ................................................. 14

48 Figure 4 – Symbol design of the QR code of the digital nameplate ........................................ 14

49 Figure 5 Marking of a RFID transponder as a digital nameplate ............................................ 16

50 Figure B.1: Classification and properties of products with ECLASS ....................................... 21

52 Table 1 – Example of a nameplate with a general data description ....................................... 12

53 Table A.1 – Example of an explosion proof electric motor nameplate with semantic

54 data description with ECLASS identifiers (see Table 1) ......................................................... 22

---------------------- Page: 5 ----------------------
oSIST prEN IEC 63365:2022
– 4 – IEC 63365:2021 CDV © IEC 2021
56 INTERNATIONAL ELECTROTECHNICAL COMMISSION
57 ____________
59 INDUSTRIAL PROCESS MEASUREMENT, CONTROL AND AUTOMATION -
61 Digital Nameplate
63 FOREWORD

64 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

65 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

66 co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

67 in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

68 Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

69 preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

70 may participate in this preparatory work. International, governmental and non-governmental organizations liaising

71 with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

72 Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

73 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

74 consensus of opinion on the relevant subjects since each technical committee has representation from all

75 interested IEC National Committees.

76 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

77 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

78 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

79 misinterpretation by any end user.

80 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

81 transparently to the maximum extent possible in their national and regional publications. Any divergence between

82 any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

83 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

84 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

85 services carried out by independent certification bodies.

86 6) All users should ensure that they have the latest edition of this publication.

87 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

88 members of its technical committees and IEC National Committees for any personal injury, property damage or

89 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

90 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

91 Publications.

92 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

93 indispensable for the correct application of this publication.

94 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

95 rights. IEC shall not be held responsible for identifying any or all such patent rights.

96 IEC 63365 has been prepared by subcommittee SC65E: Devices and integration in enterprise

97 systems, of IEC technical committee TC65: Industrial Process Measurement, control and

98 automation. It is an International Standard.
99 The text of this International Standard is based on the following documents:
Draft Report on voting
XX/XX/FDIS XX/XX/RVD
100

101 Full information on the voting for its approval can be found in the report on voting indicated in

102 the above table.

103 The language used for the development of this International Standard is English.

---------------------- Page: 6 ----------------------
oSIST prEN IEC 63365:2022
– 5 – IEC 63365:2021 CDV © IEC 2021

104 This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

105 accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

106 at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

107 described in greater detail at www.iec.ch/standardsdev/publications.

108 The committee has decided that the contents of this document will remain unchanged until the

109 stability date indicated on the IEC website under webstore.iec.ch in the data related to the

110 specific document. At this date, the document will be
111 • reconfirmed,
112 • withdrawn,
113 • replaced by a revised edition, or
114 • amended.
115
---------------------- Page: 7 ----------------------
oSIST prEN IEC 63365:2022
– 6 – IEC 63365:2021 CDV © IEC 2021
116 INTRODUCTION

117 The primary purpose of a nameplate is to clearly identify the device and its manufacturer. Legal

118 marks or approval symbols indicate conformity with the regulations for placing the device on

119 the market and for safe use.

120 The project "Digital Nameplate" was started in response to the needs of manufacturers of

121 explosion-protected equipment and operators of electrical plants in explosion hazardous areas.

122 One objective is to ensure that all of the necessary information can be marked on the

123 equipment, particularly considering the extent of the information required in the field of

124 explosion protection. The requirements for marking products for the global markets have

125 become as extensive that it is often no longer possible to include all of the necessary

126 information on the nameplate, especially of smaller products (e.g. sensors). As an example, in

127 Europe different EU Directives and harmonized standards may apply to the same product, e.g.

128 for electric safety, explosion safety, safety of machinery, pressure safety or food safety. If the

129 product will be sold worldwide additional markings and approval symbols are required, e.g. IEC

130 Ex marking, Ex marking for the North American market, UK CA marking for UK, EAC for the

131 Eurasian Economic Area, RCM for Australia or CCC for China.

132 Within the context of smart manufacturing, it is also anticipated that products will have to be

133 electronically identifiable in future. Equipment manufacturers can use machine-readable

134 marking in the production process to automatically control the material flow by using a barcode.

135 Operators can easily identify the product at the incoming inspection.Service engineers or the

136 responsible authorities can electronically check all the required data and information for the

137 application and safe use. The data from the machine-readable nameplate can be transmitted

138 directly to an ERP system (Enterprise Resource Planning system) for error-free stocktaking.

139 Operators and users have access to the device data in digital format.

140 One intention of the (offline) digital nameplate is to reduce the required space of the

141 conventional nameplate. In the long term it is expected that the digital nameplate can replace

142 the conventional text on the nameplate saving a lot of space, especially on small products.

143 This standard describes alternative electronically-readable solutions to the current,

144 conventional, plain text marking on the nameplate or packaging. It describes marking

145 technologies that use 2D codes, transponders or the firmware of the products. In the case of a

146 2D code or transponder, the stored data can be read by commonly available scanning devices,

147 e.g. smartphones. If the marking is stored in the firmware of the product, the nameplate can be

148 shown, for example, on the product display or the data can be read via an electronic interface

149 remotely.

150 Furthermore, the IEC 61406 is in development for a unique product identification via an

151 Identification Link. That standard enables manufacturers to provide all product related data and

152 documents via an Internet address in an electronic format. Product documentation such as

153 technical information, operating instructions and product certificates can be downloaded. That

154 standard defines a specific 2D or RFID code, which contains only the Identification Link string

155 with limited characters. In the IEC 63365 the Identification Link string is included as the first

156 property in the digital nameplate, followed by the detailed marking properties. If an Internet

157 connection to the manufacturer's website is available, additional product data (digital twin) and

158 documentation can be accessed.

159 This document is also intended to increase acceptance of digital nameplates among legislative

160 bodies. A long-term goal is to replace the conventional nameplate with an electronically

161 readable nameplate as far as possible. Regulators require marking to be applied to devices

162 permanently, clearly and legibly. This requirement might be met with digital marking as well.

163 Digital nameplates that are permanently affixed to the product and provide the necessary data

164 without the need for an Internet connection come very close to plain text marking. To ensure

165 greater acceptance, the nameplate must show a minimum amount of marking in plain text.

166 During a transition period, both, the plain text and the digital marking can be applied

---------------------- Page: 8 ----------------------
oSIST prEN IEC 63365:2022
– 7 – IEC 63365:2021 CDV © IEC 2021

167 simultaneously at the product. Today electronic marking is being increasingly implemented and

168 accepted on the international markets.

169 ISO/IEC 22603-1 was recently published and specifies a digital label representating the product

170 marking. But that standard provides the product marking via a link to a Webserver which

171 contains the relevant information and does not contain the marking directly in the digital code.

---------------------- Page: 9 ----------------------
oSIST prEN IEC 63365:2022
– 8 – IEC 63365:2021 CDV © IEC 2021
172 INDUSTRIAL PROCESS MEASUREMENT, CONTROL AND AUTOMATION -
173
174 Digital Nameplate
175 1 Scope

176 This standard applies to products used in the process measurement, control and automation

177 industry. It establishes a concept and requirements for the digital nameplate and provides

178 alternative electronically readable solutions (e.g. 2D codes, RFID or firmware) to current

179 conventional plain text marking on the nameplate or packaging of products.

180 The Digital Nameplate information is contained in the electronically readable medium affixed to

181 the product, the packaging or accompanying documents. The Digital Nameplate information is

182 available offline without Internet connection. After electronic reading, all Digital Nameplate

183 information is displayed in a human readable text format. The Digital Nameplate also includes

184 the Identification Link String according to IEC 61406 which provides additional online

185 information of the product.

186 This standard does not specify the contents of the conventional nameplate, which are subject

187 to regional or national regulations and standards.
188 2 Normative references

189 The following documents are referred to in the text in such a way that some or all of their content

190 constitutes requirements of this document. For dated references, only the edition cited applies.

191 For undated references, the latest edition of the referenced document (including any

192 amendments) applies.

193 ISO 13849-1, Safety of machinery – Safety-related parts of control systems – Part 1: General

194 principles for design

195 IEC 60079-14, Explosive atmospheres – Part 14: Electrical installations design, selection and

196 erection
197 IEC 61406, Identification Link (to be published)
198 ISO/IEC 10646, Information technology — Universal Coded Character Set (UCS)

199 ISO/IEC 15415:2011, Information technology – Automatic identification and data capture

200 techniques – Bar code symbol print quality test specification – Two-dimensional symbols

201 ISO/IEC 16022, Information technology – Automatic identification and data capture techniques

202 – Data Matrix bar code symbology specification

203 ISO/IEC 18000-3:2010, Information technology – Radio frequency identification for item

204 management – Part 3: Parameters for air interface communications at 13.56 MHz

205 ISO/IEC 18000-63:2015, Information technology – Radio frequency identification for item

206 management – Part 63: Parameters for air interface communications at 860 MHz to 960 MHz

207 Type C

208 ISO/IEC 18004, Information technology – Automatic identification and data capture techniques

209 – QR Code bar code symbology specification

210 ISO/IEC 18092, Information technology - Telecommunications and information exchange

211 between systems - Near Field Communication - Interface and Protocol (NFCIP-1)

212 ISO/IEC 21471, Information technology – Automatic identification and data capture techniques

213 – Extended Rectangular Data Matrix (DMRE) bar code symbology specification
---------------------- Page: 10 ----------------------
oSIST prEN IEC 63365:2022
– 9 – IEC 63365:2021 CDV © IEC 2021

214 ISO/IEC 21481, Information technology - Telecommunications and information exchange

215 between systems - Near Field Communication Interface and Protocol -2 (NFCIP-2)

216 ISO/IEC 29158, Information Technology – Automatic Identification and data capture

217 techniques – Direct Part Mark (DPM) Quality Guideline

218 ISO/IEC 29160, Information technology – Radio frequency identification for item management

219 – RFID Emblem
220 3 Terms and definitions

221 For the purposes of this document, the terms and definitions given in IEC 60050 (IEV) and the

222 following apply.

223 ISO and IEC maintain terminological databases for use in standardization at the following

224 addresses:
225 • IEC Electropedia: available at https://www.electropedia.org/
226 • ISO Online browsing platform: available at https://www.iso.org/obp
227
228 conventional nameplate

229 nameplate containing all necessary product marking strings in plain text, which is human

230 readable.

231 Note 1 to entry: A conventional nameplate string is composed of text and symbols.

232
233 digital nameplate

234 electronically readable product marking string encoded in an optically readable medium, a radio

235 frequency transponder or the product firmware

236 Note 1 to entry: In contrast to a conventional nameplate, a Digital Nameplate is not human readable.

237 EXAMPLE 1 2D symbols such as QR Code and DataMatrix are examples of optically readable media.

238 EXAMPLE 2 Radio frequency identification (RFID) transponders are examples of electronical readable media.

239
240 digital nameplate string

241 alphanumeric string representing the information encoded in the Digital Nameplate

242 Note 1 to entry: A Digital Nameplate string can be read by a human using the appropriate scanner, reader or

243 engineering software.
244
245 electronic reader
246 hardware and software means to read electronically readable media
247
248 2D Code

249 2 dimensional barcode, which can be converted with commonly available readers into plain

250 text
251
---------------------- Page: 11 ----------------------
oSIST prEN IEC 63365:2022
– 10 – IEC 63365:2021 CDV © IEC 2021
252 4 Contents of the digital code
253 General

254 The information according to Annex A may be added in a digital code to the nameplate.

255 The digital code
256 • may store all information required by regional or national regulations and
257 • may contain additional information provided by the manufacturer.

258 Marks and symbols cannot be converted into the digital code on the nameplate, but may be

259 provided in the firmware. All information provided in the digital code that is not required

260 specifically in plain text by regional or national regulations can be removed from the human

261 readable text of the nameplate.

262 Note For security reasons a 2D reader that asks the user to activate a link to the URL is recommended. In general,

263 if the link is not activated, the embedded text is shown.
264 Data structure of the digital code

265 The information listed in Annex A can be converted into digital format. The data shall be

266 structured according to the following three categories:
267 • Basic information
268 • Technical specification
269 • Certificates

270 The first information of the digital nameplate should be an Identification Link string as per IEC

271 61406. This enables standard scanners to interpret the first line as a URL and, if an Internet

272 connection is available, to link to a product database.

273 An example of a conventional nameplate is shown in the upper part of Figure 1. This

274 nameplate represents an industrial level meter with several international certificates as an

275 explosion protected device. Due to the amount of information this nameplate occupies a large

276 area of 80 cm².

277 In the lower part of Figure 1 the corresponding digital nameplate is shown with the basic

278 information and the conformity symbols still visible in plaint text. The complete marking is

279 converted into the digital code. The digital nameplate including QR Code occupies an area of

280 42,5 cm², which is approximately half of the size of the conventional nameplate above.

281 The scan of the QR Code using a smartphone with standard scanner software is also shown

282 in Figure 1. The complete text marking including basic information is visible on the screen and

283 can be stored or transfered as a textfile.
284
---------------------- Page: 12 ----------------------
oSIST prEN IEC 63365:2022
– 11 – IEC 63365:2021 CDV © IEC 2021
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309

310 Figure 1 : Example of a conventional nameplate converted into a digital nameplate with

311 QR code

312 NOTE 1 The example in Fig. 1 shows a digital nameplate, which enable scans with human readable data on the

313 display of the smartphone. The information can be stored or transferred as a text file.

314 NOTE 2 The text file for the QR Code generator contains only the plain text without any control codes as seen in the

315 display of the smart phone. Carriage returns and line feeds are automatically created with the [Enter] key using the

316 text editor.
317
---------------------- Page: 13 ----------------------
oSIST prEN IEC 63365:2022
– 12 – IEC 63365:2021 CDV © IEC 2021
318 Data description with characteristic names

319 The scanned digital code is human readable. For the correct interpretation of complex

320 nameplate data, the individual items of a nameplate can be described with characteristic names.

321 This requires more characters in the digital code and is illustrated for the example of an electric

322 motor in table 1. The digital nameplate with QR Code containing a general data description with

323 characteristic names is shown in Figure 2.
324 Table 1 – Example of a nameplate with a general data description
Characteristic name Characteristic value Text for the 2D code Generator*
www.mustermann.com/IE3SN423475- https://www.mustermann.com/IE3SN423475-0001
0001
Basic information
Manufacturer Max Mustermann AG Manufacturer:Max Mustermann AG
Address 10115 Berlin, Kirchstr. 1 Address:10115 Berlin, Kirchstr.1
Made inGermany
Made in Germany
IE3-K11R160L2 GEx ec IIC T3 2D Type keyIE3-K11R160L2 G Ex ec IIC T3
Type key
DLTPMVIK 2DDLTPMVIK
3~Mot.No. 423475/0001 3~Mot.No.:423475/0001
Date of Prod. 23.01.2019 Date of Prod.:23.01.2019
Perform. Std:IEC/EN 60034-1
Perform. Std. IEC/EN 60034-1
IM Code IM B3 (IEC 60034-7) IM Code:IM B3 (IEC 60034-7)
Technical Specification
Protection IP65 Protection:IP65
Net weight:150 kg
Net weight 150 kg
Therm.Class 155(F/B) Therm. Class.:155(F/B)
Supply 500VAC/Y/50 Hz Supply:500VAC/Y/50 Hz
Type of duty S1 Type of duty:S1
T-Class:T2T3
T-Class T2 T3
Output power 16 kW 12,5 kW Output power: 16 kW12,5 kW
Current 22,5 A 18,0 A Current:22,5 A18,0 A
cos phi 0,92 0,91 cos phi:0,920,91
Efficiency IE3:90,5 %91,5 %
Efficiency IE3 90,5 %
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
