Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.HYDOQLKLüftung von Gebäuden - Leistungprüfungen von Bauteilen/Produkten für die Lüftung von Wohnungen - Teil 2: Abluft- und ZuluftdurchlässeVentilation dans les bâtiments - Essais des performances des composants/produits pour la ventilation des logements - Partie 2: Bouches d'air d'évacuation et d'alimentationVentilation for buildings - Performance testing of components/products for residential ventilation - Part 2: Exhaust and supply air terminal devices91.140.30VLVWHPLVentilation and air-conditioningICS:Ta slovenski standard je istoveten z:EN 13141-2:2010SIST EN 13141-2:2010en,fr,de01-oktober-2010SIST EN 13141-2:2010SLOVENSKI
STANDARDSIST EN 13141-2:20041DGRPHãþD



SIST EN 13141-2:2010



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13141-2
July 2010 ICS 91.140.30 Supersedes EN 13141-2:2004English Version
Ventilation for buildings - Performance testing of components/products for residential ventilation - Part 2: Exhaust and supply air terminal devices
Ventilation des bâtiments - Essais des performances des composants/produits pour la ventilation des logements - Partie 2: Bouches d'air d'évacuation et d'alimentation
Lüftung von Gebäuden - Leistungprüfungen von Bauteilen/Produkten für die Lüftung von Wohnungen - Teil 2: Abluft- und Zuluftdurchlässe This European Standard was approved by CEN on 22 April 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13141-2:2010: ESIST EN 13141-2:2010

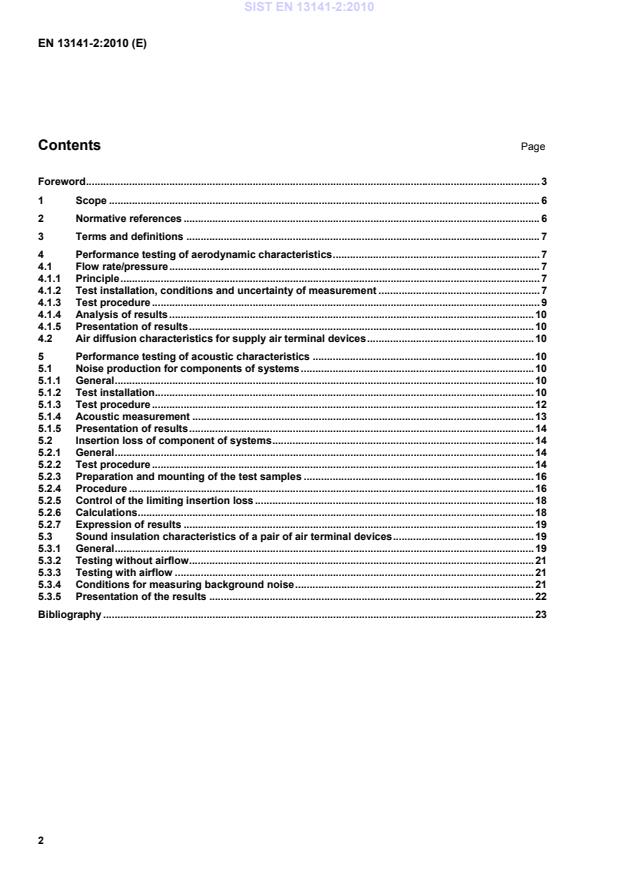

EN 13141-2:2010 (E) 2 Contents Page Foreword . 31 Scope . 62 Normative references . 63 Terms and definitions . 74 Performance testing of aerodynamic characteristics . 74.1 Flow rate/pressure . 74.1.1 Principle . 74.1.2 Test installation, conditions and uncertainty of measurement . 74.1.3 Test procedure . 94.1.4 Analysis of results . 104.1.5 Presentation of results . 104.2 Air diffusion characteristics for supply air terminal devices . 105 Performance testing of acoustic characteristics . 105.1 Noise production for components of systems . 105.1.1 General . 105.1.2 Test installation . 105.1.3 Test procedure . 125.1.4 Acoustic measurement . 135.1.5 Presentation of results . 145.2 Insertion loss of component of systems . 145.2.1 General . 145.2.2 Test procedure . 145.2.3 Preparation and mounting of the test samples . 165.2.4 Procedure . 165.2.5 Control of the limiting insertion loss . 185.2.6 Calculations . 185.2.7 Expression of results . 195.3 Sound insulation characteristics of a pair of air terminal devices . 195.3.1 General . 195.3.2 Testing without airflow . 215.3.3 Testing with airflow . 215.3.4 Conditions for measuring background noise . 215.3.5 Presentation of the results . 22Bibliography . 23 SIST EN 13141-2:2010



EN 13141-2:2010 (E) 3 Foreword This document (EN 13141-2:2010) has been prepared by Technical Committee CEN/TC 156 “Ventilation for buildings”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2011, and conflicting national standards shall be withdrawn at the latest by January 2011. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13141-2:2004. The position of this European Standard in the field of the mechanical building services is shown in Figure 1. SIST EN 13141-2:2010



EN 13141-2:2010 (E) 4
Mechanical Building Services
Control systems
Ventilation and air conditioning systems
Heating systems
Ductwork
Air terminal devices
Air handling units
Mechanical and natural residential ventilation
Design criteria for the indoor environment
System performance
Installation
Components/products for residential ventilation Required and optional performance characteristics
Performance testing of components/products for residential ventilation
Simplified calculation methods for residential ventilation systems
Design and dimensioning for residential ventilation systems
Performance testing and installation checks for residential ventilation systems
Part 1: Externally and internally mounted air transfer devices
Part 2: Exhaust and supply air terminal devices
Part 3: Range hoods for residential use
Part 4: Fans used in residential ventilation systems
Part 5: Cowls and roof outlet terminal devices
Part 6: Exhaust ventilation system packages used in a single dwelling
Part 7: Performance testing of a mechanical supply and exhaust ventilation units (including heat recovery) for mechanical ventilation
systems intended for single family dwellings
Part 8: Performance testing of un-ducted mechanical supply and exhaust ventilation units (including heat recovery) for mechanical
ventilation systems intended for a single room
Part 9: Externally mounted humidity controlled air transfer device
Part 10: Humidity controlled extract air terminal device
Figure 1 — Position of EN 13141-2 in the field of the mechanical building services
SIST EN 13141-2:2010



EN 13141-2:2010 (E) 5 According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. SIST EN 13141-2:2010



EN 13141-2:2010 (E) 6 1 Scope This European Standard specifies laboratory methods for testing exhaust and supply air terminal devices operating under pressure differences. It applies to devices used in mechanical and natural residential ventilation systems, of the following types:  device with a manually adjustable opening; or  device with a fixed opening; or  pressure difference controlled device. It describes tests intended to characterize:  flow rate/pressure;  air diffusion characteristics (for supply air terminal devices);  noise production for components of systems;  insertion loss of component of systems;  sound insulation. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1506, Ventilation for buildings — Sheet metal air ducts and fittings with circular cross-section — Dimensions EN 12238, Ventilation for buildings — Air terminal devices — Aerodynamic testing and rating for mixed flow application EN 12792:2003, Ventilation for buildings — Symbols, terminology and graphical symbols EN 13141-1:2004, Ventilation for buildings — Performance testing of components/products for residential ventilation — Part 1: Externally and internally mounted air transfer devices EN ISO 140-3, Acoustics — Measurement of sound insulation in buildings and of building elements — Part 3: Laboratory measurements of airborne sound insulation of building elements (ISO 140-3:1995) EN ISO 3741, Acoustics — Determination of sound power levels of noise sources using sound pressure — Precision methods for reverberation rooms (ISO 3741:1999, including Cor 1:2001) EN ISO 5135, Acoustics — Determination of sound power levels of noise from air-terminal devices, air-terminal units, dampers and valves by measurement in a reverberation room (ISO 5135:1997) EN ISO 11691:2009, Acoustics — Measurement of insertion loss of ducted silencers without flow — Laboratory survey method (ISO 11691:1995) EN ISO 7235:2009, Acoustics — Laboratory measurement procedures for ducted silencers and air-terminal units — Insertion loss, flow noise and total pressure loss (ISO 7235:2003) SIST EN 13141-2:2010



EN 13141-2:2010 (E) 7 ISO 5221, Air distribution and air diffusion — Rules to methods of measuring air flow rate in an air handling duct 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 12792:2003 and the following apply. 3.1 insertion loss reduction in sound pressure level in the reverberation room due to the mounting of the air terminal device 3.2 test duct straight, rigid hard-walled duct of constant cross section between sound source and air terminal device 3.3 reverberation room room specially designed to facilitate the production of approximately diffuse sound fields 3.4 background noise noise emitted by the whole sources other than the source under testing 4 Performance testing of aerodynamic characteristics 4.1 Flow rate/pressure 4.1.1 Principle This test consists of measuring several volume flow rates induced through a device by the applied static pressure difference to define the flow rate/pressure characteristic curve in the operating range specified by the manufacturer. In the case of manually adjustable devices this test shall be carried out at maximum and minimum opening conditions specified by the manufacturer. Some exhaust ATD are of the bi-function type, i.e. they are designed to work under both natural and mechanical ventilation system. In that case the manufacturer may have to specify two operational ranges, and the device shall be tested for each of them according the standard procedure. 4.1.2 Test installation, conditions and uncertainty of measurement 4.1.2.1 Test installation and conditions The device to be tested shall be installed in accordance with Figure 2a) for exhaust air terminal device or Figure 2b) for supply air terminal device. The test installation shown in Figure 2a) and Figure 2b) comprises:  a test duct with an airflow meter, a static pressure gauge and an airflow straightener in accordance with ISO 5221. Other measurement devices may be used, provided they allow measurements with an uncertainty in accordance with 4.1.2.2;  a fan with means to vary the pressure difference across the device, covering the range of Table 1 given in 4.1.3. NOTE In order to avoid pumping effect, an adequate device may be added after the airflow meter. SIST EN 13141-2:2010



EN 13141-2:2010 (E) 8 The test facilities shall have a range:  for extraction: – 300 Pa to 0 Pa;  for supply: 0 Pa to + 300 Pa. The air terminal device shall be mounted in a test duct with cross-sectional dimensions equal to the nominal size of the device or to the duct dimensions normally recommended by the manufacturer. For supply only, the duct shall be straight and at least 20 De long to guarantee a uniform velocity profile or shall include an efficient flow straightener located at a position at least 3 De from any part of the air terminal device. It is recommended that straightener cells have an axial length at least equal to six times the hydraulic diameter of their cross-section.
a) For exhaust air terminal device b) For supply air terminal device Key 1 airflow 7 flow straightener 2 airflow meter 8 connection to fan, flowrate control and airflow meter 3 plane of temperature measurement 9 transition to test duct size 4 plane of pressure measurement 10 plane of pressure measurement 5 air terminal device 11 signal to display or computer 6 test duct, diameter De 12 with flow straightener
13 without flow straightener Figure 2 — Test installation for exhaust air terminal device (Figure 2a)) and supply air terminal device (Figure 2b)) 4.1.2.2 Uncertainty of measurement In the case of air terminal devices with pressure difference controlled openings:  the pressure shall be measured with an uncertainty lower than: (Pa)
value)(measured 0,03
0,2×+ (1)  the volume flow rate shall be measured with an uncertainty lower than: SIST EN 13141-2:2010



EN 13141-2:2010 (E) 9 )(l
value)(measured 0,03
0,31−⋅×+s (2) For other air terminal devices:  the pressure shall be measured with an uncertainty lower than: (Pa)
value)(measured 0,03
0,5×+ (3)  the volume flow rate shall be measured with an uncertainty lower than:
)(l
value)(measured 0,03
0,31−⋅×+s (4) NOTE The combined uncertainties of measurement will result in a total accuracy of the test method in the range of 3 % to 5 %. 4.1.3 Test procedure The measurements shall be taken for six points, each taken within one of the pressure difference ranges (bands) given in Table 1 so as to match with / cover the operational range of the device as stated by the manufacturer. Table 1 — Pressure difference ranges Pressure difference ∆p Pa 3 to 4 4 to 6 6 to 8 8 to 10 13 to 18 18 to 24 24 to 32 32 to 42 42 to 55 55 to75 75 to 100 100 to 130 130 to 170 170 to 225 225 to 300
The environmental conditions existing during the tests such as temperature, barometric pressure shall be recorded. Air temperature θa shall be (20 ± 5) °C. During the test, temperature θa shall not vary more than ± 2 °C. The test shall be carried out by continuously increasing the pressure difference across the device. SIST EN 13141-2:2010



EN 13141-2:2010 (E) 10 For pressure difference controlled devices, a first series of measurement shall be made with continuously increasing the pressure difference, then a second with continuously decreasing it. At each point the couple (pressure difference ∆p, volume flow rate qv meas) shall be recorded when steady state conditions are achieved. The volume flow rate qv meas may be directly measured or alternatively calculated from the measured value of mass flow rate qm. 4.1.4 Analysis of results Analysis of result shall be as specified in EN 13141-1:2004, 4.1.3. 4.1.5 Presentation of results Presentation of result shall be as specified in EN 13141-1:2004, 4.1.3. 4.2 Air diffusion characteristics for supply air terminal devices Tests shall be carried out and the results presented in accordance with EN 12238. 5 Performance testing of acoustic characteristics 5.1 Noise production for components of systems 5.1.1 General Air passing through an air terminal device generates noise, some of which is radiated into the room. The method described below determines the acoustic power level of the noise thus emitted. 5.1.2 Test installation 5.1.2.1 Characteristics of reverberation room The acoustics measurements shall be made in a reverberation room according to the EN ISO 3741. The test installation shall be as shown in Figure 3. Dimensions are given in millimetres. Tolerances should be ± 10 mm, except for test duct, whose tolerance shall comply with EN 1506.
SIST EN 13141-2:2010



EN 13141-2:2010 (E) 11 Dimensions in millimetres
Key 1 reverberation room
2 silencer (or silent air inlet) 3 air terminal device under test 4 test duct 5 to the exhaust fan and the flow rate measuring instrument
6 anechoic termination (300 mm of fibrous sound absorbent plug with a density close to 40 kg/m³ before the closed side of the duct) 7 pressure probes Figure 3 — Test facility and test installation of the air terminal device on its test duct 5.1.2.2 Position of the air terminal device in reverberation room The duct centreline should be placed at 300 mm from an edge of the test room and at least at 1 500 mm from any wall other than those forming the edge. If the edge is not at 300 mm from the duct centreline, it shall be simulated by using a baffle of particle board, thickness 22 mm, minimum density 500 kg/m³ and minimum area 1 500 mm × 1 500 mm. 5.1.2.3 Air handling circuit The air circuit shall be designed as shown in Figure 3. An extraction fan shall be mounted in the air circuit and fitted with regulation devices and a silencer. The measured background noise of the test room when the air terminal device is removed should remain at least 6 dB lower than the noise measured with the device. SIST EN 13141-2:2010



EN 13141-2:2010 (E) 12 The inlet through which air enters the test room shall have a sufficiently large cross-section to maintain low pressure difference in the test room and not induce any noise which might contribute to the background noise. 5.1.2.4 Flow noise measuring conditions Air shall be extracted from to the air terminal device by means of the test duct specified in 3.2 and 5.1.2.1 and the air handling circuit specified in 5.1.2.3. The airflow rate shall be determined from an airflow measuring instrument in accordance with ISO 5221, or using an instrument of at least the same accuracy, and fitted in the air handling circuit.
The pressure drop through the air terminal device shall be measured as:
1atm
- ppp=∆ (5) where
patm is the atmospheric pressure in the room;
p1 is the static pressure measured in the duct at the position indicated in Figure 3. The static pressure shall be measured according to 4.1.
The air terminal device shall be mounted such that no air leakage can occur between the device and the air duct, to avoid the generation of narrow-band noise which can affect the results. The setting of any positioning parameter indicated on the adjustable terminal devices shal
...
