Slide (zip) fasteners - Specification

This European Standard specifies performance levels and test methods for the following characteristics
of slide fasteners made from interlocking components mounted on tapes: strengths of puller
attachment, closed-end, top stop, open-end slide fastener box, reciprocating mechanism, closed slide
fastener when extended laterally, open-end attachment when extended laterally, slider locking device,
and open-end slide fastener single stringer slider retention and slider resistance to torque.
NOTE The tests specified in Annexes B to K have been specifically devised to permit their direct application
to finished slide fasteners with a view to giving the user reasonable assurance that a slide fastener conforming to
the requirements of this standard can satisfactorily fulfil its intended purpose. Annex L gives information about
sampling procedures for bulk quantities of slide fasteners.
In addition, performance levels are also specified for colour fastness to washing, dry cleaning and water,
and for dimensional stability to washing and dry cleaning.
This European Standard is applicable to slide fasteners for general use and is not applicable to slide
fasteners for specialist purposes (for example: pressure sealed slide fasteners for diving suits).

Reissverschlüsse - Spezifikation

Diese Europäische Norm legt Leistungsstufen und Prüfverfahren für die folgenden Eigenschaften von Reißverschlüssen fest, die aus auf Textilbänder befestigten ineinandergreifenden Komponenten hergestellt wurden: Abreißfestigkeit des Schiebergriffs, Festigkeit des unteren Begrenzungsteils, Festigkeit des oberen Begrenzungsteils, Festigkeit des Kastenteils eines teilbaren Reißverschlusses, Querfestigkeit nach Dauerlaufprüfung, Querfestigkeit des Reißverschlusses und des Teilbarkeitselementes, Haltekraft der Schiebersperre und Schieberabzugfestigkeit bei geöffnetem teilbaren Reißverschluss sowie Torsionsfestigkeit des Schiebers gegen Drehkraft.
ANMERKUNG   Die in den Anhängen B bis K festgelegten Prüfungen wurden eigens entwickelt, um ihre direkte Anwendung auf fertige Reißverschlüsse im Hinblick darauf zu ermöglichen, dem Anwender die angemessene Sicherheit bieten zu können, dass ein Reißverschluss, welcher die Anforderungen dieser Norm erfüllt, seine vorgesehenen Verwendungen zufriedenstellend erfüllen kann. Anhang L gibt Informationen zur Probenahme von Reißverschlussmengen.
Zusätzlich werden Leistungsstufen für die Farbechtheit und Formbeständigkeit beim Waschen und bei Trockenreinigung festgelegt.
Diese Europäische Norm gilt für Reißverschlüsse zur allgemeinen Verwendung und gilt nicht für Reißverschlüsse für besondere Zwecke (z. B. druckversiegelte Reißverschlüsse an Tauchanzügen).

Fermetures à glissière - Spécifications

La présente Norme européenne spécifie les niveaux de performance et les méthodes d’essai pour les caractéristiques suivantes des fermetures à glissière comportant des composants s’emboîtant et montés sur des rubans : la résistance de la fixation de la tirette, de la réunion, de l'arrêt, du boîtier du système séparable, du mécanisme de va-et-vient, du système non séparable à la traction transversale, de la fixation de la réunion à la traction transversale, du système de blocage du curseur, du maintien du curseur sur une demi-chaîne de fermeture séparable et la résistance du curseur à la torsion.
NOTE   Les essais spécifiés dans les Annexes B à K ont été conçus expressément pour une application directe à des fermetures à glissière à l'état fini, en vue de fournir à l'utilisateur l'assurance raisonnable qu'une fermeture à glissière conforme aux exigences de la présente norme peut remplir de manière satisfaisante la fonction pour laquelle elle est prévue. L’Annexe L donne des informations sur les modes opératoires d'échantillonnage pour de grandes quantités de fermetures à glissière.
En outre, des niveaux de performance sont également déterminés pour la solidité des teintures au lavage, au nettoyage à sec et à l'eau, et pour la stabilité dimensionnelle au lavage et au nettoyage à sec.
La présente Norme européenne s'applique aux fermetures à glissière d'usage courant et ne s'applique pas aux fermetures à glissière destinées à des applications spéciales (par exemple : fermetures à glissière étanches destinées aux combinaisons de plongée).

Patentne zadrge - Specifikacija

Ta evropski standard določa ravni učinkovitosti in preskusne metode za naslednje značilnosti
patentnih zadrg, izdelanih iz spojenih komponent, pritrjenih na trakovih: trpežnosti vlečnega nastavka, zaprtega konca, zgornjega končnika, ohišja patentne zadrge ob odprtem koncu, mehanizma za povratno premikanje, zaprte patentne zadrge (ob vodoravnem razprtju), nastavka na odprtem koncu (ob vodoravnem razprtju), zaklepa drsnika in držala drsnika na posamezni zapenjači patentne zadrge ob odprtem koncu ter odpornost drsnika na navor.
OPOMBA: Preskusi, navedeni v dodatkih B do K, so bili posebej zasnovani tako, da omogočajo neposredno uporabo za dokončane patentne zadrge z namenom, da daje uporabniku smiselno zagotovilo, da zadrga, ki izpolnjuje zahteve tega standarda, zadovoljivo služi svojemu predvidenemu namenu. Dodatek L vključuje informacije o postopkih vzorčenja za velike količine patentnih zadrg.
Poleg tega so določene tudi ravni učinkovitosti za odpornost barv na pranje, sušenje in vodo
ter za dimenzijsko odpornost na pranje in sušenje. Ta evropski standard se uporablja za patentne zadrge za splošno uporabo in ne za patentne zadrge za posebne namene (primer: tlačno zatesnjene zadrge pri potapljaški obleki).

General Information

Status
Published
Public Enquiry End Date
10-Aug-2014
Publication Date
03-Feb-2016
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
27-Jan-2016
Due Date
02-Apr-2016
Completion Date
04-Feb-2016

Buy Standard

Standard
EN 16732:2016
English language
40 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Patentne zadrge - SpecifikacijaReissverschlüsse - SpezifikationFermetures à glissière - SpécificationsSlide (zip) fasteners - Specification61.040Headgear. Clothing accessories. Fastening of clothingICS:Ta slovenski standard je istoveten z:EN 16732:2015SIST EN 16732:2016en,fr,de01-marec-2016SIST EN 16732:2016SLOVENSKI
STANDARD



SIST EN 16732:2016



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16732
December
t r s w ICS
x sä r v r English Version
Fermetures à glissière æ Spécifications
Reißverschlüsse æ Spezifikation This European Standard was approved by CEN on
y November
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x y u tã t r s w ESIST EN 16732:2016

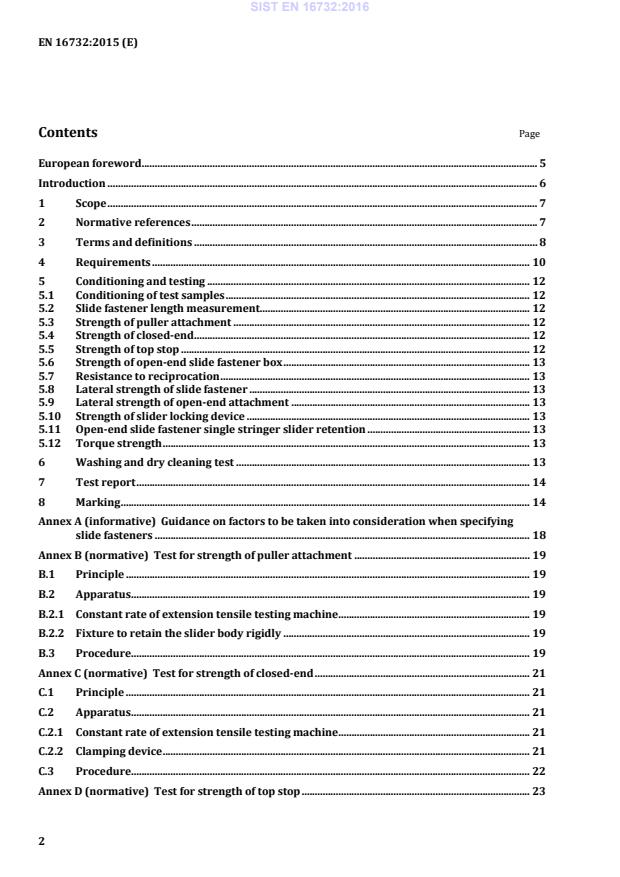

EN 16732:2015 (E) 2 Contents Page European foreword . 5 Introduction . 6 1 Scope . 7 2 Normative references . 7 3 Terms and definitions . 8 4 Requirements . 10 5 Conditioning and testing . 12 5.1 Conditioning of test samples . 12 5.2 Slide fastener length measurement. 12 5.3 Strength of puller attachment . 12 5.4 Strength of closed-end . 12 5.5 Strength of top stop . 12 5.6 Strength of open-end slide fastener box . 13 5.7 Resistance to reciprocation . 13 5.8 Lateral strength of slide fastener . 13 5.9 Lateral strength of open-end attachment . 13 5.10 Strength of slider locking device . 13 5.11 Open-end slide fastener single stringer slider retention . 13 5.12 Torque strength . 13 6 Washing and dry cleaning test . 13 7 Test report . 14 8 Marking . 14 Annex A (informative)
Guidance on factors to be taken into consideration when specifying slide fasteners . 18 Annex B (normative)
Test for strength of puller attachment . 19 B.1 Principle . 19 B.2 Apparatus . 19 B.2.1 Constant rate of extension tensile testing machine . 19 B.2.2 Fixture to retain the slider body rigidly . 19 B.3 Procedure. 19 Annex C (normative)
Test for strength of closed-end . 21 C.1 Principle . 21 C.2 Apparatus . 21 C.2.1 Constant rate of extension tensile testing machine . 21 C.2.2 Clamping device . 21 C.3 Procedure. 22 Annex D (normative)
Test for strength of top stop . 23 SIST EN 16732:2016



EN 16732:2015 (E) 3 D.1 Principle . 23 D.2 Apparatus . 23 D.3 Procedure . 24 Annex E (normative)
Test for strength of open-end slide fastener box . 25 E.1 Principle . 25 E.2 Apparatus . 25 E.2.1 Constant rate of extension tensile testing machine . 25 E.2.2 Slotted plate . 25 E.3 Procedure . 26 Annex F (normative)
Test for resistance to reciprocation . 27 F.1 Principle . 27 F.2 Apparatus . 27 F.3 Procedure . 28 F.3.1 Preparation of the specimens . 28 F.3.2 Method . 29 Annex G (normative)
Test for lateral strength of slide fastener . 31 G.1 Principle . 31 G.2 Apparatus . 31 G.2.1 Constant rate of extension tensile testing machine . 31 G.2.2 Jaws . 31 G.3 Procedure . 31 Annex H (normative)
Test for lateral strength of open-end attachment. 32 H.1 Principle . 32 H.2 Apparatus . 32 H.2.1 Constant rate of extension tensile testing machine . 32 H.2.2 Jaws . 32 H.3 Procedure . 32 Annex I (normative)
Test for strength of slider locking device . 33 I.1 Principle . 33 I.2 Apparatus . 33 I.2.1 Constant rate of extension tensile testing machine . 33 I.2.2 Jaws . 33 I.3 Procedure . 33 Annex J (normative)
Test for open-end slide fastener single stringer slider retention . 34 J.1 Principle . 34 J.2 Apparatus . 34 SIST EN 16732:2016



EN 16732:2015 (E) 4 J.2.1 Constant rate of tension tensile testing machine . 34 J.2.2 Jaws . 34 J.3 Procedure. 34 Annex K (normative)
Torque test . 35 K.1 Principle . 35 K.2 Apparatus . 35 K.3 Procedure. 36 K.3.1 Preparation of the specimens . 36 K.3.2 Method . 36 K.4 Test to failure method for quality control . 36 Annex L (informative)
Sampling procedures for bulk quantities of slide fasteners. 38 L.1 General . 38 L.2 Guidance on interpretation of results for acceptance purposes . 38 L.3 Guide to changing from normal to tightened test procedures. 38 Annex M (informative)
End-uses and recommended performance codes for labelling purposes . 39 Bibliography . 40
SIST EN 16732:2016



EN 16732:2015 (E) 5 European foreword This document (EN 16732:2015) has been prepared by Technical Committee CEN/TC 248 “Textiles and textile products”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by June 2016, and conflicting national standards shall be withdrawn at the latest by June 2016. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 16732:2016



EN 16732:2015 (E) 6 Introduction The different types of slide fasteners are defined by the material of the elements (teeth), which form their slide fastener chains. They can be of metallic, moulded plastic or monofilament plastic construction. Metallic elements can be produced from flat or profiled wire and are usually clamped around the edge of a beaded tape. An alternative approach is to cast metallic elements directly onto such a tape. Similarly, plastic elements can be moulded onto a beaded tape. Such cast or moulded elements might have projections on which the slider operates to reduce abrasion of the tape. Plastic coil slide fasteners have polyamide or polyester monofilaments that are wound into coils to form engaging elements. The coils can be attached to the face of flat tapes by sewing. Alternatively, the coils can be woven or knitted into the tapes as they are constructed. Monofilament plastic elements can also be of the meander type, which straddle the tape edge. Typical slide fastener chain types are shown in Figure 1. SIST EN 16732:2016



EN 16732:2015 (E) 7 1 Scope This European Standard specifies performance levels and test methods for the following characteristics of slide fasteners made from interlocking components mounted on tapes: strengths of puller attachment, closed-end, top stop, open-end slide fastener box, reciprocating mechanism, closed slide fastener when extended laterally, open-end attachment when extended laterally, slider locking device, and open-end slide fastener single stringer slider retention and slider resistance to torque. NOTE The tests specified in Annexes B to K have been specifically devised to permit their direct application to finished slide fasteners with a view to giving the user reasonable assurance that a slide fastener conforming to the requirements of this standard can satisfactorily fulfil its intended purpose. Annex L gives information about sampling procedures for bulk quantities of slide fasteners. In addition, performance levels are also specified for colour fastness to washing, dry cleaning and water, and for dimensional stability to washing and dry cleaning. This European Standard is applicable to slide fasteners for general use and is not applicable to slide fasteners for specialist purposes (for example: pressure sealed slide fasteners for diving suits). 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 20105-A02, Textiles - Tests for colour fastness - Part A02: Grey scale for assessing change in colour (ISO 105-A02) EN 20105-A03, Textiles - Tests for colour fastness - Part A03: Grey scale for assessing staining (ISO 105-A03) EN ISO 105-C06, Textiles - Tests for colour fastness - Part C06: Colour fastness to domestic and commercial laundering (ISO 105-C06) EN ISO 105-D01, Textiles - Tests for colour fastness - Part D01: Colour fastness to dry cleaning using perchloroethylene solvent (ISO 105-D01) EN ISO 105-E01, Textiles - Tests for colour fastness - Part E01: Colour fastness to water (ISO 105-E01) EN ISO 139, Textiles - Standard atmospheres for conditioning and testing (ISO 139) EN ISO 3175-2, Textiles - Professional care, drycleaning and wetcleaning of fabrics and garments - Part 2: Procedure for testing performance when cleaning and finishing using tetrachloroethene (ISO 3175-2) EN ISO 5077, Textiles - Determination of dimensional change in washing and drying (ISO 5077) EN ISO 6330, Textiles - Domestic washing and drying procedures for textile testing (ISO 6330) SIST EN 16732:2016



EN 16732:2015 (E) 8 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 slide fastener (zip) fastening device consisting of two flexible, interlocking stringers, with or without end stops, and one or more sliders so arranged that by moving the slider along the stringers in one direction an opening is formed, and by moving it in the other direction the opening is closed 3.2 stringer tape with an attached row of elements designed to interlock with a row similarly attached to another tape 3.3 tape narrow fabric to which elements are fitted 3.4 element (tooth) engaging component fixed to the edge of the tape (see Figure 2) 3.5 slider moving component consisting essentially of a slider body and, normally, a puller which opens or closes the slide fastener by separating or engaging the single elements of the stringer Note 1 to entry: The slider might incorporate a locking device. Alternative slider types are available with a flip-over puller or double pullers, to facilitate operation from both front and back sides. 3.6 slider body component that joins or separates the elements when sliding along the two stringers of slide fastener 3.7 puller fitting attached to the slider body to facilitate manipulation 3.8 locking device device incorporated in the slider unit restricting its free movement along the slide fastener length in an opening direction Note 1 to entry: The locking device might operate either automatically on release of the puller or by manual pressure on the puller. 3.9 slide fastener length distance from the top of the slider to the bottom of the bottom stop, or box in the case of an open-end slide fastener, measured with the slider in the top position and with the puller in the downward position (see Figure 2) Note 1 to entry: Some suppliers measure the effective length of slide fasteners from the top of the slider to the bottom edge of the tape, especially in the case of two way open-end slide fasteners. SIST EN 16732:2016



EN 16732:2015 (E) 9 3.10 bottom stop stop at the bottom end of the chain that checks the opening movement of the slider Note 1 to entry: See Figure 2a), (Key n. 5). 3.11 top stop stop(s) at the top end of the chain that check(s) the closing movement of the slider 3.12 chain continuous closure formed by two interlocking compatible stringers Note 1 to entry: See Figure 2a), (Key n.8). 3.13 chain width width across the interlocked elements or shoulder on which the slider runs, whichever is the greater Note 1 to entry: See Figure 2b), (Key n.6). 3.14 bottom end end which is adjacent to the slider when the device is fully open 3.15 top end end which is adjacent to the slider when the device is fully closed 3.16 open-end slide fastener slide fastener having a special fitment at the bottom end of each stringer in place of the bottom stop, so as to permit the two stringers to be completely separated and re-assembled at will when the slider is in the fully open position Note 1 to entry: The special fitment normally consists of a pin permanently fixed to the bottom end of one stringer, which fits into a box permanently fixed to the bottom end of the other stringer. Note 2 to entry: See Figure 3c) and 4a). 3.17 closed-end slide fastener slide fastener which does not permit the complete separation of the two stringers Note 1 to entry: Normally the top end of the slide fastener separates as the slider is lowered, although there is one type whose top ends are permanently joined together by means of a bridge stop [see Figure 3a) and Figure 3b), 4b), 4c), 4d)]. 3.18 concealed slide fastener slide fastener with the tapes folded so that on closure neither the slider body nor the slide fastener are visible from the outside of the article Note 1 to entry: See Figure 1g). SIST EN 16732:2016



EN 16732:2015 (E) 10 3.19 two-way slide fastener slide fastener fitted with two sliders that operate with equal facility in either direction Note 1 to entry: This type is available in a variety of forms, as illustrated in Figure 4. 3.20 batch quantity of slide fasteners having a specific design, performance code and chain size 4 Requirements When subjected to the tests specified in Clause 5 (as applicable to the features of the slide fastener design to be tested), other than the slide fastener length measurements (see 5.2), samples of new slide fasteners shall conform to Table 1 and to Table 2 if applicable (children items). The overall performance for the slide fastener, as determined by the minimum test results, shall be that of the lowest performance grade achieved by any test specimen for any applicable test. Attention shall be given to the use of the sampling procedures given in Annex L with regard to the interpretation of potential outlier results. It is permissible to perform more than one test on the same slide fastener but care should be taken to ensure that damage sustained in testing does not compromise subsequent test results. A minimum of 3 specimens shall be tested in respect of each applicable test. Failure of any part of a slide fastener before the specified force or number of cycles is reached in any of these tests shall be deemed a failure of the sample. For the acceptance criteria for larger batches the sampling scheme in Annex L shall be used and the number of specimens for each test increased accordingly. Annex L gives information about an appropriate sampling procedure for bulk quantities of slide fasteners. Annex M gives information about end-use and performance codes. SIST EN 16732:2016



EN 16732:2015 (E) 11 Table 1 — Performance requirements of slide fasteners according to end use Annex Test description Units Performance code a A B C D E B C D E F
G H I
Strength of puller attachment (min.) Strength of closed-end (min.) Strength of top stop (min.) Strength of open-end slide fastener box (min.) Resistance to reciprocation:
Minimum cycles without failure
Lateral strength of slide fastener (min.)
Lateral strength of open-end attachment (min.) Strength of slider locking device (min.)
N N N N
Cycles N N N
70 35 50 40
500 150 40 10
80 60 70 70
500 200 70 15
200 80 90 90
500 250 90 25
250 100 110 120
500 370 120 40
300 140 130 150
500 470 160 60
a These performance codes correspond to the description of slide fastener type as follows: A (ultra-light), B (light), C (medium), D (medium-heavy) and E (heavy). Table 2 — Additional performance requirements of slide fasteners for children's items Annex Test description Units Minimum requirement J
K
Open-end slide fastener single stringer slider retention Torque strength N
N.m
70
0,34 In addition, to the requirements of Table 1 and Table 2, slide fasteners shall conform to the colour fastness and dimensional stability requirements of Table 3. SIST EN 16732:2016



EN 16732:2015 (E) 12 Table 3 — Colour fastness and dimensional stability requirements of slide fasteners Property Method of test Performance level d Colour fastness a minimum rating to: dry cleaning washing
water Maximum dimensional change on: washing dry cleaning
EN ISO 105-D01 EN ISO 105-C06, Method A2S
EN ISO 105-E01
EN ISO 5077 b, c EN ISO 3175-2 c
Change in colour and staining 3-4 Change in colour and staining 3-4
Change in colour and staining 3-4
-4 % of original length -3 % of original length a Colour change and staining measured using the Grey scale according to EN 20105-A02 and EN 20105-A03. b Using washing procedure 4N and tumble drying procedure F at a temperature not exceeding 80 °C as described in EN ISO 6330. c Except that the change in slide fastener length only, as defined in 3.9, shall be determined. d In some cases performance levels can be lower due to technical reasons (e.g.: denim, pigment prints, fluorescent colours, etc.). In other cases they can be higher (e.g.: contrast colour) Variation of the performance levels shall be agreed between the parties NOTE
Guidance on the factors to be considered when specifying slide fasteners is given in Annex A. 5 Conditioning and testing 5.1 Conditioning of test samples Prior to being subjected to the tests specified in 5.2 to 5.11, sample slide fasteners shall first be conditioned for minimum of 16 h and then tested in the reference standard atmosphere for testing textiles as defined in EN ISO 139 [ i.e. a temperature of (20 ± 2) °C and a relative humidity of (65 ± 4) %]. 5.2 Slide fastener length measurement The length tolerance for slide fasteners compared with the nominal length shall be ±1,5 % or ± 5 mm (whichever is the greater), unless otherwise specified between parties. The slide-fastener length shall be measured on a smooth flat surface using a one-millimetre graduated ruler. 5.3 Strength of puller attachment When tested in accordance with Annex B, slide fasteners shall conform to the performance code specified in Table 1. 5.4 Strength of closed-end When tested in accordance with Annex C, closed-end slide fasteners shall conform to the performance code spe
...
