This Part of this European Standard describes a test method to determine the adhesion to hydraulic concrete of injection products. The test can be applied to polymer and cementetious injection products.
The injection may be performed upon cracks in the dry, damp, wet or with water flowing through them. The tensile bond test should always be carried out after the appropriate period of curing under the standard conditions of test detailed below, but may additionally be performed upon a further set of specimens after a period of artificial ageing by thermal cycling.
The test can provide an opportunity for subjective assessment of injectability.

Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Teil 2: Bestimmung der Haftzugfestigkeit von Rissfüllstoffen mit oder ohne thermische Behandlung - Haftzugfestigkeit

Dieses Dokument beschreibt ein Prüfverfahren zur Bestimmung der Haftzugfestigkeit von Rissfüllstoffen in Bezug auf hydraulischen Beton. Diese Prüfung kann auf polymere oder zementgebundene Rissfüllstoffe angewendet werden.
Die Injektion kann in trockene, feuchte, nasse oder wasserführende Risse erfolgen. Die Prüfung der Haftzugfestigkeit sollte nach der erforderlichen Aushärtedauer unter den nachfolgend beschriebenen genormten Prüfbedingungen erfolgen, kann jedoch zusätzlich an einer weiteren Reihe von Prüfkörpern nach einer künstlichen Alterung durch thermische Behandlung durchgeführt werden.
Die Prüfung stellt eine Möglichkeit für die subjektive Bewertung der Injizierbarkeit dar.

Produits et systemes pour la protection et la réparation des structures en béton - Méthodes d'essai - Partie 2: Détermination de l'adhérence des produits d'injection, apres cycles thermiques ou non - Adhérence par résistance en traction

Le présent document décrit une méthode d'essai qui permet de déterminer l'adhérence des produits d'injection au béton hydraulique. L'essai est applicable aux produits d'injection polymeres et a base de ciment.
L'injection peut etre réalisée dans les fissures seches, humides, mouillées ou dans lesquelles l'eau circule. Il convient de toujours effectuer l'essai d'adhérence en traction apres la période de conservation dans les conditions normalisées d'essai détaillées ci-dessous ; toutefois, il peut en outre etre effectué sur un autre ensemble d'éprouvettes apres une période de vieillissement artificiel par cycles thermiques.
L'essai permet aussi une évaluation subjective de l'injectabilité.

Proizvodi in sistemi za zaščito in popravilo betonskih konstrukcij – Preskusne metode – 2. del: Določevanje sprijemnosti injekcijske mase s cikličnim spreminjanjem temperature ali brez njega – Natezna sprijemna trdnost

General Information

• Status: Published
• Publication Date: 30-Nov-2004
• ICS: 91.080.40 - Concrete structures
• Technical Committee: BBB - Concrete, reinforced concrete and prestressed concrete
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2004
• Due Date: 01-Dec-2004
• Completion Date: 01-Dec-2004
• Directive: 89/106/EEC - Construction products
• Ref Project: EN 12618-2:2004 - Products and systems for the protection and repair of concrete structures - Test methods - Part 2: Determination of the adhesion of injection products, with our without thermal cycling - Adhesion by tensile bond strength

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.LþQLPRVWProdukte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Teil 2: Bestimmung der Haftzugfestigkeit von Rissfüllstoffen mit oder ohne thermische Behandlung - HaftzugfestigkeitProduits et systemes pour la protection et la réparation des structures en béton - Méthodes d'essai - Partie 2: Détermination de l'adhérence des produits d'injection, apres cycles thermiques ou non - Adhérence par résistance en tractionProducts and systems for the protection and repair of concrete structures - Test methods - Part 2: Determination of the adhesion of injection products, with our without thermal cycling - Adhesion by tensile bond strength91.080.40Betonske konstrukcijeConcrete structuresICS:Ta slovenski standard je istoveten z:EN 12618-2:2004SIST EN 12618-2:2004en01-december-2004SIST EN 12618-2:2004SLOVENSKI
STANDARD



SIST EN 12618-2:2004



EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 12618-2August 2004ICS 91.080.40English versionProducts and systems for the protection and repair of concretestructures - Test methods - Part 2: Determination of theadhesion of injection products, with our without thermal cycling -Adhesion by tensile bond strengthProduits et systèmes pour la protection et la réparation desstructures en béton - Méthodes d'essai - Partie 2:Détermination de l'adhérence des produits d'injection,après cycles thermiques ou non - Procédé d'adhérence partractionProdukte und Systeme für den Schutz und dieInstandsetzung von Betontragwerken - Prüfverfahren - Teil2: Bestimmung der Haftzugfestigkeit von Rissfüllstoffen mitoder ohne thermische Behandlung - HaftzugfestigkeitThis European Standard was approved by CEN on 27 February 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 12618-2:2004: ESIST EN 12618-2:2004

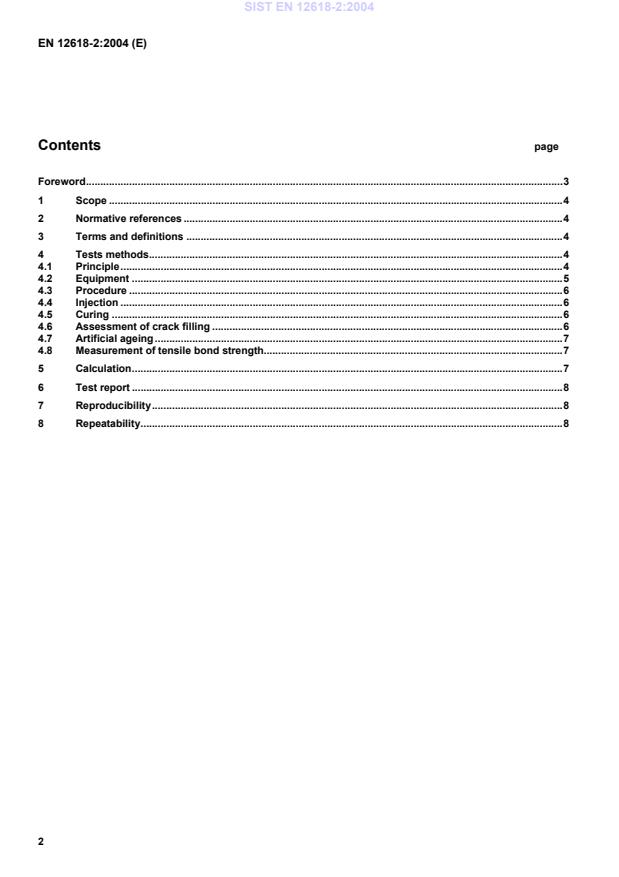

EN 12618-2:2004 (E) 2 Contents page Foreword.3 1 Scope.4 2 Normative references.4 3 Terms and definitions.4 4 Tests methods.4 4.1 Principle.4 4.2 Equipment.5 4.3 Procedure.6 4.4 Injection.6 4.5 Curing.6 4.6 Assessment of crack filling.6 4.7 Artificial ageing.7 4.8 Measurement of tensile bond strength.7 5 Calculation.7 6 Test report.8 7 Reproducibility.8 8 Repeatability.8
