SLOVENSKI SIST EN 50369:2006
STANDARD
januar 2006
Sistemi s tekočinsko neprepustnim oplaščenjem za urejanje okablenja
(istoveten EN 50369:2005)
Liquid tight sheathing systems for cable management
ICS 29.120.10 Referenčna številka
SIST EN 50369:2006(en)

© Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

---------------------- Page: 1 ----------------------
EUROPEAN STANDARD EN 50369
NORME EUROPÉENNE
EUROPÄISCHE NORM August 2005
ICS 29.120.10
English version
Liquid tight sheathing systems for cable management
Systèmes de gaines souples de Flüssigkeitsdichte Elektroinstallations-
protection contre les liquides pour la schlauchsysteme
gestion
du câblage

This European Standard was approved by CENELEC on 2005-04-12. CENELEC members are bound to

comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and

notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech

Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,

Switzerland and United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2005 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 50369:2005 E
---------------------- Page: 2 ----------------------
EN 50369:2005 – 2 –

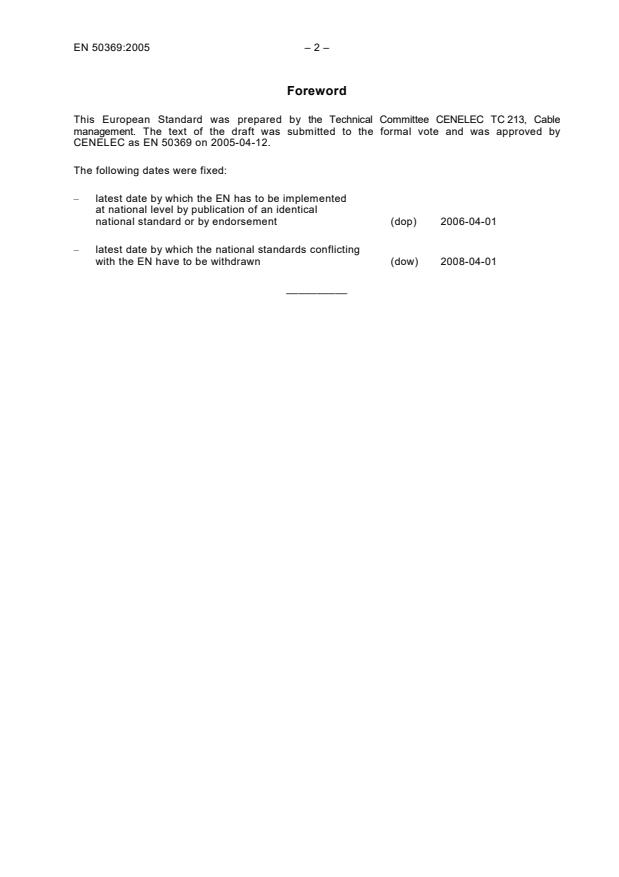

Foreword

This European Standard was prepared by the Technical Committee CENELEC TC 213, Cable

management. The text of the draft was submitted to the formal vote and was approved by

CENELEC as EN 50369 on 2005-04-12.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2006-04-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2008-04-01
__________
---------------------- Page: 3 ----------------------
– 3 – EN 50369:2005
Contents
Page

1 Scope...............................................................................................................................4

2 Normative references........................................................................................................4

3 Definitions ........................................................................................................................4

4 General requirements .......................................................................................................5

5 General conditions for tests ..............................................................................................5

6 Classification ....................................................................................................................6

7 Marking and documentation ..............................................................................................8

8 Dimensions.......................................................................................................................8

9 Construction .....................................................................................................................8

10 Mechanical properties.......................................................................................................9

11 Electrical properties ........................................................................................................11

12 Thermal properties .........................................................................................................12

13 Fire hazard .....................................................................................................................13

14 External influences .........................................................................................................15

15 Electromagnetic compatibility..........................................................................................17

Annex A (informative) A-deviations.......................................................................................25

Figure 1 – Gauge for checking the minimum inside diameter of the liquid tight sheathing

system ..................................................................................................................................18

Figure 2 – Impact test apparatus ...........................................................................................19

Figure 3 – Arrangement for flexing test..................................................................................20

Figure 4 – Arrangement for insulation resistance and electric strength test ............................21

Figure 5 – Enclosure for burning test.....................................................................................22

Figure 6 – Arrangement for burning test ................................................................................23

Figure 7 – Assembly of liquid tight sheathing and fitting for bonding test ................................24

Table 1 – Lower temperature range .........................................................................................7

Table 2 – Upper temperature range.........................................................................................7

Table 3 – Impact test values....................................................................................................9

Table 4 – Tensile force..........................................................................................................10

Table 5 – Times of exposure of the sample to the flame ........................................................14

Table 6 – Resistance to corrosion classification.....................................................................16

---------------------- Page: 4 ----------------------
EN 50369:2005 – 4 –
1 Scope

This European Standard specifies the requirements against ingress of water and tests for flexible

non-flame propagating liquid tight sheathing systems for the protection and management of

insulated conductors and/or cables in electrical installations or in communication systems up to

1 000 V a.c. and/or 1 500 V d.c. This standard applies to metallic, non-metallic and composite

liquid tight sheathing systems including threaded fittings which terminate the system This

European Standard does not apply to conduit systems for electrical installations which come

within the scope of EN 50086 series as well as EN 61386 series. Liquid tight sheathing systems

do not provide mechanical protection to insulated conductors and/or cables. They are not for use

within the construction of buildings as a component of a fixed wiring system.
NOTE Earthing conductors may or may not be insulated.
2 Normative references

The following referenced documents are indispensable for the application of this document. For

dated references, only the edition cited applies. For undated references, the latest edition of the

referenced document (including any amendments) applies.
EN 60423 1994 Conduits for electrical purposes – Outside diameters of conduits
for electrical installations and threads for conduits and fittings
(IEC 60423:1993, mod.)
EN 60529 1991 Degrees of protection provided by enclosures (IP Code)
(IEC 60529:1989)
EN 60695-2-11 2001 Fire hazard testing – Part 2-11: Glowing/hot-wire based test
methods – Glow-wire flammability test method for end-products
(IEC 60695-2-11:2000)

EN 60695-11-2 2003 Fire hazard testing – Part 11-2: Test flames - 1 kW nominal pre-

mixed flame - Apparatus, confirmatory test arrangement and
guidance (IEC 60695-11-2:2003)
3 Definitions
For the purposes of this document, the following terms and definitions apply.
3.1
liquid tight sheathing system

closed wiring system consisting of liquid tight sheathing and terminating fittings for the protection

against ingress of liquid and management of insulated conductors and/or cables in electrical or

communication installations, allowing them to be drawn in and/or replaced, but not to be inserted

laterally
3.2
liquid tight sheathing

component of a closed wiring system which protects insulated conductors and/or cables against

water
3.3
terminating fitting
terminating device designed to terminate a liquid tight sheathing system
3.4
metallic sheathing and/or terminating fitting
sheathing or terminating fitting which consists of metal only
---------------------- Page: 5 ----------------------
– 5 – EN 50369:2005
3.5
non-metallic sheathing and/or terminating fitting

sheathing or terminating fitting which consists uniquely of non-metallic material and which has no

metallic components whatsoever
3.6
composite sheathing and/or terminating fitting

sheathing or terminating fitting comprising both metallic and non-metallic materials

3.7
non-flame propagating sheathing and/or terminating fitting

sheathing or terminating fitting which is liable to catch fire as a result of an applied flame, but in

which the flame does not propagate and which extinguishes itself within a limited time after the

flame is removed
3.8
external influence
factors which may affect the sheathing system

NOTE Examples of such factors are a presence of water, oil or building materials, low and high temperatures and

corrosive or polluting substances.
4 General requirements

4.1 Liquid tight sheathing systems shall be so designed and constructed that in normal use their

performance is reliable and they provide protection to the user to the user or surroundings.

When assembled in accordance with manufacturer's instructions, the liquid tight sheathing

system, shall provide protection against ingress of liquids and electrical protection of the insulated

conductors and cables contained therein.

4.2 Liquid tight sheathing and terminating fittings shall withstand the stresses likely to occur

during transport, storage, recommended installation practice and application.
4.3 Compliance is checked by carrying out all the tests specified.
5 General conditions for tests
5.1 Tests in accordance with this standard are type tests.

5.2 Unless otherwise specified, the tests shall be carried out at an ambient temperature of

(20 ± 5) °C.
5.3 Unless otherwise specified, each test shall be made on three new samples.

NOTE Certain tests, for instance the checking of dimensions, do not affect a change in the property of the samples,

therefore these samples are considered as new samples and can be used for further tests.

5.4 Samples of liquid tight sheathing and fittings shall be conditioned for at least 240 h, at a

temperature of (23 ± 2) °C and a relative humidity between 40 % and 60 %. All tests shall be

carried out immediately after general conditioning.
---------------------- Page: 6 ----------------------
EN 50369:2005 – 6 –

5.5 Unless otherwise specified, the samples for each test shall be in a clean and new condition,

with all parts in place and mounted as in normal use. After checking dimensions in accordance

with Clause 8, and unless otherwise specified in the relevant test, the fittings shall be assembled

with adequate lengths of liquid tight sheathing of the type for which they are intended. Due regard

shall be taken of the manufacturer's instructions, especially where force is required in the

assembly of the joint.

NOTE Where similarities are claimed, the selection of representative fittings for test purposes can be agreed between

the manufacturer, or responsible vendor, and the testing station

5.6 Unless otherwise specified, three samples are subjected to the tests and the requirements

are satisfied if the tests are met.

If only one of the samples does not satisfy a test, due to an assembly or a manufacturing defect,

that test and any preceding one which may have influenced the result of the test shall be repeated

and also the tests which follow shall be carried out in the required sequence on another full set of

samples, all of which shall comply with the requirements.

NOTE If the additional set of samples is not submitted at the same time, a failure of one sample will entail a rejection.

The applicant when submitting the first set of samples, may also submit the additional set of samples which may used,

should one sample fail. The testing station will then, without further request, test the additional set of samples and will

not be accepted only if a further failure occurs.

5.7 When toxic or hazardous processes are used, due regard shall be taken of the safety of the

persons within the test area.

5.8 Liquid tight sheathing systems which are used as an integral part of other equipment shall

also be tested in accordance with the relevant standard for that equipment.
6 Classification
6.1 According to mechanical properties
6.1.1 Resistance to impact
1 Very light
2 Light
3 Medium
6.1.2 Tensile strength
1 Very light
2 Light
3 Medium
---------------------- Page: 7 ----------------------
– 7 – EN 50369:2005
6.2 According to temperature
6.2.1 According to low temperature
Table 1 – Lower temperature range
Classification Transport, application
(1st numeral) and installation temperature not less
than
1X +5 °C
2X -5 °C
3X -15 °C
4X -25 °C
6.2.2 According to high temperature
Table 2 – Upper temperature range
Classification Application and
(2nd numeral) installation temperature not more than
X1 60 °C
X2 90 °C
X3 105 °C
X4 120 °C
X5 150 °C
X6 250 °C
6.3 According to electrical characteristics
6.3.1 With electrical continuity characteristics
6.3.2 With electrical insulating characteristics
6.3.3 None declared
6.4 According to resistance to external influences

6.4.1 Protection against ingress of solid objects: Protection in accordance with EN 60529 to a

minimum of IP5X

6.4.2 Protection against ingress of water: Protection in accordance with EN 60529 to a minimum

of IPX5
6.4.3 Resistance against corrosion
6.4.3.1 Without protection
6.4.3.2 With protection as detailed in Table 6
---------------------- Page: 8 ----------------------
EN 50369:2005 – 8 –
7 Marking and documentation

7.1 The liquid tight sheathing and terminating fitting shall be marked on the product with a

trademark or a name identifying the manufacturer or responsible vendor.

7.2 The liquid tight sheathing shall in addition be marked in such a way that it can be identified

in the manufacturer’s, or responsible vendor’s, literature.
7.3 The marking shall be durable and clearly legible.

Compliance is checked by inspection and by rubbing the marking by hand for 15 s with a piece of

cloth soaked with water and again for 15 s with a piece of cloth soaked with petroleum spirit.

NOTE 1 Petroleum spirit is defined as the aliphatic solvent hexane with a content of aromatics of maximum 0,1 %

volume, a kauri-butanol value of 29, initial boiling point 65 °C, a dry point 69 °C and density approximately 0,68 kg/l.

NOTE 2 Marking may be applied, for example, by moulding, pressing, engraving, printing, adhesive labels, or water

slide transfers.

NOTE 3 Marking made by moulding, pressing or engraving is not subjected to this test.

After the test, the marking shall be legible.

7.4 The manufacturer or responsible vendor shall declare and document in his literature the

suitability of the liquid tight sheathing system with specific liquids at specific temperatures, the

minimum inside diameter of the system, the minimum bending radius and the classification

according to Clause 6.

7.5 The manufacturer or responsible vendor shall be responsible for providing guidelines to

assist the safe transport, installation and application of the liquid tight sheathing system.

7.6 The manufacturer or responsible vendor shall declare in his literature that liquid tight

sheathing systems are not suitable for use within the construction of buildings as a component of

a fixed wiring system.
8 Dimensions
8.1 Threads shall comply with EN 60423.
Compliance is checked by means of the gauges specified in EN 60423.

8.2 The manufacturer shall declare the minimum internal diameter of the liquid tight sheathing

system.

Compliance is checked by measurement by means of a cylindrical gauge as shown in Figure 1.

The gauge must pass through the liquid tight sheathing system without effort.
9 Construction

9.1 Within the liquid tight sheathing system there shall be no sharp edges, burrs or surface

projections which are likely to damage insulated conductors or cables or inflict injury on the

installer or user.

Compliance is checked by inspection, if necessary after cutting the samples apart.

---------------------- Page: 9 ----------------------
– 9 – EN 50369:2005
10 Mechanical properties
10.1 Mechanical strength
10.1.1 Liquid tight sheathing systems shall have adequate mechanical strength.

10.1.2 Liquid tight sheathing, according to their classification, when exposed to impact or

extreme temperature of a specified value in accordance with impact and temperature

classification declared for the product, either during, or after, installation according to the

manufacturer's instructions, shall not crack and shall not be deformed to such an extent that

introduction of the insulated conductors or cables becomes difficult, or that the installed insulated

conductors or cables are likely to be damaged, while being drawn in.

10.1.3 Compliance for 10.1.1 and 10.1.2 is checked by the tests specified in 10.2 to 10.4.

10.2 Impact test

10.2.1 Twelve samples of liquid tight sheathing, each (200 ± 5) mm in length or fittings are

subjected to an impact test by means of the apparatus shown in Figure 2.

Before the test on terminating fittings, the samples are assembled with the appropriate liquid tight

sheathing required as for normal use.
NOTE Fittings are not required when testing liquid tight sheathing.

Parts which are not accessible when mounted in normal use, and small fittings whose maximum

dimension is less than 20 mm are not subjected to this test.

10.2.2 The test apparatus, together with the samples shall be placed in a refrigerator the

temperature within which shall be maintained at the declared temperature as given in Table 1 with

a tolerance of ± 2 °C.

When the samples have attained the temperature specified, or after 2 h, whichever is the longer

period, each sample shall be placed in position on the steel base as shown in Figure 2. The

hammer shall be allowed to fall, once on each sample. The mass of the hammer and the fall

height shall be as given in Table 3.

The test shall be made on the weakest part of the fitting except that it shall not be applied to within 5 mm of

any entry. Samples of liquid tight sheathing are tested at the centre of their length.

Table 3 – Impact test values
Classification Liquid tight Mass of hammer Fall height
sheathing
and fittings Tolerance (+ 1, - 0) % Tolerance (± 1) %
1 Very light 0,5 kg 100 mm
2 Light 1,0 kg 100 mm
3 Medium 2,0 kg 100 mm

10.2.3 After the test the samples shall show no sign of disintegration, nor shall there be any

crack visible to normal or corrected vision without magnification.

After the impact test the samples of liquid tight sheathing shall continue to provide the IP code

declared by the manufacturer performing the tests according to 14.1.
---------------------- Page: 10 ----------------------
EN 50369:2005 – 10 –
10.3 Flexing test

10.3.1 An assembly of liquid tight sheathing with a terminating fitting, assembled in accordance

with the manufacturer’s instructions, is subjected to the following flexing test by means of the

apparatus shown in Figure 3.

10.3.2 The test shall be made on six samples of liquid tight sheathing of an appropriate length.

Three of the samples shall be tested at the declared transport, application and installation

temperature in accordance with Table 1 with a tolerance of ± 2 °C. The other three samples shall

be tested at the declared permanent application and installation temperature as given in Table 2

with the tolerance ± 2 °C.

10.3.3 The sample A is fixed to the oscillating member by means of the terminating fitting B, so

that when the liquid tight sheathing is at the middle of it’s travel, the axis of the liquid tight

sheathing is vertical and passes through the axis of the oscillation.

The oscillating member is moved backwards and forwards through a total angle of (180 ± 5)°

divided equally about the vertical axis.
Dimension Y is the minimum bend radius, declared by the manufacturer.

10.3.4 The assembly is subjected to 5 000 flexings at a rate of 40 ± 5 flexings per minute. A

single flexing constitutes, starting from the vertical position, one continuous cycle of movement of

essentially sinusoidal form.

After the test, the sample shall show no sign of disintegration, nor shall there be any cracks visible

to normal or corrected vision without magnification.
10.4 Ten
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
