Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
ETSI Standard
Environmental Engineering (EE);
Monitoring and Control Interface for Infrastructure Equipment
(Power, Cooling and Building Environment Systems used in
Telecommunication Networks);
Part 9: Alternative Power Systems
2 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
Reference
DES/EE-02037-9
Keywords
control, interface, power
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2012.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)

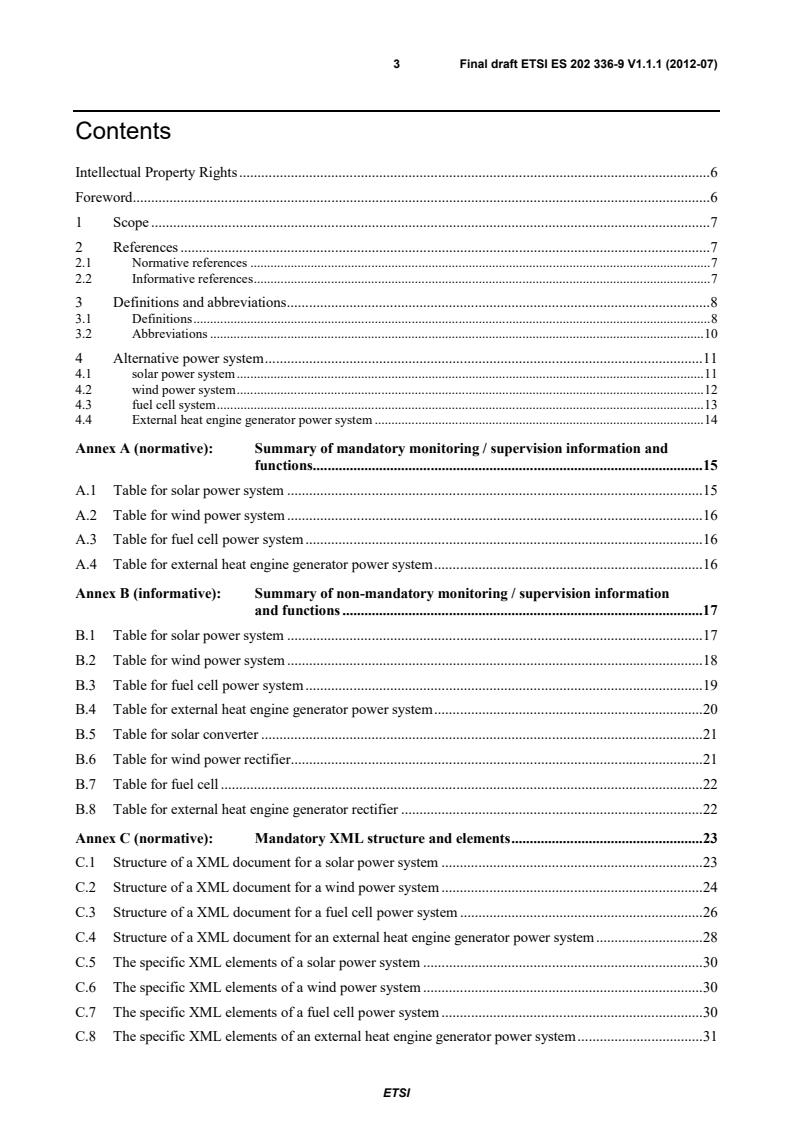

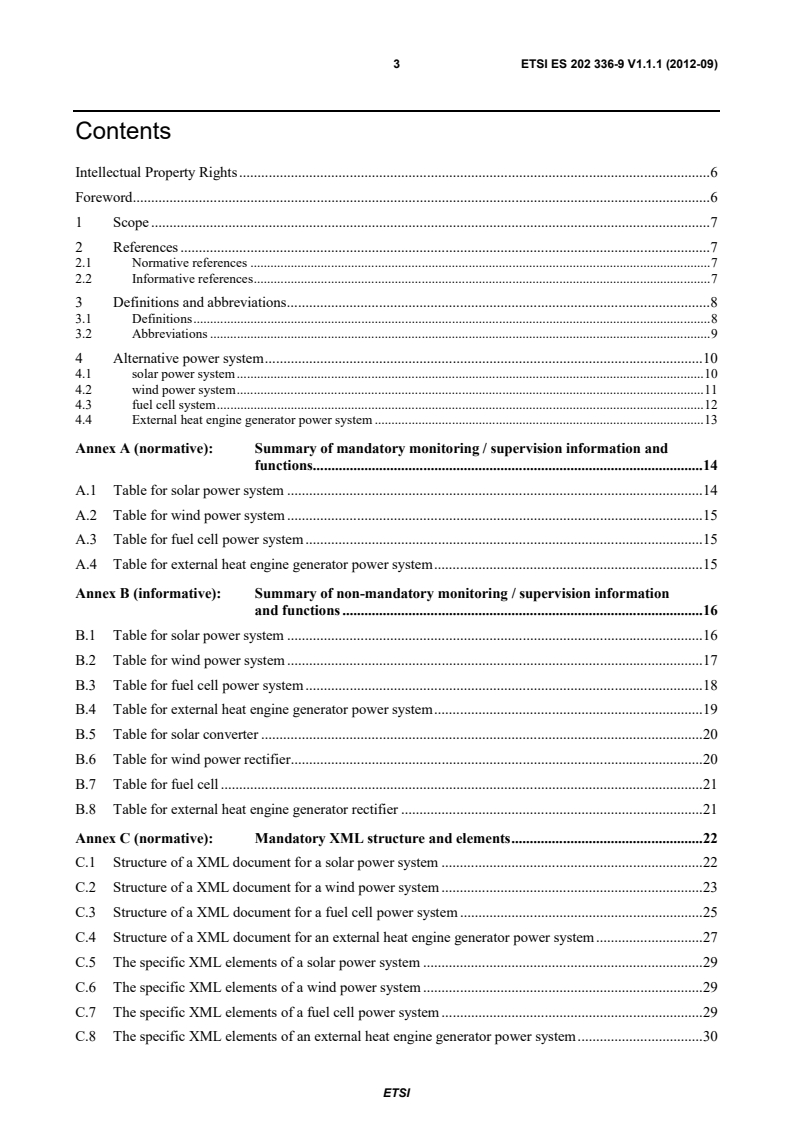

Contents
Intellectual Property Rights . 6
Foreword . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions and abbreviations . 8
3.1 Definitions . 8
3.2 Abbreviations . 10
4 Alternative power system . 11
4.1 solar power system . 11
4.2 wind power system . 12
4.3 fuel cell system . 13
4.4 External heat engine generator power system . 14
Annex A (normative): Summary of mandatory monitoring / supervision information and
f unctions . 15
A.1 Table for solar power system . 15
A.2 Table for wind power system . 16
A.3 Table for fuel cell power system . 16
A.4 Table for external heat engine generator power system . 16
Annex B (informative): Summary of non-mandatory monitoring / supervision information
and functions . 17
B.1 Table for solar power system . 17
B.2 Table for wind power system . 18
B.3 Table for fuel cell power system . 19
B.4 Table for external heat engine generator power system . 20
B.5 Table for solar converter . 21
B.6 Table for wind power rectifier . 21
B.7 Table for fuel cell . 22
B.8 Table for external heat engine generator rectifier . 22
Annex C (normative): Mandatory XML structure and elements . 23
C.1 Structure of a XML document for a solar power system . 23
C.2 Structure of a XML document for a wind power system . 24
C.3 Structure of a XML document for a fuel cell power system . 26
C.4 Structure of a XML document for an external heat engine generator power system . 28
C.5 The specific XML elements of a solar power system . 30
C.6 The specific XML elements of a wind power system . 30
C.7 The specific XML elements of a fuel cell power system . 30
C.8 The specific XML elements of an external heat engine generator power system . 31
ETSI
4 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)

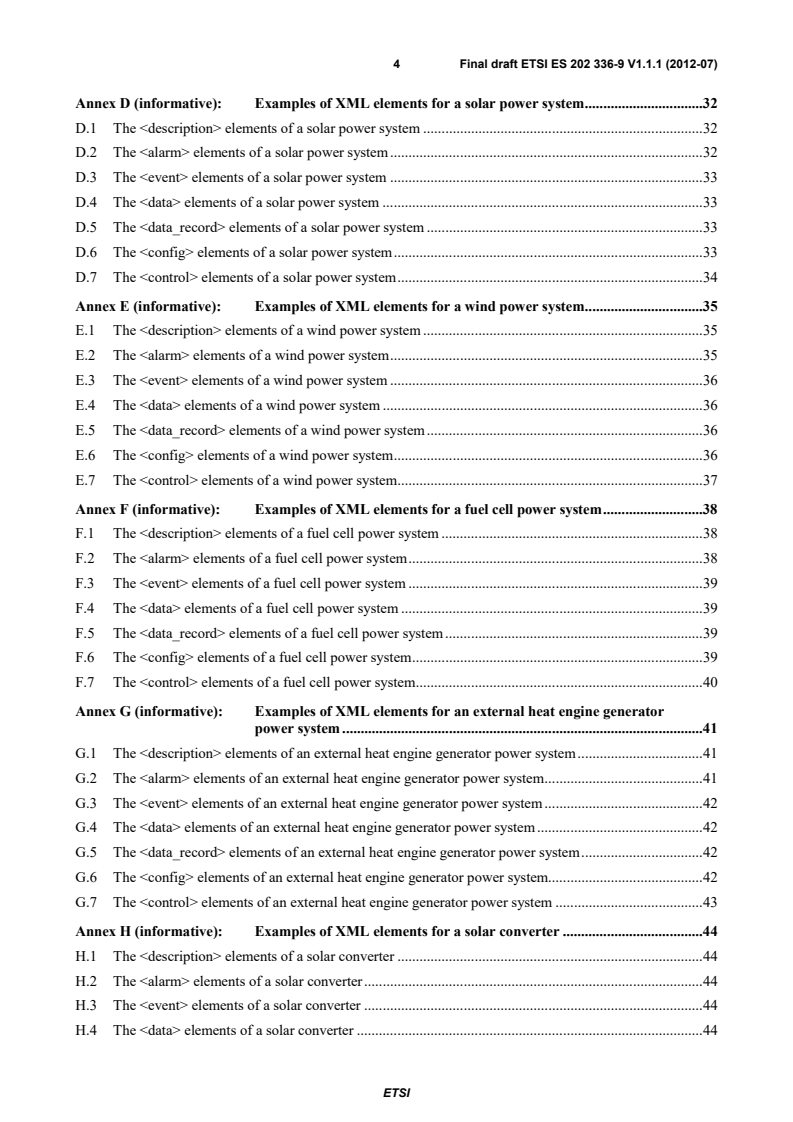

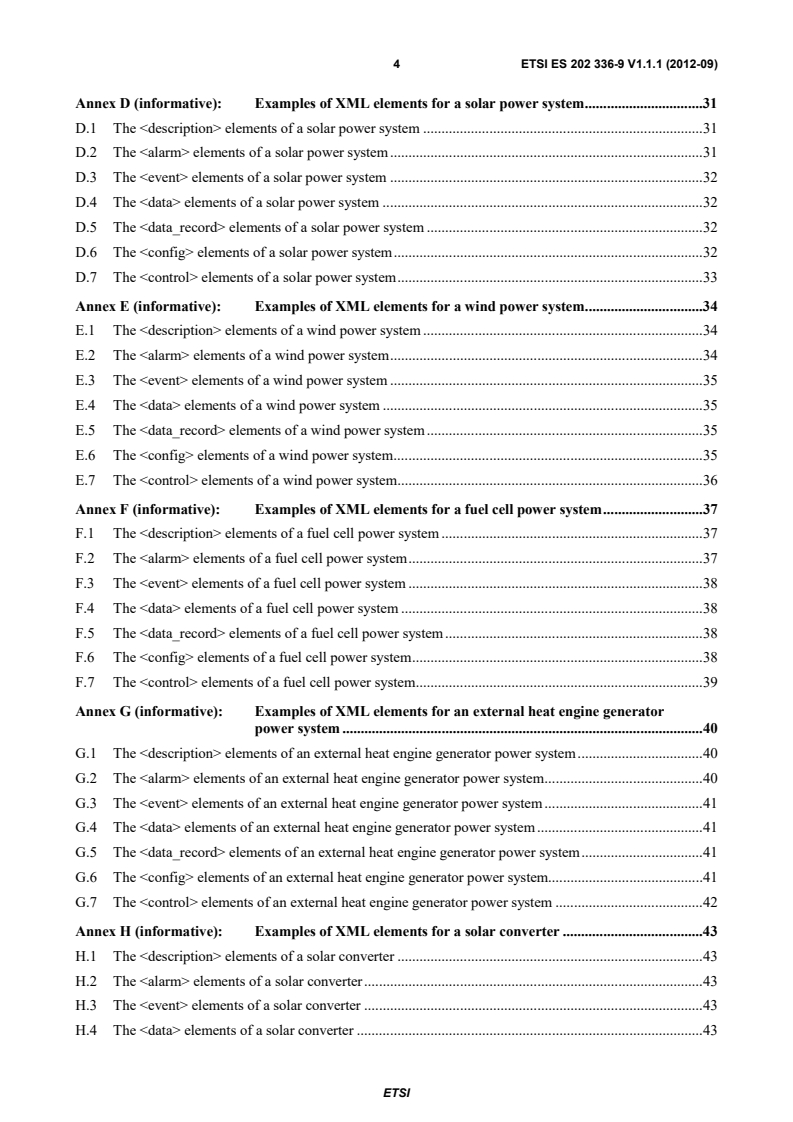

Annex D (informative): Examples of XML elements for a solar power system . 32
D.1 The elements of a solar power system . 32
D.2 The elements of a solar power system . 32
D.3 The elements of a solar power system . 33
D.4 The elements of a solar power system . 33
D.5 The elements of a solar power system . 33
D.6 The elements of a solar power system . 33
D.7 The elements of a solar power system . 34
Annex E (informative): Examples of XML elements for a wind power system . 35
E.1 The elements of a wind power system . 35
E.2 The elements of a wind power system . 35
E.3 The elements of a wind power system . 36
E.4 The elements of a wind power system . 36
E.5 The elements of a wind power system . 36
E.6 The elements of a wind power system . 36
E.7 The elements of a wind power system . 37
Annex F (informative): Examples of XML elements for a fuel cell power system . 38
F.1 The elements of a fuel cell power system . 38
F.2 The elements of a fuel cell power system . 38
F.3 The elements of a fuel cell power system . 39
F.4 The elements of a fuel cell power system . 39
F.5 The elements of a fuel cell power system . 39
F.6 The elements of a fuel cell power system . 39
F.7 The elements of a fuel cell power system . 40
Annex G (informative): Examples of XML elements for an external heat engine generator
power system . 41
G.1 The elements of an external heat engine generator power system . 41
G.2 The elements of an external heat engine generator power system . 41
G.3 The elements of an external heat engine generator power system . 42
G.4 The elements of an external heat engine generator power system . 42
G.5 The elements of an external heat engine generator power system . 42
G.6 The elements of an external heat engine generator power system. 42
G.7 The elements of an external heat engine generator power system . 43
Annex H (informative): Examples of XML elements for a solar converter . 44
H.1 The elements of a solar converter . 44
H.2 The elements of a solar converter . 44
H.3 The elements of a solar converter . 44
H.4 The elements of a solar converter . 44
ETSI
5 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
H.5 The elements of a solar converter . 45
H.6 The elements of a solar converter . 45
Annex I (informative): Examples of XML elements for a wind power rectifier . 46
I.1 The elements of a wind power rectifier . 46
I.2 The elements of a wind power rectifier . 46
I.3 The elements of a wind power rectifier . 46
I.4 The elements of a wind power rectifier . 47
I.5 The elements of a wind power rectifier . 47
I.6 The elements of a wind power rectifier . 47
Annex J (informative): Examples of XML elements for a fuel cell . 48
J.1 The elements of a fuel cell . 48
J.2 The elements of a fuel cell . 48
J.3 The elements of a fuel cell . 48
J.4 The elements of a fuel cell . 48
J.5 The elements of a fuel cell . 49
J.6 The elements of a fuel cell . 49
Annex K (informative): Examples of XML elements for an external heat engine generator
rectifier . 50
K.1 The elements of an external heat engine generator rectifier . 50
K.2 The elements of an external heat engine generator rectifier . 50
K.3 The elements of an external heat engine generator rectifier. 50
K.4 The elements of an external heat engine generator rectifier. 51
K.5 The elements of an external heat engine generator rectifier . 51
K.6 The elements of an external heat engine generator rectifier . 51
Annex L (informative): Bibliography . 52
History . 53
ETSI
6 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This final draft ETSI Standard (ES) has been produced by ETSI Technical Committee Environmental Engineering (EE),
and is now submitted for the ETSI standards Membership Approval Procedure.
The present document is part 9 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
ETSI
7 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
1 Scope
The present document applies to monitoring and control of alternative power supply systems for telecommunication
equipment. The alternative power systems may include solar power system, wind power system, fuel cell system,
external heat engine generator system, etc.
This multi-part deliverable defines:
• The monitored and controlled alternative power supply system architectures.
• The minimum set of exchanged information required at the interface, described in "natural language" in text
tables.
• The XML files with tags and variables corresponding to the data in the tables.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI ES 202 336-1: "Environmental Engineering (EE); Monitoring and Control Interface for
Infrastructure Equipment (Power, Cooling and Building Environment Systems used in
Telecommunication Networks) Part 1: Generic Interface".
[2] ETSI EN 300 132-2: "Environmental Engineering (EE); Power supply interface at the input to
telecommunications and datacom (ICT) equipment; Part 2: Operated by -48 V direct current (dc)".
[3] ETSI EN 300 132-3-1: "Environmental Engineering (EE); Power supply interface at the input to
telecommunications and datacom (ICT) equipment; Part 3: Operated by rectified current source,
alternating current source or direct current source up to 400 V; Sub-part 1: Direct current source
up to 400 V".
[4] ETSI ES 202 336-2: "Environmental Engineering (EE); Monitoring and control interface for
infrastructure equipment (Power, Cooling and environment systems used in telecommunication
networks); Part 2: DC power system control and monitoring information model".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EN 302 099: "Environmental Engineering (EE); Powering of equipment in access network".
[i.2] ETSI TR 102 532: "Environmental Engineering (EE) The use of alternative energy sources in
telecommunication installations".
ETSI
8 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
[i.3] ETSI ES 202 336-11: "Environmental engineering (EE) Monitoring and Control Interface for
infrastructure equipment (Power, Cooling and Building Environment Systems used in
Telecommunication Networks). Part 11: Battery systems control and monitoring information
model".
[i.4] IEEE 802.1 to 802.11: "IEEE Standard for Local & Metropolitan Area Network".
[i.5] ISO/IEC 8879: "Information processing - Text and office systems - Standard Generalized Markup
Language (SGML)".
[i.6] ISO/IEC 10164: "Information technology - Open Systems Interconnection - Systems Management:
Objects and attributes for access control".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
NOTE: Terms referring to energy interface, equipment and distribution are described in power distribution
standards EN 300 132-2 [2], EN 300 132-3-1 [3] for ac and dc interface and EN 302 099 [i.1] for access
network equipment powering.
alarm: any information signalling abnormal state, i.e. different to specified normal state of hardware, software,
environment condition (temperature, humidity, etc.)
NOTE: The alarm signal should be understood by itself by an operator and should always have at least one
severity qualification or codification (colour, level, etc.).
EXAMPLE: Rectifier failure, battery low voltage, etc.
alarm loop: electrical loop which open or closed state correspond to alarm start (set) or end (clear) state
alarm message: text parts of the alarm structure
alarm structure: organized set of information fields in an alarm data frame (time stamp, set/clear, text, etc.)
battery: complete arrangement of battery cells or blocks in one string or more in parallel
battery cell: basic electrochemical element (e.g. a 2 V nominal cell for a high capacity lead acid battery)
battery string: number of serially interconnected battery blocks or cells
client post: any device (laptop, PDA, console, etc.) connected to servers via the operation system networks to perform
maintenance or supervision operations
Control Unit (CU): integrated unit in an equipment to monitor and control this equipment through sensors and
actuators
Control form Style Sheet (CSS): simple mechanism for adding style (e.g. fonts, colours, spacing) to web documents.
Tutorials, books, mailing lists for users, etc.
Data Gathering Unit (DGU): functional unit used for several functions:
• collect serial, digital, and analog data from several equipment;
• option to send (output) serial or digital commands;
• forward/receive information to/from the Local/Remote Management Application via agreed protocols;
ETSI
9 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
• mediation between interfaces and protocols.
NOTE: This function may be integrated as part of specific equipment.
Dynamic Host Control Protocol (DHCP): protocol used for self configuration of TCP/IP parameters of a workstation
assigning IP address and a subnetwork mask
NOTE: DHCP may also configure DNS.
Dynamic Name Server (DNS): associates a single domain name to an IP address
dynamic synoptic: dynamic display of geographical maps, networks, installations and equipment
Ethernet: LAN protocol
NOTE: Equivalent to IEEE 802.1 to 11 [i.4].
event: any information signalling a change of state which is not an alarm: e.g. battery test, change of state of battery
charge
NOTE: The event signal should be understood by itself by an operator and should always have at least one
severity qualification or codification (colour, level, etc.). It should be transmitted in a formatted structure
with text message and other fields like for alarm, e.g. an event can be coded as an alarm with severity "0".
eXtensible Mark-up Language (XML): application profile or restricted form of SGML
NOTE: By construction, XML documents are conforming SGML the Standard Generalized Markup Language
(ISO/IEC 8879 [i.5]) documents. XML is designed to describe data and focus on what data is. XML is
discerned from the well known Hypertext Transfer Mark-up Language (HTML) which was designed to
display data and to focus on how data looks.
eXtensible Style sheet Language (XSL): language for expressing style sheets
NOTE: It consists of two parts, a language for transforming XML documents, and an XML vocabulary for
specifying formatting semantics. An XSL style sheet specifies the presentation of a class of XML
documents by describing how an instance of the class is transformed into an XML document that uses the
formatting vocabulary.
infrastructure equipment: power, cooling and building environment systems used in telecommunications centres and
Access Networks locations
NOTE: Examples of the infrastructure equipment are cabinets, shelters, underground locations, etc.
intranet: internal company network generally using Ethernet protocol and extended IP addresses
logbook: chronological file that contains alarm and event messages may be paper or electronic
Management Information Base (MIB): dynamic data base that gathers all objects and should evolve to include
automatic and manual configuration tools with self coherence tests
menu: list of possible input command choices that may be presented in different ways on a display
NOTE: Selection is normally made by a keyboard, a pointing device, a mouse or directly by finger on a sensitive
screen.
object: class description of items that accept a set of properties or functions
NOTE: Generic objects can include more specific items and inherit from their properties. If correctly structured,
object programming can allow the system to evolve, i.e. be more future-proof. The code should
intrinsically be open and structured.
PHP: powerful tool for making dynamic and interactive Web pages
pop-up: information or command screen that appears when a menu choice is selected
NOTE: For example this may be a pop-up menu when the pointer is on a title button.
ETSI
10 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
Representational State Transfer (REST): way to build an application for distributed system as www
Simple Object Access Protocol (SOAP): way to communicate between applications running on different operating
systems, with different technologies and programming languages
NOTE: SOAP communicates over HTTP, because HTTP is supported by all Internet browsers and servers, SOAP
traffic is not blocked by firewalls and proxy servers (see W3C).
Systems Management Function (SMF): object properties or classes with projection on CMIS application context
communication
NOTE: Set of ISO system management functions according to ISO/IEC 10164 [i.6].
warning: low severity alarm
web: common name for the Internet or Intranet
windows: virtual area on the display that corresponds to a specific application
World Wide Web Consortium (W3C): consortium founded in October 1994 to develop common interoperable
protocols and promote World Wide Web
NOTE: See http://www.w3c.org.
XCU: CU enabled to communicate using XML interface as defined in the present document
XHTML: stricter and cleaner version of HTML. XHTML consists of all the elements in HTML 4.01 combined with
the syntax of XML. It can be read by all XML browser (see W3C definition)
XML Schema Definition (XSD): new more detailed XML description compared to the previous one, the DTD
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternative Current
ASCII American Standard Code for Information Interchange
CU Control Unit of an equipment
CUE Current Using Equipment
DC Direct Current
DGU Data Gathering Unit
HTML Hypertext Transfer Make-up Language
HTTP HyperText Transfer Protocol
IP Internet Protocol
LAN Local Array Network
LMA Local Management Application
LVD Low Voltage Disconnection
M&C Monitoring and Control
MCB Miniature Circuit Breaker
MMC Maintenance Mobile Client
MN Management Network
MPPT Maximum Power Point Tracking
PLC Programmable Logic Controller
PV Photovoltaic
RB Rectifier Battery
RMA Remote Management Application
SMN System Management Network
SPD Surging Protection Device
SU Service Unit
TCP Transmission Control Protocol for IP
TMN Telecommunications Management Network
UPS Uninterruptible Power Supply
URL Uniform Resource Locator
XCU XML enabled CU
ETSI
11 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
XML eXtensible Markup Language
4 Alternative power system
The alternative power system subset described in ES 202 336-1 [1] transforms alternative energy source into DC
voltage on interface A defined in EN 300 132-2 [2] or EN 300 132-3-1 [3] for telecom center or defined for local or
remote power supply of access network equipment in EN 302 099 [i.1].
The alternative power systems may includes solar-power system, wind-power system, fuel cell system external heat
engine generator system, etc., referenced in TR 102 532 [i.2]. One single control unit XCU can monitor and control
several power cabinets through field bus. Field bus is outside the scope of the present document.
4.1 solar power system
This clause defines solar power systems. One example is depicted in figure 1.
Figure 1: Example of solar power system with storage battery
The main elements of solar power systems are:
• One or more solar converters that convert DC voltage to DC voltage and control the battery charge in voltage
and current. These DC/DC can have a Maximum Power Point Tracking function (MPPT).
• One or more storage battery strings.
• Protection and distribution (DC bus, circuit breaker, …) to power different loads and discriminate faults.
• A system monitoring and control unit (XCU) to monitor voltage, current, power, temperature etc, send alarms
and provide system control functionality.
Several measurements are possible: converter states (normal/abnormal operation), converter input and output voltages
and currents, temperature (battery, ambient), load currents, protective devices states, etc.
In option solar energy measurement can be proposed.
ETSI
12 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
Several controls are possible to adjust converter voltage and current, to optimize the load between converters for energy
saving and higher reliability.
For element of DC power systems that are used in alternative power systems, the information table model of DC system
control monitoring ES 202 336-2 [4] shall be used.
For battery systems, the information table model ES 202 336-11 [i.3] under preparation should be used.
Table A.1 corresponds to mandatory data that shall be provided for a minimal solar power system.
Table B.1 corresponds to non mandatory data that shall be provided for a common solar power system, and Table B.5
includes data that should be provided in addition to mandatory one.
Annex C standardizes XML coding structures for these data.
4.2 wind power system
This clause defines wind power systems . One example is depicted in figure 2.
Figure 2: Example of a modular wind power system with storage battery
The main elements of wind power systems are:
• One or more wind rectifiers that convert AC voltage to DC voltage, or control the battery charge in voltage
and current. These AC/DC can have a function to track the maximum possible power at a given wind speed.
• Wind machine control (speed limitation including ballast load or mechanical brake, turbine orientation, pitch
control, etc.).
• One or more storage battery strings.
• Protection and distribution (DC bus, circuit breaker, …) to power different loads and discriminate faults.
• A system monitoring and control unit (XCU) to monitor voltage, current, power, temperature etc, send alarms
and provide system control functionality.
• Warning light at top of mast for large system.
ETSI
13 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
Several measurements are possible: rectifiers states (normal/abnormal operation), rectifiers input and output voltages
and currents, temperature (battery, ambient), load currents, protective devices states.
In option wind measurement can be proposed.
Several controls are possible to adjust rectifier voltage and current, to optimize the load between rectifiers for energy
saving and higher reliability.
NOTE: The AC input form wind turbine to wind AC/DC rectifier varies both in frequency and voltage much
more than AC grid.
For element of DC power systems that are used in alternative power systems, the information table model of DC system
control monitoring ES 202 336-2 [4] shall be used.
For battery systems, the information table model ES 202 336-11 [i.3] under preparation should be used.
Table A.2 corresponds to mandatory data that shall be provided for a minimal wind power system.
Table B.2 corresponds to non mandatory data that shall be provided for a common wind power system, and table B.6
includes data that should be provided in addition to mandatory one.
Annex C standardizes XML coding structures for these data.
4.3 fuel cell system
This clause defines the fuel cell systems . One example is depicted in figure 3.
Figure 3: Example or fuel cell system
The main elements of fuel cell systems are:
• Fuel cell stack and management (including a heater to avoid internal water temperature falling below 0 °C,
fans, filters, compressors, automatic valves, control unit that can be common with the XCU, etc.).
• A fuel storage made with bottle of Hydrogen, or hydride storage, or methanol + reformer, etc.
• One or more converters that convert fuel cell DC voltage to required DC voltage.
• Protection and distribution (DC bus, circuit breaker, …) to power different loads and discriminate faults.
• A system monitoring and control unit (XCU) to monitor voltage, current, power, temperature, fuel level etc.,
send alarms and provide system control functionality.
• Several measurements are possible: converter states, converter voltage and current, temperature, user load
currents, etc.
Several controls are possible to adjust converter voltage and current, to optimize the load between converters for energy
saving and higher reliability.
ETSI
14 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
For element of DC power systems that are used in alternative power systems, the information table model of DC system
control monitoring ES 202 336-2 [4] shall be used.
For battery systems, the information table model ES 202 336-11 [i.3] under preparation should be used.
Table A.3 corresponds to mandatory data that shall be provided for a minimal fuel cell system.
Table B.3 corresponds to non mandatory data that shall be provided for a common fuel cell system, and table B.7
includes data that should be provided in addition to mandatory one.
Annex C standardizes XML coding structures for these data.
4.4 External heat engine generator power system
This clause defines the external heat engine generator power systems. One example is depicted in figure 4.
NOTE: The external heat engine generator is a system based on a motor using heat from external combustion
burner or solar concentrator.
Figure 4: Example of external heat engine generator power system
The main elements of external heat engine generator systems are:
• Engine (speed control, temperature, safety circuitry).
• Alternator and power circuit (voltage, frequency, current).
• Fuel tank and supply to the engine.
• Water and air cooling circuit (fluid temperature, levels, circulation pumps, air, louvers, fans control).
• Oil circuit (pressure, levels, preheating).
• Starting devices system (battery voltage, starting speed, battery charger).
• Electrical auxiliary circuit (auxiliary protection devices, power contactors).
• A system monitoring and control unit (XCU) to monitor the generator, extend alarms and provide system
control functionality.
For element of DC power systems that are used in alternative power systems, the information table model of DC system
control monitoring ES 202 336-2 [4] shall be used.
For battery systems, the information table model ES 202 336-11 [i.3] under preparation should be used.
Table A.4 corresponds to mandatory data that shall be provided for a minimal external heat engine generator system.
Table B.4 corresponds to non mandatory data that shall be provided for a common external heat engine generator
system, and table B.8 includes data that should be provided in addition to mandatory one.
Annex C standardizes XML coding structures for these data.
ETSI
15 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
Annex A (normative):
Summary of mandatory monitoring / supervision information
and functions
This annex gathers the information needed on the remote monitoring application for different types of power supplies. It
specifies the mandatory requirements that shall be provided in all cases.
NOTE: These tables do not specify the power equipment by itself. These tables refer to subsets or devices that are
not necessarily present in each equipment configuration. As a matter of fact, one alarm and its class apply
only in case of the presence of this subset or device.
When an optional alarm that requires a parameter set is present, the corresponding parameter set is mandatory in the
control section in order to allow remote adjustment under appropriate login procedure.
According to their types (Description, Alarm, Data, etc.), as defined in ES 202 336-1 [1] the information shall be
provided by the Control Unit (XCU).
NOTE: If there is no XCU this data can be provided by the Data Gathering Unit (DGU).
When a CU has a field data bus connected to the DGU, at least, the DGU shall store data (record measurements, log
files).The XCU which has the XML interface over Ethernet TCP/IP, shall store these data.
A.1 Table for solar power system
Table A.1
Type Monitored information Explanation
description Device description
alarm One solar converter failure at least
Partial network failure (high error rate, XCU-DGU link fault, etc)
event None
data None
data record None
config None
All XCU alarm/event/test/command parameters (time-out, counter,
thresholds, …) if any
control
XCU program download with default to previous release
Default values resetting (safe value for XCU)
NOTE: The identifiers used in the Type column of the following tables are described in ES 202 336-1 [1].
ETSI
16 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
A.2 Table for wind power system
Table A.2
Type Monitored information Explanation
description Device description
One wind rectifier failure at least
Partial network failure (high error rate, XCU-DGU link fault, etc)
event None
data None
data record None
config None
All XCU alarm/event/test/command parameters (time-out, counter,
thresholds, …) if any
control
XCU program download with default to previous release
Default values resetting (safe value for XCU)
NOTE: The identifiers used in the Type column of the following tables are described in ES 202 336-1 [1].
A.3 Table for fuel cell power system
Table A.3
Type Monitored information Explanation
description Device description
One fuel cell failure at least
Partial network failure (high error rate, XCU-DGU link fault, etc.)
event None
data None
data record None
config None
All XCU alarm/event/test/command parameters (time-out, counter,
thresholds, etc.) if any
control
XCU program download with default to previous release
Default values resetting (safe value for XCU)
NOTE: The identifiers used in the Type column of the following tables are described in ES 202 336-1 [1].
A.4 Table for external heat engine generator power
system
Table A.4
Type Monitored information Explanation
description Device description
alarm One external heat engine generator failure at least
Partial network failure (high error rate, XCU-DGU link fault, etc)
event None
data None
data record None
config None
All XCU alarm/event/test/command parameters (time-out, counter,
thresholds, …) if any
control
XCU program download with default to previous release
Default values resetting (safe value for XCU)
NOTE: The identifiers used in the Type column of the following tables are described in ES 202 336-1 [1].
ETSI
17 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
Annex B (informative):
Summary of non-mandatory monitoring / supervision
information and functions
According to their types (Description, Alarm, Data, etc.), as defined in the present document the information should be
provided by the Control Unit (XCU) or by the Data Gathering Unit (DGU) .
The non mandatory information of a table TBn (n being the N° of the table) are provided in addition to the mandatory
information defined in annex B in table B.n.
B.1 Table for solar power system
Table B.1
Type Monitored information Explanation
description additive information
DC bus output low voltage
DC bus output high voltage
DC bus voltage sense failure
alarm
Load breaker open
One solar converter failure
Greater than one solar converter failure
event Alarm set/clear
DC bus voltage
DC total load current
DC total energy consumption This value can be
measured using a kWh
meter or calculated by the alternative
power system
controller using values of voltage and
current
monitored in the rectifiers
DC total power This value can be
calculated by the alternative
data power system controller
from DC output voltage
and current measurements
Solar converters total output current
Solar converters output power max. (one day)
This value can be
calculated by the alternative
Solar converters total output power (one day) power system controller
from solar converters output voltage
and current measurements
Solar power capacity management (ratio) = Used/Installed
power
data record none
DC bus output voltage low
config
DC bus output voltage high
Disconnect the LVD
Reconnect the LVD
control
Clear all events
Clear the specified level events
ETSI
18 Final draft ETSI ES 202 336-9 V1.1.1 (2012-07)
B.2 Table for wind power system
Table B.2
Type Monitored information Explanation
description additive information
DC bus output low voltage
DC bus output high voltage
DC bus voltage sense failure
alarm Load breaker open
One wind rectifier failure
Greater than one wind rectifier failure
One wind rectifier failure
event Alarm set/clear
DC bus voltage
DC total load current
DC total energy consumption This value can be
measured using a kWh
meter or calculated by the
alternative power system
controller using values of
voltage and current
monitored in the rectifiers
DC total power This value can be
calculated by the
alternative
power system controller
data from DC output voltage
and current measurements
Wind power rectifiers total output current
Wind power rectifiers output power max. (one day)
This value can be
calculated by the
alternative
Wind power rectifiers total output power (one day) power system controller
from wind-power rectifiers
output voltage
and current measurements
Wind power capacity management (ratio) = Used/Installed power
Wind speed
Max wind speed(one day)
data record none
DC bus output voltage low
config
DC bus output voltage high
Disconnect the LVD
Reconnect the LVD
control
Clea
...
ETSI Standard
Environmental Engineering (EE);
Monitoring and Control Interface for Infrastructure Equipment
(Power, Cooling and Building Environment Systems used in
Telecommunication Networks);
Part 9: Alternative Power Systems
2 ETSI ES 202 336-9 V1.1.1 (2012-09)
Reference
DES/EE-02037-9
Keywords
control, interface, power
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2012.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI ES 202 336-9 V1.1.1 (2012-09)
Contents
Intellectual Property Rights . 6
Foreword . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions and abbreviations . 8
3.1 Definitions . 8
3.2 Abbreviations . 9
4 Alternative power system . 10
4.1 solar power system . 10
4.2 wind power system . 11
4.3 fuel cell system . 12
4.4 External heat engine generator power system . 13
Annex A (normative): Summary of mandatory monitoring / supervision information and
f unctions . 14
A.1 Table for solar power system . 14
A.2 Table for wind power system . 15
A.3 Table for fuel cell power system . 15
A.4 Table for external heat engine generator power system . 15
Annex B (informative): Summary of non-mandatory monitoring / supervision information
and functions . 16
B.1 Table for solar power system . 16
B.2 Table for wind power system . 17
B.3 Table for fuel cell power system . 18
B.4 Table for external heat engine generator power system . 19
B.5 Table for solar converter . 20
B.6 Table for wind power rectifier . 20
B.7 Table for fuel cell . 21
B.8 Table for external heat engine generator rectifier . 21
Annex C (normative): Mandatory XML structure and elements . 22
C.1 Structure of a XML document for a solar power system . 22
C.2 Structure of a XML document for a wind power system . 23
C.3 Structure of a XML document for a fuel cell power system . 25
C.4 Structure of a XML document for an external heat engine generator power system . 27
C.5 The specific XML elements of a solar power system . 29
C.6 The specific XML elements of a wind power system . 29
C.7 The specific XML elements of a fuel cell power system . 29
C.8 The specific XML elements of an external heat engine generator power system . 30
ETSI
4 ETSI ES 202 336-9 V1.1.1 (2012-09)
Annex D (informative): Examples of XML elements for a solar power system . 31
D.1 The elements of a solar power system . 31
D.2 The elements of a solar power system . 31
D.3 The elements of a solar power system . 32
D.4 The elements of a solar power system . 32
D.5 The elements of a solar power system . 32
D.6 The elements of a solar power system . 32
D.7 The elements of a solar power system . 33
Annex E (informative): Examples of XML elements for a wind power system . 34
E.1 The elements of a wind power system . 34
E.2 The elements of a wind power system . 34
E.3 The elements of a wind power system . 35
E.4 The elements of a wind power system . 35
E.5 The elements of a wind power system . 35
E.6 The elements of a wind power system . 35
E.7 The elements of a wind power system . 36
Annex F (informative): Examples of XML elements for a fuel cell power system . 37
F.1 The elements of a fuel cell power system . 37
F.2 The elements of a fuel cell power system . 37
F.3 The elements of a fuel cell power system . 38
F.4 The elements of a fuel cell power system . 38
F.5 The elements of a fuel cell power system . 38
F.6 The elements of a fuel cell power system . 38
F.7 The elements of a fuel cell power system . 39
Annex G (informative): Examples of XML elements for an external heat engine generator
power system . 40
G.1 The elements of an external heat engine generator power system . 40
G.2 The elements of an external heat engine generator power system . 40
G.3 The elements of an external heat engine generator power system . 41
G.4 The elements of an external heat engine generator power system . 41
G.5 The elements of an external heat engine generator power system . 41
G.6 The elements of an external heat engine generator power system. 41
G.7 The elements of an external heat engine generator power system . 42
Annex H (informative): Examples of XML elements for a solar converter . 43
H.1 The elements of a solar converter . 43
H.2 The elements of a solar converter . 43
H.3 The elements of a solar converter . 43
H.4 The elements of a solar converter . 43
ETSI
5 ETSI ES 202 336-9 V1.1.1 (2012-09)
H.5 The elements of a solar converter . 44
H.6 The elements of a solar converter . 44
Annex I (informative): Examples of XML elements for a wind power rectifier . 45
I.1 The elements of a wind power rectifier . 45
I.2 The elements of a wind power rectifier . 45
I.3 The elements of a wind power rectifier . 45
I.4 The elements of a wind power rectifier . 46
I.5 The elements of a wind power rectifier . 46
I.6 The elements of a wind power rectifier . 46
Annex J (informative): Examples of XML elements for a fuel cell . 47
J.1 The elements of a fuel cell . 47
J.2 The elements of a fuel cell . 47
J.3 The elements of a fuel cell . 47
J.4 The elements of a fuel cell . 47
J.5 The elements of a fuel cell . 48
J.6 The elements of a fuel cell . 48
Annex K (informative): Examples of XML elements for an external heat engine generator
rectifier . 49
K.1 The elements of an external heat engine generator rectifier . 49
K.2 The elements of an external heat engine generator rectifier . 49
K.3 The elements of an external heat engine generator rectifier. 49
K.4 The elements of an external heat engine generator rectifier. 50
K.5 The elements of an external heat engine generator rectifier . 50
K.6 The elements of an external heat engine generator rectifier . 50
Annex L (informative): Bibliography . 51
History . 52
ETSI
6 ETSI ES 202 336-9 V1.1.1 (2012-09)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This ETSI Standard (ES) has been produced by ETSI Technical Committee Environmental Engineering (EE).
The present document is part 9 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
ETSI
7 ETSI ES 202 336-9 V1.1.1 (2012-09)
1 Scope
The present document applies to monitoring and control of alternative power supply systems for telecommunication
equipment. The alternative power systems may include solar power system, wind power system, fuel cell system,
external heat engine generator system, etc.
This multi-part deliverable defines:
• The monitored and controlled alternative power supply system architectures.
• The minimum set of exchanged information required at the interface, described in "natural language" in text
tables.
• The XML files with tags and variables corresponding to the data in the tables.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI ES 202 336-1: "Environmental Engineering (EE); Monitoring and Control Interface for
Infrastructure Equipment (Power, Cooling and Building Environment Systems used in
Telecommunication Networks) Part 1: Generic Interface".
[2] ETSI EN 300 132-2: "Environmental Engineering (EE); Power supply interface at the input to
telecommunications and datacom (ICT) equipment; Part 2: Operated by -48 V direct current (dc)".
[3] ETSI EN 300 132-3-1: "Environmental Engineering (EE); Power supply interface at the input to
telecommunications and datacom (ICT) equipment; Part 3: Operated by rectified current source,
alternating current source or direct current source up to 400 V; Sub-part 1: Direct current source
up to 400 V".
[4] ETSI ES 202 336-2: "Environmental Engineering (EE); Monitoring and control interface for
infrastructure equipment (Power, Cooling and environment systems used in telecommunication
networks); Part 2: DC power system control and monitoring information model".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EN 302 099: "Environmental Engineering (EE); Powering of equipment in access network".
[i.2] ETSI TR 102 532: "Environmental Engineering (EE) The use of alternative energy sources in
telecommunication installations".
ETSI
8 ETSI ES 202 336-9 V1.1.1 (2012-09)
[i.3] ETSI ES 202 336-11: "Environmental engineering (EE) Monitoring and Control Interface for
infrastructure equipment (Power, Cooling and Building Environment Systems used in
Telecommunication Networks). Part 11: Battery systems control and monitoring information
model".
[i.4] IEEE 802.1 to 802.11: "IEEE Standard for Local & Metropolitan Area Network".
[i.5] ISO/IEC 8879: "Information processing - Text and office systems - Standard Generalized Markup
Language (SGML)".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
NOTE: Terms referring to energy interface, equipment and distribution are described in power distribution
standards EN 300 132-2 [2], EN 300 132-3-1 [3] for ac and dc interface and EN 302 099 [i.1] for access
network equipment powering.
alarm: any information signalling abnormal state, i.e. different to specified normal state of hardware, software,
environment condition (temperature, humidity, etc.)
NOTE: The alarm signal should be understood by itself by an operator and should always have at least one
severity qualification or codification (colour, level, etc.).
EXAMPLE: Rectifier failure, battery low voltage, etc.
alarm loop: electrical loop which open or closed state correspond to alarm start (set) or end (clear) state
battery: complete arrangement of battery cells or blocks in one string or more in parallel
battery cell: basic electrochemical element (e.g. a 2 V nominal cell for a high capacity lead acid battery)
battery string: number of serially interconnected battery blocks or cells
Control Unit (CU): integrated unit in an equipment to monitor and control this equipment through sensors and
actuators
Data Gathering Unit (DGU): functional unit used for several functions:
• collect serial, digital, and analog data from several equipment;
• option to send (output) serial or digital commands;
• forward/receive information to/from the Local/Remote Management Application via agreed protocols;
• mediation between interfaces and protocols.
NOTE: This function may be integrated as part of specific equipment.
Dynamic Name Server (DNS): associates a single domain name to an IP address
Ethernet: LAN protocol
NOTE: Equivalent to IEEE 802.1 to 11 [i.4].
event: any information signalling a change of state which is not an alarm: e.g. battery test, change of state of battery
charge
NOTE: The event signal should be understood by itself by an operator and should always have at least one
severity qualification or codification (colour, level, etc.). It should be transmitted in a formatted structure
with text message and other fields like for alarm, e.g. an event can be coded as an alarm with severity "0".
ETSI
9 ETSI ES 202 336-9 V1.1.1 (2012-09)
eXtensible Mark-up Language (XML): application profile or restricted form of SGML
NOTE: By construction, XML documents are conforming SGML the Standard Generalized Markup Language
(ISO/IEC 8879 [i.5]) documents. XML is designed to describe data and focus on what data is. XML is
discerned from the well known Hypertext Transfer Mark-up Language (HTML) which was designed to
display data and to focus on how data looks.
infrastructure equipment: power, cooling and building environment systems used in telecommunications centres and
Access Networks locations
NOTE: Examples of the infrastructure equipment are cabinets, shelters, underground locations, etc.
intranet: internal company network generally using Ethernet protocol and extended IP addresses
menu: list of possible input command choices that may be presented in different ways on a display
NOTE: Selection is normally made by a keyboard, a pointing device, a mouse or directly by finger on a sensitive
screen.
object: class description of items that accept a set of properties or functions
NOTE: Generic objects can include more specific items and inherit from their properties. If correctly structured,
object programming can allow the system to evolve, i.e. be more future-proof. The code should
intrinsically be open and structured.
pop-up: information or command screen that appears when a menu choice is selected
NOTE: For example this may be a pop-up menu when the pointer is on a title button.
warning: low severity alarm
web: common name for the Internet or Intranet
World Wide Web Consortium (W3C): consortium founded in October 1994 to develop common interoperable
protocols and promote World Wide Web
NOTE: See http://www.w3c.org.
XCU: CU enabled to communicate using XML interface as defined in the present document
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternative Current
CU Control Unit of an equipment
DC Direct Current
DGU Data Gathering Unit
DNS Dynamic Name Server
HTML Hypertext Transfer Make-up Language
HTTP HyperText Transfer Protocol
IP Internet Protocol
LAN Local Array Network
LVD Low Voltage Disconnection
MPPT Maximum Power Point Tracking
PV Photovoltaic
SPD Surging Protection Device
TCP Transmission Control Protocol for IP
W3C World Wide Web Consortium
XCU XML enabled CU
XML eXtensible Mark-up Language
ETSI
10 ETSI ES 202 336-9 V1.1.1 (2012-09)
4 Alternative power system
The alternative power system subset described in ES 202 336-1 [1] transforms alternative energy source into DC
voltage on interface A defined in EN 300 132-2 [2] or EN 300 132-3-1 [3] for telecom center or defined for local or
remote power supply of access network equipment in EN 302 099 [i.1].
The alternative power systems may includes solar-power system, wind-power system, fuel cell system external heat
engine generator system, etc., referenced in TR 102 532 [i.2]. One single control unit XCU can monitor and control
several power cabinets through field bus. Field bus is outside the scope of the present document.
4.1 solar power system
This clause defines solar power systems. One example is depicted in figure 1.
Figure 1: Example of solar power system with storage battery
The main elements of solar power systems are:
• One or more solar converters that convert DC voltage to DC voltage and control the battery charge in voltage
and current. These DC/DC can have a Maximum Power Point Tracking function (MPPT).
• One or more storage battery strings.
• Protection and distribution (DC bus, circuit breaker, …) to power different loads and discriminate faults.
• A system monitoring and control unit (XCU) to monitor voltage, current, power, temperature etc, send alarms
and provide system control functionality.
Several measurements are possible: converter states (normal/abnormal operation), converter input and output voltages
and currents, temperature (battery, ambient), load currents, protective devices states, etc.
In option solar energy measurement can be proposed.
Several controls are possible to adjust converter voltage and current, to optimize the load between converters for energy
saving and higher reliability.
ETSI
11 ETSI ES 202 336-9 V1.1.1 (2012-09)
For element of DC power systems that are used in alternative power systems, the information table model of DC system
control monitoring ES 202 336-2 [4] shall be used.
For battery systems, the information table model ES 202 336-11 [i.3] under preparation should be used.
Table A.1 corresponds to mandatory data that shall be provided for a minimal solar power system.
Table B.1 corresponds to non mandatory data that shall be provided for a common solar power system, and Table B.5
includes data that should be provided in addition to mandatory one.
Annex C standardizes XML coding structures for these data.
4.2 wind power system
This clause defines wind power systems . One example is depicted in figure 2.
Figure 2: Example of a modular wind power system with storage battery
The main elements of wind power systems are:
• One or more wind rectifiers that convert AC voltage to DC voltage, or control the battery charge in voltage
and current. These AC/DC can have a function to track the maximum possible power at a given wind speed.
• Wind machine control (speed limitation including ballast load or mechanical brake, turbine orientation, pitch
control, etc.).
• One or more storage battery strings.
• Protection and distribution (DC bus, circuit breaker, …) to power different loads and discriminate faults.
• A system monitoring and control unit (XCU) to monitor voltage, current, power, temperature etc, send alarms
and provide system control functionality.
• Warning light at top of mast for large system.
Several measurements are possible: rectifiers states (normal/abnormal operation), rectifiers input and output voltages
and currents, temperature (battery, ambient), load currents, protective devices states.
ETSI
12 ETSI ES 202 336-9 V1.1.1 (2012-09)
In option wind measurement can be proposed.
Several controls are possible to adjust rectifier voltage and current, to optimize the load between rectifiers for energy
saving and higher reliability.
NOTE: The AC input form wind turbine to wind AC/DC rectifier varies both in frequency and voltage much
more than AC grid.
For element of DC power systems that are used in alternative power systems, the information table model of DC system
control monitoring ES 202 336-2 [4] shall be used.
For battery systems, the information table model ES 202 336-11 [i.3] under preparation should be used.
Table A.2 corresponds to mandatory data that shall be provided for a minimal wind power system.
Table B.2 corresponds to non mandatory data that shall be provided for a common wind power system, and table B.6
includes data that should be provided in addition to mandatory one.
Annex C standardizes XML coding structures for these data.
4.3 fuel cell system
This clause defines the fuel cell systems . One example is depicted in figure 3.
Figure 3: Example or fuel cell system
The main elements of fuel cell systems are:
• Fuel cell stack and management (including a heater to avoid internal water temperature falling below 0 °C,
fans, filters, compressors, automatic valves, control unit that can be common with the XCU, etc.).
• A fuel storage made with bottle of Hydrogen, or hydride storage, or methanol + reformer, etc.
• One or more converters that convert fuel cell DC voltage to required DC voltage.
• Protection and distribution (DC bus, circuit breaker, …) to power different loads and discriminate faults.
• A system monitoring and control unit (XCU) to monitor voltage, current, power, temperature, fuel level etc.,
send alarms and provide system control functionality.
• Several measurements are possible: converter states, converter voltage and current, temperature, user load
currents, etc.
Several controls are possible to adjust converter voltage and current, to optimize the load between converters for energy
saving and higher reliability.
For element of DC power systems that are used in alternative power systems, the information table model of DC system
control monitoring ES 202 336-2 [4] shall be used.
ETSI
13 ETSI ES 202 336-9 V1.1.1 (2012-09)
For battery systems, the information table model ES 202 336-11 [i.3] under preparation should be used.
Table A.3 corresponds to mandatory data that shall be provided for a minimal fuel cell system.
Table B.3 corresponds to non mandatory data that shall be provided for a common fuel cell system, and table B.7
includes data that should be provided in addition to mandatory one.
Annex C standardizes XML coding structures for these data.
4.4 External heat engine generator power system
This clause defines the external heat engine generator power systems. One example is depicted in figure 4.
NOTE: The external heat engine generator is a system based on a motor using heat from external combustion
burner or solar concentrator e.g. Robert Stirling or John Ericsson machine.
Figure 4: Example of external heat engine generator power system
The main elements of external heat engine generator systems are:
• Engine (speed control, temperature, safety circuitry).
• Alternator and power circuit (voltage, frequency, current).
• Fuel tank and supply to the engine.
• Water and air cooling circuit (fluid temperature, levels, circulation pumps, air, louvers, fans control).
• Oil circuit (pressure, levels, preheating).
• Starting devices system (battery voltage, starting speed, battery charger).
• Electrical auxiliary circuit (auxiliary protection devices, power contactors).
• A system monitoring and control unit (XCU) to monitor the generator, extend alarms and provide system
control functionality.
For element of DC power systems that are used in alternative power systems, the information table model of DC system
control monitoring ES 202 336-2 [4] shall be used.
For battery systems, the information table model ES 202 336-11 [i.3] under preparation should be used.
Table A.4 corresponds to mandatory data that shall be provided for a minimal external heat engine generator system.
Table B.4 corresponds to non mandatory data that shall be provided for a common external heat engine generator
system, and table B.8 includes data that should be provided in addition to mandatory one.
Annex C standardizes XML coding structures for these data.
ETSI
14 ETSI ES 202 336-9 V1.1.1 (2012-09)
Annex A (normative):
Summary of mandatory monitoring / supervision information
and functions
This annex gathers the information needed on the remote monitoring application for different types of power systems. It
specifies the mandatory requirements that shall be provided in all cases.
NOTE 1: These tables do not specify the power equipment by itself. These tables refer to subsets or devices that are
not necessarily present in each equipment configuration. As a matter of fact, one alarm and its class apply
only in case of the presence of this subset or device.
When an optional alarm that requires a parameter set is present, the corresponding parameter set is mandatory in the
control section in order to allow remote adjustment under appropriate login procedure.
According to their types (Description, Alarm, Data, etc.), as defined in ES 202 336-1 [1] the information shall be
provided by the Control Unit (XCU).
NOTE 2: If there is no XCU this data can be provided by the Data Gathering Unit (DGU).
When a CU has a field data bus connected to the DGU, at least, the DGU shall store data (record measurements, log
files).The XCU which has the XML interface over Ethernet TCP/IP, shall store these data.
A.1 Table for solar power system
Table A.1
Type Monitored information Explanation
description Device description
alarm One solar converter failure at least
Partial network failure (high error rate, XCU-DGU link fault, etc)
event None
data None
data record None
config None
All XCU alarm/event/test/command parameters (time-out, counter,
thresholds, …) if any
control
XCU program download with default to previous release
Default values resetting (safe value for XCU)
NOTE: The identifiers used in the Type column of the following tables are described in ES 202 336-1 [1].
ETSI
15 ETSI ES 202 336-9 V1.1.1 (2012-09)
A.2 Table for wind power system
Table A.2
Type Monitored information Explanation
description Device description
One wind rectifier failure at least
Partial network failure (high error rate, XCU-DGU link fault, etc)
event None
data None
data record None
config None
All XCU alarm/event/test/command parameters (time-out, counter,
thresholds, …) if any
control
XCU program download with default to previous release
Default values resetting (safe value for XCU)
NOTE: The identifiers used in the Type column of the following tables are described in ES 202 336-1 [1].
A.3 Table for fuel cell power system
Table A.3
Type Monitored information Explanation
description Device description
One fuel cell failure at least
Partial network failure (high error rate, XCU-DGU link fault, etc.)
event None
data None
data record None
config None
All XCU alarm/event/test/command parameters (time-out, counter,
thresholds, etc.) if any
control
XCU program download with default to previous release
Default values resetting (safe value for XCU)
NOTE: The identifiers used in the Type column of the following tables are described in ES 202 336-1 [1].
A.4 Table for external heat engine generator power
system
Table A.4
Type Monitored information Explanation
description Device description
alarm One external heat engine generator failure at least
Partial network failure (high error rate, XCU-DGU link fault, etc)
event None
data None
data record None
config None
All XCU alarm/event/test/command parameters (time-out, counter,
thresholds, …) if any
control
XCU program download with default to previous release
Default values resetting (safe value for XCU)
NOTE: The identifiers used in the Type column of the following tables are described in ES 202 336-1 [1].
ETSI
16 ETSI ES 202 336-9 V1.1.1 (2012-09)
Annex B (informative):
Summary of non-mandatory monitoring / supervision
information and functions
According to their types (Description, Alarm, Data, etc.), as defined in the present document the information should be
provided by the Control Unit (XCU) or by the Data Gathering Unit (DGU) .
The non mandatory information of a table TBn (n being the N° of the table) are provided in addition to the mandatory
information defined in annex B in table B.n.
B.1 Table for solar power system
Table B.1
Type Monitored information Explanation
description additive information
DC bus output low voltage
DC bus output high voltage
DC bus voltage sense failure
alarm
Load breaker open
One solar converter failure
Greater than one solar converter failure
event Alarm set/clear
DC bus voltage
DC total load current
DC total energy consumption This value can be measured using a
kWh meter or calculated by the
alternative power system controller
using values of voltage and current
monitored in the rectifiers
DC total power This value can be calculated by the
alternative power system controller
data from DC output voltage and current
measurements
Solar converters total output current
Solar converters output power max. (one day)
This value can be calculated by the
alternative power system controller
Solar converters total output power (one day)
from solar converters output voltage
and current measurements
Solar power capacity management (ratio) = Used/Installed
power
data record none
DC bus output voltage low
config
DC bus output voltage high
Disconnect the LVD
Reconnect the LVD
control
Clear all events
Clear the specified level events
ETSI
17 ETSI ES 202 336-9 V1.1.1 (2012-09)
B.2 Table for wind power system
Table B.2
Type Monitored information Explanation
description additive information
DC bus output low voltage
DC bus output high voltage
DC bus voltage sense failure
alarm Load breaker open
One wind rectifier failure
Greater than one wind rectifier failure
One wind rectifier failure
event Alarm set/clear
DC bus voltage
DC total load current
DC total energy consumption This value can be
measured using a kWh
meter or calculated by the
alternative power system
controller using values of
voltage and current
monitored in the rectifiers
DC total power This value can be
calculated by the
alternative power system
controller from DC output
data
voltage and current
measurements
Wind power rectifiers total output current
Wind power rectifiers output power max. (one day)
This value can be
calculated by the
alternative power system
Wind power rectifiers total output power (one day)
controller from wind-power
rectifiers output voltage
and current measurements
Wind power capacity management (ratio) = Used/Installed power
Wind speed
Max wind speed (one day)
data record none
DC bus output voltage low
config
DC bus output voltage high
Disconnect the LVD
Reconnect the LVD
control
Clear all events
Clear the specified level events
ETSI
18 ETSI ES 202 336-9 V1.1.1 (2012-09)
B.3 Table for fuel cell power system
Table B.3
Type Monitored information Explanation
description additive information
DC bus output low voltage
DC bus output high voltage
DC bus voltage sense failure
alarm
Load breaker open
One fuel cell failure
Greater than one fuel cell failure
event Alarm set/clear
DC bus voltage
DC total load current
DC total energy consumption This value can be
measured using a kWh
meter or calculated by
the alternative power
system controller using
values of voltage and
current monitored in the
rectifiers
DC total power This value can be
calculated by the
data alternative power
system controller from
DC output voltage and
current measurements
Fuel cells total output current
This value can be
calculated by the
alternative power
Fuel cells total output power (one day) system controller from
fuel cells output voltage
and current
measurements
Fuel cells Power capacity management (ratio) = Used/Installed power
data record none
DC bus output voltage low
config
DC bus output voltage high
Disconnect the LVD
Reconnect the LVD
control
Clear all events
Clear the specified level events
ETSI
19 ETSI ES 202 336-9 V1.1.1 (2012-09)
B.4 Table for external heat engine generator power
system
Table B.4
Type Monitored information Explanation
description additive information
DC bus output low voltage
DC bus output high voltage
DC bus voltage sense failure
alarm
Load breaker open
One external heat engine generator converter failure
Greater than one external heat engine generator converter failure
event Alarm set/clear
DC bus voltage
DC total load current
DC total energy consumption This value can be
measured using a kWh
meter or calculated by
the alternative power
system controller using
values of voltage and
current monitored in the
converter
DC total power This value can be
calculated by the
alternative power
system controller from
data
DC output voltage and
current measurements
External heat engine generator total output current
External heat engine generator converters output power max. (one day)
This value can be
calculated by the
alternative power
External heat engine generator converters total output power (one day) system controller from
converters output
voltage and current
measurements
External heat engine generator capacity management (ratio) =
Used/Installed power
data record none
DC bus output voltage low
config
DC bus output voltage high
Disconnect the LVD
Reconnect the LVD
control
Clear all events
Clear the specified level events
ETSI
20 ETSI ES 202 336-9 V1.1.1 (2012-09)
B.5 Table for solar converter
Table B.5
Type Monitored information Explanation
Converter reference
description
Converter serial number
Communication interrupt
Converter failure
Converter protection
alarm
Fan failure
Over temperature
PV array lost
At least one PV array failure
event Alarm Set/Clear
Output power
Output voltage
Output current
Data PV array output voltage
PV array output current
PV array output current max. (one day)
Converter temperature
data record None
config Temperature high
control None
B.6 Table for
...
