SLOVENSKI STANDARD
01-december-2003
(OHNWURPDJQHWQD]GUXåOMLYRVWLQ]DGHYHY]YH]L]UDGLMVNLPVSHNWURP(50
$QDORJQHEUH]YUYLþQHãLURNRSDVRYQHDYGLRQDSUDYHNLXSRUDEOMDMRYJUDMHQH
DQWHQHLQGHOXMHMRYIUHNYHQþQHPREPRþMXRG0+]GR0+]NLJDMH
SULSRURþLODNRQIHUHQFD&(37GHO7HKQLþQHNDUDNWHULVWLNHLQSUHVNXVQHPHWRGH
ElectroMagnetic Compatibility and Radio Spectrum Matters (ERM); Analogue cordless
wideband audio devices using integral antennas operating in the CEPT recommended
863 MHz to 865 MHz frequency range; Part 1: Technical characteristics and test
methods
Ta slovenski standard je istoveten z: EN 301 357-1 Version 1.1.2
ICS:
33.060.99 Druga oprema za radijske Other equipment for
komunikacije radiocommunications
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

European Standard (Telecommunications series)
Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Analogue cordless wideband audio devices using integral
antennas operating in the CEPT recommended
863 MHz to 865 MHz frequency range;
Part 1: Technical characteristics and test methods

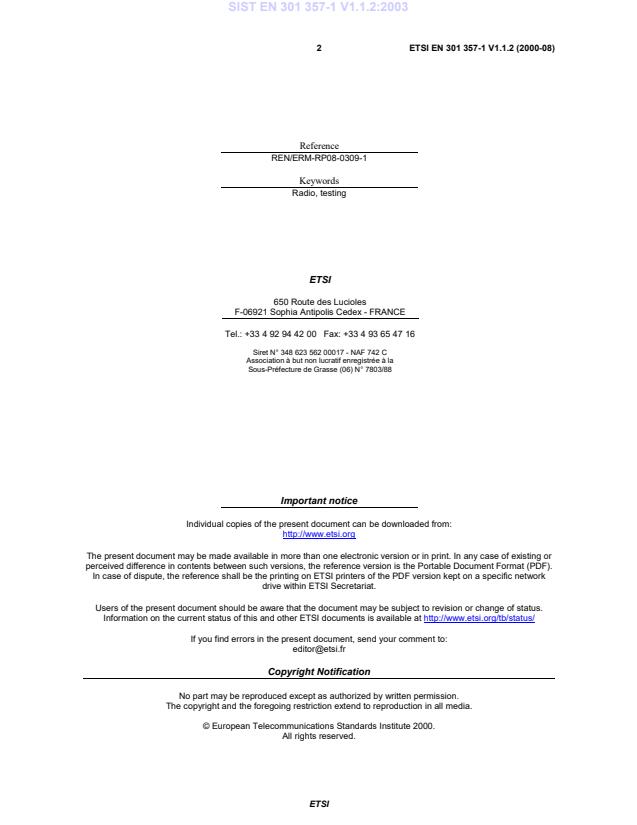

2 ETSI EN 301 357-1 V1.1.2 (2000-08)
Reference
REN/ERM-RP08-0309-1
Keywords
Radio, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone] Fax:[phone]
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network
drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at http://www.etsi.org/tb/status/
If you find errors in the present document, send your comment to:
[e-mail]
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2000.
All rights reserved.
ETSI
3 ETSI EN 301 357-1 V1.1.2 (2000-08)
Contents
Intellectual Property Rights .6
Foreword .6
Introduction.6
1 Scope.8
2 References.8
3 Definitions, symbols and abbreviations.9
3.1 Definitions. 9
3.2 Symbols. 10
3.3 Abbreviations. 10
4 Functional characteristics .10
4.1 Cordless wideband audio . 10
4.2 Consumer radiomicrophones. 11
4.3 In-ear monitoring . 11
4.4 In-vehicle cordless . 11
4.5 Personal cordless. 11
4.6 Broadband multichannel systems. 11
5 General.11
5.1 Presentation of equipment for testing purposes. 11
5.1.1 Choice of model for type testing . 12
5.1.2 Definitions of alignment and switching ranges. 12
5.1.3 Alignment Range. 12
5.1.4 Choice of frequencies. 12
5.1.5 Testing of single channel equipment . 12
5.1.6 Testing of two channel equipment. 12
5.1.7 Testing of multi-channel equipment (more than two channels). 13
5.1.8 Testing of equipment with an external frequency control.13
5.1.9 Testing of equipment with an integral antenna. 13
5.1.9.1 Equipment with a permanent internal RF port . 13
5.1.9.2 Equipment with a temporary RF port. 13
5.2 Mechanical and electrical design . 13
5.2.1 General . 13
5.2.2 Controls. 13
5.2.3 Integral antenna . 14
5.2.4 Marking. 14
5.2.4.1 Equipment identification. 14
5.2.4.2 Regulatory marking . 14
5.3 Interpretation of the measurement results . 14
6 Test conditions, power sources and ambient conditions .14
6.1 Normal and extreme test-conditions. 14
6.2 Test power source . 14
6.3 Normal test conditions . 15
6.3.1 Normal temperature and humidity. 15
6.3.2 Normal test power source voltage . 15
6.3.2.1 Mains voltage. 15
6.3.2.2 Nickel-cadmium cells . 15
6.3.2.3 Other power sources . 15
6.4 Extreme test conditions. 15
6.4.1 Extreme temperatures. 15
6.4.1.1 Procedures for tests at extreme temperatures. 16
6.4.2 Extreme test power source voltages . 16
6.4.2.1 Mains voltage. 16
ETSI
4 ETSI EN 301 357-1 V1.1.2 (2000-08)
6.4.2.2 Re-chargeable battery power sources. 16
6.4.2.3 Power sources using other types of batteries . 16
6.4.2.4 Other power sources . 16
7 General conditions.17
7.1 Normal test modulation. 17
7.2 Test fixture. 18
7.3 Test site and general arrangements for radiated measurements.18
7.4 Modes of operation of the transmitter . 18
7.5 Arrangement for test signals at the input of the transmitter. 19
8 Methods of measurement and limits for transmitter parameters .19
8.1 Frequency error. 19
8.1.1 Definition . 19
8.1.2 Method of measurement . 19
8.1.3 Limit. 19
8.2 Carrier power . 19
8.2.1 Definition . 19
8.2.2 Method of measurement for equipment with integral antenna. 20
8.2.2.1 Method of measurement under normal test conditions. 20
8.2.2.2 Method of measurement under extreme test conditions . 20
8.2.3 Limit. 21
8.3 Channel bandwidth. 21
8.3.1 Definition . 21
8.3.2 Measurement of Necessary Bandwidth (BN) . 21
8.3.3 Limits . 22
8.3.4 Edge of Band Limits. 22
8.4 Spurious emissions. 23
8.4.1 Definitions. 23
8.4.2 Method of measuring the effective radiated power . 24
8.4.3 Limits . 24
8.4.4 Measuring receiver . 24
8.5 Transmitter shutoff. 25
8.5.1 Definition . 25
8.5.2 Method of measurement . 25
8.5.3 Limits . 25
9 Receiver .25
9.1 Spurious emissions. 25
9.1.1 Definitions. 25
9.1.2 Method of measuring the power level in a specified load . 25
9.1.3 Method of measuring the effective radiated power of the enclosure . 26
9.1.4 Method of measuring the effective radiated power . 26
9.1.5 Limits . 26
9.2 Blocking or desensitization. 27
9.2.1 Definition . 27
9.2.2 Method of measurement . 27
9.2.2.1 Measurement procedure . 27
9.2.2.2 Definitions. 27
9.2.3 Limits for applications below 1 GHz. 27
9.2.4 Limits for applications above 1 GHz. 28
10 Measurement uncertainty.28
Annex A (normative): Radiated measurement .29
A.1 Test sites and general arrangements for measurements involving the use of radiated fields.29
A.1.1 Outdoor test site . 29
A.1.1.1 Test support for body worn equipment. 30
A.1.1.2 Standard position. 30
A.1.2 Test antenna . 30
A.1.3 Substitution antenna. 30
ETSI
5 ETSI EN 301 357-1 V1.1.2 (2000-08)
A.1.4 Optional additional indoor site. 31
A.2 Guidance on the use of radiation test sites .32
A.2.1 Measuring distance . 32
A.2.2 Test antenna . 32
A.2.3 Substitution antenna. 32
A.2.4 Artificial antenna. 32
A.2.5 Auxiliary cables . 32
A.3 Further optional alternative indoor test site using an anechoic chamber .33
A.3.1 Example of the construction of a shielded anechoic chamber. 33
A.3.2 Influence of parasitic reflections in anechoic chambers. 33
A.3.3 Calibration of the shielded anechoic chamber. 34
Annex B (normative): Measurement of Necessary Bandwidth (BN) .36
Annex C (informative): Receiver parameters .37
C.1 Frequency mask for the receiver part .37
C.1.1 Definition. 37
C.1.2 Method of measurement. 37
C.1.3 Typical values for receivers . 38
C.1.3.1 Typical values for receivers with analogue modulation . 38
C.1.3.2 Typical values for receivers with digital modulation. 38
History.39
ETSI
6 ETSI EN 301 357-1 V1.1.2 (2000-08)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://www.etsi.org/ipr).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM).
Every EN prepared by ETSI is a voluntary standard. The present document may contain text concerning conformance
testing of the equipment to which it relates. This text should be considered as guidance only and does not make the
present document mandatory.
Annex A provides normative specifications concerning radiated measurements.
Annex B provides a graphic representation of the equipment and frequencies for the testing of single and
multi frequency equipment.
Annex C provides informative parameters on the receiver part, which are intended to give guidance to manufacturers.
The present document is part 1 of a multi-part standard covering analogue cordless wideband audio devices using
integral antennas operating in the CEPT recommended 863 MHz to 865 MHz frequency range, as identified below:
Part 1: "Technical characteristics and test methods";
Part 2: "Harmonized EN under article 3.2 of the R&TTE Directive".
National transposition dates
Date of latest announcement of this EN (doa): 31 October 2000
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 April 2001
Date of withdrawal of any conflicting National Standard (dow): 30 April 2001
Introduction
In preparing the present document, much attention has been given to assure a low interference probability, while at the
same time allowing a maximum flexibility and service to the end-user.
The present document provides the necessary parameters for equipment to obtain common approval throughout Europe.
Common technical specifications and harmonized frequency allocations are expected to reduce the present problems of
interference and illegal use.
The present document is a type-testing standard based on spectrum utilization parameters and does not include
performance characteristics that may be required by the user or requirements for interfacing equipment.
ETSI
7 ETSI EN 301 357-1 V1.1.2 (2000-08)
The present document is intended to specify the minimum performance and the methods of measurement of, wideband
cordless audio equipment in the range 25 MHz to 2 000 MHz and Consumer Radiomicrophones & In ear monitoring
equipment in the range 863 MHz to 865 MHz, as specified in the scope. Consumer radiomicrophones and in -ear
monitoring equipment may be tested to either EN 300 422 [8] for equipment with maximum occupied
bandwidth < 200 kHz or to the present document for equipment with maximum occupied bandwidth > 200 kHz with due
consideration of power and operating frequency.
Type test measurements should be performed in one of the accredited test laboratories, accepted by the various national
regulatory authorities in order to grant type approval, provided the national regulatory requirements are met. This is in
compliance with CEPT/ERC/REC 01-06 [1] and CEPT/ERC/DEC(97)10 [2].
In addition, national administrations may accept a "certificate of conformity" based on a type test report. If equipment
available on the market is required to be checked, it should be tested in accordance with the methods of measurement
specified in the present document.
ETSI
8 ETSI EN 301 357-1 V1.1.2 (2000-08)
1 Scope
The present document covers the minimum characteristics considered necessary in order to make the best use of the
available frequencies. It does not necessarily include all the characteristics that may be required by a user, nor does it
necessarily represent the optimum performance achievable.
Cordless audio devices covered within the present document are considered by definition short-range devices, the power
limits for frequency bands will be found in the current version of CEPT/ERC/REC 70-03 [6] (or national regulations).
The present document applies to wideband cordless audio, consumer radiomicrophones and in-ear monitoring
equipment using either 300 kHz bandwidth analogue modulation or 300 kHz, 600 kHz or 1 200 kHz digital FDMA
modulation. The frequency bands for this equipment may differ from country to country as specified in their national
regulations. All equipment is intended to be used with integral antennas.
Consumer audio equipment intended for audio and voice operating below 50 MHz and using narrow band modulation
are considered and tested according to EN 300 220 [10].
Electromagnetic Compatibility (EMC) requirements are covered by EN 301 489-9 [7].
The types of equipment covered by the present document are as follows:
- cordless headphones;
- cordless loudspeakers;
- consumer radiomicrophones;
- in-ear monitoring;
- in-vehicle cordless;
- personal cordless;
- broadband multichannel audio systems.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, the latest version applies.
• A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the same
number.
[1] CEPT/ERC/REC 01-06: "Procedure for mutual recognition of type testing and type approval for
radio equipment".
[2] CEPT/ERC/DEC(97)10: "ERC Decision of 30 June 1997 on the mutual recognition of conformity
assessment procedures including marking of radio equipment and radio terminal equipment".
[3] ITU-R Recommendation BS.559-2: "Objective measurement of radio-frequency protection ratios
in LF, MF and HF broadcasting".
[4] ETSI ETR 028: "Radio Equipment and Systems (RES); Uncertainties in the measurement of
mobile radio equipment characteristics".
ETSI
9 ETSI EN 301 357-1 V1.1.2 (2000-08)
[5] IEC 60244: "Methods of measurement for radio transmitters".
[6] CEPT/ERC/REC 70-03: "Relating to the use of Short Range Devices (SRD)".
[7] ETSI EN 301 489-9: "ElectroMagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 9: Specific
conditions for wireless microphones and similar Radio Frequency (RF) audio link equipment".
[8] ETSI EN 300 422 (V1.2): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Technical characteristics and test methods for wireless microphones in the 25 MHz to 3 GHz
frequency range".
[9] ETSI ETR 027: "Radio Equipment and Systems (RES); Methods of measurement for private
mobile radio equipment".
[10] ETSI EN 300 220: "Electromagnetic compatibility and Radio spectrum matters (ERM);
Short-range devices; Radio equipment to be used in the 25 MHz to 1 000 MHz frequency range
with power levels ranging up to 500 mW".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
integral antenna: antenna, with or without a connector, designed as, and declared as by the manufacturer, an
indispensable part of the equipment
artificial antenna: tuned reduced-radiating dummy load equal to the nominal impedance specified by the applicant
radiated measurements: measurements that involve the absolute measurement of a radiated electromagnetic field
channel bandwidth: frequency band of defined width including safety margin for operation on adjacent channels,
located symmetrically around the carrier frequency
port: any connection point on or within the Equipment Under Test (EUT) intended for the connection of cables to or
from that equipment
necessary bandwidth: is, for a given class of emission, the width of the frequency band which is just sufficient to
ensure the transmission of information at the rate and with the quality required under specified conditions. However, the
necessary bandwidths of most digital modulation formats are presently not referred to ITU-R Recommendations of
SM series
spurious emission limits: apply at frequencies above and below the fundamental transmitting frequency but separated
from the centre frequency of the emission by 250 % of the necessary bandwidth. However, this frequency separation
may be dependent on the type of modulation used, the maximum bit rate in the case of digital modulation, the type of
transmitter, and frequency coordination factors. For example, where practical the ± 250 % of the relevant Channel
Separation (CS) may be used
ETSI
10 ETSI EN 301 357-1 V1.1.2 (2000-08)
3.2 Symbols
For the purposes of the present document, the following symbols apply:
wavelength in metres
λ
µF microFarad
µW microWatt
Ω ohm
dBc dB relative to the carrier level
E field strength
E reference field strength (see annex A)
o
fc carrier frequency
fo operating frequency
GHz GigaHertz
kHz kiloHertz
MHz MegaHertz
mW milliWatt
nW nanoWatt
R distance (see annex A)
R reference distance (see annex A)
o
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ac alternating current
B Channel Bandwidth
BN Necessary Bandwidth
CW continuous wave
dc direct current
erp effective radiated power
EUT Equipment Under Test
FDMA Frequency division multiple access
HF High Frequency
LF Low Frequency
MF Medium Frequency
RBW Resolution Bandwidth
RF Radio Frequency
SRD Short Range Devices
TDMA Time Division Multiple Access
Tx Transmitter
VBW Video BandWidth
4 Functional characteristics
4.1 Cordless wideband audio
Cordless wideband audio equipment encompasses radio linked headphones and loudspeakers. The transmitters may be
installed in a building, fitted in a vehicle or body worn. The term cordless is also used to describe infra red and other
non-RF "wireless" links, but in the context of the present document it is restricted to RF operating systems only. Stereo
equipment can be designed for required channel bandwidths of 200 kHz or less but only with a high cost penalty,
however consumer wideband (multichannel) audio equipment and stereo equipment using e.g. Zenith-GE pilot tone
systems or digital modulation need to declare wider bandwidths as defined in the present document.
Other equipment that may be connected to cordless audio equipment shall fulfil the standards applicable to that
equipment (if any).
ETSI
11 ETSI EN 301 357-1 V1.1.2 (2000-08)
4.2 Consumer radiomicrophones
Consumer radiomicrophones are intended for non-professional applications.
4.3 In-ear monitoring
In-ear monitoring equipment is used by stage and studio performers to receive personal fold back (monitoring) of the
performance. This can be just their own voice or a complex mix of sources. This equipment is usually stereo or
2 channel audio.
Other equipment that may be connected to in-ear monitoring equipment shall fulfil the standards applicable to that
equipment (if any).
4.4 In-vehicle cordless
In-vehicle systems are used for private listening in automobiles and other methods of transport (where permitted).
4.5 Personal cordless
Personal cordless transmitters are to enable the body worn personal stereo equipment to be wire free.
4.6 Broadband multichannel systems
Broadband multichannel systems are used for the transmission of high quality digital audio. These can be e.g. Dolby like
5,1 or 7,1 surround sound systems or uncompressed audio. They are intended to be used in spectrum above 1 GHz.
5 General
5.1 Presentation of equipment for testing purposes
Each equipment submitted for type testing shall fulfil the requirements of the present document on all channels over
whichitisintendedtooperate.
The applicant shall complete the appropriate application form when submitting equipment for type testing.
The applicant shall state the channel bandwidth(s) within which the equipment is designed to operate.
The applicant shall also supply all relevant interface information and any tools and test fixtures to allow:
- direct current (dc) power connection;
- analogue audio connection;
- the deviation limiting of the transmitter; and
- the setting of any input audio level controls and input signal level for normal operation, for a sinusoidal input
signal of 500 Hz. The manufacturer shall specify the settings of any other controls necessary to avoid invalidating
the test measurements.
ETSI
12 ETSI EN 301 357-1 V1.1.2 (2000-08)
Besides the technical documentation, the applicant should also supply an operating manual, identical in content to that
supplied with the production model(s) available to the public, for the device(s).
To simplify and harmonise the type testing procedures between manufacturers and test laboratories, measurement shall
be performed, according to the present document, on samples of equipment defined in subclauses 5.1.1 to 5.1.9.2.
These subclauses are intended to give confidence that the requirements set out in the present document have been met
without the necessity of performing measurements on all channels.
5.1.1 Choice of model for type testing
The applicant shall provide one sample of each model to be tested.
The equipment tested shall be representative in all technical respects of a production model.
5.1.2 Definitions of alignment and switching ranges
The alignment range is defined as the frequency range over which the receiver and the transmitter can be programmed
and/or re-aligned to operate with a single oscillator frequency multiplication, without any physical change of
components other than:
- programmable read only memories supplied by the manufacturer or the manufacturer's nominee;
- crystals;
- frequency setting elements (for the receiver and transmitter). These elements shall not be accessible to the end
user and shall be declared by the applicant in the application form.
The switching range is the maximum frequency range over which the receiver or the transmitter can be operated without
re-programming or realignment.
The applicant shall, when submitting equipment for test, state the alignment ranges for the receiver and transmitter. The
applicant shall also state the switching range of the receiver and the transmitter (which may differ).
5.1.3 Alignment Range
The alignment range for the receiver and transmitter, which may be different, shall be within the applicable band.
5.1.4 Choice of frequencies
The frequencies for testing shall be chosen by the applicant, in accordance with subclauses 5.1.5 to 5.1.7.
5.1.5 Testing of single channel equipment
Full tests shall be carried out on a channel within B/2 of the centre frequency of the alignment range on one sample of
the equipment (B = declared channel bandwidth).
5.1.6 Testing of two channel equipment
One sample shall be submitted to enable tests to be carried out on both channels.
The frequency of the upper channel shall be within B/2 of the highest frequency of the switching range. The frequency
of the lower channel shall be within B/2 of the lowest frequency of the switching range. In addition, the average of the
frequencies of the two channels shall be within B/2 of the centre frequency of the alignment range.
Full tests shall be carried out on both channels.
ETSI
13 ETSI EN 301 357-1 V1.1.2 (2000-08)
5.1.7 Testing of multi-channel equipment (more than two channels)
One sample of the equipment shall be submitted to enable tests to be carried out on three channels. The centre frequency
of the switching range of the sample shall correspond to the centre frequency of the alignment range.
Full tests shall be carried out on a frequency within B/2 of the centre, lowest and highest frequencies of the switching
range.
5.1.8 Testing of equipment with an external frequency control
One sample shall be submitted to enable tests to be performed across the entire frequency band allowed by the frequency
control setting.
The following tests shall be performed at either edge of the tuneable range of the equipment:
- subclause 8.1: Frequency error;
- subclause 8.2: Carrier power;
- subclause 8.3: Channel bandwidth.
The following tests shall be performed with the frequency set to the middle of the tuneable range of the equipment:
- subclause 8.4: Spurious emissions;
- subclause 8.5: Transmitter shutoff.
5.1.9 Testing of equipment with an integral antenna
To facilitate relative measurements, use may be made of a test fixture as described in subclause 7.2, or the equipment
may be supplied with a permanent internal or temporary internal/external RF port.
5.1.9.1 Equipment with a permanent internal RF port
The way to access a permanent internal RF port shall be stated by the applicant with the aid of a diagram. The fact that
use has been made of a permanent internal RF port shall be recorded in the test report.
5.1.9.2 Equipment with a temporary RF port
The applicant shall submit two sets of equipment to the test laboratory, one fitted with a temporary 50 Ω RF connector
with the antenna disconnected and the other with the antenna connected. Each equipment shall be used for the
appropriate tests.
The way the temporary RF port is implemented shall be stated by the applicant with the aid of a diagram. The fact that
use has been made of the temporary RF port to facilitate measurements shall be stated in the test report. The addition of
a temporary RF port should not influence the performance of the EUT.
5.2 Mechanical and electrical design
5.2.1 General
The equipment submitted by the applicant shall be designed, constructed and manufactured in accordance with sound
engineering practice, and with the aim of minimizing harmful interference to other equipment and services and
minimizing risk of physical injury to the user when in use or having to gain access to batteries or controls.
5.2.2 Controls
Those controls that, if maladjusted, might increase the interfering potentialities of the equipment shall only be accessible
by partial or complete disassembly of the device and requiring the use of special tools.
ETSI
14 ETSI EN 301 357-1 V1.1.2 (2000-08)
5.2.3 Integral antenna
Type approval of equipment with integral antenna only applies to that equipment together with the antenna originally
provided by the manufacturer for type testing.
5.2.4 Marking
The equipment shall be marked in a visible place. This marking shall be legible and durable.
5.2.4.1 Equipment identification
The marking shall include as a minimum:
- the name of the applicant or his trademark;
- the type designation.
5.2.4.2 Regulatory marking
The equipment shall be marked, where applicable, in accordance with CEPT/ERC/REC 70-03 [6]. Where this is not
applicable the equipment shall be marked in accordance with national regulatory requirements.
5.3 Interpretation of the measurement results
The interpretation of the results recorded in the appropriate test report for the measurements described in the present
document shall be as follows:
- the measured value related to the corresponding limit shall be used to decide whether an equipment meets the
requirements of the present document;
- the measurement uncertainty value for the measurement of each parameter shall be separately included in the test
report;
- the recorded value of the measurement uncertainty shall be, for each measurement, equal to or lower than the
figures in the table of measurement uncertainty as in clause 10.
6 Test conditions, power sources and ambient
conditions
6.1 Normal and extreme test-conditions
Type tests shall be made under normal test conditions, and also, where stated, under extreme test conditions.
The test conditions and procedures shall be as specified in subclauses 6.2 to 6.4.2.4.
6.2 Test power source
During type tests the power source of the equipment shall be replaced by a test power source, capable of producing
normal and extreme test voltages as specified in subclauses 6.3.2 and 6.4.2. The internal impedance of the test power
source shall be low enough for its effect on the test results to be negligible. For the purpose of the tests, the voltage of
the power source shall be measured at the input terminals of the equipment.
For battery-operated equipment, the battery shall be removed and the test power source shall be suitably decoupled and
applied as close to the equipment battery term
...
