oSIST prEN 1790:2020

Road marking materials - Preformed road markings

This document specifies the product characteristics, laboratory test methods, the way of expressing results and the relevant procedures for assessment and verification of the constancy of performance, for preformed road markings (namely, marking tapes and preformed markings) of types I and II (structured and non-structured) to be used for permanent road markings, in circulation areas.
This document does not cover:
-   hot applied thermoplastics, even if commercialized in the form of sheets or on rolls, which requires the addition of drop-on materials to build up the road marking on the field site. Those products are considered to be duly covered by EN 1871:2020;
-   preformed road markings for temporary use.

Straßenmarkierungsmaterialien - Vorgefertigte Markierungen

Dieses Dokument legt die Produktmerkmale, die Laborprüfverfahren, die Art und Weise der Angabe von Ergebnissen und die relevanten Verfahren für die Bewertung und Überprüfung der Leistungsbeständigkeit von vorgefertigten Straßenmarkierungen (nämlich Markierungsfolien und vorgefertigten Markierungen) vom Typ I und II (profiliert und nicht profiliert) für die Verwendung als dauerhafte Straßenmarkierung auf Verkehrsflächen fest.
Dieses Dokument behandelt nicht:
-   Heißplastikmasse, die die Hinzufügung von Nachstreumitteln erfordert, um die Straßenmarkierung vor Ort aufzubauen, selbst wenn sie in Form von Stapel- oder Rollenware vertrieben wird. Es wird davon ausgegangen, dass diese Produkte ausreichend von EN 1871:2020 behandelt werden; vorgefertigte Straßenmarkierungen für den vorübergehenden Gebrauch.
-   vorgefertigte Straßenmarkierungen für den vorübergehenden Gebrauch.

Produits de marquage routier - Marquages routiers préformés

Le présent document spécifie les caractéristiques des produits, les méthodes d’essai en laboratoire, la manière d’exprimer les résultats et les procédures correspondantes pour l’évaluation et la vérification de la constance des performances, pour les marquages routiers préformés (à savoir les bandes de marquage et les marquages préformés) des types I et II (structurés et non structurés) à utiliser pour les marquages routiers permanents dans les zones de circulation.
Ce document ne couvre pas les aspects suivants :
- les enduits à chaud, même s’ils sont commercialisés sous forme de feuilles ou de rouleaux, qui nécessitent l’ajout de matériaux de saupoudrage pour composer le marquage routier sur le terrain. Ces produits sont considérés comme dûment couverts par l’EN 1871:2020 ;
- les marquages routiers préformés à utilisation temporaire.

Materiali za označevanje vozišča - Predoblikovane oznake

General Information

• Status: Not Published
• Public Enquiry End Date: 09-Jan-2020
• ICS: 93.080.20 - Road construction materials
• Technical Committee: OCE - Road equipment
• Current Stage: 4020 - Public enquire (PE) (Adopted Project)
• Start Date: 07-Nov-2019
• Due Date: 26-Mar-2020
• Completion Date: 11-Feb-2020
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Mandate: M/111 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on circulation fixtures
• Ref Project: prEN 1790 - Road marking materials - Preformed road markings

Relations

• Revised: SIST EN 1790:2013 - Road marking materials - Preformed road markings
• Effective Date: 18-Jan-2023
• Revised: SIST EN 1790:2013 - Road marking materials - Preformed road markings
• Effective Date: 01-Jan-2020

Overview

prEN 1790 is a CEN draft standard for preformed road markings (marking tapes and preformed markings) intended primarily for permanent use on roads. It defines required product characteristics, laboratory test methods, reporting formats and the procedures for assessment and verification of the constancy of performance (AVCP). The document covers types I and II (structured and non‑structured) preformed products and aligns with related CEN work such as EN 1436:2018. Hot‑applied thermoplastics that require addition of drop‑on materials are excluded (see EN 1871:2020).

Key topics and technical requirements

• Essential characteristics: daytime visibility (reflection), night‑time visibility (retroreflection under vehicle headlamps), chromaticity coordinates for day and night colours, and skid resistance (SRT for non‑structured products).
• Durability testing: laboratory wear simulators (turntable) and road trial procedures to assess service life and performance retention.
• Resistance to UV exposure: accelerated ageing test methods for colour and retroreflectivity stability.
• Identification and composition tests: ash content, thermogravimetric analysis (TGA), FT‑IR and ATR spectroscopy for material fingerprinting and adhesive layer analysis.
• Sampling, test reporting and expression of results: standardized preparation of test samples and formats for test reports to support conformity claims.
• Assessment & verification of constancy of performance (AVCP): Factory Production Control (FPC) requirements, initial inspection, ongoing surveillance and procedures for modification and one‑off or prototype products.
• Annexes: normative methods for temporary preformed markings (removability), material identification, and detailed test procedures (TGA, FT‑IR, ash content, adhesive mass per unit area).

Applications and users

Who uses prEN 1790:

• Manufacturers of preformed tapes and sheets for product development, quality control and CE marking preparation.
• Independent testing laboratories conducting retroreflectivity, chromaticity, skid resistance and durability tests.
• Road authorities and specifiers writing procurement documents and performance specifications for permanent road markings.
• Contractors and installers needing to verify product conformity and installation quality.
• Conformity assessment bodies implementing AVCP and Factory Production Control (FPC) systems under the Construction Products Regulation (Regulation (EU) No. 305/2011).

Practical uses:

• Creating technical datasheets and performance declarations.
• Comparing products for retroreflectivity, durability and skid resistance.
• Supporting procurement decisions and lifetime cost assessments for road safety measures.

Related standards

• EN 1871:2020 - hot‑applied thermoplastics with drop‑on materials (excluded from prEN 1790 scope)
• EN 1436:2018 - road marking performance criteria and measurement methods
• EN 1790:2013 - earlier edition to be superseded

Keywords: prEN 1790, preformed road markings, road marking materials, retroreflection, skid resistance, durability testing, CEN, AVCP, FPC, EN 1871.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2020
Materiali za označevanje vozišča - Predoblikovane oznake
Road marking materials - Preformed road markings
Straßenmarkierungsmaterialien - Vorgefertigte Markierungen
Produits de marquage routier - Marquages routiers préformés
Ta slovenski standard je istoveten z: prEN 1790
ICS:
93.080.20 Materiali za gradnjo cest Road construction materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2019
ICS Will supersede EN 1790:2013
English Version
Road marking materials - Preformed road markings
Produits de marquage routier - Marquages routiers Straßenmarkierungsmaterialien - Vorgefertigte
préformés Markierungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 226.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 1790:2019 E
worldwide for CEN national Members.

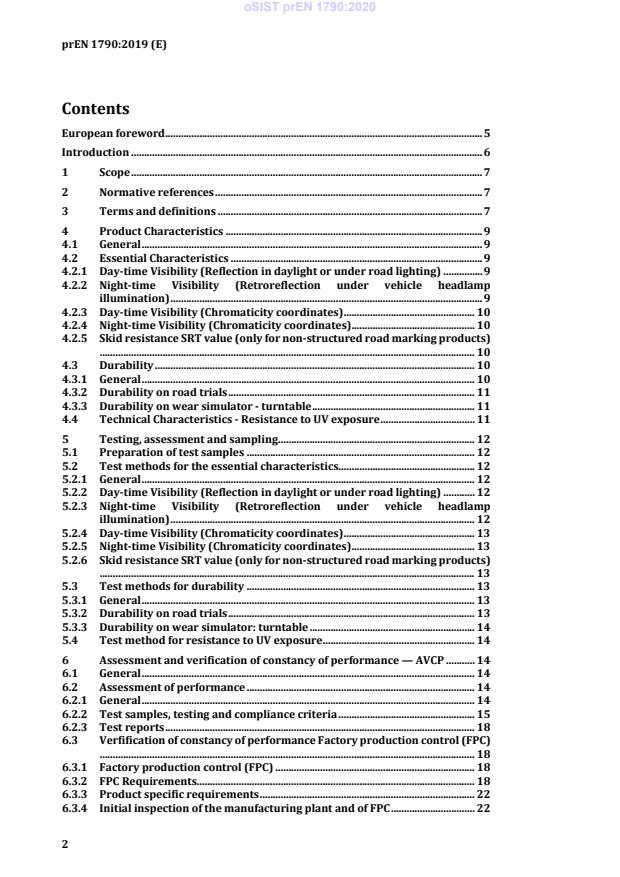

Contents
European foreword . 5
Introduction . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Product Characteristics . 9
4.1 General . 9
4.2 Essential Characteristics . 9
4.2.1 Day-time Visibility (Reflection in daylight or under road lighting) . 9
4.2.2 Night-time Visibility (Retroreflection under vehicle headlamp
illumination) . 9
4.2.3 Day-time Visibility (Chromaticity coordinates) . 10
4.2.4 Night-time Visibility (Chromaticity coordinates) . 10
4.2.5 Skid resistance SRT value (only for non-structured road marking products)
............................................................................................................................................... 10
4.3 Durability . 10
4.3.1 General . 10
4.3.2 Durability on road trials . 11
4.3.3 Durability on wear simulator - turntable . 11
4.4 Technical Characteristics - Resistance to UV exposure . 11
5 Testing, assessment and sampling . 12
5.1 Preparation of test samples . 12
5.2 Test methods for the essential characteristics. 12
5.2.1 General . 12
5.2.2 Day-time Visibility (Reflection in daylight or under road lighting) . 12
5.2.3 Night-time Visibility (Retroreflection under vehicle headlamp
illumination) . 12
5.2.4 Day-time Visibility (Chromaticity coordinates) . 13
5.2.5 Night-time Visibility (Chromaticity coordinates) . 13
5.2.6 Skid resistance SRT value (only for non-structured road marking products)
............................................................................................................................................... 13
5.3 Test methods for durability . 13
5.3.1 General . 13
5.3.2 Durability on road trials . 13
5.3.3 Durability on wear simulator: turntable . 14
5.4 Test method for resistance to UV exposure . 14
6 Assessment and verification of constancy of performance — AVCP . 14
6.1 General . 14
6.2 Assessment of performance . 14
6.2.1 General . 14
6.2.2 Test samples, testing and compliance criteria . 15
6.2.3 Test reports . 18
6.3 Verfification of constancy of performance Factory production control (FPC)
............................................................................................................................................... 18
6.3.1 Factory production control (FPC) . 18
6.3.2 FPC Requirements. 18
6.3.3 Product specific requirements . 22
6.3.4 Initial inspection of the manufacturing plant and of FPC . 22
6.3.5 Continuing surveillance, assessment and evaluation of FPC . 23
6.3.6 Procedure for modifications . 23
6.3.7 One-off products, pre-production products (e.g. prototypes) and products
produced in very low quantity . 24
Annex A (normative) Temporary Preformed Road Markings . 25
A.1 General . 25
A.2 Removability . 25
A.3 Test Method for Removability . 25
A.4 Durability of Temporary Road Marking . 25
Annex B (normative) Identification of preformed road marking materials . 26
B.1 General . 26
B.2 Ash content . 26
B.3 Fingerprinting . 26
B.3.1 General . 26
B.3.2 Thermogravimetric analysis (TGA) . 26
B.3.3 FT-IR spectroscopy of the TGA residue . 26
B.3.4 Attenuated Total Reflectance (ATR) FT-IR spectroscopy of the adhesive
layer . 27
B.4 Tolerances . 27
Annex C (normative) Test method for ash content . 28
C.1 Principle . 28
C.2 Apparatus . 28
C.3 Procedure . 28
C.4 Results . 28
C.5 Test report . 29
Annex D (normative) Thermogravimetric analysis (TGA) . 30
D.1 Principle . 30
D.2 Apparatus and Procedure . 30
D.3 Results and Test Report . 30
Annex E (normative) FT-IR spectroscopy of the TGA residue. 32
E.1 Principle . 32
E.2 Apparatus . 32
E.3 Procedure . 32
E.3.1 Sample preparation . 32
E.3.2 Recording the spectrum . 32
E.4 Results . 32
Annex F (normative) Test method for ATR FT-IR spectroscopy of the adhesive
layer . 33
F.1 Principle . 33
F.2 Apparatus . 33
F.3 Procedure. 33
F.4 Results . 33
Annex G (normative) Preformed self-adhesive road marking – Test method for
determination of mass per unit area of the adhesive . 34
G.1 Scope and field application . 34
G.2 References . 34
G.3 Sampling . 34
G.4 Apparatus . 34
G.5 Preparation of test samples . 34
G.6 Procedure. 34
G.7 Calculation and expression of results . 35
G.8 Test report . 35
Annex ZA (informative) Relationship of this European Standard with Regulation
(EU) No.305/2011 . 36
ZA.1 Scope and relevant characteristics . 36
ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP)
............................................................................................................................................... 39
ZA.3 Assignment of AVCP tasks . 39
Bibliography . 41

European foreword
This document (prEN 1790:2019) has been prepared by Technical Committee CEN/TC 226
“Road Equipment”, the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 1790:2013.
In comparison with the previous edition, the following technical modifications have been
made:
- Text and formatting according to provisions for harmonized standards under the
Construction Product Regulation.
- Clarification of the definition for preformed road markings and the measurement of the
initial performance
- Removed performance classes for the luminance factor β.
- Amendments in line with EN 1436:2018, e.g. addition of nighttime colour, definition of
structured road markings
- Removed preformed thermoplastics road markings installed with the addition of drop on
material from the scope
- Seperated and updated definition of test frequencies for FPC for the different materials
- Updating of normative references
This document has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of
EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of
this document.
Introduction
A particular category of road marking materials, used for horizontal signalisation, are
preformed road markings, manufactured products in the form of sheets or on rolls, ready for
use on the road. They can be applied by means of adhesives, pressure or heat, with or without
the use of a primer. Preformed road marking materials can be linear, in pieces of a certain
length or in rolls. They can also be cut out in the form of symbols or signs or parts of them,
making it possible to assemble them on the road to achieve the desired shape.
Preformed road marking materials can be designed for use as permanent or temporary road
markings. Temporary road markings, as covered in Annex A, are applied with a view for later
removal and therefore the specific property of “removability” can be required.
Preformed road marking products are defined as Tape, preformed Cold Plastic road marking
or preformed Thermoplastic road marking.
These type of products are fully finished during manufacturing and do not change significantly
their properties during application. They are completely covered by this standard.
Release of dangerous substances
National regulations on dangerous substances may require verification and declaration on
release, and sometimes content, when construction products covered by this standard are
placed on those markets.
In the absence of European harmonized test methods, verification and declaration on
release/content should be done taking into account national provisions in the place of use.
NOTE An informative database covering European and national provisions on dangerous substances is
available at the Construction website on EUROPA accessed through: http://ec.europa.eu/growth/tools-
databases/cp-ds_en.
1 Scope
This document specifies construction products which are white and yellow, removable or non-
removable, preformed road marking materials, under the form of tape, cold plastic,
thermoplastics (without addition of drop-on materials during application), to be used for
permanent and/or temporary road markings in circulation areas. Other preformed road
marking products and colours intended for road markings are not covered in this document.
This document also gives specifications for the evaluation of conformity for white and yellow,
removable or non-removable, preformed road materials under the form of tape, cold plastic,
thermoplastics to be used for permanent and/or temporary road markings in circulation areas
including type testing and factory production control.
This document includes an Annex ZA for permanent tapes, preformed cold plastic road
marking and thermoplastic road marking with the clauses addressing the provisions of the EU
Construction Product Regulation for permanent road marking.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
EN 1436:2018, Road marking materials - Road marking performance for road users and test
methods
prEN 1824:2018, Road marking materials — Road trials
prEN 1871:2018, Road marking materials — Paint, thermoplastic and cold plastic materials —
Physical properties
EN 13197:2011+A1:2014, Road marking materials — Wear simulator Turntable
EN 13459:2011, Road marking materials - Sampling from storage and testing
EN ISO 4892-3:2016, Plastics - Methods of exposure to laboratory light sources - Part 3:
Fluorescent UV lamps (ISO 4892-3:2016)
EN ISO 11358-1:2014, Plastics - Thermogravimetry (TG) of polymers - Part 1: General principles
(ISO 11358-1:2014)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
preformed road marking
factory produced road marking system (or product), in sheet or roll form, capable of being
applied to the substrate with adhesive, primer, pressure, heat or a combination of these. These
type of products are fully finished during manufacturing and do not change significantly their
properties during application
Note 1 to entry: Additional materials to those described in 3.1.1 to 3.1.3 can include, if recommended
by the manufacturer, primers which are liquid products which may contain solids and liquid additives
suspended in an organic solvent or in water. The solids comprise inorganic and/or organic fillers,
pigments and additives. The content of volatile organic solvents is not limited. Primers are used to
precoat road surfaces before the road marking system is applied. They improve the adhesion of the road
marking and protect against disintegration, discolouring, etc. caused by incompatible compounds in the
road surface.
3.1.1
tape
preformed multilayer road marking, capable of adapting itself to the texture of the substrate,
which may be precoated with pressure-sensitive adhesive, capable of being stuck to the
substrate without heating the material, while the photometric, colorimetric and skid
resistance characteristics are not significantly modified during application
3.1.2
preformed cold plastic road marking
preformed road marking made of cold plastic marking material as defined in prEN 1871:2018,
applied to the substrate by means of an adhesive, while the photometric, colorimetric and skid
resistance characteristics are not significantly modified during application
3.1.3
preformed thermoplastic road marking
“pre-beaded” preformed road marking made of thermoplastic marking material as defined in
prEN 1871:2018, applied to the substrate by heating the material until adhesion to the
pavement and without the addition of any retroreflective and/or anti-skid drop-on materials
during application to the road
3.2
removability
characteristic of a temporary preformed road marking capable of being removed, intact or in
large pieces, without leaving permanent marks that could confuse the road user during
different weather conditions
3.3
adhesive
substance which is used to bond the preformed road marking to the substrate and the
application of which may require heating
3.4
structured road marking
road marking with a structured surface that does not have areas of road marking of regular
dimensions and planeness
Note 1 to entry: Structures may be formed by patterns, profiles, random texture or other features.
3.5
type I road marking
road marking that does not necessarily have special properties
3.6
type II road marking
road marking with special properties intended to enhance the retroreflection in wet or rainy
conditions
4 Product Characteristics
4.1 General
The performance is meant as characteristic of the material as fully finished product. The
performance can be assessed on samples in a laboratory, but also on samples applied on the
road or wear simulator. The performance shall be measured after removing any surface
coating used to protect the surface of the preformed road marking during roll-up and
transport, following the instructions of the manufacturer.
4.2 Essential Characteristics
4.2.1 Day-time Visibility (Reflection in daylight or under road lighting)
Reflection in daylight or under road lighting is measured either by the luminance coefficient
−2 −1
under diffuse illumination Qd in the direction of traffic and expressed in mcd⋅m ⋅lx ; or by
the luminance factor β.
a. When luminance coefficient under diffuse illumination Qd is measured, the preformed
road marking material is tested in accordance with 5.2.2 a), test results shall be expressed
by means of classes Q0 to Q5 of EN 1436:2018, Table 1.
b. When luminance factor β is measured, the preformed road marking material is tested in
accordance with 5.2.2 b), test results shall be expressed by means of classes B0 to B5 of
EN 1436:2018, Table 2.
4.2.2 Night-time Visibility (Retroreflection under vehicle headlamp illumination)
Retroreflection under vehicle headlamp illumination represents the brightness of a road
marking as seen by the vehicle driver under the illumination by the vehicle’s own headlamp.
−2 −1
The result is expressed by the coefficient of retroreflected luminance R in mcd·m ·lx .
L
The coefficient of retroreflected luminance, measured on dry conditions, changes during
wetness or during rain. Retroreflected luminance during wetness or during rain only applies
for type II road markings.
a. When preformed road marking material is tested on dry conditions, in accordance with
5.2.3 a), test results shall be expressed by means of classes R0 to R5 of EN 1436:2018,
Table 3.
b. When preformed road marking material is tested during wetness in accordance with 5.2.3
b), test results shall be expressed by means of classes RW0 to RW6 of EN 1436:2018,
Table 4 (only for type II road marking products).
c. When preformed road marking material is tested during rain in accordance with 5.2.3 c),
test results shall be expressed by means of classes RR0 to RR6 of EN 1436:2018, Table 5
(only for type II road marking products).
4.2.3 Day-time Visibility (Chromaticity coordinates)
Chromaticity in daylight shall be defined by means of (x,y) chromaticity coordinates.
When a white preformed road marking is tested in accordance with 5.2.4, test results shall be
expressed by means of colour regions defined by the corner points given in EN 1436:2018,
Table 6 for white road markings.
When a yellow preformed road marking is tested in accordance with 5.2.4, test results shall be
expressed by means of colour regions defined by the corner points given in EN 1436:2018,
Table 6 for yellow road markings.
4.2.4 Night-time Visibility (Chromaticity coordinates)
Chromaticity in nighttime for retroreflected light shall be defined by means of (x,y)
chromaticity coordinates.
When a dry yellow preformed road marking is tested in accordance with 5.2.5, test results
shall be expressed by means of colour regions defined by the corner points given in
EN 1436:2018, Table 7 for yellow road markings.
4.2.5 Skid resistance SRT value (only for non-structured road marking products)
Skid resistance represents the energy loss caused by the friction of a rubber slider over a
specified length of a road marking surface in wet conditions. The result is expressed in SRT
(Skid Resistance Tester) units.
Measured according to 5.2.6, test results shall be expressed by means of classes S0 to S5 of
EN 1436:2018, Table 8.
This test is valid for flat road markings and road markings with low degree of texture. Road
markings with high degree of texture or structured markings may not be suitable for
measurement of skid resistance by this method, see definitions in EN 1436:2018, 4.5.
4.3 Durability
4.3.1 General
Durability represents the capability of the preformed road marking material to retain the
performance of the essential characteristics declared by the manufacturer after being
submitted to road trials and/or wear simulator.
This European Standard considers two possible methods of verification and/or assessment of
durability taking into account that some Member States have national regulations based on
one of them and considering that state of the art on this matter does not allow to define a single
and unified test method.
The information corresponding to the durability method road trials or wear simulator shall
include the specific test conditions applicable to the test.
The following performance characteristics of the road marking assemblies are tested by road
trial or wear simulator:
— Retroreflection under vehicle headlamp illumination (see 4.2.2):
— coefficient of retroreflected luminance R expressed as class R on dry conditions (only
L
for retroreflective road marking products);
— coefficient of retroreflected luminance R expressed as class RW during wetness (only
L
for Type II road marking products) and/or;
— coefficient of retroreflected luminance R expressed as class RR during rain (only for
L
Type II road marking products);
— Reflection in daylight or under road lighting (see 4.2.1):
— luminance coefficient under diffuse illumination (Qd) or luminance factor (β)
— Colour – Chromaticity (see 4.2.3 and 4.2.4):
— chromaticity coordinates (x, y);
— Skid Resistance SRT value (only for non-structured road markings) (see 4.2.5).
4.3.2 Durability on road trials
When a preformed road marking material to be used for permanent road marking is tested
according to 5.3.2, the road marking product shall be exposed to at least roll-over class P1 of
prEN 1824:2018, Table 3. In the case of road trial with studded tyres, class P0 applies and the
actual value of wheel passages (to the nearest thousand wheel passages) shall be stated in the
test report.
For the requirements of the preformed road marking material specified in 4.2, the results are
expressed in terms of the respective class in EN 1436:2018 (with the exception of the colour,
for which pass/fail criteria is used) for the corresponding roll-over class (P) and accompanied
by studded tyres (Y/N).
4.3.3 Durability on wear simulator - turntable
When a preformed road marking material to be used for permanent road marking is tested
according to 5.3.3, the road marking product shall be exposed to at least traffic class P4 of
EN 13197:2011+A1:2014, Table 4.
For the requirements of the preformed road marking material specified in 4.2, the results are
expressed in terms of the respective class in EN 1436:2018 (with the exception of the colour
for which pass/fail criteria is used) for the corresponding roll-over class (P).
4.4 Technical Characteristics - Resistance to UV exposure
UV resistance shall be checked in accordance with 5.4. The chromaticity coordinates of
preformed road marking after UV exposure shall comply with the region for white road
markings or with region Y1 or Y2 for yellow road markings of Table 6 in EN 1436:2018,
respectively for white and yellow preformed road marking.
The preformed road marking materials shall be classified in accordance with Table 1, where
Δβ is the difference between the luminance factor before and after UV exposure.
Table 1 — Classes of UV resistance
Colour Class Δβ
White and yellow UV0 No value requested
White and yellow UV2 ≤ 0,10
5 Testing, assessment and sampling
5.1 Preparation of test samples
The preformed road markings are applied to a flat substrate, or on the road, or on samples for
the wear simulator, according to the recommendations of the manufacturer.
If not specified in the relevant test method, samples representative of the material shall be
taken from storage in accordance with EN 13459:2011.
In some cases, it can be necessary to take samples at interim stages of the manufacturing
process, e.g. before release coatings are applied that are needed for packaging and transport,
but do not remain on the product during use.
Smaller representative samples, of sufficient quantity to carry out all the tests required, could
be taken from the larger samples.
For preformed materials cut in symbols, legends or other special shapes, where lengths of at
least 1 m cannot be sampled, an equivalent area of at least 0,75 m , with a minimum width of
0,15 m and a length suitable for the tests mentioned in 5.2 shall be sampled.
5.2 Test methods for the essential characteristics
5.2.1 General
The requirements of 4.2 apply to the products as they leave the manufacturing site. They can
be applied on samples in a laboratory, but also on samples applied on the road or wear
simulator.
NOTE The parameters measured on new samples in a laboratory are not to be confused with the
initial measurements, applied for durability purpose, which are carried out in accordance with
prEN 1824:2018, Table 4, for initial measurements column or after 10 000 wheel passages according to
EN 13197:2011+A1:2014. Latter indicate the performances of the road marking material measured
after a short period subsequent to its application.
5.2.2 Day-time Visibility (Reflection in daylight or under road lighting)
Day-time visibility may be measured either by:
−2 −1
a. the coefficient of luminance under diffuse illumination (Qd), expressed in mcd·m ·lx
according to EN 1436:2018, Annex A;
or
b. the luminance factor (β), according to EN 1436:2018, Annex C.
5.2.3 Night-time Visibility (Retroreflection under vehicle headlamp illumination)
Night-time visibility can be measured in different conditions as follows:
a. coefficient of retroreflected luminance in dry conditions (R), in accordance with
EN 1436:2018, Annex B;
b. coefficient of retroreflected luminance with wetness (RW) in accordance with
EN 1436:2018, Annex B;
c. coefficient of retroreflected luminance during rain (RR) in accordance with
EN 1436:2018, Annex B.
NOTE The test condition b.) and c.) is not applicable for newly applied road markings, when the
surface is hydrophobic so that water forms puddles on the surface. The hydrophobic surface property
normally disappears a few weeks after a road marking is applied. See 5.1 for the preparation of test
samples.
5.2.4 Day-time Visibility (Chromaticity coordinates)
Chromaticity in daylight shall be tested in accordance with EN 1436:2018, Annex C.
5.2.5 Night-time Visibility (Chromaticity coordinates)
Chromaticity in nighttime for retroreflected light shall be tested in accordance with
EN 1436:2018, Annex C.
5.2.6 Skid resistance SRT value (only for non-structured road marking products)
Skid resistance shall be tested in accordance with EN 1436:2018, 4.5.
5.3 Test methods for durability
5.3.1 General
Test methods for determining the following performance characteristics of the preformed
road markings are stated in 5.2.2 – 5.2.6:
— Retroreflection under vehicle headlamp illumination (see 4.2.2):
— coefficient of retroreflected luminance R expressed as class R on dry conditions (only
L
for retroreflective preformed road markings);
— coefficient of retroreflected luminance R expressed as class RW during wetness (only
L
for Type II road marking) and/or;
— coefficient of retroreflected luminance R expressed as class RR during rain (only for
L
Type II road marking);
— Reflection in daylight or under road lighting (see 4.2.1):
— Luminance coefficient under diffuse illumination (Qd) or luminance factor (β);
— Colour – Chromaticity (see 4.2.3 and 4.2.4):
— chromaticity coordinates (x, y);
— Skid Resistance SRT value (only for non-structured road markings) (see 4.2.5).
5.3.2 Durability on road trials
Durability on road trials shall be tested in accordance with prEN 1824:2018. Testing
conditions shall be reported as in prEN 1824:2018, Clause 8, for the required roll-over classes
(P or T). For studded tyres roll-over class P0 the report shall include the actual value of wheel
passages (to the nearest thousand wheel passages).
5.3.3 Durability on wear simulator: turntable
Durability on the wear simulator shall be tested in accordance with EN 13197:2011+A1:2014.
Testing conditions shall be reported as in EN 13197:2011+A1:2014, Clause 9 for the required
traffic classes (P).
5.4 Test method for resistance to UV exposure
The samples shall be tested in accordance with EN ISO 4892-3:2016 for 168 h under lamp type
II (UVB - 313) in cycles of 8 h of radiation at (60 ± 2) °C and 4 h of condensation at (50 ± 2) °C.
6 Assessment and verification of constancy of performance — AVCP
6.1 General
The compliance of preformed road marking with the requirements of this standard and with
the performances declared by the manufacturer in the DoP shall be demonstrated by:
— determination of the product type;
— factory production control by the manufacturer, including product assessment.
The manufacturer shall always retain the overall control and shall have the necessary means
to take responsibility for the conformity of the product with its declared performance(s).
6.2 Assessment of performance
6.2.1 General
All performances related to characteristics included in this standard shall be determined when
the manufacturer intends to declare the respective performances unless the standard gives
provisions for declaring them without performing tests. (e.g. use of previously existing data,
CWFT and conventionally accepted performance).
Assessment previously performed in accordance with the provisions of this standard, may be
taken into account provided that they were made to the same or a more rigorous test method,
under the same AVCP system on the same product or products of similar design, construction
and functionality, such that the results are applicable to the product in question.
NOTE Same AVCP system means testing by an independent third party, under the responsibility of
a notified product certification body.
For the purposes of assessment, the manufacturer's products may be grouped into families,
where it is considered that the results for one or more characteristics from any one product
within the family are representative for the same characteristics for all products within that
same family.
Products may be grouped in different families for different characteristics.
Reference to the assessment method standards should be made to allow the selection of a
suitable representative sample.
In addition, the determination of the product type shall be performed for all characteristics
included in the standard for which the manufacturer declares the performance:
— at the beginning of the production of a new or modified preformed road marking (unless
a member of the same product range), or
— at the beginning of a new or modified method of production (where this may affect the
stated properties); or
they shall be repeated for the appropriate characteristic(s), whenever a change occurs in the
preformed road marking design, in the raw material or in the supplier of the components, or
in the method of production (subject to the definition of a family), which would affect
significantly one or more of the characteristics.
Where components are used whose characteristics have already been determined, by the
component manufacturer, on the basis of assessment methods of other product standards,
these characteristics need not be re-assessed. The specifications of these components shall be
documented.
Products bearing regulatory marking in accordance with appropriate harmonized European
specifications may be presumed to have the performances declared in the DoP, although this
does not replace the responsibility on the preformed road marking manufacturer to ensure
that the preformed road marking as a whole is correctly manufactured and its component
products have the declared performance values.
6.2.2 Test samples, testing and compliance criteria
The number of samples of preformed road marking to be tested/assessed shall be in
accordance with Table 2
.
Table 2 — Number of samples to be tested and compliance criteria
Assessment No. of Compliance
Characteristic Requirement
method samples criteria
Coefficient of
4.2.2 a) 5.2.3 a) 4.2.2 a)
retroreflected 1
luminance R on dry
L
Coefficient of
Retroreflection
4.2.2 b) 5.2.3 b) 4.2.2 b)
retroreflected
under 1
luminance R during
L
headlamp
Nighttime
wetness
illumination
visibility
Coefficient of
4.2.2 c) 5.2.3 c) 4.2.2 c)
retroreflected
luminance R during
L
rain
Essential
Colour 4.2.4 5.2.5 4.2.4
Chromaticity
characteristics
coordinates (x,y)
Daytime Reflection in Coefficient under
4.2.1 a) 5.2.2 a) 4.2.1 a)
visibility daylight or diffuse 1

under road illumination Qd
lighting
4.2.1 b) 5.2.2 b) 4.2.1 b)
Luminance factor β 1
4.2.3 5.2.4 4.2.3
Chromaticity
Colour 1
coordinates (x,y)
4.2.5 5.2.6 4.2.5
Skid resistance SRT value 1
Classes of UV 4.3.2
Resistance to UV exposure 4.3.2 5.4 1
resistance
4.2.6.2 5.3.2 4.2.6.2
Road trials (Roll
over class)
Durability
Turntable-wear
4.2.6.3 5.3.3 4.2.6.3
simulator (Traffic 1
class)
6.2.3 Test reports
The results of the determination of the product type shall be documented in test reports. All
test reports shall be retained by the manufacturer for at least 10 years after the last date of
production of the preformed road marking to which they relate.
6.3 Verfification of constancy of performance Factory production control (FPC)
6.3.1 Factory production control (FPC)
The manufacturer shall establish, document and maintain an FPC system to ensure that the
products placed on the market comply with the declared performance of the essential
characteristics.
The FPC system shall consist of procedures, regular inspections and tests and/or assessments
and the use of the results to control raw and other incoming materials or components,
equipment, the production process and the product.
All the elements, requirements and provisions adopted by the manufacturer shall be
documented in a systematic manner in the form of written policies and procedures.
This factory production control system documentation shall ensure a common understanding
of the evaluation of the constancy of performance and enable the achievement of the required
product performances and the effective operation of the production control system to be
checked. Factory production control therefore brings together operational techniques and all
measures allowing maintenance and control of the compliance of the product with the
declared performances of the essential characteristics.
In case the manufacturer has used shared or cascading product type results, the FPC shall also
include th
...
