oSIST prEN ISO 13534:2008

Petroleum and natural gas industries - Drilling and production equipment - Inspection, maintenance, repair and remanufacture of hoisting equipment (ISO/DIS 13534:2008)

2012-04-25 EMA: CCMC has been informed of the cancellation of the ISO project
2010-12-15 EMA: WI deleted as the ISO project was set back to preliminary stage.

Erdöl- und Erdgasindustrie - Bohr- und Fördereinrichtungen - Inspektion, Instandhaltung, Instandsetzung und Wiederaufbereitung von Hebeeinrichtungen (ISO/DIS 13534:2008)

Diese Internationale Norm stellt einen Leitfaden dar, in dem Anforderungen an Inspektion, Instandhaltung, Instandsetzung und Wiederaufarbeitung von Ausrüstungsteilen für Hebe  und Bohreinrichtungen nach API Spec 8A [3], ISO 13535 oder ISO 14693 mit dem Ziel festgelegt werden, deren Gebrauchstauglichkeit bei Bohr  und Förderarbeiten sicherzustellen.
ANMERKUNG   Für die Anwendung dieser Internationalen Norm sind API RP 8C und ISO 13535 einander äquivalent.
Diese Internationale Norm gilt für folgende Teile von Hebe  und Bohreinrichtungen:
   Turmrollenseilscheiben und  lager;
   Flaschenzugblöcke und Hakengeschirre;
   Block/Haken Passstücke;
   Verbindungsstücke und  glieder;
   Bohrhaken;
   Steigrohr  und Pumpgestängehaken;
   Elevatorbügel;
   Futterrohr , Steigrohr , Bohrgestänge  und Schwerstangenelevatoren;
   Pumpgestängeelevatoren;
   Passtücke für Spülkopfbügel;
   Spülköpfe;
   Kraftspülköpfe;
   Kellyverschraubvorrichtung;
   Totseilanker/Seilanker;
   Bohrstrang Bewegungsausgleichsvorrichtungen;
   Kellyverschraubvorrichtungen (Power subs);
   Werkzeuge für den Ein  und Ausbau von Steigrohren;
   Werkzeuge für Ein  und Ausbauarbeiten am Bohrlochkopf;
   Sicherheitsklemmen (sowohl für Hebezeuge als auch für andere Anwendungen);
   Drehtische;
   Drehtischhaupteinsätze;
   Hochdruck Spül  und  Zementschläuche;
   Blowout Preventer (BOP-)Transportsysteme;
   Spülpumpen;
   Hebewerke;
   Futterrohr , Steigrohr , Bohrgestänge  und Schwerstangenkeiltöpfe, deren Installation an oder über dem Drehtischhaupteinsatz oder dem Drehtisch vorgesehen ist;
   Futterrohr , Steigrohr , Bohrgestänge  und Schwerstangenkeiltöpfe, deren Installation in oder teilweise im Drehtischhaupteinsatz oder Drehtisch vorgesehen ist;
   Abfangkeile, die für die Anwendung in Standard Keiltöpfen mit einem API Kegel von 33,333 cm je Meter (4 Inch je Fuß) vorgesehen sind;

Industries du pétrole et du gaz naturel - Équipement de forage et de production - Vérification, maintenance, réparation et fabrication à partir de matériaux recyclés du matériel de levage (ISO/DIS 13534:2008)

Industrija nafte in zemeljskega plina - Vrtalna in proizvodna oprema - Pregled, vzdrževanje, popravila in predelava dvigovalne opreme (ISO/DIS 13534:2008)

General Information

• Status: Not Published
• Public Enquiry End Date: 31-May-2008
• ICS: 75.180.10 - Exploratory, drilling and extraction equipment
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 15-Jan-2020
• Due Date: 20-Jan-2020
• Completion Date: 15-Jan-2020
• Ref Project: prEN ISO 13534 - Petroleum and natural gas industries - Drilling and production equipment - Inspection, maintenance, repair and remanufacture of hoisting equipment (ISO/DIS 13534:2008)

Relations

• Revised: SIST EN ISO 13534:2001 - Petroleum and natural gas industries - Drilling and production equipment - Inspection, maintenance, repair and remanufacture of hoisting equipment (ISO 13534:2000)
• Effective Date: 18-Jan-2023
• Revised: SIST EN ISO 13534:2001 - Petroleum and natural gas industries - Drilling and production equipment - Inspection, maintenance, repair and remanufacture of hoisting equipment (ISO 13534:2000)
• Effective Date: 01-May-2008

Overview

The draft standard oSIST prEN ISO 13534:2008:2008-“Petroleum and Natural Gas Industries - Drilling and Production Equipment - Inspection, Maintenance, Repair and Remanufacture of Hoisting Equipment”-provides comprehensive guidelines and requirements to ensure the serviceability and safety of hoisting equipment used in petroleum and natural gas drilling and production operations. Developed collaboratively by ISO/TC 67 and CEN/TC 12 technical committees, this draft international standard focuses on maintaining the integrity and operational reliability of critical hoisting components.

Although this standard was subject to cancellation notices after 2010, its scope and framework remain highly relevant for organizations aiming to optimize drilling equipment lifecycle management and comply with industry best practices.

Key Topics

• Scope and Equipment Covered
  Applies to hoisting and drilling equipment manufactured according to API Spec 8A, ISO 13535, or ISO 14693, including:

  • Crown block sheaves and bearings
  • Travelling blocks and hook blocks
  • Drilling hooks, tubing hooks, sucker rod hooks
  • Elevators (casing, tubing, drill pipe, drill collar)
  • Rotary swivels and power swivels
  • Dead line tie downs/wireline anchors
  • Drill string motion compensators
  • Kelly spinners and riser running tool components
  • Blowout preventer (BOP) handling systems
  • Draw works and slush pumps
  • Rotary tables, rotary bushings, and spiders
  • Rotary slips and spiders installed on or in rotary tables
  • Manual tongs and associated components

• Inspection and Maintenance
  Procedures for routine inspections and preventive maintenance essential to detect wear, corrosion, and operational faults that could jeopardize safety or equipment lifespan.

• Repair and Remanufacture
  Protocols for authorized repairs and remanufacturing actions that restore equipment to operational condition while meeting original design specifications, using compatible replacement parts and verified workmanship.

• Load Testing
  Guidelines for performance and proof load tests to verify structural integrity and load-bearing capacity after maintenance or repair activities.

• Personnel Qualification
  Emphasis on ensuring maintenance and repair personnel have proper training and certifications consistent with ISO 9712 and industry requirements.

• Documentation and Records
  Maintaining comprehensive user/owner equipment files and activity records for traceability, audit compliance, and continuous improvement.

Applications

This standard serves as a critical reference for operators, maintenance contractors, and equipment manufacturers involved in:

• Offshore and onshore petroleum drilling and production operations
• Maintenance management of hoisting systems to extend equipment life and maximize operational uptime
• Ensuring safety compliance with internationally recognized practices for lifting equipment in hazardous environments
• Supporting asset integrity management programs through documented inspection, maintenance, and repair procedures
• Guiding the remanufacture processes for hoisting equipment to reduce costs and environmental impact through recycling of materials
• Establishing baseline criteria for load testing and personnel qualifications, enhancing reliability and reducing risk of operational failure

Related Standards

• API Spec 8A and API RP 8C/ISO 13535 – Specifications and recommended practices for drilling equipment and hoisting gear
• ISO 14693 – Drilling and well-servicing equipment standards, complementary to hoisting equipment guidelines
• ISO 9712 – Qualification and certification of personnel performing non-destructive testing, relevant for inspection quality assurance
• API RP 2D – Operational and maintenance practices for offshore crane equipment, supporting safe handling on rigs and platforms

Conclusion

Adopting the guidelines of oSIST prEN ISO 13534:2008 supports petroleum and natural gas industry stakeholders in ensuring the reliability, safety, and longevity of drilling and production hoisting equipment. By following internationally harmonized requirements for inspection, maintenance, repair, and remanufacture, organizations can mitigate operational risks, comply with regulations, and optimize asset performance in challenging drilling environments.

Keywords: petroleum industry standards, drilling equipment maintenance, hoisting equipment inspection, repair of drilling hoists, remanufacture of lifting gear, API Spec 8A, ISO 13535, petroleum hoisting safety, drilling rig equipment compliance.

Standards Content (Sample)

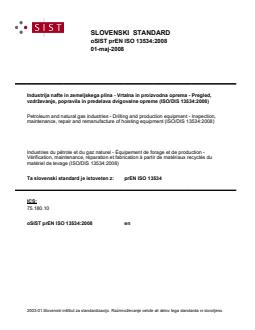

SLOVENSKI STANDARD
01-maj-2008
Industrija nafte in zemeljskega plina - Vrtalna in proizvodna oprema - Pregled,
vzdrževanje, popravila in predelava dvigovalne opreme (ISO/DIS 13534:2008)
Petroleum and natural gas industries - Drilling and production equipment - Inspection,
maintenance, repair and remanufacture of hoisting equipment (ISO/DIS 13534:2008)
Industries du pétrole et du gaz naturel - Équipement de forage et de production -
Vérification, maintenance, réparation et fabrication à partir de matériaux recyclés du
matériel de levage (ISO/DIS 13534:2008)
Ta slovenski standard je istoveten z: prEN ISO 13534
ICS:
75.180.10
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

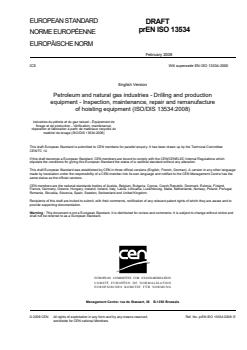

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2008
ICS Will supersede EN ISO 13534:2000
English Version
Petroleum and natural gas industries - Drilling and production
equipment - Inspection, maintenance, repair and remanufacture
of hoisting equipment (ISO/DIS 13534:2008)
Industries du pétrole et du gaz naturel - Équipement de
forage et de production - Vérification, maintenance,
réparation et fabrication à partir de matériaux recyclés du
matériel de levage (ISO/DIS 13534:2008)
This draft European Standard is submitted to CEN members for parallel enquiry. It has been drawn up by the Technical Committee
CEN/TC 12.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN ISO 13534:2008: E
worldwide for CEN national Members.

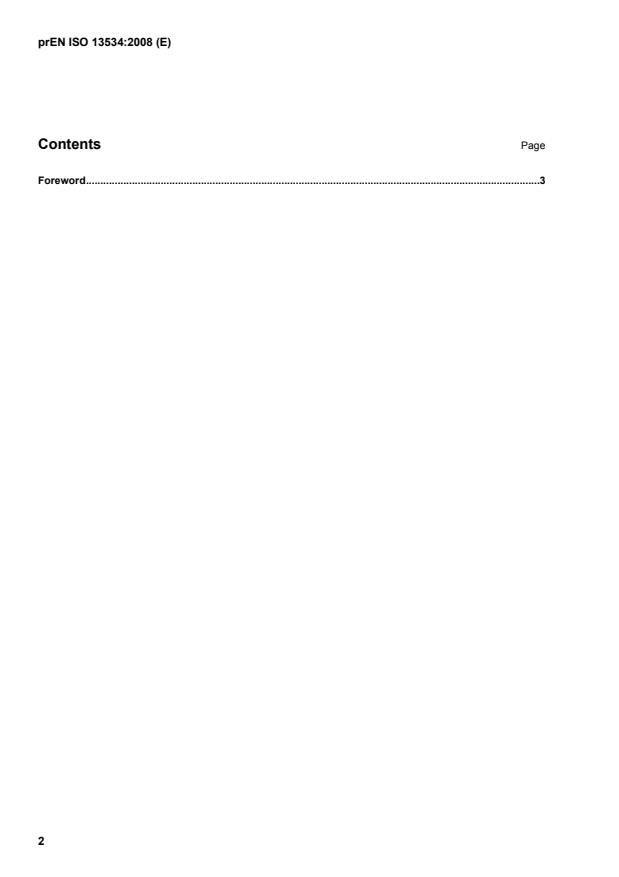

Contents Page
Foreword.3

Foreword
This document (prEN ISO 13534:2008) has been prepared by Technical Committee ISO/TC 67 "Materials,
equipment and offshore structures for petroleum and natural gas industries" in collaboration with Technical
Committee CEN/TC 12 “Materials, equipment and offshore structures for petroleum, petrochemical and
natural gas industries” the secretariat of which is held by AFNOR.
This document is currently submitted to the parallel Enquiry.
This document will supersede EN ISO 13534:2000.
Endorsement notice
The text of ISO/DIS 13534:2008 has been approved by CEN as a prEN ISO 13534:2008 without any
modification.
DRAFT INTERNATIONAL STANDARD ISO/DIS 13534
ISO/TC 67/SC 4 Secretariat: ANSI
Voting begins on: Voting terminates on:
2008-02-21 2008-07-21
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION • МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ • ORGANISATION INTERNATIONALE DE NORMALISATION
Petroleum and natural gas industries — Drilling and production
equipment — Inspection, maintenance, repair and
remanufacture of hoisting equipment
Industries du pétrole et du gaz naturel — Équipement de forage et de production — Vérification, maintenance,
réparation et fabrication à partir de matériaux recyclés du matériel de levage
[Revision of first edition (ISO 13534:2000)]
ICS 75.180.10
ISO/CEN PARALLEL ENQUIRY
The CEN Secretary-General has advised the ISO Secretary-General that this ISO/DIS covers a subject
of interest to European standardization. In accordance with the ISO-lead mode of collaboration as
defined in the Vienna Agreement, consultation on this ISO/DIS has the same effect for CEN
members as would a CEN enquiry on a draft European Standard. Should this draft be accepted, a
final draft, established on the basis of comments received, will be submitted to a parallel two-month FDIS
vote in ISO and formal vote in CEN.
In accordance with the provisions of Council Resolution 15/1993 this document is circulated in
the English language only.
Conformément aux dispositions de la Résolution du Conseil 15/1993, ce document est distribué
en version anglaise seulement.
To expedite distribution, this document is circulated as received from the committee secretariat.
ISO Central Secretariat work of editing and text composition will be undertaken at publication
stage.
Pour accélérer la distribution, le présent document est distribué tel qu'il est parvenu du
secrétariat du comité. Le travail de rédaction et de composition de texte sera effectué au
Secrétariat central de l'ISO au stade de publication.
THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE
REFERRED TO AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
©
International Organization for Standardization, 2008

ISO/DIS 13534
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
Copyright notice
This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as permitted
under the applicable laws of the user's country, neither this ISO draft nor any extract from it may be
reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, photocopying,
recording or otherwise, without prior written permission being secured.
Requests for permission to reproduce should be addressed to either ISO at the address below or ISO's
member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
©
ii ISO 2008 – All rights reserved

ISO/DIS 13534
Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Normative References .2
3 Terms, definitions, symbols, and abbreviations .3
3.1 Terms and definitions.3
3.2 Symbols.4
3.3 Abbreviated terms .4
4 General principle.5
4.1 Procedure .5
4.2 Personnel qualification.5
5 Inspection and maintenance.6
5.1 General .6
5.2 Maintenance .7
5.3 Inspection.7
6 Repair.12
6.1 Procedures .12
6.2 Bearings .12
6.3 Replacement parts.12
7 Remanufacture.12
7.1 Procedures .12
7.2 Verification .12
8 Load testing.13
8.1 General .13
8.2 Performance load test .13
8.3 Proof load test.13
9 Documentation and records.13
9.1 General .13
9.2 User/owner equipment file .13
9.3 Activity records.14
Annex A (normative) Recommended practice operating limits, inspection, care, and use of
cement hose, drilling mud vibrator and jumper hose, and rotary hose.15
Annex B (normative) User guidelines for blowout preventor (BOP) handling systems .23
Bibliography.34

ISO/DIS 13534
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 13534 was prepared by Technical Committee ISO/TC 67, Materials, equipment and offshore structures
for petroleum and natural gas industries, Subcommittee SC 4, Drilling and production equipment.
iv © ISO 2008 – All rights reserved

ISO/DIS 13534
Introduction
This International Standard is based on API RP 8B, 7th edition, March 2002 [4] and API RP 7L, 1st edition [2].
Application of this International Standard seeks to maintain the serviceability and continued use of existing
hoisting and drilling equipment manufactured under API Spec 8A [3], ISO 13535, and ISO 14693.
In this International Standard, quantities expressed in the International System (SI) of units are also, where
practical, expressed in United States Customary (USC) units for information.
Users of this International Standard should be aware that further or differing requirements may be needed for
individual applications. This International Standard is not intended to inhibit the user from utilizing alternative
equipment, methods or engineering solutions for individual applications. This may be particularly applicable
where there is innovative or developing technology. Where an alternative is offered, the vendor should identify
any variations from this International Standard and provide details.

DRAFT INTERNATIONAL STANDARD ISO/DIS 13534

Petroleum and natural gas industries — Drilling and production
equipment — Inspection, maintenance, repair and
remanufacture of hoisting equipment
1 Scope
This International Standard gives guidelines and establishes requirements for inspection, maintenance, repair
and remanufacture of items of hoisting and drilling equipment manufactured according to API Spec 8A [3],
ISO 13535, or ISO 14693 used in drilling and production operations, in order to maintain the serviceability of
this equipment.
NOTE For the purposes of this International Standard, API RP 8C is equivalent to ISO 13535.
Items of hoisting and drilling equipment covered by this International Standard are:
⎯ crown block sheaves and bearings;
⎯ travelling blocks and hook blocks;
⎯ block to hook adapters;
⎯ connectors and link adapters;
⎯ drilling hooks;
⎯ tubing hooks and sucker rod hooks;
⎯ elevator links;
⎯ casing elevators, tubing elevators, drill pipe elevators and drill collar elevators;
⎯ sucker rod elevators;
⎯ rotary swivel bail adapters;
⎯ rotary swivels;
⎯ power swivels;
⎯ power subs;
⎯ dead line tie down/wireline anchors;
⎯ drill string motion compensators;
⎯ kelly spinners;
⎯ riser running tool components;
ISO/DIS 13534
⎯ wellhead running tool components;
⎯ safety clamps (whether or not used as hoisting equipment);
⎯ rotary tables;
⎯ rotary bushings;
⎯ high-pressure mud and cement hose;
⎯ BOP handling systems
⎯ slush pumps;
⎯ draw works;
⎯ casing, tubing, drill-pipe and drill-collar spiders that are designed to be installed on or above the master
bushing or rotary table;
⎯ casing, tubing, drill-pipe and drill-collar spiders that are designed to be installed inside, or partly inside,
the master busing or rotary table;
⎯ rotary slips designed for use in standard rotary bowls with a 33,333 cm per m (4 in per ft) API taper;
⎯ manual spiders that use API rotary slips not capable of use as elevators, that are installed on or above
the master bushing/rotary table;
⎯ manual spiders that use rotary slips not having a taper of 33,333 cm per m (4 in per ft) not capable of use
as elevators, that are installed on or above the master bushing/rotary table;
⎯ rotary slips not having a taper of 33,333 cm per m (4 in per ft) for use in manual spiders;
⎯ spring, pneumatic or hydraulic spiders with integral slips not capable of use as elevators, that are installed
on or above the master bushing/rotary table;
⎯ spring, pneumatic or hydraulic spiders with integral slips not capable of use as elevators, that are installed
in or partly in the rotary table;
⎯ manual tong.
2 Normative References
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 9712, Non-destructive testing — Qualification and certification of personnel
ISO 13535, Petroleum and natural gas industries —Drilling and production equipment — Hoisting equipment
ISO 14693, Petroleum and natural gas industries — Drilling and well-servicing equipment
1)
API RP 2D, Operation and Maintenances for Offshore Cranes

1) American Petroleum Institute; 1220 L St. N.W.; Washington, DC 20005; USA.
2 © ISO 2008 – All rights reserved

ISO/DIS 13534
API RP 9B, Application, Care, and Use of Wire Rope for Oil Field Service
API RP 54, Occupational Safety for Oil and Gas Well Drilling and Servicing Operations
2)
ASTM 106, Standard Specification for Seamless Carbon Steel pipe for High-Temperature Service
3 Terms, definitions, symbols, and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
critical area
highly stressed region of a primary load carrying component as defined by the manufacturer
3.1.2
expendable parts
parts normally used up or consumed in service
EXAMPLE Seals, gaskets, filters, packing, V-belts, covers, guards, breathers, drains and miscellaneous hardware
and fasteners.
3.1.3
inspection
comparison of equipment conformity to predetermined standards, followed by a determination of action
required
3.1.4
performance load test
test, not exceeding the rated load of the equipment, wherein a load is applied under controlled and monitored
conditions to verify the function or performance of the equipment under specific conditions or in conjunction
with other equipment
3.1.5
proof load test
test, at least 1,5 times the equipment rated load, wherein a load is applied under controlled and monitored
conditions to verify the serviceability of equipment
3.1.6
maintenance
actions including inspection, adjustments, cleaning, lubrication, testing, and replacement of expendable parts,
as necessary to maintain the serviceability of the equipment
3.1.7
manufacturer
individual or company that makes or processes equipment or material covered by this International Standard
3.1.8
owner
individual, legal entity or organization holding legal title to the equipment

2) American Society for Testing and Materials; 100 Barr Harbor Dr.; West Conshohocken, PA 19428; USA.
ISO/DIS 13534
3.1.9
primary load
axial load to which the equipment is subjected in operation
3.1.10
primary load carrying component
component of the equipment through which the primary load is carried
3.1.11
remanufacture
action performed on equipment that involves a special process or re-machining
3.1.12
repair
action performed on equipment that involves replacement of parts, other than expendable parts, but excludes
remanufacture
3.1.13
serviceability
condition of a piece of equipment at any point in time that affects the ability of the equipment to perform its
function(s) as intended
3.1.14
special process
operation that can change or affect the mechanical properties, including toughness, of the materials used in
equipment
3.1.15
testing
action carried out on a piece of equipment to ensure that it can perform a required function
3.1.16
user
individual or company that uses equipment or material, or implements standards
3.2 Symbols
C  coupling length
H vertical height of standpipe
s
L length of hose
H
L  length of hose travel
t
R  minimum radius of bending hose
S 0,3 m (1 ft) allowance for hose length tolerance and contraction when internal pressure is applied
(see ISO 14693, 9.10.5)
Z height, from the top of the derrick floor to the end of hose at the swivel when the swivel is in its lowest
drilling position
3.3 Abbreviated terms
MT magnetic particle testing
NDT non-destructive testing
4 © ISO 2008 – All rights reserved

ISO/DIS 13534
PSL product specification level
PT liquid penetrant testing
RT radiographic testing
UT ultrasonic testing
4 General principle
4.1 Procedure
4.1.1 General
Users/owners of hoisting and drilling equipment shall establish written procedures for inspection, maintenance,
repair and remanufacture of each item of equipment.
4.1.2 Procedure development
4.1.2.1 User/owner and manufacturer joint procedure development
The user/owner and manufacturer should jointly develop and update inspection, maintenance, repair and
remanufacture procedures consistent with equipment application, loading, work environment, usage, and
operational conditions.
These factors may change as a result of new technology, product improvements or fundamental changes in
service conditions.
Where necessary the user/owner should consult the manufacturer for advice and comment on these
procedures.
The user/owner shall consult the manufacturer on all aspects of remanufacture.
4.1.2.2 User/owner procedure development
If the manufacturer of the equipment no longer exists or is unable for any reason to provide suitable
recommendations, the user/owner shall develop documented inspection, maintenance, repair and
remanufacture procedures consistent with widely accepted industry practices, taking into account equipment
application, loading, work environment, usage, and operational conditions.
4.1.2.3 Parts and tooling
NDT, maintenance, and dismantling equipment shall be properly selected and adapted to the parts to be
inspected and maintained.
4.2 Personnel qualification
4.2.1 NDT personnel qualification levels
4.2.1.1 Qualification
Inspectors shall be aware of the type of equipment to be evaluated and the NDT methods to apply.
The users/owners shall verify that the NDT inspector has the following information:
ISO/DIS 13534
⎯ assembly drawings and drawings identifying critical areas;
⎯ rejection criteria.
In addition, the users/owners may provide the history of grinding or remanufacture, if available.
In the absence of critical area drawings, all areas of primary load carrying components shall be considered
critical.
These data shall be used by the inspector to adapt the inspection procedure.
4.2.1.2 Certification
The NDT inspector shall be certified in accordance with ISO 9712 or by other recognized NDT certification
programmes or standards.
NOTE For the purposes of this International Standard, ISO 9712 is equivalent to ASNT SNT-TC-1A [4].
4.2.2 Welding personnel qualification levels
Welders shall be qualified to a recognized standard.
5 Inspection and maintenance
5.1 General
5.1.1 Criteria
Inspection and maintenance are closely linked. Inspection and maintenance actions may be initiated based on,
but not limited to, one or more of the following criteria:
⎯ specific time intervals;
⎯ measurable wear limits;
⎯ manufacturer’s recommendations regarding maintenance;
⎯ load cycle accumulation;
⎯ non-performance of equipment;
⎯ environment;
⎯ experience (history);
⎯ regulatory requirements.
5.1.2 Safety considerations
Operators shall review safety considerations applicable to the site where the maintenance activity is
performed.
6 © ISO 2008 – All rights reserved

ISO/DIS 13534
5.2 Maintenance
5.2.1 General
Maintenance of equipment consists of actions such as adjustments, cleaning, lubrication, and replacement of
expendable parts. The complexity of these activities and the safety risks involved shall be considered in the
assignment of appropriate resources such as facilities, equipment and qualified personnel.
5.2.2 Procedures
In addition to the procedures developed in accordance with 4.1, the manufacturer should define any special
tools, materials, measuring and inspection equipment, and personnel qualifications necessary to perform the
maintenance. The manufacturer should also specify those procedures that should be performed solely by the
manufacturer, either within the manufacturer's facility or within another approved facility.
5.2.3 Periodic maintenance schedules
The user/owner of the equipment shall develop schedules of maintenance based on experience and the
following factors:
⎯ environment;
⎯ load cycles;
⎯ regulatory requirements;
⎯ operating time;
⎯ manufacturer’s instructions regarding maintenance;
⎯ testing;
⎯ repairs;
⎯ remanufacture.
Long-term planning shall be adjusted in order not to interfere unnecessarily with the running operations.
5.3 Inspection
5.3.1 General
The existence of cracks can indicate severe deterioration and impending failure. Their detection, identification
and evaluation require accurate inspection methods.
Prompt attention is then required to remove the equipment from service immediately or to provide appropriate
service and/or repair.
Caution shall be exercised to take into account the increased susceptibility to brittle fracture of many steels
when operating at low temperatures.
If any manufacturing defects are discovered, they should be reported to the manufacturer or supplier.
ISO/DIS 13534
5.3.2 Inspection categories
5.3.2.1 General
The objective of these inspections is to detect service defects and possible hidden manufacturing defects.
Inspection results shall be reported on equipment files and drawings.
5.3.2.2 Category I
This category involves observing the equipment during operation for indications of inadequate performance.
When in use, equipment shall be visually inspected on a daily basis for cracks, loose fits or connections,
elongation of parts, and other signs of wear, corrosion or overloading. Any equipment found to show cracks,
excessive wear, etc., shall be removed from service for further examination.
The equipment shall be visually inspected by a person knowledgeable in that equipment and its function.
5.3.2.3 Category II
This is Category I inspection plus further inspection for corrosion, deformation, loose or missing components,
deterioration, proper lubrication, visible external cracks, and adjustment.
5.3.2.4 Category III
This is Category II inspection plus further inspection, which should include NDT of critical areas and may
involve some disassembly to access specific components and to identify wear that exceeds the
manufacturer's allowable tolerances.
5.3.2.5 Category IV
This is Category III inspection plus further inspection for which the equipment is disassembled to the extent
necessary to conduct NDT of all primary load carrying components as defined by manufacturer.
Equipment shall be:
⎯ disassembled in a suitably equipped facility to the extent necessary to permit full inspection of all primary
load carrying components and other components that are critical to the equipment;
⎯ inspected for excessive wear, cracks, flaws and deformations.
Corrections shall be made in accordance with the manufacturer's recommendations.
Prior to Category III and Category IV inspections, all foreign material such as dirt, paint, grease, oil, scale, etc.
shall be removed from the concerned parts by a suitable method (e.g. paint stripping, steam cleaning, grit
blasting).
5.3.3 Frequency
5.3.3.1 Periodic inspection
The user/owner of the equipment should develop schedules of inspection based on experience, the
manufacturer's recommendations, and one or more of the following factors:
⎯ environment;
⎯ load cycles;
8 © ISO 2008 – All rights reserved

ISO/DIS 13534
⎯ regulatory requirements;
⎯ operating time;
⎯ testing;
⎯ repairs;
⎯ remanufacture.
As an alternative, the user/owner may use Table 1 guidelines. Long-term planning shall be adjusted in order
not to interfere unnecessarily with the running operations.
5.3.3.2 Non-periodic inspection
A complete, on job, shut down inspection equivalent to the periodical Category III or Category IV (for the
concerned equipment) should be made before (if anticipated) and after critical jobs (e.g. running heavy casing
strings, jarring, pulling on stuck pipes and/or operating at extreme low temperatures).
ISO/DIS 13534
Table 1 — Periodic inspection and maintenance — Categories and frequencies
Frequency
days months years
Equipment
1 7 1 3 6 1 2 5
Inspection category
Crown-block sheaves and
I II  III  IV
bearings
Drilling hooks (other than
I II  III  IV
sucker-rod hooks)
Travelling blocks, hook block
I II  III  IV
and block-to-hook adapter
Connectors and link adapters I II  III  IV
Tubing hooks and sucker-rod
I II  III IV
hooks
Elevator links I II  III IV
Casing elevators, tubing
elevators, drill-pipe elevators II  III IV
and drill-collar elevators;
Sucker-rod elevators II  III IV
Rotary swivel-bail adapters I II  III IV
Rotary swivels I II  III  IV
Power swivels I II  III  IV
Power subs I II  III  IV
Spiders I II  III IV
Dead-line tie-down/wireline
I II  III  IV
anchors
Drill-string motion compensators II  III  IV
Kelly spinners I II  III  IV
Riser- and wellhead- running
II  III IV
tools
Safety clamps II  IV
Rotary tables I II  III  IV
Rotary bushings I II  IV
API rotary slip, 4” taper II  III IV
Rotary slips not having a taper
II  III IV
of 4” per ft (33,333 cm per m)
Rotary hoses I II  III
Slush pumps I II  III
Draw works I II  III  IV
Spiders II   III IV
Manual tongs II  III IV
BOP handling systems II   III IV
NOTE The above recommended frequencies only apply for equipment in use during the specified period.
10 © ISO 2008 – All rights reserved

ISO/DIS 13534
5.3.4 Inspection of remanufactured components
5.3.4.1 Unless specific and more stringent recommendations apply, welds of primary load carrying
components shall be inspected as follows:
a) immediately after grinding;
b) after welding, but no sooner than 24 h after the part has reached ambient temperature;
c) in service, after a period of time to be specified in the user/owner/manufacturer's procedures except
(unless otherwise recommended by the manufacturer) for non accessible inner parts remanufactured
under the full guarantee of the manufacturer.
5.3.4.2 The same NDT methods and procedures that detected the initial defects shall be used after
remanufacture. In the event of remanufacture of primary load carrying components by welding, at least two of
the most appropriate of the following methods shall apply with regard to 5.3.4.1 (b):
a) MT, for ferromagnetic materials, or PT, for non-ferromagnetic materials, to detect possible surface
defects;
b) UT to detect possible defects below the surface, or RT may be used as an alternative to UT if shown to
be at least as effective as UT on the same configuration;
c) proof load test in accordance with 8.3, followed by surface NDT of the tested component(s).
Other NDT techniques applied to hoisting and drilling equipment shall be submitted for the specific approval of
both user/owner and manufacturer.
5.3.5 Results of inspections
5.3.5.1 Acceptance criteria
Acceptance criteria shall be established based on experience and manufacturer's recommendations. Worn
equipment that does not meet the acceptance criteria shall not be accepted for operation.
5.3.5.2 Rejected equipment
Rejected equipment shall be marked and removed from service.
5.3.5.3 Surface indications
Surface indications identified by NDT may be allowable or non-allowable depending on their size, shape and
location, as defined by the manufacturer.
5.3.5.4 Allowable surface indications
Allowable surface indications are surface indications of such a size, shape and location that they need not be
removed.
5.3.5.5 Non-allowable surface indications
Non-allowable surface indications shall be classified as follows.
a) Minor surface indications – Minor surface indications may be removed by filing or grinding if this can be
achieved within the limits specified by the manufacturer, otherwise they shall be classified as major
surface indications. Caution should be exercised to prevent heating to an extent that could change the
mechanical properties, including toughness, of the material.
ISO/DIS 13534
b) Major surface indications – Major surface indications, which require material removal beyond the limits
specified by the manufacturer, should be corrected by remanufacture.
5.3.6 Inspection and maintenance (lubrication) of wire rope
Inspection and maintenance (lubrication) of wire rope used in hoisting shall be carried out on a regular basis.
API RP 9B may be consulted for further information on inspection and maintenance of wire rope.
6 Repair
6.1 Procedures
Manufacturers should provide adequate information to allow the equipment user/owner to identify the nature
of repairs that may be required. Repairs shall be performed using methods or procedures established in
accordance with 4.1.
6.2 Bearings
Anti-friction bearings play an important part in the serviceability of equipment. The most likely causes of the
need for bearing replacement are very loose or bent cages (rolling element retainers), corrosion, abrasion,
inadequate (or improper) lubrication and spalling due to fatigue. Excessive clearance may indicate improper
adjustment or assembly and should be corrected. Repair of anti-friction bearings should not be attempted by
field or shop personnel. The equipment manufacturer should be consulted in the event of unexplained or
repeated bearing failure.
6.3 Replacement parts
All replacement primary load carrying components shall meet or exceed the original manufacturer's criteria
and the following requirements:
a) the primary load carrying components shall be subject to the same minimum requirements and standards
as the original equipment components;
b) the documentation and traceability requirements shall be the same as for the original equipment
components.
7 Remanufacture
7.1 Procedures
Remanufacture of equipment shall be performed using methods and procedures developed in accordance
with 4.1. The material used for the remanufacture shall be qualified to the manufacturer's requirements for
mechanical properties, ductility and toughness. The equipment rating resulting from remanufacture should be
in accordance with the equipment manufacturer's recommendations. Equipment that cannot be
remanufactured shall be destroyed.
If welding is necessary, it shall be performed in accordance with a written procedure that has been qualified in
accordance with a recognized standard.
7.2 Verification
Following remanufacture, verification shall be performed in accordance with 5.3.4.
12 © ISO 2008 – All rights reserved

ISO/DIS 13534
8 Load testing
8.1 General
Two types of load test are described in this International Standard, as follows in 8.2 and 8.3.
8.2 Performance load test
A performance load test may be used to verify the function of the equipment and/or its ability to perform under
specific conditions or in conjunction with other equipment or materials (e.g. it may be used to determine the
effects of gripping a specific pipe with a given elevator). A performance test may consist of any number of
cycles (as needed) of loads up to, but not exceeding, the rated load of the equipment under test.
8.3 Proof load test
A proof load test is performed by applying a load equal to 1,5 times the rated load of the equipment for a
period of not less than 5 min. Proof load tests should not consist of more than one cycle and shall not be used
in lieu of performance load tests. Hoisting equipment and drilling equipment (as applicable) should be proof
load tested only once following manufacture or remanufacture, since loads above the rated load may cause
cumulative (fatigue) damage. A proof load test shall be followed by surface NDT. Materials that are prone to
delayed cracking should be subjected to surface NDT no earlier than 24 h after proof load testing.
9 Documentation and records
9.1 General
The user/owner shall maintain an equipment file containing pertinent information regarding the equipment.
The equipment file should include the following:
a) documentation delivered by the manufacturer;
b) documentation established by the user/owner during the life of the equipment.
9.2 User/owner equipment file
9.2.1 General
The user/owner shall build, for each item of equipment, equipment file which includes the following information,
where available:
a) equipment description, type and style, serial number, PSL, specifications, manufacturer;
b) nominal capacities;
c) list of components and assembly drawings, highlighting the steel grades, PSL, and minimum service
temperature of critical components (critical areas shall be clearly defined);
d) categories/frequencies of recommended inspection/maintenance and related safety measures;
e) repairable defects with their (maximal) dimensions and location (as applicable);
f) activity records;
g) effective running time (when possible) and critical jobs.
ISO/DIS 13534
9.2.2 Identification/traceability
Unit serial number or identification marking provided by the manufacturer should be maintained on the
equipment. Identification marking shall be provided by the user/owner for unidentified equipment. Serial
numbers or identification marking shall be recorded in the equipment file.
9.2.3 History
Changes in equipment status that could affect equipment safety, serviceability or maintenance should be
recorded in the equipment file.
9.3 Activity records
Records of Category III and Category IV inspections shall be entered in the equipment file as well as any load
test data related to or indicating the load carrying capacity of the equipment.
Entries describing repair, remanufacture and testing activities shall be included in the user/owner equipment
file.
Records shall indicate:
a) significant defects (type, dimensions) reported on a drawing;
b) location and extent of repairs;
c) NDT methods and results;
d) primary load carrying components replaced or remanufactured;
e) the date and the name of the responsible person(s) involved in the inspection, maintenance, repair or
remanufacture.
14 © ISO 2008 – All rights reserved

ISO/DIS 13534
Annex A
(normative)
Recommended practice operating limits, inspection, care, and use of
cement hose, drilling mud vibrator and jumper hose, and rotary hose
A.1 General
A.1.1 Scope
Annex A covers all types of hoses in 9.10 of ISO 14693. The definitions of terms contained in Clause 3 and
9.10.1 of ISO 14693 shall apply.
A.1.2 Guidelines
Flexible hoses shall be selected, fabricated, tested, cleaned, and installed in accordance with the following
guidelines.
⎯ The use of flexible hoses shall be kept to an absolute minimum required to compensate for vibration,
thermal expansion and contraction, misalignment, or relative movement required between the hose end
terminations.
⎯ Flexible hoses shall have a working pressure equal to or exceeding the piping system into which they are
installed. The minimum burst pressure of flexible hoses shall be a minimum of four times the working
pressure of the hose as specified by the hose manufacturer.
⎯ Swivel-type end fittings that are widely available are recommended to be installed at each end of the hose
to prevent hose twisting during installation and removal. No galvanized or reusable type hose end fittings
shall be used, and no Teflon tape shall be applied to any pressure sealing threaded connections, such as
NPT (national pipe thread) threads.
⎯ Raw hose body material used to fabricate hose assemblies shall not be older than five years from the
date of manufacture, and shall be suitable for and compatible with the type of media being conveyed.
⎯ Paint should not be applied to the outside of hose assemblies at any time.
⎯ All hose assemblies shall be internally cleaned to the extent necessary after pressure testing to ensure
that any contamination inside the hose assembly will not adversely affect system operation. Hose
assemblies shall be capped and sealed after testing and cleaning.
⎯ When installing hose assemblies, they shall be routed and secured in such a manner that will avoid
kinking or bends in the hose body that are less than the published minimum bending radius. Additional
protection for the hose outer cover shall be provided in way of contact with surfaces subject to vibration.
⎯ Each hose assembly shall be pressure tested to a minimum of 1,5 times the working pressure of the hose
body prior to cleaning. Water should be used as the pressure testing med
...
