SIST EN 61439-4:2013

Low-voltage switchgear and controlgear assemblies - Part 4: Assemblies for construction sites (ACS) (IEC 61439-4:2012)

IEC 61439-4:2012 defines the specific requirements of ACS as follows:   - ASSEMBLIES for which the rated voltage does not exceed 1 000 V in case of a.c. or 1 500 V in case of d.c.;  - ASSEMBLIES where the nominal primary voltage and the nominal secondary voltage of transformers incorporated in ACS are within the limits specified above;  - ASSEMBLIES intended for use on construction sites, both indoors and outdoors, i.e. temporary places of work to which the public do not generally have access and where building construction, installation, repairs, alteration or demolition of property (buildings) or civil engineering (public works) or excavation or any other similar operations are carried out;  - transportable (semi-fixed) or mobile ASSEMBLIES with enclosure. The manufacture and/or assembly may be carried out other than by the original manufacturer. This first edition of IEC 61439-4 cancels and replaces the second edition of IEC 60439-4 (2004), and constitutes a technical revision. This edition includes the following significant technical changes with respect to the last edition of IEC 60439-4:  - modification of the title as 'Part 4: Particular requirements for assemblies for construction sites (ACS)';  - alignment on IEC 61439-1 regarding the structure and technical content, as applicable;  - to allow comparison with tested ACS.

Niederspannungs-Schaltgerätekombinationen - Teil 4: Besondere Anforderungen für Baustromverteiler (BV) (IEC 61439-4:2012)

Ensembles d'appareillage à basse tension - Partie 4: Ensembles de chantier (EC) (CEI 61439-4:2012)

La CEI 61439-4:2012 définit les exigences particulières de l'EC comme suit:   - ENSEMBLES dont la tension assignée ne dépasse pas 1 000 V en courant alternatif ou 1 500 V en courant continu;  - ENSEMBLES dont les valeurs nominales des tensions primaire et secondaire des appareils de transformation incorporés dans les ensembles de chantier (EC) sont dans les limites spécifiées ci-dessus;  - ENSEMBLES destinés à équiper des chantiers, à l'intérieur et à l'extérieur, c'est-à-dire des lieux de travail temporaires qui ne sont pas normalement accessibles au public et où sont exécutés des travaux de construction, d'équipement, de réparation, de modification ou de démolition d'immeubles (bâtiments) ou d'ouvrage d'art (travaux publics) ou encore des travaux de terrassement ou tout autres travaux analogues;  - ENSEMBLES de type transportable (semi-fixe) ou mobile avec enveloppe. La fabrication et/ou l'assemblage peuvent être réalisés par un constructeur autre que le constructeur d'origine. Cette première édition de la CEI 61439-4 annule et remplace la deuxième édition de la CEI 60439-4 (2004), dont elle constitue une révision technique. Cette édition inclut les modifications techniques importantes suivantes par rapport à la dernière édition de la CEI 60439-4:  - modification du titre en 'Partie 4: Exigences particulières pour ensembles de chantiers (EC)';  - alignement sur la CEI 61439-1 pour ce qui concerne la structure et le contenu technique, le cas échéant;  - pour permettre la comparaison avec les EC soumis aux essais.

Sestavi nizkonapetostnih stikalnih in krmilnih naprav - 4. del: Posebne zahteve za sestave na gradbiščih (ACS) (IEC 61439-4:2012)

Ta del standarda 61439 določa naslednje posebne zahteve za sestave na gradbiščih (ACS):
– SESTAVE, za katere nazivna napetost ne presega 1000 V v primeru izmeničnega toka ali 1500 V v primeru enosmernega toka;
– SESTAVE, pri katerih sta nazivna primarna napetost in nazivna sekundarna napetost
transformatorjev, vgrajenih v sestave na gradbiščih, v zgoraj določenih mejah;
– SESTAVE, namenjene za uporabo na gradbiščih znotraj in zunaj, tj. začasnih deloviščih, do katerih javnost na splošno nima dostopa ter kjer se izvajajo gradbena konstrukcijska dela, inštalacije, popravila, spremembe ali rušenje posesti (stavb) ali gradbeniška dela (javna dela) ali izkop ali katere koli druge podobne dejavnosti;
– prenosne (polpritrjene) ali mobilne SESTAVE z ogrodjem. Proizvodnjo in/ali sestavljanje lahko izvaja oseba, ki ni prvotni proizvajalec. Ta standard se ne uporablja za posamezne naprave in samostojne dele, kot so zaganjalniki, varovalčna stikala, elektronska oprema itd., ki so skladni z ustreznimi standardi za izdelek. Ta standard se ne uporablja za SESTAVE za uporabo v administrativnih središčih gradbišč (pisarne, garderobe, prostori s SESTAVI, jedilnice, restavracije, spalni prostori, toaletni prostori itd.). Zahteve za električno zaščito, ki jo zagotavlja oprema, izdelana v skladu s tem mednarodnim standardom, so podane v standardu IEC 60364-7-704.

General Information

• Status: Published
• Publication Date: 28-Mar-2013
• ICS: 29.130.20 - Low voltage switchgear and controlgear
• ICS: 91.200 - Construction technology
• Technical Committee: SKA - Switchgear and control gear
• Current Stage: 6100 - Translation of adopted SIST standards (Adopted Project)
• Start Date: 17-May-2017
• Due Date: 16-May-2018
• Completion Date: 19-Oct-2017
• Directive: 2004/108/EC - Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
• Directive: 2004/108/EU - DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC
• Directive: 2005-01-3626 - Uredba o zagotavljanju varnosti in zdravja pri delu na začasnih in premičnih gradbiščih
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/30/EU - Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Ref Project: EN 61439-4:2013 - Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Relations

• Replaces: SIST EN 60439-4:2005 - Low-voltage switchgear and controlgear assemblies -- Part 4: Particular requirements for assemblies for construction sites (ACS)
• Effective Date: 07-Jun-2022
• Revised: kSIST FprEN IEC 61439-4:2023 - Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)
• Effective Date: 26-Jul-2021
• Revised: SIST EN 60439-4:2005 - Low-voltage switchgear and controlgear assemblies -- Part 4: Particular requirements for assemblies for construction sites (ACS)
• Effective Date: 06-May-2014

Overview

EN 61439-4:2013 (equivalent to IEC 61439-4:2012) specifies the particular requirements for low‑voltage switchgear and controlgear assemblies intended for construction sites (ACS). It covers transportable (semi‑fixed) and mobile assemblies with enclosures used on temporary indoor and outdoor worksites. The standard applies to assemblies with rated voltages up to 1 000 V AC or 1 500 V DC, and to incorporated transformers whose primary and secondary voltages fall within those limits. EN 61439-4:2013 supersedes EN 60439-4:2004 and is intended to be read in conjunction with EN/IEC 61439-1 (general rules).

Key topics and requirements

EN 61439-4 aligns with Part 1 rules where applicable and adds construction‑site specific requirements. Key technical topics include:

• Scope and definitions specific to Assemblies for Construction Sites (ACS)
• Rated voltages and limits (≤ 1 000 V AC; ≤ 1 500 V DC)
• Service conditions for temporary indoor/outdoor use and transportable/mobile operation
• Constructional requirements for enclosures, mechanical strength, ingress protection and portability
• Performance requirements such as temperature rise, short‑circuit withstand and separation/clearances
• Design verification and comparison with tested reference ACS (including methods in Annexes such as busbar short‑circuit verification)
• Routine verification and user information requirements (marking, documentation, operating limits)
• National variations and special national conditions (Annex AA / ZB) - e.g., additional minimum ambient temperature or IP requirements in some countries
• Normative references to related test standards (environmental tests, transformer requirements)

Practical applications and users

EN 61439-4:2013 is essential for ensuring the safety, reliability and regulatory compliance of temporary power distribution equipment on construction and demolition sites. Typical users:

• Manufacturers and assemblers of construction-site distribution boards, temporary panels and mobile power units
• Design engineers specifying transportable switchboards and incorporated transformers
• Site electrical contractors and installers selecting compliant equipment for temporary installations
• Certification bodies and test laboratories performing design verification, type and routine tests
• Safety managers and procurement teams ensuring equipment meets LVD and EU Directive requirements

Benefits include harmonized safety criteria, clear verification routes (tested reference comparison), and guidance for operation under rugged site conditions.

Related standards

• EN/IEC 61439-1:2011 - General rules for low‑voltage switchgear and controlgear assemblies (to be read together)
• IEC 61558-2-23 - Transformers and power supplies for construction sites
• IEC 60309 series - Industrial plugs and socket‑outlets (harmonized as EN 60309)
• Environmental test references: IEC 60068 series

Keywords: EN 61439-4:2013, IEC 61439-4, ACS, construction site assemblies, low‑voltage switchgear, temporary power distribution, transportable switchgear, mobile assemblies.

Standards Content (Sample)

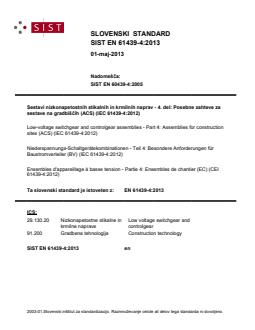

SLOVENSKI STANDARD
01-maj-2013
1DGRPHãþD
SIST EN 60439-4:2005
6HVWDYLQL]NRQDSHWRVWQLKVWLNDOQLKLQNUPLOQLKQDSUDYGHO3RVHEQH]DKWHYH]D
VHVWDYHQDJUDGELãþLK$&6,(&
Low-voltage switchgear and controlgear assemblies - Part 4: Assemblies for construction
sites (ACS) (IEC 61439-4:2012)
Niederspannungs-Schaltgerätekombinationen - Teil 4: Besondere Anforderungen für
Baustromverteiler (BV) (IEC 61439-4:2012)
Ensembles d'appareillage à basse tension - Partie 4: Ensembles de chantier (EC) (CEI
61439-4:2012)
Ta slovenski standard je istoveten z: EN 61439-4:2013
ICS:
29.130.20 Nizkonapetostne stikalne in Low voltage switchgear and
krmilne naprave controlgear
91.200 Gradbena tehnologija Construction technology
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

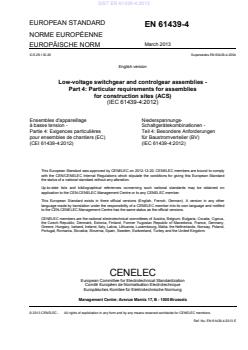

EUROPEAN STANDARD
EN 61439-4
NORME EUROPÉENNE
March 2013
EUROPÄISCHE NORM
ICS 29.130.20 Supersedes EN 60439-4:2004

English version
Low-voltage switchgear and controlgear assemblies -
Part 4: Particular requirements for assemblies
for construction sites (ACS)
(IEC 61439-4:2012)
Ensembles d'appareillage  Niederspannungs-
à basse tension - Schaltgerätekombinationen -
Partie 4: Exigences particulières Teil 4: Besondere Anforderungen
pour ensembles de chantiers (EC) für Baustromverteiler (BV)
(CEI 61439-4:2012) (IEC 61439-4:2012)

This European Standard was approved by CENELEC on 2012-12-20. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61439-4:2013 E

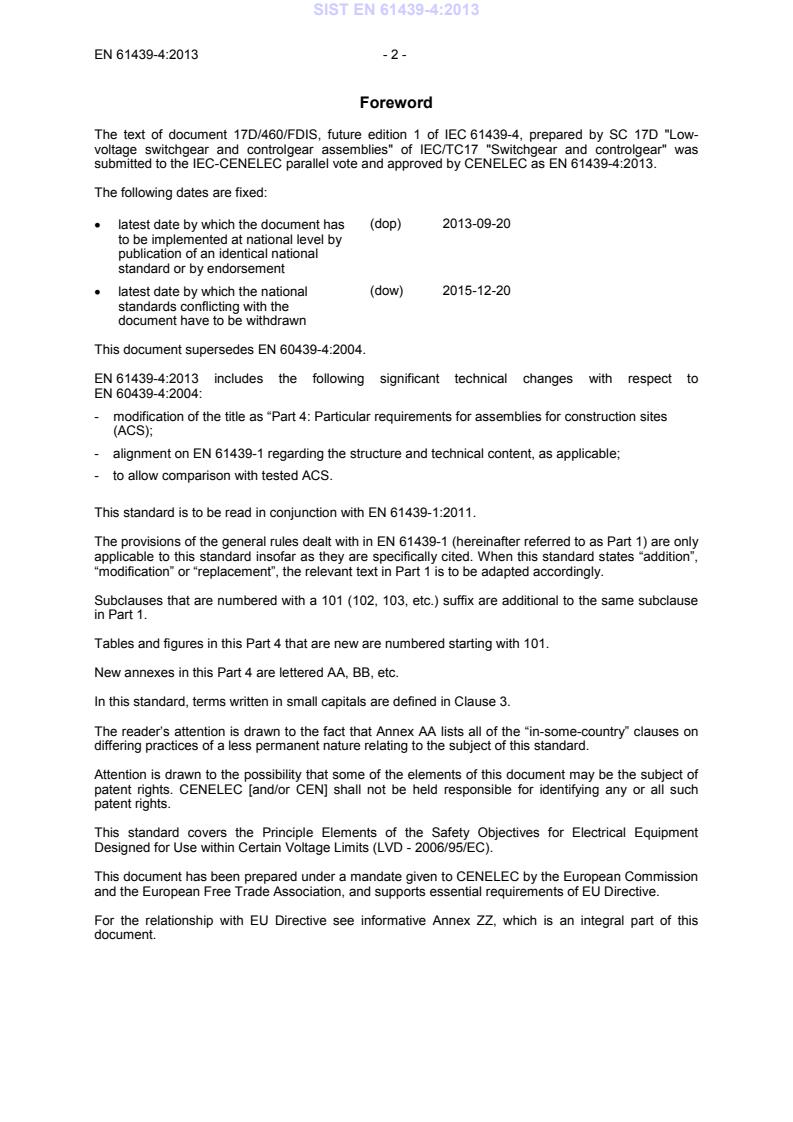

Foreword
The text of document 17D/460/FDIS, future edition 1 of IEC 61439-4, prepared by SC 17D "Low-
voltage switchgear and controlgear assemblies" of IEC/TC17 "Switchgear and controlgear" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 61439-4:2013.

The following dates are fixed:
• latest date by which the document has (dop) 2013-09-20
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2015-12-20
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60439-4:2004.

EN 60439-4:2004:
- modification of the title as “Part 4: Particular requirements for assemblies for construction sites
(ACS);
- alignment on EN 61439-1 regarding the structure and technical content, as applicable;
- to allow comparison with tested ACS.

This standard is to be read in conjunction with EN 61439-1:2011.

The provisions of the general rules dealt with in EN 61439-1 (hereinafter referred to as Part 1) are only
applicable to this standard insofar as they are specifically cited. When this standard states “addition”,
“modification” or “replacement”, the relevant text in Part 1 is to be adapted accordingly.

Subclauses that are numbered with a 101 (102, 103, etc.) suffix are additional to the same subclause
in Part 1.
Tables and figures in this Part 4 that are new are numbered starting with 101.

New annexes in this Part 4 are lettered AA, BB, etc.

In this standard, terms written in small capitals are defined in Clause 3.

The reader’s attention is drawn to the fact that Annex AA lists all of the “in-some-country” clauses on
differing practices of a less permanent nature relating to the subject of this standard.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment
Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC).

This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive.

For the relationship with EU Directive see informative Annex ZZ, which is an integral part of this
document.
- 3 - EN 61439-4:2013
Endorsement notice
The text of the International Standard IEC 61439-4:2012 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60309-1 NOTE Harmonised as EN 60309-1.
IEC 60309-2 NOTE Harmonised as EN 60309-2.
IEC 60364 Series NOTE Harmonised as HD 60364 Series (partly modified).

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Addition to Annex ZA of EN 61439-1:2011:

Publication Year Title EN/HD Year

IEC 60068-2-27 2008 Environmental testing - EN 60068-2-27 2009
Part 2-27: Tests - Test Ea and guidance:
Shock
IEC 60068-2-42 2003 Environmental testing - EN 60068-2-42 2003
Part 2-42: Tests - Test Kc: Sulphur dioxide
test for contacts and connections

IEC 60364-7-704 2005 Low-voltage electrical installations - HD 60364-7-704 2007
(mod) Part 7-704: Requirements for special + corr. April 2008
installations or locations - Construction
and demolition site installations

IEC 61140 2001 Protection against electric shock - Common EN 61140 2002
aspects for installation and equipment

IEC 61439-1 2011 Low-voltage switchgear and controlgear EN 61439-1 2011
assemblies -
Part 1: General rules
IEC 61558-2-23 - Safety of transformers, reactors, power EN 61558-2-23 -
supply units and combinations thereof -
Part 2-23: Particular requirements
and tests for transformers and power supply
units for construction sites
- 5 - EN 61439-4:2013
Annex ZB
(normative)
Special national conditions
Special national condition: National characteristic or practice that cannot be changed even over a
long period, e.g. climatic conditions, electrical earthing conditions.

NOTE  If it affects harmonization, it forms part of the European Standard / Harmonization Document.

For the countries in which the relevant special national conditions apply these provisions are
normative, for other countries they are informative.

Clause Special national condition
Annex AA Norway
6.1
In Norway, assemblies shall be additional marked with the minimum ambient temperature
applicable for the ACS.
Annex AA Norway
7.1.1.2
In Norway, assemblies suitable for normal operation at a lower ambient temperature than
-25 ºC shall also comply with the requirements of this publication.
Annex AA Spain
8.2.2
In Spain wiring rules (RD 842/2002) require a minimum degree of protection of IP 45 for
enclosures, switchgear and controlgear, socket-outlets and other installation elements
intended for outdoor construction sites.
Annex AA Norway
10.2.6.1
In Norway, the test shall be carried out at an ambient temperature (20 ± 5) ºC immediately
after the assembly has been kept at a temperature corresponding to the minimum ambient
temperature specified for the ACS, for a period of not less than 12 h.
Annex AA Sweden
10.2.6.1
In Sweden National codes and regulations require a minimum operating temperature of
-25 °C.
Annex ZZ
(informative)
Coverage of Essential Requirements of EU Directive 2004/108/EC

This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and within its scope the standard covers all
relevant essential requirements as given in Article 1 of Annex I of the EU Directive 2004/108/EC.

Compliance with this standard provides one means of conformity with the specified essential
requirements of the Directive concerned.

WARNING: Other requirements and other EU Directives may be applicable to the products falling
within the scope of this standard.

IEC 61439-4 ®
Edition 1.0 2012-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Low-voltage switchgear and controlgear assemblies –

Part 4: Particular requirements for assemblies for construction sites (ACS)

Ensembles d'appareillage à basse tension –

Partie 4: Exigences particulières pour ensembles de chantiers (EC)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX U
ICS 29.130.20 ISBN 978-2-83220-466-5

– 2 – 61439-4 © IEC:2012
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Symbols and abbreviations . 8
5 Interface characteristics . 8
6 Information . 9
7 Service conditions . 10
8 Constructional requirements . 11
9 Performance requirements . 13
10 Design verification . 13
11 Routine verification . 16
101 Particular features of ACS . 16
Annexes . 19
Annex C (informative) User information template . 19
Annex D (informative) Design verification . 20
Annex O (informative) Guidance on temperature rise verification . 21
Annex P (normative) Verification of the short-circuit withstand strength of busbar
structures by comparison with a tested reference design by calculation . 22
Annex AA (informative) List of notes concerning certain countries . 23
Annex BB (Void) . 24
Annex CC (informative) Items subject to agreement between the ASSEMBLY
manufacturer and the user . 25
Bibliography . 29

Figure 101 – Impact test using striking element . 15

Table 101 – Values of assumed loading . 18
Table D.1 – List of design verifications to be performed . 20
Table CC.1 – Items subject to agreement between the ASSEMBLY manufacturer and the
user . 25

61439-4 © IEC:2012 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LOW-VOLTAGE SWITCHGEAR AND
CONTROLGEAR ASSEMBLIES –
Part 4: Particular requirements for assemblies
for construction sites (ACS)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61439-4 has been prepared by subcommittee 17D: Low-voltage
switchgear and controlgear assemblies, of IEC technical committee 17: Switchgear and
controlgear.
This first edition of IEC 61439-4 cancels and replaces the second edition of IEC 60439-4
(2004), and constitutes a technical revision.
This edition includes the following significant technical changes with respect to the last edition
of IEC 60439-4:
• modification of the title as “Part 4: Particular requirements for assemblies for construction
sites (ACS)”
• alignment on IEC 61439-1 regarding the structure and technical content, as applicable;
• to allow comparison with tested ACS.

– 4 – 61439-4 © IEC:2012
The text of this standard is based on the following documents:
FDIS Report on voting
17D/460/FDIS 17D/469/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This standard is to be read in conjunction with IEC 61439-1. The provisions of the general
rules dealt with in IEC 61439-1 (hereinafter referred to as Part 1) are only applicable to this
standard insofar as they are specifically cited. When this standard states “addition”,
“modification” or “replacement”, the relevant text in Part 1 is to be adapted accordingly.
Subclauses that are numbered with a 101 (102, 103, etc.) suffix are additional to the same
subclause in Part 1.
Tables and figures in this Part 4 that are new are numbered starting with 101.
New annexes in this Part 4 are lettered AA, BB, etc.
In this standard, terms written in small capitals are defined in Clause 3.
The reader’s attention is drawn to the fact that Annex AA lists all of the “in-some-country”
clauses on differing practices of a less permanent nature relating to the subject of this
standard.
A list of all parts of the IEC 61439 series, under the general title Low-voltage switchgear and
controlgear assemblies, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
61439-4 © IEC:2012 – 5 –
LOW-VOLTAGE SWITCHGEAR AND
CONTROLGEAR ASSEMBLIES –
Part 4: Particular requirements for assemblies
for construction sites (ACS)
1 Scope
NOTE Throughout this standard, the abbreviation ACS (ASSEMBLY for construction site, see 3.1.101) is used for
a low-voltage switchgear and controlgear assembly intended for use on construction and similar sites.
This part of 61439 defines the specific requirements of ACS as follows:
– ASSEMBLIES for which the rated voltage does not exceed 1 000 V in case of a.c. or 1 500 V
in case of d.c.;
– ASSEMBLIES where the nominal primary voltage and the nominal secondary voltage of
transformers incorporated in ACS are within the limits specified above;
– ASSEMBLIES intended for use on construction sites, both indoors and outdoors, i.e.
temporary places of work to which the public do not generally have access and where
building construction, installation, repairs, alteration or demolition of property (buildings)
or civil engineering (public works) or excavation or any other similar operations are carried
out;
– transportable (semi-fixed) or mobile ASSEMBLIES with enclosure.
The manufacture and/or assembly may be carried out other than by the original manufacturer.
This standard does not apply to individual devices and self-contained components, such as
motor starters, fuse switches, electronic equipment, etc. which will comply with the relevant
product standards.
This standard does not apply to ASSEMBLIES for use in the administrative centres of
construction sites (offices, cloakrooms, ASSEMBLY rooms, canteens, restaurants, dormitories,
toilets, etc.).
Requirements for electrical protection provided by equipment manufactured according to this
International Standard are given in IEC 60364-7-704.
2 Normative references
This clause of Part 1 is applicable except as follows:
Addition:
IEC 60068-2-27:2008, Environmental testing − Part 2-27: Tests – Test Ea and guidance:
Shock
IEC 60068-2-42:2003, Environmental testing − Part 2-42: Tests – Test Kc: Sulphur dioxide
test for contacts and connections
IEC 60364-7-704:2005, Low-voltage electrical installations − Part 7-704: Requirements for
special installations or locations – Construction and demolition site installations

– 6 – 61439-4 © IEC:2012
IEC 61140:2001, Protection against electric shock – Common aspects for installation and
equipment
IEC 61439-1:2011, Low-voltage switchgear and controlgear assemblies – Part 1: General
rules
IEC 61558-2-23, Safety of transformers, reactors, power supply units and combinations
thereof – Part 2-23: Particular requirements and tests for transformers and power supply units
for construction sites
3 Terms and definitions
This clause of Part 1 is applicable except as follows:
Additional terms:
3.1 General terms
3.1.101
low-voltage switchgear and controlgear assembly for construction sites
ACS
combination of one or several transforming or low voltage switching devices with associated
control, measuring, signalling, protective and regulating equipment complete with all their
internal electrical and mechanical connections and structural parts, designed and built for use
on all construction sites, indoors and outdoors
3.2 Constructional units of ASSEMBLIES
3.2.101
metering unit
functional unit equipped with apparatus for metering electrical energy
3.2.102
transformer unit
functional unit consisting mainly of one or several transformers
Modifications:
3.3 External design of ASSEMBLIES
3.3.1
open-type ASSEMBLY
This term of Part 1 does not apply.
3.3.2
dead-front ASSEMBLY
This term of Part 1 does not apply.
Replacements:
3.3.3
enclosed ACS
ACS which is enclosed on all sides with the possible exception of its mounting surface in such
a manner as to provide a defined degree of protection

61439-4 © IEC:2012 – 7 –
3.3.7
box-type ACS
enclosed ACS intended:
– either to be mounted on a vertical surface;
– or to stand on a horizontal surface supported by feet or legs (articulated or not) or by a
mounting not forming part of the ACS (see 3.4.2 of Part 1)
Modifications:
3.5 Conditions of installation of ASSEMBLIES
3.5.1
ASSEMBLY for indoor installation
This term of Part 1 does not apply (see 3.1.101).
3.5.2
ASSEMBLY for outdoor installation
This term of Part 1 does not apply (see 3.1.101).
3.5.3
stationary ASSEMBLY
This term of Part 1 does not apply.
3.5.4
movable ASSEMBLY
This term of Part 1 does not apply.
Additional terms:
3.5.101
transportable ACS
semi-fixed ACS
ACS intended for use in a place where it is not permanently fixed; its location may vary during
work on the same site. When the equipment is to be moved to another place, it is first
disconnected from the supply
3.5.102
mobile ACS
ACS capable of being moved as work advances on the site, without being disconnected from
the supply
Additional terms:
3.101 Function of the ACS
3.101.1
incoming supply function
suitability for connection of the ACS either to electricity public supply network or to the
transformer substation or to on site generator
3.101.2
metering function
suitability for the metering of electrical energy consumed on the site

– 8 – 61439-4 © IEC:2012
3.101.3
distribution function
suitability to provide the distribution and protection of electrical supply on the construction site
by means of terminal connection or socket-outlets
3.101.4
transformer function
suitability to provide means for transformer voltages or to provide measures of electrical
protection
Note 1 to entry: Details for their requirements are given in 101.1.
4 Symbols and abbreviations
This clause of Part 1 is applicable.
5 Interface characteristics
This clause of Part 1 is applicable except as follows.
5.3.1 Rated current of the ASSEMBLY (I )
nA
Replacement of title and text:
5.3.1 Rated current of an ACS (I )
nA
The rated current of an ACS is that of its incoming circuit.
This current shall be carried without the temperature rise of the individual parts exceeding the
limits specified in 9.2 of Part 1.
5.4 Rated diversity factor (RDF)
Addition:
ACS or group of outgoing circuits shall be
The assumed loading of the outgoing circuits of the
declared by the ASSEMBLY manufacturer, and may be based on the values in Table 101.
When the manufacturer does not declare any RDF the values of Table 101 apply.
5.6 Other characteristics
Replacement:
The following characteristics shall be declared:
a) the function(s) assigned by the manufacturer (see 3.101);
b) the external design (see 3.3);
c) the mobility (see 3.5.101 and 3.5.102);
d) the degree of protection (see 8.2);
e) the method of mounting, for example fixed or removable parts (see 8.5.1 and 8.5.2);
f) protection against electric shock (see 8.4);
g) the resistance to corrosion (see 10.2.2.101);
h) special service conditions, if applicable (see 7.2);

61439-4 © IEC:2012 – 9 –
i) electromagnetic compatibility (EMC) classification (see Annex J of Part 1).
6 Information
This clause of Part 1 is applicable except as follows.
6.1 ASSEMBLY designation marking
Replacement of title and text:
6.1 ACS designation marking
The ASSEMBLY manufacturer shall provide each ACS with one or more labels, marked in a
durable manner and located in a place such that they are visible and legible when the ACS is
installed and in operation.
Compliance is checked according to the test of 10.2.7 and by inspection.
The following information regarding the ACS shall be provided on the label(s):
a) ASSEMBLY manufacturer's name or trade mark (see 3.10.2);
b) type designation or identification number or any other means of identification, making it
possible to obtain relevant information from the ASSEMBLY manufacturer;
c) means of identifying date of manufacture;
d) IEC 61439-4;
e) type of current (and the frequency in the case of a.c.);
f) rated voltage (U ) (of the ACS) (see 5.2.1);
n
g) rated current of the ACS (I ) (see 5.3.1);
nA
h) degree of protection (see 8.2);
i) the weight where this exceeds 30 kg.
If the indication of the name or trademark of the manufacturer appears on the ACS it need not
be given on the nameplate.
ASSEMBLY
6.2.1 Information relating to the
Replacement of title and text:
6.2.1 Information relating to the ACS
The following additional information, where applicable, shall be provided in the ASSEMBLY
manufacturer’s technical documentation supplied with the ACS:
a) rated operational voltage (U ) (of a circuit) (see 5.2.2);
e
b) rated impulse withstand voltage (U ) (see 5.2.4);
imp
c) rated insulation voltage (U ) (see 5.2.3);
i
d) rated current of each circuit (I ) (see 5.3.2);
nc
e) rated peak withstand current (I ) (see 5.3.4);
pk
f) rated short-time withstand current (I ) together with its duration (see 5.3.4);
cw
g) rated conditional short-circuit current (I ) (see 5.3.5);
cc
h) rated frequency (f ) (see 5.5);
n
i) rated diversity factor(s) (RDF) (see 5.4);
j) functions (see 3.101);
– 10 – 61439-4 © IEC:2012
k) all necessary information relating to the other declared classifications and characteristics
(see 5.6);
l) the short-circuit withstand strength and characteristics of short-circuit protective device(s)
(see 9.3.2);
m) overall dimensions (including projections e.g handles, covers, doors).
6.2.2 Instructions for handling, installation, operation and maintenance
Addition:
The manufacturer of the ACS should specify in its technical documentation supplied with the
ACS the other types of assemblies which may be connected to it. This information should
indicate whether the compatibility is based upon the type of system earthing employed and/or
on the need for co-ordination of the electrical protection within the complete installation.
The manufacturer should furnish the appropriate documentation for the purpose to maintain
the protective measures and the co-ordination of the protective devices within the complete
installation.
7 Service conditions
This clause of Part 1 is applicable except as follows.
Modifications:
7.1.1 Ambient air temperature
This subclause of Part 1 is not applicable.
Replacement of title and text:
7.1.1 Ambient air temperature for ACS installations
The ambient air temperature does not exceed +40 °C and its average over a period of 24 h
does not exceed +35 °C.
The lower limit of the ambie
...

ba
SLOVENSKI SIST EN 61439-4
STANDARD maj 2013
Sestavi nizkonapetostnih stikalnih in krmilnih naprav –
4. del: Posebne zahteve za sestave na gradbiščih (ACS) (IEC 61439-4:2012)

Low-voltage switchgear and controlgear assemblies –
Part 4: Assemblies for construction sites (ACS) (IEC 61439-4:2012)

Niederspannungs-Schaltgerätekombinationen –
Teil 4: Besondere Anforderungen für Baustromverteiler (BV) (IEC 61439-4:2012)

Ensembles d'appareillage à basse tension –
Partie 4: Ensembles de chantier (EC) (CEI 61439-4:2012)

Referenčna oznaka
ICS 29.130.20; 91.200 SIST EN 61439-4:2013 (sl)

Nadaljevanje na straneh II do III in od 1 do 34

© 2017-11. Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega standarda ni dovoljeno.

SIST EN 61439-4 : 2013

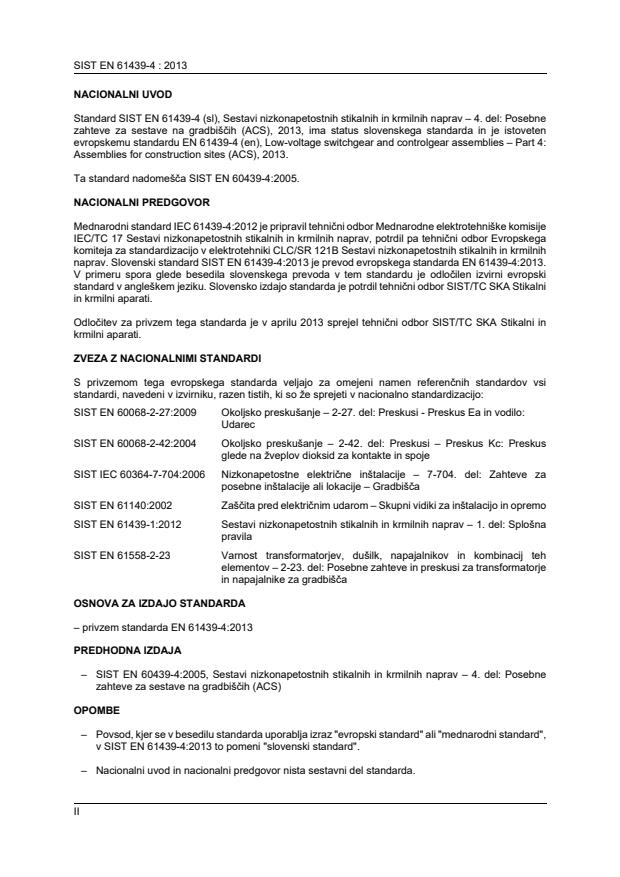

NACIONALNI UVOD
Standard SIST EN 61439-4 (sl), Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 4. del: Posebne
zahteve za sestave na gradbiščih (ACS), 2013, ima status slovenskega standarda in je istoveten
evropskemu standardu EN 61439-4 (en), Low-voltage switchgear and controlgear assemblies – Part 4:
Assemblies for construction sites (ACS), 2013.

Ta standard nadomešča SIST EN 60439-4:2005.

NACIONALNI PREDGOVOR
Mednarodni standard IEC 61439-4:2012 je pripravil tehnični odbor Mednarodne elektrotehniške komisije
IEC/TC 17 Sestavi nizkonapetostnih stikalnih in krmilnih naprav, potrdil pa tehnični odbor Evropskega
komiteja za standardizacijo v elektrotehniki CLC/SR 121B Sestavi nizkonapetostnih stikalnih in krmilnih
naprav. Slovenski standard SIST EN 61439-4:2013 je prevod evropskega standarda EN 61439-4:2013.
V primeru spora glede besedila slovenskega prevoda v tem standardu je odločilen izvirni evropski
standard v angleškem jeziku. Slovensko izdajo standarda je potrdil tehnični odbor SIST/TC SKA Stikalni
in krmilni aparati.
Odločitev za privzem tega standarda je v aprilu 2013 sprejel tehnični odbor SIST/TC SKA Stikalni in
krmilni aparati.
ZVEZA Z NACIONALNIMI STANDARDI

S privzemom tega evropskega standarda veljajo za omejeni namen referenčnih standardov vsi
standardi, navedeni v izvirniku, razen tistih, ki so že sprejeti v nacionalno standardizacijo:
SIST EN 60068-2-27:2009 Okoljsko preskušanje – 2-27. del: Preskusi - Preskus Ea in vodilo:
Udarec
SIST EN 60068-2-42:2004 Okoljsko preskušanje – 2-42. del: Preskusi – Preskus Kc: Preskus
glede na žveplov dioksid za kontakte in spoje

SIST IEC 60364-7-704:2006 Nizkonapetostne električne inštalacije – 7-704. del: Zahteve za
posebne inštalacije ali lokacije – Gradbišča

SIST EN 61140:2002 Zaščita pred električnim udarom – Skupni vidiki za inštalacijo in opremo

SIST EN 61439-1:2012 Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 1. del: Splošna
pravila
SIST EN 61558-2-23 Varnost transformatorjev, dušilk, napajalnikov in kombinacij teh
elementov – 2-23. del: Posebne zahteve in preskusi za transformatorje
in napajalnike za gradbišča
OSNOVA ZA IZDAJO STANDARDA
– privzem standarda EN 61439-4:2013

PREDHODNA IZDAJA
– SIST EN 60439-4:2005, Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 4. del: Posebne
zahteve za sestave na gradbiščih (ACS)

OPOMBE
– Povsod, kjer se v besedilu standarda uporablja izraz "evropski standard" ali "mednarodni standard",
v SIST EN 61439-4:2013 to pomeni "slovenski standard".

– Nacionalni uvod in nacionalni predgovor nista sestavni del standarda.
II
SIST EN 61439-4 : 2013
– Ta nacionalni dokument je istoveten EN 61439-4:2013 in je objavljen z dovoljenjem

CEN-CENELEC
Upravni center
Avenue Marnix 17
B-1000 Bruselj
This national document is identical with EN 61439-4:2013 and is published with the permission of

CEN-CENELEC
Management Centre
Avenue Marnix 17
B-1000 Brussels
III
SIST EN 61439-4 : 2013

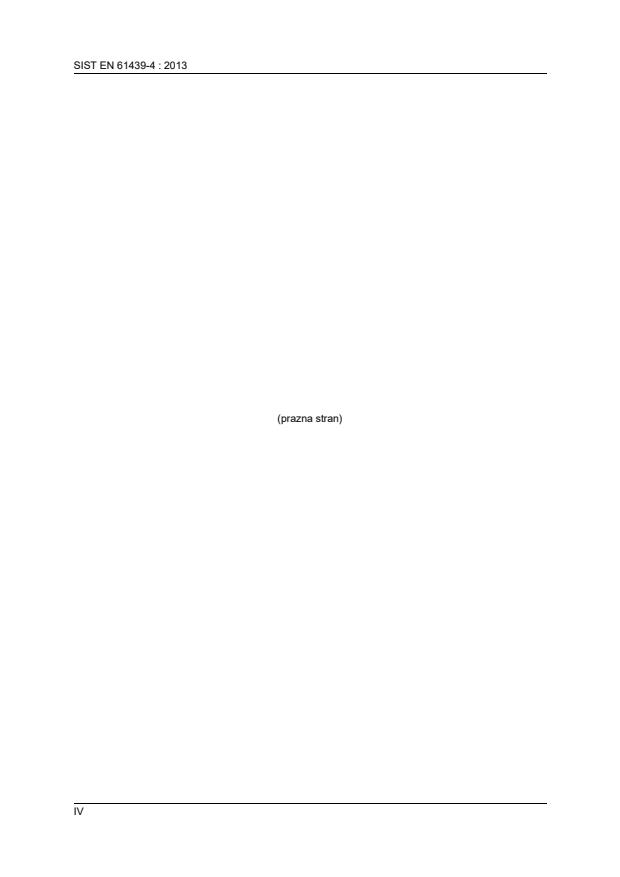

(prazna stran)
IV
EVROPSKI STANDARD EN 61439-4
EUROPEAN STANDARD
NORME EUROPÉENNE
marec 2013
EUROPÄISCHE NORM
ICS 29.130.20 Nadomešča EN 60439-4:2004

Slovenska izdaja
Sestavi nizkonapetostnih stikalnih in krmilnih naprav –
4. del: Posebne zahteve za sestave na gradbiščih (ACS)
(IEC 61439-4:2012)
Low-voltage switchgear and Ensembles d'appareillage à Niederspannungs-
controlgear assemblies – Part 4: basse tension – Partie 4: Schaltgerätekombinationen –
Assemblies for construction sites Ensembles de chantier (EC) Teil 4: Besondere Anforderungen
(ACS) (IEC 61439-4:2012) (CEI 61439-4:2012) für Baustromverteiler (BV)
(IEC 61439-4:2012)
Ta evropski standard je CENELEC sprejel dne 20. decembra 2012. Člani CENELEC morajo izpolnjevati
določila poslovnika CEN/CENELEC, s katerim je predpisano, da mora biti ta standard brez kakršnihkoli
sprememb sprejet kot nacionalni standard.

Seznami najnovejših izdaj teh nacionalnih standardov in njihovi bibliografski podatki so na voljo pri
Upravnem centru ali članih CENELEC.

Evropski standardi obstajajo v treh izvirnih izdajah (nemški, angleški in francoski). Izdaje v drugih jezikih,
ki jih člani CENELEC na lastno odgovornost prevedejo in izdajo ter prijavijo pri Upravnem centru, veljajo
kot uradne izdaje.
Člani CENELEC so nacionalni elektrotehniški komiteji Avstrije, Belgije, Bolgarije, Cipra, Češke
republike, Danske, Estonije, Finske, Francije, Grčije, Hrvaške, Irske, Islandije, Italije, Latvije, Litve,
Luksemburga, Madžarske, Malte, Nekdanje jugoslovanske republike Makedonije, Nemčije,
Nizozemske, Norveške, Poljske, Portugalske, Romunije, Slovaške, Slovenije, Španije, Švedske, Švice,
Turčije in Združenega kraljestva.

CENELEC
Evropski komite za standardizacijo v elektrotehniki
European Committee for Electrotechnical Standardisation
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Upravni center: Avenue Marnix 17, B - 1000 Bruselj

© 2013 Lastnice avtorskih pravic so vse države članice CENELEC Ref. oznaka. EN 61439-4:2013 E

SIST EN 61439-4 : 2013

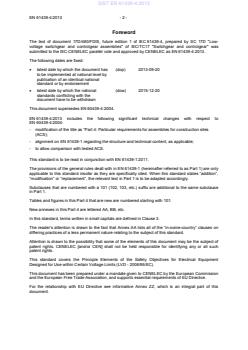

Predgovor k evropskemu standardu

Besedilo dokumenta 17D/460/FDIS, poznejša prva izdaja IEC 61439-4, ki ga je pripravil pododbor SC
17D Sestavi nizkonapetostnih stikalnih in krmilnih naprav pri tehničnem odboru Mednarodne
elektrotehniške komisije IEC/TC 17 Stikalne in krmilne naprave, je bilo predloženo v vzporedno
glasovanje IEC-CENELEC in ga je CENELEC sprejel kot EN 61439-4:2013.

Določeni so bili naslednji roki:
– zadnji datum, do katerega mora EN dobiti status
nacionalnega standarda bodisi z objavo istovetnega besedila
ali z razglasitvijo (dop)  2013-09-20
– zadnji datum, ko je treba razveljaviti nacionalne standarde,
ki so z EN v nasprotju (dow) 2015-12-20
Ta dokument nadomešča EN 60439-4:2004.

‒ naslov je bil spremenjen v "4. del: Posebne zahteve za sestave na gradbiščih (ACS)";

‒ izvedena je bila uskladitev z EN 61439-1 glede na strukturo in tehnične vsebine, kot je ustrezno;

‒ omogoča primerjavo s preskušenimi sestavi na gradbiščih.

Ta standard je treba brati v povezavi z EN 61439-1:2011.

Določila splošnih pravil, ki jih obravnava EN 61439-1 (v nadaljnjem besedilu: 1. del), se uporabljajo za
ta standard samo, če so izrecno navedena. Kadar ta standard navaja "dodatek", "spremembo" ali
"zamenjavo", je treba ustrezno besedilo v 1. delu ustrezno prilagoditi.

Podtočke, ki so oštevilčene s 101 (102, 103 itd.), so dodane isti podtočki v 1. delu.

Preglednice in slike v tem 4. delu, ki so nove, so oštevilčene s številkami od 101 naprej.

Novi dodatki v tem 4. delu so označeni s črkami AA, BB itd.

V tem standardu so izrazi, napisani z velikimi tiskanimi črkami, definirani v točki 3.

Pozornost bralca naj bo usmerjena v dejstvo, da dodatek AA navaja vsa določila o različnih praksah, ki
so v nekaterih državah bolj začasnega značaja in se nanašajo na predmet tega standarda.

Upoštevati je treba, da so nekateri elementi tega dokumenta lahko predmet patentnih pravic. CENELEC
[in/ali CEN] ni odgovoren za identifikacijo katerekoli ali vseh teh pravic.

Ta standard zajema Načela elementov varnostnih ciljev za električno opremo, konstruirano za uporabo
znotraj določenih napetostnih mej (LVD – 2006/95/EC).

Ta dokument je bil pripravljen v okviru mandata, ki sta ga Evropska komisija in Evropsko združenje za
prosto trgovino dala CENELEC, in podpira bistvene zahteve direktive Evropske unije.

Za zvezo z direktivo Evropske unije glej informativni dodatek ZZ, ki je sestavni del tega dokumenta.

SIST EN 61439-4 : 2013
Razglasitvena objava
Besedilo mednarodnega standarda IEC 61439-4:2012 je CENELEC odobril kot evropski standard brez
kakršnekoli spremembe.
V uradni verziji je treba v Literaturi dodati opombe k naslednjim standardom:

IEC 60309-1 OPOMBA Harmoniziran kot EN 60309-1.

IEC 60309-2 OPOMBA Harmoniziran kot EN 60309-2.

IEC 60364 (skupina) OPOMBA Harmoniziran kot HD 60364 (skupina) (delno spremenjen).

SIST EN 61439-4 : 2013
Dodatek ZA
(normativni)
Normativna sklicevanja na mednarodne publikacije z njihovimi ustreznimi
evropskimi publikacijami
Za uporabo tega standarda so nujno potrebni spodaj navedeni dokumenti. Pri datiranih dokumentih velja
samo navedena izdaja. Pri nedatiranih dokumentih velja najnovejša izdaja dokumenta (vključno z
morebitnimi spremembami).
OPOMBA: Kadar je bila mednarodna publikacija spremenjena s skupnimi spremembami, označenimi z (mod), se uporablja
ustrezni EN/HD.
Dodati k dodatku ZA standarda EN 61439-1:2011:

Publikacija Leto Naslov EN/HD Leto
IEC 60068-2-27 2008 Okoljsko preskušanje – 2-27. del: Preskusi EN 60068-2-27 2009
– Preskus Ea in vodilo: Udarec
IEC 60068-2-42 2003 Okoljsko preskušanje – 2-42. del: Preskusi EN 60068-2-42 2003
– Preskus Kc: Preskus vpliva žveplovega
dioksida na kontakte in spoje
IEC 60364-7-704 2005 Nizkonapetostne električne inštalacije – HD 60364-7-704 2007
(mod) 7-704. del: Zahteve za posebne inštalacije + corr. April
ali lokacije – Gradbišča
IEC 61140 2001 Zaščita pred električnim udarom – Skupni EN 61140 2002
vidiki za inštalacijo in opremo
IEC 61439-1 2011 Sestavi nizkonapetostnih stikalnih in EN 61439-1 2011
krmilnih naprav – 1. del: Splošna pravila
IEC 61558-2-23 - Varnost transformatorjev, dušilk, EN 61558-2-23 -
napajalnikov in njihovih kombinacij –
2-23. del: Posebne zahteve in preskusi za
transformatorje in napajalnike za gradbišča

SIST EN 61439-4 : 2013
Dodatek ZB
(normativni)
Posebni nacionalni pogoji
Posebni nacionalni pogoji: nacionalne karakteristike ali prakse, ki jih ni mogoče spremeniti niti po
dolgem obdobju, npr. podnebne razmere, pogoji za električne ozemljitve.
OPOMBA: Če to vpliva na harmonizacijo, je to del evropskega standard/harmonizacijskega dokumenta.
Za države, na katere se relevantni posebni nacionalni pogoji nanašajo, so te določbe normativne, za
druge države pa so informativne.
Točka Posebni nacionalni pogoj
Dodatek AA Norveška
6.1
Na Norveškem je treba sestave dodatno označiti z najnižjo temperaturo okolice, ki

se uporablja za ACS.
Dodatek AA Norveška
7.1.1.2
Na Norveškem morajo biti sestavi, primerni za normalno obratovanje pri

temperaturi okolice, nižji od –25 °C, tudi v skladu z zahtevami te publikacije.
Dodatek AA Španija
8.2.2
V Španiji zahtevajo pravila za ožičenje (RD 842/2002) najmanjšo stopnjo zaščite

IP 45 za okrove, stikalne in krmilne naprave, vtičnice in druge inštalacijske
elemente, namenjene za zunanja gradbišča.
Dodatek AA Norveška
10.2.6.1
Na Norveškem je treba preskus izvesti pri temperaturi okolice (20 ± 5) ºC takoj

potem, ko je bil sestav hranjen pri temperaturi, ki ustreza najnižji temperaturi
okolice, določeni za ACS, za čas, ki ni krajši od 12 ur.
Dodatek AA Švedska
10.2.6.1
Na Švedskem nacionalni zakoni in predpisi zahtevajo najnižjo delovno temperaturo

–25 °C.
SIST EN 61439-4 : 2013
Dodatek ZZ
(informativni)
Pokritje bistvenih zahtev evropske Direktive 2004/108/ES

Ta evropski standard je bil pripravljen v okviru mandata, ki sta ga Evropska komisija in Evropsko
združenje za prosto trgovino dala CENELEC, in s svojim področjem uporabe pokriva vse pomembne
bistvene zahteve, navedene v 1. členu Priloge I k Direktivi ES 2004/108/ES.

Skladnost s tem standardom zagotavlja enega od načinov skladnosti s predpisanimi bistvenimi
zahtevami zadevne direktive.
OPOZORILO: Za proizvode, ki sodijo na področje uporabe tega standarda, se lahko uporabljajo tudi
druge zahteve in druge direktive EU.

SIST EN 61439-4 : 2013
VSEBINA Stran
Predgovor . 8
1 Področje uporabe . 10
2 Zveze s standardi . 10
3 Izrazi in definicije . 11
4 Simboli in kratice . 13
5 Karakteristike vmesnika . 13
6 Podatki . 14
7 Obratovalni pogoji . 15
8 Konstrukcijske zahteve . 16
9 Zahtevane lastnosti . 18
10 Preverjanje zasnove . 18
11 Kosovno preverjanje .21
101 Posebne lastnosti ACS . 21
Dodatki . 24
Dodatek C (informativni): Predloga z informacijami za uporabnika . 24
Dodatek D (informativni): Preverjanje zasnove . 25
Dodatek O (informativni): Navodilo o preverjanju segretka . 26
Dodatek P (normativni): Preverjanje kratkostične trdnosti konstrukcij zbiralk s primerjavo s
preskušenimi referenčnimi zasnovami z izračunom . 27
Dodatek AA (informativni): Seznam opomb, ki zadevajo določene države . 28
Dodatek BB (izpuščen) . 29
Dodatek CC (informativni) Postavke, ki so predmet dogovora med proizvajalcem SESTAVA in
uporabnikom . 30
Literatura . 34

Slike
Slika 101: Udarni preskus z uporabo udarnega elementa . 20

Preglednice
Preglednica 101: Vrednosti pričakovane obremenitve . 23
Preglednica D.1: Seznam preverjanj zasnove, ki jih je treba izvesti . 25
Preglednica CC.1: Postavke, ki so predmet dogovora med proizvajalcem SESTAVA in uporabnikom . 30

SIST EN 61439-4 : 2013
MEDNARODNA ELEKTROTEHNIŠKA KOMISIJA

SESTAVI NIZKONAPETOSTNIH STIKALNIH IN KRMILNIH NAPRAV –
4. del: Posebne zahteve za sestave na gradbiščih (ACS)

Predgovor
1. Mednarodna elektrotehniška komisija (IEC) je svetovna organizacija za standardizacijo, ki združuje vse nacionalne
elektrotehnične komiteje (nacionalni komiteji IEC). Cilj IEC je pospeševati mednarodno sodelovanje v vseh vprašanjih
standardizacije s področja elektrotehnike in elektronike. V ta namen poleg drugih aktivnosti izdaja mednarodne standarde,
tehnične specifikacije, tehnična poročila, javno dostopne specifikacije (PAS) in vodila (v nadaljevanju: publikacije IEC). Za
njihovo pripravo so odgovorni tehnični odbori; vsak nacionalni komite IEC, ki ga zanima obravnavana tema, lahko sodeluje
v tem pripravljalnem delu. Prav tako lahko v pripravi sodelujejo mednarodne organizacije ter vladne in nevladne ustanove,
ki so povezane z IEC. IEC deluje v tesni povezavi z mednarodno organizacijo za standardizacijo ISO skladno s pogoji,
določenimi v soglasju med obema organizacijama.
2. Uradne odločitve ali sporazumi IEC o tehničnih vprašanjih, pripravljeni v tehničnih odborih, kjer so prisotni vsi nacionalni
komiteji, ki jih tema zanima, izražajo, kolikor je mogoče, mednarodno soglasje o obravnavani temi.
3. Publikacije IEC imajo obliko priporočil za mednarodno uporabo ter jih kot takšne sprejmejo nacionalni komiteji IEC. Čeprav
IEC skuša zagotavljati natančnost tehničnih vsebin v publikacijah IEC. IEC ni odgovoren za način uporabe ali za možne
napačne interpretacije končnih uporabnikov.
4. Da bi se pospeševalo mednarodno poenotenje, so nacionalni komiteji IEC v svojih nacionalnih in regionalnih standardih
dolžni čim pregledneje uporabljati mednarodne standarde. Vsako odstopanje med standardom IEC in ustreznim nacionalnim
ali regionalnim standardom je treba v slednjem jasno označiti.
5. IEC sam ne izvaja potrjevanja skladnosti. Storitve ugotavljanja skladnosti in na nekaterih območjih tudi dostop do znakov
skladnosti IEC izvajajo neodvisni certifikacijski organi. IEC ni določil nobenega postopka v zvezi z označevanjem kot znakom
strinjanja in ne prevzema nikakršne odgovornosti za storitve, ki jih izvajajo neodvisni certifikacijski organi. opremo, ki je
deklarirana, da ustreza kateremu od publikacij IEC.
6. Vsi uporabniki naj bi si zagotovili zadnjo izdajo teh publikacij.
7. IEC ali njegovi direktorji, zaposleni, uslužbenci ali agenti, vključno s samostojnimi strokovnjaki ter člani tehničnih odborov in
nacionalnih komitejev IEC, ne prevzemajo nobene odgovornosti za kakršnokoli osebno poškodbo, škodo na premoženju ali
katerokoli drugo škodo kakršnekoli vrste, bodisi posredne ali neposredne, ali za stroške (vključno z zakonitim lastništvom) in
izdatke, povezane s publikacijo, njeno uporabo ali zanašanjem na to publikacijo IEC ali katerokoli drugo publikacijo IEC.
8. Posebno pozornost je treba posvetiti normativnim virom, na katere se sklicuje ta publikacija. Uporaba navedenih publikacij
je nujna za pravilno uporabo te publikacije.
9. Opozoriti je treba na možnost, da bi lahko bil kateri od elementov tega mednarodnega standarda predmet patentnih pravic.
IEC ne odgovarja za identifikacijo nobene od teh patentnih pravic.
Mednarodni standard IEC 61439-4 je pripravil pododbor 17D Sestavi nizkonapetostnih stikalnih in
krmilnih naprav pri tehničnem odboru IEC 17 Stikalne in krmilne naprave.

Ta prva izdaja IEC 61439-4 razveljavlja in nadomešča drugo izdajo IEC 60439-4 (2004) ter je tehnično
revidirana.
Ta izdaja vsebuje naslednje pomembne tehnične spremembe glede na zadnjo izdajo IEC 60439-4:

‒ naslov je bil spremenjen v "4. del: Posebne zahteve za sestave na gradbiščih (ACS)";

‒ izvedena je bila uskladitev z IEC 61439-1 glede na strukturo in tehnične vsebine, kot je ustrezno;

‒ omogoča primerjavo s preskušenimi sestavi za gradbišča.

Besedilo tega standarda temelji na naslednjih dokumentih:

FDIS Poročilo o glasovanju
17D/460/FDIS
17D/469/RVD
SIST EN 61439-4 : 2013
Celotna informacija o glasovanju za sprejetje tega standarda je na voljo v poročilu o glasovanju,
navedenem v gornji preglednici.
Ta dokument je bil pripravljen v skladu z Direktivami ISO/IEC, 2. del.

Ta standard je treba brati v povezavi z IEC 61439-1. Določila splošnih pravil, ki jih obravnava IEC 61439-
1 (v nadaljnjem besedilu: 1. del), se uporabljajo za ta standard samo, če so izrecno navedena. Kadar ta
standard navaja "dodatek", "spremembo" ali "zamenjavo", je treba ustrezno besedilo v 1. delu ustrezno
prilagoditi.
Podtočke, ki so oštevilčene s 101 (102, 103 itd.), so dodane isti podtočki v 1. delu.

Preglednice in slike v tem 4. delu, ki so nove, so oštevilčene s številkami od 101 naprej.

Novi dodatki v tem 4. delu so označeni s črkami AA, BB itd.

V tem standardu so izrazi, napisani z velikimi tiskanimi črkami, definirani v točki 3.

Pozornost bralca naj bo usmerjena v dejstvo, da dodatek AA navaja vsa določila o različnih praksah, ki
so v nekaterih državah bolj začasnega značaja in se nanašajo na predmet tega standarda.

Seznam vseh delov skupine standardov IEC 61439 pod splošnim naslovom Sestavi nizkonapetostnih
stikalnih in krmilnih naprav je na voljo na spletni strani IEC.

Tehnični odbor je sklenil, da bo vsebina tega standarda ostala nespremenjena do datuma, določenega
za zaključek periodičnega pregleda, ki je določen na spletni strani IEC "http://webstore.iec.ch" pri
podatkih za to publikacijo. Po tem datumu bo publikacija:
– ponovno potrjena,
– razveljavljena,
– zamenjana z novo izdajo ali
– dopolnjena.
SIST EN 61439-4 : 2013
Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 4. del: Posebne zahteve
za sestave na gradbiščih (ACS)

1 Področje uporabe
OPOMBA: V tem standardu se kratica ACS (SESTAV za gradbišče, glej 3.1.101) uporablja za sestav nizkonapetostnih
stikalnih in krmilnih naprav, namenjen za uporabo na gradbiščih in podobnih krajih.

Ta del standarda 61439 opredeljuje specifične zahteve za ACS takole:

— SESTAVI, pri katerih naznačena napetost ne presega 1 000 V izmenične napetosti ali 1 500 V
enosmerne napetosti;
— SESTAVI, pri katerih sta nazivna primarna in nazivna sekundarna napetost transformatorjev na
gradbiščih v okviru zgoraj navedenih omejitev;

— SESTAVI, namenjeni za uporabo na gradbiščih, tako v zaprtih prostorih kot na prostem, tj. na
začasnih delovnih mestih, do katerih javnost splošno nima dostopa in kjer se izvajajo gradnja
objektov, montaža, popravila, adaptacija ali rušenja nepremičnin (stavb) ali nizke gradnje (javna
dela) ali odkopavanje ali katerikoli drugi podobni posegi;

— prenosni (delno pritrjeni) ali mobilni SESTAVI z okrovom.

Proizvodnjo in/ali montažo lahko izvajajo tudi drugi in ne samo izvirni proizvajalec.

Ta standard se ne uporablja za posamezne naprave in samostojne komponente, kot so npr. motorski
zaganjalniki, varovalčna stikala, elektronska oprema itd., ki so skladne z ustreznimi standardi za
proizvode.
Ta standard se ne uporablja za SESTAVE, namenjene za uporabo v upravnih centrih gradbišč (pisarnah,
garderobah, montažnih prostorih, menzah, restavracijah, domovih, straniščih itd.).

Zahteve za električno zaščito, zagotovljeno z opremo, ki je izdelana v skladu s tem mednarodnim
standardom, so navedene v standardu IEC 60364-7-704.

2 Zveze s standardi
Ta točka 1. dela se uporablja, razen kakor sledi:

Dopolnitev:
IEC 60068-2-27:2008 Okoljsko preskušanje – 2-27. del: Preskusi – Preskus Ea in vodilo:
Udarec
IEC 60068-2-42:2003 Okoljsko preskušanje – 2-42. del: Preskusi – Preskus Kc: Preskus
glede na žveplov dioksid za kontakte in spoje

IEC 60364-7-704:2005 Nizkonapetostne električne inštalacije – 7-704. del: Zahteve za
posebne inštalacije ali lokacije – Gradbišča

IEC 61140:2001 Zaščita pred električnim udarom – Skupni vidiki za inštalacijo in opremo

IEC 61439-1:2011 Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 1. del: Splošna
pravila
IEC 61558-2-23 Varnost transformatorjev, dušilk, napajalnikov in kombinacij teh
elementov – 2-23. del: Posebne zahteve in preskusi za transformatorje
in napajalnike za gradbišča
SIST EN 61439-4 : 2013
3 Izrazi in definicije
Ta točka 1. dela se uporablja, razen kakor sledi:

Dodatni izrazi:
3.1 Splošni izrazi
3.1.101
sestav nizkonapetostnih stikalnih in krmilnih naprav na gradbiščih, ACS
kombinacija ene ali več transformnih ali nizkonapetostnih stikalnih naprav s pripadajočo krmilno,
merilno, signalizacijsko, zaščitno in regulacijsko opremo, vključno z vsemi njihovimi notranjimi
električnimi in mehanskimi priključki in konstrukcijskimi deli, zasnovana in izdelana za uporabo na vseh
gradbiščih, v zaprtih prostorih in na prostem

3.2 Konstrukcijske enote SESTAVOV

3.2.101
merilna enota
funkcijska enota, opremljena z napravo za merjenje električne energije

3.2.102
transformatorska enota
funkcijska enota, sestavljena predvsem iz enega ali več transformatorjev

Spremembe:
3.3 Zunanja oblika SESTAVOV
3.3.1
odprti SESTAV
ta izraz iz 1. dela se ne uporablja

3.3.2
čelno pokriti SESTAV
ta izraz iz 1. dela se ne uporablja

Zamenjave:
3.3.3
ACS v zaprtem okrovu
ACS, zaprt z vseh strani, z možnostjo izjeme pri pritrdilni površini na način, ki zagotavlja določeno
stopnjo zaščite
3.3.7
omarični ACS
ACS v zaprtem okrovu, namenjen za:

— montažo na navpično površino

— ali postavitev na vodoravno površino, podprt z nogami ali vogalniki (členastimi ali ne) ali s pritrdilnim
ogrodjem, ki niso del ACS (glej 1. del, točka 3.4.2)

SIST EN 61439-4 : 2013
Spremembe:
3.5 Pogoji namestitve SESTAVOV

3.5.1
SESTAV za notranjo namestitev, notranji SESTAV
ta izraz iz 1. dela se ne uporablja (glej 3.1.101)

3.5.2
SESTAV za zunanjo namestitev, zunanji SESTAV
ta izraz iz 1. dela se ne uporablja (glej 3.1.101)

3.5.3
nepremični SESTAV
ta izraz iz 1. dela se ne uporablja

3.5.4
premični SESTAV
ta izraz iz 1. dela se ne uporablja

Dodatni izrazi:
3.5.101
prenosni ACS
delno pritrjeni ACS
ACS, namenjen za uporabo v prostoru, kjer ni trajno pritrjen; njegova lokacija se lahko spreminja med
delom na istem gradbišču. Kadar se oprema prestavlja na drugo lokacijo, se najprej izklopi iz napajanja

3.5.102
mobilni ACS
ACS z možnostjo premikanja glede na napredek dela na gradbišču, brez izklapljanja iz napajanja

Dodatni izrazi:
3.101 Funkcije ACS
3.101.1
dovodna napajalna funkcija
primernost za povezavo ACS z javnim električnim napajalnim omrežjem ali s transformatorsko postajo
ali z generatorjem na gradbišču

3.101.2
merilna funkcija
primernost za merjenje električne energije, porabljene na gradbišču

3.101.3
distribucijska funkcija
primernost za zagotavljanje distribucije in zaščite električnega napajanja na gradbišču s pomočjo
priključnih sponk ali vtičnic
3.101.4
transformatorska funkcija
primernost za zagotavljanje transformatorskih napetosti ali za zagotavljanje ukrepov zaščite pred
električnim udarom
OPOMBA: Podrobnosti o teh zahtevah so navedene v 101.1.

SIST EN 61439-4 : 2013
4 Simboli in kratice
Ta točka 1. dela se uporablja
5 Karakteristike vmesnika
Ta točka iz 1. dela se uporablja, razen kakor sledi:

5.3.1 Naznačeni tok SESTAVA (I )
nA
Zamenjava naslova in besedila:

5.3.1 Naznačeni tok ACS (I )
nA
Naznačeni tok ACS je tok v njegovem dovodnem tokokrogu.

Ta tok mora SESTAV zdržati brez dviga temperature posameznih delov, ki presega mejne vrednosti,
določene v točki 9.2 iz 1. dela.

5.4 Naznačeni faktor obremenitve (RDF)

Dopolnitev:
Pričakovano obremenitev odvodnih tokokrogov ACS ali skupine odvodnih tokokrogov mora navesti
proizvajalec SESTAVA in lahko temelji na vrednostih iz preglednice 101.

Kadar proizvajalec ne navede RDF, se uporabljajo vrednosti iz preglednice 101.

5.6 Druge karakteristike
Zamenjava:
Podane morajo biti naslednje karakteristike:
a) funkcija(-e), ki jo (jih) določi proizvajalec (glej 3.101),

b) zunanja oblika (glej 3.3),
c) mobilnost (glej 3.5.101 in 3.5.102),

d) stopnja zaščite (glej 8.2),

e) metoda vgradnje, na primer pritrjeni ali odstranljivi deli (glej 8.5.1 in 8.5.2),

f) zaščita pred električnim udarom (glej 8.4),

g) odpornost proti koroziji (glej 10.2.2.101),

h) posebni obratovalni pogoji, če veljajo (glej 7.2),

i) klasifikacija elektromagnetne združljivosti (EMC) (glej dodatek J iz 1. dela).

SIST EN 61439-4 : 2013
6 Podatki
Ta točka iz 1. dela se uporablja, razen kakor sledi:

6.1 Napisi na SESTAVU
Zamenjava naslova in besedila:

6.1 Napisi na ACS
Proizvajalec SESTAVA mora vsak ACS opremiti z eno ali več nalepkami, ki so označene na trajen način
in so nameščene na mestu, kjer so vidne in berljive, ko je ACS nameščen in v obratovanju.

Skladnost se preverja v skladu s preskusom 10.2.7 in s pregledom.

Na nalepki(-ah) morajo biti navedene naslednje informacije v zvezi z ACS:

a) naziv ali blagovna znamka proizvajalca SESTAVA (glej 3.10.2),

b) oznaka tipa ali identifikacijska številka ali katerakoli druga oblika identifikacije, s katero je mogoče
pridobiti ustrezne informacije od proizvajalca SESTAVA,

c) način identifikacije datuma izdelave,

d) IEC 61439-4,
e) vrsta toka (in frekvenca za izmenični tok),

f) naznačena napetost (U ) (za ACS) (glej 5.2.1),
n
g) naznačeni tok ACS (I ) (glej 5.3.1),
nA
h) stopnja zaščite (glej 8.2),

i) masa, če presega 30 kg.
Če je oznaka naziva ali blagovne znamke proizvajalca na samem ACS, tega ni treba navesti na označni
ploščici.
6.2.1 Podatki o SESTAVU
Zamenjava naslova in besedila:

6.2.1 Podatki o ACS
Naslednje dodatne informacije se, kjer je to primerno, navedejo v tehnični dokumentaciji proizvajalca
SESTAVA, ki je priložena ACS:
a) naznačena obratovalna napetost (U ) (tokokroga) (glej 5.2.2),
e
...
