SIST EN 16603-70-41:2017
(Main)Space engineering - Telemetry and telecommand packet utilization
Space engineering - Telemetry and telecommand packet utilization
This Standard addresses the utilization of telecommand packets and telemetry packets for the purposes of remote monitoring and control of spacecraft subsystems and payloads.
This Standard does not address missionspecific payload data packets, but the rules contained herein can be extended to suit the requirements of any mission.
This Standard does not address audio and video data as they are not contained within either telecommand or telemetry packets.
This Standard defines a set of services that satisfy all the fundamental operational requirements for spacecraft monitoring and control during spacecraft integration, testing and flight operations, refer to ECSS-E-ST-70-11. It also specifies the structure and contents of the telecommand packets used to transport the requests and the telemetry packets used to transport the reports.
Raumfahrttechnik - Telemetrie und Telekommando
Ingénierie spatiale - Utilisation de la télémétrie et de la télécommande par paquets
La présente Norme traite de l'utilisation des paquets de télécommande et des paquets de télémesure aux fins de surveillance et de contrôle à distance des sous-systèmes et des charges utiles de l'engin spatial.
La présente norme ne tient pas compte des paquets de données de charge utile propres à la mission, mais les règles qu'elle contient peuvent être étendues pour répondre aux exigences d'une quelconque mission.
Elle ne traite pas non plus des données audio et vidéo, puisque ces données ne sont pas contenues dans les paquets de télécommande ou de télémesure.
La présente Norme définit un ensemble de services à même de satisfaire à toutes les exigences opérationnelles fondamentales concernant la surveillance et le contrôle de l'engin spatial lors des opérations d'intégration, d'essai et des opérations en vol de l'engin spatial ; se reporter à l'ECSS-E-ST-70-11. Elle spécifie également la structure et le contenu des paquets de télécommande utilisés pour acheminer les demandes et des paquets de télémesure utilisés pour transporter les rapports.
La présente Norme peut être utilisée par toute mission, quels que soient son domaine d'application, orbite ou caractéristiques de couverture de la station sol. Toutefois, il convient de ne pas considérer que le but recherché est que la norme PUS soit appliquée dans son intégralité à une mission donnée. Les services définis dans la présente norme couvrent un large éventail de scénarios opérationnels et, pour une mission donnée, seul un sous-ensemble de ces services est susceptible de convenir.
Des choix sont opérés au début de la phase de conception d'une nouvelle mission, d'où la nécessité d'adapter la norme PUS pour répondre aux exigences de cette mission. Ces choix englobent :
• la conception et l'architecture du système embarqué, en termes de nombre de procédés d'application embarqués, leur implémentation à bord (par exemple, l'allocation aux processeurs de bord) et leurs rôles (c'est-à-dire les fonctions, sous-systèmes ou charges utiles pris en charge) ;
• quels services PUS sont pris en charge par chaque procédé d'application.
Chaque mission documente généralement les résultats de ce processus de conception et de sélection dans un « Document de contrôle des interfaces espace-sol ».
Certaines missions mettent en œuvre une architecture centralisée avec un petit nombre de procédés d'application, alors que d'autres bénéficient d'une architecture hautement distribuée au sein de laquelle un nombre de procédés d'application proportionnellement plus élevé sont répartis sur plusieurs processeurs de bord.
La spécification des services dans la présente norme est adaptée aux différents niveaux de complexité et de capacité que les différentes missions exigent d'un service donné. À cette fin, tous les services sont facultatifs et un service donné peut être mis en œuvre à l'un des multiples niveaux distincts, qui correspond à la prise en compte d'un ou de plusieurs ensembles de capacités. L'ensemble de capacités minimal correspond au niveau le plus simple possible qui reste néanmoins pertinent et cohérent. Cet ensemble, au moins, est inclus dans chaque implémentation d'un service donné.
Les services PUS normalisés remplissent les critères suivants :
• Similitude : chaque service normalisé correspond à un groupe de capacités applicables à de nombreuses missions.
• Cohérence : les capacités fournies par chaque service normalisé sont étroitement liées et leur champ d'application est clairement spécifié. Chaque service normalisé couvre toutes les activités de gestion des informations d'état interdépendantes, ainsi que toutes les activités qui utilisent ces informations d'état.
Vesoljska tehnika - Uporaba telemetrije in daljinskega vodenja podatkovnih paketov
Ta standard obravnava uporabo daljinsko vodenih in telemetričnih paketov za namene oddaljenega nadzora ter krmiljenja podsistemov in tovora vesoljskih plovil. Ta standard ne obravnava podatkovnih paketov o tovoru, specifičnih za misijo, vendar se pravila standarda lahko razširijo, da izpolnjujejo zahteve katerekoli misije. Ta standard ne obravnava zvočnih in video podatkov, ki niso vsebovani v daljinsko vodenih ali telemetričnih paketih. Ta standard opredeljuje skupino storitev, ki izpolnjujejo vse temeljne zahteve za izvajanje nadzora in krmiljenja vesoljskih plovil med integracijo, preizkušanjem in upravljanjem vesoljskih plovil (glej standard ECSS-E-ST-70-11). Določa tudi strukturo in vsebino daljinsko vodenih paketov, ki se uporabljajo za prenos zahtev, in telemetričnih paketov, ki se uporabljajo za prenos poročil.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 16603-70-41:2017
01-december-2017
1DGRPHãþD
SIST EN 14776:2005
Vesoljska tehnika - Uporaba telemetrije in daljinskega vodenja podatkovnih
paketov
Space engineering - Telemetry and telecommand packet utilization
Raumfahrttechnik - Telemetrie und Telekommando
Ingénierie spatiale - Utilisation de la télémétrie et de la télécommande par paquets
Ta slovenski standard je istoveten z: EN 16603-70-41:2017
ICS:
33.200 Daljinsko krmiljenje, daljinske Telecontrol. Telemetering
meritve (telemetrija)
49.140 Vesoljski sistemi in operacije Space systems and
operations
SIST EN 16603-70-41:2017 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 16603-70-41:2017
---------------------- Page: 2 ----------------------
SIST EN 16603-70-41:2017
EUROPEAN STANDARD
EN 16603-70-41
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2017
ICS 49.140
Supersedes EN 14776:2004
English version
Space engineering - Telemetry and telecommand packet
utilization
Ingénierie spatiale - Utilisation de la télémétrie et de la Raumfahrttechnik - Telemetrie und Telekommando
télécommande par paquets
This European Standard was approved by CEN on 30 June 2017.
CEN and CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical
references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to
any CEN and CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN and CENELEC member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN and CENELEC members are the national standards bodies and national electrotechnical committees of Austria, Belgium,
Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
CEN-CENELEC Management Centre:
Avenue Marnix 17, B-1000 Brussels
© 2017 CEN/CENELEC All rights of exploitation in any form and by any means Ref. No. EN 16603-70-41:2017 E
reserved worldwide for CEN national Members and for
CENELEC Members.
---------------------- Page: 3 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)

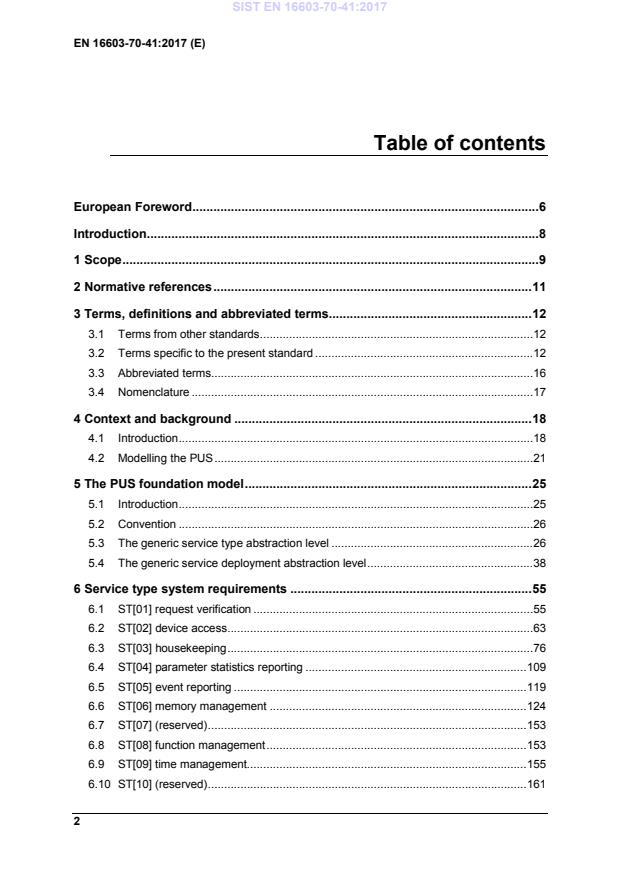

Table of contents
European Foreword . 6
Introduction . 8
1 Scope . 9
2 Normative references . 11
3 Terms, definitions and abbreviated terms . 12
3.1 Terms from other standards . 12
3.2 Terms specific to the present standard . 12
3.3 Abbreviated terms. 16
3.4 Nomenclature . 17
4 Context and background . 18
4.1 Introduction . 18
4.2 Modelling the PUS . 21
5 The PUS foundation model . 25
5.1 Introduction . 25
5.2 Convention . 26
5.3 The generic service type abstraction level . 26
5.4 The generic service deployment abstraction level . 38
6 Service type system requirements . 55
6.1 ST[01] request verification . 55
6.2 ST[02] device access . 63
6.3 ST[03] housekeeping . 76
6.4 ST[04] parameter statistics reporting . 109
6.5 ST[05] event reporting . 119
6.6 ST[06] memory management . 124
6.7 ST[07] (reserved) . 153
6.8 ST[08] function management . 153
6.9 ST[09] time management . 155
6.10 ST[10] (reserved) . 161
2
---------------------- Page: 4 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)
6.11 ST[11] time-based scheduling . 161
6.12 ST[12] on-board monitoring . 191
6.13 ST[13] large packet transfer . 221
6.14 ST[14] real-time forwarding control . 229
6.15 ST[15] on-board storage and retrieval . 256
6.16 ST[16] (reserved) . 308
6.17 ST[17] test . 308
6.18 ST[18] on-board control procedure . 311
6.19 ST[19] event-action . 331
6.20 ST[20] parameter management . 341
6.21 ST[21] request sequencing . 347
6.22 ST[22] position-based scheduling . 357
6.23 ST[23] file management . 390
7 Space to ground interface requirements . 412
7.1 Introduction . 412
7.2 Convention . 414
7.3 Packet field type code . 415
7.4 The CCSDS Space Packet . 425
8 Service type interface requirements . 432
8.1 ST[01] request verification . 432
8.2 ST[02] device access . 437
8.3 ST[03] housekeeping . 442
8.4 ST[04] parameter statistics reporting . 459
8.5 ST[05] event reporting . 462
8.6 ST[06] memory management . 465
8.7 ST[07] (reserved) . 475
8.8 ST[08] function management . 475
8.9 ST[09] time management . 476
8.10 ST[10] (reserved) . 478
8.11 ST[11] time-based scheduling . 478
8.12 ST[12] on-board monitoring . 490
8.13 ST[13] large packet transfer . 507
8.14 ST[14] real-time forwarding control . 510
8.15 ST[15] on-board storage and retrieval . 520
8.16 ST[16] (reserved) . 538
8.17 ST[17] test . 538
3
---------------------- Page: 5 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)
8.18 ST[18] on-board control procedure . 540
8.19 ST[19] event-action . 548
8.20 ST[20] on-board parameter management . 552
8.21 ST[21] request sequencing . 556
8.22 ST[22] position-based scheduling . 561
8.23 ST[23] file management . 574
9 Command Pulse Distribution Unit . 584
9.1 Scope . 584
9.2 System requirements . 584
9.3 Interface requirements . 586
Annex A (informative) IEEE and MIL-STD real formats . 588
A.1 IEEE standard format . 588
A.1.1 General . 588
A.1.2 Single-precision . 589
A.1.3 Double-precision . 589
A.2 United States Air Force military standard format . 591
A.2.1 General . 591
A.2.2 Simple-precision . 591
A.2.3 Extended . 592
Annex B (informative) CRC and ISO checksum . 593
B.1 The cyclic redundancy code (CRC) . 593
B.1.1 General . 593
B.1.2 Symbols and conventions . 594
B.1.3 Encoding procedure . 594
B.1.4 Decoding procedure . 594
B.1.5 Verification of compliance . 595
B.1.6 Software implementation . 595
B.2 The ISO checksum . 604
B.2.1 General . 604
B.2.2 Symbols and conventions . 605
B.2.3 Encoding procedure . 605
B.2.4 Decoding procedure . 606
B.2.5 Verification of compliance . 606
B.2.6 Software implementation . 606
Annex C (informative) Summary of requests and reports for PUS standard
services . 612
4
---------------------- Page: 6 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)
C.1 Convention . 612
C.2 Requests and reports . 612
C.2.1 ST[01] request verification . 612
C.2.2 ST[02] device access . 614
C.2.3 ST[03] housekeeping . 615
C.2.4 ST[04] parameter statistics reporting . 617
C.2.5 ST[05] event reporting . 618
C.2.6 ST[06] memory management . 619
C.2.7 ST[07] (reserved) . 621
C.2.8 ST[08] function management . 621
C.2.9 ST[09] time management . 621
C.2.10 ST[10] (reserved) . 622
C.2.11 ST[11] time-based scheduling . 622
C.2.12 ST[12] on-board monitoring . 624
C.2.13 ST[13] large packet transfer . 625
C.2.14 ST[14] real-time forwarding control . 626
C.2.15 ST[15] on-board storage and retrieval . 628
C.2.16 ST[16] (reserved) . 630
C.2.17 ST[17] test . 631
C.2.18 ST[18] on-board operations procedure . 631
C.2.19 ST[19] event-action . 633
C.2.20 ST[20] Parameter management . 634
C.2.21 ST[21] request sequencing . 634
C.2.22 ST[22] position-based scheduling . 636
C.2.23 ST[23] file management . 638
Annex D (informative) System and interface specification index . 640
Bibliography . 641
5
---------------------- Page: 7 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)
European Foreword
This document (EN 16603-70-41:2017) has been prepared by Technical
Committee CEN-CENELEC/TC 5 “Space”, the secretariat of which is held by
DIN.
This standard (EN 16603-70-41:2017) originates from ECSS-E-ST-70-41C.
This European Standard shall be given the status of a national standard, either
by publication of an identical text or by endorsement, at the latest by April 2018,
and conflicting national standards shall be withdrawn at the latest by April
2018.
This document supersedes EN 14776:2004 Space engineering – Ground systems
and operations - Telemetry and telecommand packet utilization.
The main purpose of the update of EN 14776:2004 was the need:
• to remove the deficiencies of the previous issue and to inject lessons
learned,
• to improve the standard to meet the need for future missions,
• to acknowledge the existence of new ECSS and CCSDS standards and to
ensure consistency,
• to implement the updated drafting rules that apply to any ECSS
Standards (e.g. naming each requirement to facilitate tailoring,
traceability),
• maintaining backward compatibility when possible.
The main changes are:
• the introduction of the PUS foundation model that:
− has been used to produce the “standard service types”;
− shall be used to produce the “mission-specific service types”, i.e.:
◊ adding new service types, subservice types, message types,
etc;
◊ adding capabilities to the ”standard service types”;
− shall be used to produce the “mission services”, i.e.:
◊ creating the required services by:
♦ “realising the service types”, and
♦ inheriting all mandatory subservices and minimum
capabilities;
◊ selecting, for each service, the additional capabilities, the
optional subservices, etc;
◊ creating the service specific definitions.
6
---------------------- Page: 8 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)
• a proper separation of system versus interface requirements.
• material common to the three ECSS branches (Space engineering, Space
project management and Space product assurance moved to EN 16601-00
(EN version of ECSS-S-ST-00), material specific to product assurance to
this standard,
• reorganization of the content of the document to separate descriptive text
and requirements, including clarification, modification of requirements
and implementation of change requests,
• pre-tailoring matrix (Clause 6) added,
• addition of new DRDs.
Attention is drawn to the possibility that some of the elements of this document
may be the subject of patent rights. CEN [and/or CENELEC] shall not be held
responsible for identifying any or all such patent rights.
This document has been prepared under a standardization request given to
CEN by the European Commission and the European Free Trade Association.
This document has been developed to cover specifically space systems and has
therefore precedence over any EN covering the same scope but with a wider
domain of applicability (e.g. : aerospace).
According to the CEN-CENELEC Internal Regulations, the national standards
organizations of the following countries are bound to implement this European
Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia,
Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
7
---------------------- Page: 9 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)
Introduction
The CCSDS Space Packet Protocol (CCSDS 133.0-B-1) and the ECSS-E-ST-50
series of standards address the end-to-end transport of telemetry and
telecommand data between user applications on the ground and application
processes on-board the spacecraft, and the intermediate transfer of these data
through the different elements of the ground and space segments.
This packet utilization standard (PUS) complements those standards by
defining the application-level interface between ground and space, in order to
satisfy the requirements of electrical integration and testing and flight
operations.
8
---------------------- Page: 10 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)
1
Scope
This Standard addresses the utilization of telecommand packets and telemetry
packets for the purposes of remote monitoring and control of spacecraft
subsystems and payloads.
This Standard does not address mission-specific payload data packets, but the
rules contained herein can be extended to suit the requirements of any mission.
This Standard does not address audio and video data as they are not contained
within either telecommand or telemetry packets.
This Standard defines a set of services that satisfy all the fundamental
operational requirements for spacecraft monitoring and control during
spacecraft integration, testing and flight operations, refer to ECSS-E-ST-70-11. It
also specifies the structure and contents of the telecommand packets used to
transport the requests and the telemetry packets used to transport the reports.
This Standard can be used by any mission, no matter what its domain of
application, orbit or ground station coverage characteristics. However, it is not
the intention that the PUS should be applied in its entirety to a given mission.
The services defined in this Standard cover a wide spectrum of operational
scenarios and, for a given mission, only a subset of these services is likely to be
appropriate.
Choices are made early in the design phase of a new mission resulting in the
need to tailor the PUS to suit the requirements of that mission. These choices
include:
• the on-board system design and architecture, in terms of the number of
on-board application processes, their on-board implementation (e.g. the
allocation to on-board processors) and their roles (i.e. which functions or
subsystems or payloads they support);
• which PUS services are supported by each application process.
Each mission usually documents the results of this design and selection process
in a "Space-to-Ground Interface Control Document".
Some missions implement a centralized architecture with a small number of
application processes, whilst others have a highly-distributed architecture
within which a correspondingly larger number of application processes are
distributed across several on-board processors.
The specification of services in this Standard is adapted to the expectation that
different missions require different levels of complexity and capability from a
given service. To this end, all services are optional and a given service can be
implemented at one of several distinct levels, corresponding to the inclusion of
9
---------------------- Page: 11 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)
one or more capability sets. The minimum capability set corresponds to the
simplest possible level that also remains sensible and coherent. At least this set
is included in every implementation of a given service.
The standardized PUS services fulfil the following criteria:
• Commonality: each standard service corresponds to a group of
capabilities applicable to many missions.
• Coherence: the capabilities provided by each standard service are closely
related and their scope is unambiguously specified. Each standard
service covers all the activities for managing inter-related state
information and all activities that use that state information.
• Self-containment: each standard service has minimum and well-defined
interactions with other services or on-board functions.
• Implementation independence: the standard services neither assume nor
exclude a particular spacecraft architecture (hardware or software).
This Standard mainly addresses the requirements that apply to the spacecraft
and its components. The ground segment counterpart requirements related to
the testing or the operations of the spacecraft and its components can be
derived from these requirements and are not specified in this Standard.
Tailoring the PUS for a mission is mainly a task for the operations team and the
spacecraft manufacturer. This Standard assumes that the mission ground
segment used to test or operate the spacecraft implements all standardized
capabilities and as such, does not further constrain the mission tailoring process
of these capabilities.
The PUS should be viewed as a "Menu" from which the applicable services and
service-levels are selected for a given mission. This selection process is repeated
for each on-board application process, since each application process is
designed to provide a specific set of tailored services.
This standard may be tailored for the specific characteristics and constraints of a
space project in conformance with ECSS-S-ST-00.
This Standard does not include any protection against inadequate operations.
This is considered mission specific.
10
---------------------- Page: 12 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)
2
Normative references
The following normative documents contain provisions which, through
reference in this text, constitute provisions of this ECSS Standard. For dated
references, subsequent amendments to, or revision of any of these publications
do not apply. However, parties to agreements based on this ECSS Standard are
encouraged to investigate the possibility of applying the more recent editions of
the normative documents indicated below. For undated references, the latest
edition of the publication referred to applies.
EN reference Reference in text Title
EN 16601-00-01 ECSS-S-ST-00-01 ECSS system – Glossary of terms
EN 16603-70 ECSS-E-ST-70 Space engineering – Ground systems and operations
EN 16603-70-01 ECSS-E-ST-70-01 Space engineering – Spacecraft on-board control
procedures
EN 16603-70-11 ECSS-E-ST-70-11 Space engineering – Space segment operability
EN 16603-70-31 ECSS-E-ST-70-31 Space engineering – Ground systems and operations –
Monitoring and control data definition
CCSDS 133.0-B-1, Space Packet Protocol, Blue Book
September 2003
CCSDS 301.0-B-4, Time Code Formats, Blue Book
November 2010
11
---------------------- Page: 13 ----------------------
SIST EN 16603-70-41:2017
EN 16603-70-41:2017 (E)
3
Terms, definitions and abbreviated terms
3.1 Terms from other standards
a. For the purpose of this Standard, the terms and definitions from ECSS-S-
ST-00-01 apply, in particular for the following terms:
1. space system
2. space segment
3. spacecraft
4. ground segment
3.2 Terms specific to the present standard
3.2.1 acceptance notification
notification that is generated by the acceptance and reporting subservice
provider of the application process that hosts the subservice provider in charge
of executing the related request
3.2.2 acceptance verification report
report generated by the acceptance and reporting subservice provider as a
consequence of a request acceptance verification
NOTE The acceptance and reporting subservice for a
request is hosted by the application process that
hosts the subservice responsible for executing that
request. Each acceptance verification report is
reporting either the successful acceptance of a
request or the failed acceptance. In case of
successful acceptance, the request is sent to the
subservice provider in charge of its execution. In
case of failed acceptance, the request is rejected
and as such, not sent to any subservice provider.
3.2.3 application process
