Environmental Engineering (EE) - Environmental conditions and environmental tests for telecommunications equipment - Part 2-4: Specification of environmental tests - Stationary use at non-weatherprotected locations

The present document specifies test methods and severities for verification of the required resistibility of equipment
according to the relevant environmental class.
The tests defined in the present document apply to stationary use of equipment at non-weatherprotected locations
covering the environmental conditions stated in ETSI EN 300 019-1-4 [1].

Okoljski inženiring (EE) - Okoljski pogoji in preskusi vplivov okolja na telekomunikacijsko opremo - 2-4. del: Specifikacija preskusov glede vplivov okolja - Stacionarna uporaba na lokacijah, ki niso zaščitene pred vremenskimi vplivi

Ta dokument določa preskusne metode in stopnje zahtevnosti za preverjanje zahtevane odpornosti opreme glede na ustrezen okoljski razred.
Preskusi, določeni v tem dokumentu, se uporabljajo za fiksno uporabo opreme na lokacijah, ki niso zaščitene pred vremenskimi vplivi, kot določajo okoljski pogoji, določeni v standardu ETSI EN 300 019-1-4 [1].

General Information

Status
Published
Publication Date
21-Jan-2016
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
11-Jan-2016
Due Date
17-Mar-2016
Completion Date
22-Jan-2016
Mandate

Buy Standard

Standard
SIST EN 300 019-2-4 V2.4.1:2016
English language
25 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Standard
Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-4: Specification of environmental tests; Stationary use at non-weatherprotected locations - EE 1
English language
2 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ETSI EN 300 019-2-4 V2.3.7 (2015-09) - Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-4: Specification of environmental tests; Stationary use at non-weatherprotected locations
English language
25 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Environmental Engineering (EE) - Environmental conditions and environmental tests for telecommunications equipment - Part 2-4: Specification of environmental tests -

Stationary use at non-weatherprotected locations33.050.01Telekomunikacijska terminalska oprema na splošnoTelecommunication terminal equipment in general19.040Preskušanje v zvezi z okoljemEnvironmental testingICS:Ta slovenski standard je istoveten z:EN 300 019-2-4 V2.4.1SIST EN 300 019-2-4 V2.4.1:2016en01-marec-2016SIST EN 300 019-2-4 V2.4.1:2016SLOVENSKI

STANDARD
SIST EN 300 019-2-4 V2.4.1:2016

ETSI EN 300 019-2-4 V2.4.1 (2015-12) Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-4: Specification of environmental tests; Stationary use at non-weatherprotected locations

EUROPEAN STANDARD SIST EN 300 019-2-4 V2.4.1:2016
ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)2

Reference REN/EE-0161 Keywords environment, testing ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88

Important notice The present document can be downloaded from: http://www.etsi.org/standards-search The present document may be made available in electronic versions and/or in print. The content of any electronic and/or print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: https://portal.etsi.org/People/CommiteeSupportStaff.aspx Copyright Notification No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm except as authorized by written permission of ETSI. The content of the PDF version shall not be modified without the written authorization of ETSI. The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2015. All rights reserved.

DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)3 Contents Intellectual Property Rights ................................................................................................................................ 4 Foreword ............................................................................................................................................................. 4 Modal verbs terminology .................................................................................................................................... 4 1 Scope ........................................................................................................................................................ 5 2 References ................................................................................................................................................ 5 2.1 Normative references ......................................................................................................................................... 5 2.2 Informative references ........................................................................................................................................ 6 3 Environmental test specifications ............................................................................................................. 6 3.1 Specification T 4.1: Non-weatherprotected locations, climatic tests .................................................................. 7 3.2 Specification T 4.1E: Non-weatherprotected locations - extended, climatic tests ............................................ 10 3.3 Specification T 4.2L: Non-weatherprotected locations - extremely cold, climatic tests .................................. 13 3.4 Specification T 4.2H: Non-weatherprotected locations - extremely warm dry, climatic tests ......................... 16 3.5 Specification T 4.1, 4.1E, 4.2L and 4.2H: Non-weatherprotected locations - mechanical tests ....................... 19 4 Earthquake test specification .................................................................................................................. 21 4.1 Vibration response investigation ...................................................................................................................... 21 4.2 Test conditioning .............................................................................................................................................. 21 Annex A (informative): Bibliography ................................................................................................... 24 History .............................................................................................................................................................. 25

SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)4 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE). The present document is part 2, sub-part 4 of a multi-part deliverable. Full details of the entire series can be found in part 2, sub-part 0 [i.1].

National transposition dates Date of adoption of this EN: 21 December 2015 Date of latest announcement of this EN (doa): 31 March 2016 Date of latest publication of new National Standard or endorsement of this EN (dop/e):

30 September 2016 Date of withdrawal of any conflicting National Standard (dow): 30 September 2016

Modal verbs terminology In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions). "must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation. SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)5 1 Scope The present document specifies test methods and severities for verification of the required resistibility of equipment according to the relevant environmental class. The tests defined in the present document apply to stationary use of equipment at non-weatherprotected locations covering the environmental conditions stated in ETSI EN 300 019-1-4 [1]. 2 References 2.1 Normative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are necessary for the application of the present document. [1] ETSI EN 300 019-1-4: "Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 1-4: Classification of environmental conditions; Stationary use at non-weatherprotected locations". [2] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests - Test A: Cold". [3] Void. [4] Void. [5] ANSI T1.0600329 (2008): "Network Equipment - Earthquake Resistance Standard". [6] Void. [7] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat". [8] IEC 60068-2-14 (01-2009): "Environmental testing - Part 2-14: Tests - Test N: Change of temperature". [9] IEC 60068-2-30 (08-2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12 h + 12 h cycle)". [10] IEC 60068-2-64 (04-2008): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration, broadband random and guidance". [11] IEC 60068-2-27 (02-2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance: Shock". [12] IEC 60068-2-6 (12-2007): "Environmental testing - Part 2-6: Tests - Test Fc: Vibration (sinusoidal)". [13] IEC 60068-2-57 (11-1999): "Environmental testing - Part 2-57: Tests - Test Ff: Vibration - Time history method". [14] Void. [15] IEC 60068-2-18 (10-2000): "Environmental testing - Part 2-18: Tests - Test R and guidance: Water". SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)6 [16] IEC 60068-2-78 (08-2001): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat, steady state". [17] IEC 60068-2-11 (01-1981): "Basic environmental testing procedures - Part 2-11: Tests - Test Ka: Salt mist". 2.2 Informative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-0: Specification of environmental tests; Introduction". [i.2] IEC 60068-2-68 (8-1994): "Environmental testing - Part 2: Tests - Test L: Dust and sand". [i.3] IEC 60068-2 (all parts): "Environmental testing - Part 2: Tests". 3 Environmental test specifications The detailed descriptions of the environmental conditions are given in clauses 4 and 5 of ETSI EN 300 019-1-4 [1]. ETSI EN 300 019-2-0 [i.1] forms a general overview of part 2 of this multi-part deliverable. The equipment under test is assumed to be in its operational state throughout the test conditions described in the present document unless otherwise stated. The required performance before, during and after the test need to be specified in the product specification. Input and load conditions of the equipment shall be chosen to obtain full utilization of the equipment under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where it shall be minimized. SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)7 3.1 Specification T 4.1: Non-weatherprotected locations, climatic tests The specification in table 1 shall apply to Non-weatherprotected locations described in ETSI EN 300 019-1-4 [1]. Table 1: Test specification T 4.1: Stationary use at non-weatherprotected locations - climatic tests Environmental parameter Environmental Class 4.1 Environmental test specification T 4.1: Stationary use, Non-weatherprotected locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Air temperature Low

(°C) -33 -33 or -45 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold 1 High
(°C) +40 +40 or +55 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat 2 Change
(°C)
(°C/min)

0,5 -10/+40 0,5 2 cycles t1 = 3 h IEC 60068-2-14 [8] Nb: Change of temperature 3 Humidity Relative

Low (%) 15 none
8 high (%)

(°C) 100 93 +30 10 d IEC 60068-2-78 [16] Cab: Damp heat steady state 4 condensation

(%)
(°C) yes
90-100 +30
2 cycles
IEC 60068-2-30 [9]
Db: Damp heat, cyclic Variant 1 5 Absolute Low (g/m3) 0,26 none
high (g/m3) 25
6 Air Pressure Low (kPa) 70 none
7 high (kPa) 106 none
7 Speed
(m/s) 50 none

8 Water Rain Intensity 6 mm/min 0,01 m3/min 90 kPa 3 min/m2 or 15 min IEC 60068-2-18 [15] Rb: Impacting water Method 1 9 low temperature (°C) +5 none

Other sources
splashing water
10 Icing & frosting
yes none
8 Radiation Solar
(W/m2) 1 120
11 Heat
(W/m2) negligible
SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)8 Environmental parameter Environmental Class 4.1 Environmental test specification T 4.1: Stationary use, Non-weatherprotected locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Chemically active substances Sulphur SO2 (mg/m3) 0,3/1,0 none

12 H2S (mg/m3) 0,1/0,5 none

12 Chlorine salt mist sea and road salt 35 ℃, 5 %NaCl solution 10d IEC 60068-2-11 [17] Ka: Salt mist 12 Cl (mg/m3) 0,1/0,3 none

12 HCI (mg/m3) 0,1/0,5 none
12 Nitrogen NOx (mg/m3) 0,5/1,0 none
12 NH3 (mg/m3) 1,0/3,0 none
12 Hydrogen fluoride HF
(mg/m3) 0,01/0,03 none
12 Ozone O3
(mg/m3) 0,05/0,1 none
12 Mechanically
active substances Dust sedimentation (mg/(m2h)) 20
13 suspension (mg/m3) 5
13 Sand
(mg/m3) 300
13 Flora and fauna Micro organisms mould, fungus, etc. none
14 Rodents, insects rodents, etc. none
14 SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)9 Environmental parameter Environmental Class 4.1 Environmental test specification T 4.1: Stationary use, Non-weatherprotected locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes NOTE 1: (Air temperature, low). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar irradiation. The higher test temperature includes heat irradiation emitted from the equipment. If a cold start up test is performed, the characteristic severity should be used as a cold start up temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence once low temperature stability is achieved. NOTE 2: (Air temperature, high). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar radiation or the equipment is ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. If a high temperature start up test is performed, the characteristic severity should be used as a high start up temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the high temperature start up test shall commence once high temperature stability is achieved. NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature of the surface has a significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied (e.g. heat sinks). NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab shall be used with test severities not higher than climatogram limits for this class. NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class. NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab. NOTE 7: (Air pressure, low and high). No test shall be used for normal applications, because the effect of air pressure is evaluated at the component level. NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter. NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1 has been chosen even if it does not imitate normal rain. It is a simple hand held shower test, easy to perform and can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low temperature of the rain is included in IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen. NOTE 10: (Water, other sources). No test is recommended because the effect is already included in IEC 60068-2-18 [15] Test Rb. NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2. Photochemical tests can be made separately for component and materials. NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when designing the equipment and when choosing components and materials. No test is recommended in the present document, except for the mechanical enclosures, where the salt mist test is required to be performed. The execution of this test can be performed on the entire enclosure or subparts of the enclosure if the results are not affected. NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and therefore no test is recommended. This condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)10 3.2 Specification T 4.1E: Non-weatherprotected locations - extended, climatic tests The specification in table 2 shall apply to Non-weatherprotected locations - extended as described in ETSI EN 300 019-1-4 [1]. Table 2: Test specification T 4.1E: Stationary use at non-weatherprotected locations, extended - climatic tests Environmental parameter Environmental Class 4.1E Environmental test specification T 4.1E: Stationary use Non-weatherprotected locations - extended Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Air temperature Low

(°C) -45 -45 or -55 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold 1 High
(°C) +45 +45 or +60 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat 2 Change
(°C)
(°C/min)
0,5 -10/+45 0,5 2 cycles t1 = 3 h IEC 60068-2-14 [8] Nb: Change of temperature 3
Humidity
Relative low (%) 8 none
8 high (%)
(°C) 100 93 +30 10 d
IEC 60068-2-78 [16] Cab: Damp heat steady state 4 condensation
(%)
(°C) yes

90-100 +30 2 cycles IEC 60068-2-30 [9] Db: Damp heat cyclic Variant 1 5 Absolute low (g/m3) 0,03 none

6 high (g/m3) 30
Air Pressure low (kPa) 70 none
7 high (kPa) 106 none
7 Speed
(m/s) 50
none

8 Water Rain intensity 15 mm/min 0,01 m3/min 90 kPa 6 min/m2 or 30 min IEC 60068-2-18 [15] Rb: Impacting water, method 1 9 low temperature (°C) +5 none

Other sources
splashing water
10 Icing & frosting
yes none
8 Radiation Solar
(W/m2) 1 120
11 Heat
(W/m2) negligible
SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)11 Environmental parameter Environmental Class 4.1E Environmental test specification T 4.1E: Stationary use Non-weatherprotected locations - extended Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Chemically active substances Sulphur SO2 (mg/m3) 0,3/1,0 none

12 H2S (mg/m3) 0,1/0,5 none

12 Chlorine salt mist sea and road salt 35 ℃, 5 % NaCl solution 10d IEC 60068-2-11 [17] Ka: Salt mist 12 Cl (mg/m3) 0,1/0,3 none

12 HCI (mg/m3) 0,1/0,5 none
12 Nitrogen NOx (mg/m3) 0,5/1,0 none
12 NH3 (mg/m3) 1,0/3,0 none
12 Hydrogen fluoride HF
(mg/m3) 0,01/0,03 none
12 Ozone O3
(mg/m3) 0,05/0,1 none
12 Mechanically
active substances Dust sedimentation (mg/(m2h)) 20
13 suspension (mg/m3) 5
13 Sand
(mg/m3) 300
13 Flora and fauna Micro organisms mould, fungus, etc. none
14 Rodents, insects rodents, etc. none
14 SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)12 Environmental parameter Environmental Class 4.1E Environmental test specification T 4.1E: Stationary use Non-weatherprotected locations - extended Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes NOTE 1: (Air temperature, low). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar irradiation. The higher test temperature includes heat irradiation emitted from the equipment. If a cold start up test is performed, the characteristic severity should be used as a cold start up temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence once low temperature stability is achieved. NOTE 2: (Air temperature, high). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar radiation or the equipment is ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. If a high temperature start up test is performed, the characteristic severity should be used as a high start up temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the high temperature start up test shall commence once high temperature stability is achieved. NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature of the surface has a significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied (e.g. heat sinks). NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab is shall be used with test severities not higher than climatogram limits for this class. NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class. NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab. NOTE 7:

(Air pressure, low and high). No test shall be used for normal applications, because the effect of air pressure is evaluated at the component level. NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter. NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1 has been chosen even if it does not imitate normal rain. It is a simple hand held shower test, easy to perform and can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low temperature of the rain is included in IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen. NOTE 10: (Water, other sources). No test is recommended because the effect is already included in IEC 60068-2-18 [15] Test Rb. NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2. Photochemical tests can be made separately for component and materials. NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when designing the equipment and when choosing components and materials. No test is recommended in the present document, except for the mechanical enclosures, where the salt mist test is required to be performed. The execution of this test can be performed on the entire enclosure or subparts of the enclosure if the results are not affected. NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and therefore no test is recommended. This condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)13 3.3 Specification T 4.2L: Non-weatherprotected locations - extremely cold, climatic tests The specification in table 3 shall apply to Non-weatherprotected locations - extremely cold as described in ETSI EN 300 019-1-4 [1] (see table 3). Table 3: Test specification T 4.2L: Stationary use at non-weatherprotected locations, extremely cold - climatic tests Environmental parameter Environmental Class 4.2L Environmental test specification T 4.2L: Stationary use Non-weatherprotected locations - extremely cold Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Air temperature Low

(°C) -65 -65 or -75 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold 1 High
(°C) +35 +35 or +50 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat 2 Change
(°C)
(°C/min)
0,5 -10/+45 0,5 2 cycles t1 = 3 h IEC 60068-2-14 [8] Nb: Change of temperature 3
Humidity
Relative low (%) 20 none
8 high (%)
(°C) 100 93 +30 10 d
IEC 60068-2-78 [16] Cab: Damp heat steady state 4 condensation
(%)
(°C) yes

90 -100 +30 2 cycles IEC 60068-2-30 [9] Db: Damp heat cyclic Variant 1 5 Absolute low (g/m3) 0,003 none

6 high (g/m3) 22
Air Pressure low (kPa) 70 none
7 high (kPa) 106 none
7 Speed
(m/s) 50
none
8 Water Rain intensity 15 mm/min 0,01 m3/min
90 kPa 6 min/m2 or

30 min IEC 60068-2-18 [15] Rb: Impacting water, method 1 9 low temperature (°C) +5 none

Other sources
splashing water
10 Icing & frosting
yes none
8 SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)14 Environmental parameter Environmental Class 4.2L Environmental test specification T 4.2L: Stationary use Non-weatherprotected locations - extremely cold Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes Radiation Solar

(W/m2) 1 120
11 Heat
(W/m2) negligible
Chemically active substances Sulphur SO2 (mg/m3) 0,3/1,0 none
12 H2S (mg/m3) 0,1/0,5 none

12 Chlorine salt mist sea and road salt 35 ℃, 5 % Nacl solution 10d IEC 60068-2-11 [17] Ka: Salt mist 12 Cl (mg/m3) 0,1/0,3 none

12 HCl (mg/m3) 0,1/0,5 none
12 Nitrogen NOx (mg/m3) 0,5/1,0 none
12 NH3 (mg/m3) 1,0/3,0 none
12 Hydrogen fluoride HF
(mg/m3) 0,01/0,03 none
12 Ozone O3
(mg/m3) 0,05/0,1 none
12 Mechanically active substances Dust sedimentation
(mg/(m2h)) 20
13 suspension
(mg/m3) 5
13 Sand
(mg/m3) 300
13 Flora and fauna Micro organisms mould, fungus, etc. none
14 Rodents, insects rodents, etc. none
14 SIST EN 300 019-2-4 V2.4.1:2016

ETSI ETSI EN 300 019-2-4 V2.4.1 (2015-12)15 Environmental parameter Environmental Class 4.2L Environmental test specification T 4.2L: Stationary use Non-weatherprotected locations - extremely cold Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Notes NOTE 1: (Air temperature, low). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar irradiation. The higher test temperature includes heat irradiation emitted from the equipment. If a cold start up test is performed, the characteristic severity should be used as a cold start up temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence once low temperature stability is achieved. NOTE 2: (Air temperature, high). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar radiation or the equipment is ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. If a high temperature s

...

ETSI EN 300 019-2-4 V2.4.1 (2015-12)
EUROPEAN STANDARD
Environmental Engineering (EE);
Environmental conditions and environmental tests
for telecommunications equipment;
Part 2-4: Specification of environmental tests;
Stationary use at non-weatherprotected locations
---------------------- Page: 1 ----------------------

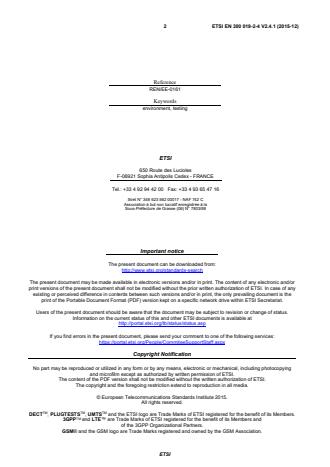

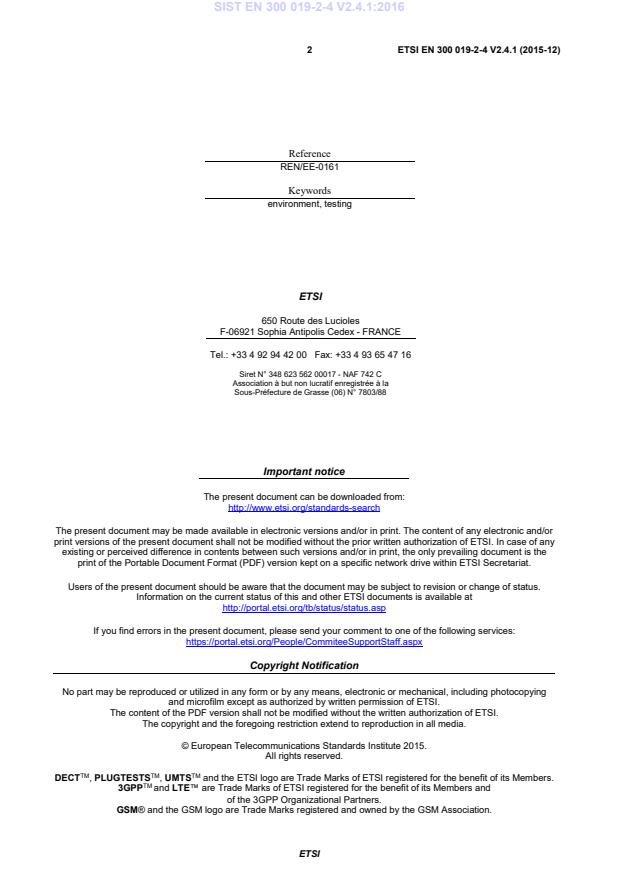

2 ETSI EN 300 019-2-4 V2.4.1 (2015-12)
Reference
REN/EE-0161
Keywords
environment, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the

print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

http://portal.etsi.org/tb/status/status.asp

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying

and microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2015.
All rights reserved.
TM TM TM

DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.

3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and

of the 3GPP Organizational Partners.

GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.

ETSI
---------------------- Page: 2 ----------------------
3 ETSI EN 300 019-2-4 V2.4.1 (2015-12)
Contents

Intellectual Property Rights ................................................................................................................................ 4

Foreword ............................................................................................................................................................. 4

Modal verbs terminology .................................................................................................................................... 4

1 Scope ........................................................................................................................................................ 5

2 References ................................................................................................................................................ 5

2.1 Normative references ......................................................................................................................................... 5

2.2 Informative references ........................................................................................................................................ 6

3 Environmental test specifications ............................................................................................................. 6

3.1 Specification T 4.1: Non-weatherprotected locations, climatic tests .................................................................. 7

3.2 Specification T 4.1E: Non-weatherprotected locations - extended, climatic tests ............................................ 10

3.3 Specification T 4.2L: Non-weatherprotected locations - extremely cold, climatic tests .................................. 13

3.4 Specification T 4.2H: Non-weatherprotected locations - extremely warm dry, climatic tests ......................... 16

3.5 Specification T 4.1, 4.1E, 4.2L and 4.2H: Non-weatherprotected locations - mechanical tests ....................... 19

4 Earthquake test specification .................................................................................................................. 21

4.1 Vibration response investigation ...................................................................................................................... 21

4.2 Test conditioning .............................................................................................................................................. 21

Annex A (informative): Bibliography ................................................................................................... 24

History .............................................................................................................................................................. 25

ETSI
---------------------- Page: 3 ----------------------

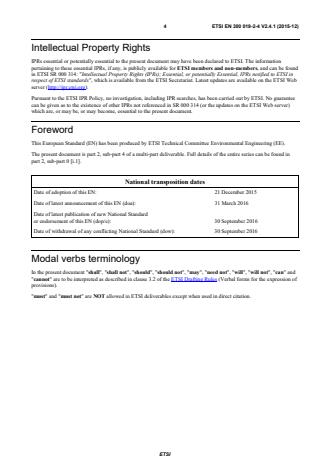

4 ETSI EN 300 019-2-4 V2.4.1 (2015-12)
Intellectual Property Rights

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (http://ipr.etsi.org).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)

which are, or may be, or may become, essential to the present document.
Foreword

This European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE).

The present document is part 2, sub-part 4 of a multi-part deliverable. Full details of the entire series can be found in

part 2, sub-part 0 [i.1].
National transposition dates
Date of adoption of this EN: 21 December 2015
Date of latest announcement of this EN (doa): 31 March 2016
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 September 2016
Date of withdrawal of any conflicting National Standard (dow): 30 September 2016
Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
---------------------- Page: 4 ----------------------
5 ETSI EN 300 019-2-4 V2.4.1 (2015-12)
1 Scope

The present document specifies test methods and severities for verification of the required resistibility of equipment

according to the relevant environmental class.

The tests defined in the present document apply to stationary use of equipment at non-weatherprotected locations

covering the environmental conditions stated in ETSI EN 300 019-1-4 [1].
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

reference document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

http://docbox.etsi.org/Reference.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ETSI EN 300 019-1-4: "Environmental Engineering (EE); Environmental conditions and

environmental tests for telecommunications equipment; Part 1-4: Classification of environmental

conditions; Stationary use at non-weatherprotected locations".

[2] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".

[3] Void.
[4] Void.

[5] ANSI T1.0600329 (2008): "Network Equipment - Earthquake Resistance Standard".

[6] Void.

[7] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".

[8] IEC 60068-2-14 (01-2009): "Environmental testing - Part 2-14: Tests - Test N: Change of

temperature".

[9] IEC 60068-2-30 (08-2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic

(12 h + 12 h cycle)".

[10] IEC 60068-2-64 (04-2008): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration,

broadband random and guidance".

[11] IEC 60068-2-27 (02-2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance:

Shock".

[12] IEC 60068-2-6 (12-2007): "Environmental testing - Part 2-6: Tests - Test Fc: Vibration

(sinusoidal)".

[13] IEC 60068-2-57 (11-1999): "Environmental testing - Part 2-57: Tests - Test Ff: Vibration - Time

history method".
[14] Void.

[15] IEC 60068-2-18 (10-2000): "Environmental testing - Part 2-18: Tests - Test R and guidance:

Water".
ETSI
---------------------- Page: 5 ----------------------
6 ETSI EN 300 019-2-4 V2.4.1 (2015-12)

[16] IEC 60068-2-78 (08-2001): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat,

steady state".

[17] IEC 60068-2-11 (01-1981): "Basic environmental testing procedures - Part 2-11: Tests - Test Ka:

Salt mist".
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

reference document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.

[i.1] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and

environmental tests for telecommunications equipment; Part 2-0: Specification of environmental

tests; Introduction".

[i.2] IEC 60068-2-68 (8-1994): "Environmental testing - Part 2: Tests - Test L: Dust and sand".

[i.3] IEC 60068-2 (all parts): "Environmental testing - Part 2: Tests".
3 Environmental test specifications

The detailed descriptions of the environmental conditions are given in clauses 4 and 5 of ETSI EN 300 019-1-4 [1].

ETSI EN 300 019-2-0 [i.1] forms a general overview of part 2 of this multi-part deliverable.

The equipment under test is assumed to be in its operational state throughout the test conditions described in the present

document unless otherwise stated. The required performance before, during and after the test need to be specified in the

product specification. Input and load conditions of the equipment shall be chosen to obtain full utilization of the

equipment under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where

it shall be minimized.
ETSI
---------------------- Page: 6 ----------------------
7 ETSI EN 300 019-2-4 V2.4.1 (2015-12)
3.1 Specification T 4.1: Non-weatherprotected locations, climatic tests

The specification in table 1 shall apply to Non-weatherprotected locations described in ETSI EN 300 019-1-4 [1].

Table 1: Test specification T 4.1: Stationary use at non-weatherprotected locations - climatic tests

Environmental parameter Environmental Environmental test specification T 4.1: Stationary use,

Class 4.1 Non-weatherprotected locations

Type Parameter Detail parameter Characteristic Test Duration Reference Method Notes

severity severity
Low (°C) -33 -33 or -45 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold 1
High (°C) +40 +40 or +55 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat 2
Air
(°C) -10/+40 2 cycles IEC 60068-2-14 [8] Nb: Change of 3
temperature Change
(°C/min) 0,5 0,5 t = 3 h temperature
Low (%) 15 none 8
high (%) 100 93 10 d IEC 60068-2-78 [16] Cab: Damp heat 4
Relative (°C) +30 steady state
condensation yes 5
Humidity
(%) 90-100 2 cycles IEC 60068-2-30 [9] Db: Damp heat, cyclic
(°C) +30 Variant 1
0,26 none
Low (g/m )
Absolute
25 6
high (g/m )
Low (kPa) 70 none 7
Pressure
high (kPa) 106 none 7
Air
Speed (m/s) 50 none 8
3 2
Intensity 6 mm/min IEC 60068-2-18 [15] Rb: Impacting water 9
0,01 m /min 3 min/m
Method 1
Rain
90 kPa or 15 min
low temperature (°C) +5 none
Water
Other splashing water 10
sources
Icing & yes none 8
frosting
1 120 11
Solar
(W/m )
Radiation
negligible
Heat
(W/m )
ETSI
---------------------- Page: 7 ----------------------
8 ETSI EN 300 019-2-4 V2.4.1 (2015-12)

Environmental parameter Environmental Environmental test specification T 4.1: Stationary use,

Class 4.1 Non-weatherprotected locations

Type Parameter Detail parameter Characteristic Test Duration Reference Method Notes

severity severity
0,3/1,0 none 12
SO (mg/m )
Sulphur
0,1/0,5 none 12
HS (mg/m )
salt mist sea and road salt 35 ℃, 10d IEC 60068-2-11 [17] Ka: Salt mist 12
5 %NaCl
solution
Chlorine
Chemically 3
0,1/0,3 none 12
Cl (mg/m )
active
0,1/0,5 none 12
HCI (mg/m )
substances
0,5/1,0 none 12
NO (mg/m )
Nitrogen
1,0/3,0 none 12
NH (mg/m )
Hydrogen 0,01/0,03 none 12
(mg/m )
fluoride HF
Ozone O 0,05/0,1 none 12
(mg/m )
sedimentation 20 13
(mg/(m h))
Mechanically
Dust
suspension 5 13
active
substances (mg/m
300 13
Sand
(mg/m )
Flora and Micro organisms mould, fungus, etc. none 14
fauna Rodents, insects rodents, etc. none 14
ETSI
---------------------- Page: 8 ----------------------
9 ETSI EN 300 019-2-4 V2.4.1 (2015-12)

Environmental parameter Environmental Environmental test specification T 4.1: Stationary use,

Class 4.1 Non-weatherprotected locations

Type Parameter Detail parameter Characteristic Test Duration Reference Method Notes

severity severity

NOTE 1: (Air temperature, low). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance,

according to product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar

irradiation. The higher test temperature includes heat irradiation emitted from the equipment. If a cold start up test is performed, the characteristic

severity should be used as a cold start up temperature, but it may be modified (within the class characteristic severity range) by the product

specification. In this case, the cold start up test shall commence once low temperature stability is achieved.

NOTE 2: (Air temperature, high). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance,

according to product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar

radiation or the equipment is ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. If a high

temperature start up test is performed, the characteristic severity should be used as a high start up temperature, but it may be modified (within the

class characteristic severity range) by the product specification. In this case, the high temperature start up test shall commence once high

temperature stability is achieved.

NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature

of the surface has a significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied (e.g. heat sinks).

NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab shall be used with test severities not higher than climatogram limits for this class.

NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class.

NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab.

NOTE 7: (Air pressure, low and high). No test shall be used for normal applications, because the effect of air pressure is evaluated at the component level.

NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter.

NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1 has been chosen even if it does not imitate normal rain. It is a simple hand held shower test,

easy to perform and can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low

temperature of the rain is included in IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen.

NOTE 10: (Water, other sources). No test is recommended because the effect is already included in IEC 60068-2-18 [15] Test Rb.

NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2.

Photochemical tests can be made separately for component and materials.

NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when

designing the equipment and when choosing components and materials. No test is recommended in the present document, except for the mechanical

enclosures, where the salt mist test is required to be performed. The execution of this test can be performed on the entire enclosure or subparts of the

enclosure if the results are not affected.

NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and

therefore no test is recommended. This condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

ETSI
---------------------- Page: 9 ----------------------
10 ETSI EN 300 019-2-4 V2.4.1 (2015-12)

3.2 Specification T 4.1E: Non-weatherprotected locations - extended, climatic tests

The specification in table 2 shall apply to Non-weatherprotected locations - extended as described in ETSI EN 300 019-1-4 [1].

Table 2: Test specification T 4.1E: Stationary use at non-weatherprotected locations, extended - climatic tests

Environmental parameter Environmental Environmental test specification T 4.1E: Stationary use

Class 4.1E Non-weatherprotected locations - extended

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity
Low (°C) -45 -45 or -55 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold 1
Air High (°C) +45 +45 or +60 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat 2
temperature
(°C) -10/+45 2 cycles IEC 60068-2-14 [8] Nb: Change of 3
Change
(°C/min) 0,5 0,5 t1 = 3 h temperature
low (%) 8 none 8
high (%) 100 93 10 d IEC 60068-2-78 [16] Cab: Damp heat steady 4
(°C) +30 state
Relative
condensation yes 2 cycles IEC 60068-2-30 [9] Db: Damp heat cyclic 5
(%) 90-100 Variant 1
Humidity
(°C) +30
0,03 none 6
low (g/m )
Absolute
high (g/m )
low (kPa) 70 none 7
Pressure
high (kPa) 106 none 7
Air
(m/s) 50 none 8
Speed
3 2
intensity 15 mm/min IEC 60068-2-18 [15] Rb: Impacting water, 9
0,01 m /min 90 kPa 6 min/m or 30 min
Rain method 1
Water low temperature (°C) +5 none
Other sources splashing water 10
Icing & frosting yes none 8
1 120 11
Solar
(W/m )
Radiation
2negligible
Heat
(W/m )
ETSI
---------------------- Page: 10 ----------------------
11 ETSI EN 300 019-2-4 V2.4.1 (2015-12)

Environmental parameter Environmental Environmental test specification T 4.1E: Stationary use

Class 4.1E Non-weatherprotected locations - extended

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity
0,3/1,0 none 12
SO (mg/m )
Sulphur
0,1/0,5 none 12
HS (mg/m )
salt mist sea and road 35 ℃, 5 % NaCl 10d IEC 60068-2-11 [17] Ka: Salt mist 12
salt
solution
Chlorine
0,1/0,3 none 12
Cl (mg/m )
Chemically
0,1/0,5 none 12
active
HCI (mg/m )
substances 3
0,5/1,0 none 12
NO (mg/m )
Nitrogen
1,0/3,0 none 12
NH (mg/m )
Hydrogen 0,01/0,03 none 12
(mg/m )
fluoride HF
Ozone O 0,05/0,1 none 12
(mg/m )
sedimentation 20 13
Mechanically
Dust (mg/(m h))
active
5 13
suspension (mg/m )
substances
300 13
Sand
(mg/m )
Micro organisms mould, fungus, none 14
Flora and
etc.
fauna
Rodents, insects rodents, etc. none 14
ETSI
---------------------- Page: 11 ----------------------
12 ETSI EN 300 019-2-4 V2.4.1 (2015-12)

Environmental parameter Environmental Environmental test specification T 4.1E: Stationary use

Class 4.1E Non-weatherprotected locations - extended

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity

NOTE 1: (Air temperature, low). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to

product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar irradiation. The higher test

temperature includes heat irradiation emitted from the equipment. If a cold start up test is performed, the characteristic severity should be used as a cold start up

temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence once

low temperature stability is achieved.

NOTE 2: (Air temperature, high). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to

product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar radiation or the equipment is

ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. If a high temperature start up test is performed, the

characteristic severity should be used as a high start up temperature, but it may be modified (within the class characteristic severity range) by the product

specification. In this case, the high temperature start up test shall commence once high temperature stability is achieved.

NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature of the surface

has a significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied (e.g. heat sinks).

NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab is shall be used with test severities not higher than climatogram limits for this class.

NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class.

NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab.

NOTE 7: (Air pressure, low and high). No test shall be used for normal applications, because the effect of air pressure is evaluated at the component level.

NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter.

NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1 has been chosen even if it does not imitate normal rain. It is a simple hand held shower test, easy to perform and

can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low temperature of the rain is included in

IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen.

NOTE 10: (Water, other sources). No test is recommended because the effect is already included in IEC 60068-2-18 [15] Test Rb.

NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2. Photochemical tests

can be made separately for component and materials.

NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when designing the

equipment and when choosing components and materials. No test is recommended in the present document, except for the mechanical enclosures, where the salt

mist test is required to be performed. The execution of this test can be performed on the entire enclosure or subparts of the enclosure if the results are not affected.

NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and therefore no test is

recommended. This condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

ETSI
---------------------- Page: 12 ----------------------
13 ETSI EN 300 019-2-4 V2.4.1 (2015-12)

3.3 Specification T 4.2L: Non-weatherprotected locations - extremely cold, climatic tests

The specification in table 3 shall apply to Non-weatherprotected locations - extremely cold as described in ETSI EN 300 019-1-4 [1] (see table 3).

Table 3: Test specification T 4.2L: Stationary use at non-weatherprotected locations, extremely cold - climatic tests

Environmental parameter Environmental Environmental test specification T 4.2L: Stationary use

Class 4.2L Non-weatherprotected locations - extremely cold

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity
Low (°C) -65 -65 or -75 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold 1
Air High (°C) +35 +35 or +50 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat 2
temperature
(°C) -10/+45 2 cycles IEC 60068-2-14 [8] Nb: Change of temperature 3
Change
(°C/min) 0,5 0,5 t1 = 3 h
low (%) 20 none 8
high (%) 100 93 10 d IEC 60068-2-78 [16] Cab: Damp heat steady state 4
(°C) +30
Relative
condensation yes 2 cycles IEC 60068-2-30 [9] Db: Damp heat cyclic Variant 1 5
(%) 90 -100
Humidity
(°C) +30
0,003 none 6
low (g/m )
Absolute
high (g/m )
low (kPa) 70 none 7
Pressure
high (kPa) 106 none 7
Air
(m/s) 50 none 8
Speed
3 2
intensity 15 mm/min IEC 60068-2-18 [15] Rb: Impacting water, method 1 9
0,01 m /min 6 min/m or
Rain
90 kPa 30 min
low temperature (°C) +5 none
Water
Other splashing water 10
sources
Icing & yes none 8
frosting
ETSI
---------------------- Page: 13 ----------------------
14 ETSI EN 300 019-2-4 V2.4.1 (2015-12)

Environmental parameter Environmental Environmental test specification T 4.2L: Stationary use

Class 4.2L Non-weatherprotected locations - extremely cold

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity
1 120 11
Solar
(W/m )
Radiation
negligible
Heat
(W/m )
Chemically Sulphur 0,3/1,0 none 12
SO (mg/m )
active
0,1/0,5 none 12
HS (mg/m )
substances 2

Chlorine salt mist sea and road 35 ℃, 5 % Nacl 10d IEC 60068-2-11 [17] Ka: Salt mist 12

salt solution
0,1/0,3 none 12
Cl (mg/m )
0,1/0,5 none 12
HCl (mg/m )
Nitrogen 0,5/1,0 none 12
NO (mg/m )
1,0/3,0 none 12
NH (mg/m )
Hydrogen 0,01/0,03 none 12
(mg/m )
fluoride HF
Ozone O 0,05/0,1 none 12
(mg/m )
Mechanically Dust sedimentation 20 13
active
(mg/(m h))
substances
suspension 5 13
(mg/m )
Sand 300 13
(mg/m )
Flora and Micro organisms mould, fungus, none 14
fauna etc.
Rodents, insects rodents, etc. none 14
ETSI
---------------------- Page: 14 ----------------------
15 ETSI EN 300 019-2-4 V2.4.1 (2015-12)

Environmental parameter Environmental Environmental test specification T 4.2L: Stationary use

Class 4.2L Non-weatherprotected locations - extremely cold

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity

NOTE 1: (Air temperature, low). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to

product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar irradiation. The higher test

temperature includes heat irradiation emitted from the equipment. If a cold start up test is performed, the characteristic severity should be used as a cold start up

temperature, but it
...

Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)
EUROPEAN STANDARD
Environmental Engineering (EE);
Environmental conditions and environmental tests
for telecommunications equipment;
Part 2-4: Specification of environmental tests;
Stationary use at non-weatherprotected locations
---------------------- Page: 1 ----------------------

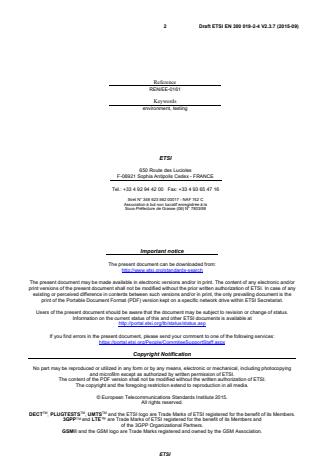

2 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)
Reference
REN/EE-0161
Keywords
environment, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the

print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

http://portal.etsi.org/tb/status/status.asp

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying

and microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2015.
All rights reserved.
TM TM TM

DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.

3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and

of the 3GPP Organizational Partners.

GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.

ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)
Contents

Intellectual Property Rights ................................................................................................................................ 4

Foreword ............................................................................................................................................................. 4

Modal verbs terminology .................................................................................................................................... 4

1 Scope ........................................................................................................................................................ 5

2 References ................................................................................................................................................ 5

2.1 Normative references ......................................................................................................................................... 5

2.2 Informative references ........................................................................................................................................ 6

3 Environmental test specifications ............................................................................................................. 6

3.1 Specification T 4.1: Non-weatherprotected locations, climatic tests .................................................................. 7

3.2 Specification T 4.1E: Non-weatherprotected locations - extended, climatic tests ............................................ 10

3.3 Specification T 4.2L: Non-weatherprotected locations - extremely cold, climatic tests .................................. 13

3.4 Specification T 4.2H: Non-weatherprotected locations - extremely warm dry, climatic tests ......................... 16

3.5 Specification T 4.1, 4.1E, 4.2L and 4.2H: Non-weatherprotected locations - mechanical tests ....................... 19

4 Earthquake test specification .................................................................................................................. 21

4.1 Vibration response investigation ...................................................................................................................... 21

4.2 Test conditioning .............................................................................................................................................. 21

Annex A (informative): Bibliography ................................................................................................... 24

History .............................................................................................................................................................. 25

ETSI
---------------------- Page: 3 ----------------------
4 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)
Intellectual Property Rights

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (http://ipr.etsi.org).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)

which are, or may be, or may become, essential to the present document.
Foreword

This draft European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE),

and is now submitted for the combined Public Enquiry and Vote phase of the ETSI standards EN Approval Procedure.

The present document is part 2, sub-part 4 of a multi-part deliverable. Full details of the entire series can be found in

part 2, sub-part 0 [i.1].
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa

Date of withdrawal of any conflicting National Standard (dow): 6 months after doa

Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)
1 Scope

The present document specifies test methods and severities for verification of the required resistibility of equipment

according to the relevant environmental class.

The tests defined in the present document apply to stationary use of equipment at non-weatherprotected locations

covering the environmental conditions stated in ETSI EN 300 019-1-4 [1].
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

reference document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

http://docbox.etsi.org/Reference.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ETSI EN 300 019-1-4: "Environmental Engineering (EE); Environmental conditions and

environmental tests for telecommunications equipment; Part 1-4: Classification of environmental

conditions; Stationary use at non-weatherprotected locations".

[2] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".

[3] Void.
[4] Void.

[5] ANSI T1.0600329 (2008): "Network Equipment - Earthquake Resistance Standard".

[6] Void.

[7] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".

[8] IEC 60068-2-14 (01-2009): "Environmental testing - Part 2-14: Tests - Test N: Change of

temperature".

[9] IEC 60068-2-30 (08-2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic

(12 h + 12 h cycle)".

[10] IEC 60068-2-64 (04-2008): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration,

broadband random and guidance".

[11] IEC 60068-2-27 (02-2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance:

Shock".

[12] IEC 60068-2-6 (12-2007): "Environmental testing - Part 2-6: Tests - Test Fc: Vibration

(sinusoidal)".

[13] IEC 60068-2-57 (11-1999): "Environmental testing - Part 2-57: Tests - Test Ff: Vibration - Time

history method".
[14] Void.

[15] IEC 60068-2-18 (10-2000): "Environmental testing - Part 2-18: Tests - Test R and guidance:

Water".
ETSI
---------------------- Page: 5 ----------------------
6 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)

[16] IEC 60068-2-78 (08-2001): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat,

steady state".

[17] IEC 60068-2-11 (01-1981): "Basic environmental testing procedures - Part 2-11: Tests - Test Ka:

Salt mist".
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

reference document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.

[i.1] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and

environmental tests for telecommunications equipment; Part 2-0: Specification of environmental

tests; Introduction".

[i.2] IEC 60068-2-68 (8-1994): "Environmental testing - Part 2: Tests - Test L: Dust and sand".

[i.3] IEC 60068-2 (all parts): "Environmental testing".
3 Environmental test specifications

The detailed descriptions of the environmental conditions are given in clauses 4 and 5 of ETSI EN 300 019-1-4 [1].

ETSI EN 300 019-2-0 [i.1] forms a general overview of part 2 of this multi-part deliverable.

The equipment under test is assumed to be in its operational state throughout the test conditions described in the present

document unless otherwise stated. The required performance before, during and after the test need to be specified in the

product specification. Input and load conditions of the equipment shall be chosen to obtain full utilization of the

equipment under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where

it shall be minimized.
ETSI
---------------------- Page: 6 ----------------------
7 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)
3.1 Specification T 4.1: Non-weatherprotected locations, climatic tests

The specification in table 1 shall apply to Non-weatherprotected locations described in ETSI EN 300 019-1-4 [1].

Table 1: Test specification T 4.1: Stationary use at non-weatherprotected locations - climatic tests

Environmental parameter Environmental Environmental test specification T 4.1: Stationary use,

Class 4.1 Non-weatherprotected locations

Type Parameter Detail parameter Characteristic Test Duration Reference Method Notes

severity severity
Low (°C) -33 -33 or -45 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold 1
High (°C) +40 +40 or +55 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat 2
Air
(°C) -10/+40 2 cycles IEC 60068-2-14 [8] Nb: Change of 3
temperature Change
(°C/min) 0,5 0,5 t = 3 h temperature
Low (%) 15 none 8
high (%) 100 93 10 d IEC 60068-2-78 [16] Cab: Damp heat 4
Relative (°C) +30 steady state
condensation yes 5
Humidity
(%) 90-100 2 cycles IEC 60068-2-30 [9] Db: Damp heat, cyclic
(°C) +30 Variant 1
0,26 none
Low (g/m )
Absolute
25 6
high (g/m )
Low (kPa) 70 none 7
Pressure
high (kPa) 106 none 7
Air
Speed (m/s) 50 none 8
3 2
Intensity 6 mm/min IEC 60068-2-18 [15] Rb: Impacting water 9
0,01 m /min 3 min/m
Method 1
Rain
90 kPa or 15 min
low temperature (°C) +5 none
Water
Other splashing water 10
sources
Icing & yes none 8
frosting
1 120 11
Solar
(W/m )
Radiation
negligible
Heat
(W/m )
ETSI
---------------------- Page: 7 ----------------------
8 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)

Environmental parameter Environmental Environmental test specification T 4.1: Stationary use,

Class 4.1 Non-weatherprotected locations

Type Parameter Detail parameter Characteristic Test Duration Reference Method Notes

severity severity
0,3/1,0 none 12
SO (mg/m )
Sulphur
0,1/0,5 none 12
HS (mg/m )
salt mist sea and road salt 35 ℃, 10d IEC 60068-2-11 [17] Ka: Salt mist 12
5 %NaCl
solution
Chlorine
Chemically 3
0,1/0,3 none 12
Cl (mg/m )
active
0,1/0,5 none 12
HCI (mg/m )
substances
0,5/1,0 none 12
NO (mg/m )
Nitrogen
1,0/3,0 none 12
NH (mg/m )
Hydrogen 0,01/0,03 none 12
(mg/m )
fluoride HF
Ozone O 0,05/0,1 none 12
(mg/m )
sedimentation 20 13
(mg/(m h))
Mechanically
Dust
suspension 5 13
active
substances (mg/m
300 13
Sand
(mg/m )
Flora and Micro organisms mould, fungus, etc. none 14
fauna Rodents, insects rodents, etc. none 14
ETSI
---------------------- Page: 8 ----------------------
9 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)

Environmental parameter Environmental Environmental test specification T 4.1: Stationary use,

Class 4.1 Non-weatherprotected locations

Type Parameter Detail parameter Characteristic Test Duration Reference Method Notes

severity severity

NOTE 1: (Air temperature, low). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance,

according to product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar

irradiation. The higher test temperature includes heat irradiation emitted from the equipment. If a cold start up test is performed, the characteristic

severity should be used as a cold start up temperature, but it may be modified (within the class characteristic severity range) by the product

specification. In this case, the cold start up test shall commence once low temperature stability is achieved.

NOTE 2: (Air temperature, high). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance,

according to product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar

radiation or the equipment is ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. If a high

temperature start up test is performed, the characteristic severity should be used as a high start up temperature, but it may be modified (within the

class characteristic severity range) by the product specification. In this case, the high temperature start up test shall commence once high

temperature stability is achieved.

NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature

of the surface has a significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied (e.g. heat sinks).

NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab shall be used with test severities not higher than climatogram limits for this class.

NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class.

NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab.

NOTE 7: (Air pressure, low and high). No test shall be used for normal applications, because the effect of air pressure is evaluated at the component level.

NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter.

NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1 has been chosen even if it does not imitate normal rain. It is a simple hand held shower test,

easy to perform and can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low

temperature of the rain is included in IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen.

NOTE 10: (Water, other sources). No test is recommended because the effect is already included in IEC 60068-2-18 [15] Test Rb.

NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2.

Photochemical tests can be made separately for component and materials.

NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when

designing the equipment and when choosing components and materials. No test is recommended in the present document, except for the mechanical

enclosures, where the salt mist test is required to be performed. The execution of this test can be performed on the entire enclosure or subparts of the

enclosure if the results are not affected.

NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and

therefore no test is recommended. This condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

ETSI
---------------------- Page: 9 ----------------------
10 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)

3.2 Specification T 4.1E: Non-weatherprotected locations - extended, climatic tests

The specification in table 2 shall apply to Non-weatherprotected locations - extended as described in ETSI EN 300 019-1-4 [1].

Table 2: Test specification T 4.1E: Stationary use at non-weatherprotected locations, extended - climatic tests

Environmental parameter Environmental Environmental test specification T 4.1E: Stationary use

Class 4.1E Non-weatherprotected locations - extended

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity
Low (°C) -45 -45 or -55 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold 1
Air High (°C) +45 +45 or +60 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat 2
temperature
(°C) -10/+45 2 cycles IEC 60068-2-14 [8] Nb: Change of 3
Change
(°C/min) 0,5 0,5 t1 = 3 h temperature
low (%) 8 none 8
high (%) 100 93 10 d IEC 60068-2-78 [16] Cab: Damp heat steady 4
(°C) +30 state
Relative
condensation yes 2 cycles IEC 60068-2-30 [9] Db: Damp heat cyclic 5
(%) 90-100 Variant 1
Humidity
(°C) +30
0,03 none 6
low (g/m )
Absolute
high (g/m )
low (kPa) 70 none 7
Pressure
high (kPa) 106 none 7
Air
(m/s) 50 none 8
Speed
3 2
intensity 15 mm/min IEC 60068-2-18 [15] Rb: Impacting water, 9
0,01 m /min 90 kPa 6 min/m or 30 min
Rain method 1
Water low temperature (°C) +5 none
Other sources splashing water 10
Icing & frosting yes none 8
1 120 11
Solar
(W/m )
Radiation
2negligible
Heat
(W/m )
ETSI
---------------------- Page: 10 ----------------------
11 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)

Environmental parameter Environmental Environmental test specification T 4.1E: Stationary use

Class 4.1E Non-weatherprotected locations - extended

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity
0,3/1,0 none 12
SO (mg/m )
Sulphur
0,1/0,5 none 12
HS (mg/m )
salt mist sea and road 35 ℃, 5 % NaCl 10d IEC 60068-2-11 [17] Ka: Salt mist 12
salt
solution
Chlorine
0,1/0,3 none 12
Cl (mg/m )
Chemically
0,1/0,5 none 12
active
HCI (mg/m )
substances 3
0,5/1,0 none 12
NO (mg/m )
Nitrogen
1,0/3,0 none 12
NH (mg/m )
Hydrogen 0,01/0,03 none 12
(mg/m )
fluoride HF
Ozone O 0,05/0,1 none 12
(mg/m )
sedimentation 20 13
Mechanically
Dust (mg/(m h))
active
5 13
suspension (mg/m )
substances
300 13
Sand
(mg/m )
Micro organisms mould, fungus, none 14
Flora and
etc.
fauna
Rodents, insects rodents, etc. none 14
ETSI
---------------------- Page: 11 ----------------------
12 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)

Environmental parameter Environmental Environmental test specification T 4.1E: Stationary use

Class 4.1E Non-weatherprotected locations - extended

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity

NOTE 1: (Air temperature, low). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to

product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar irradiation. The higher test

temperature includes heat irradiation emitted from the equipment. If a cold start up test is performed, the characteristic severity should be used as a cold start up

temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence once

low temperature stability is achieved.

NOTE 2: (Air temperature, high). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to

product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar radiation or the equipment is

ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. If a high temperature start up test is performed, the

characteristic severity should be used as a high start up temperature, but it may be modified (within the class characteristic severity range) by the product

specification. In this case, the high temperature start up test shall commence once high temperature stability is achieved.

NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature of the surface

has a significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied (e.g. heat sinks).

NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab is shall be used with test severities not higher than climatogram limits for this class.

NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class.

NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab.

NOTE 7: (Air pressure, low and high). No test shall be used for normal applications, because the effect of air pressure is evaluated at the component level.

NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter.

NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1 has been chosen even if it does not imitate normal rain. It is a simple hand held shower test, easy to perform and

can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low temperature of the rain is included in

IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen.

NOTE 10: (Water, other sources). No test is recommended because the effect is already included in IEC 60068-2-18 [15] Test Rb.

NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2. Photochemical tests

can be made separately for component and materials.

NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when designing the

equipment and when choosing components and materials. No test is recommended in the present document, except for the mechanical enclosures, where the salt

mist test is required to be performed. The execution of this test can be performed on the entire enclosure or subparts of the enclosure if the results are not affected.

NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and therefore no test is

recommended. This condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

ETSI
---------------------- Page: 12 ----------------------
13 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)

3.3 Specification T 4.2L: Non-weatherprotected locations - extremely cold, climatic tests

The specification in table 3 shall apply to Non-weatherprotected locations - extremely cold as described in ETSI EN 300 019-1-4 [1] (see table 3).

Table 3: Test specification T 4.2L: Stationary use at non-weatherprotected locations, extremely cold - climatic tests

Environmental parameter Environmental Environmental test specification T 4.2L: Stationary use

Class 4.2L Non-weatherprotected locations - extremely cold

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity
Low (°C) -65 -65 or -75 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold 1
Air High (°C) +35 +35 or +50 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat 2
temperature
(°C) -10/+45 2 cycles IEC 60068-2-14 [8] Nb: Change of temperature 3
Change
(°C/min) 0,5 0,5 t1 = 3 h
low (%) 20 none 8
high (%) 100 93 10 d IEC 60068-2-78 [16] Cab: Damp heat steady state 4
(°C) +30
Relative
condensation yes 2 cycles IEC 60068-2-30 [9] Db: Damp heat cyclic Variant 1 5
(%) 90 -100
Humidity
(°C) +30
0,003 none 6
low (g/m )
Absolute
high (g/m )
low (kPa) 70 none 7
Pressure
high (kPa) 106 none 7
Air
(m/s) 50 none 8
Speed
3 2
intensity 15 mm/min IEC 60068-2-18 [15] Rb: Impacting water, method 1 9
0,01 m /min 6 min/m or
Rain
90 kPa 30 min
low temperature (°C) +5 none
Water
Other splashing water 10
sources
Icing & yes none 8
frosting
ETSI
---------------------- Page: 13 ----------------------
14 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)

Environmental parameter Environmental Environmental test specification T 4.2L: Stationary use

Class 4.2L Non-weatherprotected locations - extremely cold

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity
1 120 11
Solar
(W/m )
Radiation
negligible
Heat
(W/m )
Chemically Sulphur 0,3/1,0 none 12
SO (mg/m )
active
0,1/0,5 none 12
HS (mg/m )
substances 2

Chlorine salt mist sea and road 35 ℃, 5 % Nacl 10d IEC 60068-2-11 [17] Ka: Salt mist 12

salt solution
0,1/0,3 none 12
Cl (mg/m )
0,1/0,5 none 12
HCl (mg/m )
Nitrogen 0,5/1,0 none 12
NO (mg/m )
1,0/3,0 none 12
NH (mg/m )
Hydrogen 0,01/0,03 none 12
(mg/m )
fluoride HF
Ozone O 0,05/0,1 none 12
(mg/m )
Mechanically Dust sedimentation 20 13
active
(mg/(m h))
substances
suspension 5 13
(mg/m )
Sand 300 13
(mg/m )
Flora and Micro organisms mould, fungus, none 14
fauna etc.
Rodents, insects rodents, etc. none 14
ETSI
---------------------- Page: 14 ----------------------
15 Draft ETSI EN 300 019-2-4 V2.3.7 (2015-09)

Environmental parameter Environmental Environmental test specification T 4.2L: Stationary use

Class 4.2L Non-weatherprotected locations - extremely cold

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Notes

severity

NOTE 1: (Air temperature, low). The equipment under test shall remain operational throughout this test (without any damage or deterioration of performance, according to

product specification). Two test temperatures are given, the lower test temperature applies if the equipment is protected against solar irradiation. The higher test

temperatur
...
