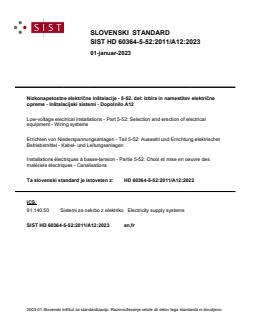

SLOVENSKI STANDARD
SIST HD 60364-5-52:2011/A12:2023
01-januar-2023
Nizkonapetostne električne inštalacije - 5-52. del: Izbira in namestitev električne
opreme - Inštalacijski sistemi - Dopolnilo A12
Low-voltage electrical installations - Part 5-52: Selection and erection of electrical
equipment - Wiring systems
Errichten von Niederspannungsanlagen - Teil 5-52: Auswahl und Errichtung elektrischer
Betriebsmittel - Kabel- und Leitungsanlagen
Installations électriques à basse-tension - Partie 5-52: Choix et mise en oeuvre des
matériels électriques - Canalisations
Ta slovenski standard je istoveten z: HD 60364-5-52:2011/A12:2022
ICS:
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
SIST HD 60364-5-52:2011/A12:2023 en,fr
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST HD 60364-5-52:2011/A12:2023

---------------------- Page: 2 ----------------------
SIST HD 60364-5-52:2011/A12:2023

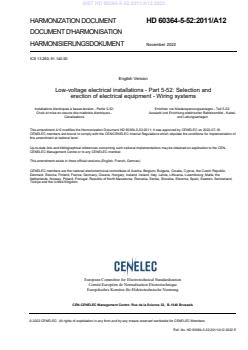

HARMONIZATION DOCUMENT HD 60364-5-52:2011/A12

DOCUMENT D'HARMONISATION

HARMONISIERUNGSDOKUMENT November 2022
ICS 13.260; 91.140.50
English Version
Low-voltage electrical installations - Part 5-52: Selection and
erection of electrical equipment - Wiring systems
Installations électriques à basse-tension - Partie 5-52: Errichten von Niederspannungsanlagen - Teil 5-52:
Choix et mise en oeuvre des matériels électriques - Auswahl und Errichtung elektrischer Betriebsmittel - Kabel-
Canalisations und Leitungsanlagen
This amendment A12 modifies the Harmonization Document HD 60364-5-52:2011; it was approved by CENELEC on 2022-07-18.
CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for implementation of
this amendment at national level.
Up-to-date lists and bibliographical references concerning such national implementations may be obtained on application to the CEN-
CENELEC Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German).
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.



European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. HD 60364-5-52:2011/A12:2022 E

---------------------- Page: 3 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)

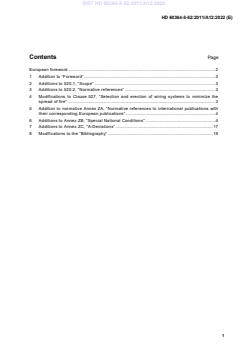

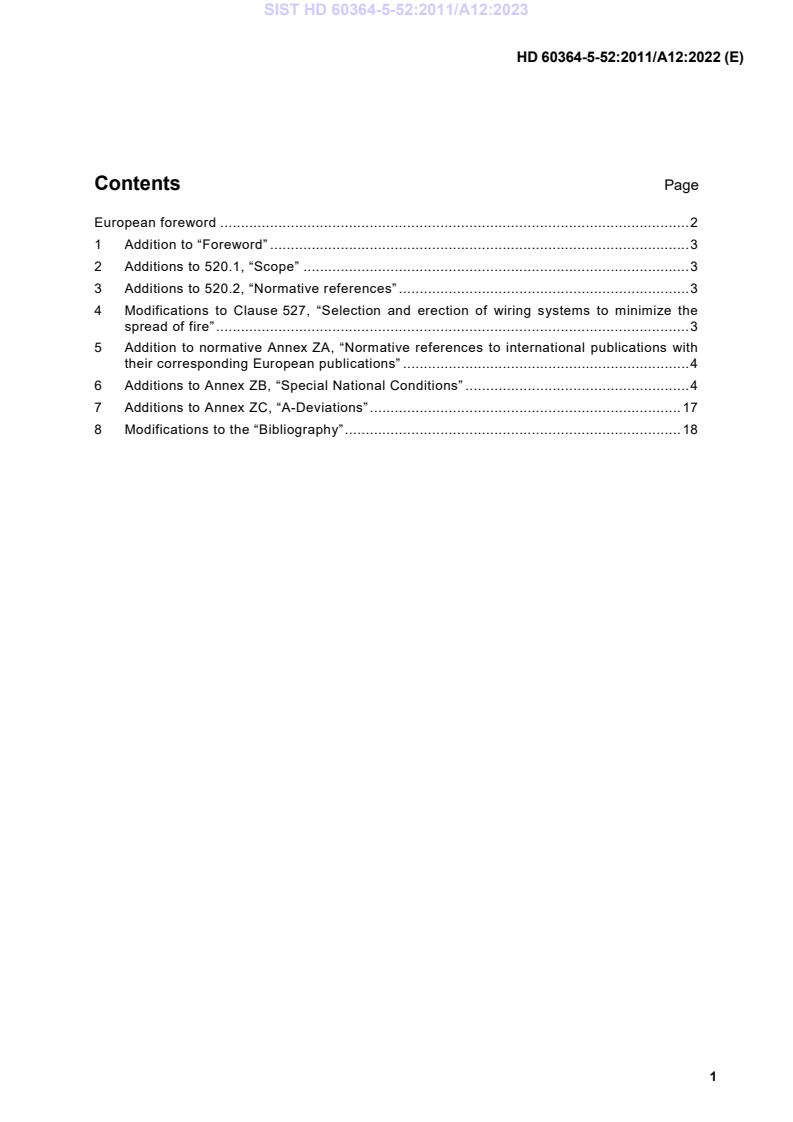

Contents Page
European foreword . 2
1 Addition to “Foreword” . 3
2 Additions to 520.1, “Scope” . 3
3 Additions to 520.2, “Normative references” . 3
4 Modifications to Clause 527, “Selection and erection of wiring systems to minimize the
spread of fire” . 3
5 Addition to normative Annex ZA, “Normative references to international publications with
their corresponding European publications” . 4
6 Additions to Annex ZB, “Special National Conditions” . 4
7 Additions to Annex ZC, “A-Deviations” . 17
8 Modifications to the “Bibliography” . 18
1

---------------------- Page: 4 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)
European foreword
This document (HD 60364-5-52:2011/A12:2022) has been prepared by CLC/TC 64 “Electrical installations and
protection against electric shock”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2023-05-25
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2025-11-25
conflicting with this document have to be
withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A complete
listing of these bodies can be found on the CENELEC website.
2

---------------------- Page: 5 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)
1 Addition to “Foreword”
Add the following after the end of the 3rd paragraph:
“The main changes with respect to the previous edition are listed below:
– For cables, the provisions of the Construction Products Regulation ((EU) No. 305/2011 (CPR)) came fully
into force on 1 July 2017 in respect of Reaction to Fire. These requirements are now expressed by reference
to the relevant Classes according to EN 13501-6.
NOTE The CPR harmonises the methods of assessment and test, the means of declaration of product performance
and the system of conformity assessment of construction products, but NOT national building regulations. The choice of
required classes for the particular intended use is left to the regulators and public / private sector procurers at the national
level. However, it is essential that such required classes are expressed in a consistent manner (technical language) as used
in the harmonized technical specifications.”
2 Additions to 520.1, “Scope”
Add the following after NOTE 2:
“Requirements for the selection of cables with respect to the classification provided in EN 13501-1 on reaction
to fire in order to comply with the Construction Products Regulation (CPR) of the EU are also provided.
NOTE 3 Whilst the CPR requires the manufacturer to declare the reaction to fire performance of the cable in accordance
with procedures and classification that are common across the EU, it is the responsibility of the Member State to determine
which class according to EN 13501-6 is required for any particular application or installation. National statutory requirements
could therefore override the classes required by this publication.”
3 Additions to 520.2, “Normative references”
Add the following reference:
“EN 13501-6, Fire classification of construction products and building elements - Part 6: Classification using
data from reaction to fire tests on electric cables”
4 Modifications to Clause 527, “Selection and erection of wiring systems to
minimize the spread of fire”
Add the following note at the end of Clause 527.1.1:

NOTE Fire hazards can be limited by appropriate selection of insulated conductors and cables providing improved
behaviour in case of fire. Such products can limit the fire propagation, can offer lower smoke emission and can, in case of
fire, even provide a continuous service of important functions for a certain period of time.
To limit the fire hazard by applying insulated conductors and cables with improved fire behaviour is especially important for
installations where a particular risk of fire is identified as described in BD2, BD3 and BD4 of HD 60364-5-51.
All cables permanently installed in Construction Work, are expected to comply with the European Construction Product
Regulation (CPR) which requests to inform about the fire performance of insulated conductors and cables by only referring
to classes as defined in EN 13501-6, and comply with the provisions of EN 50575.”
Replace the entire text of 527.1.3 with the following:
“527.1.3  Cables complying with, at least, the requirements of Class E as defined in EN 13501-6 and
ca
products classified as non-flame propagating according to Clause 527.1.5 may be installed without special
precautions.
3

---------------------- Page: 6 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)
NOTE In installations where particular risk of fire is identified, cables complying with class C -s1,d2,a1 or
ca
B2 - s1,d2,a1 as defined in EN 13501-6 could be necessary. See also 422.2.1.”
ca
Replace the entire text of 527.1.4 with the following:
“527.1.4  Cables not complying, as a minimum, with the requirements of EN 60332-1-2 or class E shall, if
ca
used, be limited to short lengths for connection of appliances to permanent wiring systems and shall, in any
event, not pass from one fire-segregated compartment to another.”
5 Addition to normative Annex ZA, “Normative references to international
publications with their corresponding European publications”
Add the following new reference to the table at the appropriate place:
“Publication Year Title EN/HD Year
- - Fire classification of construction products EN 13501-6 -
and building elements - Part 6:
Classification using data from reaction to
fire tests on power, control and
communication cables

6 Additions to Annex ZB, “Special National Conditions”
Add the following entries to the table on Special National Conditions:

Country Clause Special national condition
IT  In Italy this part is covered by the Amendment 4 to Italian Standard
CEI 64-8 and Part 751 of CEI 64-8
IE 527 In Ireland, The National Rules for Electrical Installations require that
all cables in buildings are minimum D -s2,d2,a2 in accordance with
ca
EN 50575.
AT 527.1.3 In Austria, for wiring there are special conditions established by
federal state authorities on the basis of the “OIB-Richtlinie 2 –
Brandschutz.
GB 527.1.3 In the UK the provisions of BS 7671 apply.
AT 527.1.4 In Austria, for wiring there are special conditions established by
federal state authorities on the basis of the “OIB-Richtlinie 2 –
Brandschutz.
DK Table C.52.3 Extension of an existing installation carried out under previous
national regulations applicable before 1 July 2019.
When an existing installation is extended with one new circuit, it is
permitted that no correction for groups be made to the current-
carrying capacity of the new circuit, and that the impact of the new
circuit on the existing circuits be neglected if all of the following
criteria are met:
—  The new circuit has a conductor cross-sectional area of max.
2
4 mm ;
—  The new circuit has a design load of max. 16 A;
4

---------------------- Page: 7 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)
Country Clause Special national condition
—  The new circuit is expected to carry a current not exceeding
70 % of the current-carrying capacities listed in Table C.52.1
or Table C.52.2 multiplied by any correction factor for the
ambient temperature (other than 30 °C);
—  The new circuit is not charged maximally for a period longer
than 3 h at a time.

In the table on Special National Conditions, replace the Special National Conditions for Germany with the
following:

Country Clause Special national condition
DE 520.3 Add new definition:
520.3.3
main circuit
circuit containing electrical equipment for generation, conversion, distribution or
switching of electrical power or current-using equipment
[IEC 60364-5-55 Ed. 2.2:2016-07, 557.2.2]

521.6 Amend text as follows:
Several circuits are allowed in the same conduit system, separated compartment of
cable ducting system or cable trunking system provided all conductors are
insulated for the highest nominal voltage present and the conduit system,
separated compartment of cable ducting system or cable trunking system
have a suitable cross-section.
Conduit systems shall comply with the EN 61386 series, cable trunking or ducting
systems shall comply with EN 50085 series and cable tray and cable ladder
systems shall comply with EN 61537.
NOTE Guidance on the selection of conduit systems is given in Annex F.
For installation of non-metallic conduits in free air conduits with resistance to
UV radiation shall be selected.
For installations where halogene-free material is required, non-metallic
conduit systems, cable ducting systems and cable trunking systems shall
comply with EN 50642.
For the installation of conduits in concrete the resistance to compression as
required in DIN EN 61386-1 (VDE 0605-1) has to be considered to enable the
introduction and the exchange of cables without damage after the installation
of the conduits.
Following this, the conduits shall comply with medium or high resistance to
compression and the bending behavior shall be rigid or bendable according
to DIN EN 61386-22 (VDE 0605-22).
Conduits in compliance with DIN EN 61386-24 (VDE 0605-24) classified with
N750 may be installed in or passing through concrete.
In the case of basic-insulated conductors in conduit systems, cable trunking
systems and cable ducting systems, only the conductors of one main circuit
and the auxiliary circuits associated with this main circuit may be laid in a
conduit or a single-channel trunking or one duct of a multi-channel trunking,
except in electrical and closed electrical operating areas. The uncut
5

---------------------- Page: 8 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)
Country Clause Special national condition
conductors of several circuits may, however, be fed through common
looping-through boxes.

521.9.1 This clause is amended as follows:
A flexible cable may be used for fixed wiring where the provisions of this standard
and EN 50565-2 or DIN VDE 0298-3 (VDE 0298-3) are met.
Isolated flexible cores in compliance with EN 50565-2 or DIN VDE 0298-3 (VDE
0298-3) may also be used for fixed installation. In this case, 521.10.1 shall
also be considered.

521.9.5 Add new subclause:
521.9.5
Under certain circumstances, for ease of installation, the conductor may be Class 5
according to EN 60228, in which case the designatory suffix according to DIN VDE
0292 (VDE 0292) is given by "-K".
The use of a Class 5 conductor designated "-K" does not indicate that the cable is
suitable for repeated bending.
Flexible cables or cords should not be used as fixed wiring unless contained in an
enclosure affording mechanical protection, except when used as the final
connection to fixed equipment. In which case they should be of, at least, the
'ordinary' type. Heavy duty types may be used for fixed installations in temporary
buildings.
Flexible cables or cords should not be placed under carpets or other floor
coverings, where there is
a) any risk of thermal insulating effects, leading to excessive temperature rise (see
5.3.1, a));
b) any risk of damage due to furniture or equipment resting on them or traffic
passing over them.
When flexible cables are required for use outdoors, whether of temporary or
permanent usage, reference should be made to EN 50565-2 to determine their
suitability for such usage.
PVC flexible cables or cords are unsuitable for permanent use outdoors. Neither
should those that have a temporary designation be used in that manner outdoors in
adverse conditions, e. g. at temperatures below those given in EN 50565-2.
In the case of soft soldered joints or terminations the limiting temperature for the

conductor under short circuit conditions is reduced to 160 C. Account of this
limitation should be taken in selecting and operating cables.
Tinned copper conductors should not be used at temperatures above 200 C
because of the risk of mutual adhesion.
Where the limiting temperature given in EN 50565-2 is such that the temperature of
the surface of the cable is liable to exceed 50 C, the cable should be so located or
guarded as to prevent contact of persons or animals therewith. Cable surface
temperatures above this can cause involuntary reaction in the event of contact with
exposed skin. Account should be taken of these possibilities in the selection and
use of cables.

521.10 This clause is separated in several subclauses as follows:
521.10.1 Cores
Insulated conductors (non-sheathed cores) for fixed wiring shall be enclosed in a
continuous
6

---------------------- Page: 9 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)
Country Clause Special national condition
— conduit system in compliance with EN 61386 series,
— cable ducting system in compliance with EN 50085 series,
— cable trunking system in compliance with EN 50085 series.
This requirement does not apply to a protective conductor complying with HD
60364-5-54.
521.10.2 Cables (Kabel)
Cables NYY or NYCWY according to DIN VDE 0276-603 (VDE 0276-603):2010
should have the following bending radii (see Part 5, Section 3G, Clause IV
“Recommendation for use”):
a) Permissible bending radius during installation:
— single-core cables: 15-fold cable diameter;
— multi-core cables: 12-fold cable diameter.
b) Reduction of bending radius by 50 % under the following conditions:
— single bending;
— professional installation;
— heating the cable up to 30 °C;
— bending the cable by using a template.
The distance between fixing means should be (see Part 5, Section 3G, Clause IV
“Recommendation for use”:
Horizontal distance between fixing means:
— 20 times the cable diameter
These distances also apply for supporting areas for wiring on cable racks, or
supporting structures. The distance shall not exceed 80 cm.
Vertical distance between fixing means:
— For vertical wiring along walls, the distances may be longer. However, distances
shall not exceed 1,5 m.
521.10.3 Cables (Leitungen)
In case of fixed installation, conductors shall have bending radii according to
Table 1 (see also EN 50565-1:2002, Table 3):
7

---------------------- Page: 10 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)
Table 1 — Minimum permissible bending radius for fixed installation

minimum bending radius for cable diameter D
mm
D ≤ 8 8 < D ≤ 12 12 < D ≤ 20 D > 20
cables with rigid Standard
4 5 6 6
application
conductors
Careful bending 2 3 4 4
cables with Fixed
3 3 4 4
installation
flexible
conductors Flexible
4 4 5 6
application
NOTE 1 The minimum permissible bending radius corresponds to the internal radius.
NOTE 2 Specifications apply for a cable temperature of (20 ± 10) °C.
NOTE 3 D corresponds to the outer diameter for round cables or the smaller external dimensions for flat cables.

 The distance between fixing means should be according to Table 2 (see
EN 50565-1:2014, Table 1):

Table 2 — Maximum distance between fixing means
a b c
Outer diameter of cable Maximum distance
(mm) (mm)
Horizontal Vertical
250 400
D ≤ 9
300 400
9 < D ≤ 15
350 450
15 < D ≤ 20
d
400 550
20 < D ≤ 40
a
For flat cables this is taken as the measurement of the major axis.
b
The spacings stated for horizontal runs may also be applied to runs at an angle of more than 30° from the
vertical. For runs at an angle of 30° or less than the vertical, the vertical spacings are applicable.
c
The spacing stated in this table is a maximum. Reduced spacing may be required for various reasons, for
example, the fixing method used, vibration, weight of cable.
d
For the spacing of supports for cables of overall diameter exceeding 40 mm, and for single core cables having
2
conductors of cross-sectional area 300 mm and larger, the manufacturer’s recommendations shall be observed.

 521.10.4 Sheathed cables (NYM)
These cables are intended for installation on, under and in plaster in dry, humid and
wet rooms as well as in masonry and concrete, except for direct embedding in
heaped, shaked or tamped concrete in compliance with DIN VDE 0298-3 (VDE 0298-
3). These cables are also suitable for use in open air, provided that they are protected
from direct exposure to sun light.
Table A.52.1 applies for the installation of sheathed conductors with the following
restriction:
Sheathed conductors according to DIN VDE 0250-210 (VDE 0250-210) may be
installed in underground protective conduits if the cables remain accessible and
exchangeable and the conduit is mechanically fixed, protected against the ingress of
liquids and ventilated.
8

---------------------- Page: 11 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)
This type of wiring should be restricted to exceptional cases with short distances. An
installation in compliance with 522.8.10 should be preferred.
 521.10.5 Flat webbed house wires
Flat webbed house wires in accordance with DIN VDE 0250-201 (VDE 0250-201)
may be used if the following requirements are met:
a) Flat webbed house wires (NYIF, NYIFY) according to DIN VDE 0250-201 (VDE
0250-201) may only be installed in dry rooms and only in or under plaster. They shall
be covered with plaster along their entire length.
NOTE 1 The use of flat webbed house wires may be restricted in special specifications.
NOTE 2 The insulation of cores in flat conductors is about half as thick as the insulation of
single-core conductors. The covering is primarily intended to maintain the distances between
the cores in order to ensure the permissible heat removal based on the maximum carrying
current and the additional mechanical protection of the conductor by the plaster covering. In
general, this is ensured by a crack-resistant plaster covering with a plaster thickness of about
4 mm.
b) If flat webbed house wires are installed in cavities in ceilings or walls consisting of
concrete, stone or similar non-combustible material, it is not necessary to cover them
with plaster in accordance with item a).
c) Even when covered with plaster, flat webbed house wires may not be laid on
combustible construction materials (see DIN 4102-1), e. g. wood.
d) Flat webbed house wires shall not be bunched. Collecting flat webbed house wires
together at the inlet points of electrical equipment, e. g. distribution boards, is not
considered as bunching.
e) Flat webbed house wires may only be fixed using means and methods which will
ensure that the insulation is not damaged or deformed.
NOTE 3 Means for fixing without damage are, e.g.
— gypsum plaster; or
— clamps matching the shape of the wires and made of insulating material or of metal with
insulating layer; or
— sticking; or
— nailing with suitable nails with insulating washers.
f) Flat webbed house wires shall not be installed under plaster board unless these
boards are attached entirely with plaster.
g) Flat webbed house wires shall not be installed immediately on or under wire
netting, metal mesh or similar.
h) Flat webbed house wires may only be joined in installation boxes in accordance
with DIN EN 60670-1 (VDE 0606-1) made of insulating material.
 521.10.6 Installation of overhead span lines
Overhead span lines shall be attached and fixed so that sag or movement do not
result in damage. The specifications for overhead lines in DIN VDE 0211 (VDE
0211):1985-12 are applicable to the height of span lines (e. g. for crossings of traffic
installations):
Vertical distances of conductors
— from the carriageway  6 m
— from the conventional clearance profile of a waterway  2,5 m
If specific distances over the highest water-level for shipping are stipulated, these will
apply
9

---------------------- Page: 12 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)
— from the top of rail  7 m
— from the components of the overhead contact line system of a railway  3 m
— from the components of the overhead contact line system of a trolleybus
or tramway  5 m
— from the components of a cable railway  3 m
It has to be considered that the highest point at crossings between suspension and
hauling ropes shall be determined, taking into account a 25 % higher maximum
tensile stress of the suspension or hauling ropes.

521.11 Add new subclause:
521.11 Inherently short-circuit and earth-fault-proof wiring
Where devices for the protection against short-circuit currents in accordance with HD
60364-4-43 are not used, cables and conductors shall be laid inherently short-circuit
and earth-fault-proof.
The following types of wiring are regarded as inherently short-circuit and earth-fault
proof:
a) Conductor arrangements where contact between the conductors and contact with
earthed parts are prevented and where no short-circuit is to be expected due to
external influences (e. g. falling parts), e. g.
— through adequate distances by spacers or
— by installation in separate ducts or separate lines thereof
— by installation in separate conduits.
b) Arrangement consisting of single-core cables, e. g. in accordance with HD 603,
single-core non-metallic sheathed cables (NYM) in accordance with EN 50525-2-11
or single-core rubber-insulated and sheathed flexible cables in accordance with EN
50525-2-21:2011 clauses 4.1 up to 4.4;
c) Cables and rubber-insulated and sheathed flexible cables laid so that they are
accessible but not in the vicinity of combustible materials and where the risk of
mechanical damage is prevented.
d) Conductor arrangement consisting of single-core non-sheathed cables of suitable
type of construction (e. g. special rubber-insulated cables in accordance with EN
50264-2-1 or EN 50264-3-1 with a rated voltage of U0/U at least 1,8/3 kV, e. g.
— NSGAFÖU according to DIN VDE 0250 602 (VDE 0250 602) ,
— NSHXAÖ according to E DIN VDE 0250 606 (VDE 0250 606),
— NSHXAFÖ according to E DIN VDE 0250 606 (VDE 0250 606),
— NSHXAFCMÖ according to E DIN VDE 0250 606 (VDE 0250 606)
An arrangement of cables and insulated conductors which could burn out without
endangering their environment (e. g. cables in ground) is considered as equivalent
to inherently short-circuit proof and inherently earth-fault-proof wiring with regard to
safety.

521.12 Add new subclause:
521.12 Wiring in concrete
521.12.1 Cables
The cables listed under a) to c) are permissible.
a) single-core cables, e. g. H07V…, in conduit.
10

---------------------- Page: 13 ----------------------
SIST HD 60364-5-52:2011/A12:2023
HD 60364-5-52:2011/A12:2022 (E)
The conduit for feeding through or joining single-core cables, e.g. at the intersection
of wall and ceiling structural elements, shall be fed through in insulating boxes
according to EN 60670 (all parts).
When using single-core cable it shall be ensured that the conduit and boxes form an
unbroken sealed system.
b) sheathed cables, e. g. PVC-installation cable (NYM), according to DIN VDE 0250-
204 (VDE 0250-204) in conduit or recess clearances.
c) cables, e. g. NYY according to HD 603.
NOTE Requirements for conduit systems see 521.6.
521.12.2 Accessories
Boxes for appliances, appliance connection boxes, luminaire connection boxes and
junction boxes shall be suitable for installation in concrete. They shall comply with
DIN EN 60670-1 (VDE 0606-1) and shall be marked with “90°C” (previously symbol
B according to DIN 30600 Reg. No. 1716).

521.13 Add new subclause:
521.13 Installation of cables in not accessible underground ducts and in
protective conduits buried underground
In not accessible underground ducts outside of buildings only cable or rubber-
sheathed cable NSSHÖU according to DIN VDE 0250-812 (VDE 0250-812), trailing
cables according to DIN VDE 0250-813 (VDE 0250-813) or similar types shall be
installed.
In protective conduits buried underground also sheathed cables (PVC-installation
cable (NYM)) according to DIN VDE 0250-204 (VDE 250-204) are allowed, if the
cables remain accessible and exchangeable and the conduit is mechanically fixed,
protected against the ingress of water and ventilated.
This type of wiring should be restricted to exceptional cases and short distances the
type of wiring according to 522.8.10 should be preferred.

521.14 Add new subclause:
521.14 Installation of cables in locations with risks of fire due to the nature of
processed or stored materials, with combustible constructional materials or
with endangering of irreplaceable goods
See HD 60364-4-42.

521.15 Add new subclauses as follows:
521.15 Selection and erection of electrical equipment in hollow walls
521.15.1 General
Hollow walls are "in general" frame constructions covered with sheets or chipboards,
plaster (gypsum), wood or sheet metall. Hollow walls can also be factory made.
Electrical equipment may be incorporated into the wall. Wiring may be fixed or
movable installed.
521.15.2 Electrical equipment, e. g. installation boxes and distribution boards, which
are installed in combustible hollow walls shall be in accordance with the test
requirements of the relevant standards.
For boxes and enclosures for electrical accessories for household and similar fixed
electrical installations see EN 60670 (all parts).
For distribution boards see EN 60670-24 or EN 61439-3.
This electrical equipment shall only be used if marked with the symbol H in
compliance with EN 60670-1.
11

--------------------
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
