SIST EN 302 448 V1.1.1:2008
Satellite Earth Stations and Systems (SES) - Harmonized EN for tracking Earth Stations on Trains (ESTs) operating in the 14/12 GHz frequency bands covering essential requirements under article 3.2 of the R&TTE directive
Satellite Earth Stations and Systems (SES) - Harmonized EN for tracking Earth Stations on Trains (ESTs) operating in the 14/12 GHz frequency bands covering essential requirements under article 3.2 of the R&TTE directive
To provide Harmonised Standards for the operation of ESTs in the 14/12 GHz frequency bands.The present document applies to Earth Stations located on board Trains, which have the following characteristics:
The EST may transmit and receive data when the train is in motion and also when the train is stationary.
• The EST operates in a railway environment and, therefore, may be subject to occasional disturbances and interruptions in the satellite link.
• The EST is operating as part of a satellite network (e.g. star, mesh or point-to-point) used for the distribution and/or exchange of information.
• The EST is comprised of all the equipment, electrical and mechanical, from the antenna itself to the interface with other communications equipment on a train (usually referred to as the terrestrial interface).
• The EST transmits on single carrier in the frequency range 14,00 GHz to 14,25 GHz, which is a portion of a band allocated to the Fixed Satellite Services (FSS) (Earth-to-space).
• The EST receives in one or more frequencies within the range from 10,70 GHz to 12,75 GHz in bands allocated to the Fixed Satellite Services (FSS) (space-to-Earth) or the Broadcast Satellite Service (BSS) (space-to-Earth), depending on the ITU Region where the EST is located.
• The EST uses linear or circular polarization.
• The EST is designed to operate through a geostationary satellite (or a cluster of co-located geostationary satellites) that is at least 3° away from any other geostationary satellite operating in the same frequencies and over the same coverage area.
• The EST transmits at elevations greater than or equal to 7° relative to the local horizon.
• The EST is designed for unattended operation.
• The EST is controlled and monitored by a Network Control Facility (NCF). The NCF is outside the scope of the present document.
The present document applies to the EST with its ancillary equipment and its various telecommunication ports, and when operated within the boundary limits of the operational environmental profile as declared by the applicant and when installed as required by the applicant's declaration or in the user documentation.
The present document is intended to cover the provisions of Directive 1999/5/EC [1] (R&TTE Directive) Article 3.2, which states that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of Article 3 of the Directive 1999/5/EC [1] (R&TTE Directive) may apply to equipment within the scope of the present document.
Satelitske zemeljske postaje in sistemi (SES) - Harmonizirani EN za sledenje zemeljskim postajam na vlakih (EST), delujočim v frekvenčnih pasovih 14/12 GHz, ki zajema bistvene zahteve člena 3.2 direktive R&TTE
General Information
Buy Standard
Standards Content (Sample)
ETSI EN 302 448 V1.1.1 (2007-12)
Harmonized European Standard (Telecommunications series)
Satellite Earth Stations and Systems (SES);
Harmonized EN for tracking Earth Stations on Trains (ESTs)
operating in the 14/12 GHz frequency bands
covering essential requirements
under article 3.2 of the R&TTE directive
---------------------- Page: 1 ----------------------

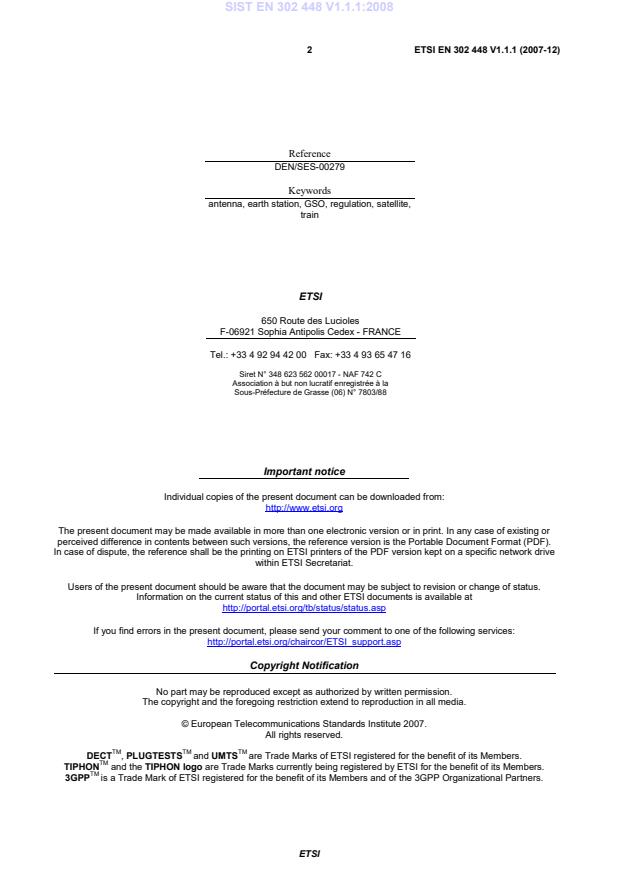

2 ETSI EN 302 448 V1.1.1 (2007-12)
Reference
DEN/SES-00279
Keywords
antenna, earth station, GSO, regulation, satellite,
train
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2007.
All rights reserved.
TM TM TM
DECT , PLUGTESTS and UMTS are Trade Marks of ETSI registered for the benefit of its Members.
TM
TIPHON and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
---------------------- Page: 2 ----------------------
3 ETSI EN 302 448 V1.1.1 (2007-12)
Contents
Intellectual Property Rights.6
Foreword.6
Introduction .6
1 Scope.7
2 References.8
2.1 Normative references.8
2.2 Informative references.8
3 Definitions, symbols and abbreviations .9
3.1 Definitions.9
3.2 Symbols.11
3.3 Abbreviations.11
4 Technical requirements specifications .12
4.1 General.12
4.1.1 Environmental profile.12
4.1.2 Operational configurations.12
4.1.3 EST states and radio states.12
4.2 Conformance requirements.13
4.2.1 Off-axis spurious radiation .13
4.2.1.1 Justification.13
4.2.1.2 Specification.13
4.2.1.3 Conformance tests.15
4.2.2 On-axis spurious radiation for EST .15
4.2.2.1 Justification.15
4.2.2.2 Specification.15
4.2.2.2.1 "Carrier-on" radio state.15
4.2.2.2.2 "Carrier-off" and "Emissions disabled" radio states.16
4.2.2.3 Conformance tests.16
4.2.3 Off-axis e.i.r.p. emission density within the band.16
4.2.3.1 Justification.16
4.2.3.2 Specification.16
4.2.3.3 Conformance tests.17
4.2.4 Carrier suppression.17
4.2.4.1 Justification.17
4.2.4.2 Specification.18
4.2.4.3 Conformance tests.18
4.2.5 Antenna pointing and polarization alignment for ESTs.18
4.2.5.1 Justification.18
4.2.5.2 Specification.18
4.2.5.3 Conformance tests.19
4.2.6 Cessation of emissions of the EST.19
4.2.6.1 Justification.19
4.2.6.2 Specification.19
4.2.6.2.1 Specification 1: Mode of cessation of emissions.19
4.2.6.2.2 Specification 2: Conditions under which the EST must cease emissions.20
4.2.6.2.3 Specification 3: Cessation of emissions .20
4.2.6.2.4 Specification 4: Fault conditions .21
4.2.6.3 Conformance tests.21
4.2.7 Identification of EST .21
4.2.7.1 Justification.21
4.2.7.2 Specification.21
4.2.7.3 Conformance tests.21
4.2.8 Control and Monitoring Functions (CMFs) .21
4.2.8.1 CMF state diagram.21
ETSI
---------------------- Page: 3 ----------------------

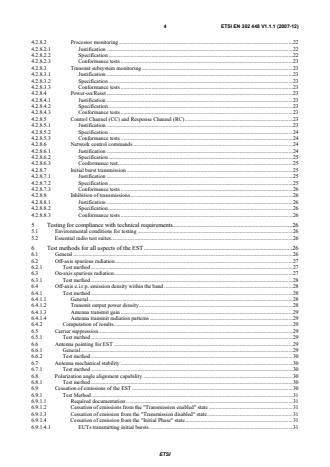

4 ETSI EN 302 448 V1.1.1 (2007-12)
4.2.8.2 Processor monitoring.22
4.2.8.2.1 Justification.22
4.2.8.2.2 Specification.22
4.2.8.2.3 Conformance tests.23
4.2.8.3 Transmit subsystem monitoring.23
4.2.8.3.1 Justification.23
4.2.8.3.2 Specification.23
4.2.8.3.3 Conformance tests.23
4.2.8.4 Power-on/Reset.23
4.2.8.4.1 Justification.23
4.2.8.4.2 Specification.23
4.2.8.4.3 Conformance tests.23
4.2.8.5 Control Channel (CC) and Response Channel (RC) .23
4.2.8.5.1 Justification.23
4.2.8.5.2 Specification.24
4.2.8.5.3 Conformance tests.24
4.2.8.6 Network control commands .24
4.2.8.6.1 Justification.24
4.2.8.6.2 Specification.25
4.2.8.6.3 Conformance test.25
4.2.8.7 Initial burst transmission .25
4.2.8.7.1 Justification.25
4.2.8.7.2 Specification.25
4.2.8.7.3 Conformance tests.26
4.2.8.8 Inhibition of transmissions.26
4.2.8.8.1 Justification.26
4.2.8.8.2 Specification.26
4.2.8.8.3 Conformance tests.26
5 Testing for compliance with technical requirements.26
5.1 Environmental conditions for testing .26
5.2 Essential radio test suites.26
6 Test methods for all aspects of the EST .26
6.1 General.26
6.2 Off-axis spurious radiation.27
6.2.1 Test method.27
6.3 On-axis spurious radiation.27
6.3.1 Test method.28
6.4 Off-axis e.i.r.p. emission density within the band .28
6.4.1 Test method.28
6.4.1.1 General.28
6.4.1.2 Transmit output power density.28
6.4.1.3 Antenna transmit gain.29
6.4.1.4 Antenna transmit radiation patterns .29
6.4.2 Computation of results.29
6.5 Carrier suppression.29
6.5.1 Test method.29
6.6 Antenna pointing for EST .29
6.6.1 General.29
6.6.2 Test method.30
6.7 Antenna mechanical stability .30
6.7.1 Test method.30
6.8 Polarization angle alignment capability .30
6.8.1 Test method.30
6.9 Cessation of emissions of the EST .30
6.9.1 Test Method.31
6.9.1.1 Required documentation.31
6.9.1.2 Cessation of emissions from the "Transmission enabled" state .31
6.9.1.3 Cessation of emission from the "Transmission disabled" state.31
6.9.1.4 Cessation of emission from the "Initial Phase" state.31
6.9.1.4.1 EUTs transmitting initial bursts.31
ETSI
---------------------- Page: 4 ----------------------
5 ETSI EN 302 448 V1.1.1 (2007-12)
6.9.1.4.2 EUTs not transmitting initial bursts.32
6.9.1.5 "Single action" means of cessation of emissions.32
6.9.1.6 Fault conditions.33
6.10 Identification of EST .33
6.10.1 Test arrangement.33
6.10.2 Test method .33
6.11 Control and monitoring functions .33
6.11.1 Test arrangement.33
6.11.2 Processor monitoring- Test method .34
6.11.3 Transmit subsystem monitoring-Test method.34
6.11.4 Power-on/Reset-Test method.34
6.11.5 Control Channel and Response Channel -Test method.35
6.11.6 Network Control commands-Test method.35
6.11.7 Initial burst transmission-Test method.37
6.11.8 Inhibition of transmission-Test method .37
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT).38
Annex B (informative): Mechanical stability methodology.40
Annex C (informative): The EN title in the official languages .42
Annex D (informative): Bibliography.44
History .45
ETSI
---------------------- Page: 5 ----------------------
6 ETSI EN 302 448 V1.1.1 (2007-12)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Satellite Earth Stations and Systems (SES).
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Directive 98/34/EC [4] (as amended) laying down a procedure for the provision of information in the field of
technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [1].
Technical specifications relevant to Directive 1999/5/EC [1] are given in annex A.
National transposition dates
Date of adoption of this EN: 7 December 2007
Date of latest announcement of this EN (doa): 31 March 2008
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 September 2008
Date of withdrawal of any conflicting National Standard (dow): 30 September 2009
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular
structure is shown in EG 201 399.
ETSI
---------------------- Page: 6 ----------------------
7 ETSI EN 302 448 V1.1.1 (2007-12)
1 Scope
The present document applies to Earth Stations located on board Trains, which have the following characteristics.
External Mounted Equipment, EME Internal Mounted Equipment, IME
Enclosure / Rad ome
LNB
Antenna Radio Modem
On -Train
HPA
Services
Stabilization & Tracking
Antenna Internal
Int erface
Mech anism
Control CMF
Figure 1: EST System Overview
• The EST may transmit and receive data when the train is in motion and also when the train is stationary.
• The EST operates in a railway environment and, therefore, may be subject to occasional disturbances and
interruptions in the satellite link.
• The EST is operating as part of a satellite network (e.g. star, mesh or point-to-point) used for the distribution
and/or exchange of information.
• The EST is comprised of all the equipment, electrical and mechanical, from the antenna itself to the interface
with other communications equipment on a train (usually referred to as the terrestrial interface).
• The EST transmits on single carrier in the frequency range 14,00 GHz to 14,25 GHz, which is a portion of a
band allocated to the Fixed Satellite Services (FSS) (Earth-to-space).
• The EST receives in one or more frequencies within the range from 10,70 GHz to 12,75 GHz in bands
allocated to the Fixed Satellite Services (FSS) (space-to-Earth) or the Broadcast Satellite Service (BSS)
(space-to-Earth), depending on the ITU Region where the EST is located.
• The EST uses linear or circular polarization.
• The EST is designed to operate through a geostationary satellite (or a cluster of co-located geostationary
satellites) that is at least 3° away from any other geostationary satellite operating in the same frequencies and
over the same coverage area.
• The EST transmits at elevations greater than or equal to 7° relative to the local horizon.
• The EST is designed for unattended operation.
• The EST is controlled and monitored by a Network Control Facility (NCF). The NCF is outside the scope of
the present document.
The present document applies to the EST with its ancillary equipment and its various telecommunication ports, and
when operated within the boundary limits of the operational environmental profile as declared by the applicant and
when installed as required by the applicant's declaration or in the user documentation.
ETSI
---------------------- Page: 7 ----------------------
8 ETSI EN 302 448 V1.1.1 (2007-12)
The present document is intended to cover the provisions of Directive 1999/5/EC [1] (R&TTE Directive) Article 3.2,
which states that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
NOTE 1: Operational requirements are defined by national administrations and by relevant ECC Decisions.
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of Article 3 of the Directive 1999/5/EC [1] (R&TTE Directive) may apply to equipment within the
scope of the present document.
NOTE 2: A list of such ENs is included on the web site http://www.newapproach.org/.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• Non-specific reference may be made only to a complete document or a part thereof and only in the following
cases:
- if it is accepted that it will be possible to use all future changes of the referenced document for the
purposes of the referring document;
- for informative references.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
For online referenced documents, information sufficient to identify and locate the source shall be provided.
...
SLOVENSKI STANDARD
SIST EN 302 448 V1.1.1:2008
01-september-2008
6DWHOLWVNH]HPHOMVNHSRVWDMHLQVLVWHPL 6(6 +DUPRQL]LUDQL(1]DVOHGHQMH
]HPHOMVNLPSRVWDMDPQDYODNLK (67 GHOXMRþLPYIUHNYHQþQLKSDVRYLK*+]
NL]DMHPDELVWYHQH]DKWHYHþOHQDGLUHNWLYH5 77(
Satellite Earth Stations and Systems (SES) - Harmonized EN for tracking Earth Stations
on Trains (ESTs) operating in the 14/12 GHz frequency bands covering essential
requirements under article 3.2 of the R&TTE directive
Ta slovenski standard je istoveten z: EN 302 448 Version 1.1.1
ICS:
33.060.30 Radiorelejni in fiksni satelitski Radio relay and fixed satellite
komunikacijski sistemi communications systems
SIST EN 302 448 V1.1.1:2008 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 302 448 V1.1.1:2008
---------------------- Page: 2 ----------------------
SIST EN 302 448 V1.1.1:2008
ETSI EN 302 448 V1.1.1 (2007-12)
Harmonized European Standard (Telecommunications series)
Satellite Earth Stations and Systems (SES);
Harmonized EN for tracking Earth Stations on Trains (ESTs)
operating in the 14/12 GHz frequency bands
covering essential requirements
under article 3.2 of the R&TTE directive
---------------------- Page: 3 ----------------------
SIST EN 302 448 V1.1.1:2008
2 ETSI EN 302 448 V1.1.1 (2007-12)
Reference
DEN/SES-00279
Keywords
antenna, earth station, GSO, regulation, satellite,
train
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2007.
All rights reserved.
TM TM TM
DECT , PLUGTESTS and UMTS are Trade Marks of ETSI registered for the benefit of its Members.
TM
TIPHON and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
---------------------- Page: 4 ----------------------
SIST EN 302 448 V1.1.1:2008
3 ETSI EN 302 448 V1.1.1 (2007-12)
Contents
Intellectual Property Rights.6
Foreword.6
Introduction .6
1 Scope.7
2 References.8
2.1 Normative references.8
2.2 Informative references.8
3 Definitions, symbols and abbreviations .9
3.1 Definitions.9
3.2 Symbols.11
3.3 Abbreviations.11
4 Technical requirements specifications .12
4.1 General.12
4.1.1 Environmental profile.12
4.1.2 Operational configurations.12
4.1.3 EST states and radio states.12
4.2 Conformance requirements.13
4.2.1 Off-axis spurious radiation .13
4.2.1.1 Justification.13
4.2.1.2 Specification.13
4.2.1.3 Conformance tests.15
4.2.2 On-axis spurious radiation for EST .15
4.2.2.1 Justification.15
4.2.2.2 Specification.15
4.2.2.2.1 "Carrier-on" radio state.15
4.2.2.2.2 "Carrier-off" and "Emissions disabled" radio states.16
4.2.2.3 Conformance tests.16
4.2.3 Off-axis e.i.r.p. emission density within the band.16
4.2.3.1 Justification.16
4.2.3.2 Specification.16
4.2.3.3 Conformance tests.17
4.2.4 Carrier suppression.17
4.2.4.1 Justification.17
4.2.4.2 Specification.18
4.2.4.3 Conformance tests.18
4.2.5 Antenna pointing and polarization alignment for ESTs.18
4.2.5.1 Justification.18
4.2.5.2 Specification.18
4.2.5.3 Conformance tests.19
4.2.6 Cessation of emissions of the EST.19
4.2.6.1 Justification.19
4.2.6.2 Specification.19
4.2.6.2.1 Specification 1: Mode of cessation of emissions.19
4.2.6.2.2 Specification 2: Conditions under which the EST must cease emissions.20
4.2.6.2.3 Specification 3: Cessation of emissions .20
4.2.6.2.4 Specification 4: Fault conditions .21
4.2.6.3 Conformance tests.21
4.2.7 Identification of EST .21
4.2.7.1 Justification.21
4.2.7.2 Specification.21
4.2.7.3 Conformance tests.21
4.2.8 Control and Monitoring Functions (CMFs) .21
4.2.8.1 CMF state diagram.21
ETSI
---------------------- Page: 5 ----------------------
SIST EN 302 448 V1.1.1:2008
4 ETSI EN 302 448 V1.1.1 (2007-12)
4.2.8.2 Processor monitoring.22
4.2.8.2.1 Justification.22
4.2.8.2.2 Specification.22
4.2.8.2.3 Conformance tests.23
4.2.8.3 Transmit subsystem monitoring.23
4.2.8.3.1 Justification.23
4.2.8.3.2 Specification.23
4.2.8.3.3 Conformance tests.23
4.2.8.4 Power-on/Reset.23
4.2.8.4.1 Justification.23
4.2.8.4.2 Specification.23
4.2.8.4.3 Conformance tests.23
4.2.8.5 Control Channel (CC) and Response Channel (RC) .23
4.2.8.5.1 Justification.23
4.2.8.5.2 Specification.24
4.2.8.5.3 Conformance tests.24
4.2.8.6 Network control commands .24
4.2.8.6.1 Justification.24
4.2.8.6.2 Specification.25
4.2.8.6.3 Conformance test.25
4.2.8.7 Initial burst transmission .25
4.2.8.7.1 Justification.25
4.2.8.7.2 Specification.25
4.2.8.7.3 Conformance tests.26
4.2.8.8 Inhibition of transmissions.26
4.2.8.8.1 Justification.26
4.2.8.8.2 Specification.26
4.2.8.8.3 Conformance tests.26
5 Testing for compliance with technical requirements.26
5.1 Environmental conditions for testing .26
5.2 Essential radio test suites.26
6 Test methods for all aspects of the EST .26
6.1 General.26
6.2 Off-axis spurious radiation.27
6.2.1 Test method.27
6.3 On-axis spurious radiation.27
6.3.1 Test method.28
6.4 Off-axis e.i.r.p. emission density within the band .28
6.4.1 Test method.28
6.4.1.1 General.28
6.4.1.2 Transmit output power density.28
6.4.1.3 Antenna transmit gain.29
6.4.1.4 Antenna transmit radiation patterns .29
6.4.2 Computation of results.29
6.5 Carrier suppression.29
6.5.1 Test method.29
6.6 Antenna pointing for EST .29
6.6.1 General.29
6.6.2 Test method.30
6.7 Antenna mechanical stability .30
6.7.1 Test method.30
6.8 Polarization angle alignment capability .30
6.8.1 Test method.30
6.9 Cessation of emissions of the EST .30
6.9.1 Test Method.31
6.9.1.1 Required documentation.31
6.9.1.2 Cessation of emissions from the "Transmission enabled" state .31
6.9.1.3 Cessation of emission from the "Transmission disabled" state.31
6.9.1.4 Cessation of emission from the "Initial Phase" state.31
6.9.1.4.1 EUTs transmitting initial bursts.31
ETSI
---------------------- Page: 6 ----------------------
SIST EN 302 448 V1.1.1:2008
5 ETSI EN 302 448 V1.1.1 (2007-12)
6.9.1.4.2 EUTs not transmitting initial bursts.32
6.9.1.5 "Single action" means of cessation of emissions.32
6.9.1.6 Fault conditions.33
6.10 Identification of EST .33
6.10.1 Test arrangement.33
6.10.2 Test method .33
6.11 Control and monitoring functions .33
6.11.1 Test arrangement.33
6.11.2 Processor monitoring- Test method .34
6.11.3 Transmit subsystem monitoring-Test method.34
6.11.4 Power-on/Reset-Test method.34
6.11.5 Control Channel and Response Channel -Test method.35
6.11.6 Network Control commands-Test method.35
6.11.7 Initial burst transmission-Test method.37
6.11.8 Inhibition of transmission-Test method .37
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT).38
Annex B (informative): Mechanical stability methodology.40
Annex C (informative): The EN title in the official languages .42
Annex D (informative): Bibliography.44
History .45
ETSI
---------------------- Page: 7 ----------------------
SIST EN 302 448 V1.1.1:2008
6 ETSI EN 302 448 V1.1.1 (2007-12)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Satellite Earth Stations and Systems (SES).
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Directive 98/34/EC [4] (as amended) laying down a procedure for the provision of information in the field of
technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [1].
Technical specifications relevant to Directive 1999/5/EC [1] are given in annex A.
National transposition dates
Date of adoption of this EN: 7 December 2007
Date of latest announcement of this EN (doa): 31 March 2008
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 September 2008
Date of withdrawal of any conflicting National Standard (dow): 30 September 2009
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular
structure is shown in EG 201 399.
ETSI
---------------------- Page: 8 ----------------------
SIST EN 302 448 V1.1.1:2008
7 ETSI EN 302 448 V1.1.1 (2007-12)
1 Scope
The present document applies to Earth Stations located on board Trains, which have the following characteristics.
External Mounted Equipment, EME Internal Mounted Equipment, IME
Enclosure / Rad ome
LNB
Antenna Radio Modem
On -Train
HPA
Services
Stabilization & Tracking
Antenna Internal
Int erface
Mech anism
Control CMF
Figure 1: EST System Overview
• The EST may transmit and receive data when the train is in motion and also when the train is stationary.
• The EST operates in a railway environment and, therefore, may be subject to occasional disturbances and
interruptions in the satellite link.
• The EST is operating as part of a satellite network (e.g. star, mesh or point-to-point) used for the distribution
and/or exchange of information.
• The EST is comprised of all the equipment, electrical and mechanical, from the antenna itself to the interface
with other communications equipment on a train (usually referred to as the terrestrial interface).
• The EST transmits on single carrier in the frequency range 14,00 GHz to 14,25 GHz, which is a portion of a
band allocated to the Fixed Satellite Services (FSS) (Earth-to-space).
• The EST receives in one or more frequencies within the range from 10,70 GHz to 12,75 GHz in bands
allocated to the Fixed Satellite Services (FSS) (space-to-Earth) or the Broadcast Satellite Service (BSS)
(space-to-Earth), depending on the ITU Region where the EST is located.
• The EST uses linear or circular polarization.
• The EST is designed to operate through a geostationary satellite (or a cluster of co-located geostationary
satellites) that is at least 3° away from any other geostationary satellite operating in the same frequencies and
over the same coverage area.
• The EST transmits at elevations greater than or equal to 7° relative to the local horizon.
• The EST is designed for unattended operation.
• The EST is controlled and monitored by a Network Control Facility (NCF). The NCF is outside the scope of
the present document.
The present document applies to the EST with its ancillary equipment and its various telecommunication ports, and
when operated within the boundary limits of the operational environmental profile as declared by the applicant and
when installed as required by the applicant's declaration or in the user documentation.
ETSI
---------------------- Page: 9 ----------------------
SIST EN 302 448 V1.1.1:2008
8 ETSI EN 302 448 V1.1.1 (2007-12)
The present document is intended to cover the provisions of Directive 1999/5/EC [1] (R&TTE Directive) Article 3.2,
which states that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmf
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
