SIST EN 13080:2004

Agricultural machinery - Manure spreaders - Environmental protection - Requirements and test methods

This European standard specifies requirements for the environmental preservation and their verification for design and construction of manure spreaders for spreading manure in agriculture and horticulture. It specifies requirements for the transverse and longitudinal spreading characteristics such as acceptable working widths, steady flow, the stretch within the tolerance zone and the coefficient of variation for the longitudinal spreading.  These requirements are limited to the evaluation of spreaders tested with manure as specified in table A.1. This standard is not applicable to manure band-spreaders or to sludge spreaders.

Landmaschinen - Stalldungstreuer - Umweltschutz - Anforderungen und Prüfmethoden

Diese Europäische Norm enthält Prüfmethoden und Anforderungen für die Bauart und Konstruktion von Stalldungstreuern für die Verteilung von Stalldung in Landwirtschaft und Gartenbau im Hinblick auf die Herabsetzung von Umweltschäden.
Die Norm legt Anforderungen an Ausbringcharakteristika bei Quer- und Längsverteilung fest, z.B. Arbeitsbreiten, charakteristische Ausbringmenge, charakteristische Durchflussmenge, Streckung innerhalb der Toleranzzone und Variationskoeffizient für die Längsverteilung.
Diese Anforderungen sind begrenzt auf die Beurteilung von Stalldungstreuern, die mit Stalldung nach Anhang A Tabelle A.1 geprüft werden.
Diese Norm gilt nicht für Stalldung-Bandstreuer oder Klärschlammverteiler.
ANMERKUNG   Klärschlammverteiler können in einer späteren Überarbeitung behandelt werden, wenn ausreichend Daten zur Verfügung stehen, um ihre Klasseneinteilung festzulegen und die Grenzen für die Anforderungen an die Maschinen zu setzen.
Aspekte des persönlichen Schutzes sind in dieser Norm nicht behandelt. Diese werden in EN 690 behandelt.

Matériel agricole - Epandeurs de fumier - Protection de l'environnement - Prescriptions et méthodes d'essai

La présente norme européenne détermine les prescriptions relatives à la protection de l'environnement et les vérifications pour la conception et la construction des épandeurs de fumier destinés à l'épandage de fumier en agriculture et en horticulture.  Elle détermine des prescriptions relatives aux caractéristiques d'épandage dans les directions transversale et longitudinale, telles que largeurs de travail acceptables, débit constant, l'étendue dans la zone de tolérance et le coefficient de variation pour l'épandage longitudinal.

Kmetijski stroji – Trosilnik hlevskega gnoja – Varovanje okolja – Zahteve in preskusne metode

General Information

• Status: Published
• Publication Date: 31-Dec-2003
• ICS: 13.020.99 - Other standards related to environmental protection
• ICS: 65.060.25 - Equipment for storage, preparation and distribution of fertilizers
• Technical Committee: IMKG - Machinery for agriculture and forestry
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Jan-2004
• Due Date: 01-Jan-2004
• Completion Date: 01-Jan-2004
• Ref Project: EN 13080:2002 - Agricultural machinery - Manure spreaders - Environmental protection - Requirements and test methods

Overview

EN 13080:2002 (CEN) - "Agricultural machinery - Manure spreaders - Environmental protection - Requirements and test methods" defines requirements and standardized test methods to verify the environmental performance of manure spreaders used in agriculture and horticulture. The standard aims to ensure consistent spreading accuracy and minimize unintended environmental impact (e.g., spreading outside the target area). It applies to machines tested with manure as defined in the standard and excludes manure band-spreaders and sludge spreaders.

Key topics and technical requirements

• Scope and exclusions

  • Applies to manure spreaders for agriculture/horticulture; not applicable to band-spreaders or sludge spreaders.
  • Personal safety handled separately (see EN 690).

• Transverse distribution (side-to-side)

  • Working width: machine must provide at least one working width where the coefficient of variation (CV) is < 30% and the width is ≥ half the throwing width (but at least the machine frame width).
  • Tests conducted for two flow settings (low and high). A retest is required if results fail.

• Longitudinal distribution (along the travel direction)

  • Characteristic application rate: machines must cover at least 1 to 4 kg/m² (10–40 t/ha) unless manufacturer specifies otherwise.
  • Tolerance zone: flows within ±15% of the characteristic flow.
  • Stretch within tolerance: momentary flows must be inside tolerance for > 35% of unloading time.
  • Coefficient of variation: longitudinal CV must be < 40% (calculated before overlapping).
  • Optimum overlap: specified in the instruction handbook and determined for 3 km/h and 8 km/h.

• Test methods and measurement

  • Manure characterization and physical property tests are in Annex A (normative); manure classes selected per Table 1.
  • Transverse containers: 500 × 500 mm, depth ≥ 100 mm; wind ≤ 3 m/s during tests.
  • Weighing accuracy: ±10 g or ±0.5% (whichever larger); machine mass registration for flow: ±10 kg or ±0.5%.
  • Data sampling: recommended 2 Hz; filtering using an IIR Butterworth filter order 5 (Annex B gives filtering example).

Applications - who uses EN 13080

• Manufacturers: design and validate spreader models to meet CEN environmental performance benchmarks.
• Test laboratories and certification bodies: perform standardized transverse and longitudinal distribution tests and issue compliance reports.
• Farm equipment engineers and designers: optimize spreader components and control systems to achieve required CV, flow stability and overlap recommendations.
• Agronomists, contractors and large-scale farmers: reference expected spread pattern, application-rate ranges and overlap guidance for accurate nutrient application and reduced off-target spreading.
• Regulators and procurement: use standard criteria for product approval and purchase specifications.

Related standards

• EN 690 - personal safety aspects for agricultural machinery (safety not covered by EN 13080).
• Annex A (EN 13080) - manure property characterization (normative).
• Annex B (EN 13080) - data filtering guidance (informative).

Keywords: EN 13080, manure spreaders, environmental protection, transverse distribution, longitudinal distribution, characteristic application rate, spreader testing, CEN standard.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kmetijski stroji – Trosilnik hlevskega gnoja – Varovanje okolja – Zahteve in preskusne metodeLandmaschinen - Stalldungstreuer - Umweltschutz - Anforderungen und PrüfmethodenMatériel agricole - Epandeurs de fumier - Protection de l'environnement - Prescriptions et méthodes d'essaiAgricultural machinery - Manure spreaders - Environmental protection - Requirements and test methods65.060.25JQRMLYEquipment for storage, preparation and distribution of fertilizers13.020.99Drugi standardi v zvezi z varstvom okoljaOther standards related to environmental protectionICS:Ta slovenski standard je istoveten z:EN 13080:2002SIST EN 13080:2004en01-januar-2004SIST EN 13080:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13080November 2002ICS 65.060.25English versionAgricultural machinery - Manure spreaders - Environmentalprotection - Requirements and test methodsMatériel agricole - Epandeurs de fumier - Protection del'environnement - Prescriptions et méthodes d'essaiLandmaschinen - Stalldungstreuer - Umweltschutz -Anforderungen und PrüfmethodenThis European Standard was approved by CEN on 23 September 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13080:2002 ESIST EN 13080:2004

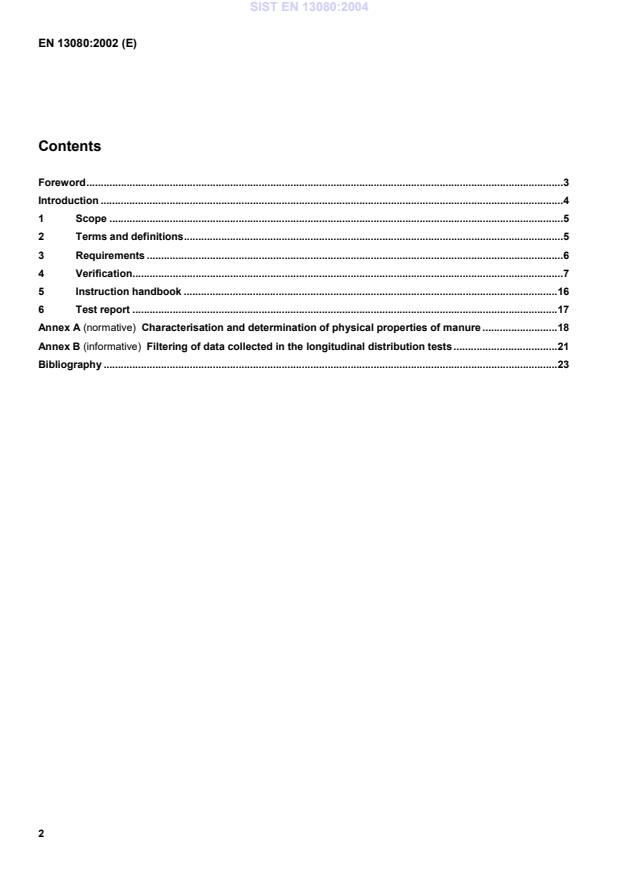

Characterisation and determination of physical properties of manure.18Annex B (informative)
Filtering of data collected in the longitudinal distribution tests.21Bibliography.23SIST EN 13080:2004

Characteristic application rateUnless otherwise specified by the manufacturer, the characteristic application rates that can be obtained shallcover at least the interval 1 kg/m2 (10 t/ha) to 4 kg/m2 (40 t/ha) when calculated in accordance with 4.3.2.3.3.2 Stretch within the tolerance zoneThe stretch within the tolerance zone determined at a specific setting shall exceed 35 % of the unloading time.SIST EN 13080:2004
...
