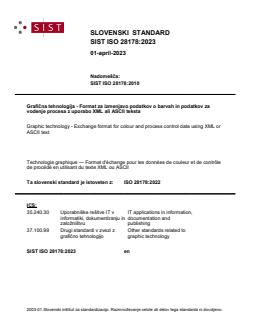

SLOVENSKI STANDARD
01-april-2023
Nadomešča:
SIST ISO 28178:2010
Grafična tehnologija - Format za izmenjavo podatkov o barvah in podatkov za
vodenje procesa z uporabo XML ali ASCII teksta
Graphic technology - Exchange format for colour and process control data using XML or
ASCII text
Technologie graphique — Format d'échange pour les données de couleur et de contrôle
de procédé en utilisant du texte XML ou ASCII
Ta slovenski standard je istoveten z: ISO 28178:2022
ICS:
35.240.30 Uporabniške rešitve IT v IT applications in information,
informatiki, dokumentiranju in documentation and
založništvu publishing
37.100.99 Drugi standardi v zvezi z Other standards related to
grafično tehnologijo graphic technology
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

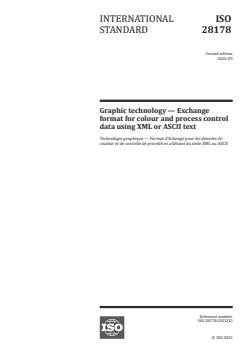

INTERNATIONAL ISO
STANDARD 28178
Second edition
2022-09
Graphic technology — Exchange
format for colour and process control
data using XML or ASCII text
Technologie graphique — Format d'échange pour les données de
couleur et de contrôle de procédé en utilisant du texte XML ou ASCII
Reference number
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

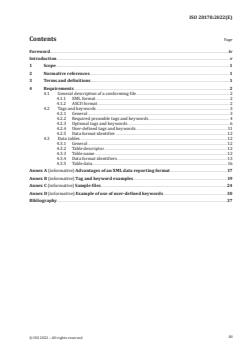

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements . 2
4.1 General description of a conforming file . 2
4.1.1 XML format . 2
4.1.2 ASCII format . 2
4.2 Tags and keywords . 3
4.2.1 General . 3
4.2.2 Required preamble tags and keywords . 4
4.2.3 Optional tags and keywords . 6
4.2.4 User-defined tags and keywords . 11
4.2.5 Data format identifier .12
4.3 Data tables . 12
4.3.1 General .12
4.3.2 Table descriptor .12
4.3.3 Table name . 12
4.3.4 Data format identifiers. 13
4.3.5 Table data . 16
Annex A (informative) Advantages of an XML data reporting format .17
Annex B (informative) Tag and keyword examples .19
Annex C (informative) Sample files .24
Annex D (informative) Example of use of user-defined keywords .30
Bibliography .37
iii

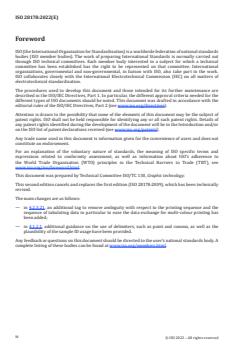

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 130, Graphic technology.
This second edition cancels and replaces the first edition (ISO 28178:2009), which has been technically
revised.
The main changes are as follows:
— in 4.2.3.21, an additional tag to remove ambiguity with respect to the printing sequence and the
sequence of tabulating data in particular to ease the data exchange for multi-colour printing has
been added;
— in 4.1.2.1, additional guidance on the use of delimiters, such as point and comma, as well as the
plausibility of the sample ID usage have been provided.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
This document is intended to support all existing and future graphic arts standards that require the
exchange of measured, computed, or process control data and the associated metadata necessary for its
proper interpretation.
The following requirements were identified when reviewing the needs of such a format:
— applications based on the existing ASCII formats must not be made obsolete;
— data must be in a form that is both human-readable (once the digital file has been displayed using
standard editors, or file readers) and machine-readable;
— data must be readable by automated programs to extract the necessary information;
— data files must be extensible by end users in such a way as to allow additional information to be
included without breaking automated readers of the file;
— data files must be capable of being created by automated programs;
— the format must allow multiple language representation of data.
The file formats chosen to accomplish this task are a combination of XML and extensions of the existing
ASCII keyword-value file format, coupled with the necessary tools to allow appropriate conversions
to and from XML from ASCII keyword-value files. However, either the XML file format or the ASCII
keyword-value file format can be used independently.
These formats make use of predefined XML tags and ASCII keywords. Values are associated with the
tags and keywords and remain in effect until another instance of the tag or keyword. Provision is
made to allow the use of data tables and to separately define the format within data tables. Multiple
occurrences of such data tables within a single file are also permitted. User-defined tags and keywords
are also allowed.
NOTE During the 2021 review process, it was noted that the XML format is not widely used and that its
specification in this document is insufficiently precise to ensure reliable exchange of data.
v
INTERNATIONAL STANDARD ISO 28178:2022(E)
Graphic technology — Exchange format for colour and
process control data using XML or ASCII text
1 Scope
This document defines an exchange format for colour and process control data (and the associated
metadata necessary for its proper interpretation) in electronic form using either XML or ASCII
formatted data files. This exchange format maintains human readability of the data as well as enabling
machine readability. It includes a series of predefined tags and keywords, and provides extensibility
through provision for the dynamic definition of additional tags and keywords as necessary. It is focused
primarily on spectral measurement data, colorimetric data, and densitometric data.
This document is intended to be used in conjunction with other standards that will define the required
data, and tags or keywords for specific data exchange applications.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
data format identifier
predefined set of characters, without intervening spaces, forming a unique word that is used to identify
the presence of a defined item of data in a subsequent data table
3.2
keyword
predefined set of characters, without intervening spaces, forming a unique word that is used to identify
the presence of a defined item of information
3.3
schema
XML document that, following the rules established by the World Wide Web Consortium, defines the
structure of a class of xml documents
3.4
value
information immediately following a keyword (3.2) that represents the data content or "value"
associated with that keyword
4 Requirements
4.1 General description of a conforming file
4.1.1 XML format
[46]
This file format is an XML format that complies with Extensible Markup Language (XML) 1.0. The
format makes use of predefined tags that identify information commonly used to describe graphic arts
samples. In addition, users of this format are allowed to define tags to tailor the format to their specific
needs according to the rules of XML namespace.
The data file is divided into two sections.
The preamble is the first section. This section provides general information and describes the conditions
under which data was collected. The preamble tag is iso28178.preamble. Tags used in the preamble are
listed in 4.2.
The data section is the second section, which is further divided into two parts. The first part of the data
section provides the information that describes the type and location of the table contents; the second
section contains the data values.
The schema associated with the XML format defined in this document is contained in file iso28178_
data.xsd (available at: https:// standards .iso .org/ iso/ 28178/ ed -2/ en/ ), which is an essential normative
part of this document. This document also provides structural XML tags that are needed for the proper
specification of an XML document instance.
NOTE See Annex A for a discussion on the need and application of the XML data reporting format.
4.1.2 ASCII format
4.1.2.1 General
This file format is an ASCII format keyword-value file. It makes use of predefined keywords and data
tables. Values are associated with the keyword that precedes them and remain in effect until another
instance of the keyword-value pair. Data values are delimited by the BEGIN_DATA and END_DATA
keywords.
Keywords and values, as well as fields within data tables, are separated by white space. Valid white
space characters are space (position 2/0 of ISO/IEC 646), carriage return (position 0/13 of ISO/IEC 646),
newline (position 0/10 of ISO/IEC 646), and tab (position 0/9 of ISO/IEC 646). Keywords may be
separated from values using any valid white space character. Only the space and tab may precede a
keyword on a line. Comments are preceded by a single comment character (a single character keyword).
The comment character is the "#" (position 2/3 of ISO/IEC 646) symbol. Comments may begin any place
on a line, and are terminated by a newline or carriage return character.
NOTE The default separator for exporting data from spreadsheet applications in many regions is a comma
and not a white space character. Conforming files can be created by changing this default to a tab character and
by using the full point character as the decimal separator.
4.1.2.2 Exchanged data file structure
A file containing measurement data would normally be structured as shown in Figure 1. This structure
allows multiple tables of data within a single exchange file.
Figure 1 — File structure
4.2 Tags and keywords
4.2.1 General
Most tags and keywords may appear in the file in any order, and may appear multiple times within
the file. Values associated with tags and keywords that appear more than once shall be replaced by
successive instances except for KEYWORD, COMPUTATIONAL_PARAMETER, and WEIGHTING_
FUNCTION. Tags and keywords that describe data tables, however, shall be defined before the data
table. Table 1 lists these tags and keywords. These tags are described in greater detail in this subclause.
Table 1 — XML tags and ASCII keywords that appear in a defined order
Function XML tag ASCII keyword
data table width NUMBER_OF_FIELDS
data format delimiters BEGIN_DATA_FORMAT
END_DATA_FORMAT
data table length NUMBER_OF_SETS
data table delimiters BEGIN_DATA
END_DATA
Data format delimiters shall be preceded by a data table width tag or keyword. Data table delimiters
shall be preceded by a data table length tag or keyword. In the ASCII format, BEGIN_/END_ keywords
begin and end the data format or table data. In the XML format, tags have parameters and/or values and
a standard syntax is used; e.g. data format identifiers . Values for tags
and keywords that describe data tables shall be specified for each data table in the file; i.e. inheritance
of these values is not permitted.
ASCII tags and keywords may be composed of any combination of the following: upper case letters;
digits 0 through 9; and ASCII characters $ (position 2/4 of ISO/IEC 646), % (position 2/5 of ISO/IEC 646),
& (position 2/6 of ISO/IEC 646), - (position 2/13 of ISO/IEC 646), / (position 2/15 of ISO/IEC 646), _
(position 5/15 of ISO/IEC 646). By convention all XML tags are lower case.
In the ASCII format, unless used as part of a data format definition, keywords should not be preceded
on a line by other than white space. Unless otherwise noted, each keyword has a character string value
associated with it. All character string values shall be enclosed in quotes, regardless of whether there is
white space contained within the string. Enclosed in quotes means beginning and ending the character
string with the " symbol (position 2/2 of ISO/IEC 646). The " symbol itself is represented within a string
as "" as in the C language syntax.
NOTE The default behaviour of applications writing '.csv' files results in additional quotation marks being
added to files, for example "FILE_DESCRIPTOR ""12642-3 Target definition""", which means that such files do not
conform with this requirement.
For XML tag/keyword entries the form is value. If attribute names are provided
in the XML section of a definition, the information is represented in the XML-formatted data as XML
attribute using the form .
The value associated with keywords NUMBER_OF_FIELDS and NUMBER_OF_SETS shall be an integer.
These values should not be enclosed in quotes.
Format and table delimiters do not have explicit values associated with them but rather enclose either
the data format definition or table data.
The separation between the integer and the fractional part of a given number should be a "full point"
for all entries.
See Annex B for examples of the use of each tag and keyword shown in 4.2.2 and 4.2.3.
4.2.2 Required preamble tags and keywords
4.2.2.1 General
Certain tags and keywords are required as part of each file, while others are optional depending upon
the data to be included. All keywords shall occur before the BEGIN_DATA_FORMAT keyword and the
sequence order for required tags and keywords shall follow the order shown in 4.2.2.2 through 4.2.2.9.
The STANDARD, ORIGINATOR, FILE_DESCRIPTOR and CREATED tags/keywords may occur only once
within a file.
The first line in the ASCII format should be ISO 28178. The use of this identifier indicates that the data
contained in the file adheres to this document. This information is represented in the XML format with
the tag. See 4.2.2.2.
NOTE Strings are widely used including "ECI2002", "CGATS17", "CGATS.17", "ISO 12642-2". These files often
conform to this document with the exception of this identifier.
4.2.2.2 Standard
The use of this identifier indicates that the data contained in the file adheres to the indicated standard.
Format Tag/Keyword Attribute Data type
XML String
NOTE There is no ASCII keyword for this because in the ASCII format this information is carried in the first
line of the file.
4.2.2.3 Originator
Identifies the specific system, organization or individual that created the data file.
Format Tag/Keyword Attribute Data type
XML String
ASCII ORIGINATOR String
4.2.2.4 File descriptor
Describes the purpose or contents of the data file.
Format Tag/Keyword Attribute Data type
XML String
ASCII FILE_DESCRIPTOR String
4.2.2.5 Created
Indicates the creation date of the data file. The recommended form for this date is CCYY -MM -DDThh:
mm: ss[Z | +/-hh:mm].
Format Tag/Keyword Attribute Data type
XML String
date String
ASCII CREATED String
4.2.2.6 Number of fields
Number of fields (data format identifiers) that are included in the data format definition that follows.
Format Tag/Keyword Attribute Data type
XML Integer
ASCII NUMBER_OF_FIELDS Integer
4.2.2.7 Data format
Marks the beginning and end of a data format definition. END_DATA_FORMAT shall be preceded by
BEGIN_DATA_FORMAT. See 4.3.4 for information on the data that would be included between these
tags/keywords.
Format Tag/Keyword Attribute Data type
XML NA
ASCII BEGIN_DATA_FORMAT
END_DATA_FORMAT
4.2.2.8 Number of sets of data
Number of repetitions or sets of data, i.e. the number of rows in the data table. The associated value is
an integer.
Format Tag/Keyword Attribute Data type
XML Integer
ASCII NUMBER_OF_SETS Integer
4.2.2.9 Data table
Marks the beginning and end of a data table.
Format Tag/Keyword Attribute Data type
XML
ASCII BEGIN_DATA
END_DATA
4.2.3 Optional tags and keywords
4.2.3.1 General
Certain additional general tags and keywords are optional and may be used as needed. The currently
defined optional tags and keywords are defined in 4.2.3.2 to 4.2.3.19. The optional tags and keywords
shall occur after the CREATED tag/keyword and before the NUMBER_OF_FIELDS tag/keyword.
4.2.3.2 Comment
Comments are ignored by automated readers. In the XML syntax, all characters within the
tags are ignored. In the ASCII syntax, all characters between the comment keyword and
the end of line indicator are ignored. End of line is indicated by either carriage return or newline.
Comments indicate to users that the information that follows is of informative interest. Comments need
not be enclosed in quotes. Comments may occur anywhere except within a table.
Format Tag/Keyword Attribute Data type
XML String
ASCII # String
4.2.3.3 Instrumentation
Used to report the specific instrumentation used (e.g. manufacturer, model number and serial number,
etc.) to generate the data reported. This data will often provide more information about the particular
data collected than an extensive list of specific details. This is particularly important for spectral data
or data derived from spectrophotometry.
Format Tag/Keyword Attribute Data type
XML String
manufacturer String
model String
serial_number String
ASCII INSTRUMENTATION String
4.2.3.4 Measurement geometry
The type of measurement, either reflection or transmission, should be indicated along with details
of the geometry and the aperture size and shape. For example, for transmission measurements it is
important to identify 0/diffuse, diffuse/0, opal or integrating sphere, etc. For reflection measurements
it is important to identify 0/45, 45/0, sphere (specular included or excluded), etc.
Format Tag/Keyword Attribute Data type
XML String
ASCII MEASUREMENT_GEOMETRY String
4.2.3.5 Measurement source
Illumination (e.g. incandescent, daylight, colour temperature, etc.) used during spectral measurement.
This data helps provide a guide to the potential for issues of paper fluorescence, etc.
Format Tag/Keyword Attribute Data type
XML String
ASCII MEASUREMENT_SOURCE String
4.2.3.6 Filter
Identifies the use of physical filter(s) during measurement. This is typically used to denote the use of
filters such as none, D65, Red, Green or Blue.
Format Tag/Keyword Attribute Data type
XML String
ASCII FILTER String
4.2.3.7 Polarization
Identifies the use of a physical polarization filter during measurement. Allowed values are "yes”, “none”
or “na”.
Format Tag/Keyword Attribute Data type
XML String
ASCII POLARIZATION String
4.2.3.8 Weighting function
Indicates such functions as: the CIE standard observer functions used in the calculation of various
data parameters (2 degree and 10 degree); CIE standard illuminant functions used in the calculation of
various data parameters (e.g. D50, D65, etc.); density status response; etc. If used, there shall be at least
one name-value pair following the WEIGHTING_ FUNCTION tag/keyword. The first attribute in the set
shall be "name" and shall identify the particular parameter used. The second shall be "value" and shall
provide the value associated with that name. For ASCII data a string containing the Name and Value
attribute pairs shall follow the weighting function keyword. A semi-colon shall be used to separate
attribute pairs from each other, and within the attribute the name and value shall be separated by a
comma.
Format Tag/Keyword Attribute Data type
XML String
name String
value String
ASCII WEIGHTING_FUNCTION String
4.2.3.9 Computational parameter
Parameter that is used in computing a value from measured data. Name is the name of the calculation,
parameter is the name of the parameter used in the calculation, and value is the value of the parameter.
Format Tag/Keyword Attribute Data type
XML NA
name String
parameter String
value String
ASCII COMPUTATIONAL_PARAMETER String
4.2.3.10 Sample backing
Identifies the backing material used behind the sample during measurement. Allowed values are
“black”, “white”, “self” or “na”.
Format Tag/Keyword Attribute Data type
XML String
ASCII SAMPLE_BACKING String
4.2.3.11 Manufacturer
Indicates the manufacturer of the sample from which the data was measured.
Format Tag/Keyword Attribute Data type
XML String
ASCII MANUFACTURER String
4.2.3.12 Material
Identifies the material or substrate on which the target was produced, using a code identifying the
material.
Format Tag/Keyword Attribute Data type
XML String
ASCII MATERIAL String
4.2.3.13 Target type
Identifies the type of target being measured, e.g. IT8.7/1, IT8.7/3, user-defined, etc.
Format Tag/Keyword Attribute Data type
XML String
ASCII TARGET_TYPE String
4.2.3.14 Colorant(s)
Identifies the colorant(s) used in creating the target.
Format Tag/Keyword Attribute Data type
XML String
ASCII COLORANT String
4.2.3.15 Production date
Identifies year and month of production of the target in the form yyyy:mm.
Format Tag/Keyword Attribute Data type
XML String
year String
month String
ASCII PROD_DATE String
4.2.3.16 Print conditions
Used to define the characteristics of the printed sheet being reported. Where standard conditions have
been defined (e.g. SWOP at nominal) named conditions may suffice. Otherwise, detailed information
shall be provided.
Format Tag/Keyword Attribute Data type
XML String
ASCII PRINT_CONDITIONS String
4.2.3.17 Serial number
Uniquely identifies physical samples.
Format Tag/Keyword Attribute Data type
XML String
ASCII SERIAL String
4.2.3.18 Process colour identification
Uniquely identifies colour and sequence of data columns associated with the numerical values assigned
to each process colour set.
Format Tag/Keyword Attribute Data type
XML
colors_in_set Integer
color_number Integer
color String
ASCII PROCESSCOLOR_ID String
Where the data format identifier PCm_n is used, a process colour tag/keyword (,
PROCESSCOLOR_ID) shall be included for each process colour used. The value m represents the number
of colours in the process colour set. The value n is used to identify the individual colour within the
process colour set and is assigned according to the order of columns in the data block.
4.2.3.19 Spot colour identification
Uniquely identifies colour associated with the numerical value assigned to each spot colour (or line
colour).
Format Tag/Keyword Attribute Data type
XML
number Integer
color String
ASCII SPOT_ID String
Where the data format identifiers SPOT_1 through SPOT_n are used, a spot colour tag/keyword
(, SPOTID) shall be included for each spot colour used.
4.2.3.20 Copyright
Identifies any specific copyright information associated with the file.
Format Tag/Keyword Attribute Data type
XML String
ASCII COPYRIGHT String
Where no copyright is associated with a file and it can be freely used without restriction, creators of
the file should note that fact.
4.2.3.21 Printing order
Identifies the order of laydown (sequence of printing) for the PCm_n and/or SPOT_s and/or CMYK_x
data columns in the data format, by listing the number of laydown in the order of those data columns.
Format Tag/Keyword Attribute Data type
XML String
ASCII PRINTING_ORDER String
NOTE 1 This numbering can also be applied for the common non-standard usage of mCLR_n data columns.
NOTE 2 The special string value "n/a" can be used to specify a printing system without inherent sequence, like
multi-pass inkjet printing.
4.2.3.22 Spectral range
Identifies the unit of absolute spectral quantities, or the encoding of relative spectral quantities, which
can be given as a percentage or as a fractional number.
Format Tag/Keyword Attribute Data type
XML String
ASCII SPECTRAL_RANGE String
The value shall be "100" for percentage values, "1" for fractional data or a unit for absolute data such as
"W/m /nm".
4.2.4 User-defined tags and keywords
Declares a user-defined tag or keyword. This is primarily intended for vendor-specific information,
but can also be used as a mechanism to add new keywords in the future without breaking automated
readers in existence prior to tag/keyword revision. See Annex D for an example of use of user-defined
keywords.
User-defined tags and keywords do not take effect until they are defined and remain in effect for the
rest of the file. Automated readers may ignore user- or vendor-defined keywords, and associated values,
that they do not recognize.
In the XML syntax, the value associated with the user-defined tag may be set using the value attribute
or by enclosing the value within tags. The data type is set using the data_type
attribute, which may have the following values: R for decimal values, I for integer values and CS for
string values.
In the ASCII syntax, the value associated with KEYWORD is the name of keyword being defined. The
name value shall be an alphanumeric value without white space. The user-defined keyword value shall
be set using normal keyword-value pair syntax; i.e. KEYWORD "name of user-defined keyword".
Format Tag/Keyword Attribute Data type
XML String
name String
value String
data_type String
comment String
ASCII KEYWORD String
NOTE In the XML format, if the user-defined keyword is to be used as a data format identifier, the value
attribute is not included in the initial definition. In the ASCII format, if the user defined Keyword is not used as
a data format identifier but in the header, the user defined keyword is required to be repeated followed by its
value.
4.2.5 Data format identifier
Declares a new data format identifier to be defined from this point forward.
Format Tag/Keyword Attribute Data type
XML NA
name String
ASCII DATA_FORMAT_IDENTIFIER String
4.3 Data tables
4.3.1 General
The file structure of this document provides support for both single and multiple data sets (data formats
and data table delimiters) to be contained within a single file. When multiple data sets are contained
within a file, these data sets may be one of the following: multiple data sets using the same data format,
multiple data sets using the same header information, or multiple data sets that are unrelated to each
other but are contained in the same file. In any case, data table formatting tags or keywords shall be
specified for each data table.
NOTE As specified in 4.2.2.1, the STANDARD, ORIGINATOR, FILE_DESCRIPTOR and CREATED tags/
keywords can occur only once within a file.
4.3.2 Table descriptor
Describes the purpose or contents of a data table.
Format Tag/Keyword Attribute Data type
XML String
ASCII TABLE_DESCRIPTOR String
4.3.3 Table name
Provides a short name for a data table.
Format Tag/Keyword Attribute Data type
XML String
ASCII TABLE_NAME String
4.3.4 Data format identifiers
4.3.4.1 General
Data format identifiers describe the meaning of each field of data within a set. See examples in Annex C.
Data formats shall be composed of identifiers listed in 4.3.4, or data format identifiers defined by the
user using the tag or DATA_FORMAT_IDENTIFIER keyword. Unknown entries
in the data format definition will be read, but may be ignored by automated readers. Data format
identifiers shall be uppercase. The data type associated with each data format is assumed to be decimal
(R) unless separately defined as integer (I) or character string (CS). In ASCII files character string data
shall be enclosed in quotes except in the case of SAMPLE_ID or SAMPLE_NO where the quotes are not
required if the sample identifier does not contain white space. The Sample ID (CS) entries shall reflect
integer values.
In ASCII files where multiple data format identifiers appear they may be entered either on individual
lines or on single lines separated with white space characters as specified in 4.1.2.
A data format remains in effect until the next data format is encountered.
4.3.4.2 Defined data format identifiers
The following are the currently defined data format identifiers:
SAMPLE_ID (CS) — Sample identifier as defined in ISO 12642-1 or ISO 12642-2
SAMPLE_NO (CS) — Sample sequential number assigned based on read order or other user
defined criteria.
STRING (CS) — Identifies label, or other non-machine readable value. Value shall begin
and end with a " symbol.
CMYK_C — Cyan component of CMYK data expressed as a percentage
CMYK_M — Magenta component of CMYK data expressed as a percentage
CMYK_Y — Yellow component of CMYK data expressed as a percentage
CMYK_K — Black component of CMYK data expressed as a percentage
PCm_n — Data associated with the process colour identified in tag/keyword
Process colour identification (4.2.3.18), expressed as a percentage. The
value m represents the number of colours in the process colour set. The
value n is used to identify the individual colour within the process colour
set and is assigned according to the order of columns in the data block.
SPOT_n — Data associated with the spot colour n identified in tag/keyword Spot
colour identification (4.2.3.19), expressed as a percentage, where n is
a numerical value
D_RED — Red filter density
D_GREEN — Green filter density
D_BLUE — Blue filter density
D_VIS — Visual filter density
D_MAJOR_FILTER — Major filter density
RGB_R — Red component of RGB data expressed as a code value in the range 0-255
RGB_G — Green component of RGB data expressed as a code value in the range 0-255
RGB_B — Blue component of RGB data expressed as a code value in the range 0-255
SPECTRAL_lambda — Data associated with the reflectance/transmittance values at wavelength
lambda (e.g. 380, 390, ., 730: 36 columns).
SPECTRAL_PCT — Percentage reflectance/transmittance
SPECTRAL_DEC — Reflectance/transmittance
XYZ_X — X component of tristimulus data
XYZ_Y — Y component of tristimulus data
XYZ_Z — Z component of tristimulus data
XYY_X — x component of chromaticity data
XYY_Y — y component of chromaticity data
XYY_CAPY — Y component of tristimulus data
[1]
LAB_L — L* component of CIELAB data
LAB_A — a* component of CIELAB data
LAB_B — b* component of CIELAB data
LAB_C — C* component of CIELAB data
ab
LAB_H — h component of CIELAB data
ab
LAB_DE — CIE ΔE*
ab
LAB_DE_94 — CIE ΔE using CIE DE 94
LAB_DE_CMC — ΔE using CMC
[2]
LAB_DE_2000 — CIE ΔE using CIEDE2000
MEAN_DE — Mean ΔE* (LAB_DE) of samples compared to batch average (used for
ab
data files for ANSI IT8.7/1 and ANSI IT8.7/2 targets)
STDEV_X — Standard deviation of X (tristimulus data)
STDEV_Y — Standard deviation of Y (tristimulus data)
STDEV_Z — Standard deviation of Z (tristimulus data)
STDEV_L — Standard deviation of L*
STDEV_A — Standard deviation of a*
STDEV_B — Standard deviation of b*
CHI_SQD_PAR — Average of the standard deviations of L*, a* or b*
A data format identifier shall occur only once per data format specification.
NOTE In addition to SPECTRAL_lambda, many existing files and software packages use the shorter notation
NM_lambda or R_lambda.
4.3.4.3 Usage
4.3.4.3.1 XML format
The data format is contained within tags and shall be preceded by the fields> tag. Each data field shall be described individually using the parameterized tag. The
number of tags shall equal the value of the tag.
Parameters of the tag are:
Format Tag/Keyword Attribute Data type
XML
pos string
name string
col_name string
The following example illustrates the syntax.
Example
integer value
…
4.3.4.3.2 ASCII format
The data format shall be contained within BEGIN_/END_DATA_FORMAT keywords and shall be
preceded by the NUMBER_OF_FIELDS keyword. Each data field shall be described individually by using
data format identifiers. The number of data format identifiers shall equal the value of the NUMBER_OF_
FIELDS keyword.
ASCII formatted data tables shall be represented using the syntax
NUMBER_OF_FIELDS
BEGIN_DATA_FORMAT
Data format identifier
...
Data format identifier
END_DATA_FORMAT
4.3.5 Table data
4.3.5.1 General
Subclauses 4.3.5.2 and 4.3.5.3 describe how a table is constructed in the XML format and the ASCII
format, respectively.
The number of data points for each row of the table shall be equal to the NUMBER_OF_FIELDS as defined
in 4.2.2.6. The number of rows in the table shall be equal to the NUMBER_OF_SETS as defined in 4.2.2.8.
Each "set of data" within a given table should be related directly to a specific sample area.
4.3.5.2 XML format
The XML formatted data tables shall be represented as illustrated in the following:
integer value
…
…
…
| field value | field value |
| field value | field value |
4.3.5.3 ASCII format
ASCII formatted data tables shall be represented using the syntax:
NUMBER_OF_SETS
BEGIN_DATA
...
END_DATA
Annex A
(informative)
Advantages of an XML data reporting format
A.1 General
XML has become the lingua franca for data that is being exchanged. Therefore, there is an assumption
that the implementers of this document have a working knowledge of XML or access to appropriate
resources. In addition to multiple books on XML and its related standard, current information can be
obtained at http:// www .w3 .org, the group that maintains the XML standard. There are also numerous
other web sites with information about XML and its various parts.
The general XML environment consists of three sections:
— document descriptions,
— tools, and
— documents.
A.2 Document descriptions
The XML environment for this document requires both well-formed and valid documents. To this end, a
schema is provided. The schema provides the definition of a properly created document. This definition
or rule set indicates what information is to be within the document and in what order the information
should appear. There is also information about the mandatory or optional use of information and how
many times any particular piece of information may appear. The schema provides the information
needed to allow a processing application to confirm that all documents meet the rules of XML and this
document.
A.3 Tools
Because of the significant interest in using XML for information exchange, a number of tools have been
developed. There are two tools of particular interest to implementers of this document. The first is an
[7]
XSLT processor . The other is an XML DOM.
XSLT is the formatting and conversion language developed for XML. The XSLT processor uses a set of
transformation rules along with a source document and a document definition to create a new document.
The new document can either be
...
INTERNATIONAL ISO
STANDARD 28178
Second edition
2022-09
Graphic technology — Exchange
format for colour and process control
data using XML or ASCII text
Technologie graphique — Format d'échange pour les données de
couleur et de contrôle de procédé en utilisant du texte XML ou ASCII
Reference number
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements . 2
4.1 General description of a conforming file . 2
4.1.1 XML format . 2
4.1.2 ASCII format . 2
4.2 Tags and keywords . 3
4.2.1 General . 3
4.2.2 Required preamble tags and keywords . 4
4.2.3 Optional tags and keywords . 6
4.2.4 User-defined tags and keywords . 11
4.2.5 Data format identifier .12
4.3 Data tables . 12
4.3.1 General .12
4.3.2 Table descriptor .12
4.3.3 Table name . 12
4.3.4 Data format identifiers. 13
4.3.5 Table data . 16
Annex A (informative) Advantages of an XML data reporting format .17
Annex B (informative) Tag and keyword examples .19
Annex C (informative) Sample files .24
Annex D (informative) Example of use of user-defined keywords .30
Bibliography .37
iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 130, Graphic technology.
This second edition cancels and replaces the first edition (ISO 28178:2009), which has been technically
revised.
The main changes are as follows:
— in 4.2.3.21, an additional tag to remove ambiguity with respect to the printing sequence and the
sequence of tabulating data in particular to ease the data exchange for multi-colour printing has
been added;
— in 4.1.2.1, additional guidance on the use of delimiters, such as point and comma, as well as the
plausibility of the sample ID usage have been provided.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
This document is intended to support all existing and future graphic arts standards that require the
exchange of measured, computed, or process control data and the associated metadata necessary for its
proper interpretation.
The following requirements were identified when reviewing the needs of such a format:
— applications based on the existing ASCII formats must not be made obsolete;
— data must be in a form that is both human-readable (once the digital file has been displayed using
standard editors, or file readers) and machine-readable;
— data must be readable by automated programs to extract the necessary information;
— data files must be extensible by end users in such a way as to allow additional information to be
included without breaking automated readers of the file;
— data files must be capable of being created by automated programs;
— the format must allow multiple language representation of data.
The file formats chosen to accomplish this task are a combination of XML and extensions of the existing
ASCII keyword-value file format, coupled with the necessary tools to allow appropriate conversions
to and from XML from ASCII keyword-value files. However, either the XML file format or the ASCII
keyword-value file format can be used independently.
These formats make use of predefined XML tags and ASCII keywords. Values are associated with the
tags and keywords and remain in effect until another instance of the tag or keyword. Provision is
made to allow the use of data tables and to separately define the format within data tables. Multiple
occurrences of such data tables within a single file are also permitted. User-defined tags and keywords
are also allowed.
NOTE During the 2021 review process, it was noted that the XML format is not widely used and that its
specification in this document is insufficiently precise to ensure reliable exchange of data.
v
INTERNATIONAL STANDARD ISO 28178:2022(E)
Graphic technology — Exchange format for colour and
process control data using XML or ASCII text
1 Scope
This document defines an exchange format for colour and process control data (and the associated
metadata necessary for its proper interpretation) in electronic form using either XML or ASCII
formatted data files. This exchange format maintains human readability of the data as well as enabling
machine readability. It includes a series of predefined tags and keywords, and provides extensibility
through provision for the dynamic definition of additional tags and keywords as necessary. It is focused
primarily on spectral measurement data, colorimetric data, and densitometric data.
This document is intended to be used in conjunction with other standards that will define the required
data, and tags or keywords for specific data exchange applications.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
data format identifier
predefined set of characters, without intervening spaces, forming a unique word that is used to identify
the presence of a defined item of data in a subsequent data table
3.2
keyword
predefined set of characters, without intervening spaces, forming a unique word that is used to identify
the presence of a defined item of information
3.3
schema
XML document that, following the rules established by the World Wide Web Consortium, defines the
structure of a class of xml documents
3.4
value
information immediately following a keyword (3.2) that represents the data content or "value"
associated with that keyword
4 Requirements
4.1 General description of a conforming file
4.1.1 XML format
[46]
This file format is an XML format that complies with Extensible Markup Language (XML) 1.0. The
format makes use of predefined tags that identify information commonly used to describe graphic arts
samples. In addition, users of this format are allowed to define tags to tailor the format to their specific
needs according to the rules of XML namespace.
The data file is divided into two sections.
The preamble is the first section. This section provides general information and describes the conditions
under which data was collected. The preamble tag is iso28178.preamble. Tags used in the preamble are
listed in 4.2.
The data section is the second section, which is further divided into two parts. The first part of the data
section provides the information that describes the type and location of the table contents; the second
section contains the data values.
The schema associated with the XML format defined in this document is contained in file iso28178_
data.xsd (available at: https:// standards .iso .org/ iso/ 28178/ ed -2/ en/ ), which is an essential normative
part of this document. This document also provides structural XML tags that are needed for the proper
specification of an XML document instance.
NOTE See Annex A for a discussion on the need and application of the XML data reporting format.
4.1.2 ASCII format
4.1.2.1 General
This file format is an ASCII format keyword-value file. It makes use of predefined keywords and data
tables. Values are associated with the keyword that precedes them and remain in effect until another
instance of the keyword-value pair. Data values are delimited by the BEGIN_DATA and END_DATA
keywords.
Keywords and values, as well as fields within data tables, are separated by white space. Valid white
space characters are space (position 2/0 of ISO/IEC 646), carriage return (position 0/13 of ISO/IEC 646),
newline (position 0/10 of ISO/IEC 646), and tab (position 0/9 of ISO/IEC 646). Keywords may be
separated from values using any valid white space character. Only the space and tab may precede a
keyword on a line. Comments are preceded by a single comment character (a single character keyword).
The comment character is the "#" (position 2/3 of ISO/IEC 646) symbol. Comments may begin any place
on a line, and are terminated by a newline or carriage return character.
NOTE The default separator for exporting data from spreadsheet applications in many regions is a comma
and not a white space character. Conforming files can be created by changing this default to a tab character and
by using the full point character as the decimal separator.
4.1.2.2 Exchanged data file structure
A file containing measurement data would normally be structured as shown in Figure 1. This structure
allows multiple tables of data within a single exchange file.
Figure 1 — File structure
4.2 Tags and keywords
4.2.1 General
Most tags and keywords may appear in the file in any order, and may appear multiple times within
the file. Values associated with tags and keywords that appear more than once shall be replaced by
successive instances except for KEYWORD, COMPUTATIONAL_PARAMETER, and WEIGHTING_
FUNCTION. Tags and keywords that describe data tables, however, shall be defined before the data
table. Table 1 lists these tags and keywords. These tags are described in greater detail in this subclause.
Table 1 — XML tags and ASCII keywords that appear in a defined order
Function XML tag ASCII keyword
data table width NUMBER_OF_FIELDS
data format delimiters BEGIN_DATA_FORMAT
END_DATA_FORMAT
data table length NUMBER_OF_SETS
data table delimiters BEGIN_DATA
END_DATA
Data format delimiters shall be preceded by a data table width tag or keyword. Data table delimiters
shall be preceded by a data table length tag or keyword. In the ASCII format, BEGIN_/END_ keywords
begin and end the data format or table data. In the XML format, tags have parameters and/or values and
a standard syntax is used; e.g. data format identifiers . Values for tags
and keywords that describe data tables shall be specified for each data table in the file; i.e. inheritance
of these values is not permitted.
ASCII tags and keywords may be composed of any combination of the following: upper case letters;
digits 0 through 9; and ASCII characters $ (position 2/4 of ISO/IEC 646), % (position 2/5 of ISO/IEC 646),
& (position 2/6 of ISO/IEC 646), - (position 2/13 of ISO/IEC 646), / (position 2/15 of ISO/IEC 646), _
(position 5/15 of ISO/IEC 646). By convention all XML tags are lower case.
In the ASCII format, unless used as part of a data format definition, keywords should not be preceded
on a line by other than white space. Unless otherwise noted, each keyword has a character string value
associated with it. All character string values shall be enclosed in quotes, regardless of whether there is
white space contained within the string. Enclosed in quotes means beginning and ending the character
string with the " symbol (position 2/2 of ISO/IEC 646). The " symbol itself is represented within a string
as "" as in the C language syntax.
NOTE The default behaviour of applications writing '.csv' files results in additional quotation marks being
added to files, for example "FILE_DESCRIPTOR ""12642-3 Target definition""", which means that such files do not
conform with this requirement.
For XML tag/keyword entries the form is value. If attribute names are provided
in the XML section of a definition, the information is represented in the XML-formatted data as XML
attribute using the form .
The value associated with keywords NUMBER_OF_FIELDS and NUMBER_OF_SETS shall be an integer.
These values should not be enclosed in quotes.
Format and table delimiters do not have explicit values associated with them but rather enclose either
the data format definition or table data.
The separation between the integer and the fractional part of a given number should be a "full point"
for all entries.
See Annex B for examples of the use of each tag and keyword shown in 4.2.2 and 4.2.3.
4.2.2 Required preamble tags and keywords
4.2.2.1 General
Certain tags and keywords are required as part of each file, while others are optional depending upon
the data to be included. All keywords shall occur before the BEGIN_DATA_FORMAT keyword and the
sequence order for required tags and keywords shall follow the order shown in 4.2.2.2 through 4.2.2.9.
The STANDARD, ORIGINATOR, FILE_DESCRIPTOR and CREATED tags/keywords may occur only once
within a file.
The first line in the ASCII format should be ISO 28178. The use of this identifier indicates that the data
contained in the file adheres to this document. This information is represented in the XML format with
the tag. See 4.2.2.2.
NOTE Strings are widely used including "ECI2002", "CGATS17", "CGATS.17", "ISO 12642-2". These files often
conform to this document with the exception of this identifier.
4.2.2.2 Standard
The use of this identifier indicates that the data contained in the file adheres to the indicated standard.
Format Tag/Keyword Attribute Data type
XML String
NOTE There is no ASCII keyword for this because in the ASCII format this information is carried in the first
line of the file.
4.2.2.3 Originator
Identifies the specific system, organization or individual that created the data file.
Format Tag/Keyword Attribute Data type
XML String
ASCII ORIGINATOR String
4.2.2.4 File descriptor
Describes the purpose or contents of the data file.
Format Tag/Keyword Attribute Data type
XML String
ASCII FILE_DESCRIPTOR String
4.2.2.5 Created
Indicates the creation date of the data file. The recommended form for this date is CCYY -MM -DDThh:
mm: ss[Z | +/-hh:mm].
Format Tag/Keyword Attribute Data type
XML String
date String
ASCII CREATED String
4.2.2.6 Number of fields
Number of fields (data format identifiers) that are included in the data format definition that follows.
Format Tag/Keyword Attribute Data type
XML Integer
ASCII NUMBER_OF_FIELDS Integer
4.2.2.7 Data format
Marks the beginning and end of a data format definition. END_DATA_FORMAT shall be preceded by
BEGIN_DATA_FORMAT. See 4.3.4 for information on the data that would be included between these
tags/keywords.
Format Tag/Keyword Attribute Data type
XML NA
ASCII BEGIN_DATA_FORMAT
END_DATA_FORMAT
4.2.2.8 Number of sets of data
Number of repetitions or sets of data, i.e. the number of rows in the data table. The associated value is
an integer.
Format Tag/Keyword Attribute Data type
XML Integer
ASCII NUMBER_OF_SETS Integer
4.2.2.9 Data table
Marks the beginning and end of a data table.
Format Tag/Keyword Attribute Data type
XML
ASCII BEGIN_DATA
END_DATA
4.2.3 Optional tags and keywords
4.2.3.1 General
Certain additional general tags and keywords are optional and may be used as needed. The currently
defined optional tags and keywords are defined in 4.2.3.2 to 4.2.3.19. The optional tags and keywords
shall occur after the CREATED tag/keyword and before the NUMBER_OF_FIELDS tag/keyword.
4.2.3.2 Comment
Comments are ignored by automated readers. In the XML syntax, all characters within the
tags are ignored. In the ASCII syntax, all characters between the comment keyword and
the end of line indicator are ignored. End of line is indicated by either carriage return or newline.
Comments indicate to users that the information that follows is of informative interest. Comments need
not be enclosed in quotes. Comments may occur anywhere except within a table.
Format Tag/Keyword Attribute Data type
XML String
ASCII # String
4.2.3.3 Instrumentation
Used to report the specific instrumentation used (e.g. manufacturer, model number and serial number,
etc.) to generate the data reported. This data will often provide more information about the particular
data collected than an extensive list of specific details. This is particularly important for spectral data
or data derived from spectrophotometry.
Format Tag/Keyword Attribute Data type
XML String
manufacturer String
model String
serial_number String
ASCII INSTRUMENTATION String
4.2.3.4 Measurement geometry
The type of measurement, either reflection or transmission, should be indicated along with details
of the geometry and the aperture size and shape. For example, for transmission measurements it is
important to identify 0/diffuse, diffuse/0, opal or integrating sphere, etc. For reflection measurements
it is important to identify 0/45, 45/0, sphere (specular included or excluded), etc.
Format Tag/Keyword Attribute Data type
XML String
ASCII MEASUREMENT_GEOMETRY String
4.2.3.5 Measurement source
Illumination (e.g. incandescent, daylight, colour temperature, etc.) used during spectral measurement.
This data helps provide a guide to the potential for issues of paper fluorescence, etc.
Format Tag/Keyword Attribute Data type
XML String
ASCII MEASUREMENT_SOURCE String
4.2.3.6 Filter
Identifies the use of physical filter(s) during measurement. This is typically used to denote the use of
filters such as none, D65, Red, Green or Blue.
Format Tag/Keyword Attribute Data type
XML String
ASCII FILTER String
4.2.3.7 Polarization
Identifies the use of a physical polarization filter during measurement. Allowed values are "yes”, “none”
or “na”.
Format Tag/Keyword Attribute Data type
XML String
ASCII POLARIZATION String
4.2.3.8 Weighting function
Indicates such functions as: the CIE standard observer functions used in the calculation of various
data parameters (2 degree and 10 degree); CIE standard illuminant functions used in the calculation of
various data parameters (e.g. D50, D65, etc.); density status response; etc. If used, there shall be at least
one name-value pair following the WEIGHTING_ FUNCTION tag/keyword. The first attribute in the set
shall be "name" and shall identify the particular parameter used. The second shall be "value" and shall
provide the value associated with that name. For ASCII data a string containing the Name and Value
attribute pairs shall follow the weighting function keyword. A semi-colon shall be used to separate
attribute pairs from each other, and within the attribute the name and value shall be separated by a
comma.
Format Tag/Keyword Attribute Data type
XML String
name String
value String
ASCII WEIGHTING_FUNCTION String
4.2.3.9 Computational parameter
Parameter that is used in computing a value from measured data. Name is the name of the calculation,
parameter is the name of the parameter used in the calculation, and value is the value of the parameter.
Format Tag/Keyword Attribute Data type
XML NA
name String
parameter String
value String
ASCII COMPUTATIONAL_PARAMETER String
4.2.3.10 Sample backing
Identifies the backing material used behind the sample during measurement. Allowed values are
“black”, “white”, “self” or “na”.
Format Tag/Keyword Attribute Data type
XML String
ASCII SAMPLE_BACKING String
4.2.3.11 Manufacturer
Indicates the manufacturer of the sample from which the data was measured.
Format Tag/Keyword Attribute Data type
XML String
ASCII MANUFACTURER String
4.2.3.12 Material
Identifies the material or substrate on which the target was produced, using a code identifying the
material.
Format Tag/Keyword Attribute Data type
XML String
ASCII MATERIAL String
4.2.3.13 Target type
Identifies the type of target being measured, e.g. IT8.7/1, IT8.7/3, user-defined, etc.
Format Tag/Keyword Attribute Data type
XML String
ASCII TARGET_TYPE String
4.2.3.14 Colorant(s)
Identifies the colorant(s) used in creating the target.
Format Tag/Keyword Attribute Data type
XML String
ASCII COLORANT String
4.2.3.15 Production date
Identifies year and month of production of the target in the form yyyy:mm.
Format Tag/Keyword Attribute Data type
XML String
year String
month String
ASCII PROD_DATE String
4.2.3.16 Print conditions
Used to define the characteristics of the printed sheet being reported. Where standard conditions have
been defined (e.g. SWOP at nominal) named conditions may suffice. Otherwise, detailed information
shall be provided.
Format Tag/Keyword Attribute Data type
XML String
ASCII PRINT_CONDITIONS String
4.2.3.17 Serial number
Uniquely identifies physical samples.
Format Tag/Keyword Attribute Data type
XML String
ASCII SERIAL String
4.2.3.18 Process colour identification
Uniquely identifies colour and sequence of data columns associated with the numerical values assigned
to each process colour set.
Format Tag/Keyword Attribute Data type
XML
colors_in_set Integer
color_number Integer
color String
ASCII PROCESSCOLOR_ID String
Where the data format identifier PCm_n is used, a process colour tag/keyword (,
PROCESSCOLOR_ID) shall be included for each process colour used. The value m represents the number
of colours in the process colour set. The value n is used to identify the individual colour within the
process colour set and is assigned according to the order of columns in the data block.
4.2.3.19 Spot colour identification
Uniquely identifies colour associated with the numerical value assigned to each spot colour (or line
colour).
Format Tag/Keyword Attribute Data type
XML
number Integer
color String
ASCII SPOT_ID String
Where the data format identifiers SPOT_1 through SPOT_n are used, a spot colour tag/keyword
(, SPOTID) shall be included for each spot colour used.
4.2.3.20 Copyright
Identifies any specific copyright information associated with the file.
Format Tag/Keyword Attribute Data type
XML String
ASCII COPYRIGHT String
Where no copyright is associated with a file and it can be freely used without restriction, creators of
the file should note that fact.
4.2.3.21 Printing order
Identifies the order of laydown (sequence of printing) for the PCm_n and/or SPOT_s and/or CMYK_x
data columns in the data format, by listing the number of laydown in the order of those data columns.
Format Tag/Keyword Attribute Data type
XML String
ASCII PRINTING_ORDER String
NOTE 1 This numbering can also be applied for the common non-standard usage of mCLR_n data columns.
NOTE 2 The special string value "n/a" can be used to specify a printing system without inherent sequence, like
multi-pass inkjet printing.
4.2.3.22 Spectral range
Identifies the unit of absolute spectral quantities, or the encoding of relative spectral quantities, which
can be given as a percentage or as a fractional number.
Format Tag/Keyword Attribute Data type
XML String
ASCII SPECTRAL_RANGE String
The value shall be "100" for percentage values, "1" for fractional data or a unit for absolute data such as
"W/m /nm".
4.2.4 User-defined tags and keywords
Declares a user-defined tag or keyword. This is primarily intended for vendor-specific information,
but can also be used as a mechanism to add new keywords in the future without breaking automated
readers in existence prior to tag/keyword revision. See Annex D for an example of use of user-defined
keywords.
User-defined tags and keywords do not take effect until they are defined and remain in effect for the
rest of the file. Automated readers may ignore user- or vendor-defined keywords, and associated values,
that they do not recognize.
In the XML syntax, the value associated with the user-defined tag may be set using the value attribute
or by enclosing the value within tags. The data type is set using the data_type
attribute, which may have the following values: R for decimal values, I for integer values and CS for
string values.
In the ASCII syntax, the value associated with KEYWORD is the name of keyword being defined. The
name value shall be an alphanumeric value without white space. The user-defined keyword value shall
be set using normal keyword-value pair syntax; i.e. KEYWORD "name of user-defined keyword".
Format Tag/Keyword Attribute Data type
XML String
name String
value String
data_type String
comment String
ASCII KEYWORD String
NOTE In the XML format, if the user-defined keyword is to be used as a data format identifier, the value
attribute is not included in the initial definition. In the ASCII format, if the user defined Keyword is not used as
a data format identifier but in the header, the user defined keyword is required to be repeated followed by its
value.
4.2.5 Data format identifier
Declares a new data format identifier to be defined from this point forward.
Format Tag/Keyword Attribute Data type
XML NA
name String
ASCII DATA_FORMAT_IDENTIFIER String
4.3 Data tables
4.3.1 General
The file structure of this document provides support for both single and multiple data sets (data formats
and data table delimiters) to be contained within a single file. When multiple data sets are contained
within a file, these data sets may be one of the following: multiple data sets using the same data format,
multiple data sets using the same header information, or multiple data sets that are unrelated to each
other but are contained in the same file. In any case, data table formatting tags or keywords shall be
specified for each data table.
NOTE As specified in 4.2.2.1, the STANDARD, ORIGINATOR, FILE_DESCRIPTOR and CREATED tags/
keywords can occur only once within a file.
4.3.2 Table descriptor
Describes the purpose or contents of a data table.
Format Tag/Keyword Attribute Data type
XML String
ASCII TABLE_DESCRIPTOR String
4.3.3 Table name
Provides a short name for a data table.
Format Tag/Keyword Attribute Data type
XML String
ASCII TABLE_NAME String
4.3.4 Data format identifiers
4.3.4.1 General
Data format identifiers describe the meaning of each field of data within a set. See examples in Annex C.
Data formats shall be composed of identifiers listed in 4.3.4, or data format identifiers defined by the
user using the tag or DATA_FORMAT_IDENTIFIER keyword. Unknown entries
in the data format definition will be read, but may be ignored by automated readers. Data format
identifiers shall be uppercase. The data type associated with each data format is assumed to be decimal
(R) unless separately defined as integer (I) or character string (CS). In ASCII files character string data
shall be enclosed in quotes except in the case of SAMPLE_ID or SAMPLE_NO where the quotes are not
required if the sample identifier does not contain white space. The Sample ID (CS) entries shall reflect
integer values.
In ASCII files where multiple data format identifiers appear they may be entered either on individual
lines or on single lines separated with white space characters as specified in 4.1.2.
A data format remains in effect until the next data format is encountered.
4.3.4.2 Defined data format identifiers
The following are the currently defined data format identifiers:
SAMPLE_ID (CS) — Sample identifier as defined in ISO 12642-1 or ISO 12642-2
SAMPLE_NO (CS) — Sample sequential number assigned based on read order or other user
defined criteria.
STRING (CS) — Identifies label, or other non-machine readable value. Value shall begin
and end with a " symbol.
CMYK_C — Cyan component of CMYK data expressed as a percentage
CMYK_M — Magenta component of CMYK data expressed as a percentage
CMYK_Y — Yellow component of CMYK data expressed as a percentage
CMYK_K — Black component of CMYK data expressed as a percentage
PCm_n — Data associated with the process colour identified in tag/keyword
Process colour identification (4.2.3.18), expressed as a percentage. The
value m represents the number of colours in the process colour set. The
value n is used to identify the individual colour within the process colour
set and is assigned according to the order of columns in the data block.
SPOT_n — Data associated with the spot colour n identified in tag/keyword Spot
colour identification (4.2.3.19), expressed as a percentage, where n is
a numerical value
D_RED — Red filter density
D_GREEN — Green filter density
D_BLUE — Blue filter density
D_VIS — Visual filter density
D_MAJOR_FILTER — Major filter density
RGB_R — Red component of RGB data expressed as a code value in the range 0-255
RGB_G — Green component of RGB data expressed as a code value in the range 0-255
RGB_B — Blue component of RGB data expressed as a code value in the range 0-255
SPECTRAL_lambda — Data associated with the reflectance/transmittance values at wavelength
lambda (e.g. 380, 390, ., 730: 36 columns).
SPECTRAL_PCT — Percentage reflectance/transmittance
SPECTRAL_DEC — Reflectance/transmittance
XYZ_X — X component of tristimulus data
XYZ_Y — Y component of tristimulus data
XYZ_Z — Z component of tristimulus data
XYY_X — x component of chromaticity data
XYY_Y — y component of chromaticity data
XYY_CAPY — Y component of tristimulus data
[1]
LAB_L — L* component of CIELAB data
LAB_A — a* component of CIELAB data
LAB_B — b* component of CIELAB data
LAB_C — C* component of CIELAB data
ab
LAB_H — h component of CIELAB data
ab
LAB_DE — CIE ΔE*
ab
LAB_DE_94 — CIE ΔE using CIE DE 94
LAB_DE_CMC — ΔE using CMC
[2]
LAB_DE_2000 — CIE ΔE using CIEDE2000
MEAN_DE — Mean ΔE* (LAB_DE) of samples compared to batch average (used for
ab
data files for ANSI IT8.7/1 and ANSI IT8.7/2 targets)
STDEV_X — Standard deviation of X (tristimulus data)
STDEV_Y — Standard deviation of Y (tristimulus data)
STDEV_Z — Standard deviation of Z (tristimulus data)
STDEV_L — Standard deviation of L*
STDEV_A — Standard deviation of a*
STDEV_B — Standard deviation of b*
CHI_SQD_PAR — Average of the standard deviations of L*, a* or b*
A data format identifier shall occur only once per data format specification.
NOTE In addition to SPECTRAL_lambda, many existing files and software packages use the shorter notation
NM_lambda or R_lambda.
4.3.4.3 Usage
4.3.4.3.1 XML format
The data format is contained within tags and shall be preceded by the fields> tag. Each data field shall be described individually using the parameterized tag. The
number of tags shall equal the value of the tag.
Parameters of the tag are:
Format Tag/Keyword Attribute Data type
XML
pos string
name string
col_name string
The following example illustrates the syntax.
Example
integer value
…
4.3.4.3.2 ASCII format
The data format shall be contained within BEGIN_/END_DATA_FORMAT keywords and shall be
preceded by the NUMBER_OF_FIELDS keyword. Each data field shall be described individually by using
data format identifiers. The number of data format identifiers shall equal the value of the NUMBER_OF_
FIELDS keyword.
ASCII formatted data tables shall be represented using the syntax
NUMBER_OF_FIELDS
BEGIN_DATA_FORMAT
Data format identifier
...
Data format identifier
END_DATA_FORMAT
4.3.5 Table data
4.3.5.1 General
Subclauses 4.3.5.2 and 4.3.5.3 describe how a table is constructed in the XML format and the ASCII
format, respectively.
The number of data points for each row of the table shall be equal to the NUMBER_OF_FIELDS as defined
in 4.2.2.6. The number of rows in the table shall be equal to the NUMBER_OF_SETS as defined in 4.2.2.8.
Each "set of data" within a given table should be related directly to a specific sample area.
4.3.5.2 XML format
The XML formatted data tables shall be represented as illustrated in the following:
integer value
…
…
…
| field value | field value |
| field value | field value |
4.3.5.3 ASCII format
ASCII formatted data tables shall be represented using the syntax:
NUMBER_OF_SETS
BEGIN_DATA
...
END_DATA
Annex A
(informative)
Advantages of an XML data reporting format
A.1 General
XML has become the lingua franca for data that is being exchanged. Therefore, there is an assumption
that the implementers of this document have a working knowledge of XML or access to appropriate
resources. In addition to multiple books on XML and its related standard, current information can be
obtained at http:// www .w3 .org, the group that maintains the XML standard. There are also numerous
other web sites with information about XML and its various parts.
The general XML environment consists of three sections:
— document descriptions,
— tools, and
— documents.
A.2 Document descriptions
The XML environment for this document requires both well-formed and valid documents. To this end, a
schema is provided. The schema provides the definition of a properly created document. This definition
or rule set indicates what information is to be within the document and in what order the information
should appear. There is also information about the mandatory or optional use of information and how
many times any particular piece of information may appear. The schema provides the information
needed to allow a processing application to confirm that all documents meet the rules of XML and this
document.
A.3 Tools
Because of the significant interest in using XML for information exchange, a number of tools have been
developed. There are two tools of particular interest to implementers of this document. The first is an
[7]
XSLT processor . The other is an XML DOM.
XSLT is the formatting and conversion language developed for XML. The XSLT processor uses a set of
transformation rules along with a source document and a document definition to create a new document.
The new document can either be an XML file or an alternate file format. A XSLT transformation
document is provided. It will support the transformation of a valid, well-formed XML document which
is in accordance with this document into an ASCII document in compliance with this document.
The XML DOM is software that provides a programmatic interface between an XML document and an
application program. Versions of XML DOM software are available for most programming and operating
system environments.
A.4 Documents
The documents are the most important part of XML. An XML document can be represented as a file, a
stream between applications, or a presentation on a screen. The XML document is required to conform
to the rules of XML to be well formed. An XML document that is in conformance with this document
is also required to confirm the schema (iso28178_data.xsd which is available at: https:// standards .iso
.org/ iso/ 28178/ ed -2/ en/ ) in order to be valid. A number of sample XML documents are provided in
Annex C along with the equivalent documents in ASCII format.
Annex B
(informative)
Tag and keyword examples
B.1 General
Each line of information shown in Table B.1 is independent of any other line and will not collapse into a
meaningful single file based on this document.
Where there is more than on
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
