This European Standard describes methods for chemical analysis of ceramic coatings by means of electron probe microanalysis (EPMA) using a scanning electron microscope (SEM) or an electron probe microanalyser.
The methods described are limited to the examination of single layer coatings when the analysis is carried out normal to the sample surface, but graded and multilayer coatings may also be analysed in cross-section if the thickness of the individual layers or gradations are greater than the maximum width of the volume of material within which characteristic or fluorescent X-rays are generated.
NOTE This method can also be used for the analysis of bulk materials.
Hochleistungskeramik - Verfahren zur Prüfung keramischer Schichten - Teil 4: Bestimmung der chemischen Zusammensetzung durch Elektronenstrahl-Mikrobereichsanalyse (ESMA)
Diese Europäische Norm legt Verfahren zur Analyse der chemischen Zusammensetzung keramischer Schichten mittels Elektronenstrahl-Mikrobereichs-Analyse (ESMA) unter Verwendung eines Rasterelektronen-mikroskopes (REM) oder einer Elektronenstrahlmikrosonde fest.
Die festgelegten Verfahren sind anwendbar auf die Untersuchung von Monolagenschichten, wenn die Analyse senkrecht zur Oberfläche der Probe durchgeführt wird, gelten jedoch auch für die Analyse von gradierten und Mehrlagenschichten im Querschliff, sobald die Dickenmaße der einzelnen Lagen oder deren Gradie-rungsdistanzen größer sind als die größte räumliche Ausdehnung des zur charakteristischen und/oder Fluoreszenzröntgenstrahlung angeregten Stoffvolumens.
ANMERKUNG Dieses Verfahren kann auch zur Analyse von Rohstoffen angewendet werden.
Céramiques techniques avancées - Méthodes d'essais pour revetements céramiques - Partie 4 : Détermination de la composition chimique avec analyse par microsonde électronique (EPMA)
Sodobna tehnična keramika – Metode za preskušanje keramičnih prevlek – 4. del: Ugotavljanje kemične sestave z elektronsko mikroanalizo (EPMA)
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Hochleistungskeramik - Verfahren zur Prüfung keramischer Schichten - Teil 4: Bestimmung der chemischen Zusammensetzung durch Elektronenstrahl-Mikrobereichsanalyse (ESMA)Céramiques techniques avancées - Méthodes d'essais pour revetements céramiques - Partie 4 : Détermination de la composition chimique avec analyse par microsonde électronique (EPMA)Advanced technical ceramics - Methods of test for ceramic coatings - Part 4: Determination of chemical composition by electron probe microanalysis (EPMA)81.060.30Sodobna keramikaAdvanced ceramics25.220.99Druge obdelave in prevlekeOther treatments and coatingsICS:Ta slovenski standard je istoveten z:EN 1071-4:2006SIST EN 1071-4:2006en,de01-september-2006SIST EN 1071-4:2006SLOVENSKI
STANDARDSIST ENV 1071-4:20001DGRPHãþD
SIST EN 1071-4:2006
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1071-4February 2006ICS 81.060.30Supersedes ENV 1071-4:1995
English VersionAdvanced technical ceramics - Methods of test for ceramiccoatings - Part 4: Determination of chemical composition byelectron probe microanalysis (EPMA)Céramiques techniques avancées - Méthodes d'essaispour revêtements céramiques - Partie 4 : Détermination dela composition chimique avec analyse par microsondeélectronique (EPMA)Hochleistungskeramik - Verfahren zur Prüfung keramischerSchichten - Teil 4: Bestimmung der chemischenZusammensetzung durch Elektronenstrahl-Mikrobereichsanalyse (ESMA)This European Standard was approved by CEN on 30 December 2005.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1071-4:2006: ESIST EN 1071-4:2006

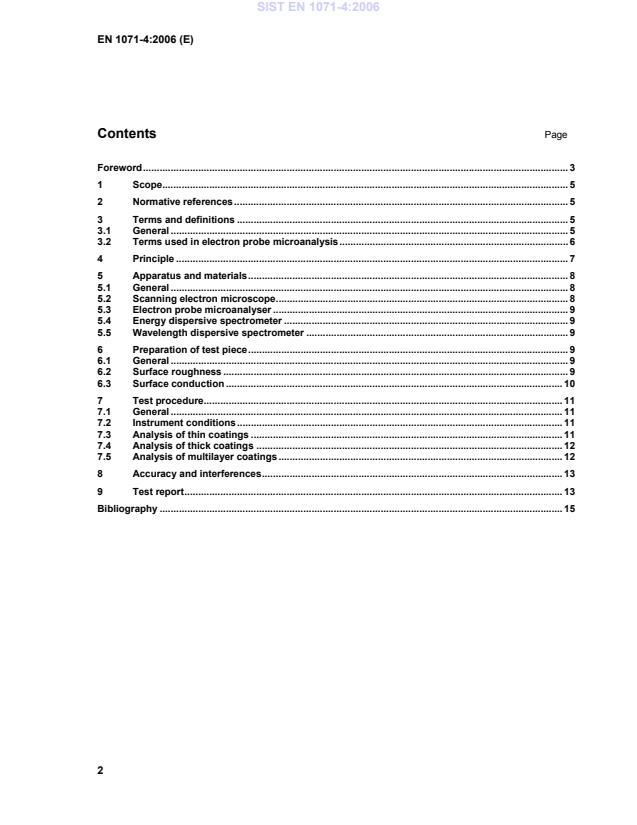

EN 1071-4:2006 (E) 2 Contents Page Foreword.3 1 Scope.5 2 Normative references.5 3 Terms and definitions.5 3.1 General.5 3.2 Terms used in electron probe microanalysis.6 4 Principle.7 5 Apparatus and materials.8 5.1 General.8 5.2 Scanning electron microscope.8 5.3 Electron probe microanalyser.9 5.4 Energy dispersive spectrometer.9 5.5 Wavelength dispersive spectrometer.9 6 Preparation of test piece.9 6.1 General.9 6.2 Surface roughness.9 6.3 Surface conduction.10 7 Test procedure.11 7.1 General.11 7.2 Instrument conditions.11 7.3 Analysis of thin coatings.11 7.4 Analysis of thick coatings.12 7.5 Analysis of multilayer coatings.12 8 Accuracy and interferences.13 9 Test report.13 Bibliography.15
SIST EN 1071-4:2006
EN 1071-4:2006 (E) 3 Foreword This European Standard (EN 1071-4:2006) has been prepared by Technical Committee CEN/TC 184 “Advanced technical ceramics”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by August 2006, and conflicting national standards shall be withdrawn at the latest by August 2006. EN 1071 Advanced technical ceramics – Methods of test for ceramic coatings consists of 11 Parts: Part 1:
Determination of coating thickness by contact probe profilometer Part 2:
Determination of coating thickness by the crater grinding method Part 3:
Determination of adhesion and other mechanical failure modes by a scratch test Part 4:
Determination of chemical composition by electron probe microanalysis (EPMA) Part 5:
Determination of porosity Part 6:
Determination of the abrasion resistance of coatings by a micro-abrasion wear test Part 7:
Determination of hardness and Young's modulus by instrumented indentation testing Part 8:
Rockwell indentation test for evaluation of adhesion Part 9: Determination of fracture strain Part 10:
Determination of coating thickness by cross sectioning Part 11: Determination of internal stress by the Stoney formula
Parts 7 to 11 are Technical Specifications. This European Standard supersedes ENV 1071-4:1995. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom. SIST EN 1071-4:2006
EN 1071-4:2006 (E) 4 Introduction Electron probe microanalysis (EPMA) is a commonly used analytical technique which is applicable to a wide range of materials in bulk form. While international standards for this procedure have been developed under ISO/TC 202 'Microbeam analysis', currently no European or international standard considers the application of EPMA to ceramic coating analysis. Terms and definitions, including those used in this European Standard that are not specific to this standard are given in ISO 18115 and in ISO 23833. The composition of a coating is a critical factor determining the performance of a product, so this analytical procedure can be used in quality control, coating development, characterisation and for design data acquisition purposes.
Reference works on electron probe microanalysis are listed in the Bibliography [1, 2]. SIST EN 1071-4:2006
EN 1071-4:2006 (E) 5 1 Scope This European Standard describes methods for chemical analysis of ceramic coatings by means of electron probe microanalysis (EPMA) using a scanning electron microscope (SEM) or an electron probe microanalyser. The methods described are limited to the examination of single layer coatings when the analysis is carried out normal to the sample surface, but graded and multilayer coatings may also be analysed in cross-section if the thickness of the individual layers or gradations are greater than the maximum width of the volume of material within which characteristic or fluorescent X-rays are generated. NOTE This method can also be used for the analysis of bulk materials. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 623-4, Advanced technical ceramics — Monolithic ceramics — General and textural properties — Part 4:
Determination of surface roughness EN ISO/IEC 17025, General requirements for the competence of testing and calibration laboratories (ISO/IEC 17025:2005) ISO 14594, Microbeam analysis — Electron probe microanalysis — Guidelines for the determination of experimental parameters for wavelength dispersive spectroscopy ISO 15632, Microbeam analysis — Instrumental specification for energy dispersive X-ray spectrometers with semiconductor detectors
3 Terms and definitions For the purposes of this European Standard, the following terms and definitions apply. NOTE Definitions of further terms are given in ISO 23833 and the International Vocabulary of basic and general terms in Metrology. [3] 3.1 General 3.1.1 thick coating coating with a thickness > 20 µm 3.1.2 thin coating coating with a thickness < 20 µm SIST EN 1071-4:2006
EN 1071-4:2006 (E) 6 3.2 Terms used in electron probe microanalysis 3.2.1 absorption correction A matrix correction arising from the loss of X-ray intensity of element "A" while propagating through the specimen in the direction of the X-ray spectrometer due to photoelectric absorption by all elements within the specimen 3.2.2 atomic number correction Z matrix correction for the modification of the X-ray intensity for element "A" due to electron backscattering and stopping power, which are influenced by all elements in the analytical volume 3.2.3 backscattered electrons incident beam electrons that have been re-emitted from the specimen surface due to multiple scattering NOTE They are of a high energy (up to the energy of the beam) and can provide atomic number contrast. 3.2.4 beam current electron beam current, in A (measured using a Faraday cup near the position of the specimen in the instrument) 3.2.5 Bragg angle θθθθ angle, in degrees, between the diffracting crystal surface and the X-rays being analysed 3.2.6 count rate number of X-ray counts per second 3.2.7 critical excitation energy Ec minimum energy required to ionise an atom from a specific electron shell, in eV 3.2.8 dead time length of time, in a measurement system that processes one event at a time, during which the system is engaged in processing a photon event ("busy"), such that it is unavailable to process another photon which randomly appears in this time interval 3.2.9 electron beam energy Eo energy of the electrons of the beam at the sample, in eV 3.2.10 electron probe microanalysis (EPMA) technique of spatially-resolved elemental analysis based upon electron-excited X-ray spectrometry with a focused electron probe and an electron interaction volume with micrometer to sub-micrometer dimensions SIST EN 1071-4:2006
EN 1071-4:2006 (E) 7 3.2.11 energy dispersive X-ray spectrometry (EDS) method for examining the intensity of X-rays as a function of the photon energy 3.2.12 fluorescence correction F correction applied to account for characteristic X-ray excitation by X-ray photons of higher energy
3.2.13 overvoltage U ratio of the incident beam energy to the critical excitation energy for a particular shell NOTE This factor should be greater than unity for characteristic X-ray production to occur from that atomic shell. 3.2.14 -(z) matrix correction method of quantitative electron probe X-ray microanalysis in which correction factors are calculated from empirical equations developed from fits to experimental data of X-ray production as a function of depth {the so-called φ(ρz) function} 3.2.15 peak overlap merging of peaks of nearly the same energy which cannot be resolved by the detector 3.2.16 secondary electron electron of the specimen emitted as a result of inelastic scattering of the primary beam electron with loosely bound valence-level electrons of the specimen NOTE They are of a low energy (< 50 eV) and provide information about surface topography. 3.2.17 take off angle ψψψψ angle, in degrees, between the specimen surface and the line of sight to the centre of the detector 3.2.18 wavelength dispersive X-ray spectrometry (WDS) device for determining X-ray intensity as a function of the wavelength of the radiation, where separation is based upon Bragg's law, nλ = 2dsin θ, where λ is the X-ray wavelength, d is the spacing of the atom planes of the crystal or the repeated layers of the synthetic diffractor, and θ is the angle at which constructive interference takes place NOTE X-rays diffracted at a particular angle are directed to a gas counter operated in the proportional response regime where the charge produced is proportional to the photon energy. 3.2.19 working distance distance, in metres, from the principal plane of the objective lens to the cross-over of the focused probe 4 Principle Analysis is carried out by means of an electron beam striking the sample and characterization of the X-rays subsequently emitted.
The incident electrons eject an electron from the K, L or M shell of an SIST EN 1071-4:2006
EN 1071-4:2006 (E) 8 atom in the sample.
X-ray emission occurs when an electron from a higher energy shell replaces the electron ejected from the lower energy shell (see Figure 1).
For example a K. X-ray is generated when an electron transition from an L to a K shell occurs with consequent release of energy in the form of an X-ray and a K X-ray is generated by an M to K shell transition. The X-rays are detected by use of either energy dispersive X-ray spectrometers (EDS) or wavelength dispersive X-ray spectrometers (WDS).
KLMKLMNγαααββ
Figure 1 — Spectrum of X-rays that may be generated from a single element 5 Apparatus and materials 5.1 General Various commercial instruments are available which are based on a general-purpose scanning electron microscope or a purpose built electron microprobe analyser; the former is more commonly used.
The instruments deliver a finely focuse
...
