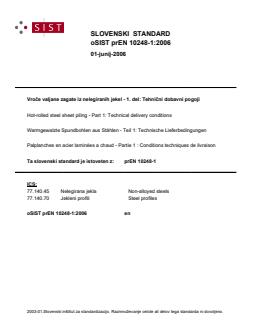

SLOVENSKI STANDARD
01-junij-2006
9URþHYDOMDQH]DJDWHL]QHOHJLUDQLKMHNHOGHO 7HKQLþQLGREDYQLSRJRML
Hot-rolled steel sheet piling - Part 1: Technical delivery conditions
Warmgewalzte Spundbohlen aus Stählen - Teil 1: Technische Lieferbedingungen
Palplanches en acier laminées a chaud - Partie 1 : Conditions techniques de livraison
Ta slovenski standard je istoveten z: prEN 10248-1
ICS:
77.140.45 Nelegirana jekla Non-alloyed steels
77.140.70 Jekleni profili Steel profiles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2006
ICS 77.140.70 Will supersede EN 10248-1:1995
English Version
Hot-rolled steel sheet piling - Part 1: Technical delivery
conditions
Palplanches en acier laminées à chaud - Partie 1 :
Conditions techniques de livraison
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ECISS/TC 10.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 10248-1:2006: E
worldwide for CEN national Members.

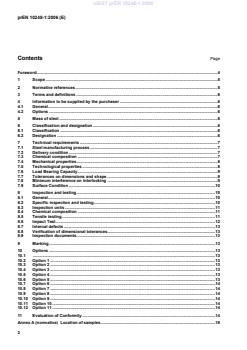

Contents Page
Foreword.4
1 Scope .5
2 Normative references .5
3 Terms and definitions .6
4 Information to be supplied by the purchaser .6
4.1 General.6
4.2 Options .6
5 Mass of steel .6
6 Classification and designation.6
6.1 Classification .6
6.2 Designation .6
7 Technical requirements .7
7.1 Steel manufacturing process .7
7.2 Delivery condition.7
7.3 Chemical composition .7
7.4 Mechanical properties.8
7.5 Technological properties.8
7.6 Load Bearing Capacity.9
7.7 Tolerances on dimensions and shape .9
7.8 Minimum interference on interlocking .9
7.9 Surface Condition.10
8 Inspection and testing.10
8.1 General.10
8.2 Specific inspection and testing.10
8.3 Inspection units .11
8.4 Chemical composition .11
8.5 Tensile testing.11
8.6 Impact Test.12
8.7 Internal defects .13
8.8 Verification of dimensional tolerances.13
8.9 Inspection documents.13
9 Marking .13
10 Options .13
10.1 .13
10.2 Option 1 .13
10.3 Option 2 .13
10.4 Option 3 .13
10.5 Option 4 .13
10.6 Option 5 .13
10.7 Option 6 .14
10.8 Option 7 .14
10.9 Option 8 .14
10.10 Option 9 .14
10.11 Option 10 .14
10.12 Option 11 .14
11 Evaluation of Conformity.14
Annex A (normative) Location of samples.18
Annex B (informative) List of corresponding former national designations .20
Annex C (Normative) Calculation of Geometrical Cross-sectional Properties.21
Annex D (Normative) Interlock strength of straight web steel sheet piles.22
Annex E (Normative) Determination of strength properties of crimped points for U-piles.24
Annex F (normative) Evaluation of conformity.28
F.1 General .28
F.2 Initial type testing by the manufacturer .28
F.3 Testing of samples taken at the factory by the manufacturer.29
F.4 Factory production control (FPC).30
F.5 Continuous surveillance, assessment and approval of factory production control (FPC).31
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the
EU Construction Products Directive .33
ZA.1 Scope and relevant characteristics.33
ZA.2 Procedure(s) for the attestation of conformity of hot rolled steel sheet-piling .34
ZA.3 CE marking and labelling .36
Foreword
This document (prEN 10248-1:2006) has been prepared by Technical Committee ECISS/TC 10 “Structural
steels - Grades and qualities”, the secretariat of which is held by NEN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 10248-1:1995.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of the EU Construction Products
Directive (89/106/EEC).
For relationship with EU Construction products Directive(89/106/EEC), see informative Annex ZA, which is
an integral part of this document.
1 Scope
This part of this European Standard specifies the requirements for hot rolled non alloy steel sheet piling in
respect of its chemical composition, mechanical properties and conditions of delivery.
The products specified are for general, structural and civil engineering works.
The types of steel sheet piles covered by this standards are : Z-shaped, U-shaped, straight-web, H-shaped
with their interlocking bars. The types of interlocks and the requirements in respect of tolerances on shape
and dimensions are specified in Part 2 of this European Standard.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications apply
to this European Standard only when incorporated in it by amendment or revision. For undated references
the latest edition of the publication referred to applies.
EN 1011-2, Welding – Recommendations for the welding of metallic materials – Part 2 : Arc welding of ferritic
steels
EN 1990, EUROCODE : Basis of design
ENV 1993, EUROCODE 3 : Design of steel structures
EN 10002-1, Metallic materials − Tensile testing − Part 1 : Method of test at ambient temperature.
EN 10020, Definition and classification of grades of steel.
EN 10021, General technical delivery requirements for steel and steel products.
EN 10027-1, Designation system for steel − Part 1 : Steel names
EN 10027-2, Designation system for steel − Part 2 : Steel numbers.
EN 10045-1, Metallic materials - Charpy impact test - Part 1: Test method.
EN 10079, Definition of steel products.
EN 10168, Iron and steel products − Inspection document – Contents
EN 10204, Metallic products - Types of inspection documents.
prEN 10248-2, Hot rolled steel sheet piling − Part 2 : Tolerances on shape and dimensions.
CR 10261, ECISS Information Circular 11 - Iron and steel - Review of available methods of chemical
analysis.
EN ISO 377, Steel and steel products – Location and preparation of samples and test pieces for mechanical
testing
EN ISO 14284, Steel and iron – Sampling and preparation of samples for the determination of chemical
composition
3 Terms and definitions
For the purposes of this European Standard, the terms and definitions given in EN 10020, EN 10021 and EN
10079 apply.
4 Information to be supplied by the purchaser
4.1 General
The following information shall be supplied by the purchaser, at the time of the enquiry and order:
a) details of the product form, length, quantity and any further processing work that is required, e.g. surface
treatment;
b) the designation of the product (in accordance with 6.2);
c) which type of inspection and which inspection document is required (see 8.1.1).
Where no specific choice is made by the purchaser concerning a) and b), the supplier shall refer back to the
purchaser.
NOTE It is recommended that the manufacturer be informed by the purchaser at the time of the order, if the
purchaser intends to carry out any surface treatment on the product after delivery.
4.2 Options
A number of options are specified in clause 10. In the event that the purchaser does not indicate a
requirement to implement any of these options, the product shall be supplied in accordance with the basic
specification.
5 Mass of steel
The calculated mass shall be determined using a conventional volumetric mass of 7,85 kg/dm .
6 Classification and designation
6.1 Classification
This European Standard specifies seven steel grades which are classified as non-alloy quality steels
according to EN 10020.
6.2 Designation
6.2.1 Steel names and Steel numbers
Steel names are assigned to steel grades in Tables 1 and 2 in accordance with EN 10027-1. Steel numbers
are allocated to steel grades in accordance with EN 10027-2.
Former national designations (steel names) are listed in annex B
6.2.2 Other designation
The products covered by this European Standard shall be designated in the following sequence:
a) the name of the product, i.e. "Sheet piling";
b) the number of this European Standard, i.e. EN 10248;
c) the steel name or number.
EXAMPLE Sheet piling EN10248-S320GP or Sheet piling EN 10248-1.0046,
indicating a sheet piling product in accordance with EN 10248 made of steel S320GP (steel number 1.0046).
7 Technical requirements
7.1 Steel manufacturing process
7.1.1 Manufacturing process
The steel manufacturing process shall be at the manufacturer's option. Where specified at the time of the
enquiry and order, the steel manufacturing process shall be reported to the purchaser.
Option 1 : see 10.2
7.1.2 Method of deoxidation
The method of deoxidation shall be at the option of the manufacturer, except that rimming steel shall not be
permitted.
7.2 Delivery condition
Unless otherwise agreed, sheet piles shall be delivered in the as rolled condition.
Option 2 : see 10.3
7.3 Chemical composition
7.3.1 Upper Limits
The upper limits applicable for both the ladle and the product analysis shall comply with the values given in
Table 1.
The product analysis is only verified where specified at the time of the enquiry and order.
Option 3 : see 10.4
7.3.2 Carbon Equivalent Value
The maximum carbon equivalent values (CEV) for the grades S240GP, S270GP, S320GP, S355GP,
S390GP, S430GP and S460GP, given in Table 1 shall apply.
The carbon equivalent value shall be determined according to the following formula :
Mn Cr+Mo+V Ni+Cu
CEV =C + + + (1)
6 5 15
7.3.3 Copper Content
Where specified at the time of the enquiry and order, the copper content can be between 0,20 % and 0,35 %
or 0,35 % and 0,50 %.
Option 4 : see 10.5
7.4 Mechanical properties
7.4.1 Yield Strength – Tensile Strength - Elongation
Under the inspection and testing conditions as specified in clause 8 and in the delivery condition as specified
in 7.2, the yield strength, the tensile strength and the elongation at fracture shall comply with the relevant
requirements of Table 2.
7.4.2 Impact energy
The values of impact energy for the grades S240GP, S270GP, S320GP, S355GP, S390GP, S430GP and
S460GP, given in Table 2 shall apply.
The impact properties are only verified when specified at the time of the order.
Option 5 : see 10.6
7.5 Technological properties
7.5.1 Weldability
7.5.1.1 General requirements for the welding of steel sheet pile grades are given in EN 1011-2.
7.5.1.2 Steels specified in this European Standard do not have unlimited suitability for the various welding
processes, since the behaviour of a steel during and after welding depends not only on the material, but also
on the dimensions and shape and on the manufacturing and service conditions of the components.
7.5.2 Durability
7.5.2.1 General
Durability is dependent on the chemical composition of the steel.
NOTE
Steels specified in this European Standard can be used in general, structural and civil
engineering works without any specific corrosion protection. In this case, the durability of the
sheet-piling wall can be ensured by a sacrificial thickness for corrosion allowance. The
corrosion rates to be accounted for in order to calculate the sacrificial thickness depend on
the environment where sheet-piling are exposed and on the service life of the sheet-piling
structure. The sacrificial thickness for corrosion allowance can be determined according to
the corrosion rates defined in Eurocode EN 1993-5. The durability of steel sheet-piling can
also be enhanced by suitable corrosion protections like organic coatings, metallic coatings, or
cathodic protection.
7.5.2.2 Suitability for hot-dip zinc coating
Where specified at the time of the enquiry and order, the suitability and the relevant product quality
requirements for hot dip zinc coating may be agreed.
Option 6 : see 10.7
7.6 Load Bearing Capacity
7.6.1 General
The design of steel sheet-piling structures requires on one hand determination of the actions on the structure,
for example the earth pressure, the water pressure, the surface surcharge, etc, and on the other hand
determination of the appropriate resistances. The actions will give rise to effects all over the structure, for
instance internal forces and moments, stresses, strains and displacements. Additional local effects will also
be produced for instance at points of load applications. The resistances of the sheet-piling to the effects of
the loads shall be determined according to the calculation methods defined in Eurocode EN 1993-5.
In general, the section resistance can be expressed as the product of the material strength, depending on
the steel grade, by a specified geometrical section property, depending on the nominal dimensions of the
section. The rules for calculating the section properties from the sheet-piling nominal dimensions are given in
the normative Annex C.
7.6.2 Interlock Resistance of Straight Web Sheet-piles
Where a manufacturer wishes to declare interlock resistance of straight web piles, the resistance shall be
tested according to the normative Annex D.
The interlock resistance of straight web sheet-piles is verified only when specified at the time of order.
Option 7 : see 10.8
7.6.3 Resistance of Crimped Points of U-piles
Crimped points can be used to enhance the shear force transmission in the interlocks of U-piles.
Where a manufacturer wishes to declare the resistance of crimped points, the resistance shall be tested
according to the normative Annex E.
The interlock resistance of crimped points of U-piles is verified only when specified at the time of order.
Option 8 : see 10.9
7.7 Tolerances on dimensions and shape
The tolerances on dimensions and shape defined in EN 10248-2 shall apply. The manufacturer shall declare
the dimensional form of the sheet-piles.
7.8 Minimum interference on interlocking
The types of interlocks of the sheet-piles and their minimum interlocking interference shall comply with Table
15 of prEN 10248-2:2005.
7.9 Surface Condition
7.9.1 General Requirement
The surface requirements and repair conditions of sheet piling apply to all surfaces excluding interlocks and
radii at the connection between web and flange.
7.9.2 Surface imperfections
Sheet piling may have surface imperfections. Surface imperfections are surface discontinuities that are
considered as being inherent to the manufacturing process and are permissible irrespective of their number,
provided the limits of Table 3 are not exceeded.
7.9.3 Surface defects
Surface discontinuities with a depth exceeding the limits of Table 3 are considered as defects and must be
repaired irrespective of their number. Repair by grinding and/or welding is permitted, provided that :
a) after the elimination of the defect and before welding the thickness shall not be less than 80 % of
the nominal thickness,
b) the sum of the areas repaired by welding, with the exclusion of interlocks and radii at connection
between web and flange, shall not be more than 15 % of the surface area of the sheet pile under
inspection,
c) the reinforcement of the groove weld shall be ground flush with the surface of the sheet pile,
d) the dimensional tolerances specified in EN 10248-2 shall be complied with after repair.
8 Inspection and testing
8.1 General
8.1.1 The products shall be delivered either with specific or non-specific inspection and testing to indicate
compliance with the order and this European standard.
Option 9 : see 10.10
8.1.2 If specific inspection and testing is requested , then it shall be carried out according to 8.2 to 8.9
8.1.3 Unless otherwise agreed at the time of the enquiry and order, inspection of surface conditions and
dimensions shall be carried out by the manufacturer.
Option 10 : see 10.11
8.2 Specific inspection and testing
Where specific inspection and testing is specified (see 4.1.c), the following tests shall be made :
� the ladle analysis (see.8.4)
� the tensile test (see 8.5).
At the time of the order, the following additional tests can be agreed:
� the product analysis, when the products are delivered by cast
Option 3 : see 10.4
� the impact test
Option 5 : see 10.6
� the interlock resistance of straight web sheet-piles (See annexe D)
Option 7 : see 10.8
� the resistance of crimped points of U-piles (See annexe E)
Option 8 : see 10.9
8.3 Inspection units
The inspection unit shall comprise products of the same section and the same steel grade as specified in
Table 2, produced from the same cast or sequence of casts of the same steel grade and shall have a
maximum mass of 125 tonnes.
8.4 Chemical composition
For the ladle analysis, the values given by the manufacturer are applicable.
Where the verification of the product analysis is specified, the preparation of samples shall be in accordance
with EN ISO 14284.
The purchaser shall specify the number of samples and the elements to measure.
Option 3 :see 10.4
The chemical analysis shall be carried out on the basis of appropriate documents. The choice of a suitable
physical or chemical analytical method shall be at the discretion of the manufacturer. The manufacturer shall
declare the test method used if required.
NOTE The list of the available documents on chemical analysis is given in CR 10261.
8.5 Tensile testing
8.5.1 Number of samples
One sample shall be taken from each inspection unit. See 8.3.
8.5.2 Position and preparation of test pieces
Samples shall be taken from the product in accordance with Annex A and test pieces prepared in
accordance with EN ISO 377.
8.5.3 Test pieces
Test pieces shall be cut in the longitudinal direction, i.e. parallel to the principal rolling direction, and comply
with EN 10002-1.
Proportional test pieces having an initial gauge length L = 5,65 √S shall be used, where S is the initial
o o o
cross sectional area of the test piece.
8.5.4 Test method
The tensile test shall be carried out in accordance with EN 10002-1. Tests shall be carried out in the
temperature range 10 °C to 35 °C.
For the specified yield strength in Table 2, the upper yield strength (R ) shall be determined.
eH
Where a yield phenomenon is not present, the 0,2 % proof strength (R ) or the proof strength, 0,5 % total
p0,2
extension (R ) shall be determined; in case of dispute the 0,2 % proof strength (R ) shall be determined.
t0,5 p0,2
8.5.5 Re-testing
Re-testing shall be in accordance with EN 10021.
8.6 Impact Test
8.6.1 Number of samples
One sample sufficient for one set of six impact test pieces shall be taken from each inspection unit if the
impact test is required
(Option 5, see 10.6
8.6.2 Position and preparation of test pieces
Samples shall be taken from the product in accordance with Annex A and test pieces prepared in
accordance with EN ISO 377.
The test pieces shall be machined and prepared in accordance with EN 10045-1. In addition the following
requirements apply:
a) for nominal thicknesses > 12 mm, standard 10 mm × 10 mm test pieces shall be machined in such a way
that one side is not further away than 2 mm from a rolled surface
b) for nominal thicknesses ≤ 12 mm, when test pieces with reduced widths are used, the minimum width
shall be 5 mm.
8.6.3 Test method
The impact test shall be carried out in accordance with EN 10045-1.
The average value of the three test results shall meet the specified requirement. One individual value may be
below the minimum average value specified, provided that it is not less than 70 % of that value.
Three additional test pieces shall be taken from the same sample in accordance with 8.6.1 and tested in any
one of the following cases:
− if the average of three impact values is lower than the minimum average value specified;
− if the average value meets the specified requirement, but two individual values are lower than the
minimum average value specified;
− if any one value is lower than 70 % of the minimum average value specified.
The average value of the six tests shall be not less than the minimum average value specified. Not more
than two of the individual values may be lower than the minimum average value specified and not more than
one may be lower than 70 % of this value.
8.7 Internal defects
Requirements concerning internal defects shall be in accordance with EN 10021.
8.8 Verification of dimensional tolerances
The dimensional tolerances specified in prEN 10248-2 shall be verified on one sheet pile per inspection unit.
8.9 Inspection documents
Where specified at the time of the enquiry and order, one of the documents specified in EN 10204 shall be
supplied. In these documents, the information A, B and Z and the code numbers C01-C03, C10-C13, C40-
C43, and C70-C92 according to EN 10168 shall be included, see 4.1 c.
Option 9 : see 10.10
9 Marking
Where agreed at the time of the enquiry and order, a marking shall be applied.
Option 11 : see 10.12
This marking shall be located at a position close to one end of each product or on the end cut face, at the
manufacturer's discretion. Marking shall be by painting, stencilling, stamping, durable adhesive labels,
attached tags or by any other appropriate means.
Products may be supplied in securely tied bundles. In this case, the marking shall be on a label securely
attached to the bundle or fixed to the top product of the bundle.
10 Options
10.1
Options are available to the purchaser which shall be specified as required at the time of the enquiry and
order (see 4.2).
10.2 Option 1
The manufacturing process for the steel shall be indicated (see 7.1.1).
10.3 Option 2
An alternative delivery condition to as rolled is required (see 7.2).
10.4 Option 3
The product analysis is to be carried out, and in this case, the number of samples and the elements to
measure (see 7.3, 8.2 and 8.4).
10.5 Option 4
A copper content between 0,20 % to 0,35 % or 0,35 % to 0,50 % is required (see 7.3.3).
10.6 Option 5
Specific impact properties shall be verified by a test (see 7.4.2, 8.2 and 8.6).
10.7 Option 6
The material shall be suitable for hot dip zinc coatings (see 7.5.2.2).
10.8 Option 7
The interlock strength of straight web sheet piles shall be verified by a test (see 7.6.2 and 8.2.).
10.9 Option 8
The resistance parameters of crimped points of U-piles are required (see 7.6.3 and 8.2).
10.10 Option 9
The products shall be submitted to specific inspection and testing and the type of inspection certificate to be
supplied in accordance with EN10204 (see 4.1.c, 8.1.1, 8.9)
10.11 Option 10
The purchaser wishes to carry out the inspection of surface condition and tolerance at the manufacturer's
works (see 8.1.3).
10.12 Option 11
A marking shall be applied (see Clause 9.).
11 Evaluation of Conformity
Where evaluation of conformity is required for regulatory purpose Annex F shall apply.
a)
Table 1 — Chemical composition of the ladle and product analysis for hot rolled steel sheet piling
Designation EN 10027 Chemical composition
in % by mass
b)
max
c)
Steel Steel C Mn Si P S N CEV
Name Number
Ladle Product Ladle Product Ladle Product Ladle Product Ladle Product Ladle Product Ladle Product
S240GP 1.0021 0,20 0,25 - - - - 0,040 0,050 0,040 0,050 0,012 0,014 0,47 0,52
S270GP 1.0023 0,24 0,27 - - - - 0,040 0,050 0,040 0,050 0,012 0,014 0,47 0,52
S320GP 1.0046 0,24 0,27 1,60 1,70 0,55 0,60 0,040 0,050 0,040 0,050 0,012 0,014 0,47 0,52
S355GP 1.0083 0,24 0,27 1,60 1,70 0,55 0,60 0,040 0,050 0,040 0,050 0,012 0,014 0,47 0,52
S390GP 1.0522 0,24 0,27 1,60 1,70 0,55 0,60 0,035 0,045 0,035 0,045 0,012 0,014 0,47 0,52
S430GP 1.0523 0,24 0,27 1,60 1,70 0,55 0,60 0,035 0,045 0,035 0,045 0,012 0,014 0,47 0,52
S460GP 0,24 0,27 1,70 1,80 0,55 0,60 0,035 0,045 0,035 0,045 0,012 0,014 0,47 0,52
a) See 7.3
b) If necessary for obtaining certain properties, some additions of V, Nb, Ti can be made at the discretion of the manufacturer.
c) The maximum value for nitrogen does not apply if the chemical composition shows a minimum total Al content of 0,020 % or if sufficient other N binding elements are present. The N binding
elements shall be mentioned in the inspection document.
a)
Table 2 — Mechanical properties for hot rolled steel sheet piling
Designation EN Minimum yield Minimum tensile Minimum elongation Minimum impact energy
10027 strength strength on a gauge length of
L =5,65√√S
√√
o o
Steel Steel R [MPa] R [MPa] A [%] at fracture Testing J [Joules]
eH m
temperature [°C]
b) b)
Name Number
S240GP 1.0021 240 340 26 20 27
S270GP 1.0023 270 410 24 20 27
S320GP 1.0046 320 440 23 20 27
S355GP 1.0083 355 480 22 0 27
S390GP 1.0522 390 490 20 0 27
S430GP 1.0523 430 510 19 0 27
S460GP 460 530 17 0 27
a) The values in the table apply to longitudinal test pieces
b) 1 MPa = 1 N/mm .
Table 3 - Limits of Dimension for surface imperfections
Maximum permissible depth of
Nominal thickness t (mm)
discontinuities (mm)
a)
1,2 or 25% of t
3 ≤ t < 20
1,7
20 ≤ t < 40
a)
The lower value applies.
Annex A
(normative)
Location of samples
Figure A.1 shows the possible location in the product sample of the samples used for the preparation of test pieces
(see 8.4.3) for :
a) U-sheet piling;
b) Z-sheet piling;
c) Straight web sheet piling.
For interlocking H-sheet piling, the location of test pieces shall be chosen in accordance with EN ISO 377
When several solutions are possible, the sample with the greater thickness is chosen.
Figure A.1 — Possible location of samples
Annex B
(informative)
List of corresponding former national designations
Table B.1 lists those former national designations which are replaced by steel names in accordance with EN
10027-1 in Tables 1 and 2 of this European Standard.
Table B.1. — List of corresponding former national designations
Designation EN 10027 Germany France United Kingdom Belgium
Steel name Steel number
S240GP 1.0021 StSp 37 E240SP 40 A PAE250
S270GP 1.0023 StSp 45 E270SP 43 A PAE270
S320GP 1.0046 E320SP PAE320
S355GP 1.0083 StSp S E360SP 50 A PAE360
S390GP 1.0522 E390SP PAE390
S430GP 1.0523 E430SP PAE420
S460GP 1.0XXX
Annex C
(Normative)
Calculation of Geometrical Cross-sectional Properties
Geometrical cross-sectional properties, as second moment of area I, section modulus W, etc… shall be
calculated from nominal geometrical values of the section that are specified in the product specifications.
NOTE In general, such nominal values should be such that the section properties calculated represent the expected
values of the statistical distribution of properties determined from the annual production. Thereby, the production is
assumed to comply with the standards for geometrical tolerances.
The reference axis for the section properties should be specified together with the section properties.
For the calculation of the geometrical section properties, reference should be made to the mathematical
definition of these properties. If simplified calculation methods are used, care shall be taken that safe sided
results are obtained.
Annex D
(Normative)
Interlock strength of straight web steel sheet piles
D.1 General
(1) In the following, provisions are given for determining the characteristic interlock resistance R of straight
k,s
web steel sheet piles by testing.
(2) The characteristic interlock resistance shall be related to a specific nominal interlock geometry and, if
required, to a specific steel grade in accordance with (3).
(3) If variation of the steel grade has a substantial influence (more than 10 %) on the test result, it shall be
taken into account when evaluating the tests and the results shall then be given in relation to the steel grade.
(4) The determination of the mechanical properties of the steel used for the specimen in these tests shall be
carried out according to 7.4.
D.2 Test specimen
(1) The test specimen shall be cut from the pile perpendicular to the rolling direction as shown in figure D.1.
(2) The width w of the specimen shall be ≤ 100mm.
Key
A, B Samples cut from the pile
w Width of the samples
Figure D.1: Specimen for testing the interlock strength R
D.3 Testing and evaluation
(1) In the tensile testing machine the test specimen shall be set so that the tensile forces F are applied
parallel to the axis of the specimen as shown in figure D.2.
NOTE Care should be taken to avoid any misalignment of the test specimen.
(2) The distance L between the grips shall satisfy:
350mm ≤ L ≤ 500mm.
Key
A, B Samples
F Tensile force applied by the testing machine
L Distance between grips
Figure D.2: Test set-up
(3) The measured value R in kN/m of a specimen shall be taken as the highest tensile force R measured in
ult,i
this test, divided by its width w.
(4) Regarding the number of tests to be carried out and the evaluation of the test results in order to
determine the characteristic value R , reference shall be made to annex D of EN 1990:2003.
k,s
Annex E
(Normative)
Determination of strength properties of crimped points for U-piles
E.1 General
(1) In the following, provisions are given for the determination of strength properties of crimped points by
testing, in order to improve the transmission of shear forces in the interlocks of U-piles according to
EN1993-5.
(2) Two items shall be addressed in the tests:
� determination of the characteristic ultimate resistance R of one crimped point;
k
� verification that the minimum stiffness criterion for the crimped point is fulfilled.
(3) These two items shall be determined for the representative interlock geometry of the pile. If variation of
the steel grade has a substantial influence (more than 10 %) on the test result, it shall be taken into
account when evaluating the tests and the results shall then be given in relation to the steel grade. The
data on the crimped points to be used for design shall be obtained from tests for the relevant crimped
point layout (single, double or triple points).
NOTE 1 If different piles are provided with the same nominal interlock geometry, the results obtained may be applied to
all these piles.
NOTE 2 The results obtained using this procedure for a representative interlock geometry cover also the manufacturing
tolerances of the interlocks and they can be extended to the sheet pile range with the same nominal geometry.
(4) The determination of the mechanical properties of the steel used for the specimen in these tests shall be
carried out according to 7.4.
(5) The determination of the characteristic ultimate resistance R and the verification of the stiffness criterion
k
shall be carried out by compression tests using test specimen in accordance with E.2 (2) and (3).
E.2 Test specimen
(1) For the manufacturing of the test specimen the following aspects shall be taken into account:
- the specimen (sheet piles) shall be tested as rolled;
- the specimen shall be cut out of a crimped double pile.
(2) The layout of the test specimen used for compression tests shall be in accordance with figure E.1 for
single, double or triple crimped points.
(3) The following aspects should be taken into account in order to avoid excessive eccentricities:
- the distance between the upper and lower plates as shown in figure E.1 should not vary more than 0,5
mm;
- the deviation of the perpendicularity between the test specimen and the plate should not exceed 2 % in
each of two mutually perpendicular directions (measured as 1% of b, see figure E.2);
- the tolerance on squareness of specimen ends should be less than 1,0 mm, see clause 9 of prEN
10248-2:2005;
- the specimen should be placed in the centre of the plates.
Key
A Crimped points
B End plates
C Sample taken from double pile
D Interlock welded to specimen
Figure E.1: Specimen for compression test
Key
A Test specimen
B End plates
b width of the end plate
Figure E.2: Tolerances for perpendicularity
E.3 Testing and evaluation
(1) The tests shall be carried out as a displacement controlled test with a maximum deflection rate of 20
mm/min.
(2) In order to be able to determine the two items given in E.1 (2) the load applied by the testing machine
and the displacement of the cross-head shall be measured continuously, to obtain the load-
displacement curve for the specimen.
(3) The measured value R for one specimen is the maximum force measured in the test for a
ult,i
displacement ≤ 5 mm, divided by the number of crimped points, see figure E.3.
(4) It shall be verified in the load-displacement curve that the minimum stiffness in accordance with
EN1993-5 has been reached. If several tests have been carried out, this verification may also be
carried out based on statistical evaluation in accordance with annex D of EN 1990:2003.
NOTE The verification for one specimen may be carried out according to the following procedure, see figure E.3:
- linearisation of the curve (A)
- drawing the line corresponding to the required minimum stiffness (B)
- the verification is fulfilled if the linearised curve is on the left hand or on the minimum
stiffness line.
(5) Regarding the number of tests
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
