Common control interface for networked digital audio and video products - Part 5-1: Transmission over networks - General (IEC 62379-5-1:2014)

Standard specifies aspects of the common control interface that are common to all network technologies, including setting up and tearing down of sessions and the service provided by the network.

Gemeinsame Steuerschnittstelle für netzwerkbetriebene digitale Audio- und Videogeräte - Teil 5-1: Übertragung über Netzwerke - Allgemeines (IEC 62379-5-1:2014)

Interface de commande commune pour produits audio et vidéo numériques connectés en réseau - Partie 5-1: Transmission sur des réseaux - Généralités (CEI 62379-5-1:2014)

L'IEC 62379-5-1:2014 spécifie des aspects de l'interface de commande commune, qui sont communs à toutes les technologies de réseau, incluant la création et la rupture de sessions et le service fourni par le réseau.

Skupni krmilni vmesnik za digitalne avdio in video izdelke, vključene v omrežje - 5-1. del: Prenos po omrežjih - Splošno (IEC 62379-5-1:2014)

Standard določa vidike skupnega krmilnega vmesnika, ki so skupni vsem omrežnim tehnologijam, vključno s postavljanjem in razstavljanjem sej ter storitvijo, ki jo zagotavlja omrežje.

General Information

Status
Published
Publication Date
05-Nov-2014
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
08-Oct-2014
Due Date
13-Dec-2014
Completion Date
06-Nov-2014

Buy Standard

Standard
SIST EN 62379-5-1:2014
English language
45 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Gemeinsame Steuerschnittstelle für netzwerkbetriebene digitale Audio- und Videogeräte - Teil 5-1: Übertragung über Netzwerke - Allgemeines (IEC 62379-5-1:2014)VCommon control interface for networked digital audio and video products - Part 5-1: Transmission over networks - General (IEC 62379-5-1:2014)35.200Vmesniška in povezovalna opremaInterface and interconnection equipment33.160.01Avdio, video in avdiovizualni sistemi na splošnoAudio, video and audiovisual systems in generalICS:Ta slovenski standard je istoveten z:EN 62379-5-1:2014SIST EN 62379-5-1:2014en,fr,de01-december-2014SIST EN 62379-5-1:2014SLOVENSKI

STANDARD
SIST EN 62379-5-1:2014
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 62379-5-1
October 2014 ICS 35.100; 33.160
English Version

Common control interface for networked digital audio and video products - Part 5-1: Transmission over networks - General (IEC 62379-5-1:2014)

Interface de commande commune pour produits audio et vidéo numériques connectés en réseau - Partie 5-1: Transmission sur des réseaux - Généralités (CEI 62379-5-1:2014)

Gemeinsame Steuerschnittstelle für netzwerkbetriebene digitale Audio- und Videogeräte - Teil 5-1: Übertragung über Netzwerke - Allgemeines (IEC 62379-5-1:2014) This European Standard was approved by CENELEC on 2014-08-13. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization

Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Avenue Marnix 17,

B-1000 Brussels © 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 62379-5-1:2014 E SIST EN 62379-5-1:2014

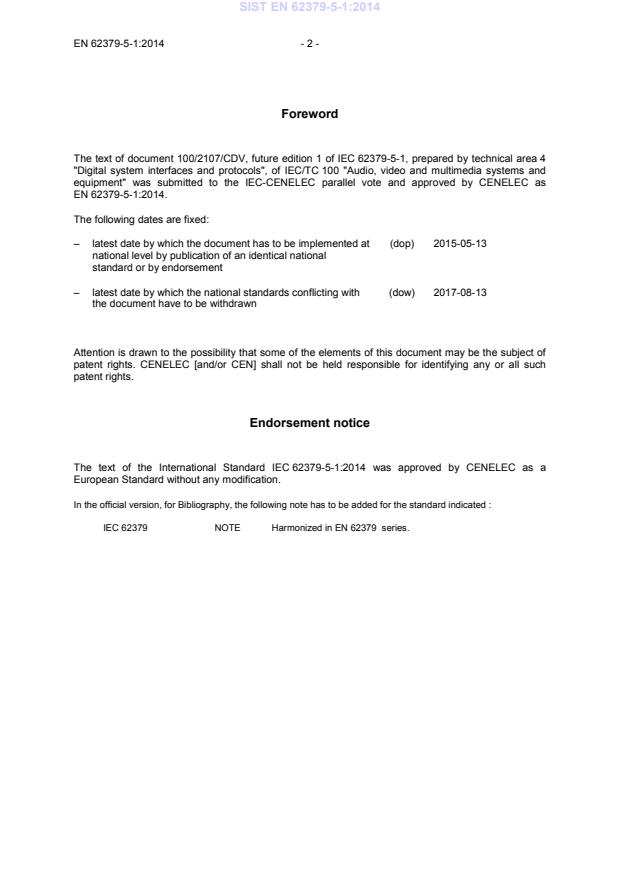

EN 62379-5-1:2014 - 2 - Foreword The text of document 100/2107/CDV, future edition 1 of IEC 62379-5-1, prepared by technical area 4 "Digital system interfaces and protocols", of IEC/TC 100 "Audio, video and multimedia systems and equipment" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 62379-5-1:2014. The following dates are fixed: – latest date by which the document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2015-05-13 – latest date by which the national standards conflicting with the document have to be withdrawn (dow) 2017-08-13

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights. Endorsement notice The text of the International Standard IEC 62379-5-1:2014 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following note has to be added for the standard indicated : IEC 62379

NOTE Harmonized in EN 62379
series.
SIST EN 62379-5-1:2014
- 3 - EN 62379-5-1:2014 Annex ZA (normative)

Normative references to international publications with their corresponding European publications The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies. NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here: www.cenelec.eu.

Publication Year Title EN/HD Year IEC 62379-1 2007

Common control interface for networked digital audio and video products - Part 1: General EN 62379-1 2007

IEC 62379-5-2 2014

Common control interface for networked digital audio and video products - Part 5-2: Transmission over networks - Signalling EN 62379-5-2 2014

SIST EN 62379-5-1:2014
SIST EN 62379-5-1:2014

IEC 62379-5-1 Edition 1.0 2014-07 INTERNATIONAL STANDARD NORME INTERNATIONALE Common control interface for networked digital audio and video products –

Part 5-1: Transmission over networks – General

Interface de commande commune pour produits audio et vidéo numériques connectés en réseau –

Partie 5-1: Transmission sur des réseaux – Généralités

INTERNATIONAL ELECTROTECHNICAL COMMISSION COMMISSION ELECTROTECHNIQUE INTERNATIONALE X ICS 33.160; 35.100 PRICE CODE CODE PRIX ISBN 978-2-8322-1693-4

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale ®

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé. SIST EN 62379-5-1:2014

– 2 – IEC 62379-5-1:2014  IEC 2014 CONTENTS FOREWORD ........................................................................................................................... 4 INTRODUCTION ..................................................................................................................... 6 1 Scope .............................................................................................................................. 7 2 Normative references ...................................................................................................... 7 3 Terms, definitions and abbreviations ............................................................................... 7 3.1 Terms and definitions.............................................................................................. 7 3.2 Abbreviations .......................................................................................................... 7 4 Network service specifications ......................................................................................... 8 4.1 Service for live media ............................................................................................. 8 4.2 Service for management messages ........................................................................ 8 5 MIB definitions applicable to all networks ........................................................................ 8 5.1 General ................................................................................................................... 8 5.2 Type definitions ...................................................................................................... 8 5.3 Conceptual row type definitions .............................................................................. 9 5.4 MIB object definitions ............................................................................................ 10 5.4.1 Network ports ................................................................................................ 10 5.4.2 List of media sources ..................................................................................... 12 5.4.3 List of live media destinations ........................................................................ 14 6 Calls .............................................................................................................................. 19 6.1 List of destinations in end equipment .................................................................... 19 6.2 Connecting a flow ................................................................................................. 20 6.3 Terminating a flow ................................................................................................ 20 6.4 Maintaining calls ................................................................................................... 21 7 Status broadcasts .......................................................................................................... 21 7.1 General ................................................................................................................. 21 7.2 Coding and encapsulation of reports ..................................................................... 22 7.3 Standard report groups ......................................................................................... 23 7.3.1 General ......................................................................................................... 23 7.3.2 List of sources ............................................................................................... 23 7.3.3 List of destinations ........................................................................................ 23 Annex A (informative)

Machine-readable block definitions.................................................... 24 Annex B (informative)

Machine-readable data formats ......................................................... 36 Annex C (informative)

Support for future networks ............................................................... 39 C.1 General ................................................................................................................. 39 C.2 Services provided by the network .......................................................................... 39 C.3 Network ports, flows, and media streams .............................................................. 40 C.3.1 Calls and flows .............................................................................................. 40 C.3.2 Connectivity model ........................................................................................ 40 C.3.3 Privilege ........................................................................................................ 40 C.3.4 Call identity ................................................................................................... 40 C.4 Control of routing .................................................................................................. 41 C.5 Scheduled calls .................................................................................................... 41 Bibliography .......................................................................................................................... 42

Table 1 – Managed objects for network ports ........................................................................ 10 SIST EN 62379-5-1:2014

IEC 62379-5-1:2014  IEC 2014 – 3 – Table 2 – Managed objects conveying the list of sources ...................................................... 12 Table 3 – Managed objects conveying the list of destinations ............................................... 15

SIST EN 62379-5-1:2014

– 4 – IEC 62379-5-1:2014  IEC 2014 INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________

COMMON CONTROL INTERFACE FOR NETWORKED
DIGITAL AUDIO AND VIDEO PRODUCTS –
Part 5-1: Transmission over networks –
General

FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by independent certification bodies. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 62379-5-1 has been prepared by technical area 4: Digital system interfaces and protocol of IEC technical committee 100: Audio, video and muiltimedia systems and equipment. The text of this standard is based on the following documents: CDV Report on voting 100/2107/CDV 100/2304/RVC

Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. SIST EN 62379-5-1:2014

IEC 62379-5-1:2014  IEC 2014 – 5 – A list of all parts in the IEC 62379 series, published under the general title Common control interface for networked digital audio and video products, can be found on the IEC website. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. The committee has decided that the contents of this publication will remain unchanged until the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be

• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended.
SIST EN 62379-5-1:2014

– 6 – IEC 62379-5-1:2014  IEC 2014 INTRODUCTION Structure of the family of standards IEC 62379 specifies the common control Interface, a protocol for managing networked audiovisual equipment. The following parts exist or are planned: 1

General 2
Audio 3
Video 4
Data 5
Transmission over networks 6
Packet transfer service 7

Measurement IEC 62379-1:2007, specifies aspects which are common to all equipment, and it includes an introduction to the common control interface. IEC 62379-2:2008, IEC 62379-3 (under consideration) and IEC 62379-4 (under consideration) specify control of internal functions specific to equipment carrying particular types of live media. IEC 62379-4 refers to time-critical data such as commands to automation equipment, but not to packet data such as the control messages themselves. IEC 62379-5 specifies control of transmission of these media over each individual network technology. It includes network specific management interfaces along with network specific control elements that integrate into the control framework. IEC 62379-5-1, (this standard) specifies management of aspects which are common to all network technologies. IEC 62379-5-2 specifies protocols which can be used between networking equipment to enable the setting up of calls which are routed across different networking technologies. IEC 62379-5-3, onwards, specify management of aspects which are particular to individual networking technologies. IEC 62379-6, specifies carriage of control and status messages and non-audiovisual data over transports that do not support audio and video, such as RS232 serial links, with (as for IEC 62379-5) a separate subpart for each technology. IEC 62379-7 specifies aspects that are specific to the measurement of the service experienced by audio and video streams and in particular to the requirements of EBU ECN-IPM Measurements Group.

SIST EN 62379-5-1:2014
IEC 62379-5-1:2014  IEC 2014 – 7 – COMMON CONTROL INTERFACE FOR NETWORKED
DIGITAL AUDIO AND VIDEO PRODUCTS –
Part 5-1: Transmission over networks –
General

1 Scope This part of IEC 62379 specifies aspects of the common control interface that are common to all network technologies, including setting up and tearing down of sessions and the service provided by the network. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. IEC 62379-1:2007, Common control interface for networked digital audio and video products – Part 1: General IEC 62379-5-2:2014, Common control interface for networked digital audio and video products – Part 5-2: Transmission over networks – Signalling 3 Terms, definitions and abbreviations 3.1 Terms and definitions For the purposes of this document, the terms and definitions given in IEC 62379-1 and IEC 62379-5-2, as well as the following apply. 3.1.1

media port source or destination of media data in an interface unit Note 1 to entry: A media port is either a physical port (e.g. an external audio or video connector on the unit) or a logical port (e.g. an internal connection to another part of the unit). 3.1.2

switch network element which routes media data and other messages between links 3.2 Abbreviations

TCP Transmission Control Protocol a UDP User Datagram Protocol b MIB Management Information Base a See RFC 793. b See RFC 768.

SIST EN 62379-5-1:2014

– 8 – IEC 62379-5-1:2014  IEC 2014 4 Network service specifications 4.1 Service for live media Live media (including status broadcasts) shall be transmitted using a service for which, if the network supports it, guaranteed levels of throughput, delay, and data loss shall be requested. 4.2 Service for management messages Management messages should be transmitted in data units on an asynchronous flow as specified in IEC 62379-5-2. If no such service is available, a connectionless datagram service such as UDP may be used. Where a connection-oriented service is used, at least one call at each privilege level shall be accepted by a destination unit at any given time. If more calls at one privilege level are accepted, this shall not prevent the acceptance of at least one call at each other privilege level. 5 MIB definitions applicable to all networks 5.1 General The structure of the MIB shall be as specified in IEC 62379-1. 5.2 Type definitions The following application-wide types shall be used:

NetPortState::= INTEGER {
disabled
(1),
closing
(2),
linkDown
(3),
linkUp
(4),
-- does not know to what linked
pointToPoint
(5),
-- link is point-to-point
peerGroup
(6),
-- e.g. Ethernet hub
sharedMedia
(7)
-- with master, e.g. 802.11
(disabled..sharedMedia)
PortIdentifier::= OCTET STRING (SIZE(3))
' octet 1 = port type
' octets 2 and 3 = port number (high byte in octet 2)
ConnectionEnd::= INTEGER {
source
(1),
destination (2)
} (source..destination)

CauseCode::= OBJECT IDENTIFIER NOTE Cause codes may be defined in other parts of the IEC 62379-5 series or elsewhere.

ConnectionState::= INTEGER {
readyToConnect
(1),
connectionRequested
(2),
terminating
(3),
active
(4),
failed
(5),
disconnected
(6),
pending
(7),
inactive
(8),
finished
(9), SIST EN 62379-5-1:2014
IEC 62379-5-1:2014  IEC 2014 – 9 –
callProceeding
(10),
receivedOffer
(11),
acceptedOffer
(12),
reservationRequested (13),
clearing
(14)
} (readyToConnect..clearing )
Importance::= INTEGER (1..255)
Priority::= INTEGER (1..255)

5.3 Conceptual row type definitions The following types are used to specify the syntax of managed objects in this standard that represent conceptual table rows. NetPortEntry::= SEQUENCE {

nPortBlockId
BlockId,
nPortName
Utf8String,
nPortState
NetPortState,
nPortAddressType TDomain,
nPortAddress
TAddress,
nPortPAddrType
TDomain,
nPortPartnerAddr TAddress,
nPortBarred
TruthValue }
UnitSourceEntry::= SEQUENCE {
usFlowIdentifier OCTET STRING,
usBlockId
SourceBlockId,
usBlockInput
IndexNumber,
usPackageSize
CardianlNumber,
usPrivilege
PrivilegeLevel,
usState
ConnectionState,
usCause
CauseCode,
usSource
Utf8String,
usDestination
Utf8String,
usService
Utf8String,
usImportance
Importance,
usPriority
Priority,
uStartTime
DateTime,
usEndTime
DateTime,
usConnectTime
CardinalNumber,
usFlowIdStandard TruthValue }
UnitDestEntry::= SEQUENCE {
udFlowIdentifier OCTET STRING,
udNetBlockId
SourceBlockId,
udNetBlockOutput IndexNumber,
udSourceAddrType TDomain,
udSourceAddress
TAddress,
udPackageSize
CardianlNumber,
udPrivilege
PrivilegeLevel,
udState
ConnectionState,
udCause
CauseCode,
udSource
Utf8String,
udDestination
Utf8String,
udService
Utf8String,
udImportance
Importance,
udPriority
Priority, SIST EN 62379-5-1:2014
– 10 – IEC 62379-5-1:2014  IEC 2014
udStartTime
DateTime,
udEndTime
DateTime,
udConnectTime
CardinalNumber,
udConnectCount
CardinalNumber,
udRemembered
TruthValue,
udDestBlockId
DestBlockId,
udDestBlockInput IndexNumber,
usFlowIdStandard TruthValue }

5.4 MIB object definitions 5.4.1 Network ports 5.4.1.1 General Each physical connection to a network, in a switch or end equipment, shall be represented using a network port block. A network port block shall have one input for each outgoing media flow and one output for each incoming media flow. The group of objects in Table 1 shall be implemented by all switches. The root node for these objects shall be { iso(1) standard(0) iec62379(62379) network(5) general (1) networkMIB(1) networkPorts(1) } This node shall be used as the block type identifier for network port blocks. Table 1 – Managed objects for network ports Identifier Syntax Index Readable Writable Volatile Syntax netPortTable(1) SEQUENCE OF NetPortEntry

none none yes mandatory gnetmortbntrybkc NetPortEntry
none none yes mandatory
inmortBlockfdbkc BlockId yes none none no mandatory
inmortkameblc Utf8String
listener supervisor no mandatory
inmortptatebmc NetPortState
listener supervisor yes mandatory
inmortAddressType(4) TDomain
listener none no mandatory
inmortAddressboc TAddress
listener none no mandatory
inmortmAddrTypebpc TDomain
listener none yes mandatory
inmortmartnerAddrbTc TAddress
listener none yes mandatory
gnmortBarredb8c TruthValue
listener supervisor no mandatory

5.4.1.2 netPortTable A table of network port descriptors for this unit. Each physical network port on the unit shall have a corresponding entry in this table. There may also be entries for "virtual" network ports. 5.4.1.3 netPortEntry An entry in the network port table. 5.4.1.4 nPortBlockId The block identifier for this port. Used as an index when accessing the network port table. SIST EN 62379-5-1:2014

IEC 62379-5-1:2014  IEC 2014 – 11 – 5.4.1.5 nPortName The name assigned to this port. This is an arbitrary text string assigned by the system manager. Such assignment should persist across resets of the unit. Until a name has been assigned, this object shall have a value that relates to a visible marking associated with the port's physical connector. Note that the name of a port on a network switch whose connector is labelled "2" on the unit's enclosure should default to a value such as "Port 2" or "Ethernet port 2" or "Front panel port 2". If it is connected to a network socket in, say, studio 6, a supervisor may then rename it as "Studio 6". 5.4.1.6 nPortState The current link-layer state of the port's network connection. If a management terminal sets this object to closing or linkDown, the managed unit shall reroute or, if that is not possible, gracefully close down all calls that pass through the port. In the case of closing, the port shall then enter the disabled state. For as long as the port is in linkDown state, the managed unit shall attempt to establish a network connection on the port. 5.4.1.7 nPortAddressType The type of network address used for nPortAddress. 5.4.1.8 nPortAddress An address which identifies the port. NOTE This will normally be the 48-bit MAC address of the interface. An IP address may be used if it is permanently assigned, but not if it is acquired via DHCP. 5.4.1.9 nPortPAddrType The type of network address used for nPortPartnerAddr. 5.4.1.10 nPortPartnerAddr In pointToPoint state, the address of the unit to which the port is connected. In sharedMedia state, the address of the unit which controls the local network to which the port is connected, e.g. wireless base station or clock master. In other states, the nPortPartnerAddr value is not defined by this standard. NOTE 1 This object is intended to allow a management terminal to "crawl" a network to discover its topology and what resources are present. The address allows it to make a management connection to the link partner in the case of a point-to-point link, or, in the case of a shared-media network segment, to a unit which may be able to supply a list of all the units on the segment. In contrast to nPortAddress, the nPortPartnerAddr value should identify the unit rather than its interface, so an EUI-64 is appropriate. NOTE 2 For some kinds of network segment, such as an Ethernet segment using CSMA/CD, there is no straightforward method for enumerating all the units present on the segment. 5.4.1.11 nPortBarred false (the default) if the unit is allowed to connect a route via the port; true if forbidden. SIST EN 62379-5-1:2014

– 12 – IEC 62379-5-1:2014  IEC 2014 5.4.2 List of media sources 5.4.2.1 General The “list of sources” has an entry for each synchronous flow transmitted by the managed unit. The group of objects in Table 2 shall be implemented by all end equipment that can be the source for a synchronous flow, and by all switches. The root node for these objects shall be { iso(1) standard(0) iec62379(62379) network(5) general(1) networkMIB(1) callSources(2) } NOTE 1 Calls are always connected by the destination, so this table is read-only, apart from the ability to clear down a call from the source end. Management calls are not included in this list. NOTE 2 It is assumed that incoming calls specify a source in some way that may be at least partially network-dependent, and whenever a new connection is made an entry appears in this table, disappearing again when the call is released. Table 2 – Managed objects conveying the list of sources Identifier Syntax Index Readable Writable Volatile Syntax unitSourceListTable(1) SEQUENCE OF UnitSourceEntry

none none yes mandatory gunitpourcebntrybkc UnitSourceEntry
none none yes mandatory
iusclowfdentifierbkc OCTET STRING yes none none yes mandatory
iusBlockfdblc SourceBlockId yes listener none yes mandatory
iusBlockfnputbmc IndexNumber
listener none yes mandatory
iusmackageSize(4) CardinalNumber
listener none yes mandatory
iusmackageoateboc CardinalNumber
listener none yes mandatory
iusmrivilegebpc PrivilegeLevel
listener none yes mandatory
iusptatebTc ConnectionState
listener see 6.3 yes mandatory
iusCauseb8c CauseCode
listener see 6.3 yes mandatory
iuspourceb9c Utf8String
listener none yes mandatory
iusaestinationbk0c Utf8String
listener none yes mandatory
iuspervicebkkc Utf8String
listener none yes mandatory
iusfmportancebklc Importance
listener none yes mandatory
iusmrioritybkmc Priority
listener none yes mandatory
iusptartTimebk4c DateandTime
listener none yes mandatory
iusEndTime(15) DateandTime
listener none yes mandatory
iusConnectTime(16) CardinalNumber
listener none yes mandatory
gusclowfdptandardbkTc TruthValue
listener none yes mandatory

5.4.2.2 unitSourceListTable The list of flows for which this unit transmits media data. NOTE In the case of end equipment, the table lists flows for which the unit is the source. In the case of a switch, it lists information relating to onwards transm

...
