SIST EN 13457:2005+A1:2010
(Main)Footwear, leather and imitation leather goods manufacturing machines - Splitting, skiving, cutting, cementing and cement drying machines - Safety requirements
Footwear, leather and imitation leather goods manufacturing machines - Splitting, skiving, cutting, cementing and cement drying machines - Safety requirements
This document applies to splitting, skiving, edge trimming, strip cutting, cementing and cement drying machines used in the manufacture of footwear, leather and imitation leather goods and other related components. This document does not apply to: - trimming machines with rotary milling tool for the purpose of trimming edges of material, see EN 930; - splitting and band knife machines used in tanneries, see EN 13112; - portable machines. This document specifies safety requirements for construction, transport, installation, adjustment, setting, teaching or process change-over, operation, cleaning, maintenance, decommissioning, dismantling and, as far as safety is concerned, disposal for machines mentioned in 1.1. It takes account of intended use !, foreseeable misuse", component and system failure. This document deals with significant hazards relevant to the footwear, leather and imitation leather goods manufacturing industries. (For a list of hazards see Clause 4.) The document does not deal with precise technical measures for reducing the risks of fumes and dusts detrimental The document does not deal with precise technical measures for reducing the risks of fumes and dusts detrimental to health. The use of machines falling within the scope of this document for purposes other than those specified in 1.1, may give rise to hazards not considered during its preparation. This document also applies to equipment for material handling and operations which are an integral part of the machine. This document assumes the machines - are operated by adequately trained persons - are used with adequate workplace lighting conforming the local regulations or to EN 12464-1. This document is not applicable to splitting, skiving, edge trimming, strip cutting, cementing and cement drying machines which are manufactured before the date of its publication as EN."
Maschinen zur Herstellung von Schuhen, Leder- und Kunstlederewaren - Spalt-, Schärf-, Schneid-, Klebstoffauftrag- und Klebstofftrockenmaschinen - Sicherheitsanforderungen
Diese Norm gilt für Spalt-, Schärf-, Schneid-, Klebstoffauftrag- und Klebstofftrocknungsmaschinen, die
bei der Herstellung von Schuhen, Leder- und Kunstlederwaren und verwandten Teilen verwendet werden.
1.2 Diese Norm gilt nicht für:
Kantenbearbeitungsmaschinen mit rotierendem Werkzeug zum Bearbeiten von Materialkanten, siehe
EN 930;
in Gerbereien verwendete Spalt- und Bandmessermaschinen, siehe EN 13112;
Maschinen nicht ortsfester Bauart.
1.3 Diese Norm spezifiziert die Sicherheitsanforderungen für Bau, Transport, Installation, Einstellen,
Einrichten, Programmierung oder Verfahrensumstellung, Bedienung, Reinigung, Wartung, Beseitigung, Abbau
und, soweit es die Sicherheit betrifft, auch die Entsorgung der in 1.1 genannten Maschinen.
Sie berücksichtigt deren bestimmungsgemäße Verwendung !, vorhersehbaren Missbrauch" sowie den
Ausfall von Komponenten und Systemfehler.
1.4 Diese Norm behandelt alle Gefährdungen, die in der Schuhindustrie und bei der Herstellung von
Leder- und Kunstlederwaren auftreten (Liste der Gefährdungen siehe Abschnitt 4.)
In dieser Norm werden nicht präzise technische Maßnahmen zur Herabsetzung der Gefährdung durch
Dämpfe und Stäube behandelt.
Der Einsatz von Maschinen nach dem Anwendungsbereich dieser Norm in anderen als den in 1.1 genannten
Industriezweigen kann zu Gefährdungen führen, die bei ihrer Ausarbeitung nicht berücksichtigt wurden.
1.5 Diese Norm gilt auch für Materialzufuhr- und Handhabungseinrichtungen, die Teil der jeweiligen
Maschine sind.
1.6 Diese Norm geht davon aus, dass die Maschinen
von speziell ausgebildeten Personen bedient werden;
mit geeigneter Arbeitsstättenbeleuchtung, die örtlichen Reglungen oder EN 12464-1 !gestrichener
Text" genügt, genutzt werden.
1.7 !Dieses Dokument gilt nicht für Spalt-, Schärf-, Schneid-, Klebstoffauftrag- und Klebstofftrocknungsmaschinen,
die vor Veröffentlichung als EN hergestellt wurden."
Machines de fabrication de chaussures et d'articles en cuir et en matériaux similaires - Machines à refendre, à parer, à couper, à encoller et à sécher l'adhésif - Prescriptions de sécurité
1.1 Le présent document s'applique aux machines à refendre, à parer, à rafraîchir les bords, à couper en bandes,
à encoller et à sécher l'adhésif utilisées pour la fabrication de chaussures et d'articles en cuir et en matériaux
similaires et autres composants associés.
1.2 Le présent document ne s'applique pas :
— aux machines à fraiser munies d'une fraise rotative pour fraiser les arêtes des matériaux, voir l'EN 930 ;
— aux machines à refendre et à ruban tranchant utilisées en tannerie, voir l'EN 13112 ;
— aux machines portatives.
1.3 Le présent document spécifie les prescriptions de sécurité concernant la construction, le transport,
l'installation, la mise au point, le réglage, l'apprentissage ou le changement de processus de fabrication,
le fonctionnement, le nettoyage, la maintenance, la mise hors service, le démontage et, pour ce qui concerne
la sécurité, la mise au rebut des machines mentionnées en 1.1.
Elle tient compte de l'utilisation normale, !des situations prévisibles d’utilisation impropre".
1.4 Le présent document traite tous les phénomènes dangereux significatifs liés aux industries de fabrication de
chaussures et d'articles en cuir et en matériaux similaires (pour la liste des phénomènes dangereux, voir l'article 4).
Le document ne traite pas des mesures techniques précises pour la réduction des risques liés aux vapeurs
et poussières nuisibles à la santé.
L'utilisation de machines entrant dans le domaine d'application du présent document pour des secteurs industriels
différents de ceux spécifiés en 1.1 peut entraîner des phénomènes dangereux non envisagés au cours de son
élaboration.
1.5 Le présent document s'applique également aux équipements supplémentaires pour la manutention des
matériaux et le fonctionnement qui font partie intégrante de la machine.
1.6 Le présent document suppose que les machines :
- sont utilisées par des personnes formées de manière adéquate ;
- sont utilisées avec un éclairage approprié (...)
Stroji za izdelavo obutve ter izdelkov iz usnja in njegovih imitacij - Stroji za cepljenje, brušenje, rezanje ter nanos in sušenje lepila - Varnostne zahteve
Ta dokument velja za stroje za cepljenje, brušenje, rezanje robov, rezanje trakov, nanos in sušenje lepila, ki se uporabljajo v proizvodnji obutve, izdelkov iz usnja ali njegovih imitacij in ostalih povezanih sestavnih delov. Ta dokument se ne nanaša na: - stroje za obrezovanje z vrtečimi orodji za mletje za namen obrezovanja robov materiala, glej EN 930; - stroje za cepljenje in stroje s tračnimi noži, ki se uporabljajo v strojarnah, glej EN 13112; - prenosne stroje. Ta dokument določa varnostne zahteve za izgradnjo, transport, postavitev, prilagoditev, nastavitev, poučevanje ali spreminjanje procesov, delovanje, čiščenje, vzdrževanje, izločitvijo iz uporabe, razgradnjo in kar se varnosti tiče, odstranitev omenjenega stroja, omenjeno v točki 1.1. Ta standard obravnava predvideno uporabo, »predvidljivo napačno uporabo« ter okvaro komponent in sistemov. Ta dokument obravnava velike nevarnosti, povezane s proizvodno industrijo obutve, izdelkov iz usnja in njegovih imitacij. (Za seznam nevarnosti glej Klavzulo 4.) Ta dokument ne obravnava natančnih tehničnih meritev za zmanjšanje tveganja škodljivih hlapov in prahu. Ta dokument ne obravnava natančnih tehničnih meritev za zmanjšanje tveganja hlapov in prahu, ki so škodljivi zdravju. Uporaba strojev, ki spadajo na področje uporabe tega dokumenta, za druge namene kot tiste, navedene v točki 1.1, lahko povzroči nevarnosti, ki niso bile upoštevane med njegovo pripravo. Ta dokument prav tako velja za opremo za rokovanje z materialom in delovanja, ki so sestavni del stroja. Ta dokument predvideva, da se stroji – upravljani z ustrezno usposobljenimi osebami – uporabljajo z ustrezno razsvetljavo delovnega prostora v skladu z lokalnimi predpisi ali z EN 12464-1. Ta dokument ne velja za stroje za cepljenje, brušenje, obrezovanje robov, rezanje trakov, nanos in sušenje lepila, ki so bili proizvedeni, preden je bil objavljen kot EN.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stroji za izdelavo obutve ter izdelkov iz usnja in njegovih imitacij - Stroji za cepljenje, brušenje, rezanje ter nanos in sušenje lepila - Varnostne zahteveMaschinen zur Herstellung von Schuhen, Leder- und Kunstlederewaren - Spalt-, Schärf-, Schneid-, Klebstoffauftrag- und Klebstofftrockenmaschinen - SicherheitsanforderungenMachines de fabrication de chaussures et d'articles en cuir et en matériaux similaires - Machines à refendre, à parer, à couper, à encoller et à sécher l'adhésif - Prescriptions de sécuritéFootwear, leather and imitation leather goods manufacturing machines - Splitting, skiving, cutting, cementing and cement drying machines - Safety requirements61.060ObuvalaFootwear59.140.40Stroji in oprema za proizvodnjo usnja in krznaMachines and equipment for leather and fur productionICS:Ta slovenski standard je istoveten z:EN 13457:2004+A1:2010SIST EN 13457:2005+A1:2010en,fr01-julij-2010SIST EN 13457:2005+A1:2010SLOVENSKI
STANDARD
SIST EN 13457:2005+A1:2010
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13457:2004+A1
April 2010 ICS 59.140.40; 61.060 Supersedes EN 13457:2004English Version
Footwear, leather and imitation leather goods manufacturing machines - Splitting, skiving, cutting, cementing and cement drying machines - Safety requirements
Machines de fabrication de chaussures et d'articles en cuir et en matériaux similaires - Machines à refendre, à parer, à couper, à encoller et à sécher l'adhésif - Prescriptions de sécurité
Maschinen zur Herstellung von Schuhen, Leder- und Kunstlederewaren - Spalt-, Schärf-, Schneid-, Klebstoffauftrag- und Klebstofftrockenmaschinen - Sicherheitsanforderungen This European Standard was approved by CEN on 8 August 2004 and includes Amendment 1 approved by CEN on 18 March 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13457:2004+A1:2010: ESIST EN 13457:2005+A1:2010

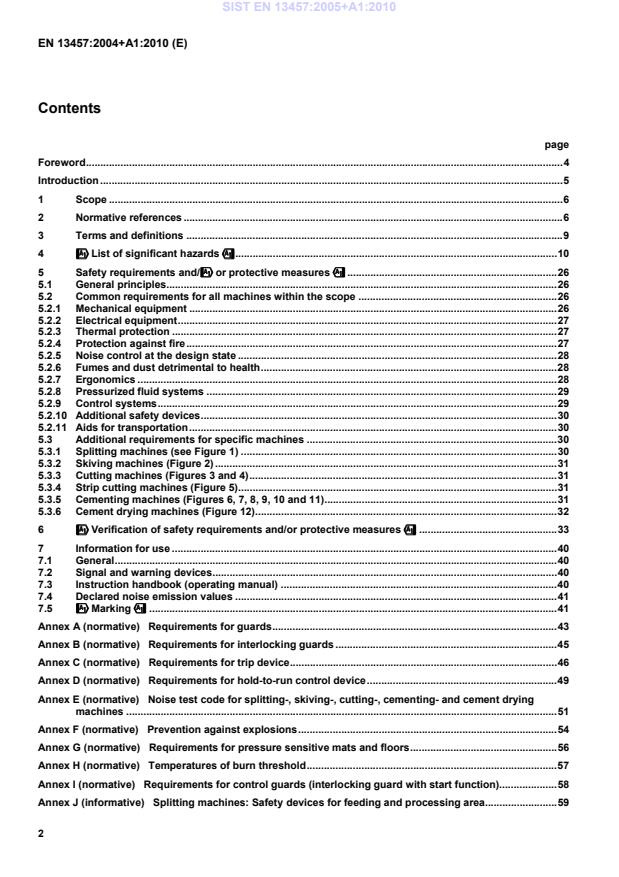

EN 13457:2004+A1:2010 (E) 2 Contents page Foreword . 4Introduction . 51Scope . 62Normative references . 63Terms and definitions . 94!!!!List of significant hazards"""" . 105Safety requirements and/!!!!or protective measures"""" . 265.1General principles. 265.2Common requirements for all machines within the scope . 265.2.1Mechanical equipment . 265.2.2Electrical equipment . 275.2.3Thermal protection . 275.2.4Protection against fire . 275.2.5Noise control at the design state . 285.2.6Fumes and dust detrimental to health . 285.2.7Ergonomics . 285.2.8Pressurized fluid systems . 295.2.9Control systems . 295.2.10Additional safety devices . 305.2.11Aids for transportation . 305.3Additional requirements for specific machines . 305.3.1Splitting machines (see Figure 1) . 305.3.2Skiving machines (Figure 2) . 315.3.3Cutting machines (Figures 3 and 4) . 315.3.4Strip cutting machines (Figure 5) . 315.3.5Cementing machines (Figures 6, 7, 8, 9, 10 and 11) . 315.3.6Cement drying machines (Figure 12). 326!!!!Verification of safety requirements and/or protective measures"""" . 337Information for use . 407.1General . 407.2Signal and warning devices . 407.3Instruction handbook (operating manual) . 407.4Declared noise emission values . 417.5!!!!Marking"""" . 41Annex A (normative)
Requirements for guards . 43Annex B (normative)
Requirements for interlocking guards . 45Annex C (normative)
Requirements for trip device . 46Annex D (normative)
Requirements for hold-to-run control device . 49Annex E (normative)
Noise test code for splitting-, skiving-, cutting-, cementing- and cement drying machines . 51Annex F (normative)
Prevention against explosions . 54Annex G (normative)
Requirements for pressure sensitive mats and floors . 56Annex H (normative)
Temperatures of burn threshold . 57Annex I (normative)
Requirements for control guards (interlocking guard with start function). 58Annex J (informative)
Splitting machines: Safety devices for feeding and processing area. 59SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 3 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 98/37/EC . 60Annex ZB (informative)
!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC"""" . 61SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 4 Foreword This document (EN 13457:2004+A1:2010) has been prepared by Technical Committee CEN/TC 201 “Leather and imitation leather goods and footwear manufacturing machinery - Safety”, the secretariat of which is held by UNI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by October 2010, and conflicting national standards shall be withdrawn at the latest by October 2010. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document includes Amendment 1, approved by CEN on 2010-03-18. This document supersedes EN 13457:2004. The start and finish of text introduced or altered by amendment is indicated in the text by tags ! ". This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directives. !For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this document." According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom. SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 5 Introduction !deleted text" This document is a type C standard as stated in !EN ISO 12100". The machinery concerned and the extent to which hazards, hazardous situations and events are covered are indicated in the scope of this document. When provisions of this type C standard are different from those which are stated in type A and B standards, the provisions of this type C standard take precedence over he provisions of the other standards, for information for use and maintenance according to the provisions of this type C standard. !deleted text" SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 6 1 Scope 1.1 This document applies to splitting, skiving, edge trimming, strip cutting, cementing and cement drying machines used in the manufacture of footwear, leather and imitation leather goods and other related components. 1.2 This document does not apply to: trimming machines with rotary milling tool for the purpose of trimming edges of material, see EN 930; splitting and band knife machines used in tanneries, see EN 13112; portable machines. 1.3 This document specifies safety requirements for construction, transport, installation, adjustment, setting, teaching or process change-over, operation, cleaning, maintenance, decommissioning, dismantling and, as far as safety is concerned, disposal for machines mentioned in 1.1. It takes account of intended use !, foreseeable misuse", component and system failure. 1.4 This document deals with significant hazards relevant to the footwear, leather and imitation leather goods manufacturing industries. (For a list of hazards see Clause 4.) The document does not deal with precise technical measures for reducing the risks of fumes and dusts detrimental to health. The use of machines falling within the scope of this document for purposes other than those specified in 1.1, may give rise to hazards not considered during its preparation. 1.5 This document also applies to equipment for material handling and operations which are an integral part of the machine. 1.6 This document assumes the machines are operated by adequately trained persons are used with adequate workplace lighting conforming the local regulations or to EN 12464-1. !deleted text" 1.7 !This document is not applicable to splitting, skiving, edge trimming, strip cutting, cementing and cement drying machines which are manufactured before the date of its publication as EN." 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. !deleted text" !EN 349:1993", Safety of machinery — Minimum gaps to avoid crushing of parts of the human body !deleted text" !EN 547-1:1996", Safety of machinery – Human body measurements – Part 1: Principles for determining the dimensions required for openings for whole body access into machinery SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 7 !EN 547-2:1996", Safety of machinery – Human body measurements – Part 2: Principles for determining the dimensions required for access openings !deleted text" !EN 614-1:2006", Safety of machinery – Ergonomic design principles – Part 1: Terminology and general principles EN 626-1:1994, Safety of machinery – Reduction of risks to health from hazardous substances emitted by machinery – Part 1: Principles and specifications for machinery manufacturers !EN 626-2:1996, Safety of machinery – Reduction of risk to health from hazardous substances emitted by machinery – Part 2: Methodology leading to verification procedures" !deleted text" !EN 894-2:1997", Safety of machinery – Ergonomics requirements for the design of displays and control actuators – Part 2: Displays !EN 894-3:2000", Safety of machinery – Ergonomics requirements for the design of displays and control actuators – Part 3: Control actuators EN 953:1997, Safety of machinery – Guards – General requirements for the design and construction of fixed and movable guards !deleted text" EN 982:1996, Safety of machinery – Safety requirements for fluid power systems and their components – Hydraulics EN 983:1996, Safety of machinery – Safety requirements for fluid power systems and their components – Pneumatics !EN 999:1998", Safety of machinery – The positioning of protective equipment in respect of approach speeds of parts of the human body EN 1005-2:2003, Safety of machinery – Human physical performance – Part 2: Manual handling of machinery and component parts of machinery EN 1005-3:2002, Safety of machinery – Human physical performance – Part 3: Recommended force limits for machinery operation !EN 1037:1995", Safety of machinery – Prevention of unexpected start-up !deleted text" EN 1088:1995, Safety of machinery – Interlocking devices associated with guards – Principles for design and selection !EN 1127-1:2007", Explosive atmospheres – Explosion prevention and protection – Part 1: Basic concepts and methodology !EN 1760-1:1997", Safety of machinery – Pressure sensitive protective devices – Part 1: General principles for the design and testing of pressure sensitive mats and pressure sensitive floors !EN 1760-2:2001", Safety of machinery – Pressure sensitive protective devices – Part 2: General principles for the design and testing of pressure sensitive edges and pressure sensitive bars !EN 12464-1:2002", Light and lighting
– Lighting of work places – Part 1: Indoor work places SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 8 !deleted text" EN 12545:2000, Footwear, leather and imitation leather goods manufacturing machines – Noise test code – Common requirements !EN 13478:2001", Safety of machinery – Fire prevention and protection !EN 60204-1:2006, Safety of machinery — Electrical equipment of machines — Part 1: General requirements (IEC 60204-1:2005 (modified))" EN 60335-2-69:2003, Household and similar electrical appliances – Safety – Part 2-69: Particular requirements for wet and dry vacuum cleaners, including power brush, for industrial and commercial use (IEC 60335-2-69:2002, modified) EN 60947-5-1:2004, Low-voltage switchgear and controlgear – Part 5-1: Control circuit devices and switching elements – Electromechanical control circuit devices (IEC 60947-5-1:2003) !EN 61310-1, Safety of machinery – Indication, marking and actuation – Part 1: Requirements for visual, acoustic and
tactile signals (IEC 61310-1:2007)" EN 61496-1:2004, Safety of machinery – Electro-sensitive protective equipment – Part 1: General requirements and tests (IEC 61496-1:2004, modified) !CLC/TS 61496-2:2006, Safety of machinery – Electro-sensitive protective equipment – Particular requirements for equipment using active opto-electronic protective devices (AOPDs) (IEC 61496-2:2006)" !deleted text" !EN ISO 11688-1:2009", Acoustics – Recommended practice for the design of low-noise machinery and equipment – Part 1: Planning (ISO/TR 11688-1:1995) EN ISO 11688-2:2000, Acoustics – Recommended practice for the design of low-noise machinery and equipment – Part 2: Introduction to the physics of low-noise design (ISO/TR 11688-2:1998) !EN ISO 11689:1996", Acoustics – Procedure for the comparison of noise-emission data for machinery and equipment (ISO 11689:1996) EN ISO 12100-1:2003, Safety of machinery – Basic concepts, general principles for design – Part 1: Basic terminology, methodology (ISO 12100-1:2003) EN ISO 12100-2:2003, Safety of machinery – Basic concepts, general principles for design – Part 2: Technical principles (ISO 12100-2:2003) !EN ISO 13732-1:2008, Ergonomics of the thermal environment — Methods for the assessment of human responses to contact with surfaces — Part 1: Hot surfaces (ISO 13732-1:2006)" !EN ISO 13849-1:2008, Safety of machinery — Safety-related parts of control systems — Part 1: General principles for design (ISO 13849-1:2006)" !EN ISO 13850:2008, Safety of machinery — Emergency stop — Principles for design (ISO 13850:2006)" !EN ISO 13857:2008, Safety of machinery — Safety distances to prevent hazard zones being reached by upper and lower limbs (ISO 13857:2008)" !EN ISO 14122-1:2001", Safety of machinery – Permanent means of access to machinery – Part 1: Choice of fixed means of access between two levels (ISO 14122-1:2001) EN ISO 14122-2:2001, Safety of machinery – Permanent means of access to machinery – Part 2: Working platforms and walkways (ISO 14122-2:2001) SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 9 3 Terms and definitions !For the purposes of this document, the terms and definitions given in EN ISO 12100-1:2003 and the following apply." 3.1 splitting machine (see Figure 1) machine which separates leather or other splitable materials to a required thickness by cutting. The separated part is called split-leather. The material is fed to the cutting edge of the knife either between feeding rollers or, between a roller in a fixed or movable mounting, and a fixed guide 3.2 skiving machine (see Figure 2) machine which profiles the edges of workpieces of leather or other materials. The material is fed to the cutting edge of a !rotating" knife either between the feeding rollers and a following roller, or a fixed guide foot 3.3 cutting machines edge trimming and last margin and strip cutting machines 3.4 edge trimming and last margin machine (see Figures 3 and 4) machine for final preparation of the edges of lining and edges of the upper after lasting by means of reciprocating or oscillating knives 3.5 strip cutting machine (see Figure 5) stationary machine with circular rotating knives, roller plates or reciprocating knives for cutting straps, belts and strips of all kinds of leather as well as artificial leather, rubber, felt, plastic material. Any required cutting width can be obtained by inserting spacers between the knives 3.6 cementing machine (see Figures 6, 7, 8, 9, 10 and 11) machine applying cement to a workpiece by means of a roller, dipping device, nozzle, spraying nozzle or brush 3.7 cement drying machine (see Figure 12) machine for removing the carrier medium (solvent or water) from adhesive coated material prior to activation. A reactivation device can be incorporated 3.8 hazardous movement motion of a part of the machine or workpiece which may give rise to injury 3.9 danger points points on splitting, skiving, edge trimming, strip cutting, cementing and cement drying machines which may give rise to personal injury due to controlled-path movements of drives, machinery parts, tools or workpieces 3.10 fixed cover fixed guard installed to prevent by itself, or together with other parts, access to the danger zones from the covered side 3.11 fixed enclosing guard fixed guard which prevents access to a danger zone from all sides 3.12 fencing guard around danger zones of a machine or plant, which prevents uncontrolled access SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 10 3.13 operating area zones in or around a machine which include: the area of manual loading and unloading; the operator standing or sitting area 3.14 processing area area of the machine where the workpiece is being split, skived, trimmed, cut, cemented or cement dried 3.15 inlet safety device device installed to prevent access from the feeding area into the processing area. This device can be: a fixed or movable guard; a trip device 3.16 feeding gap area through which material is fed to the processing area 4 !!!!List of significant hazards"""" !This clause contains all the significant hazards, hazardous situations and events, as far as they are dealt with in this document, identified by risk assessment as significant for this type of machinery and which require action to eliminate or reduce the risk." !!!!4.2"""" !!!!The significant hazards of splitting, skiving, edge trimming, strip cutting, cementing and cement drying machines are outlined in Table 1 (4 3 to 4.12)." NOTE Typical outlines of these machines together with explanatory sketches of processing areas are given in Figures 1 to 12. The Figures are given for information only. !!!!deleted text" SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 11 Table 1 — !!!!List of significant hazards"""" Danger zone or source of hazard Type of hazard Figure 4.3 Mechanical hazards
4.3.1 Transmission and drive mechanisms entanglement, drawing-in and trapping, friction, crushing, shearing
4.3.2 Moving machinery parts of
- electrical crushing, shearing, impact, drawing-in
- hydraulic
- pneumatic
- mechanical units and workpieces
4.3.3 Loading and unloading area
- clamping device crushing
- guiding rollers drawing-in, crushing J.1
- handling device crushing, shearing
- conveyor shearing, drawing in 12 4.3.4 Processing area
a) Splitting, skiving, edge trimming, last margin and strip cutting machines
- cutting areas edge of running or stationary cutting, severing
• splitting knife 1
• skiving knife 2
• edge trimming knife cutting, severing 3
• last margin trimming knife 4
• strip cutting knife 5
- rotating grinding wheel abrasion, ejection of parts, injury to eyes
SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 12 Table 1 — !!!!List of significant hazards"""" (continued) Danger zone or source of hazard Type of hazard Figure
- setting, adjustment of
• skiving, splitting, strip cutting and
cutting, severing
• edge trimming knife
• grinding wheel abrasion, bursting
• sparks from dressing of grinding wheel injuries to skin and eyes, ignition source
• falling down/out of the uptilted skiving machine by gravity crushing, shearing
b) Cementing machines
area between transport roller and application roller crushing, drawing-in, abrasion 6, 7
area between fixed machine parts
e. g. dip tank and moveable suspension device shearing, crushing 8
centrifugal device for counters and heels trapping 8
area between moving sole or last shoe and moving brush crushing 11
c) Cement drying machines
area between fixed machine parts and conveyor trapping, drawing-in, shearing 12 4.3.5 Operator’s standing area
- uneven, sloping, slippery platforms slipping
- steps tripping
- protruding parts falling
4.3.6 Movement of machine due to gravity while being transported crushing, shearing
4.4 Electrical hazards
Electrical contact, directly or indirectly, caused by
- component failure electric shock, burns
- insulation failure
- incorrect design, installation or component specifications of the electrical equipment
4.5 Thermal hazards
Accidental contact with
- roller dressed by hot melt cement risk of burns
- hot melt chamber
- nozzle
- reactivation unit
- during suspension or by squirting
4.6 Fire hazards
splitting, skiving machines
- the ignition of dust created by the action of the tool on the material being worked burns
cementing and cement drying machines
- the ignition of fumes of flammable liquid (solvent, solvent containing glue) burns
SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 13
Table 1 — !!!!List of significant hazards"""" (concluded) Danger zone or source of hazard Type of hazard 4.7 Explosion hazards
cementing and cement drying machines
- the ignition of explosive atmosphere of inflammable liquid (solvent, solvent containing glue)
4.8 Noise
- hydraulic unit loss of hearing, interference with speech communication and perception of acoustic signals
- pneumatic equipment
- extraction equipment
- machine parts and tools 4.9 Emission of fumes or skin contact risk of occupational disease (breathing system, skin, nervous system)
cementing and cement drying machines using solvent containing glue during
- operation
- setting
- cleaning
- overheating of hot melt
- skin contact with solvents
splitting and skiving machines
- dust generated by cutting (breathing system, skin) 4.10 Neglect of ergonomic principles risk of occupational disease
- inadequate local lighting accidents resulting from poor visibility
- poor operator posture fatigue
- excessive effort during loading and unloading physical and mental stress
- poor control layout and display identification psychological stress
- unsuitable height and size in relation to human body dimensions muscolo-skeletal injury/repetitive strain injury (work related upper limb disorder) 4.11 Functional disorders:
- failure of control system (malfunction safety devices and machine control) all possible hazards generated by unexpected dangerous movements (e. g. unexpected start or closing movement, prevention of stop function)
- fault of energy supply (irregularity failure, unexpected reconnection)
- electromagnetic disturbances 4.12 High pressure fluid ejection or ejection of part of a burst component
by failure of hydraulic or pneumatic unit (broken hoses, fittings and pipework) injury from hot oil or impact from flexible hoses
SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 14
Key a
Band knife splitting machine b
Processing area c
Splitting machine with fixed knife profiling splitting machine 1
Profile roller 2
Profiling roller 3
Counter roll 4
Drawing in mechanism 5
Feeding table Figure 1 — Splitting machine SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 15
Key a
Skiving machine (front view) with bell shaped knife b
Computerised skiving machine with bell shaped knife 1
Processing area Figure 2 — Skiving machine
SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 16
Key 1
Processing area Figure 3 — Edge trimming machine for linings with oscillating knife SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 17
Key 1
Processing area
Figure 4 — Last margin trimming machine SIST EN 13457:2005+A1:2010
EN 13457:2004+A1:2010 (E) 18
Key a
Strip cutting machine with circular knives b
Continuous cutting machine 1
Knife shaft 2
Limit bar 3
Spreader table 4
Processing are
...
