Industrial valves - Copper alloy gate valves

This European Standard applies to copper alloy gate valves for general use having flanged, threaded, capillary, compression or loose nut/union body ends.
This European Standard specifies the design and performance requirements including materials, pressure/temperature ratings, dimensions, test procedures and marking.
For some specific fields of application, for example, drinking water or gas, valves to this European Standard can be used provided the requirements of the relevant performance standards are met. Approval by the relevant regulatory body may be required.
The range of nominal sizes is DN 8 to DN 500 and of nominal diameters is 8 mm to 110 mm.
The range of pressure designations covered is PN 6 ; PN 10 ; PN 16 ; PN 20 ; PN 25 ; PN 32 ; PN 40 ; PN 63 ; Class 150 and Class 300.
For the applicability of each nominal size/diameter and each pressure designation to the different types of valve end, see 4.1.

Industriearmaturen - Schieber aus Kupferlegierungen

Diese Europäische Norm gilt für Schieber aus Kupferlegierungen für allgemeine Anwendung mit
Flanschenden, Gewindeenden, Kapillarlötanschlüssen, Klemmanschlüssen oder Gehäusen mit losen
Einschraubenden/Verschraubungen.
Diese Europäische Norm legt die Anforderungen an die Konstruktion und Funktion fest, einschließlich
Werkstoffen, Druck/Temperatur-Zuordnungen, Maßen, Prüfverfahren und Kennzeichnung.
Die Armaturen nach dieser Norm dürfen in einigen spezifischen Einsatzbereichen, z. B. Trinkwasser oder
Gas, verwendet werden, wenn die Anforderungen der zugehörigen Gebrauchstauglichkeitsnormen erfüllt sind.
Dabei kann die Genehmigung der zuständigen amtlichen Stelle erforderlich sein.
Der Nennweitenbereich beträgt DN 8 bis DN 500, der Nenndurchmesserbereich 8 mm bis 110 mm.
Der Druckbereich umfasst: PN 6, PN 10, PN 16, PN 20, PN 25, PN 32, PN 40, PN 63, Class 150 und
Class 300.
Die für die verschiedenen Anschlussarten geltenden Nennweiten, Nenndurchmesser und Druckbezeichnungen
sind in 4.1 angegeben.

Robinetterie industrielle - Robinets-vannes en alliage de cuivre

La présente Norme européenne s'applique aux robinets-vannes en alliage de cuivre d'usage général ayant
des extrémités de corps à brides, filetées, à braser par capillarité, à compression ou à écrou
prisonnier/extrémité union.
La présente Norme européenne spécifie la conception et les prescriptions de performance, y compris les
matériaux, les relations pression/température de l'enveloppe et des sièges du corps, les dimensions, les
procédures d'essais et le marquage.
Pour certains domaines d'applications spécifiques, par exemple l'eau potable ou le gaz, les appareils de
robinetterie conformes à la présente Norme européenne peuvent être utilisés à condition que les prescriptions
des normes de performance appropriées soient satisfaites. L'approbation d'un organisme réglementaire
approprié peut être requise.
La gamme des dimensions nominales est DN 8 à DN 500 et celle des diamètres nominaux est 8 mm à
110 mm.
La gamme des désignations de pression couverte est PN 6 ; PN 10 ; PN 16 ; PN 20 ; PN 25 ; PN 32 ; PN 40 ;
PN 63 ; Class 150 et Class 300.
Pour les applications de chaque dimension/diamètre nominal(e) et chaque désignation de pression aux
différents types d'extrémités d'appareils de robinetterie, voir 4.1.

Industrijski ventili - Zasuni iz bakrovih zlitin

Ta evropski standard velja za zasune iz bakrovih zlitin za splošno uporabo, ki imajo prirobne, navojne, kapilarne, kompresijske ali ohlapne matice/unitarne konce telesa.
Ta evropski standard določa zahteve za konstrukcijo in delovanje, vključno z materiali, nazivnim tlakom/temperaturo, merami, postopki preskušanja in označevanjem.
Za nekatera področja uporabe, na primer za pitno vodo ali plin, so lahko uporabljeni ventili tega evropskega standarda, če so izpolnjene zahteve ustreznih standardov za delovanje. Obstaja možnost, da je potrebna odobritev ustreznih regulativnih organov.
Razpon nominalnih velikosti je od DN 8 do DN 500 in nominalnih premerov od 8 mm do 110 mm.
Razpon oznak pritiska, ki so zajete, je PN 6; PN 10; PN 16; PN 20; PN 25; PN 32; PN 40; PN 63; Class 150 in Class 300.
Za uporabnost vsake nominalne velikosti/premera in vsake oznake pritiska za različne tipe končnikov ventilov glej točko 4.1.

General Information

Status
Published
Publication Date
05-May-2011
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
21-Apr-2011
Due Date
26-Jun-2011
Completion Date
06-May-2011

RELATIONS

Buy Standard

Standard
SIST EN 12288:2011
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Industrijski ventili - Zasuni iz bakrovih zlitinIndustriearmaturen - Schieber aus KupferlegierungenRobinetterie industrielle - Robinets-vannes en alliage de cuivreIndustrial valves - Copper alloy gate valves23.060.30Zapirni ventili (zasuni)Gate valvesICS:Ta slovenski standard je istoveten z:EN 12288:2010SIST EN 12288:2011en,fr,de01-junij-2011SIST EN 12288:2011SLOVENSKI

STANDARDSIST EN 12288:20041DGRPHãþD
SIST EN 12288:2011
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12288
May 2010 ICS 23.060.30 Supersedes EN 12288:2003English Version
Industrial valves - Copper alloy gate valves
Robinetterie industrielle - Robinets-vannes en alliage de cuivre

Industriearmaturen - Schieber aus Kupferlegierungen This European Standard was approved by CEN on 16 April 2010.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12288:2010: ESIST EN 12288:2011

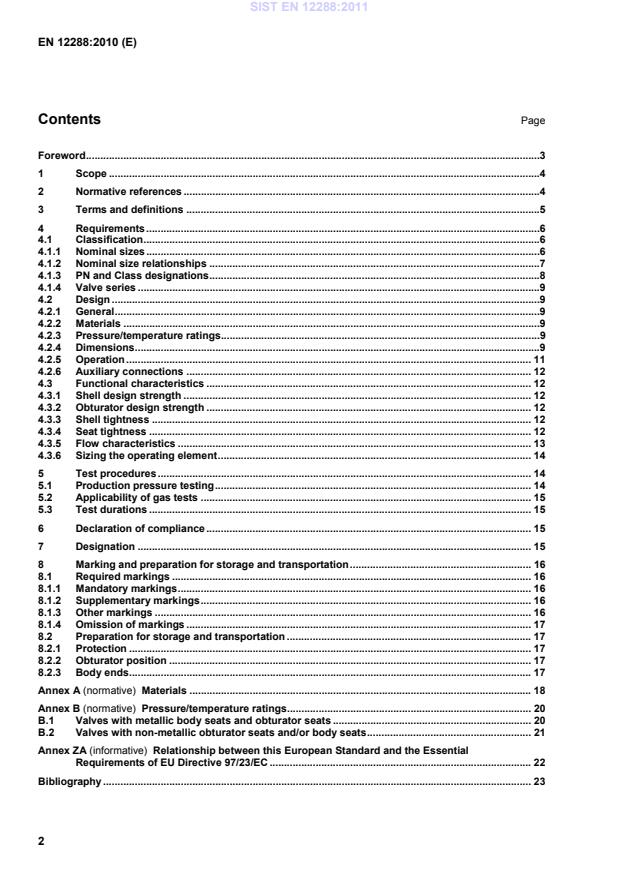

EN 12288:2010 (E) 2 Contents Page Foreword ..............................................................................................................................................................31 Scope ......................................................................................................................................................42 Normative references ............................................................................................................................43 Terms and definitions ...........................................................................................................................54 Requirements .........................................................................................................................................64.1 Classification ..........................................................................................................................................64.1.1 Nominal sizes .........................................................................................................................................64.1.2 Nominal size relationships ...................................................................................................................74.1.3 PN and Class designations ...................................................................................................................84.1.4 Valve series ............................................................................................................................................94.2 Design .....................................................................................................................................................94.2.1 General ....................................................................................................................................................94.2.2 Materials .................................................................................................................................................94.2.3 Pressure/temperature ratings ...............................................................................................................94.2.4 Dimensions .............................................................................................................................................94.2.5 Operation ............................................................................................................................................. 114.2.6 Auxiliary connections ........................................................................................................................ 124.3 Functional characteristics ................................................................................................................. 124.3.1 Shell design strength ......................................................................................................................... 124.3.2 Obturator design strength ................................................................................................................. 124.3.3 Shell tightness .................................................................................................................................... 124.3.4 Seat tightness ..................................................................................................................................... 124.3.5 Flow characteristics ........................................................................................................................... 134.3.6 Sizing the operating element ............................................................................................................. 145 Test procedures .................................................................................................................................. 145.1 Production pressure testing .............................................................................................................. 145.2 Applicability of gas tests ................................................................................................................... 155.3 Test durations ..................................................................................................................................... 156 Declaration of compliance ................................................................................................................. 157 Designation ......................................................................................................................................... 158 Marking and preparation for storage and transportation ............................................................... 168.1 Required markings ............................................................................................................................. 168.1.1 Mandatory markings ........................................................................................................................... 168.1.2 Supplementary markings ................................................................................................................... 168.1.3 Other markings ................................................................................................................................... 168.1.4 Omission of markings ........................................................................................................................ 178.2 Preparation for storage and transportation ..................................................................................... 178.2.1 Protection ............................................................................................................................................ 178.2.2 Obturator position .............................................................................................................................. 178.2.3 Body ends ............................................................................................................................................ 17Annex A (normative)

Materials ....................................................................................................................... 18Annex B (normative)

Pressure/temperature ratings ..................................................................................... 20B.1 Valves with metallic body seats and obturator seats ..................................................................... 20B.2 Valves with non-metallic obturator seats and/or body seats ......................................................... 21Annex ZA (informative)

Relationship between this European Standard and the Essential Requirements of EU Directive 97/23/EC ........................................................................................... 22Bibliography ..................................................................................................................................................... 23 SIST EN 12288:2011

EN 12288:2010 (E) 3 Foreword This document (EN 12288:2010) has been prepared by Technical Committee CEN/TC 69 “Industrial valves”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by November 2010, and conflicting national standards shall be withdrawn at the latest by November 2010. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 12288:2003 This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive 97/23/EC. For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document. This document supersedes EN 12288:2003 where the following modifications were made: a) the normative references were updated in Clauses 2 and 3, in 4.1.1, in 4.1.4, in Table 5, in 4.2.4.3, in Tables A.1 and A.2, in Table B.1; b) Table 5 and Table B.1 were corrected; c) in Table ZA.1: 1) sub-clause 4.2 was correlated to PED Annex I, section 2.1; 2) sub-clause 4.2.3 was correlated to PED Annex I, section 2.2; 3) correlation of sub-clause 4.2.3 to PED Annex I, section 2.2.1 was deleted; 4) correlation of sub-clause 4.2.6 to PED Annex I, section 2.5 was deleted; 5) correlation of Annex A to PED Annex I, section 4.2 was deleted. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

SIST EN 12288:2011

EN 12288:2010 (E) 4 1 Scope This European Standard applies to copper alloy gate valves for general use having flanged, threaded, capillary, compression or loose nut/union body ends. This European Standard specifies the design and performance requirements including materials, pressure/temperature ratings, dimensions, test procedures and marking. For some specific fields of application, for example, drinking water or gas, valves to this European Standard can be used provided the requirements of the relevant performance standards are met. Approval by the relevant regulatory body may be required. The range of nominal sizes is DN 8 to DN 500 and of nominal diameters is 8 mm to 110 mm. The range of pressure designations covered is PN 6; PN 10; PN 16; PN 20; PN 25; PN 32; PN 40; PN 63; Class 150 and Class 300. For the applicability of each nominal size/diameter and each pressure designation to the different types of valve end, see 4.1. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 19:2002, Industrial valves — Marking of metallic valves EN 558:2008, Industrial valves — Face-to-face and centre-to-face dimensions of metal valves for use in flanged pipe systems — PN and Class designated valves EN 736-1, Valves — Terminology — Part 1: Definition of types of valves EN 736-2, Valves — Terminology — Part 2: Definition of components of valves EN 736-3, Valves — Terminology — Part 3: Definition of terms EN 1057, Copper and copper alloys — Seamless round copper tubes for water and gas in sanitary and heating applications EN 1092-3:2003, Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories, PN designated — Part 3: Copper alloy flanges EN 1759-3:2003, Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories, Class designated — Part 3: Copper alloy flanges EN 1982:2008, Copper and copper alloys — Ingots and castings EN 12163:1998, Copper and copper alloys — Rod for general purposes EN 12164:1998, Copper and copper alloys — Rod for free machining purposes EN 12167:1998, Copper and copper alloys — Profiles and rectangular bar for general purposes EN 12168:1998, Copper and copper alloys — Hollow rod for free machining purposes SIST EN 12288:2011

EN 12288:2010 (E) 5 EN 12266-1:2003, Industrial valves — Testing of valves — Part 1: Pressure tests, test procedures and acceptance criteria — Mandatory requirements EN 12266-2:2002, Industrial valves — Testing of valves — Part 2: Tests, test procedures and acceptance criteria —Supplementary requirements EN 12420:1999, Copper and copper alloys — Forgings" EN 12449, Copper and copper alloys — Seamless, round tubes for general purposes EN 12516-3, Valves — Shell design strength — Part 3: Experimental method EN 12570, Industrial valves — Method for sizing the operating element EN ISO 228-1:2003, Pipe threads where pressure-tight joints are not made on the threads — Part 1: Dimensions, tolerances and designation (ISO 228-1:2000) EN ISO 5210:1991, Industrial valves — Multi-turn valve actuator attachments (ISO 5210:1991) ISO 7-1:1994, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances and designation

ASME B1.20.1:1983, Pipe threads, general purpose (inch) 3 Terms and definitions For the purposes of this document, the terms and definitions of types of valves and components and the terms and definitions given in EN 736-1, EN 736-2 and EN 736-3 apply, together with the following terms and definitions. NOTE The terms maximum allowable pressure, PS, and test pressure, PT, defined in EU Directive 97/23/EC (PED) are equivalent to the terms allowable pressure, ps, and test pressure, pt, defined in EN 736-3:2008. 3.1 loose nut end body end provided with a tailpiece which retains a loose internally threaded nut or ring for connection to the mating component 3.2 union end body end provided with an external thread to which is attached a threaded nut or ring, which retains a tailpiece for connection to the mating component 3.3 NPS alphanumeric designation of size for components of a pipework system, which is used for reference purposes and which comprises, for the purpose of Class designated flanges according to this standard, the letters NPS followed by a dimensionless number which is indirectly related to the physical size of the bore or outside diameter of the end connections NOTE The number following the letters NPS does not represent a measurable value and should not be used for calculation purposes except where specified in the relevant standard. See EN ISO 6708. [Adapted from EN 1759-3:2003] SIST EN 12288:2011

EN 12288:2010 (E) 6 4 Requirements 4.1 Classification 4.1.1 Nominal sizes The nominal sizes applicable to each type of body end shall be as specified in Tables 1 and 2. NOTE 1 DN is applicable to flanged valves (PN designated) and loose nut/union end valves and NPS is applicable to flanged valves (Class designated). Threaded valves are normally identified by the thread size (NPS). Capillary and compression end valves are normally identified by nominal diameter expressed as the nominal outside diameter of the connecting tube or pipe. The use of DN for valves with body ends other than flanged is permitted. NOTE 2 DN 8 is not listed in EN ISO 6708:1995 but is the commonly used equivalent nominal size for valves having size ¼ threaded ends. NOTE 3 NPS ¼ and NPS ê are not listed in EN 1759-3:2003. Table 1 — Nominal sizes for flanged, threaded and loose nut/union end valves Nominal size Valve body ends Nominal size Valve body ends Flanged Threaded Loose nut, union end Flanged Threaded PN Class PN Class DN 8 - - ¼ - DN 100 DN 100 4 4 DN 10 DN 10 - ê DN 10 DN 125 DN 125 5 - DN 15 DN 15 ½ ½ DN 15 DN 150 DN 150 6 - DN 20 DN 20 ¾ ¾ DN 20 DN 200 DN 200 8 - DN 25 DN 25 1 1 DN 25 DN 250 DN 250 10 - DN 32 DN 32 1¼ 1¼ DN 32 DN 300 DN 300 12 - DN 40 DN 40 1½ 1½ DN 40 DN 350 DN 350 14 - DN 50 DN 50 2 2 DN 50 DN 400 DN 400 16 - DN 65 DN 65 2½ 2½ - DN 450 DN 450 18 - DN 80 DN 80 3 3 - DN 500 DN 500 20 - SIST EN 12288:2011

EN 12288:2010 (E) 7 Table 2 — Nominal diameters for capillary and compression end valves Nominal diameter

mm Valve body ends Nominal diameter

mm Valve body ends Capillary and compression ends for copper tubes Compression ends for plastic pipe Capillary and compression ends for copper tubes Compression ends for plastic pipe 8 O - 40 X O 10 O O 40,5 X X 12 O O 42 O - 14 X X 50 - O 14,7 X X 53,6 X X 15 O X 54 O - 16 X O 63 - O 18 O X 64 O - 20 - O 66,7 O - 21 X X 70 X - 22 O X 75 - O 25 X O 76,1 O - 27,4 X X 80 X - 28 O X 88,9 O - 32 - O 90 - O 34 X X 108 O - 35 O - 110 - O NOTE O = recommended European tube or pipe outside diameters.

X = other European tube or pipe outside diameters.

4.1.2 Nominal size relationships The relationship between nominal size, DN, and body end types shall be as given in Table 3. SIST EN 12288:2011

EN 12288:2010 (E) 8 Table 3 — Relationship between nominal size, DN, and body end types Nominal size DN Body end types Flanged Threaded Loose nut, union end

Capillary and compression ends for copper tubes Compression ends for plastic pipe PN Class Nominal size Nominal diameter DN NPS NPS DN DN 8 8 - ¼ - 8 ; 10 10 DN 10 10 - ê 10 12 ; 14 12 ; 14 DN 15 15 ½ ½ 15 14,7 ; 15 ; 16 ; 18 14,7 ; 15 ;16 ;18 DN 20 20 ¾ ¾ 20 21 ; 22 20 ; 21 ; 22 DN 25 25 1 1 25 25 ; 27,4 ; 28 25 ; 27,4 ; 28 DN 32 32 1¼ 1¼ 32 34 ; 35 32 ; 34 DN 40 40 1½ 1½ 40 40 ; 40,5 ; 42 40 ; 40,5 DN 50 50 2 2 50 53,6 ; 54 50 ; 53,6 DN 65 65 2½ 2½ - 64 ; 66,7 ; 70 ; 76,1 63 ; 75 DN 80 80 3 3 - 80 ; 88,9 90 DN 100 100 4 4 - 108 110 DN 125 125 5 - - - - DN 150 150 6 - - - - DN 200 200 8 - - - - DN 250 250 10 - - - - DN 300 300 12 - - - - DN 350 350 14 - - - - DN 400 400 16 - - - - DN 450 450 18 - - - - DN 500 500 20 - - - -

4.1.3 PN and Class designations The PN and Class designations applicable to valves having flanged, threaded and loose nut/union end body ends shall be as specified in Table 4. NOTE 1 PN 20 and PN 32 are established PN designations for threaded end copper alloy valves and are additional to the list of PN designations given in EN 1333:2006. Valves with capillary or compression ends are not designated by PN or Class. NOTE 2 EN 1254-1:1998, EN 1254-2:1998, EN 1254-3:1998 and EN 1254-5:2007 which give details of the body ends for capillary and compression end valves in this European Standard, do not use the PN designation system given in EN 1333. If PN designations are allocated to capillary or compression end valves, it is the responsibility of the manufacturer to provide information on any pressure and/or temperature limitations in service. SIST EN 12288:2011

EN 12288:2010 (E) 9 Table 4 — PN and Class designations Body ends PN 6 PN 10 PN 16 PN 20 PN 25 PN 32 PN 40 PN 63 Class 150 Class 300 Flanged X X X - X - X - X X Threaded - X X X X X X X - - Loose nut Union end - X X - - - - - - -

4.1.4 Valve series Two series of valves are specified, series A for flanged and threaded end valves and series B for flanged, threaded, capillary, compression and loose nut/union end valves. Series A valves have the shell components constructed from the restricted range of copper-aluminium and copper-tin alloys (see Table A.1) specified in EN 1092-3 and EN 1759-3, and are suitable for the pressure/temperature ratings given in these two flange standards. Additional copper-aluminium and copper-tin alloys are specified in Table A.1 for series A valves and the pressure/temperature ratings for valves in these materials are the same as given in EN 1

...
