Road transport and traffic telematics - Electronic fee collection
(EFC) - Ensuring the correct function of EFC equipment installed
behind metallised windshield

Télématique des transports - Perception électronique des Straßenverkehrstelematik - Elektrische Gebührenerhebung

péages routiers - Fonctionnement des badges en présence (EFC) - Sicherstellung der korrekten Funktion bei

de pare-brise athermiques Installation der On-board-Units hinter metallisch
bedampften Windschutzscheiben

This Technical Report was approved by CEN on 1 June 2008. It has been drawn up by the Technical Committee CEN/TC 278.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,

France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,

Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels

© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 15762:2008: E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST-TP CEN/TR 15762:2009
CEN/TR 15762:2008 (E)

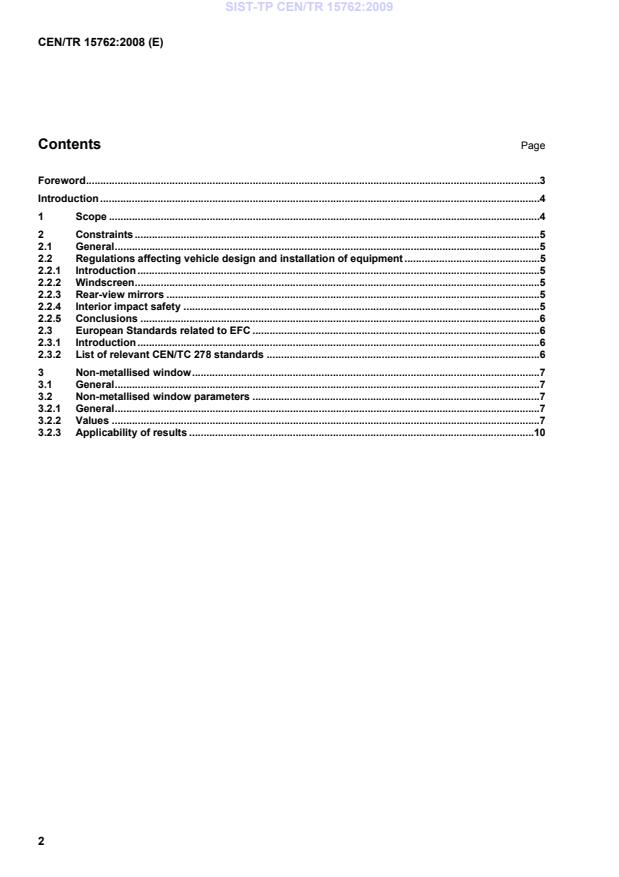

Contents Page

Foreword..............................................................................................................................................................3

Introduction .........................................................................................................................................................4

1 Scope ......................................................................................................................................................4

2 Constraints .............................................................................................................................................5

2.1 General....................................................................................................................................................5

2.2 Regulations affecting vehicle design and installation of equipment...............................................5

2.2.1 Introduction............................................................................................................................................5

2.2.2 Windscreen.............................................................................................................................................5

2.2.3 Rear-view mirrors ..................................................................................................................................5

2.2.4 Interior impact safety ............................................................................................................................5

2.2.5 Conclusions ...........................................................................................................................................6

2.3 European Standards related to EFC ....................................................................................................6

2.3.1 Introduction............................................................................................................................................6

2.3.2 List of relevant CEN/TC 278 standards ...............................................................................................6

3 Non-metallised window.........................................................................................................................7

3.1 General....................................................................................................................................................7

3.2 Non-metallised window parameters ....................................................................................................7

3.2.1 General....................................................................................................................................................7

3.2.2 Values .....................................................................................................................................................7

3.2.3 Applicability of results ........................................................................................................................10

---------------------- Page: 4 ----------------------
SIST-TP CEN/TR 15762:2009
CEN/TR 15762:2008 (E)
Foreword

This document CEN/TR 15762:2008 has been prepared by Technical Committee CEN/TC 278 “Road

transport and traffic telematics”, the secretariat of which is held by NEN.
---------------------- Page: 5 ----------------------
SIST-TP CEN/TR 15762:2009
CEN/TR 15762:2008 (E)
Introduction

European car manufacturers are introducing metallised windscreens at a wide scale throughout Europe.

These windscreens have interesting thermal qualities but risk to compromise the correct functioning of On-

Board Units (OBUs) for Electronic Fee Collection (EFC) communicating with the roadside.

As it is essential to come to Europe-wide solutions, an ERTICO committee was created in February 1998 to

work toward consensus on a common solution. Overall, 25 organisations have actively followed the work of

this committee by attending the meetings and/or by contributing by (e-)mail. As a result the committee

proposed the use of a non-metallised window as a Europe-wide solution. This solution consists in providing a

zone in the windscreen that is free of metal coating. The ERTICO committee produced a document "Ensuring

the correct functioning of EFC equipment installed behind metallised windscreens". During the 37 TC 278

meeting CEN/TC 278 adopted the resolution 037/05/2006 to publish this document as a Technical report.

1 Scope

Metallised windscreens are produced by spraying small metal particles on one of the glass or plastic layers of

the vehicle’s windscreen. This leads to a windscreen with high thermal qualities, ranging from far-reduced

power consumption by air-conditioning equipment to short times for de-icing.

The production of certain vehicles in Europe which were equipped with metallised windscreens has created a

major problem for the installation and operation of On-Board Units (OBUs) which rely on Dedicated Short-

Range Communications (DSRC) for ITS (as the most-widely deployed DSRC ITS application to date, the

remainder of this report will refer to Electronic Toll Collection (EFC) but the developed solutions will be valid

for all DSRC ITS applications). As is shown in Table 1, windscreen properties have a decisive influence on the

transmission of microwave communication and, for metallised windows, it is essential to compensate these

losses by special measures (Ref 1).
Table 1 — Transmission losses of safety glass at a frequency of 5.8 GHz (Ref 1)
Glass type Single-pass transmission losses
glass 3..5 mm 2 .. 4 dB
laminated safety glass 5 mm 2 .. 5 dB
laminated safety glass with heating wire 5 .. 7 dB
20 .. 40 dB
laminated safety glass metal-coated 4O/

As cars equipped with metallised windows are being shipped in large numbers since July 1997, this problem

needs to be addressed.

It is important to note that the solution proposed is valid for passenger cars and not for vehicles with near-to-

vertical windscreens such as trucks and buses.
---------------------- Page: 6 ----------------------
SIST-TP CEN/TR 15762:2009
CEN/TR 15762:2008 (E)
2 Constraints
2.1 General

There are three types of constraints that need to be considered when investigating possible solutions for EFC

OBU problems created by metallised windscreens:

 constraints imposed by regulations affecting vehicle design and installation of equipment;

 constraints imposed by European Standards related to EFC;
 constraints imposed by the current market situation.
2.2 Regulations affecting vehicle design and installation of equipment
2.2.1 Introduction

A number of regulations that need to be observed by the design of the windscreen affect the location of the

OBU within the vehicle. Important in this respect are the so-called A-zone and B-zone of the windscreen, two

safety-critical sub-divisions of the windscreen in which transmission of light and optical distortion are subject to

constraints.

Below, the main regulations affecting the installation of EFC tags are summarised.

2.2.2 Windscreen
 ECE-R43 (and all amendments): uniform regulations for the approval of
...
