Technical product documentation - Vocabulary - Terms relating to technical drawings, product definition and related documentation (ISO 10209:2022)

This document establishes and defines terms used in technical product documentation relating to
technical drawings, product definition and related documentation in all fields of application.
The terms have been classified into specific fields of application.
NOTE New terms required by ISO/TC 10 subcommittees and working groups for new or revised standards
will be ratified by the ISO/TC 10 vocabulary maintenance team and included in future amendments of this
document.

Technische Produktdokumentation - Vokabular - Begriffe für technische Zeichnungen, Produktdefinition und verwandte Dokumentation (ISO 10209:2022)

Dieses Dokument definiert und legt Begriffe fest, die in der technischen Produktdokumentation Anwendung finden und sich auf technische Zeichnungen, Produktdefinitionen und die zugehörige Dokumentation in allen Einsatzbereichen beziehen.
Die Begriffe wurden in spezifische Einsatzbereiche eingeteilt.
ANMERKUNG   Neue Begriffe, die von den Unterkomitees und Arbeitsgruppen des ISO/TC 10 für neue oder überarbeitete Normen gefordert werden, werden von der Fachgruppe zur Terminologiepflege des ISO/TC 10 ratifiziert und in zukünftige Änderungen dieses Dokuments aufgenommen.

Documentation technique de produits - Vocabulaire - Termes relatifs aux dessins techniques, à la définition de produits et à la documentation associée (ISO 10209:2022)

Le présent document établit et définit les termes utilisés dans la documentation technique de produits relatifs aux dessins techniques, à la définition de produits et à la documentation associée dans tous les champs d'application.
Les termes ont été classés en champs d'application spécifiques.
NOTE            Les nouveaux termes, exigés par les sous-comités et groupes de travail de l'ISO/TC 10 pour les nouvelles normes ou les normes révisées, seront ratifiés par l'équipe chargée de la maintenance du vocabulaire de l'ISO/TC 10 et seront inclus dans les futurs amendements du présent document.

Tehnična dokumentacija izdelkov - Slovar - Izrazi v zvezi s tehničnimi risbami, definicijo proizvoda in podobno dokumentacijo (ISO 10209:2022)

Ta dokument določa in opredeljuje izraze v zvezi s tehnično dokumentacijo izdelka, ki se navezujejo na tehnične risbe, definicijo proizvoda in podobno dokumentacijo na vseh področjih uporabe. Izrazi so razvrščeni glede na posamezna področja uporabe. OPOMBA: Nove izraze, ki jih zahtevajo pododbori in delovne skupine ISO/TC 10 za nove ali revidirane standarde, bo potrdila skupina za posodabljanje slovarja ISO/TC 10, pri čemer jih bo vključila v nove izdaje tega dokumenta.

General Information

Status
Published
Public Enquiry End Date
30-Nov-2020
Publication Date
11-Apr-2022
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
30-Mar-2022
Due Date
04-Jun-2022
Completion Date
12-Apr-2022

RELATIONS

Buy Standard

Standard
SIST EN ISO 10209:2022
English language
62 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
oSIST prEN ISO 10209:2020
English language
88 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN ISO 10209:2022
01-maj-2022
Nadomešča:
SIST EN ISO 10209:2012
Tehnična dokumentacija izdelkov - Slovar - Izrazi v zvezi s tehničnimi risbami,
definicijo proizvoda in podobno dokumentacijo (ISO 10209:2022)

Technical product documentation - Vocabulary - Terms relating to technical drawings,

product definition and related documentation (ISO 10209:2022)

Technische Produktdokumentation - Vokabular - Begriffe für technische Zeichnungen,

Produktdefinition und verwandte Dokumentation (ISO 10209:2022)
Documentation technique de produits - Vocabulaire - Termes relatifs aux dessins

techniques, à la définition de produits et à la documentation associée (ISO 10209:2022)

Ta slovenski standard je istoveten z: EN ISO 10209:2022
ICS:
01.040.01 Splošno. Terminologija. Generalities. Terminology.
Standardizacija. Standardization.
Dokumentacija (Slovarji) Documentation
(Vocabularies)
01.110 Tehnična dokumentacija za Technical product
izdelke documentation
SIST EN ISO 10209:2022 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN ISO 10209:2022
---------------------- Page: 2 ----------------------
SIST EN ISO 10209:2022
EN ISO 10209
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2022
EUROPÄISCHE NORM
ICS 01.040.01; 01.110 Supersedes EN ISO 10209:2012
English Version
Technical product documentation - Vocabulary - Terms
relating to technical drawings, product definition and
related documentation (ISO 10209:2022)

Documentation technique de produits - Vocabulaire - Technische Produktdokumentation - Vokabular -

Termes relatifs aux dessins techniques, à la définition Begriffe für technische Zeichnungen, Produktdefinition

de produits et à la documentation associée (ISO und verwandte Dokumentation (ISO 10209:2022)

10209:2022)
This European Standard was approved by CEN on 14 February 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10209:2022 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 10209:2022
EN ISO 10209:2022 (E)

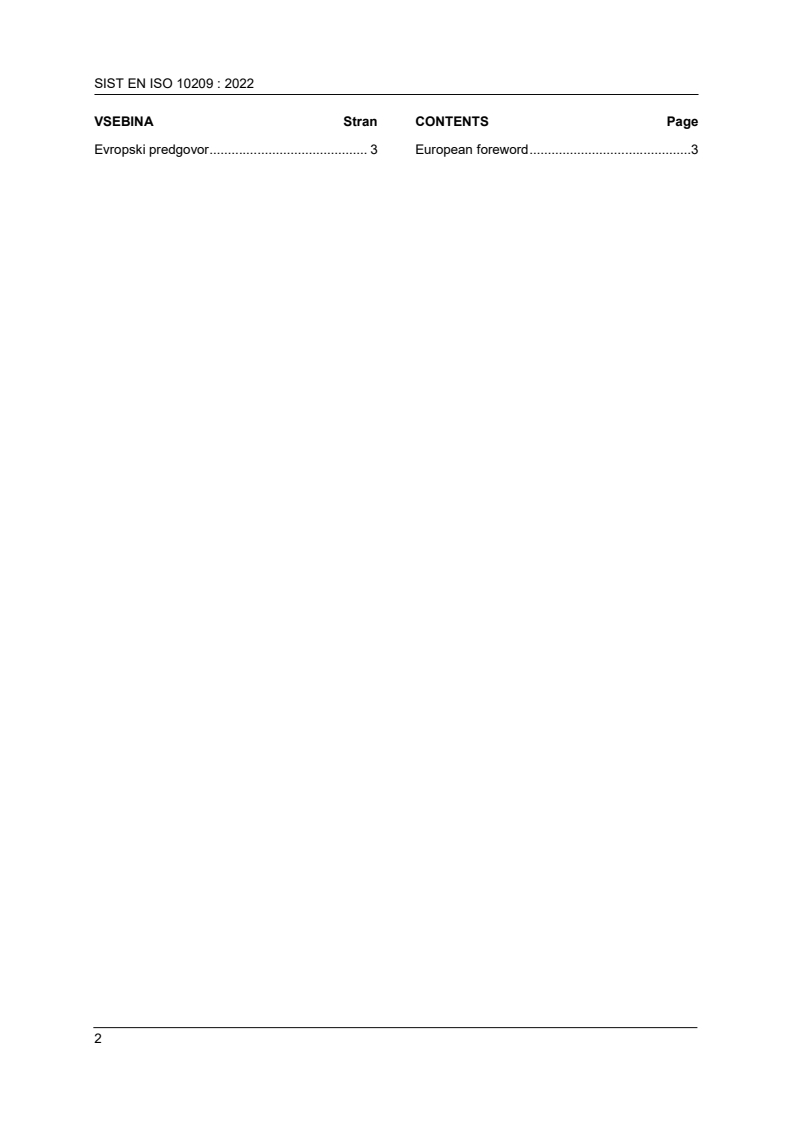

Contents Page

European foreword ....................................................................................................................................................... 3

---------------------- Page: 4 ----------------------
SIST EN ISO 10209:2022
EN ISO 10209:2022 (E)
European foreword

This document (EN ISO 10209:2022) has been prepared by Technical Committee ISO/TC 10 "Technical

product documentation" in collaboration with Technical Committee CEN/SS F01 “Technical drawings”

the secretariat of which is held by CCMC.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by September 2022, and conflicting national standards

shall be withdrawn at the latest by September 2022.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN ISO 10209:2012.

Any feedback and questions on this document should be directed to the users’ national standards

body/national committee. A complete listing of these bodies can be found on the CEN website.

According to the CEN-CENELEC Internal Regulations, the national standards organizations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
Endorsement notice

The text of ISO 10209:2022 has been approved by CEN as EN ISO 10209:2022 without any modification.

---------------------- Page: 5 ----------------------
SIST EN ISO 10209:2022
---------------------- Page: 6 ----------------------
SIST EN ISO 10209:2022
INTERNATIONAL ISO
STANDARD 10209
Second edition
2022-02
Technical product documentation —
Vocabulary — Terms relating to
technical drawings, product definition
and related documentation
Documentation technique de produits — Vocabulaire — Termes
relatifs aux dessins techniques, à la définition de produits et à la
documentation associée
Reference number
ISO 10209:2022(E)
© ISO 2022
---------------------- Page: 7 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on

the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below

or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO 2022 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ..................................................................................................................................................................................... 1

3 Terms and definitions .................................................................................................................................................................................... 1

3.1 General terms .......................................................................................................................................................................................... 1

3.2 Views ............................................................................................................................................................................................................ 11

3.3 Dimensions ............................................................................................................................................................................................. 17

3.4 Lines .............................................................................................................................................................................................................. 18

3.5 Tolerances ................................................................................................................................................................................................ 20

3.6 Graphics ..................................................................................................................................................................................................... 20

3.7 Symbology ............................................................................................................................................................................................... 21

3.8 Digital practices.................................................................................................................................................................................. 24

3.9 Computer-related terms ........................................................................................................................................... ...................29

3.10 Documentation ....................................................................................................................................................................................30

3.11 Document management ...............................................................................................................................................................44

3.12 Writing and marking instruments ....................................................................................................................................46

3.13 Design for manufacturing, assembling, disassembling and end-of-life processing ...............49

3.14 Information and instructions for use ..............................................................................................................................49

Bibliography .............................................................................................................................................................................................................................55

iii
© ISO 2022 – All rights reserved
---------------------- Page: 9 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to

the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see

www.iso.org/iso/foreword.html.

This document was prepared by Technical Committee ISO/TC 10, Technical product documentation, in

collaboration with the European Committee for Standardization (CEN) Technical Committee CEN/SS

F01, Technical drawings, in accordance with the Agreement on technical cooperation between ISO and

CEN (Vienna Agreement).

This second edition cancels and replaces the first edition (ISO 10209:2012), which has been technically

revised.
The main changes are as follows:
— certain terms have been added, deleted or revised;
— Annex A (deprecated terms) has been deleted.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www.iso.org/members.html.
© ISO 2022 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 10209:2022
INTERNATIONAL STANDARD ISO 10209:2022(E)
Technical product documentation — Vocabulary — Terms
relating to technical drawings, product definition and
related documentation
1 Scope

This document establishes and defines terms used in technical product documentation relating to

technical drawings, product definition and related documentation in all fields of application.

The terms have been classified into specific fields of application.

NOTE New terms required by ISO/TC 10 subcommittees and working groups for new or revised standards

will be ratified by the ISO/TC 10 vocabulary maintenance team and included in future amendments of this

document.
2 Normative references
There are no normative references in this document.
3 Terms and definitions

ISO and IEC maintain terminology databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1 General terms
3.1.1
activity

processes, procedures or parts of them, usually related to established organization units

Note 1 to entry: The terms “process” and “procedure” are defined in ISO 9000. A detailed explanation of processes

within companies is also given in ISO 9000.
3.1.2
activity matrix

matrix allocating activities to phases of the product life cycle and to a fixed organization unit

3.1.3
analysis

part of the product development process where a specification of requirements is prepared

3.1.4
ancillary system
system which is not directly required for the power plant process

Note 1 to entry: This includes heating, ventilation, air-conditioning systems, space heating systems, stationary

compressed air supplies, fire protection systems, cranes, elevators, workshops and staff amenities.

© ISO 2022 – All rights reserved
---------------------- Page: 11 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)
3.1.5
application reference model

information model that formally describes the information requirements and constraints for an

application area
3.1.6
aspect

specific way of selecting information on, or describing, a system or an object

of a system
3.1.7
aspect
specific way of viewing an object
Note 1 to entry: Such ways include:
— what the system or object is doing (function viewpoint);
— how the system or object is constructed (product viewpoint);
— where the system or object is located (location viewpoint).
3.1.8
assembly
number of component parts fitted together to perform a specific function
3.1.9
authorization
privileges that give access to designated activities
3.1.10
auxiliary system
system which is required for the support of a power plant process

Note 1 to entry: This includes auxiliary steam system, compressed air, carrier air, control air, central chemicals

supply and sampling systems.
3.1.11
basic design

part of the product development process where one or more design proposals are evaluated and the

basic documentation for design is prepared
3.1.12
burr

rough remainder of material outside the ideal geometrical shape of an external edge, residue of

machining or forming process
3.1.13
CAD model

structured computer-aided design (CAD) data file(s) organized according to the physical parts of the

objects represented, for example a building or a mechanical device

Note 1 to entry: Models can be two-dimensional or three-dimensional and can include graphical as well as non-

graphical data attached to the objects.
3.1.14
complex device

device consisting of several functionally interrelated components or elements, the description of which

needs a diagram
© ISO 2022 – All rights reserved
---------------------- Page: 12 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)
3.1.15
component

constituent part of equipment that cannot be physically divided into smaller parts without losing its

character
3.1.16
conceptual design

part of the product development process which includes the preparation of design specifications and

design proposals for a product
3.1.17
conceptual schema
implementation-independent specification of information structures
3.1.18
concurrent engineering

coordination of parallel activities in the product life cycle, especially in the phases up to market

introduction
3.1.19
configuration control

activities comprising the control of changes to a configuration item after formal establishment of its

configuration documents
3.1.20
conjoint designation

designation of site, factory or plant complex as an optional element of the object identifier

3.1.21
construct
concept or fact that is modelled
3.1.22
coordinate axis

three reference straight lines in space which intersect at the point of origin, thus forming a coordinate

system
3.1.23
coordinate system

basis for establishing a relationship between each point in space and the three corresponding

coordinates and vice versa
3.1.24
coordinates

set of numerical ordered values (and their corresponding units of measure), giving unequivocally the

position of a point in a coordinate system
3.1.25
cylindrical coordinate system

coordinate system based on a reference system given by a reference horizontally oriented straight line

and its origin and units of measure
3.1.26
cylindrical coordinates

three coordinates of a point in space relative to a cylindrical coordinate system

Note 1 to entry: The three coordinates are: 1) the radius (distance of the point from the vertical axis passing

through the origin); 2) the azimuth (angle formed by the vertical plane passing through the point and the origin

and the reference horizontally oriented straight line); and 3) the height (distance of the point from the horizontal

plane passing through the origin).
© ISO 2022 – All rights reserved
---------------------- Page: 13 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)
3.1.27
data medium
material on which data can be recorded and from which they can be retrieved
3.1.28
detailed design

part of the product development process which includes the preparation of the final product definition

3.1.29
device
assembly of components to perform a required function
3.1.30
edge
intersection of two surfaces
3.1.31
element
part of a component
3.1.32
enlargement scale
scale where the ratio is larger than 1:1
3.1.33
equipment
single part of a plant
EXAMPLE Vessel, column, heat exchanger, pump, compressor.
3.1.34
full size
scale with the ratio 1:1
3.1.35
function

activity proper to anything, mode of action by which it fulfils its purpose

3.1.36
function
intended or accomplished purpose or task
3.1.37
functional area
combination of groups and/or elements in a unit that can be used independently
3.1.38
functional group
combination of elements in a unit that can be used independently
3.1.39
functional unit

constructional assembly containing functionally interrelated components or

devices
3.1.40
functional unit
item under consideration defined according to function or effect
3.1.41
identifier
one or more characters used to identify or name a data category
© ISO 2022 – All rights reserved
---------------------- Page: 14 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)
3.1.42
industrial complex

number of discrete or interconnected process plants, together with the associated buildings

3.1.43
information model

conceptual model that describes a specific organization of data to provide communication

for a given application context
3.1.44
information model

implementation-independent specification of information structures

3.1.45
layer

self-contained group of data that can be manipulated or displayed individually

3.1.46
layer

organizational attribute of entities in a computer-aided design (CAD) data

file, used to separate data in order to manage and communicate those data and to control visibility on

the computer screen and on plotted drawings

Note 1 to entry: In CAD systems, synonyms for layer are used, for example “level”.

3.1.47
line distance factor

factor defining the distance between succeeding base lines of a text in relation to the lettering height of

the characters
3.1.48
medium
means of storing, representing and communicating information
3.1.49
multi-level reference designation

reference designation derived from a structure path through an overall system

3.1.50
multi-level reference designation

reference designation consisting of concatenated single-level reference

designations
3.1.51
object

entity treated in the process of design, engineering, realization, operation,

maintenance and demolition
3.1.52
object

entity treated in a process of development, implementation, usage and disposal

Note 1 to entry: The object may refer to a physical or non-physical thing that possibly exists, exists or did exist.

Note 2 to entry: The object has information associated to it.
3.1.53
organization unit
part of an organization, with a fixed function
© ISO 2022 – All rights reserved
---------------------- Page: 15 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)
3.1.54
part number
unique identification of a part for a particular organization
3.1.55
part reference

identification of component parts of assemblies and/or the identification of individual parts on the

same drawing

Note 1 to entry: Part references are document-based, as opposed to reference designations, which are structure-

based. Identical parts on drawings have the same part reference, normally a number (according to ISO 6433),

while each occurrence of an object in a structure has a unique reference designation (according to IEC 81346-1).

3.1.56
physical unit
item under consideration, defined according to construction or configuration

Note 1 to entry: One or several functional units may be implemented in a single physical unit. The corresponding

functional unit(s) is/are in some cases not explicitly designated.

Note 2 to entry: The various parts of a physical unit need not be functionally interrelated. For example, a physical

unit may be in the form of an integrated circuit with four independent AND modules.

Note 3 to entry: If compound terms are used to designate physical units, the following should be used as the last

word (in ascending order of rank):
— component;
— assembly;
— device;
— plant.
Note 4 to entry: See IEC 60050-351:2013, 351-56-03.
3.1.57
plant

complete set of technical equipment and facilities for solving a defined technical task

Note 1 to entry: A plant includes apparatus, machines, instruments, devices, means of transportation, control

equipment and other operating equipment.
3.1.58
plant section

part of a process plant that can, at least occasionally, be operated independently

3.1.59
polar coordinate axis
horizontally oriented straight line and its origin
3.1.60
polar coordinate system

coordinate system based on a reference system given by a polar coordinate axis and its units of measure

3.1.61
polar coordinates
three coordinates of a point in space relative to a polar coordinate system

Note 1 to entry: The three coordinates are: 1) the radius (distance between the point and the origin); 2) the

azimuth (angle formed by the vertical plane passing through the point and the origin, and the polar coordinate

axis); and 3) the angular height (angle formed by the horizontal plane passing through the origin and the straight

line passing through the point and the origin).
© ISO 2022 – All rights reserved
---------------------- Page: 16 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)
3.1.62
process

sequence of chemical, physical or biological operations for the

conversion, transport or storage of material or energy

Note 1 to entry: Different processes or process steps can be carried out in the same process plant or plant section

at different times.

Note 2 to entry: A process can also be regarded as an entirety of interacting events in a system through which

material, energy or information are transformed, transported or stored.
3.1.63
process

set of interacting operations by which material, energy or information is

transformed, transported or stored
3.1.64
process plant
facilities and structures necessary for performing a process
3.1.65
process step

part of a process which is predominantly self-sufficient and consists of one or several unit operations

3.1.66
product

intended or accomplished result of labour or of a natural or artificial process

3.1.67
product

thing or substance produced by a natural or artificial process

3.1.68
product
thing or result produced by a natural process or manufacture
3.1.69
product definition data
data elements required to completely define a product
3.1.70
product definition data set

collection of one or more computer file(s) that discloses (directly or by reference), by means of graphic

or textual presentations, or combinations of both, the physical and functional requirements of a product

3.1.71
rectangular coordinate planes
coordinate planes intersecting at right angles
3.1.72
rectangular coordinate system

coordinate system based on a reference system given by three mutually orthogonal axes (rectangular

coordinate axes), originating from the same point (origin), and their units of measure

3.1.73
rectangular coordinates

x, y and z coordinates of a point in space relative to a rectangular coordinate system

3.1.74
rectangular coordinate axes
coordinate axes intersecting at right angles
© ISO 2022 – All rights reserved
---------------------- Page: 17 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)
3.1.75
reference designation

identifier of a specific object with respect to the system of which the object is a

constituent, based on one or more aspects of that system
3.1.76
reference designation

code for identification of equipment in the functional position of the process

3.1.77
reference designation set

collection of two or more reference designations assigned to an object of which at least one

unambiguously identifies this object
3.1.78
scale

ratio of the linear dimension of an element of an object as represented in the original drawing to the

real linear dimension of the same element of the object itself

Note 1 to entry: The scale of a print may be different from that of the original drawing.

3.1.79
scaling factor

factor by which the coordinates of all defined points of the symbol will be enlarged or reduced in size in

relation to the reference point of the symbol
3.1.80
sharp edge

external or internal edge of part with almost zero deviation from the ideal geometrical shape

3.1.81
single-level reference designation

reference designation assigned with respect to the object of which the specific object is a direct

constituent in one aspect
3.1.82
specification of requirements
compilation of market-, authority- and company-related requirements

Note 1 to entry: 'Authority' relates to, for example, laws, regulations and directives.

3.1.83
state of an edge
geometrical shape and size of an edge
3.1.84
structure

organization of relations among objects of a system describing constituency relations (consist-of/is-a-

part-of)
3.1.85
sub-contract
contract to carry out part of a larger contract
3.1.86
system

set of interrelated objects considered in a defined context as a whole and separated from their

environment

Note 1 to entry: A system is generally defined with the view of achieving a given objective, for example by

performing a definite function.
© ISO 2022 – All rights reserved
---------------------- Page: 18 ----------------------
SIST EN ISO 10209:2022
ISO 10209:2022(E)

Note 2 to entry: Elements of a system may be natural or man-made material objects, as well as modes of thinking

and the results thereof (e.g. forms of organization, mathematical methods, programming languages).

Note 3 to entry: The system is considered to be separated from the environment and from the other external

systems by an imaginary surface, which cuts the links between them and the system.

Note 4 to e
...

SLOVENSKI STANDARD
oSIST prEN ISO 10209:2020
01-november-2020
Tehnična dokumentacija izdelkov - Slovar - Izrazi v zvezi s tehničnimi risbami,
definicijo proizvoda in podobno dokumentacijo (ISO/DIS 10209:2020)

Technical product documentation - Vocabulary - Terms relating to technical drawings,

product definition and related documentation (ISO/DIS 10209:2020)

Technische Produktdokumentation - Vokabular - Begriffe für technische Zeichnungen,

Produktdefinition und verwandte Dokumentation (ISO/DIS 10209:2020)
Documentation technique de produits - Vocabulaire - Termes relatifs aux dessins
techniques, à la définition de produits et à la documentation associée (ISO/DIS
10209:2020)
Ta slovenski standard je istoveten z: prEN ISO 10209
ICS:
01.040.01 Splošno. Terminologija. Generalities. Terminology.
Standardizacija. Standardization.
Dokumentacija (Slovarji) Documentation
(Vocabularies)
01.110 Tehnična dokumentacija za Technical product
izdelke documentation
oSIST prEN ISO 10209:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN ISO 10209:2020
---------------------- Page: 2 ----------------------
oSIST prEN ISO 10209:2020
DRAFT INTERNATIONAL STANDARD
ISO/DIS 10209
ISO/TC 10 Secretariat: SIS
Voting begins on: Voting terminates on:
2020-09-07 2020-11-30
Technical product documentation — Vocabulary — Terms
relating to technical drawings, product definition and
related documentation

Documentation technique de produits — Vocabulaire — Termes relatifs aux dessins techniques, à la

définition de produits et à la documentation associée
ICS: 01.110; 01.040.01
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
This document is circulated as received from the committee secretariat.
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 10209:2020(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION. ISO 2020
---------------------- Page: 3 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2020

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved
---------------------- Page: 4 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

Annex A (informative) Deprecated definitions from former parts of ISO 10209 and other

deprecated definitions ................................................................................................................................................................................79

Bibliography .............................................................................................................................................................................................................................82

© ISO 2020 – All rights reserved iii
---------------------- Page: 5 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 10, Technical product documentation.

This second edition cancels and replaces the first edition (ISO 10209:2012), which has been technically

revised.
The main changes compared to the previous edition are as follows:

— New and/or updated terms from new or revised ISO/TC 10 standards, published since the 2012

edition of ISO 10209, have been added to this version of the document.

— References to the Subcommittee or part of the ISO/TC 10 area in which standards were developed

have been added.

— Notes have been added to clarify where terms first appeared, i.e. information is given on the original

version of the ISO/TC 10 standard in which the term appeared before it was removed and included

in ISO 10209.

— Terms which originated in former parts of the ISO 10209 series (now withdrawn) are flagged as

“[SOURCE: ISO 10209]”.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
---------------------- Page: 6 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
Introduction
© ISO 2020 – All rights reserved v
---------------------- Page: 7 ----------------------
oSIST prEN ISO 10209:2020
---------------------- Page: 8 ----------------------
oSIST prEN ISO 10209:2020
DRAFT INTERNATIONAL STANDARD ISO/DIS 10209:2020(E)
Technical product documentation — Vocabulary — Terms
relating to technical drawings, product definition and
related documentation
1 Scope

This document establishes and defines terms used in technical product documentation relating to

technical drawings, product definition and related documentation in all fields of application.

This vocabulary is based on all terms contained within ISO/TC 10 standards and other documents

that are relevant to technical product documentation irrespective of disciplines. The terms have been

classified into specific fields of application.

New terms required by ISO/TC 10 Subcommittees and Working Groups for new or revised standards

will be ratified by the ISO/TC 10 vocabulary maintenance team and included in future amendments of

this document.

NOTE 1 Annex A contains a list of terms and definitions which previously appeared in former parts of

ISO 10209 and for which there are now new definitions in current ISO/TC 10 standards.

NOTE 2 In addition to terms and definitions used in English and French, two of the three official ISO languages,

this document gives the equivalent terms in German; these are published under the responsibility of the member

body for Germany (DIN), and are given for information only. Only the terms and definitions given in the official

languages can be considered ISO terms and definitions.
2 Normative references
There are no normative references in this document.
3 Terms and definitions

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1 General terms
3.1.1
activity

matrix allocating activities to phases of the product life cycle and to a fixed organization unit

[SOURCE: ISO 15226:1999 ISO/TC 10 SC1]
3.1.2
activity matrix

matrix allocating activities to phases of the product life cycle and to a fixed organization unit

[SOURCE: ISO 15226:1999 ISO/TC 10 SC1]
© ISO 2020 – All rights reserved 1
---------------------- Page: 9 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
3.1.3
analysis

part of the product development process where a specification of requirements is prepared

[SOURCE: ISO 11442:2006 ISO/TC 10 SC1]
3.1.4
ancillary system
system which is not directly required for the power plant process

Note 1 to entry: This includes heating, ventilation, air-conditioning systems, space heating systems, stationary

compressed air supplies, fire protection systems, cranes, elevators, workshops, staff amenity, etc.

[SOURCE: ISO/TS 81346-10:2015 ISO/TC 10 SC10]
Note 2 to entry: This definition also appears in ISO/TS 81346-10:2015.
3.1.5
application reference model

information model that formally describes the information requirements and constraints for an

application area
[SOURCE: IEC 82045-2:2004 ISO/TC 10]
3.1.6 aspect
3.1.6.1
aspect

〈document management〉 specific way of selecting information on, or describing, a system or an object

of a system
[SOURCE: IEC 82045-1:2001 ISO/TC 10]
Note 1 to entry: This definition also appears in ISO 15519-1:2010.
3.1.6.2
aspect
specific way of viewing an object
Note 1 to entry: Such ways may be:
— what the system or object is doing (function viewpoint);
— how the system or object is constructed (product viewpoint);
— where the system or object is located (location viewpoint
[SOURCE: ISO/TS 81346-10:2015 ISO/TC 10 SC10]
3.1.7
assembly
number of component parts fitted together to perform a specific function
[SOURCE: ISO 7573:2008 ISO/TC 10 SC1]
3.1.8
authorization
〈of a user〉 privileges that give access to designated activities
[SOURCE: ISO 11442:2006 ISO/TC 10 SC1]
2 © ISO 2020 – All rights reserved
---------------------- Page: 10 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
3.1.9
auxiliary system
system which is required for the support of a power plant process
[SOURCE: ISO/TS 81346-10:2015 ISO/TC 10 SC10]
Note 1 to entry: This definition also appears in ISO 15519-1:2010.
3.1.10
basic design

part of the product development process where one or more design proposals are evaluated and the

basic documentation for design is prepared
[SOURCE: ISO 11442:2006 ISO/TC 10 SC1]
3.1.11
burr

rough remainder of material outside the ideal geometrical shape of an external edge, residue of

machining or of a forming process
[SOURCE: ISO 10209 ISO/TC 10]

Note 1 to entry: This term and definition appeared in the 2000 edition of ISO 13715 [ISO/TC 10 SC6].

3.1.12
CAD model

structured CAD data file(s) organized according to the physical parts of the objects represented, for

example a building or a mechanical device

Note 1 to entry: to entry Models can be two-dimensional or three-dimensional, and can include graphical as well

as non-graphical data attached to the objects.
[SOURCE: ISO 13567-1:2017 ISO/TC 10 SC8]
3.1.13
complex device

device consisting of several functionally interrelated components or elements, the description of which

needs a diagram
[SOURCE: ISO 14617-2:2002 ISO/TC 10 SC10]
3.1.14
component

constituent part of equipment that cannot be physically divided into smaller parts without losing its

character
[SOURCE: ISO 14617-1:2005 ISO/TC 10 SC10]
3.1.15
conceptual design

part of the product development process which includes the preparation of design specifications and

design proposals for a product
[SOURCE: IEC 82045-1:2001 ISO/TC 10]
3.1.16
conceptual schema
implementation-independent specification of information structures
[SOURCE: ISO 11442:2006 ISO/TC 10 SC1]
© ISO 2020 – All rights reserved 3
---------------------- Page: 11 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
3.1.17
concurrent engineering

coordination of parallel activities in the product life cycle, especially in the phases up to market

introduction
[SOURCE: ISO 15226:1999 ISO/TC 10 SC1]
3.1.18
configuration control

activities comprising the control of changes to a configuration item after formal establishment of its

configuration documents
[SOURCE: IEC 82045-1:2001 ISO/TC 10]
3.1.19
conjoint designation

designation of site, factory or plant complex as an optional element of the object identifier

Note 1 to entry: Definition based on the description given in ISO/TS 16952 1:2006, 5.2

[SOURCE: ISO 10209 ISO/TC 10]
3.1.20
construct
concept or fact that is modelled
[SOURCE: IEC 82045-2:2004 ISO/TC 10]
3.1.21
coordinate axis

three reference straight lines in space which intersect at the point of origin, thus forming a

coordinate system
[SOURCE: ISO 10209 ISO/TC 10]
3.1.22
coordinate axis

three reference straight lines in space which intersect at the point of origin, thus forming a

coordinate system
[SOURCE: ISO 10209 ISO/TC 10]
3.1.23
coordinate system

basis for establishing a relationship between each point in space and the three corresponding

coordinates and vice versa
[SOURCE: ISO 10209 ISO/TC 10]
3.1.24
coordinates

set of numerical ordered values (and their corresponding units of measure), giving unequivocally the

position of a point in a coordinate system
[SOURCE: ISO 10209 ISO/TC 10]
3.1.25
cylindrical coordinate system

coordinate system based on a reference system given by a reference horizontally oriented straight line

and its origin and units of measure
[SOURCE: ISO 10209 ISO/TC 10]
4 © ISO 2020 – All rights reserved
---------------------- Page: 12 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
3.1.26
cylindrical coordinates

three coordinates of a point in space relative to a cylindrical coordinate system

Note 1 to entry: to entry The three coordinates are: 1) the radius (distance of the point from the vertical axis

passing through the origin); 2) the azimuth (angle formed by the vertical plane passing through the point and

the origin and the reference horizontally oriented straight line); and 3) the height (distance of the point from the

horizontal plane passing through the origin).
[SOURCE: ISO 10209 ISO/TC 10]
3.1.27
data medium
material on which data can be recorded and from which they can be retrieved
[SOURCE: IEC 82045-1:2001 ISO/TC 10]
3.1.28
detailed design

part of the product development process which includes the preparation of the final product definition

[SOURCE: ISO 11442:2006 ISO/TC 10 SC1]
3.1.29
device
assembly of components to per-form a required function
[SOURCE: ISO 14617-1:2005 ISO/TC 10 SC10]
3.1.30
edge
intersection of two surfaces
[SOURCE: ISO 10209 ISO/TC 10]

Note 1 to entry: This term and definition appeared in the 2000 edition of ISO 13715 [ISO/TC 10 SC6].

3.1.31
element
part of a component
[SOURCE: ISO 14617-1:2005 ISO/TC 10 SC10]
3.1.32
enlargement scale
scale where the ratio is larger than 1:1
[SOURCE: ISO 5455:1979 ISO/TC 10 SC1]
3.1.33
equipment

single parts of a plant, such as vessels, columns, heat exchangers, pumps, compressors

[SOURCE: ISO 10628 series – ISO 10628-1:2014 and ISO 10628-2:2012 ISO/TC 10 SC10]

3.1.34
full size
scale with the ratio 1:1
[SOURCE: ISO 5455:1979 ISO/TC 10 SC1]
3.1.35 Function
© ISO 2020 – All rights reserved 5
---------------------- Page: 13 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
3.1.35.1
function
activity proper to anything, mode of action by which it fulfils its purpose
[SOURCE: ISO 14617-1:2005 ISO/TC 10 SC10]
3.1.35.2
function
intended or accomplished purpose or task
[SOURCE: IEC 81346-1:2009 ISO/TC 10]
3.1.36
functional area
combination of groups and/or elements in a unit that can be used independently
[SOURCE: ISO/TS 81346-10:2015 ISO/TC 10 SC10]
3.1.37
functional group
combination of elements in a unit that can be used independently
[SOURCE: ISO/TS 81346-10:2015 ISO/TC 10 SC10]
3.1.38
functional unit

constructional assembly containing functionally interrelated components or devices

[SOURCE: ISO 14617-2:2002 ISO/TC 10 SC10]
3.1.39
functional unit
item under consideration defined according to function or effect
[SOURCE: ISO/TS 81346-10:2015 ISO/TC 10 SC10]
3.1.40
identifier
one or more characters used to identify or name a data category
[SOURCE: ISO 10209 ISO/TC 10]
3.1.41
industrial complex

number of discrete or interconnected process plants, together with the associated buildings

[SOURCE: ISO 10628 series – ISO 10628-1:2014 and ISO 10628-2:2012 ISO/TC 10 SC10]

3.1.42 Information model
3.1.42.1
information model

conceptual model that describes a specific organization of data to provide communication

for a given application context
[SOURCE: IEC 82045-2:2004 ISO/TC 10]
3.1.42.2
information model

implementation-independent specification of information structures

[SOURCE: IEC 82045-1:2001 ISO/TC 10]
6 © ISO 2020 – All rights reserved
---------------------- Page: 14 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
3.1.43 layer
3.1.43.1
layer
self-contained group of data that can be manipulated or displayed individually
[SOURCE: IEC 81714-2:2006 ISO/TC 10 SC10]
3.1.43.2
layer

organizational attribute of entities in a CAD data file, used to separate data in order to manage and

communicate those data and to control visibility on the computer screen and on plotted drawings

Note 1 to entry: In CAD systems, synonyms for “layer” are used, for example “level”.

[SOURCE: ISO 13567-1:2017 ISO/TC 10 SC8]
3.1.44
line distance factor

factor defining the distance between succeeding base lines of a text in relation to the lettering height of

the characters
[SOURCE: IEC 81714-2:2006 ISO/TC 10 SC10]
3.1.45
medium
means of storing, representing and communicating information
[SOURCE: ISO 10209 ISO/TC 10]
3.1.46 Multi-level reference designation
3.1.46.1
multi-level reference designation

reference designation derived from a structure path through an overall system

[SOURCE: ISO 15519-1:2010 ISO/TC 10 SC10]
3.1.46.2
multi-level reference designation

reference designation consisting of concatenated single-level reference

designations
[SOURCE: IEC 81346 1:2009 ISO/TC 10]
3.1.47 Object
3.1.47.1
object

entity treated in the process of design, engineering, realization, operation,

maintenance and demolition
[SOURCE: IEC 82045-1:2001 ISO/TC 10]
Note 1 to entry: This definition also appears in ISO 15519-1:2010.
3.1.47.2
object

entity treated in a process of development, implementation, usage and disposal

Note 1 to entry: The object may refer to a physical or non-physical “thing” that might exist, exists or did exist.

© ISO 2020 – All rights reserved 7
---------------------- Page: 15 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
Note 2 to entry: The object has information associated to it.
[SOURCE: IEC 81346-1:2009 ISO/TC 10]
3.1.48
organization unit
part of an organization, with a fixed function
[SOURCE: ISO 15226:1999 ISO/TC 10 SC1]
3.1.49
part number
unique identification of a part for a particular organization
[SOURCE: ISO 7573:2008 ISO/TC 10 SC1]
3.1.50
part reference

identification of component parts of assemblies and/or the identification of individual parts on the

same drawing

Note 1 to entry: Part references are document-based, as opposed to reference designations, which are structure-

based. Identical parts on a drawing are required to have the same part reference, preferably a number (according

to ISO 6433), while each occurrence of an object in a structure is required to have a unique reference designation

(according to IEC 81346 1) .
[SOURCE: ISO 7573:2008 ISO/TC 10 SC1]
3.1.51
physical unit
item under consideration, defined according to construction or configuration
[SOURCE: ISO/TS 81346-10:2015 ISO/TC 10 SC10]
3.1.52
plant

complete set of technical equipment and facilities for solving a defined technical task

Note 1 to entry: A plant includes apparatus, machines, instruments, devices, means of transportation, control

equipment and other operating equipment.
[SOURCE: ISO/TS 81346-10:2015 ISO/TC 10 SC10]
3.1.53
plant section

part of a process plant that can, at least occasionally, be operated independently

[SOURCE: ISO 10628 series – ISO 10628-1:2014 and ISO 10628-2:2012 ISO/TC 10 SC10]

3.1.54
polar coordinate axis
horizontally oriented straight line and its origin
[SOURCE: ISO 10209 ISO/TC 10]
3.1.55
polar coordinate system

coordinate system based on a reference system given by a polar coordinate axis and its units of measure

[SOURCE: ISO 10209 ISO/TC 10]
8 © ISO 2020 – All rights reserved
---------------------- Page: 16 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
3.1.56
polar coordinates
three coordinates of a point in space relative to a polar coordinate system
Note 1 to entry: The three coordinates are:

1) the radius (distance between the point and the origin); 2) the azimuth (angle formed by the vertical plane

passing through the point and the origin, and the polar coordinate axis); and 3) the angular height (angle

formed by the horizontal plane passing through the origin and the straight line passing through the point

and the origin).
[SOURCE: ISO 10209 ISO/TC 10]
3.1.57 Process
3.1.57.1
process

sequence of chemical, physical or biological operations for the

conversion, transport or storage of material or energy

Note 1 to entry: Different processes or process steps can be carried out in the same process plant or plant section

at different times.

Note 2 to entry: A process can also be regarded as an entirety of interacting events in a system through which

material, energy or information are transformed, transported or stored.
[SOURCE: ISO 10628-1: 2014, ISO 10628-2:2012 ISO/TC 10 SC10]
Note 3 to entry: This definition also appears in ISO 15519-1:2010.
3.1.57.2
process

set of interacting operations by which material, energy or information is

transformed, transported or stored
[SOURCE: IEC 81346-1:2009 ISO/TC 10]
3.1.58
process plant
facilities and structures necessary for performing a process

[SOURCE: ISO 10628 series - ISO 10628-1:2014 and ISO 10628-2:2012 ISO/TC 10 SC10]

Note 1 to entry: This definition also appears in ISO 15519-1:2010.
3.1.59
process step

part of a process which is predominantly self-sufficient and consists of one or several unit operations

[SOURCE: ISO 10628 series - ISO 10628-1:2014 and ISO 10628-2:2012 ISO/TC 10 SC10]

3.1.60 product
3.1.61.1
product

intended or accomplished result of labour or of a natural or artificial process

[SOURCE: IEC 82045-1:2001 ISO/TC 10]
Note 1 to entry: This term also appears in IEC 81346-1:2009.
© ISO 2020 – All rights reserved 9
---------------------- Page: 17 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
3.1.61.2
product

thing or substance produced by a natural or artificial process

[SOURCE: ISO 16016: 2016 ISO/TC 10 SC1]
3.1.61.3
product
thing produced by natural process or manufacture; result
[SOURCE: ISO 14617-1:2005 ISO/TC 10 SC10]
3.1.62
product definition data
data elements required to completely define a product
[SOURCE: ISO 16792: 2015 ISO/TC 10]

Note 1 to entry: This term and definition appeared in the 2006 edition of ISO 16792.

3.1.63
product definition data set

collection of one or more computer file(s) that discloses (directly or by reference), by means of graphic

or textual presentations, or combinations of both, the physical and functional requirements of a product

[SOURCE: ISO 16792: 2015 ISO/TC 10]

Note 1 to entry: This term and definition appeared in the 2006 edition of ISO 16792.

3.1.64
rectangular coordinate planes
coordinate planes intersecting at right angles
[SOURCE: ISO 10209 ISO/TC 10]
3.1.65
rectangular coordinate system

coordinate system based on a reference system given by three mutually orthogonal axes (rectangular

coordinate axes), originating from the same point (origin), and their units of measure

[SOURCE: ISO 10209 ISO/TC 10]
3.1.66
rectangular coordinates

the three rectangular coordinates of a point in space relative to a rectangular coordinate system are

the distance of the point from the coordinate planes, in a given order
[SOURCE: ISO 10209 ISO/TC 10]
3.1.67
rectangular coordinate axes
coordinate axes intersecting at right angles
[SOURCE: ISO 10209 ISO/TC 10]
3.1.68 Reference designation
10 © ISO 2020 – All rights reserved
---------------------- Page: 18 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
3.1.68.1
reference designation

identifier of a specific object with respect to the system of which the object is a

constituent, based on one or more aspects of that system
[SOURCE: ISO 15519-1:2010 ISO/TC 10 SC10]
Note 1 to entry: This term also appears in IEC 81346-1:2009.
3.1.68.2
reference designation

code for identification of equipment in the functional position of the process

[SOURCE: ISO 10628 series - ISO 10628-1:2014 and ISO 10628-2:2012 ISO/TC 10 SC10]

3.1.69
reference designation set

set of reference designations of which at least one unambiguously identifies the object of interest

[SOURCE: IEC 81346-1:2009 ISO/TC 10]
Note 1 to entry: This definition also appears in ISO 15519-1:2010.
3.1.70
scale

ratio of the linear dimension of an element of an object as represented in the original drawing to the

real linear dimension of the same element of the object itself
[SOURCE: ISO 5455:1979 ISO/TC 10 SC1]
3.1.71
scaling factor

factor by which the coordinates of all defined points of the symbol will be enlarged or reduced in size in

relation to the reference point of the symbol
[SOURCE: IEC 81714-2:2006 ISO/TC 10 SC10]
3.1.72
sharp edge

external or internal edge of part with almost zero deviation from the ideal geometrical shape

[SOURCE: ISO 10209 ISO/TC 10]

Note 1 to entry: This term and definition appeared in the 2000 edition of ISO 13715 [ISO/TC 10 SC6].

3.1.73
single-level reference designation

reference designation assigned with respect to the object of which the specific object is a direct

constituent in one aspect
[SOURCE: IEC 81346-1:2009 ISO/TC 10]
3.1.74
specification of requirements

compilation of market, authority (e.g. laws, regulations, directives) and company related requirements

[SOURCE: ISO 11442:2006 ISO/TC 10 SC1]
© ISO 2020 – All rights reserved 11
---------------------- Page: 19 ----------------------
oSIST prEN ISO 10209:2020
ISO/DIS 10209:2020(E)
3.1.75
state of an edge
geometrical shape and size of an edge
[SOURCE: ISO 10209 ISO/TC 10]

Note 1 to entry: This term and definition appeared in the 2000 edition of ISO 13715 [ISO/TC 10 SC6].

3.1.76
structure

organization of relations among objects of a system describing constituency-relations (consist-of/is-a-

part-of)
[SOURCE: IEC 81346-1:2009 ISO/TC 10]
3.1.77
sub-contract
contract to carry out part of a larger contract
[SOURCE: ISO 10209 ISO/TC 10]
3.1.78
system

set of interrelated objects consid-ered in a defined context as a whole and separated from their

environment

Note 1 to entry: A system is generally defined with the view of achieving a given objective, e.g. by performing a

definite function.

Note 2 to entry: Elements of a system may be natural or man-made material objects, as well as modes of thinking

and the results thereof (e.g. forms of organization, mathe
...
