Mechanical vibration and shock - Hand-arm vibration - Measurement and evaluation of the vibration transmissibility of gloves at the palm of the hand (ISO 10819:2013)

This International Standard specifies a method for the laboratory measurement, data analysis, and reporting of the vibration transmissibility of a glove with a vibration-reducing material that covers the palm, fingers, and thumb of the hand. This International Standard specifies vibration transmissibility in terms of vibration transmitted from a handle through a glove to the palm of the hand in one-thirdoctave frequency bands with centre frequencies of 25 Hz to 1 250 Hz. The measurement procedure specified in this International Standard can also be used to measure the vibration transmissibility of a material that is being evaluated for use to cover a handle of a machine or for potential use in a glove. However, results from this test cannot be used to certify that a material used to cover a handle meets the requirements of this International Standard to be classified as an antivibration covering. A material tested in this manner could later be placed in a glove. When this is the case, the glove needs to be tested in accordance with the measurement procedure of this International Standard and needs to meet the vibration attenuation performance requirements of this International Standard in order to be classified as an antivibration glove.

Mechanische Schwingungen und Stöße - Hand-Arm-Schwingungen - Messung und Bewertung der Schwingungsübertragung von Handschuhen in der Handfläche (ISO 10819:2013)

Diese Internationale Norm legt ein Laborverfahren für die Messung, Datenanalyse und Angabe der Schwingungsübertragung von Handschuhen mit schwingungsminderndem Material fest, das die Handfläche sowie Finger und Daumen der Hand bedeckt. Diese Internationale Norm legt die Schwingungsübertragung von Handschuhen in Form der Schwingungsübertragung vom Handgriff zur Handfläche bei den Terzband-Mittenfrequenzen von 25 Hz bis 1 250 Hz fest.
Das in dieser Internationalen Norm festgelegte Messverfahren kann ebenfalls angewendet werden, um die Schwingungsübertragung eines Materials zu messen, das in einem Handschuh verwendet wird oder um einen Handgriff einer Maschine zu bedecken. Das Verfahren umfasst das Wickeln des zu prüfenden Materials um den Griff anstelle des Handschuhs, anschließend wird das Material mit der Hand gegriffen.
ANMERKUNG   ISO 13753

Vibrations et chocs mécaniques - Vibrations main-bras - Mesurage et évaluation du facteur de transmission des vibrations par les gants à la paume de la main (ISO 10819:2013)

L'ISO 10819:2013 spécifie une méthode de mesurage en laboratoire, d'analyse des données et d'enregistrement du facteur de transmission des vibrations d'un gant fabriqué à l'aide d'un matériau antivibratile qui recouvre la main et les doigts, dont le pouce. L'ISO 10819:2013 spécifie le facteur de transmission des vibrations en termes de transmission des vibrations d'une poignée à la paume de la main à travers un gant dans les bandes de fréquences de tiers d'octave avec des fréquences centrales allant de 25 Hz à 1 250 Hz.
Le mode opératoire de mesurage spécifié dans l'ISO 10819:2013 peut aussi être utilisé pour mesurer le facteur de transmission des vibrations d'un matériau devant être évalué afin d'être utilisé pour recouvrir la poignée d'une machine ou dans la fabrication d'un gant. Toutefois, les résultats de cet essai ne peuvent pas être utilisés afin de certifier qu'un matériau utilisé pour couvrir une poignée est conforme aux exigences de l'ISO 10819:2013 et ainsi être classé comme étant un matériau antivibratile. Un matériau soumis à essai de cette façon pourrait être placé dans un gant. Lorsque c'est le cas, il est nécessaire de soumettre à essai le gant conformément au mode opératoire de mesurage de l'ISO 10819:2013; le gant doit satisfaire aux exigences de performance d'atténuation des vibrations de l'ISO 10819:2013 afin d'être classé comme étant un gant antivibratile.

Mehanske vibracije in udarci - Vibracije dlan-roka - Merjenje in vrednotenje prenosov vibracij z rokavice na dlan roke (ISO 10819:2013)

Ta mednarodni standard določa metodo za opravljanje laboratorijske meritve, izvedbo analize podatkov in poročanje o prenosljivosti vibracij za rokavico z materialom, ki zmanjšuje vibracije ter pokriva dlan in prste roke. V tem mednarodnem standardu je prenosljivost vibracij določena kot stopnja vibracij, ki se z ročice prenašajo skozi rokavico na dlan roke v terčnih frekvenčnih pasovih s srednjimi frekvencami 25–1250 Hz. Merilni postopek, določen v tem mednarodnem standardu, se lahko uporabi tudi za merjenje prenosljivosti vibracij materiala, ki je v postopku vrednotenja ustreznosti za prekritje ročice stroja ali morebitno uporabo v rokavici. Vendar rezultati tega preskusa se ne morejo uporabiti za overjanje materiala, ki prekriva ročico, v povezavi z zahtevami tega mednarodnega standarda glede njegove ustreznosti za uporabo kot protivibracijske zaščitne obloge. Material, preskušen na ta način, se lahko naknadno uporabi v rokavici. V tem primeru je treba rokavico preskusiti v skladu z merilnim postopkom v tem mednarodnem standardu, rokavica pa mora izpolnjevati zahteve glede zmanjšanja vibracij v tem mednarodnem standardu, da se lahko overi kot protivibracijska rokavica.

General Information

Status
Published
Public Enquiry End Date
24-Jan-2012
Publication Date
11-Sep-2013
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
04-Sep-2013
Due Date
09-Nov-2013
Completion Date
12-Sep-2013

RELATIONS

Buy Standard

Standard
SIST EN ISO 10819:2013
English language
35 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN ISO 10819:2013
01-oktober-2013
1DGRPHãþD
SIST EN ISO 10819:1998
Mehanske vibracije in udarci - Vibracije dlan-roka - Merjenje in vrednotenje
prenosov vibracij z rokavice na dlan roke (ISO 10819:2013)

Mechanical vibration and shock - Hand-arm vibration - Measurement and evaluation of

the vibration transmissibility of gloves at the palm of the hand (ISO 10819:2013)

Mechanische Schwingungen und Stöße - Hand-Arm-Schwingungen - Messung und
Bewertung der Schwingungsübertragung von Handschuhen in der Handfläche (ISO
10819:2013)

Vibrations et chocs mécaniques - Vibrations main-bras - Mesurage et évaluation du

facteur de transmission des vibrations par les gants à la paume de la main (ISO
10819:2013)
Ta slovenski standard je istoveten z: EN ISO 10819:2013
ICS:
13.160 Vpliv vibracij in udarcev na Vibration and shock with
ljudi respect to human beings
13.340.40 Varovanje dlani in rok Hand and arm protection
SIST EN ISO 10819:2013 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN ISO 10819:2013
---------------------- Page: 2 ----------------------
SIST EN ISO 10819:2013
EUROPEAN STANDARD
EN ISO 10819
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2013
ICS 13.340.40; 13.160 Supersedes EN ISO 10819:1996
English Version
Mechanical vibration and shock - Hand-arm vibration -
Measurement and evaluation of the vibration transmissibility of
gloves at the palm of the hand (ISO 10819:2013)

Vibrations et chocs mécaniques - Vibrations main-bras - Mechanische Schwingungen und Stöße - Hand-Arm-

Mesurage et évaluation du facteur de transmission des Schwingungen - Messung und Bewertung der

vibrations par les gants à la paume de la main (ISO Schwingungsübertragung von Handschuhen in der

10819:2013) Handfläche (ISO 10819:2013)
This European Standard was approved by CEN on 29 May 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national

standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same

status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United

Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10819:2013: E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 10819:2013
EN ISO 10819:2013 (E)

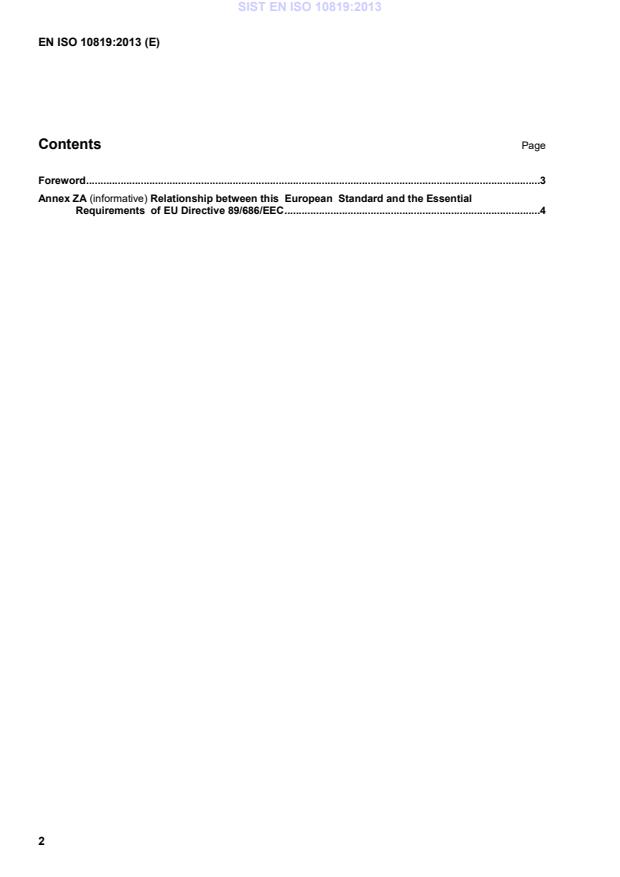

Contents Page

Foreword ..............................................................................................................................................................3

Annex ZA (informative) Relationship between this European Standard and the Essential

Requirements of EU Directive 89/686/EEC .........................................................................................4

---------------------- Page: 4 ----------------------
SIST EN ISO 10819:2013
EN ISO 10819:2013 (E)
Foreword

This document (EN ISO 10819:2013) has been prepared by Technical Committee ISO/TC 108 "Mechanical

vibration, shock and condition monitoring" in collaboration with Technical Committee CEN/TC 231

“Mechanical vibration and shock” the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an identical

text or by endorsement, at the latest by January 2014, and conflicting national standards shall be withdrawn at

the latest by January 2014.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN ISO 10819:1996.

This document has been prepared under a mandate given to CEN by the European Commission and the

European Free Trade Association, and supports essential requirements of EU Directive.

For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.

The main changes to the first edition EN ISO 10819:1996 are stronger criteria for antivibration gloves and the

addition of a method for measuring the material thickness.

To place anti-vibration gloves on the market of the European Union (EU), manufacturers or their authorised

representatives established within the EU shall make sure that they cover all Basic Health and Safety

Requirements (BHSRs) applicable to their products under the foreseeable conditions of use for which such

Personal Protective Equipment (PPE) is intended (EU Directive 89/686/EEC on PPE). If the relevant

harmonized European Standards do not cover all applicable BHSRs they have, in addition to the application of

these standards, to assess the conformity to those BHSRs not covered by using other relevant technical

specifications and test methods.

This European Standard EN ISO 10819 is intended to confirm the vibration reducing properties of gloves

placed on the EU market as anti-vibration gloves.

To mark anti-vibration gloves with the CE conformity mark they must also satisfy the BHSRs of the PPE

Directive using harmonised European Standards, such as EN 388 and EN 420. As such, manufacturers or

their authorised representatives established within the EU shall make an application for type-examination to

an approved inspection body (notified body).

According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following

countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech

Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,

Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,

Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Endorsement notice

The text of ISO 10819:2013 has been approved by CEN as EN ISO 10819:2013 without any modification.

---------------------- Page: 5 ----------------------
SIST EN ISO 10819:2013
EN ISO 10819:2013 (E)
Annex ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 89/686/EEC

This European Standard has been prepared under a mandate given to CEN by the European Commission

and the European Free Trade Association to provide one means of conforming to Essential Requirements of

the New Approach Directive 89/686/EEC on Personal protective equipment.

Once this standard is cited in the Official Journal of the European Union under that Directive and has been

implemented as a national standard in at least one Member State, compliance with the normative clauses of

this standard confers, within the limits of the scope of this standard, a presumption of conformity with the

corresponding Essential Requirements of that Directive and associated EFTA regulations.

WARNING Other requirements and other EU Directives may be applicable to the products falling within the

scope of this standard.
---------------------- Page: 6 ----------------------
SIST EN ISO 10819:2013
INTERNATIONAL ISO
STANDARD 10819
Second edition
2013-07-15
Mechanical vibration and shock —
Hand-arm vibration — Measurement
and evaluation of the vibration
transmissibility of gloves at the palm
of the hand
Vibrations et chocs mécaniques — Vibrations main-bras — Mesurage
et évaluation du facteur de transmission des vibrations par les gants à
la paume de la main
Reference number
ISO 10819:2013(E)
ISO 2013
---------------------- Page: 7 ----------------------
SIST EN ISO 10819:2013
ISO 10819:2013(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2013

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 10819:2013
ISO 10819:2013(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Symbols and abbreviations ....................................................................................................................................................................... 2

5 Measuring principle and equipment ............................................................................................................................................... 3

5.1 General principle and setup ......................................................................................................................................................... 3

5.2 Measuring equipment ....................................................................................................................................................................... 4

5.3 Vibration excitation system ......................................................................................................................................................... 7

6 Measurement conditions and procedure .................................................................................................................................... 8

6.1 Measurement conditions ......... ....................................................................................................................................................... 8

6.2 Vibration signal ...................................................................................................................................................................................10

6.3 Test procedure ......................................................................................................................................................................................11

7 Evaluation of results ......................................................................................................................................................................................13

7.1 Calculation of transmissibility ................................................................................................................................................13

7.2 Bare palm adaptor vibration transmissibility ...........................................................................................................15

7.3 Uncorrected glove vibration transmissibility ............................................................................................................16

7.4 Corrected glove vibration transmissibility ..................................................................................................................16

8 Calculation of statistical values ..........................................................................................................................................................17

8.1 General ........................................................................................................................................................................................................17

8.2 One-third-octave vibration transmissibility ...............................................................................................................17

8.3 Frequency-weighted vibration transmissibility ......................................................................................................18

9 Criteria for designating gloves as antivibration gloves .............................................................................................18

9.1 General ........................................................................................................................................................................................................18

9.2 Vibration transmissibility of the gloves ..........................................................................................................................18

9.3 Construction of the gloves ..........................................................................................................................................................19

10 Test report ................................................................................................................................................................................................................21

Annex A (informative) Examples of handles with force and acceleration measuring systems ............23

Bibliography .............................................................................................................................................................................................................................26

© ISO 2013 – All rights reserved iii
---------------------- Page: 9 ----------------------
SIST EN ISO 10819:2013
ISO 10819:2013(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2, www.iso.org/directives.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received, www.iso.org/patents.

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

The committee responsible for this document is ISO/TC 108, Mechanical vibration, shock and condition

monitoring, Subcommittee SC 4, Human exposure to mechanical vibration and shock.

This second edition cancels and replaces the first edition (ISO 10819:1996), of which it constitutes a

technical revision. The main changes are stronger criteria for antivibration gloves and the addition of a

method for measuring the material thickness.
iv © ISO 2013 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 10819:2013
ISO 10819:2013(E)
Introduction

Because of the growing demand to reduce health risks associated with exposure to hand-transmitted

vibration, gloves with vibration-reducing materials are often used to attenuate vibration transmitted to

the hands. These gloves normally provide little reduction in hand-transmitted vibration at frequencies

below 150 Hz. Some gloves can increase the vibration transmitted to the hands at these low frequencies.

Gloves with vibration-reducing materials that meet the requirements of this International Standard to be

classified as an antivibration glove can be expected to reduce hand-transmitted vibration at frequencies

above 150 Hz. These gloves can reduce but not eliminate health risks associated with hand-transmitted

vibration exposure.

Field observations indicate that gloves with vibration-reducing materials can result in positive and

negative health effects. Positive health effects can occur with gloves that reduce finger tingling and

numbness and that keep the hands warm and dry. Negative health effects can occur with gloves that

increase the vibration transmitted to the hands at low frequencies and that increase hand and arm

fatigue because they increase the hand grip effort required to control a vibrating machine.

Gloves tested in accordance with the requirements of this International Standard are evaluated in a

controlled laboratory environment. The actual vibration attenuation of a glove in a work environment

can differ from that measured in a controlled laboratory environment.

Vibration transmissibility measurements made in accordance with the requirements of this International

Standard are performed only at the palm of the hand. The transmission of vibration to the fingers is not

measured. When evaluating the effectiveness of a glove with a vibration-reducing material used to reduce

vibration transmitted to the hand, vibration transmission to the fingers should also be assessed. However,

research subsequent to the publication of this International Standard is needed to develop a measurement

procedure that can be used to measure the vibration transmissibility of gloves at the fingers.

The measurement procedure specified in this International Standard only addresses glove properties

that can reduce health risks associated with hand-transmitted vibration in work environments. It does

not address glove properties necessary to reduce other hand-related health and safety risks in work

environments.

The measurement procedure specified in this International Standard can also be used to measure the

vibration transmissibility of a material that is being evaluated for use to cover a handle of a machine or

for potential use in a glove.
© ISO 2013 – All rights reserved v
---------------------- Page: 11 ----------------------
SIST EN ISO 10819:2013
---------------------- Page: 12 ----------------------
SIST EN ISO 10819:2013
INTERNATIONAL STANDARD ISO 10819:2013(E)
Mechanical vibration and shock — Hand-arm vibration
— Measurement and evaluation of the vibration
transmissibility of gloves at the palm of the hand

WARNING — This International Standard defines a screening test procedure for measuring the

vibration transmission through gloves with an embedded vibration-reducing material. Many factors

not addressed in this International Standard can influence the transmission of vibration through

these gloves. Therefore, use the vibration transmissibility values obtained in accordance with this

International Standard with caution in the assessment of the vibration-reducing effects of gloves.

1 Scope

This International Standard specifies a method for the laboratory measurement, data analysis, and

reporting of the vibration transmissibility of a glove with a vibration-reducing material that covers the

palm, fingers, and thumb of the hand. This International Standard specifies vibration transmissibility

in terms of vibration transmitted from a handle through a glove to the palm of the hand in one-third-

octave frequency bands with centre frequencies of 25 Hz to 1 250 Hz.

The measurement procedure specified in this International Standard can also be used to measure the

vibration transmissibility of a material that is being evaluated for use to cover a handle of a machine

or for potential use in a glove. However, results from this test cannot be used to certify that a material

used to cover a handle meets the requirements of this International Standard to be classified as an

antivibration covering. A material tested in this manner could later be placed in a glove. When this is the

case, the glove needs to be tested in accordance with the measurement procedure of this International

Standard and needs to meet the vibration attenuation performance requirements of this International

Standard in order to be classified as an antivibration glove.
[1]

NOTE ISO 13753 defines a method for screening materials used for vibration attenuation on the handles of

machines and for gloves.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

ISO 2041, Mechanical vibration, shock and condition monitoring — Vocabulary

ISO 5349-1, Mechanical vibration — Measurement and evaluation of human exposure to hand-transmitted

vibration — Part 1: General requirements
ISO 5805, Mechanical vibration and shock — Human exposure — Vocabulary
ISO 8041, Human response to vibration — Measuring instrumentation
IEC 61260, Electroacoustics — Octave-band and fractional-octave-band filters
EN 388, Protective gloves against mechanical risks
EN 420, Protective gloves — General requirements and test methods
© ISO 2013 – All rights reserved 1
---------------------- Page: 13 ----------------------
SIST EN ISO 10819:2013
ISO 10819:2013(E)
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 2041, ISO 5805 and the

following apply.
3.1
glove vibration transmissibility

ratio of the acceleration measured on the palm adaptor of the gloved hand to the acceleration measured

on the instrumented handle

Note 1 to entry: Glove vibration transmissibility values greater than 1 indicate that the glove amplifies the

vibration, and values lower than 1 indicate that the glove attenuates the vibration.

4 Symbols and abbreviations
The following symbols and abbreviations are used.

a ( f ) unweighted r.m.s. acceleration measured on the bare adaptor in the ith one-third-octave band

h(Pb) i
a ( f ) value of a ( f ) on three mutually orthogonal axes, respectively
h(Pbx,y,z) i h(Pb) i

a ( f ) unweighted r.m.s. acceleration measured on the palm adaptor of the gloved hand in the ith

h(Pg) i
one-third-octave band
a ( f ) value of a ( f ) on three mutually orthogonal axes, respectively
h(Pgx,y,z) i h(Pg) i

a ( f ) unweighted r.m.s. acceleration for spectrum S in the ith one-third-octave band

h(S) i

a ( f ) frequency-weighted r.m.s. acceleration for spectrum S in the ith one-third-octave band

hw(S) i

a ( f ) unweighted r.m.s. acceleration measured at the reference position on the handle in the ith

R i
one-third-octave band

C ( f ) coefficient of variation for the corrected handle-gloved hand transmissibility in the ith one-

V,T i
third-octave band

C coefficient of variation for the handle-gloved ISO-weighted hand transmissibility for spectrum

V,T(S)
f centre frequency of the ith one-third-octave band

H subscript representing one-third-octave frequency bands from 200 Hz to 1 250 Hz

i frequency band number of the lowest one-third-octave band associated with each spectrum S

according to Table 2

i frequency band number of the uppermost one-third-octave band associated with each spec-

trum S according to Table 2
M subscript representing one-third-octave frequency bands from 25 Hz to 200 Hz
S spectrum, S = S or S
M H

s ( f ) standard deviation for the corrected handle-gloved hand transmissibility in the ith one-third-

T i
octave band

s standard deviation for the handle-gloved ISO-weighted hand transmissibility for spectrum S

T(S)

T ( f ) handle-adaptor bare adaptor transmissibility in the ith one-third-octave band

b i
T ( f ) handle-gloved hand transmissibility in the ith one-third-octave band
g i
2 © ISO 2013 – All rights reserved
---------------------- Page: 14 ----------------------
SIST EN ISO 10819:2013
ISO 10819:2013(E)
T handle-adaptor bare adaptor ISO weighted transmissibility for spectrum S
b(S)
T uncorrected handle-gloved hand ISO weighted transmissibility for spectrum S
g(S)

T( f ) corrected handle-gloved hand transmissibility in the ith one-third-octave band

T corrected handle-gloved ISO weighted hand transmissibility for spectrum S
(S)

Tf mean value for the corrected handle-gloved hand transmissibility in the ith one-third-octave

band

mean value for the handle-gloved ISO-weighted hand transmissibility for spectrum S

()S

W ISO frequency-weighting factor specified in ISO 5349-1 for the ith one third-octave frequency

band associated with each spectrum S
5 Measuring principle and equipment
5.1 General principle and setup

The method specified in this International Standard is used to measure the vibration input to a gloved

hand that is transmitted through the glove at the palm of the hand, which grips and pushes on an

instrumented handle. The glove vibration transmissibility (3.1) measured at the palm is used as an

index to judge the vibration-reducing effectiveness of the glove. A vibration excitation system (normally

an electromechanical shaker) shall be used to generate the required vibration input. The vibration in

the direction of the excitation shall be simultaneously measured at the middle point of the top of the

instrumented handle (see Annex A) and between the palm of the hand and glove by means of a palm

adaptor. The adaptor shall contain an accelerometer and shall be placed inside the glove between the

hand and handle. To compensate for the frequency response of the palm adaptor, the glove vibration

transmissibility is calculated as the ratio of the vibration transmissibility values at the palm of the hand

with a glove, as measured with the palm adaptor, divided by the corresponding transmissibility values

associated with the bare palm adaptor attached to the handle.

A schematic drawing of a recommended vibration measurement setup is shown in Figure 1. The

acceleration at the reference point in the instrumented handle, a ( f ), and the vibration at the palm

R i

of the hand, a ( f ) or a ( f ), shall be measured simultaneously. Annex A shows examples of

h(Pb) i h(Pg) i

instrumented handles. The diameter of that part of the instrumented handle that is clasped by the hand

shall be (40 ± 0,5) mm.

The values of the grip and feed forces shall be displayed continuously so the test subject can continually

monitor them and consistently apply the required grip and feed forces throughout a test.

© ISO 2013 – All rights reserved 3
---------------------- Page: 15 ----------------------
SIST EN ISO 10819:2013
ISO 10819:2013(E)
Figure 1 — Schematic diagram for measurement of glove vibration transmissibility
5.2 Measuring equipment
5.2.1 General requirements

A minimum of a two-channel, one-third-octave band real-time frequency analyser and two accelerometers

are required.
The elements of the measuring chain shall fulfill the requirements of ISO 8041.
5.2.2 Transducer mounting
5.2.2.1 Mounting at the reference point in the handle

A single-axis accelerometer shall be embedded within the top surface of the test handle that will be in

contact with the palm adaptor. The accelerometer shall be placed near the centre of the length of the

handle, and its measurement axis shall be parallel to the vibration excitation axis. The exact location of

the accelerometer shall be marked on the surface of the handle.
5.2.2.2 Mounting for measurement at the palm of the hand

To measure vibration at the palm of the hand, a palm adaptor shall be used that contains an accelerometer

(may be a single axis or triaxial accelerometer) with the dimensions and shape shown in Figure 2. Its

mass, which includes the mass of the accelerometer, shall not exceed 15 g. The palm adaptor shall be

made of a rigid material,
...
