This International Standard defines routine and type tests on thyristor valves used in thyristor
controlled series capacitor (TCSC) installations for AC power transmission.
The tests specified in this International Standard are based on air insulated valves operating
in capacitive boost mode or bypass mode. For other types of valve and for a valve operating
in inductive boost mode, the test requirements and acceptance criteria are agreed between
purchaser and supplier.
Thyristorventile für thyristorgesteuerte Reihenkondensatoren (TCSC) - Elektrische Prüfung
Valves à thyristors pour condensateurs série commandés par thyristors (CSCT) - Essai électrique
L'IEC 62823:2015 définit les essais individuels de série et les essais de type sur les valves à thyristors utilisées dans les installations de condensateurs série commandés par thyristors (CSCT) pour transmission de puissance en courant alternatif. Les essais spécifiés dans la présente Norme sont basés sur des valves isolées par l'air fonctionnant en mode capacitif amplifié ou en mode de shuntage.
Tiristorski ventili (elektronke) za zaporedne kondenzatorje s tiristorskim upravljanjem (TCSC) - Električno preskušanje
Ta mednarodni standard opredeljuje rutinske in tipske preskuse za tiristorske ventile v inštalacijah zaporednih kondenzatorjev s tiristorskim upravljanjem (TCSC) za prenos izmenične električne energije. Preskusi, navedeni v tem mednarodnem standardu, temeljijo na zračno izoliranih ventilih, ki delujejo v načinu kapacitivnega pospeševanja ali obvoda. Pri drugih vrstah ventilov in pri ventilih, ki delujejo v načinu induktivnega pospeševanja, se naročnik in dobavitelj sama dogovorita o zahtevah za preskuse in merilih sprejemljivosti.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.LVWRUVNLPThyristor valves for thyristor controlled series capacitors (TCSC) - Electrical testing31.080.20TiristorjiThyristors17.220.20Measurement of electrical and magnetic quantitiesICS:Ta slovenski standard je istoveten z:EN 62823:2015SIST EN 62823:2016en01-marec-2016SIST EN 62823:2016SLOVENSKI
STANDARD
SIST EN 62823:2016
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 62823
November 2015 ICS 29.240.99
English Version
Thyristor valves for thyristor controlled series capacitors (TCSC) - Electrical testing (IEC 62823:2015)
Valves à thyristors pour condensateurs série commandés par thyristors (CSCT) - Essai électrique (IEC 62823:2015)
Thyristorventile für thyristorgesteuerte Reihenkondensatoren (TCSC) - Elektrische Prüfung (IEC 62823:2015) This European Standard was approved by CENELEC on 2015-09-24. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions. CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung CEN-CENELEC Management Centre: Avenue Marnix 17,
B-1000 Brussels © 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62823:2015 E SIST EN 62823:2016

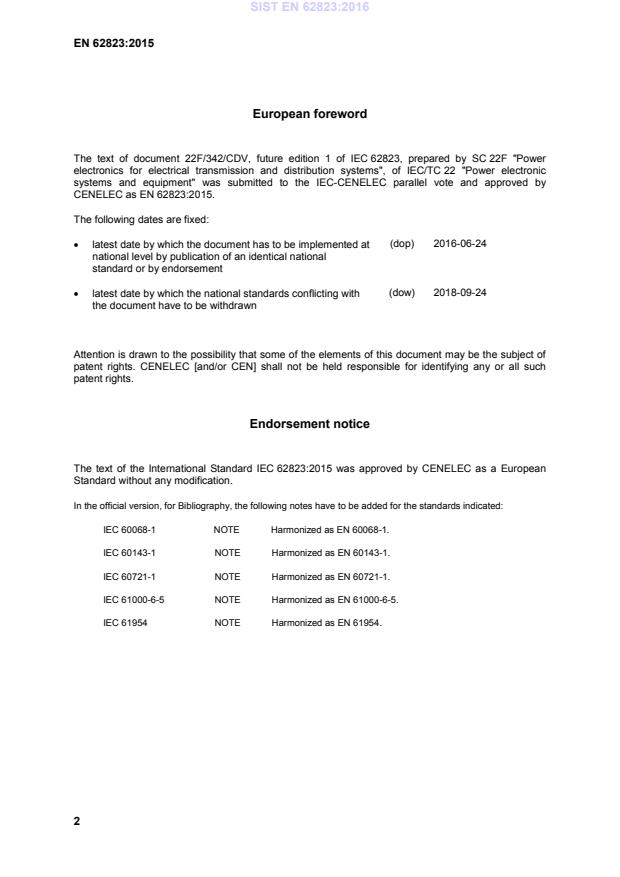

EN 62823:2015 2 European foreword The text of document 22F/342/CDV, future edition 1 of IEC 62823, prepared by SC 22F "Power electronics for electrical transmission and distribution systems", of IEC/TC 22 "Power electronic systems and equipment" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 62823:2015. The following dates are fixed: • latest date by which the document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2016-06-24 • latest date by which the national standards conflicting with the document have to be withdrawn (dow) 2018-09-24
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights. Endorsement notice The text of the International Standard IEC 62823:2015 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following notes have to be added for the standards indicated: IEC 60068-1 NOTE Harmonized as EN 60068-1. IEC 60143-1 NOTE Harmonized as EN 60143-1. IEC 60721-1 NOTE Harmonized as EN 60721-1. IEC 61000-6-5 NOTE Harmonized as EN 61000-6-5. IEC 61954 NOTE Harmonized as EN 61954. SIST EN 62823:2016
EN 62823:2015 3 Annex ZA (normative)
Normative references to international publications with their corresponding European publications The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies. NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here: www.cenelec.eu.
Publication Year Title EN/HD Year IEC 60060-1 2010
High-voltage test techniques - Part 1: General definitions and test requirements EN 60060-1 2010
IEC 60071-1 -
Insulation co-ordination - Part 1: Definitions, principles and rules EN 60071-1 -
IEC 60071-2 -
Insulation co-ordination - Part 2: Application guide EN 60071-2 -
IEC 60270 -
High-voltage test techniques - Partial discharge measurements EN 60270 -
SIST EN 62823:2016
SIST EN 62823:2016
IEC 62823 Edition 1.0 2015-08 INTERNATIONAL STANDARD NORME INTERNATIONALE Thyristor valves for thyristor controlled series capacitors (TCSC) – Electrical testing
Valves à thyristors pour condensateurs série commandés par thyristors (CSCT) – Essai électrique
INTERNATIONAL ELECTROTECHNICAL COMMISSION COMMISSION ELECTROTECHNIQUE INTERNATIONALE
ICS 29.240.99
ISBN 978-2-8322-2860-9
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale ®
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé. SIST EN 62823:2016 colourinside
– 2 – IEC 62823:2015 © IEC 2015 CONTENTS FOREWORD . 5 1 Scope . 7 2 Normative references . 7 3 Terms and definitions . 7 4 TCSC valve and valve operation in general . 10 4.1 TCSC installation and TCSC valve . 10 4.2 TCSC valve current and voltage at capacitive boost operation . 12 4.2.1 General . 12 4.2.2 Waveshapes of valve current and voltage in capacitive boost operation . 12 4.2.3 Formulas for TCSC valve current and voltage stresses calculation . 13 4.3 Typical operating pattern of TCSC installation . 15 5 General requirements . 15 5.1 Guidelines for the performance of type tests . 15 5.1.1 Evidence in lieu . 15 5.1.2 Sequence of tests . 16 5.1.3 Ambient temperature for testing . 16 5.1.4 Frequency for testing . 16 5.1.5 Test reports . 16 5.2 Test conditions for dielectric tests . 16 5.2.1 General . 16 5.2.2 Treatment of redundancy in dielectric tests . 16 5.2.3 Atmospheric correction factor . 17 5.3 Test conditions for operational tests . 17 5.3.1 General . 17 5.3.2 Treatment of redundancy in operational tests . 17 5.4 Criteria for successful type testing . 18 5.4.1 General . 18 5.4.2 Criteria applicable to valve levels . 18 5.4.3 Criteria applicable to the valve as a whole . 19 6 Summary of tests . 19 7 Dielectric tests between valve terminals and valve enclosure . 20 7.1 Purpose of tests . 20 7.2 Test object . 21 7.3 Test requirements . 21 7.3.1 AC test . 21 7.3.2 Lightning impulse test . 22 8 Dielectric tests between valve terminals . 22 8.1 Purpose of tests . 22 8.2 Test object . 22 8.3 Test requirements . 23 8.3.1 AC test . 23 8.3.2 Switching impulse test . 24 9 Periodic firing and extinction tests . 24 9.1 Purpose of tests . 24 9.2 Test object . 24 SIST EN 62823:2016
IEC 62823:2015 © IEC 2015 – 3 – 9.3 Test requirements . 25 9.3.1 General . 25 9.3.2 Maximum continuous capacitive boost test . 25 9.3.3 Maximum temporary capacitive boost test . 26 9.3.4 Minimum capacitive boost test . 26 9.3.5 Operation at bypass. 27 10 Fault current tests . 29 10.1 Purpose of tests . 29 10.2 Test object . 29 10.3 Test requirements . 29 10.3.1 Fault current without subsequent blocking . 29 10.3.2 Fault current with subsequent blocking . 29 11 Test for valve insensitivity to electromagnetic disturbance . 30 11.1 Purpose of tests . 30 11.2 Test object . 30 11.3 Test requirements . 30 12 Testing of special features . 30 12.1 Purpose of tests . 30 12.2 Test object . 31 12.3 Test requirements . 31 13 Routine tests . 31 13.1 General . 31 13.2 Visual inspection . 31 13.3 Connection check . 31 13.4 Voltage grading circuit check . 31 13.5 Voltage withstand check . 31 13.6 Partial discharge tests . 31 13.7 Check of auxiliaries . 32 13.8 Firing check . 32 13.9 Cooling system pressure test . 32 14 Presentation of type test results . 32 Annex A (informative)
TCSC valve operating and rating considerations . 33 A.1 Overview. 33 A.2 TCSC characteristics . 33 A.3 Operating range . 34 A.4 Reactive power rating . 35 A.5 Power oscillation damping (POD) . 35 A.6 SSR mitigation . 35 A.7 Harmonics . 36 A.8 Control interactions between TCSCs in parallel lines . 36 A.9 Operating range, overvoltages and duty cycles . 36 A.9.1 Operating range . 36 A.9.2 Transient overvoltages . 36 A.9.3 Duty cycles . 37 Annex B (informative)
Valve component fault tolerance. 38 Bibliography . 39
SIST EN 62823:2016
– 4 – IEC 62823:2015 © IEC 2015 Figure 1 – Typical connection and nomenclature of a TCSC installation . 11 Figure 2 – TCSC subsegment . 11 Figure 3 – TCSC steady state waveforms for
control angle . and conduction interval 1 . 12 Figure 4 – Thyristor valve voltage in a TCSC . 13 Figure 5 – Example of operating range diagram for TCSC . 15 Figure A.1 – TCSC power frequency steady state apparent reactance
characteristics according to Formula (A.1) with
= 2,5 . 34
Table 1 – Valve level faults permitted during type tests . 19 Table 2 – List of tests . 20 Table A.1 – Peak and RMS voltage relationships . 33
SIST EN 62823:2016
IEC 62823:2015 © IEC 2015 – 5 – INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________
THYRISTOR VALVES FOR THYRISTOR CONTROLLED
SERIES CAPACITORS (TCSC) – ELECTRICAL TESTING
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any services carried out by independent certification bodies. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 62823 has been prepared by subcommittee 22F: Power electronics for electrical transmission and distribution systems, of IEC technical committee 22: Power electronic systems and equipment. The text of this standard is based on the following documents: CDV Report on voting 22F/342/CDV 22F/354A/RVC
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. SIST EN 62823:2016
– 6 – IEC 62823:2015 © IEC 2015 The committee has decided that the contents of this publication will remain unchanged until the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be
• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it contains colours which are considered to be useful for the correct understanding of its contents. Users should therefore print this document using a colour printer.
SIST EN 62823:2016
IEC 62823:2015 © IEC 2015 – 7 – THYRISTOR VALVES FOR THYRISTOR CONTROLLED
SERIES CAPACITORS (TCSC) – ELECTRICAL TESTING
1 Scope This International Standard defines routine and type tests on thyristor valves used in thyristor controlled series capacitor (TCSC) installations for AC power transmission.
The tests specified in this International Standard are based on air insulated valves operating in capacitive boost mode or bypass mode. For other types of valve and for a valve operating in inductive boost mode, the test requirements and acceptance criteria are agreed between purchaser and supplier. 2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. IEC 60060-1:2010, High-voltage test techniques – Part 1: General definitions and test requirements IEC 60071-1, Insulation co-ordination – Part 1: Definitions, principles and rules IEC 60071-2, Insulation co-ordination – Part 2: Application guide IEC 60270, High-voltage test techniques – Partial discharge measurements 3 Terms and definitions
For the purposes of this document, the following terms and definitions apply. 3.1
thyristor valve
electrically and mechanically combined assembly of thyristor levels, complete with all connections, auxiliary components and mechanical structures, which can be connected in series with each phase of the reactor of a TCSC 3.2
valve section electrical assembly, comprising a number of thyristors and other components, which exhibits prorated electrical properties of a complete valve Note 1 to entry: This term is mainly used to define a test object for valve testing purposes. 3.3
thyristor level part of a valve comprising an anti-parallel connected pair of thyristors together with their immediate auxiliaries, and reactor, if any SIST EN 62823:2016
– 8 – IEC 62823:2015 © IEC 2015 3.4
redundant thyristor levels, pl
maximum number of thyristor levels in the thyristor valve that may be short-circuited, externally or internally, during service without affecting the safe operation of the thyristor valve as demonstrated by type tests and which, if and when exceeded, would require either the shutdown of the thyristor valve to replace the failed thyristors or the acceptance of increased risk of failures 3.5
valve arrester
arrester connected across a valve
3.6
valve electronics
VE electronic circuits at valve potential(s) that perform control functions Note 1 to entry: This note applies to the French language only. 3.7
valve interface electronics unit electronic unit which provides an interface between the control equipment, at earth potential, and the valve electronics or valve devices Note 1 to entry: Valve interface electronics units, if used, are typically located at earth potential close to the valve(s). Note 2 to entry: The term “valve base electronics” (VBE) is also used to designate this unit. 3.8
thyristor-controlled series capacitor bank
TCSC bank assembly of thyristor valves, reactor(s), capacitors, and associated auxiliaries, such as structures, support insulators, switches, and protective devices, with control equipment required for a complete operating installation 3.9
TCSC reactor one or more reactors connected in series with the thyristor valve
SEE: Figure 1, item 4. 3.10
valve enclosure platform-mounted enclosure containing thyristor valve(s) with associated valve cooling and electronic hardware 3.11
temporary overload
short-term overload capability of the TCSC at rated frequency and ambient temperature range SEE: Figure 5. Note 1 to entry: Temporary overload is typically of several seconds duration, less than 10 s. 3.12
valve protective firing means of protecting the thyristors from excessive voltage by firing them at a predetermined voltage
SIST EN 62823:2016
IEC 62823:2015 © IEC 2015 – 9 – 3.13
line current
iL power frequency line current SEE: Figure 2. 3.14
rated current IN
RMS line current (IL) at which the TCSC should be capable of continuous operation with rated reactance (XN) and rated voltage (UN) 3.15
valve current iV current through the thyristor valve
SEE: Figure 2. 3.16
bypass current
current flowing through the thyristor valve in parallel with the series capacitor, when the series capacitor is bypassed 3.17
capacitor voltage UC voltage across the TCSC SEE: Figure 2. 3.18
nominal reactance XN
nominal power frequency reactance for each phase of the TCSC with nominal boost factor 3.19
rated TCSC voltage UN
power frequency voltage across each phase of the TCSC that can be continuously controlled at nominal reactance (XN), rated current (IN), nominal power frequency, and ambient temperature range 3.20
apparent reactance X(.)
TCSC apparent power frequency reactance as a function of thyristor control angle (.)
SEE: Figure 3, Figure A.1 and Formula A.1. 3.21
rated capacitance CN capacitance value for which the TCSC capacitor has been designed
SIST EN 62823:2016
– 10 – IEC 62823:2015 © IEC 2015 3.22
physical reactance XC
power frequency reactance for each phase of the TCSC bank with thyristors blocked and a capacitor internal dielectric temperature of 20 °C
()NNC1CX⋅=ω 3.23
boost factor kB
the ratio of apparent reactance X(.) divided by physical reactance XC kB = X(.) / XC 3.24
conduction interval 1
part of a half of a power frequency cycle during which a thyristor valve is in the conducting state
1 = 2 SEE: Figure 3. 3.25
control angle . time expressed in electrical angular measure from the capacitor voltage (UC) zero crossing to the starting of current conduction through the thyristor valve
SEE: Figure 3. 3.26
internal fault line fault occurring within the protected line section containing the series TCSC subsegment 3.27
external fault line fault occurring outside the protected line section containing the series TCSC subsegment 4 TCSC valve and valve operation in general
4.1 TCSC installation and TCSC valve Transmission line series reactance can be compensated by combinations of fixed series capacitors (FSC) and TCSC based controllable segments, as shown in Figure 1. A TCSC subsegment uses a thyristor-controlled reactor (TCR) in parallel with a capacitor bank with the rated capacitance CN, as shown in Figure 2. The thyristor valve used in this TCSC subsegment is a TCSC valve (See Figure 1, item 5). SIST EN 62823:2016
IEC 62823:2015 © IEC 2015 – 11 –
Key
1 TCSC unit 8 Discharge current limiter, if applicable
2 Additional TCSC unit when required 9 Bypass switch
3 TCSC capacitor
10 Bypass gap
4 TCSC reactor 11 External bypass disconnector 5 TCSC thyristor valve 12 External isolating switch 6 TCSC subsegment 13 External earth switch 7 Capacitor arrester 14 Additional FSC unit when required Figure 1 – Typical connection and nomenclature of a TCSC installation
Figure 2 – TCSC subsegment IEC TCSC reactor (L)Thyristor valveArresterCapacitor (C)iLiViCUCIEC 10941211531368712PhasePhase141213SIST EN 62823:2016
– 12 – IEC 62823:2015 © IEC 2015 4.2 TCSC valve current and voltage at capacitive boost operation 4.2.1 General Even if a TCSC valve can be, theoretically, operated in an inductive boost mode, this operation is not used in practice in a TCSC installation due to the system compensation need and other limitations. Capacitive boost operation mode is a used operation mode of a TCSC valve.
4.2.2 Waveshapes of valve current and voltage in capacitive boost operation At a sinusoidal line current and voltage (see Figur
...
