Standards Content (Sample)

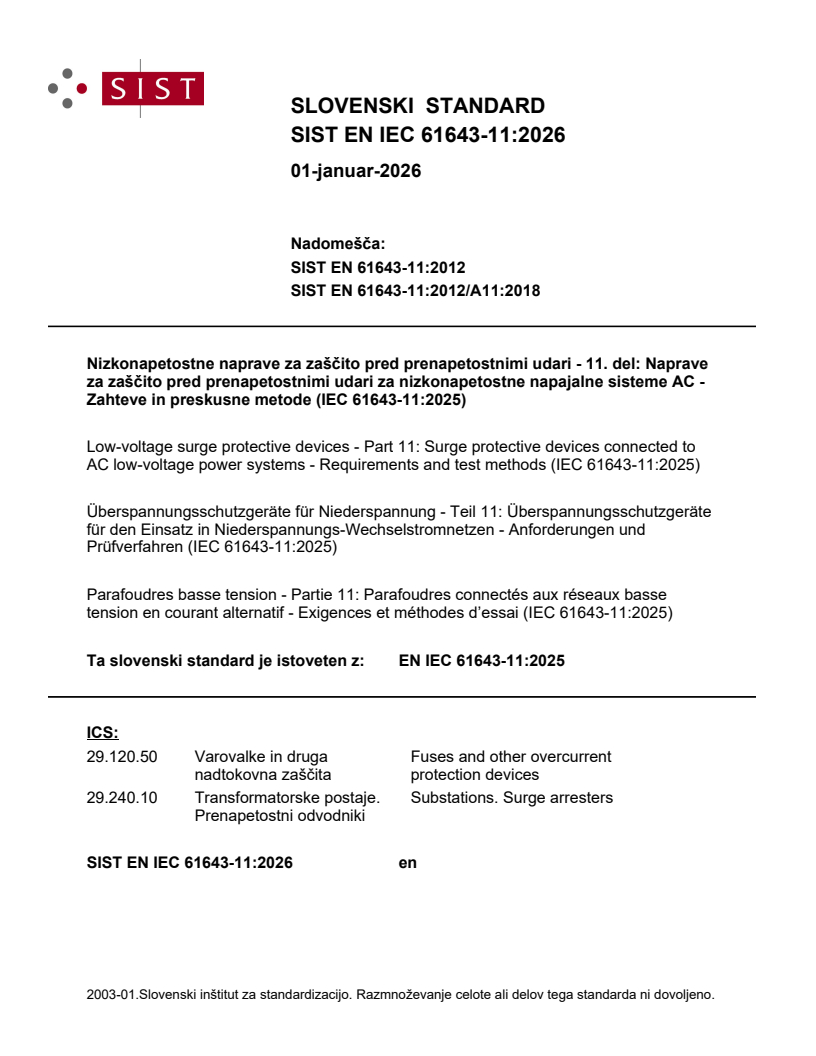

SLOVENSKI STANDARD
01-januar-2026
Nadomešča:
SIST EN 61643-11:2012
SIST EN 61643-11:2012/A11:2018
Nizkonapetostne naprave za zaščito pred prenapetostnimi udari - 11. del: Naprave
za zaščito pred prenapetostnimi udari za nizkonapetostne napajalne sisteme AC -
Zahteve in preskusne metode (IEC 61643-11:2025)
Low-voltage surge protective devices - Part 11: Surge protective devices connected to
AC low-voltage power systems - Requirements and test methods (IEC 61643-11:2025)
Überspannungsschutzgeräte für Niederspannung - Teil 11: Überspannungsschutzgeräte
für den Einsatz in Niederspannungs-Wechselstromnetzen - Anforderungen und
Prüfverfahren (IEC 61643-11:2025)
Parafoudres basse tension - Partie 11: Parafoudres connectés aux réseaux basse
tension en courant alternatif - Exigences et méthodes d’essai (IEC 61643-11:2025)
Ta slovenski standard je istoveten z: EN IEC 61643-11:2025
ICS:
29.120.50 Varovalke in druga Fuses and other overcurrent
nadtokovna zaščita protection devices
29.240.10 Transformatorske postaje. Substations. Surge arresters
Prenapetostni odvodniki
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

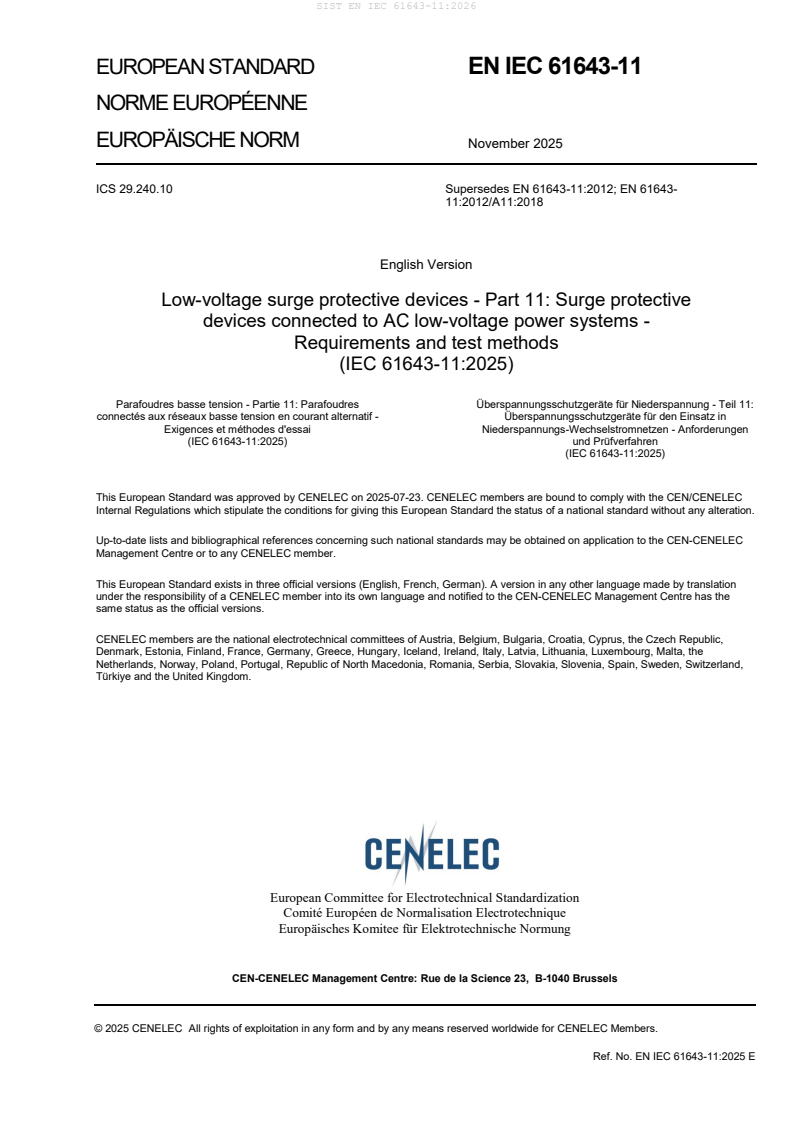

EUROPEAN STANDARD EN IEC 61643-11
NORME EUROPÉENNE
EUROPÄISCHE NORM November 2025
ICS 29.240.10 Supersedes EN 61643-11:2012; EN 61643-
11:2012/A11:2018
English Version
Low-voltage surge protective devices - Part 11: Surge protective
devices connected to AC low-voltage power systems -
Requirements and test methods
(IEC 61643-11:2025)
Parafoudres basse tension - Partie 11: Parafoudres Überspannungsschutzgeräte für Niederspannung - Teil 11:
connectés aux réseaux basse tension en courant alternatif - Überspannungsschutzgeräte für den Einsatz in
Exigences et méthodes d'essai Niederspannungs-Wechselstromnetzen - Anforderungen
(IEC 61643-11:2025) und Prüfverfahren
(IEC 61643-11:2025)
This European Standard was approved by CENELEC on 2025-07-23. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61643-11:2025 E
European foreword
The text of document 37A/427/FDIS, future edition 2 of IEC 61643-11, prepared by SC 37A "Low-
voltage surge protective devices" of IEC/TC 37 "Surge arresters" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN IEC 61643-11:2025.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2026-11-30
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2028-11-30
document have to be withdrawn
This document supersedes EN 61643-11:2012 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document is read in conjunction with EN IEC 61643-11:2025/A11:2025.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61643-11:2025 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60038:2009 NOTE Approved as EN 60038:2011
IEC 61643-11 ®
Edition 2.0 2025-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Low-voltage surge protective devices –
Part 11: Surge protective devices connected to AC low-voltage power systems –
Requirements and test methods
Parafoudres basse tension –
Partie 11: Parafoudres connectés aux réseaux basse tension en courant
alternatif – Exigences et méthodes d’essai
ICS 29.240.10 ISBN 978-2-8327-0473-8
IEC 61643-11:2025-06(en-fr)
– 2 – IEC 61643-11:2025 © IEC 2025
CONTENTS
FOREWORD . 5
INTRODUCTION . 8
1 Scope . 9
2 Normative references . 9
3 Terms, definitions and abbreviated terms . 10
3.1 Terms and definitions . 10
4 Classification . 10
4.13 End-of-life mode of the SPDA . 10
4.100 Power system. 10
4.100.1 AC between 47 Hz and 63 Hz . 10
4.100.2 AC other than the range of 47 Hz to 63 Hz . 10
5 Void . 10
6 Marking and other product information . 10
6.2 List of items . 10
6.2.100 Markings which are required on the body, or permanently attached to the
body, of the SPD . 11
6.2.100.1 Markings which shall be visible after installation. 11
6.2.100.2 Markings which are not required to be visible after installation . 11
6.2.101 Information to be provided by the manufacturer . 11
6.2.102 Information which shall be provided by the manufacturer for type testing, as
applicable . 11
7 Service conditions . 11
7.100 Frequency. 11
8 Requirements . 11
8.3 Electrical requirements . 11
8.3.6.4 Dedicated overstress behaviour . 11
8.3.9 Behaviour under temporary overvoltages . 12
8.3.9.100 TOVs caused by faults or disturbances in the low voltage system . 12
8.3.9.101 TOVs caused by faults in the high (medium) voltage system . 12
8.5 Environmental and material requirements . 12
8.5.5 Ageing behaviour under damp heat . 12
8.6.100 Portable SPDs defined as pluggable equipment type A . 12
9 Tests . 12
9.1 Type testing procedures . 12
9.1.1 General. 12
9.3 Electrical tests . 17
9.3.3 Protective conductor current I . 17
PE
9.3.3.1 Test procedure . 17
9.3.5 Operating duty test . 17
9.3.5.2 Power source characteristics for the operating duty test . 17
9.3.5.2.1 General . 17
9.3.5.2.3 SPD's modes of protection with follow current according to Annex B of
IEC 61643-01 . 17
9.3.6 Safety performance of overstressed SPDs . 17
9.3.6.2 Thermal protection test . 17
9.3.6.2.2 Test settings . 17
IEC 61643-11:2025 © IEC 2025 – 3 –
9.3.6.3 Short-circuit current behaviour test . 18
9.3.6.3.3 Test at the declared short-circuit current rating . 18
9.3.6.3.4 Test at low short-circuit current . 18
9.3.6.4 Dedicated overstress test . 19
9.3.6.4.100 Sample preparation . 19
9.3.6.4.101 Test procedure . 19
9.3.6.4.102 Pass criteria . 21
9.3.9 Behaviour under temporary overvoltages (TOVs) . 21
9.3.9.100 TOVs caused by faults in the low voltage system . 21
9.3.9.100.1 General . 21
9.3.9.100.2 Test procedure . 21
9.3.9.100.3 Pass criteria . 23
9.3.9.101 TOVs caused by faults in the high (medium) voltage system . 23
9.3.9.101.1 General . 23
9.3.9.101.2 Test procedure . 23
9.3.9.101.3 Pass criteria . 25
9.5 Environmental and material tests. 25
9.5.5 Life test under damp heat . 25
Annex AA (normative) Application of annexes from IEC 61643-01 . 26
Annex BB (normative) Test voltages for SPDs – U . 27
test
Annex CC (normative) TOV Ratings . 33
CC.1 Overview . 33
CC.2 TOV ratings based on IEC 60364-4-44:2024, Clause 442. 33
CC.3 Other TOV ratings for specific distribution systems or countries. 34
CC.3.1 General. 34
CC.3.2 North American systems . 34
CC.3.3 Japanese systems . 35
Annex DD (normative) Reduced test procedures . 36
Annex EE (normative) Portable SPDs defined as pluggable equipment type A . 38
EE.1 General . 38
EE.2 Additional requirements . 38
EE.3 Modified test requirements. 39
EE.3.1 Test at low short-circuit current . 39
EE.3.2 Ded
...
