SIST EN 2402:2014

Aerospace series - Heat resisting nickel base alloy NiCr20Co3Fe3 - Annealed - Wire - D ≤ 10 mm

This European Standard specifies the requirements relating to: Heat resisting nickel base alloy NiCr20Co3Fe3 Annealed Wire D ≤ 10 mm
for aerospace applications.
NOTE Other designation: Only the chemical composition of this standard must be considered.

Luft- und Raumfahrt - Hochwarmfeste Nickelbasislegierung NiCr20Co3Fe3 - Geglüht - Draht - D ≤ 10 mm

Diese Norm legt die Anforderungen an
Hochwarmfeste Nickelbasislegierung NiCr20Co3Fe3
Geglüht
Draht D ≤ 10 mm
zur Anwendung in der Luft- und Raumfahrt fest.
ANMERKUNG Weitere übliche Bezeichnungen:
Es muss nur die chemische Zusammensetzung dieser Norm beachtet werden.

Série aérospatiale - Alliage résistant à base de nickel NiCr20Co3Fe3 - Requit - Fil - D ≤ 10 mm

Aeronavtika - Toplotnoodporna zlitina na osnovi niklja NiCr20Co3Fe3 - Žarjena - Žica - D ≤ 10 mm

EN 2402 določa zahteve glede: žarjene žice D ≤ 10 mm iz toplotnoodporne zlitine na osnovi niklja NiCr20Co3Fe3 za uporabo v aeronavtiki.

General Information

• Status: Published
• Publication Date: 05-Jun-2014
• ICS: 49.025.15 - Non-ferrous alloys in general
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 19-May-2014
• Due Date: 24-Jul-2014
• Completion Date: 06-Jun-2014
• Ref Project: EN 2402:2014 - Aerospace series - Heat resisting nickel base alloy NiCr20Co3Fe3 - Annealed - Wire - D ≤ 10 mm

Overview

EN 2402:2014 is a CEN aerospace series standard specifying requirements for the heat‑resisting nickel base alloy NiCr20Co3Fe3 supplied as annealed wire with diameter D ≤ 10 mm. Prepared under ASD‑STAN and adopted by CEN, the standard focuses on material designation, delivery condition, production method and the mandatory consideration of chemical composition for aerospace applications.

This standard is part of the EN metallic materials for aerospace series and is intended to ensure consistent material quality, traceability and suitability for high‑temperature aerospace components.

Key Topics

• Material designation: Heat resisting nickel base alloy NiCr20Co3Fe3 (only the chemical composition is to be considered for this designation).
• Form and production: Wire form produced by cold drawing.
• Limit dimensions: Wire diameter D ≤ 10 mm.
• Melting methods: Acceptable melting routes include air or vacuum melting, air melted then vacuum refined, or consumable electrode remelted.
• Delivery condition: Annealed and descaled or bright annealed; specified heat treatment range is 1 000 °C to 1 050 °C with air cooling or cooling in protective atmosphere.
• Referenced test and qualification standards: Normative references include EN 4700-004 (wire technical specification), EN 3238 (shear test for wires), and EN 2043 (semi‑finished product qualification).

Applications

EN 2402:2014 is tailored for aerospace industry stakeholders who require reliable, heat‑resisting nickel alloy wire for high‑temperature or corrosion‑resistant parts. Typical practical benefits include:

• Material consistency: Standardized chemical composition requirements reduce variability across suppliers.
• Quality assurance: Defined delivery conditions and referenced test methods support purchaser verification and batch acceptance.
• Traceability and procurement: Clear designation and normative links to EN product qualification streamline procurement and certification processes for aerospace components.

Use cases include feedstock for manufacturing small diameter high‑temperature components, fasteners or wire‑formed parts where NiCr20Co3Fe3 alloy properties are required and where D ≤ 10 mm is a dimensional constraint.

Related Standards

• EN 4700-004: Technical specification for wire-provides details on sampling, tests and tolerances for wrought heat‑resisting alloys.
• EN 3238: Test method for shear testing of wires and rivets-used for shear strength verification.
• EN 2043: General requirements for semi‑finished product qualification-outlines product qualification programme and supplier/purchaser agreement.

For procurement, qualification and engineering use, reference EN 2402:2014 alongside these normative documents to ensure full compliance with aerospace material requirements and testing protocols.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.49.025.15Neželezove zlitine na splošnoNon-ferrous alloys in generalICS:Ta slovenski standard je istoveten z:EN 2402:2014SIST EN 2402:2014en,fr,de01-julij-2014SIST EN 2402:2014SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2402
April 2014 ICS 49.025.15 English Version
Aerospace series - Heat resisting nickel base alloy NiCr20Co3Fe3 - Annealed - Wire - D ≤ 10 mm
Série aérospatiale - Alliage résistant à base de nickel NiCr20Co3Fe3 - Requit - Fil - D ≤ 10 mm
Luft- und Raumfahrt - Hochwarmfeste Nickelbasislegierung NiCr20Co3Fe3 - Geglüht - Draht - D ≤ 10 mm This European Standard was approved by CEN on 27 December 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2402:2014 ESIST EN 2402:2014

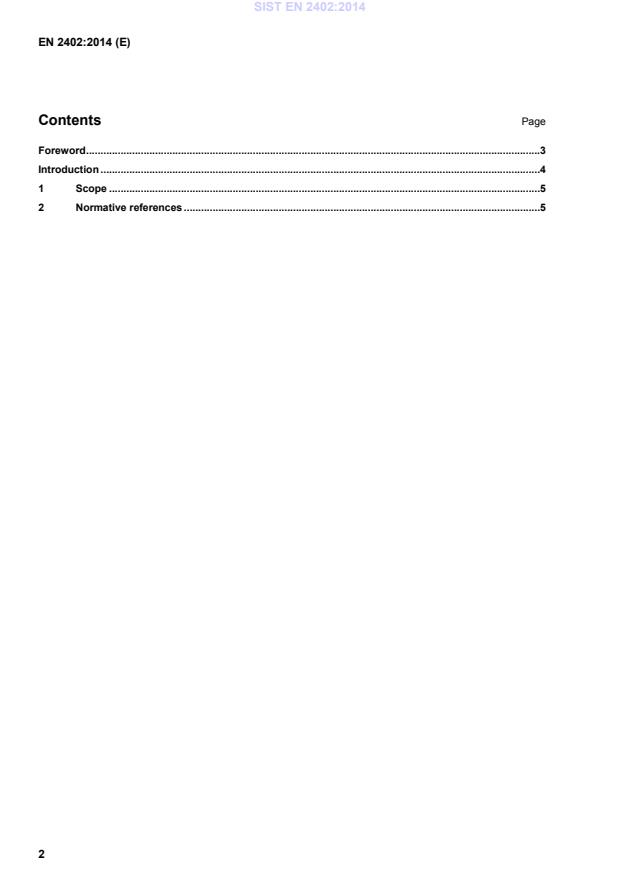

Page coreword .3 Introduction .4 1 Scope .5 2 kormative references .5 SIST EN 2402:2014
...
